Jig for Sweep Ports


Post new topic   Reply to topic   printer-friendly view    Model Ship World Forum Index -> Wooden Tips and Tricks and Making Jigs
View previous topic :: View next topic

Bosco

 Reply with quote

Vice Admiral (Special Contributor)
Vice Admiral (Special Contributor)




Joined: 13 May 2006
Posts: 181
Location: Ste-Therese (Quebec)
Country: canada


PostPosted: Fri Mar 09, 2007 9:38 pm •   Post subject: Jig for Sweep Ports

Jig for Sweep Ports

The jig presented below is used for the Brig Niagara, but the principle can be used for the other models having sweep ports for oars.

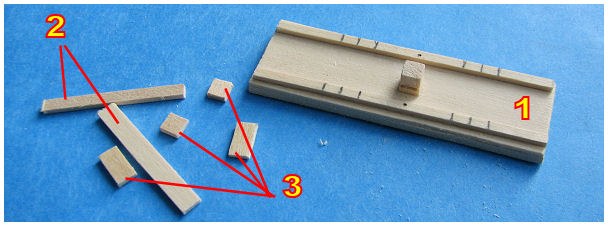

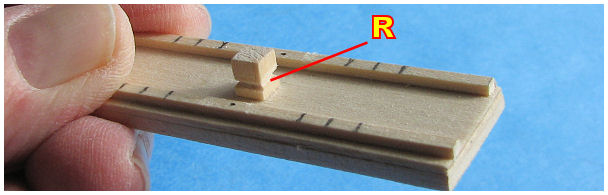

1. Jig with in the centre a part with a square section (3/16"x 3/16") corresponding to the inner measures of the sweep port. A groove R surrounds this part to avoid the sweep port gluing on the jig.
2. Planks of the outer planking.
3. Parts to form the sweep port.

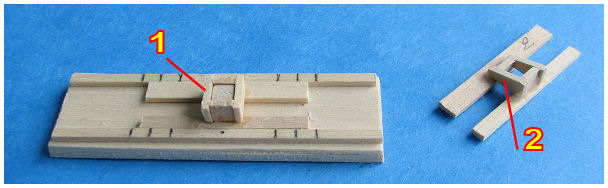

1. The sweep port is glued on the planks of the outer planking.
2. The sides of the sweep port are filed to have the same profile as timberheads.

Friendly,
Bosco PDT_Aliboronz_15
_________________
Soon enough,
Is well enough

Wooden Ship Modeling for Dummies
