HMS Swift by lunarlander - Mamoli - Scale 1/70 (my 1st build)

Recommended Posts

After looking at many other kits I chose this as my 1st build cause I love the hms ships and this one seemd to be the most reasonable in scale and detail for a 1st time build


I got to work on it right aways trying to get all the bulkheads to line up properly was a bit of a pain as well as the deck you really have to bend it good to make it fit I used a lot of glue both ca and wood glue ca just to get it pinnd down and then wood glue to hoipefully keep it down over the years





Edited by lunarlander
Link to comment
Share on other sites

Getting ready to do the deck the coaming were just on there for the picture I had built them previously while scratching my head over mistakes while planking


Getting the deck planks down was a fun part of the build for me im not sure why maybe it was just nice to deal with straight planks as opposed to the bent and tapperd ones for the hull



now drilling all those little holes by hand and then filling them was not so much fun I used the wrong kind of filler it was elmers and it drys very hard moreso than the planks so I was being very careful not to sand too much a.Next time around I think ill go for a softer drying filler


I then did a mock up to see how I wanted to finish the deck accually I did the holes b4 starting to drill on the deck to see which size seemd the best fit


I then used just a wipe on poly as I read other people were using and was pretty happy with the result


I then built the rails and they were a pain four lengths 1mm by 1mm had to be laminated together and formd to the shape of the bow it was very messy and took a few days to do



Edited by lunarlander
Link to comment
Share on other sites

Adding on some more paint and details really makes it feel like its coming together even tho a long way to go still I really am enjoying this I have a  syren kit sitting in the box waiting to be built also but that's looking like a long time away.



I gave the cannons a few more costs of paint and finished the cannons with a satin sealent I tried to paint the metal belay pins black but it turnd into a nightmare all the paint was stripping when I pulld them out of the holder which was a starcucks lid anyways out with the metal walnut belay pins are on the way:)



Edited by lunarlander
Link to comment
Share on other sites

I couldn't help myself stole the 1.5mm cannon balls from the syren kit I just really want this model to be somewhat detaild as it will in the end be a gift for my father.I do have replacements coming but they are 2mm hopefully it doesn't hurt the scale for the next build.


I have now started to get to work on the the belay racks and those little posts sure did a number on my eyes all 16 of them geesh time for some better lighting



Link to comment
Share on other sites

Are you sure this is your first build ? ,if so your doing a great job and it sounds as if you got the building bug . I bet you have the next kit picked out in your head if not bought already . For the small delicate work i find a set of magnifing glasses are a must and a flexable table light very usefull but maybe your eyes are younger than mine . You mentioned cannon balls and i thought id mention something im looking into at present . If you have a local gunshop or know someone who uses a shotgun try opening a cartridge and you will find its filled with cannon balls  . you may be able to find the size you want and very cheap . Keep up the good work and plenty of pics but above all have fun.

Link to comment
Share on other sites

Thanx yes its my 1st build I do hve the syren from model expo already here waitng to be built that's where I got the cannon balls from.i was concidering ordering a wooden boat for the ship boat the one that comes with this kit is cast metal primed white but maybe it will turn out ok after painting and building seats oars etc

Link to comment
Share on other sites

After painting the britannia cast belay pins with acrylic paint by hand and having it not work out I tryed wooden ones and they lookd horribly out of scale and too short  then I tryd brass ones from my syren kit and they were too long I decided to clean off the paint which was a pain in the butt and spray the 7mm cast belay pins with a flat black primer and im very happy with the result.Should have just spray painted in the 1st place lesson learnt!!













Link to comment
Share on other sites

  • 2 months later...


I am just about finished with my second planking of Swift.   Well done with yours it looks tidier and cleaner than mine but I will get there with lots of sanding.


Clearly you are more practised than me and I may need a little help as I am struggling translating the instructions and plans.  I am pretty handy with tools etc but just not sure at times.

Link to comment
Share on other sites

your build is coming along nicely. Excellent work for your 1st build. I had the same problem with mamoli's metal parts. Belaying pins are hopeless and deadeye straps are even worse. How have you found Mamoli's plans and instructions ?

Link to comment
Share on other sites

  • 7 months later...

your build is coming along nicely. Excellent work for your 1st build. I had the same problem with mamoli's metal parts. Belaying pins are hopeless and deadeye straps are even worse. How have you found Mamoli's plans and instructions ?

its been a while since ive been here sorry for the late reply I find mamoli's instuctions and plans confusing and the use of words its hard to dechipher I have spent alot of time on here looking through posts to find answers and make sense out of the instructions.Their wood is nice tho

Link to comment
Share on other sites

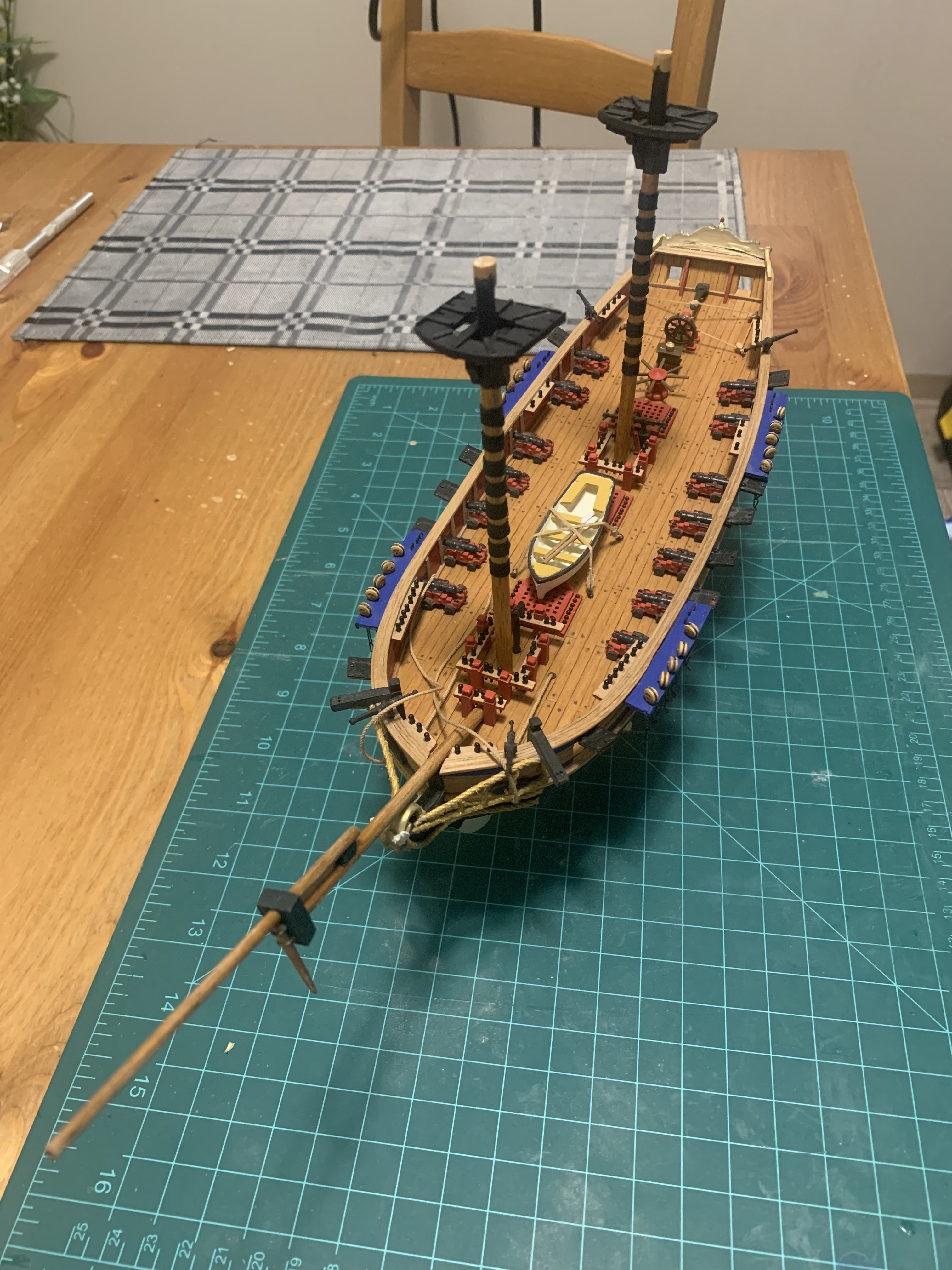

I didnt stick with the plans on the tiller/steering rigging I didnt see how the geometry would work in a real life application so this is what I came up with starting on the bowsprit now.I take the photos with my iphone  and resize them on the computer they arent turning out very well if anyone has any sugestions for posting better quality pics.









Link to comment
Share on other sites

  • 3 weeks later...
