Duchess of Kingston 1798 by glennard2523 - Vanguard Models - 1:64 - Commission Build

[Glenn-UK]

This is the build log for the Vanguard Model Duchess of Kingston. My daughter-in-law as always admired the first Duchess of Kingston model I built and was very pleased when I offered to make one for her.



I will be referring to the various build logs for this models, and in particular James and Delf excellent build logs, plus my original build log.



A brief history of the Royal Yacht

In the late 18th century, the Royal Yacht was a symbol of wealth and power for the British monarchy. In 1778, a new Royal Yacht was commissioned for the Duchess of Kingston, a prominent figure in British high society. This yacht, also known as the HMY (Her Majesty’s Yacht) Royal Caroline, was a luxurious vessel that reflected the opulence and extravagance of the time.



The Duchess of Kingston, Elizabeth Chudleigh, was a controversial figure in British society. She was known for her lavish parties and extravagant lifestyle, and her relationship with King George III’s younger brother, the Duke of Cumberland, caused quite a scandal. As a result, the King himself commissioned the construction of a new Royal Yacht for the Duchess, perhaps as a way to appease her and maintain her loyalty to the monarchy.



The 1778 Duchess of Kingston Royal Yacht was designed by renowned shipbuilder John Williams and was built at the Woolwich Dockyard. It was a stunning vessel, measuring 106 feet in length and capable of reaching speeds of up to 10 knots. The yacht had three masts and was adorned with intricate carvings and decorations, including the Duchess’s coat of arms.



The interior of the yacht was even more lavish than its exterior. It boasted six cabins, including a grand state room for the Duchess herself. The state room was decorated with silk draperies, gold trimmings, and luxurious furnishings, making it fit for a royal. The other cabins were equally luxurious, with silk-lined walls and plush furnishings.



The Duchess of Kingston’s Royal Yacht was not just a means of transportation, but also a place for entertainment and leisure. It had a spacious dining room where the Duchess could host her famous parties and entertain her guests. The yacht also had a music room and a library, showcasing the Duchess’s love for the arts and literature.



The yacht was also equipped with the latest technology of the time. It had a state-of-the-art kitchen, a wine cellar, and even a private bathroom for the Duchess, a luxury that was unheard of on most ships at the time. The Duchess also had a personal staff of 26 people to cater to her every need during her voyages.



The 1778 Duchess of Kingston Royal Yacht was not just a symbol of luxury and extravagance, but it also served a practical purpose. The Duchess used the yacht to travel to the continent, often to attend grand events and visit her properties. It also served as a means for the Duchess to maintain her status and influence in British society.



Unfortunately, the Duchess’s reign as the owner of the Royal Yacht was short-lived. In 1786, she was accused of bigamy and had to flee the country to avoid prosecution. The yacht was seized by the government and eventually sold off. However, its legacy lived on, and it is still remembered as one of the most opulent and extravagant Royal Yachts of its time, a true representation of the lavish lifestyle of the British aristocracy.

[Ronald-V]

You're a cool father-in-law! How cool that you're going to make that for her. Good luck building this ship...again

[Knocklouder]

In for the journey,  good luck with the build.

Bob  M

[Glenn-UK]

Build Log - Day 1 (24^th Oct 2025)



Task 1 – Temporary Cradle

The 4 MDF parts that comprise the temporary cradle were removed from the 3mm MDF sheet, using my trusty craft knife. I did find it beneficial to cut the tabs on both sides of the MDF sheet when removing these parts. Although not strictly necessary for this task I did clean up the tabs, once the parts had been released using a sanding stick, as it is good habit to have for this hobby.



The four parts slotted together perfectly with a nice click when they were fully located. It was not necessary to glue these parts in place as the cradle was very solid once assembled.



Task 2 – False Keel Main Mast Support

There is a support piece for the main mast to be fitted to the false keel. I referred to the photo in the build manual associated with the build instructions 7 & 8 together with plan sheet 4 to ensure that main mast support was correctly positioned. With the main mast support in place, I applied a diluted PCV solution to the joints. Finally, I used a small piece of 8mm dowel to check it would fully locate and was very pleased it was a perfect fit. There is also two fore mast supports to be glued to the bow support patterns.



Task 3 – Removal of Bulkheads

I removed all the bulkheads and all the other parts from the 3mm MDF sheets. The build instructions then recommends to pre fairing some of these bulkheads (1 - 3 and 11 - 13). Before proceeding with this task I did a trial test assembly of the bulkheads with the false keel, along with the inner and outer longitudinal patterns. The main cabin deck was also test fitted along with the bow support and stern patterns (inner, middle and outer).



As expected, everything was a perfect fit and I am now ready to move on to the pre fairing of the bulkheads.



Photos

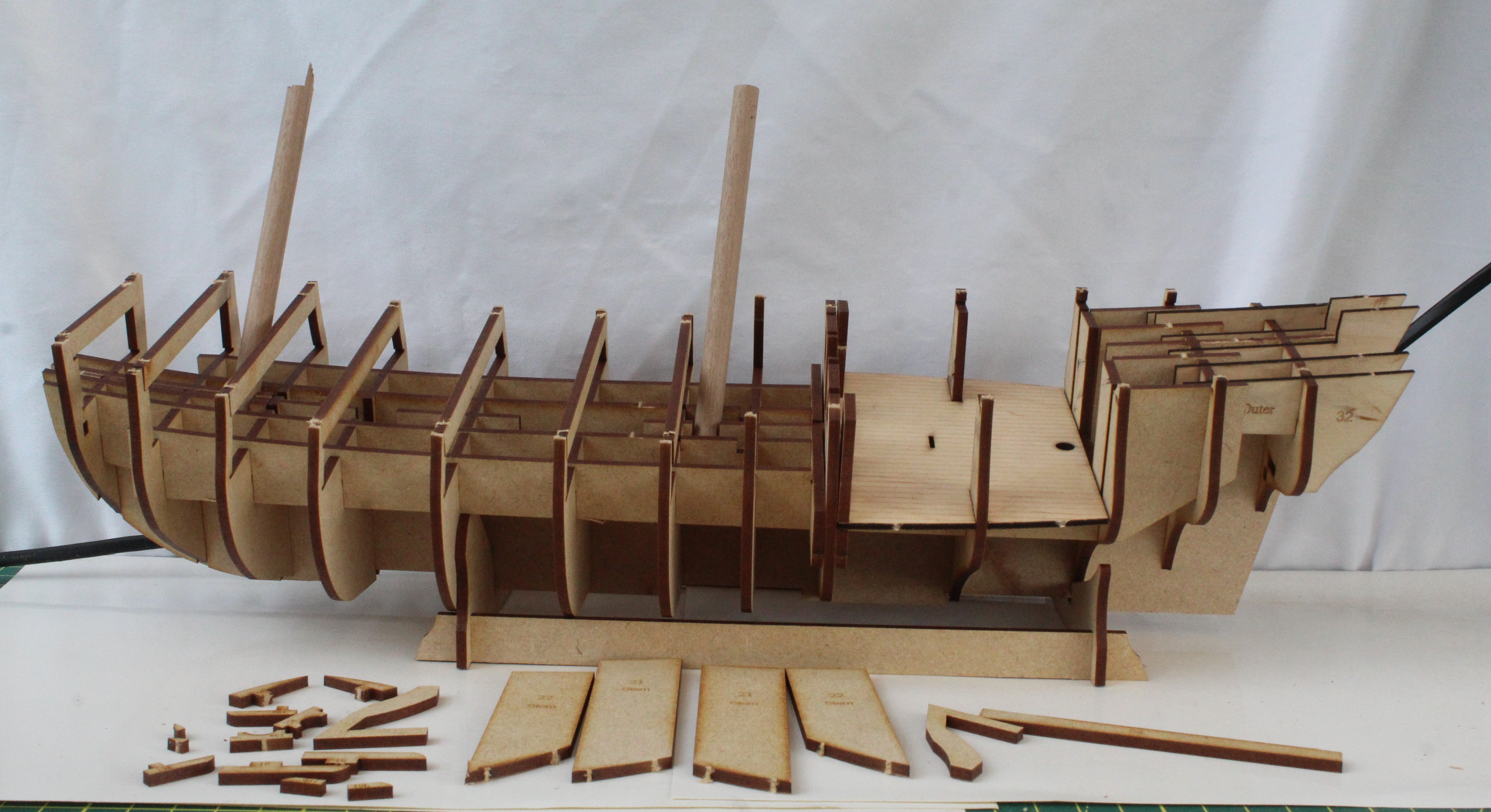

Dry fitted hull

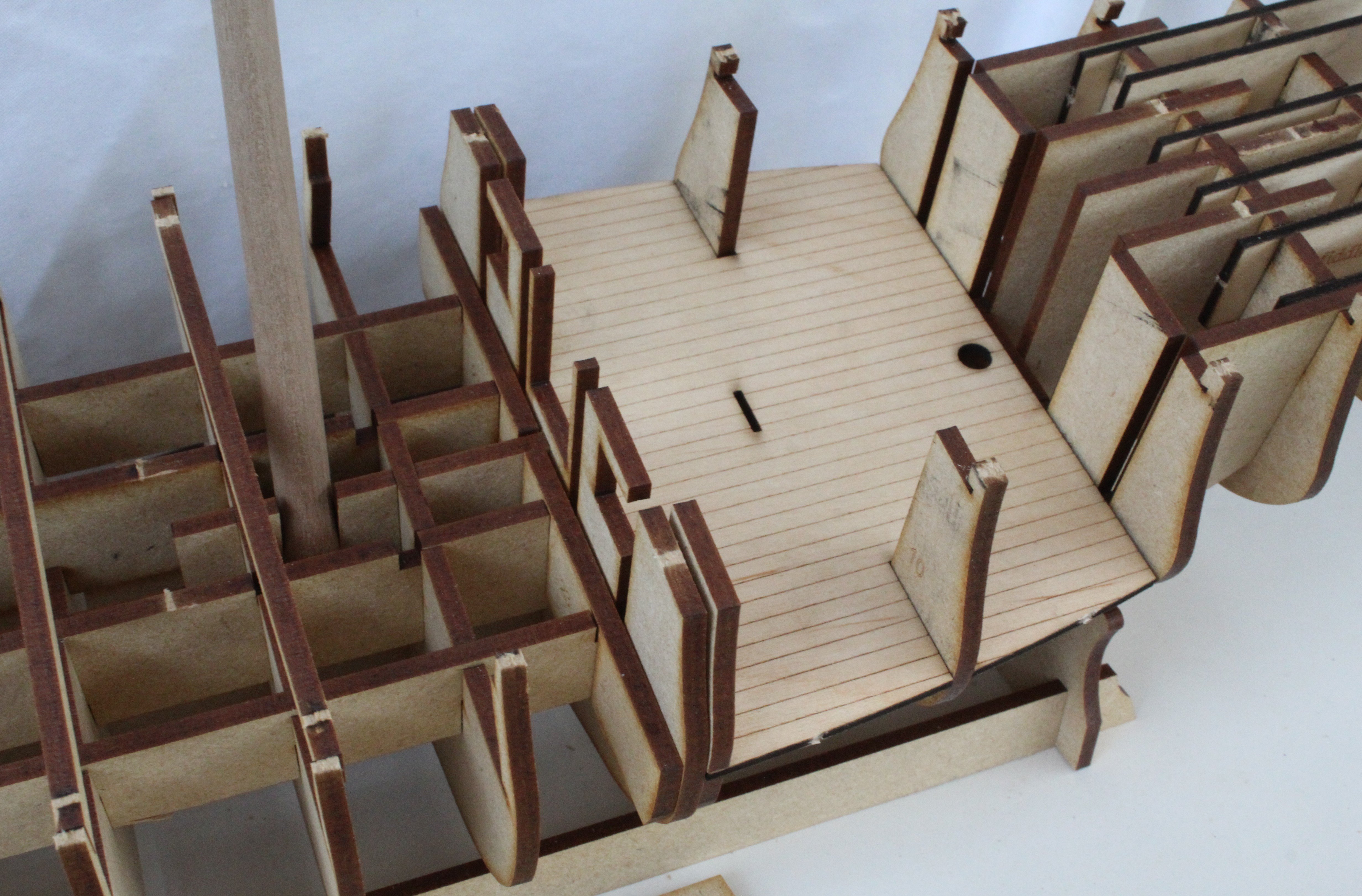

Main Cabin Deck Test Fit

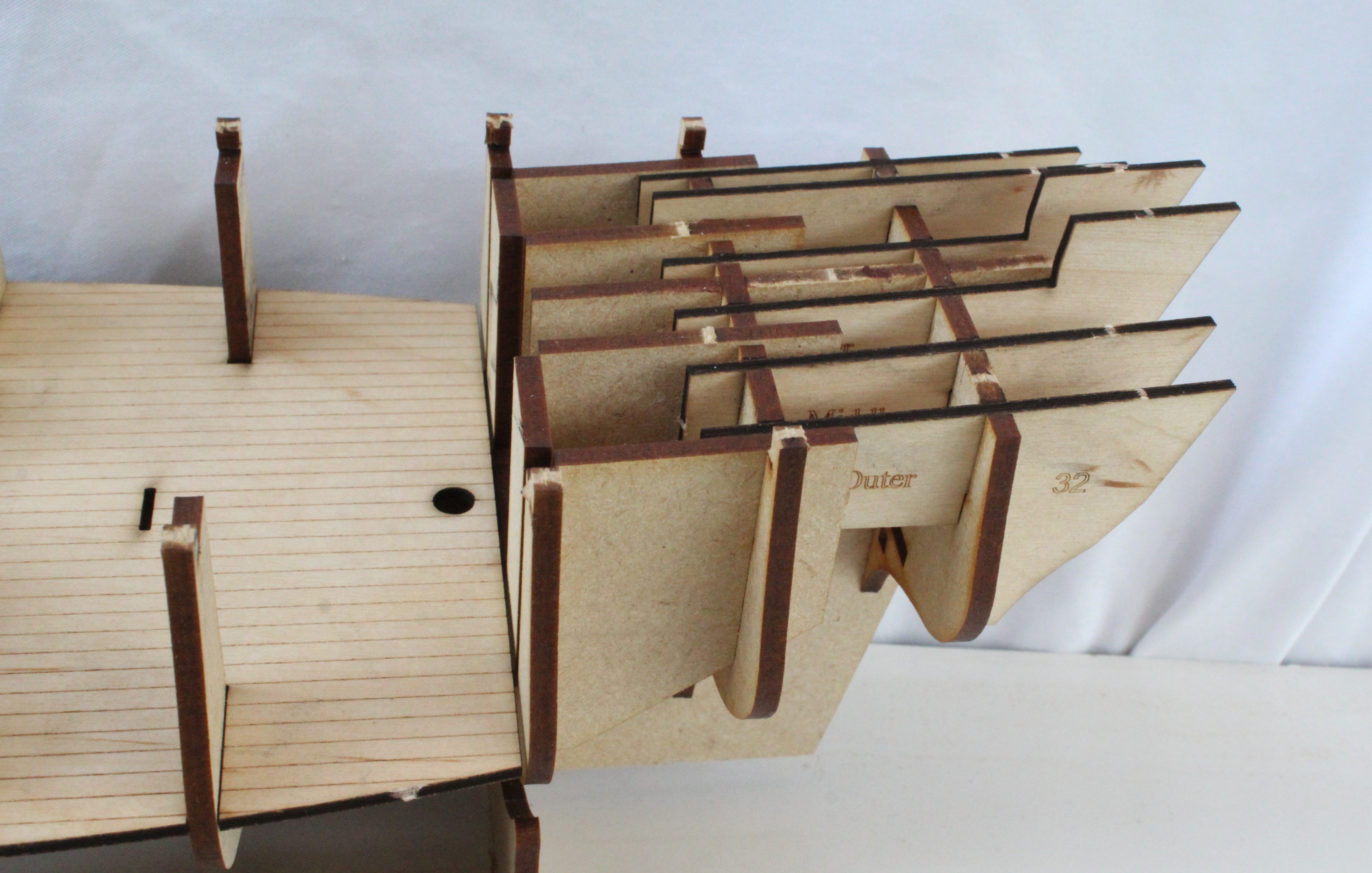

Stern inner, middle and outer patterns

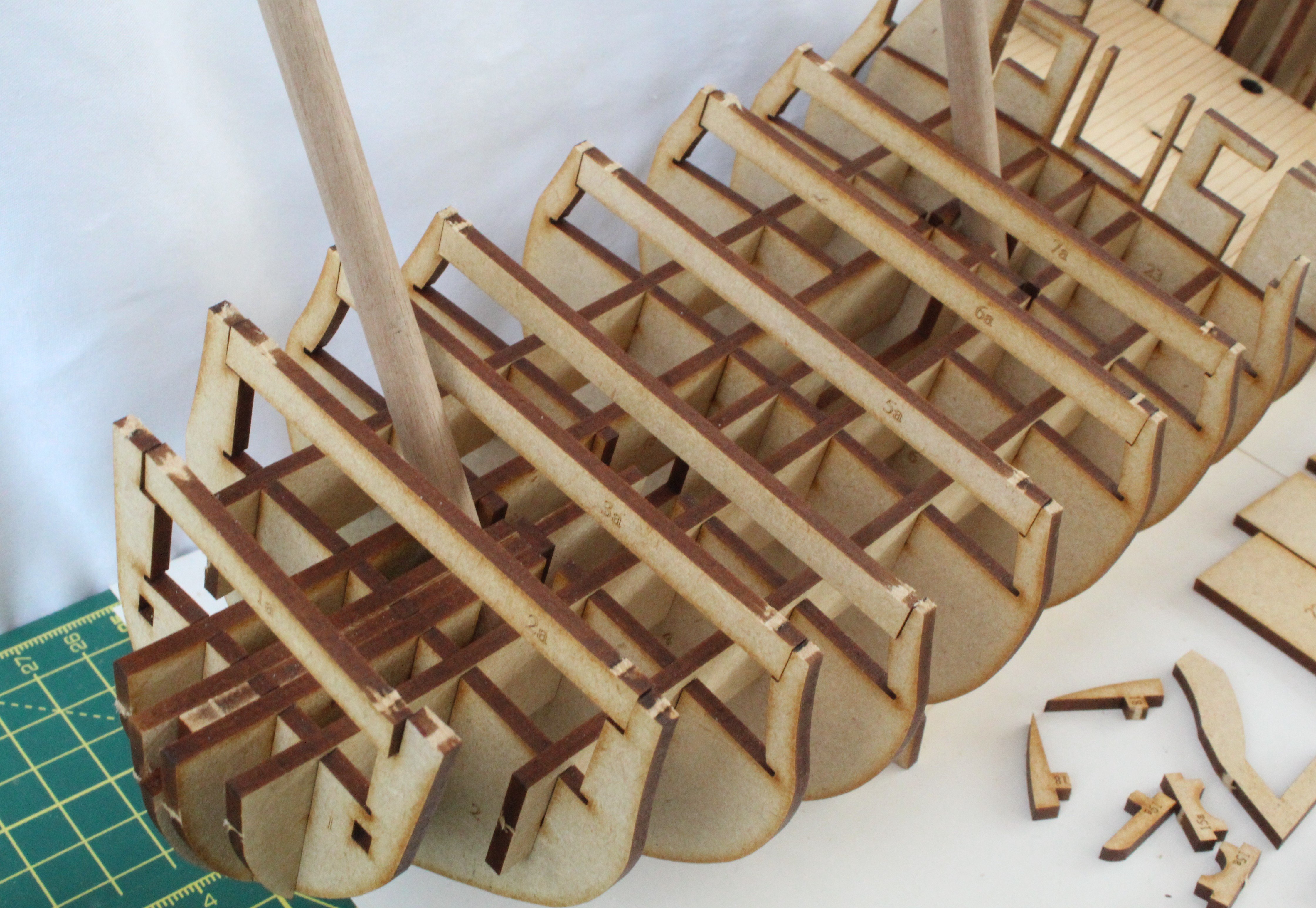

Test fit of the bulkhead support spacers

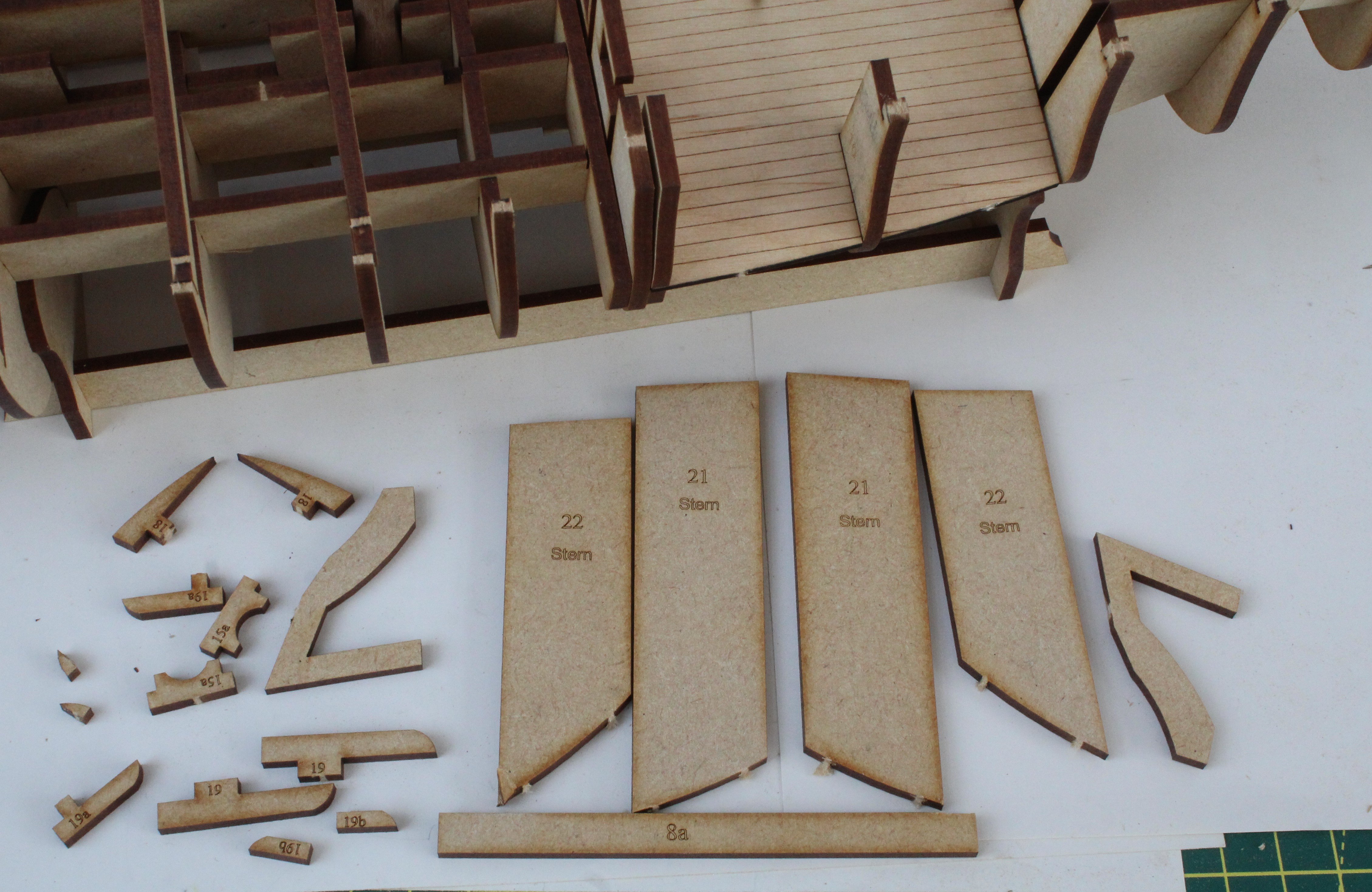

Unfitted MDF parts
