  1. CapnJack43
    Had to cut the Britannia fitting because it was too small, cut out the snake and mounted it on a piece of wood added the gold by dipping a q tip in gold and rolling most of it off on a paper towel before rolling it across the surface Window frames in white seem to make it stand out better
  2. CapnJack43
    Window frames are painted and ready to install
  3. CapnJack43
    Made a base out of 5/8 inch stock contoured it to the hull and fastened it with wood glue and screws
  4. CapnJack43
    Tinted clear water based acrylic with some brown acrylic paint to darken the deck a bit
  5. CapnJack43
    First coat of primer is on the hull next step is to fill and sand the many imperfections
  6. CapnJack43
    Two decks are all closed in - making collars out of thin plywood to go around masts to cover up where I screwed up the openings
  7. CapnJack43
    Cabin doors and window built on work table and attached to bulkhead made from 1/8x1/32nd stock attached to a thin piece of mahogany plywood door knobs are pin heads
  8. CapnJack43
    Deck is closing in nicely
  9. CapnJack43
    Ladder was left over from my Danmark Kit
  10. CapnJack43
    Deck planking is going well
  11. CapnJack43
    Wood filler and sanding on hull is shaping up
  12. CapnJack43
    Hull planking if done, next comes wood filler and sanding.
  13. CapnJack43
    Made a jig out of two pieces of 1x2 to hold planks while planing to taper them
  14. CapnJack43
    Made this pin pusher out of a dowel, brass tubing and a washer magnet. Magnet keeps the pins from falling out of the brass tube.
  15. CapnJack43
    Flexible metric ruler really helped in measuring plank widths
  16. CapnJack43
  17. CapnJack43
    Plank bending iron really helped a lot
  18. CapnJack43
    Things are moving along, this winter has been unusually cold here in Florida, ran the portable heater in the garage on the days that were in the 40s.
  19. CapnJack43
    Hey Guys thanks for checking in, referring to your build logs has helped a lot to add more details to what is show in the plans. Adding a few more pics today, the jig that I made has helped a lot to hold it in place, it was modeled after one that was offered by a European Company and I tried to purchase it but they had gone out of business. Jack
  20. CapnJack43

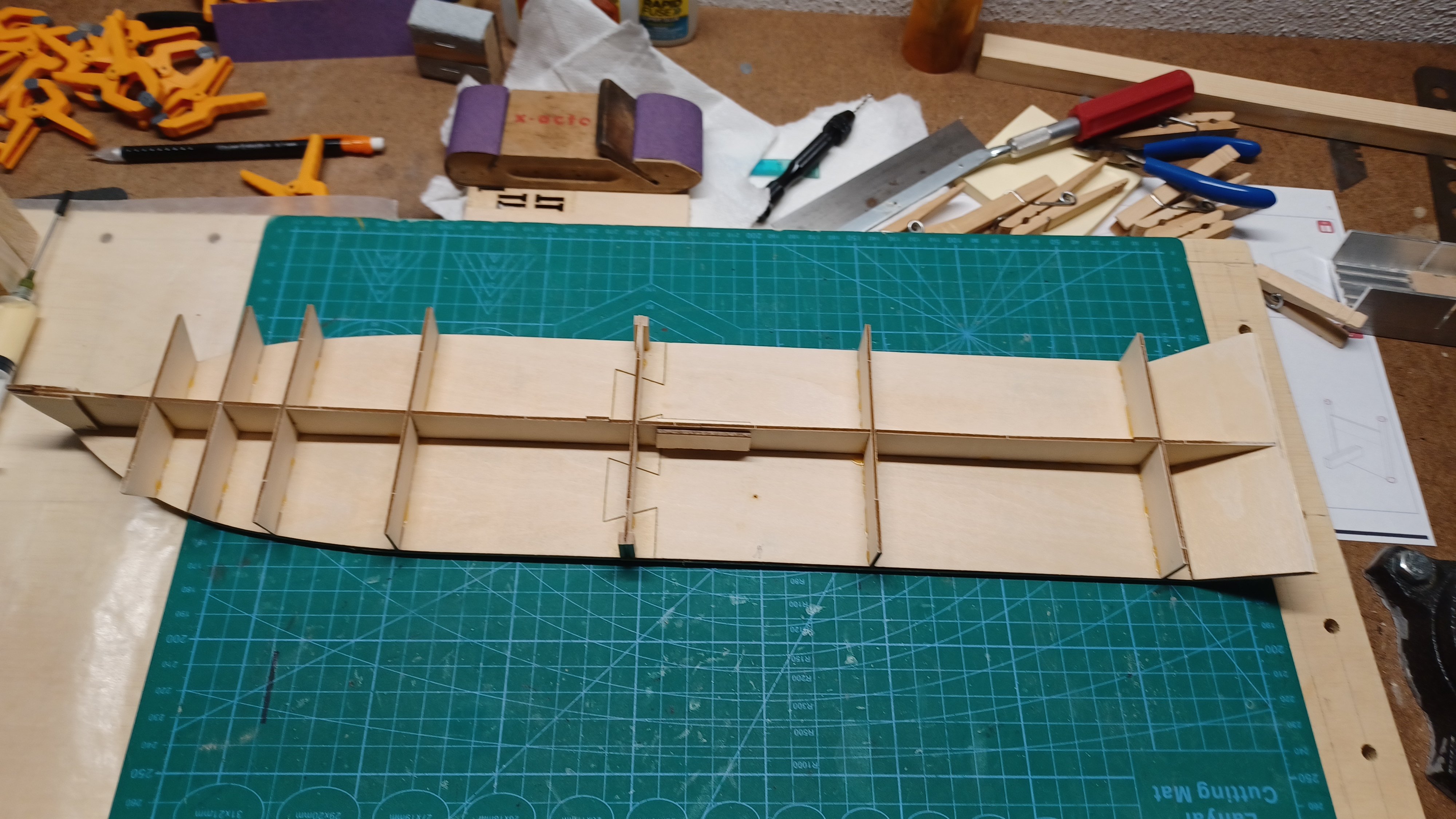

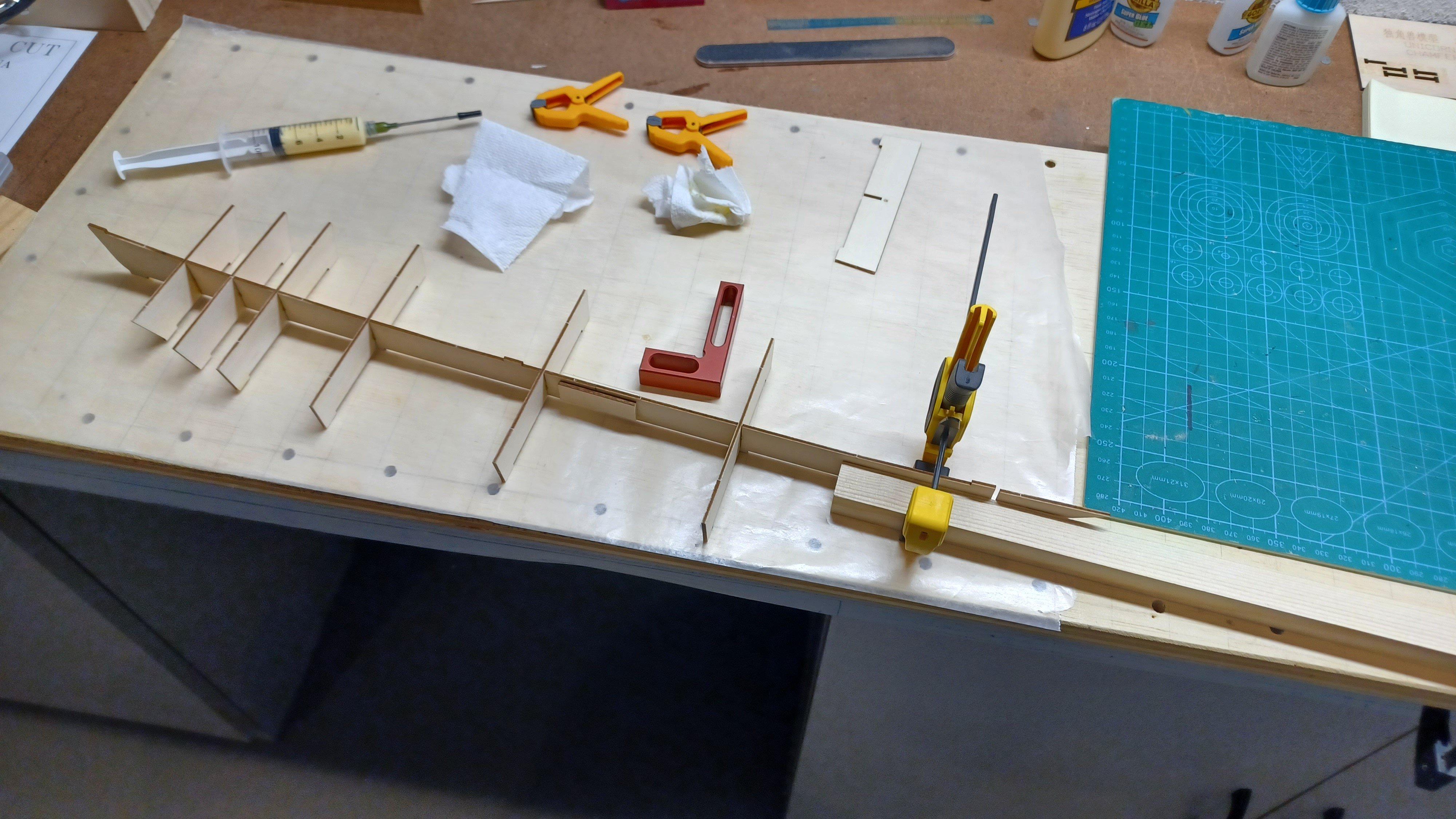

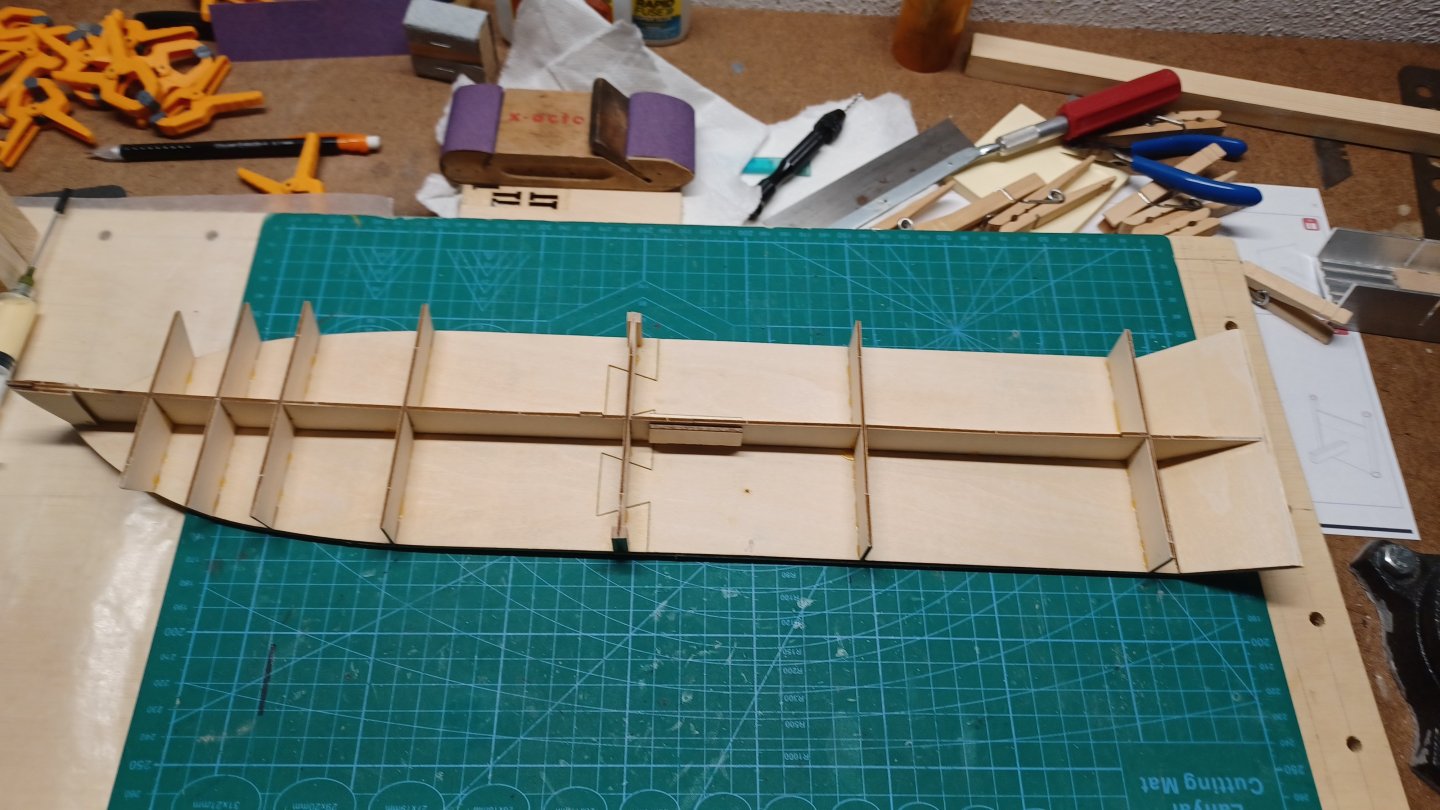

    Finally cooling off in Florida - time to start another build, the rigging plan on this one is a nightmare, the set that I got the plan is all black and white. The instruction booklet says that the running rigging should be in red. Contacted Model Expo a couple of weeks ago to try to get the plan with running rigging marked in red and so far no response. Used dremel drill press to drill pilot holes in the keel to pin it in place. Slots in bulkheads were all too tight and had to be sanded to widen.
  21. CapnJack43
    Current Build Rattlesnake - Model Shipways Completed Builds: New Bedford Whaleboat – Model Shipways – 1:16 Model Ship Building Slip U.S.S. Lexington – Mamoli – 1:100 Danmark – Billing Boats – 1:75 Yacht America 1851 Scientific Models
  22. CapnJack43

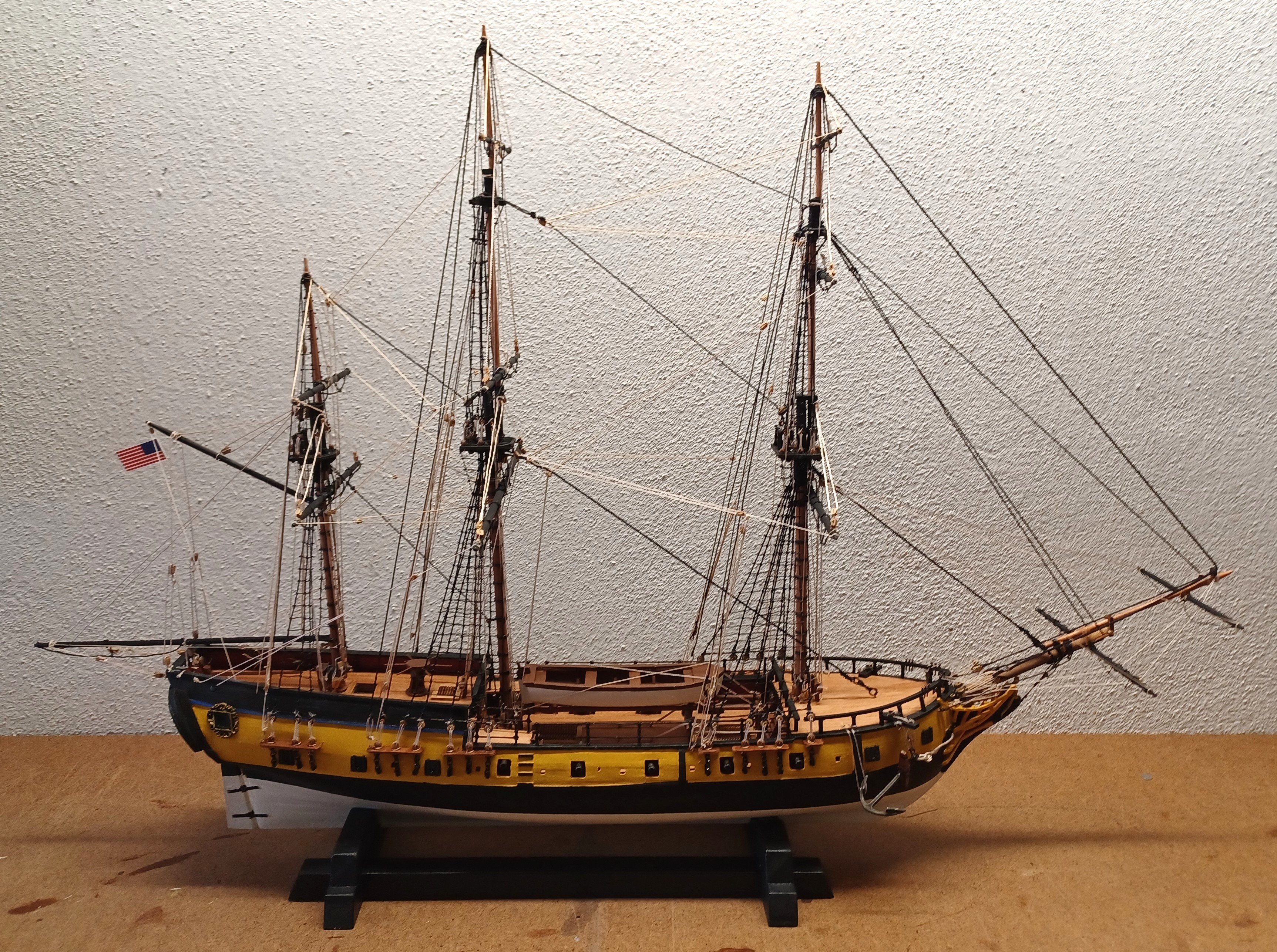

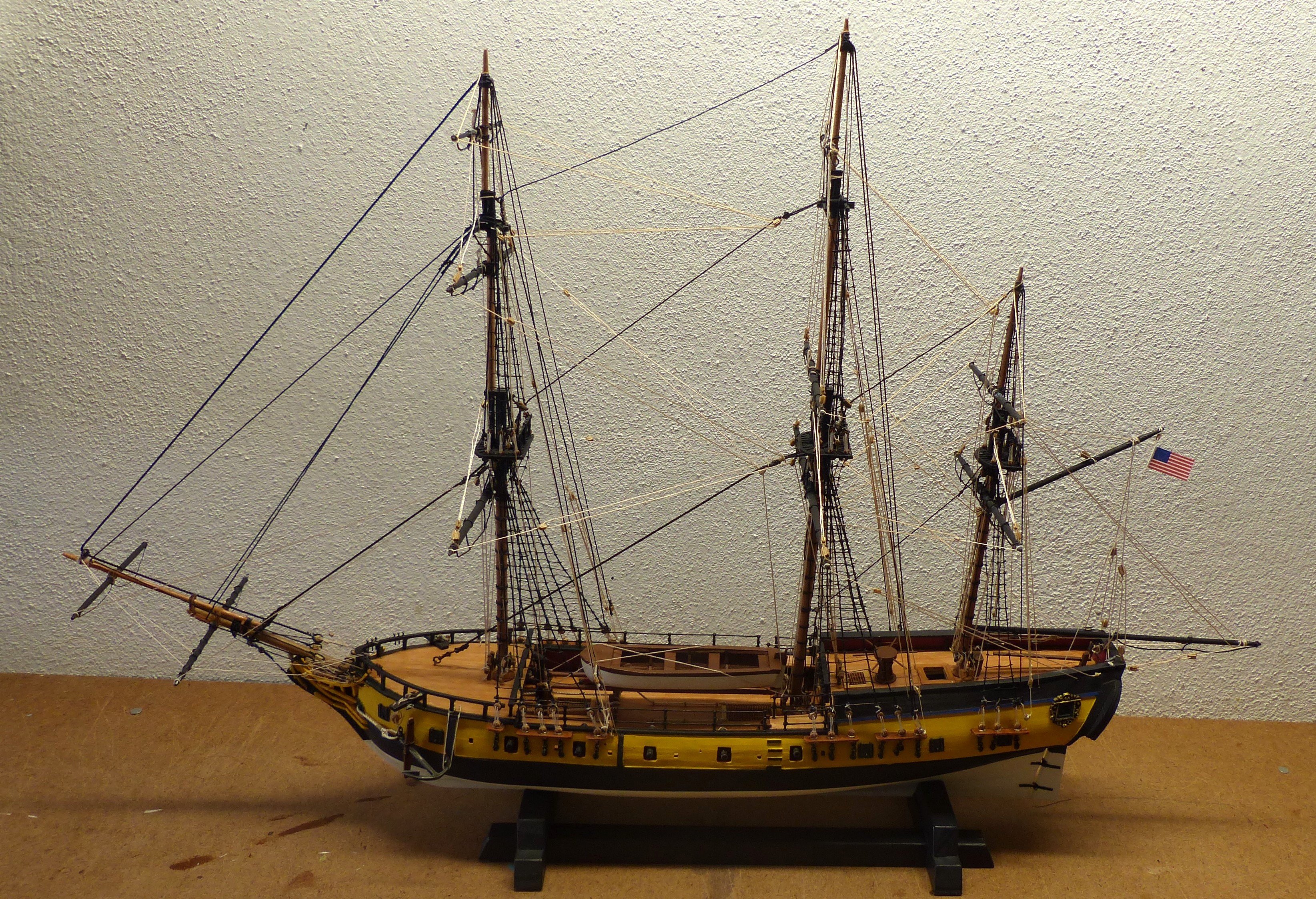

    This was given to me be a friend who had the kit in his basement for over 20 years. Build took a little over two months to complete and now that it is completed I will be returning it to him. Instructions were ok but the rigging plans left a bit to be desired.
  23. CapnJack43

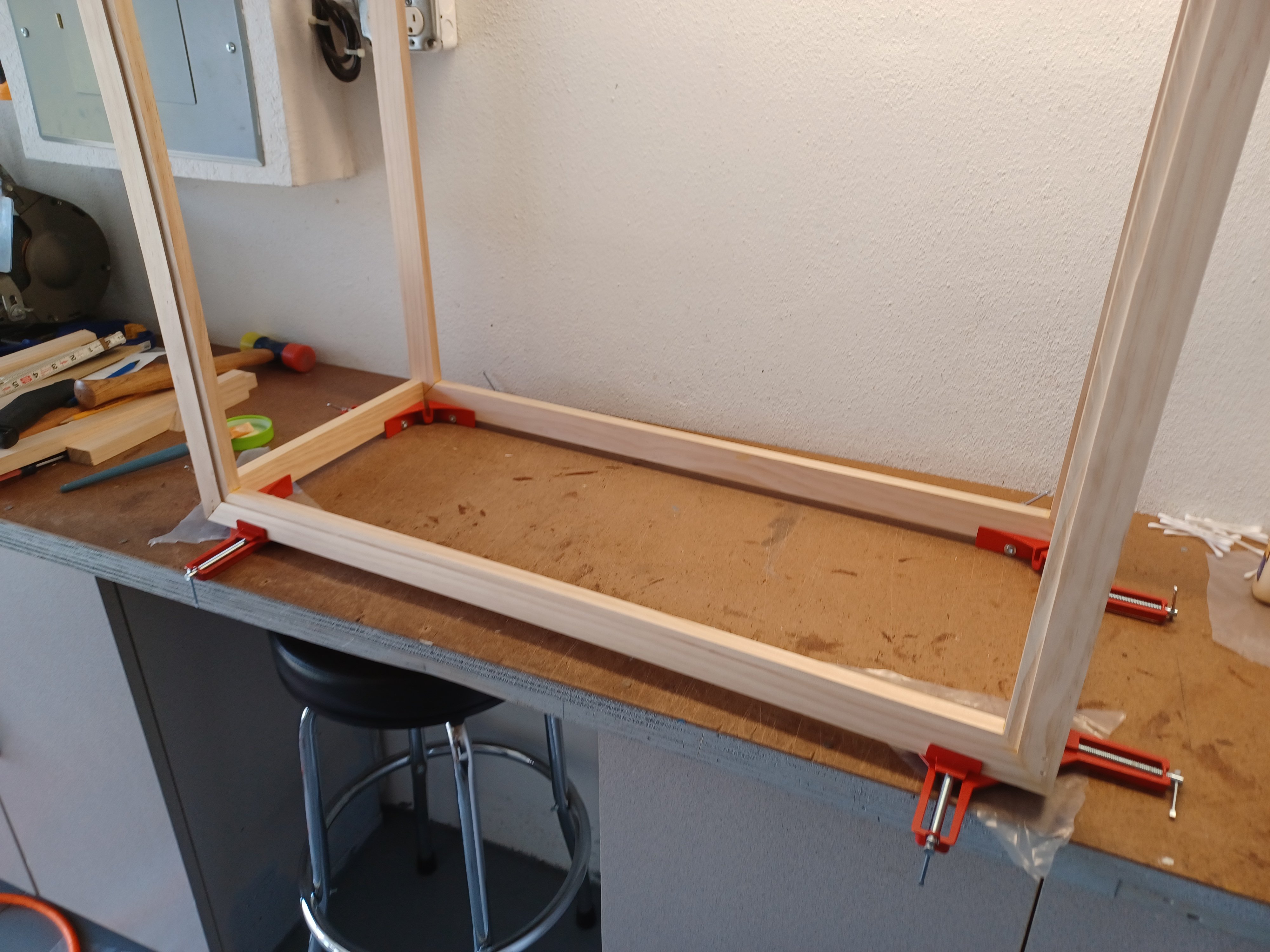

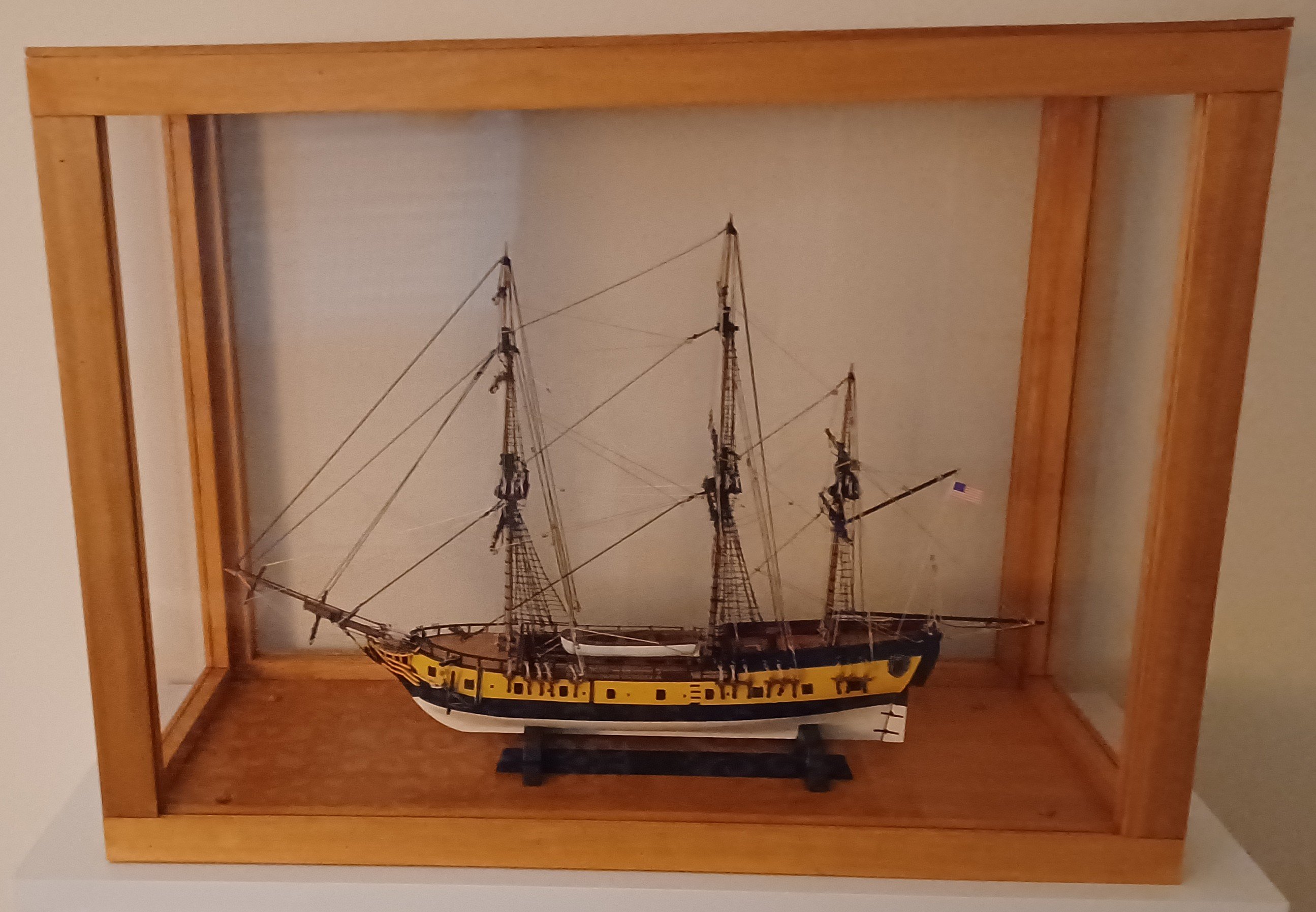

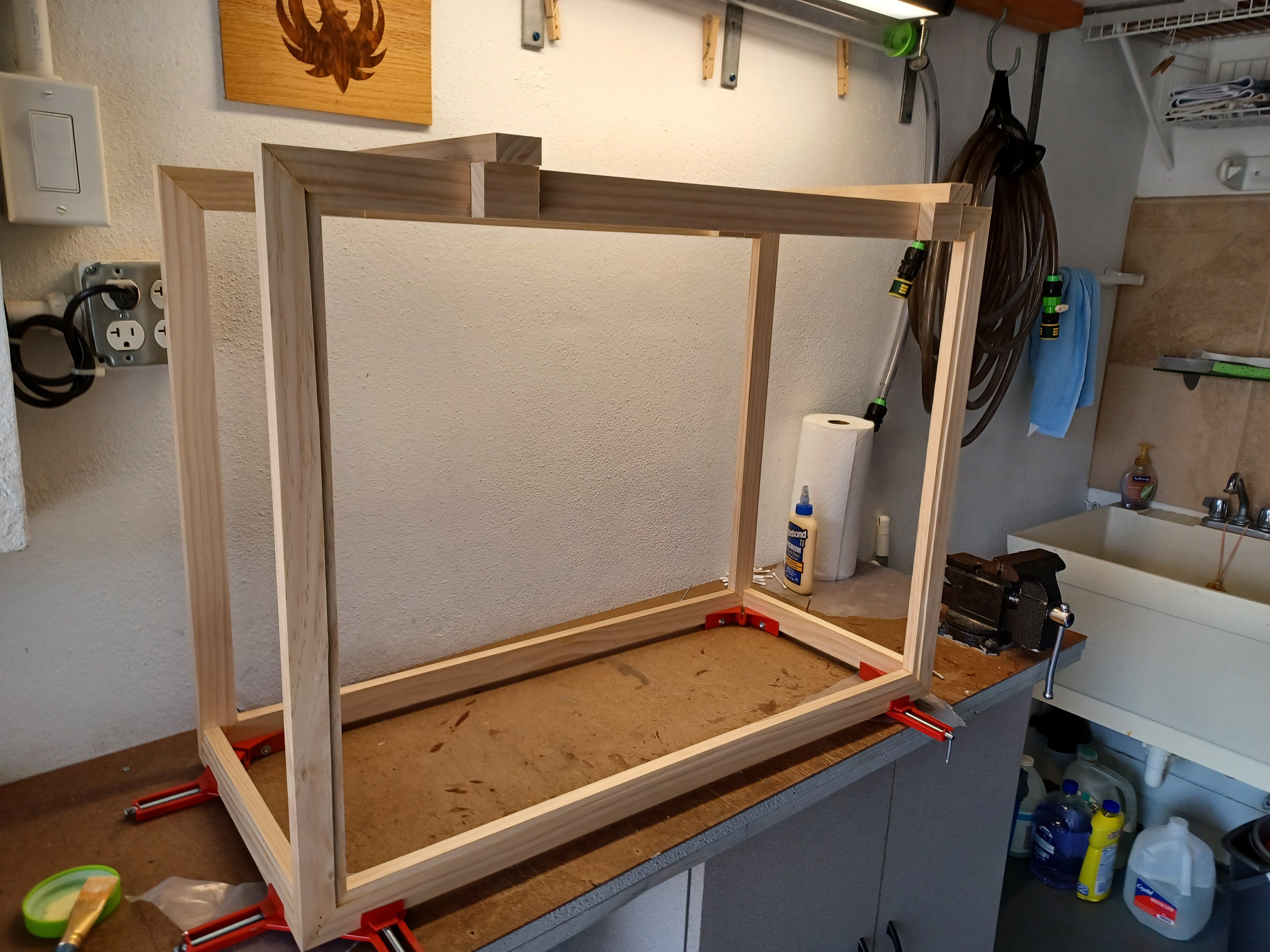

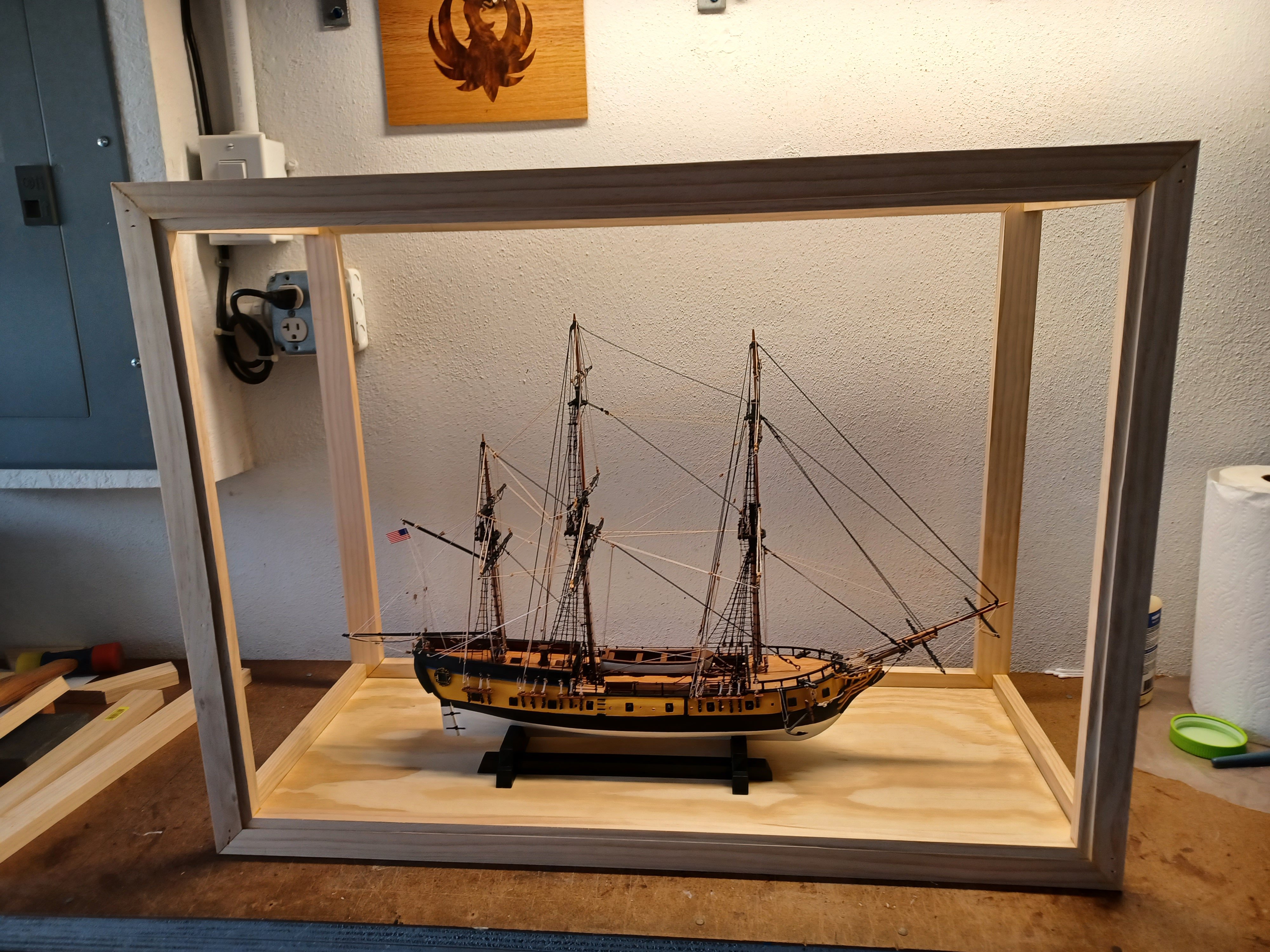

    Danmark took a little over a year to complete. Hull construction and deck fittings went well. I made a slip to help hold and align the keel and bulkhedas. Rigging was another story, I found that the best way to follow the rigging on the plans was to mark them with color pencils and number the lines with tape. Purchased a mini sewing machine for about 25 dollars to complete the sails. Made an overhead jig to hold the sails while rigging & made the showcase out of 1x2 pine and 1/8 plexiglass.
  24. CapnJack43
    Tried to purchase a similar one and found it was no longer being manufactured. Built this one out of 3/4 inch plywood, 1x2 pine and 1/4x2 poplar. Holds things in place nicely when planking and can be rotated and adjusted easily with wing nuts.
  25. CapnJack43
    Building the Lexington took a little over six months. Directions were easy to follow, although my painting skills leave a lot to be desired (need steadier hands). All things considered it was very enjoyable to build and learn about it's history in the process. Making various jigs to hold the planks in place while the glue dried helped a lot.
