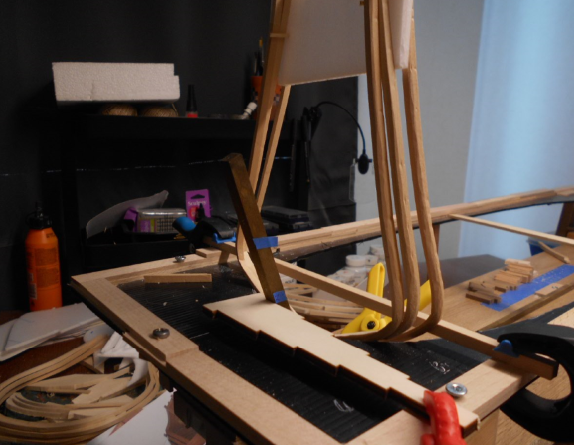

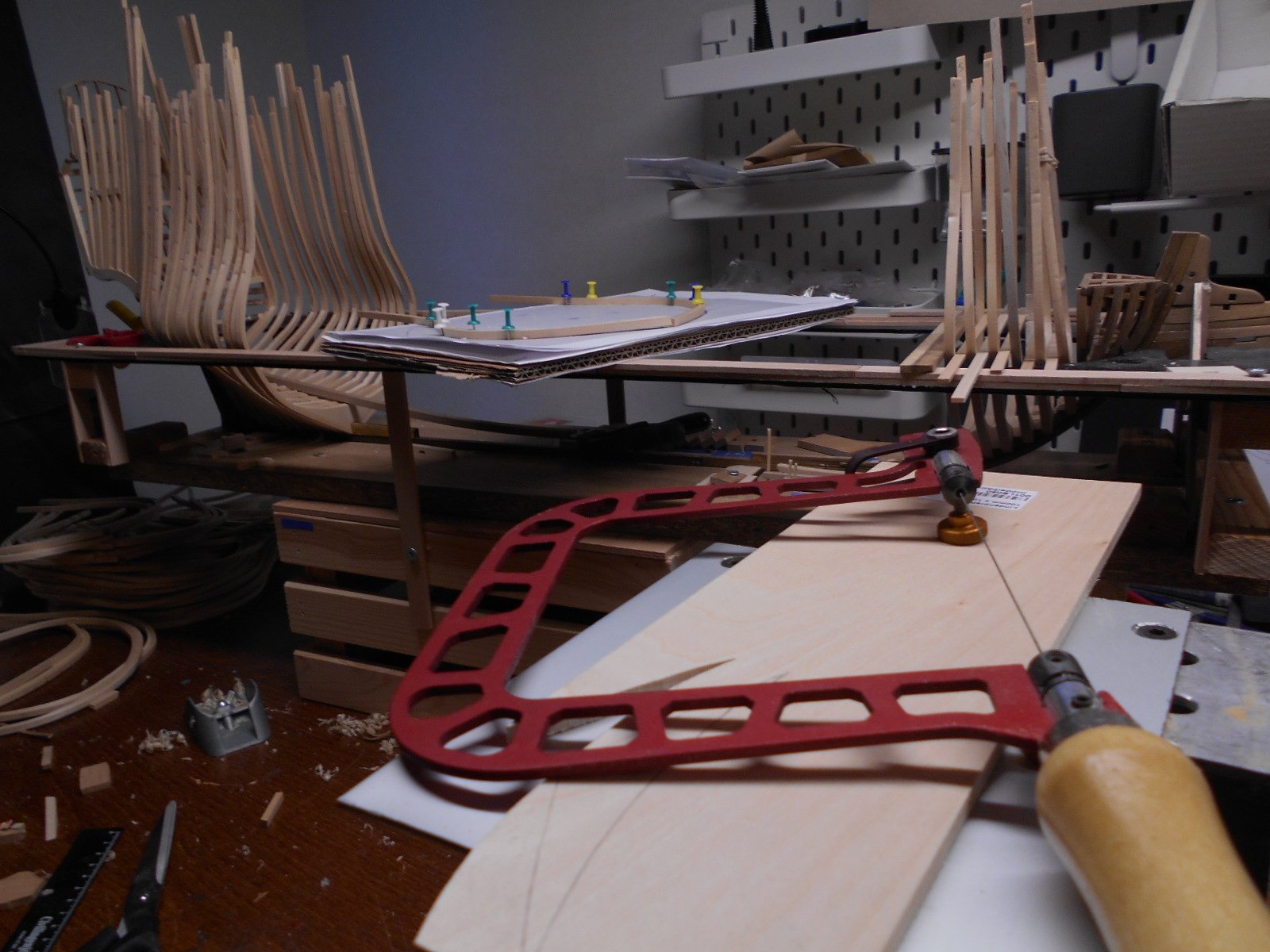

  1. slow progress but some new pictures from work on the keel and deadwood. I have made an rig around the keel for the frames.
  2. Here is where I found some of the pictures: https://forum.game-labs.net/topic/4187-danish-flagships-form-the-17th-mega-mix/ looks like a scanned book picture
  3. I have search so many 1700th ship pictures so I have forgotten were that came from, the other is from: https://collections.vam.ac.uk/item/O1020070/hull-of-a-three-decker-drawing-van-de-velde/ - you can zoom in and see details. Ran in to some problems with the framing. I was planning to use the Sergal kit frame 4-1 as is, but the difference Fincham (I use a Mr Douglas drawing from 1901), McKay and Sergal is to big. The kit is more wedge-shape than the other:
  4. P.S. I read in some book about the Sovereign of the Seas that they did not use hammocks in 1628, it was used later on.
  5. Here is a van Velde drawing of the Danish ship, a quick glance and it looks like the SotS. The fore castle is slightly lower and lower gun deck flat as SotS after the rebuild 1659-60.
  6. Some notes from the Book from James Septhon and Sergals kit: I will try to keep the gun ports as J.S. and compared to Sergal (S) i.e. 9,9mm/10,6mm/11.3mm for 2'-4", 2'-6" and 2'-8" for each deck - S has the same size for all decks. I think it will be worth the extra work for this in the end. The keel was tapered and the rudder the other way around - I do not think I will bother with tapering at all. J.S has ports for all decks and three ports for the beakhead bulkhead (not shown in McKay) - I had some trouble getting the aft but after looking at the Culver model I think I got a solution. the three decks is divided in equal parts (33%). I think I have a solution for the aft but still no design for the galleries. I found the Danish ship Sophia Amalia 1650 that is really a look a like built by a English James Robbins and a drawing from Van Velde show similar decoration along the sides as SotS (not quite as the museum model in the picture).
  7. I have modified the scale to 1:72 - I think it will be better. Recommend naval ship construction texts via Academia.edu, for example:
  8. Totally agree - very hard to even come close to that amount of work and artistry. That is a bit why I will try to do a little different approach. When to movie for "the hitchhiker guide to the galaxy" by Douglas Adams come there was many discussions about the "real" story and so on. The real story from the books - but the story in the books came from a mix of radio-episodes that did not add up to that was printed - I feel a bit like that after reading about this ship. Building Wasa was so different - the ship is there to visit. For example - I am thinking of azur blue instead of Stockholm tar black and maybe modify the statues of Neptune/Apollo and the other "god of winds" figure - and make Diana/Nike bigger - I will see. I have decided the angle of the stern post the rake: I am trying to get the shape of the aft, I had to cut of the kit stern post - it was not straight
  9. More things: I found some interesting reading and evidence of a ship rebuild in 1660 from square to round (Niklas Eriksson), and that the Prince was rebuild this way just before SotS was created. It is interesting with all these variants: Round stern like Naseby half circular Square stern dutch type (like Wasa) McKay arrow like stern (as Royal Louis 1668) Some have this almost elliptical stern or square with rounded edges and Sergals oval tube shaped stern with different versions of the lower part ... and this also influence on the lower gun ports and that they sometimes is way below the gun deck
  10. One step forward and two steps back. Now I have read the Septhon book and I must say it is stuck with information but as a builder I am still confused but on a higher level. I have come to the conclusion that the Sergel kit is not that bad after all - things considered. And I admire and thank McKay for all the illustrations - you can say that Septhon had very few of that kind - though nice photos and collections of drawings. Sometimes a picture says more than words. And searching internet I normally end up here on this forum - (the forum in some slavic language have lots of information but beyond my skills). I am working with altering the stern from extreme frame and aft. I try to use the Fincham drawings to re-shape the kit to a round-tuck one. I have even tried to use mashed potatoes to shape the stern but .. well I had to try. I did not work - surprise - so I now use plates of plastic foam and metal wires. Things I wondering about: The decks - why this steps in McKay? The deck lines were made flatter somewhere down the line (maybe 1660). But many models have this step in gun deck aft as the Prince in some picture. The Wasa had guns below gun deck aft and I have decided to skip this lower part i.e. guns with Square formed ports. I will try to have old-fashion curved decks - flush decks. The Sergal kit has only these lowest four and not the round shaped above - compare with all three deck ports in Culvers model.
  11. Added a picture of trying compass wood for stem. I used damp bending instead: Picture of Einarssons "Regalskeppet Kronan" book and a first frame part:
  12. Hello! Yet another book, I was pretty mislead by the book by Konstams "Sovereigns of the Sea". I though like the book and it opened my eyes concerning war ships and 1600-1700th century Europe. I have now finally got Septhons "Sovereign of the Seas" - it looks nice! I have not come to any conclusion more than "bashing". I will read a little more and try to figure out how to proceed and still enjoy building some ship in the end. So member Ulises Victoria gave up.. I understand the feeling. I have put the green box somewhere I cannot see it and focus on bending wooden strips in the spare part of the kit. More about that later. I do get energy from reading about the 1700th century history that SotS and all this has opened up for me. I have found a interesting PhD thesis from Southampton University by Juan-Pablo Olaberria "Ship design-knowledge in early modern Europe: Royal yachts and the shared knowledge of ship-designers and common shipwrights." from 2018 that I found on-line. In the PhD text there is the description of building frame-first vs Shell-first. Shell-first was adding timber inside after the planking was "done" - frame-first was adding planking on frames as most (?) model boat kits, i guess. Has anyone build a shell-first model? The design was back then not scientific and the picture depicts a hull from the shape of a fish. I read the book about Kronan 1668 by Einarsson but I did not get any new technical info, (I did get a picture of a Penis from deceased crew member buried in the mud 1672 when the ship was blown up by Danes). Thanks Einarsson... I have to go to Kalmar and see at the museum - try to get more info on-site. Maybe not now, -12 C outside today. SotS: I am thinking of adding a mizzen as on Prince (Bonaventura). Raising the ship and moving the halfdeck Using the frame-holes to bend wood and build a "skeleton" type of framing. Use the kit frames to build the Kronan. The Kronan was more narrow but I do not get the scaling of Sergals model. 16m outside width? I have seen 14.6m. Keel length 43m? 127" is some 38m. Round tuck on both ships. the bow sprit in Sergal is longer than most other, and the stern is very steep: I have bend the stem and apron and started on the frames: I used some old plastic bin to lead steam in a isolated tube with wooden strips inside to get damp effect.
  13. I have bought two new books: I have an idea of - in contrast to md1400cs - maybe build two boats from one kit. The idea is to build some sort of scratch build using the kit-frames to bend planks (SotS) and modify the kit discs to build the Swedish Kronan. I have seen many amazing version of SotS, and shipwright (Bill Short) carvings - wow! Doris: https://www.modelforum.cz/viewtopic.php?f=177&t=43575&hilit=1637&sid=2d00756880ad630cc97c5745201fb29f&start=930 Wolfgang Rotter: https://schifferlbauer.com/seite40.html .
  14. Thanks for comments, pep-talk and pieces of advice. I liked and much appreciate the McKay book, I like that is it "technical" though not "maybe 100% correct" - some books I read about Wasa was 2% ship tech and 98% about was how the timber was imported and what kind of silverware was used etc. I guess the Sots also could have ended as Wasa as she was built as a show-off piece. They have found/investigated the Wasa sister ship "Äpplet 1629" this autumn. Read that Pett associate Francis Sheldon was ordered to Sweden to build "Kronan" - a ship a lot like the Sots. Sheldon aslo built the Äpplet 1663. Read that there was 8 ships called Vasa. 9 ships called Royal Sovereign. But only one Sovereign of the sea, and still...
  15. Just found it on this site: https://archive.org/details/richard-endsor-the-master-shipwrights-secrets-how-charles-ii-built-the-restorati/page/n1/mode/2up I think I will buy it - like the feeling of paper
×
×
