I decided to revisit the lower and topsail yards to make their center portion octagon-shaped.  For the octagon shape section I used some dimensional lumber from Midwest Products that I had purchased a while back.  I had to remove the jackstays and a couple of eyebolts to fit the battens. (sorry for getting my finger in the way)


Battens glued and tied.  Once the glue was dried the battens were stained and the eyebolts were reinstalled.


For the footropes and their stirrups I decided to use 30 gauge florist wire (blackened).


The stirrups were made by wrapping the wire around the yards a couple of times and then forming a small eyelet at its end.


The footropes were then laced through the stirrups and the ends were wrapped around the yards.  I had to keep the jackstays off until all the stirrups and footropes were put on.


Completed yards.


This will be my last post in this build for a while because the wife and I will be heading back to Florida for the winter.  And since the ship is at a point that it can’t be easily transported it will have to wait until next spring to be finished. 😪



I would like to thank all those who have been following along with my build, for all the kind words and for all the likes.



Have a Happy New Year and see you in the spring.

Sal

Nautical Research Guild

Current

USCG Harriet Lane - Model Shipways



Complete

U.S. Brig Syren - Model Shipways

New York Pilot Boat 'Phantom' 1868 - Model Shipways

  • 5 months later...
Posted

Hello all, just a little update.  I’m back up in Connecticut but the shipyard has been commissioned by my wife and daughter for wedding preparations.   My daughter will be getting married this coming September and the wife being frugal as always has voluntary me to make all the table center pieces.  Therefore the shipyard will be shut down for a bit longer. Not that I mind, looking forward to the wedding.



Air brushed flowers


Sal

Nautical Research Guild

Current

USCG Harriet Lane - Model Shipways



Complete

U.S. Brig Syren - Model Shipways

New York Pilot Boat 'Phantom' 1868 - Model Shipways

  • 1 month later...
  • 1 month later...
Posted

Sal, she's coming out beautifully!  I love the fact that you decided to ignore the "warnings" in the instructions about adding detail because it would be too difficult.  Your work on the bowsprit and jibboom is inspirational to me!  In other words, I will be copying you😊



You probably already know that William H. Webb designed and built the Harriet Lane.  I know it is late in the game, but I just this week discovered that Webb published a portfolio of his plans in 1866 or so.  The plans are on internet archive.  As it turns out, he built a first ship in 1855 that is identical to Harriet Lane, the America, for the Russian Government.  The bad news is that the kit is very inaccurate in certain respects, location of the wheel, use of chain trusses, number of boats, shape of the water closets, all of which you have already completed.  Also the kit omits a gaff on the foremast which is shown on the sail and spar plan of the America.



The plans for both ships are downloadable as tif files.  Here are the links, in case you chose to take a look.



https://archive.org/download/WEBB-BodyPlanCrossSectionsPlanHalfBreadthPlan/America - body plan%2C cross-section%2C centerline section%2C half-breadth plan%2C %26 gun-deck plan.tif



https://archive.org/download/WEBB-BodyPlanCrossSectionsPlanHalfBreadthPlan/America - spars %26 sails.tif



https://archive.org/download/WEBB-BodyPlanCrossSectionsPlanHalfBreadthPlan/Harriet Lane - body plan%2C cross-sections%2C centerline section%2C half-breadth plan %26 gun deck plan.tif



https://archive.org/download/WEBB-BodyPlanCrossSectionsPlanHalfBreadthPlan/Harriet Lane - body plan%2C profile%2C half-breadth plan%2C %26 berth deck plan.tif



Posted

Thanks for the information chuckthedragon, those are nice drawings you found.  Like you said, it's a little late for me but not for you.



And a little update.  Three more weeks to the wedding and I should be back modeling.

Center pieces finished.  Had to air brush all those flowers.


Bouquet, pocket squares and corsages ready .


Gift box and something that goes in the restrooms, done.


Still working on the head table decorations.








Sal

Nautical Research Guild

Current

USCG Harriet Lane - Model Shipways



Complete

U.S. Brig Syren - Model Shipways

New York Pilot Boat 'Phantom' 1868 - Model Shipways

Posted

Well, Sal, maybe next time . . . .  I'm excited about the work you're doing on the rigging.  I'm planning to follow your example.  Happily for me the plan includes making sure I have all of my attachment point in before I permanently step the masts😁.



You are awesome to do all of that work for the wedding!  Blessings on your house!



Chuck

  • 8 months later...
Posted

Hello all.  Well it took me a little longer than I planned to get back to my build but it’s been a heck of a year.   First, as per my previous post, we had our daughter’s wedding which went off without a hitch.  It was a beautiful day and a good time had by all.  Then things went downhill a bit. First it was hurricane Helene and then Milton, the latter of which made landfall right where we live in Florida on Siesta Key.  Fortunately we didn’t have any major damage to the building other than some minor water infiltration.  There was a lot of landscaping damage however.  After that crisis settled down two of my three daughters had to be admitted to the hospital for different issues at different times.  Fortunately again everything worked out and now everyone is fine, thank God.  Now that things are somewhat back to normal I’m going to try and finish the Harriet Lane.



Being away for so long it took me awhile to figure out where I left off and where all my parts were located but after a while I got back into the swing of things.

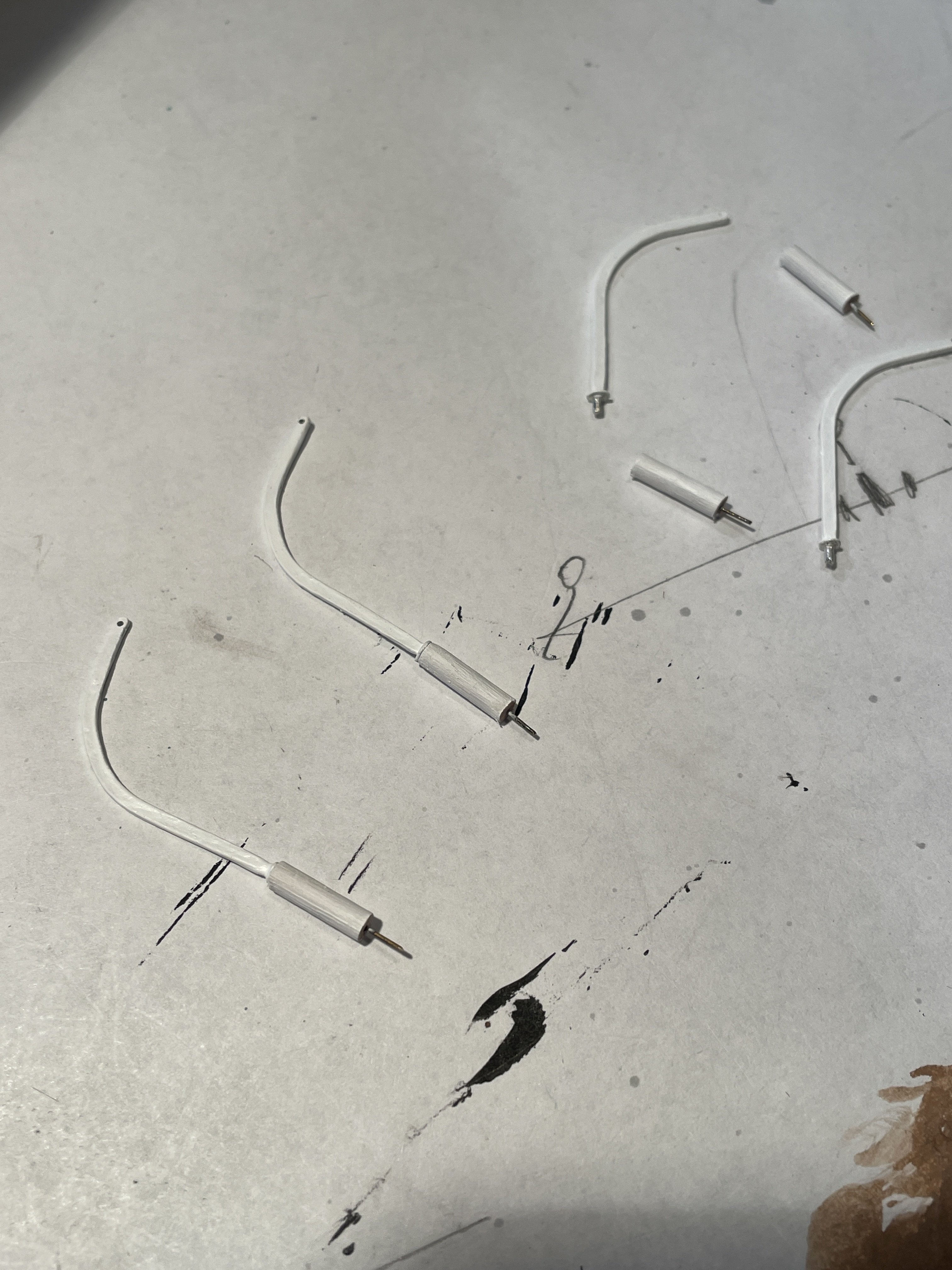

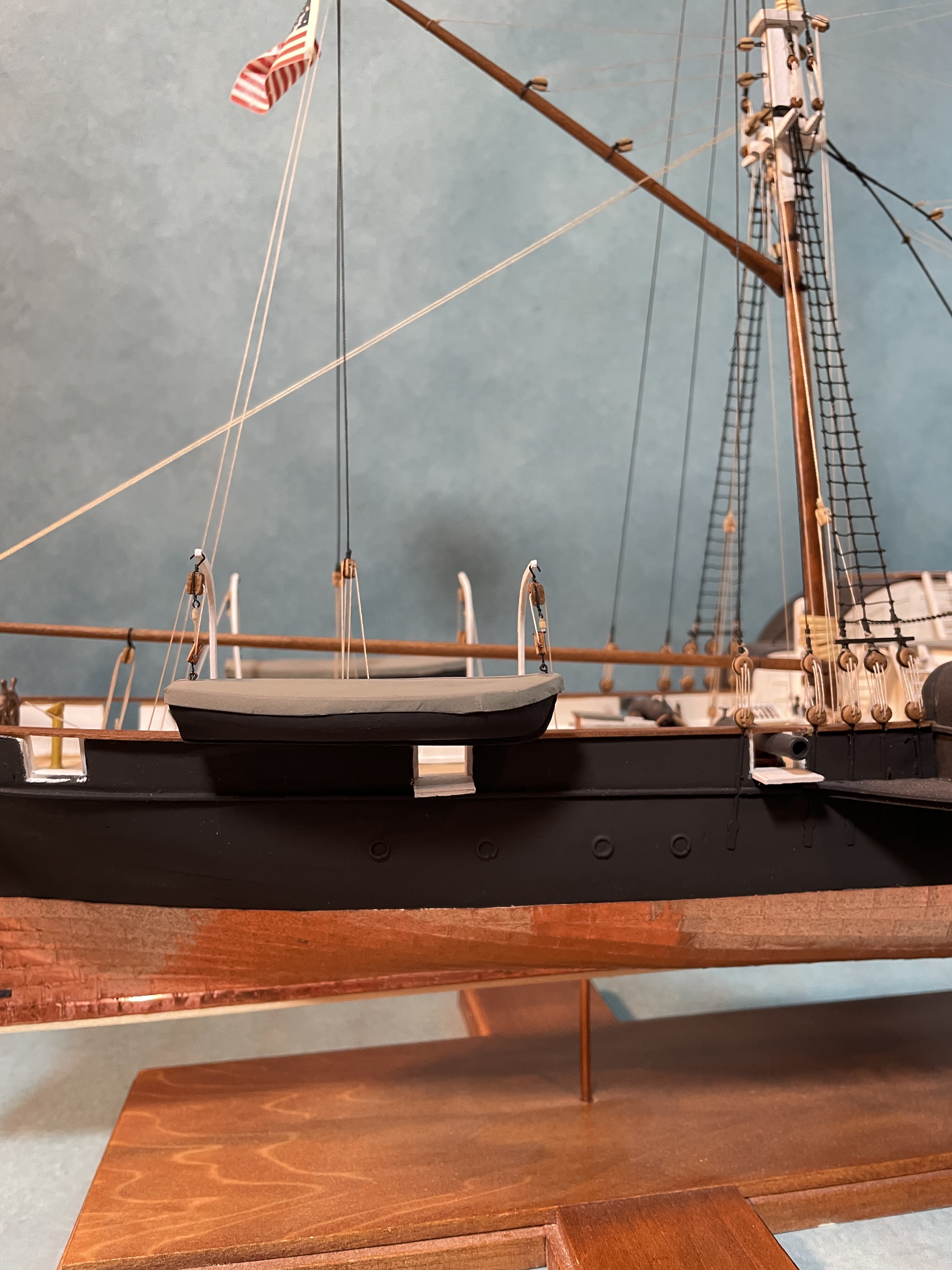

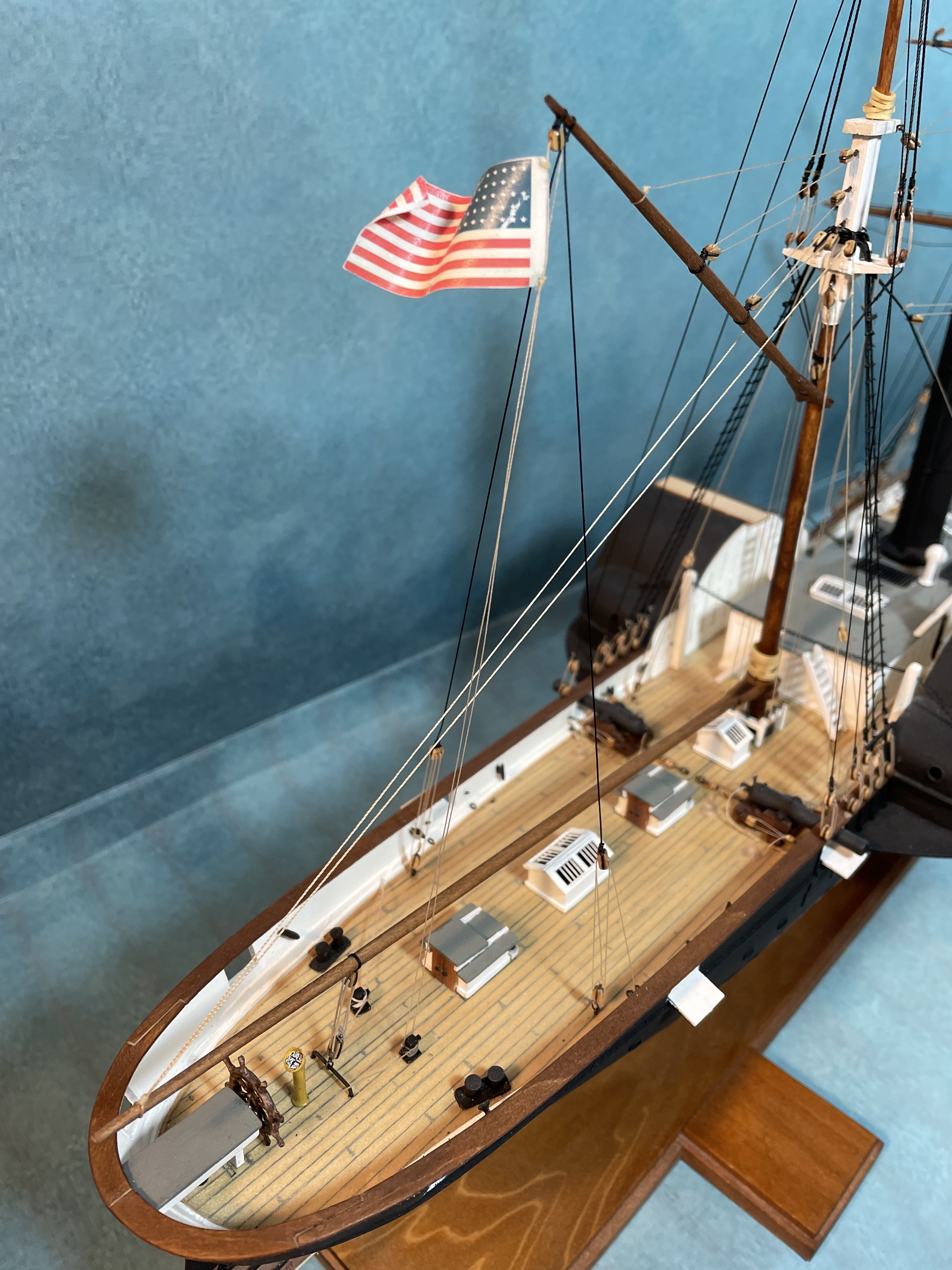

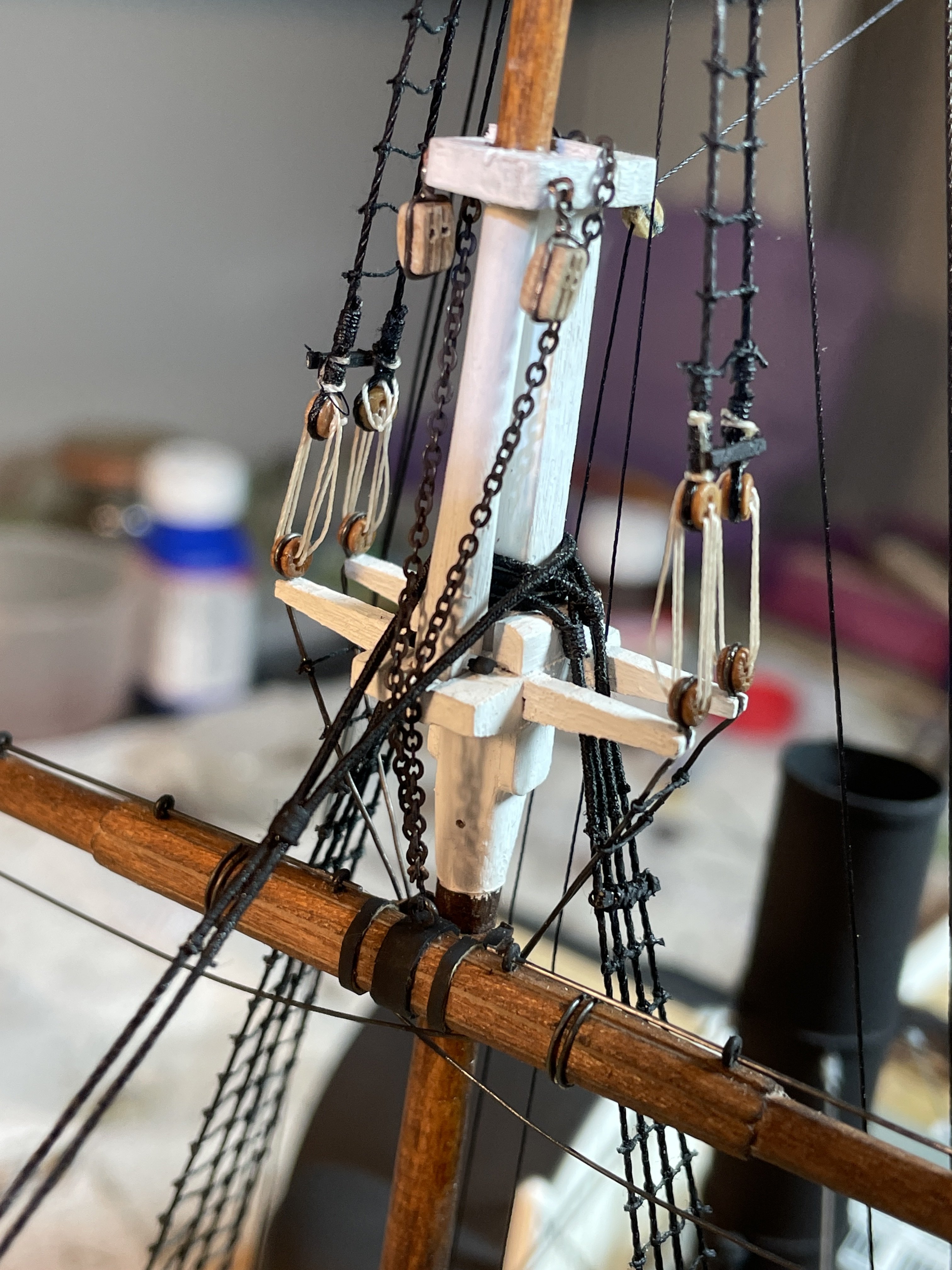

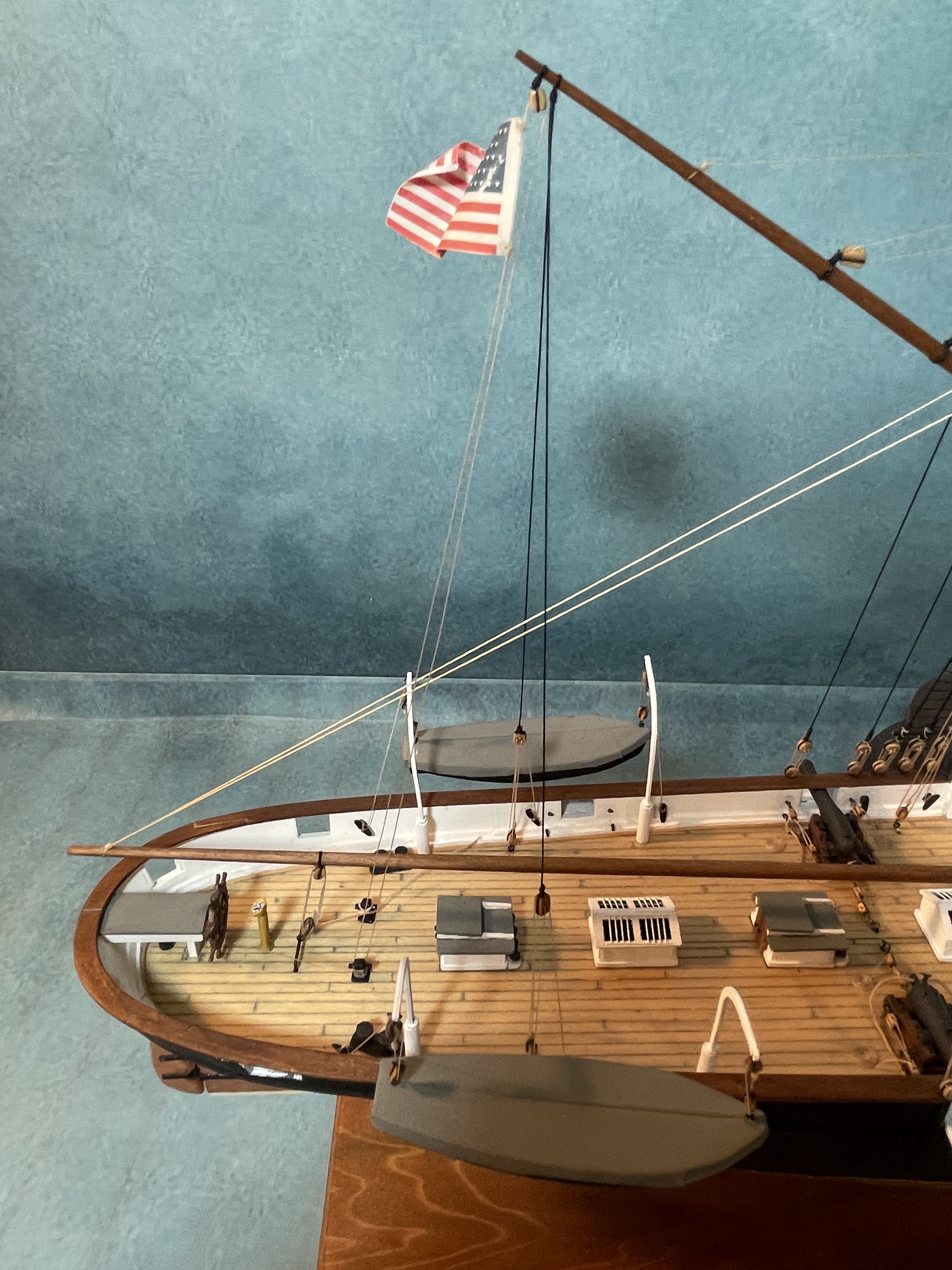

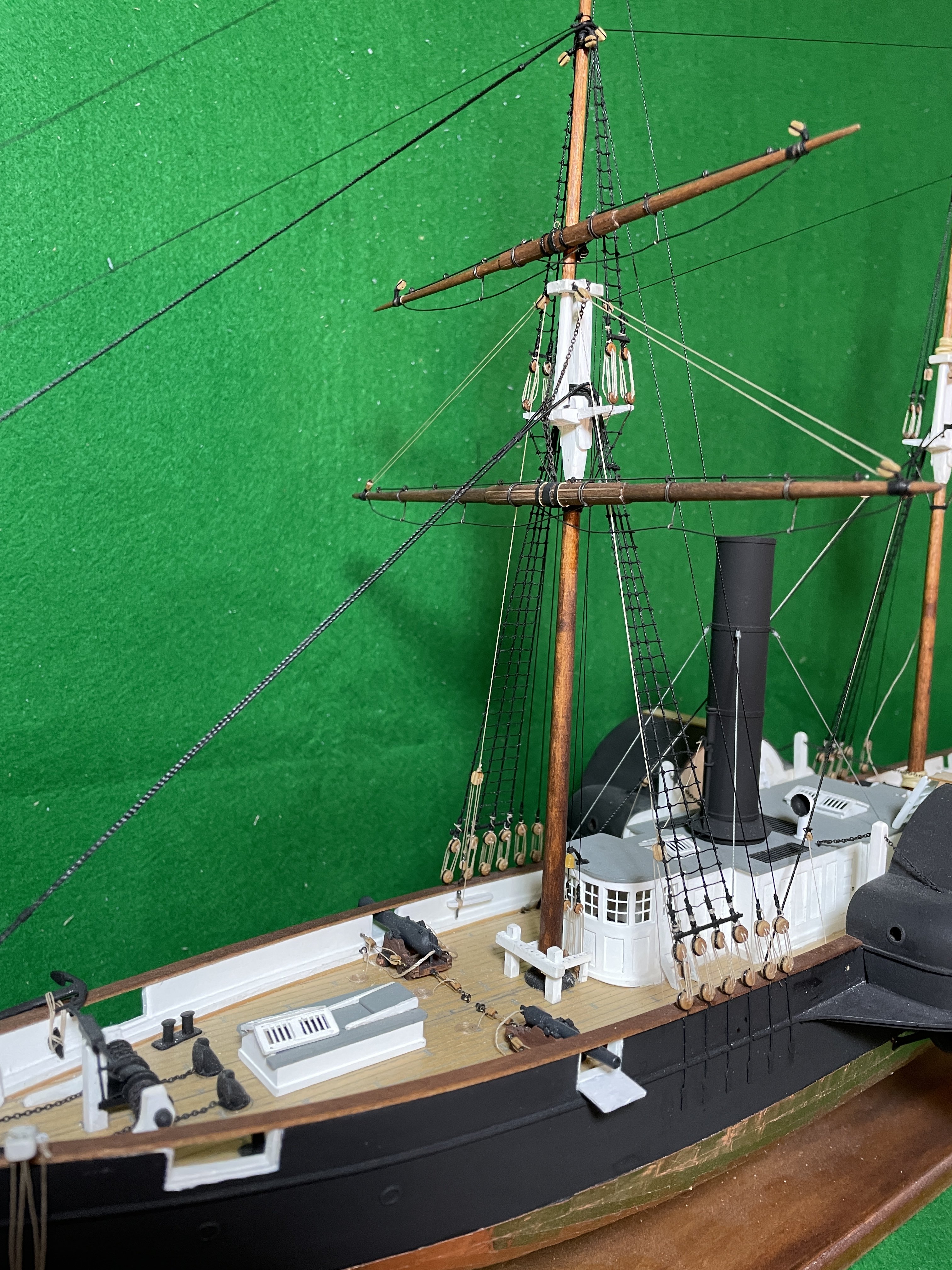

Fore lower yard sling:

I thought I would change things up a bit and use a different lower yard support sling than what was detailed in the instructions. I decided to use some of the left over chain that was used for the anchor chains and chain trusses to make the sling. The chain was looped around the top of the mast cap and the two ends were brought together with a chain link with a hook attached.  The hooked was connected to an eye bolt fastened to the top of the yard.

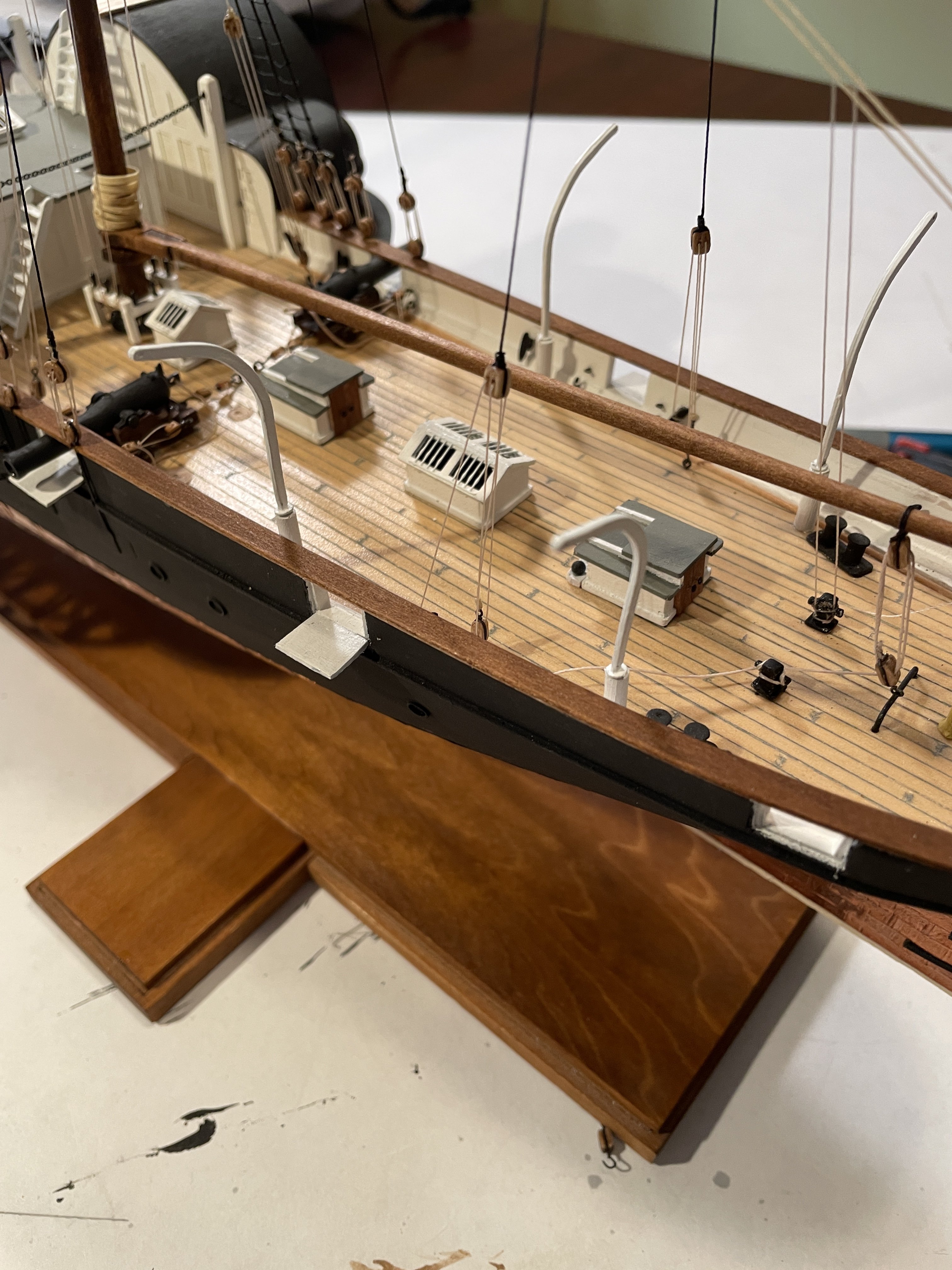

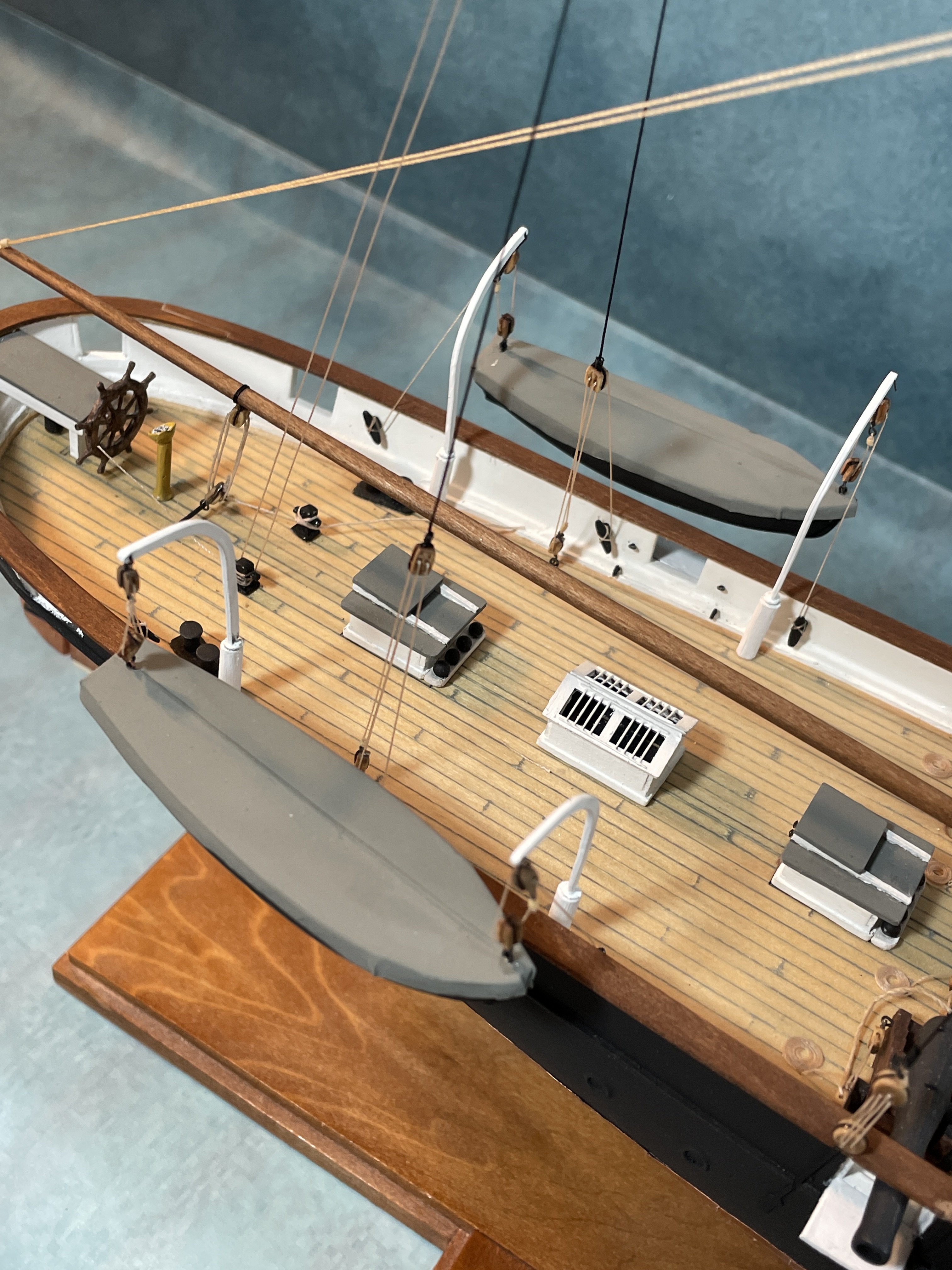

Fore lower yard lifts:

The lower yard lift rigging was modified from what was shown in the instructions by bring each end of the lines down to a block and tackle that was secured to the ships rail and tied off to a belaying pin.

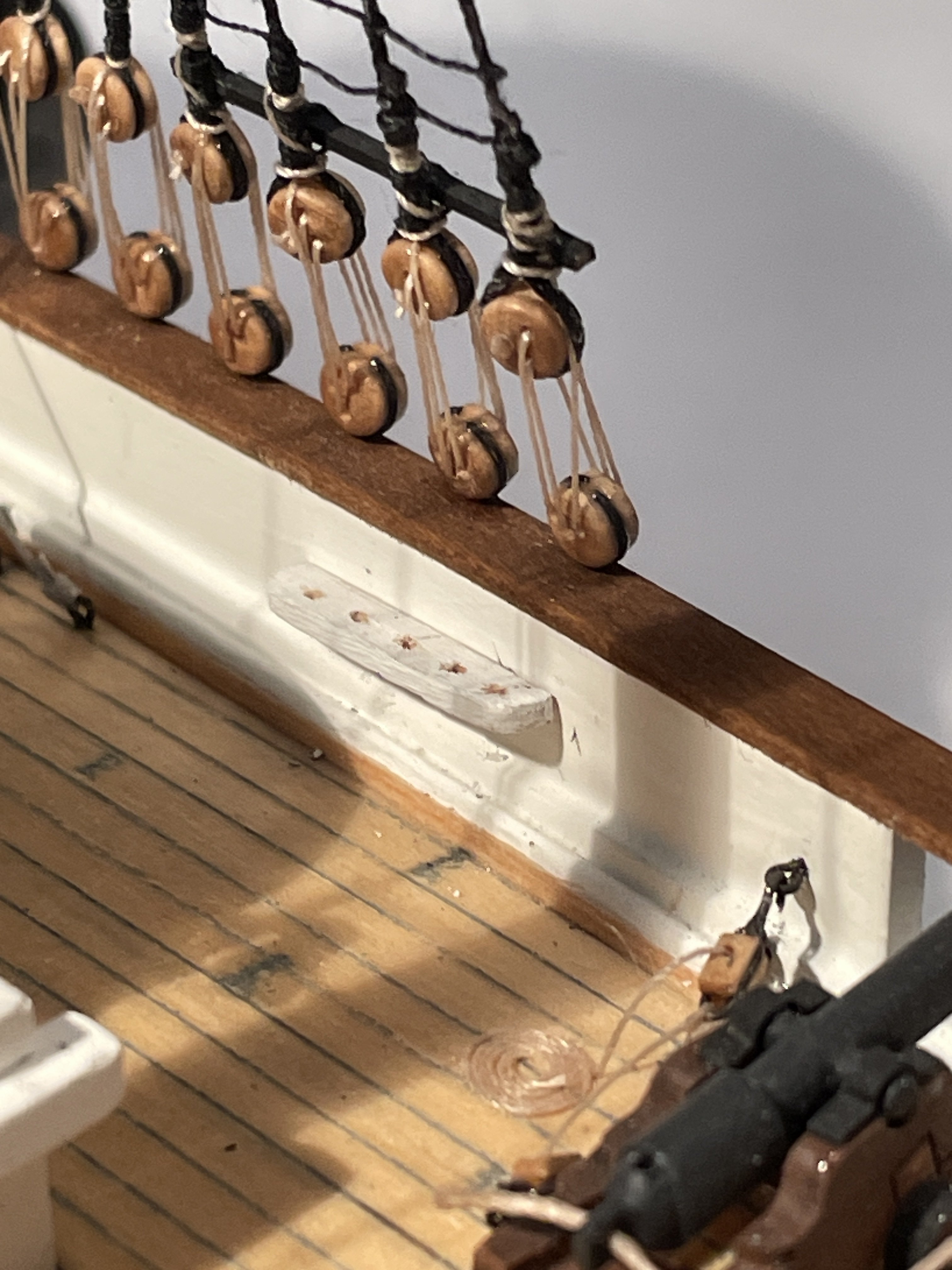

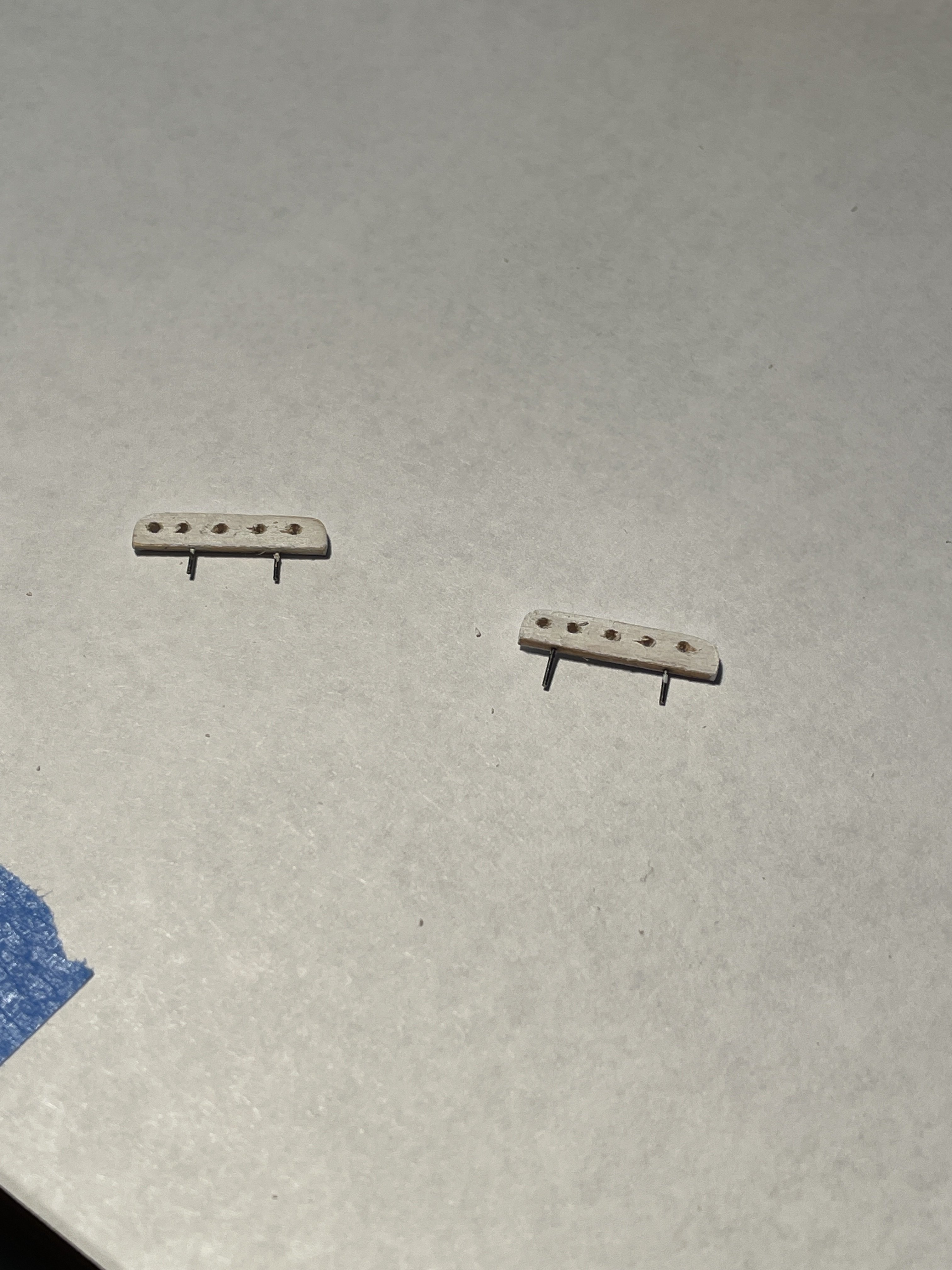

  In ordered to do this I needed to make and fasten pin rails to the interior side of the bulwark.  At this point in the build this wasn’t an easy feat.

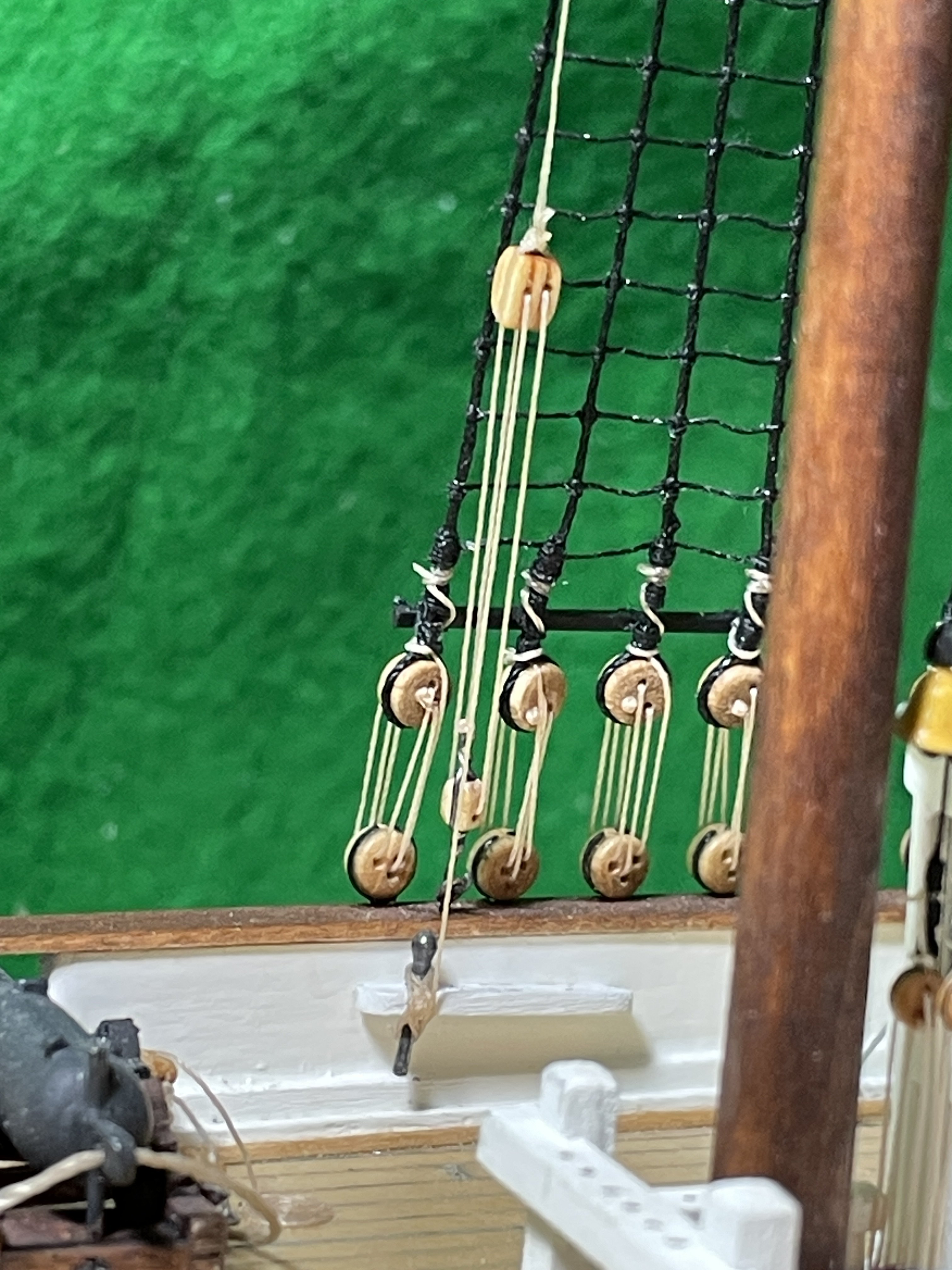

The lift lines were rigged through the blocks previously attached to the end of the yard and below the mast cap and then brought down and finished by seizing a double block to its end.  A single block was stropped with a hook and eyelet and hooked to an eyebolt fastened to the ships rail.  The halliard was rigged and belayed to the pin rail.




I'm not sure if I explained this too well but if you would like more detailed information I used the book 'RIGGING PERIOD SHIP MODELS' by L. Petersson as a guide (page 38).  Thank you all for following (if I have any followers left after the long hiatus) and it's great to be back.
