HMS Bounty's Jolly Boat by Yann Kermeur - Artesania Latina - Scale 1/25 - First build


Recommended Posts

Hello everyone,
I've received myparcell  and so I'm declaring the worksite open.

First of all, may be I'll do mistake by using wrong words or terms here,because I'm not a native speaker,  and in advance I apolozige, but it's something that I could improve with your help, so let's get started !





HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-10





and it's with a big enthusiasm that I ope the box of my first kit !!!

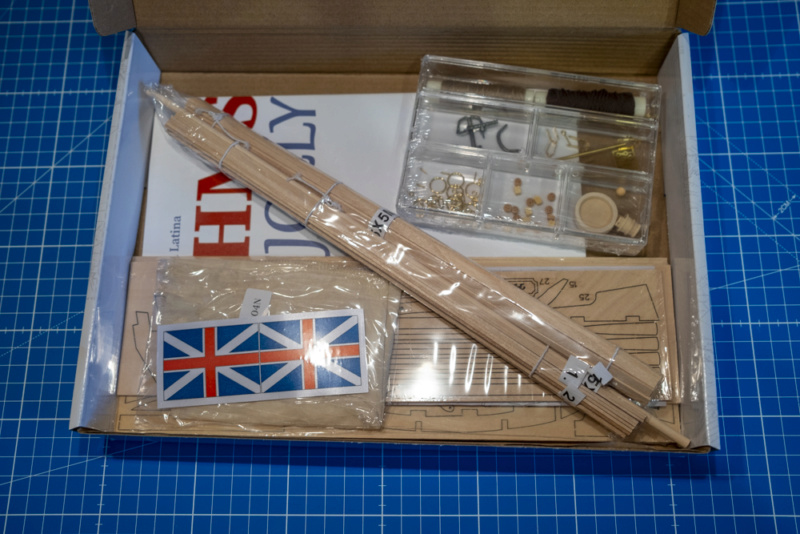

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-11

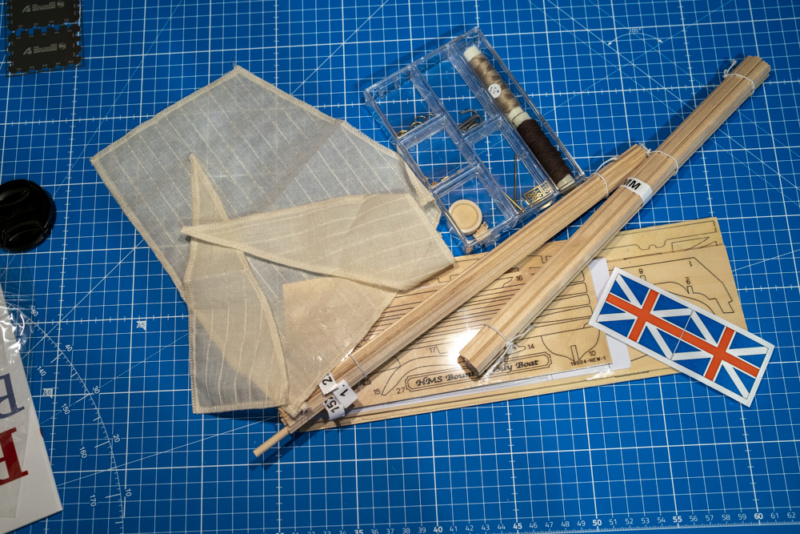

So everything's tidy, there's a little box with lots of little things, fittings, little cannons, brass and little pulleys
but they're really small !!! I'm going to have to be really meticulous on this one, I can feel it!



[url=https://servimg.com/view/20571041/6][img]https://i.servimg.com/u/f36/20/57/10/41/jolly-12.jpg[/img][/url]

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-12



So I'm going to take it easy and try to post progress regularly.

See you soon in the sawdust and glue!

Link to comment
Share on other sites

Hi

Well, the job's off to a good start, and I think that's the easy part for the moment ...

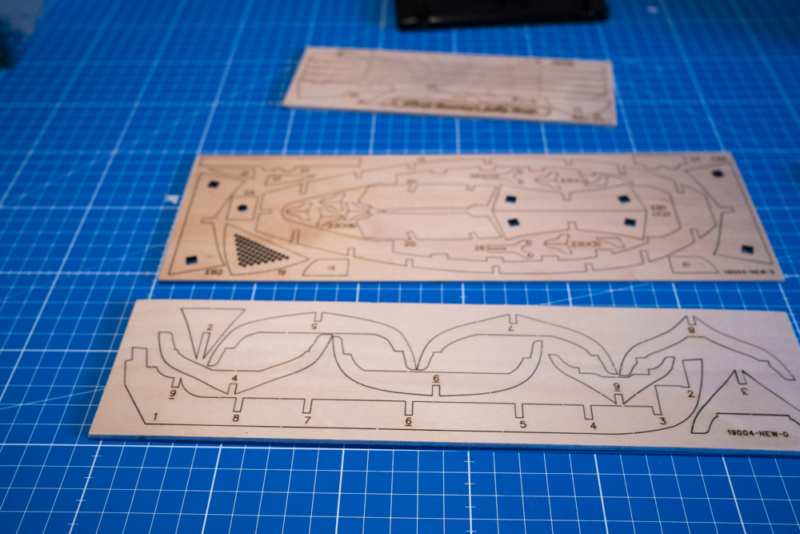

The photoetched boards look good, with the part numbers already engraved on them .



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-13

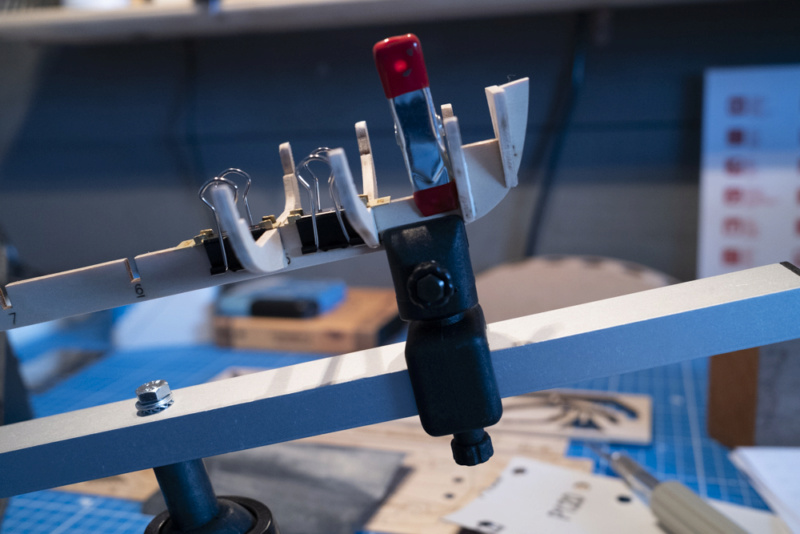

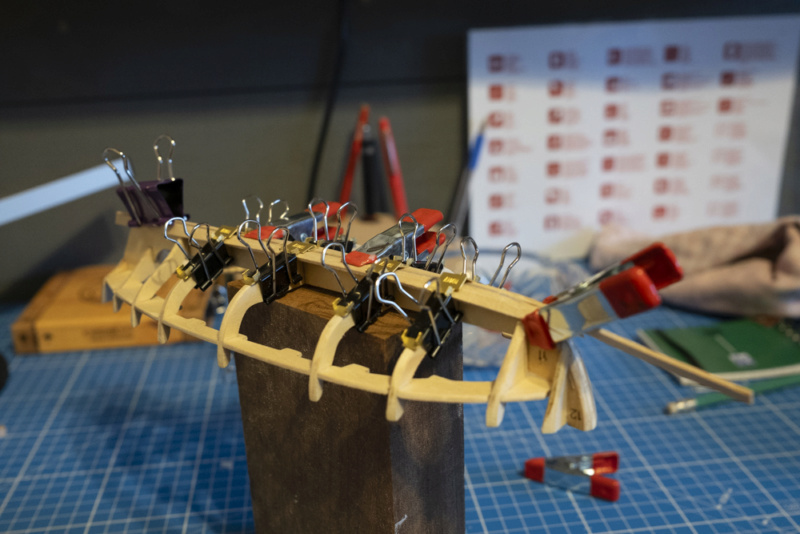

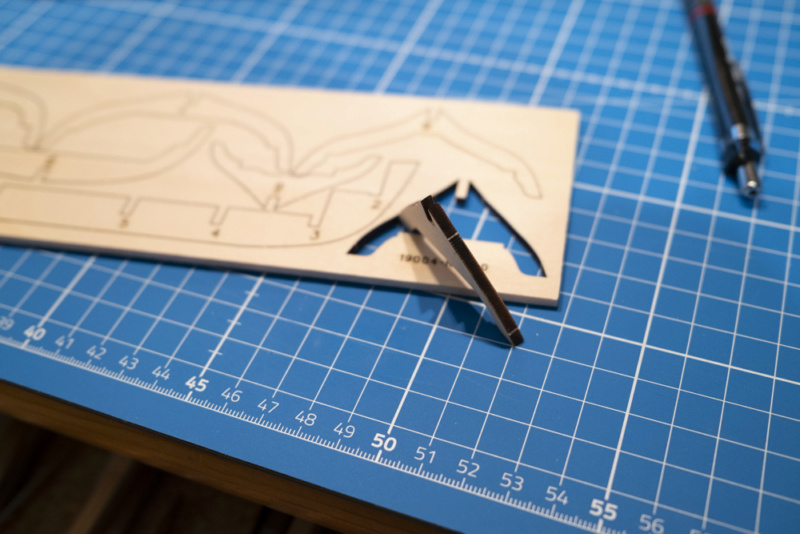

so if I've understood correctly, it's better to sand the fields to remove the laser burn for better adhesion of the glue.



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-14



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-15

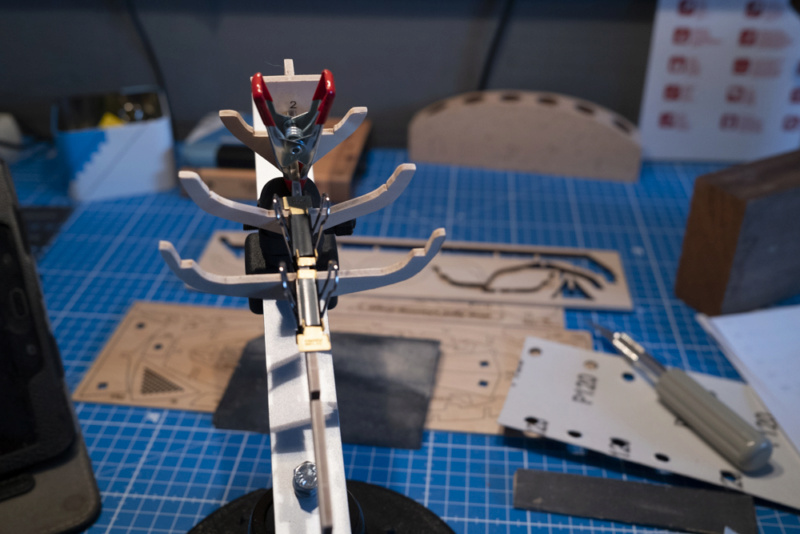

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-16



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-17



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-18

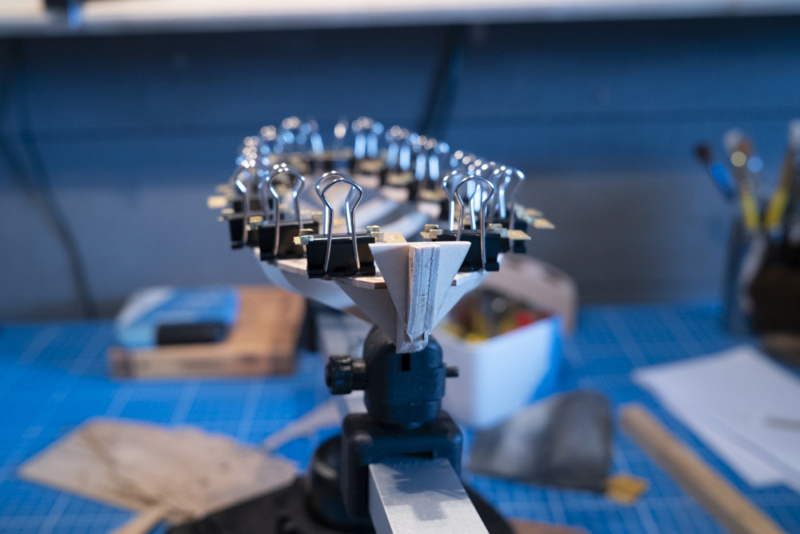

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly-19

Link to comment
Share on other sites

On 8/15/2024 at 5:08 PM, GrandpaPhil said:

It was a very good model to learn on.

yes , I agree with you, thanks for the comment.

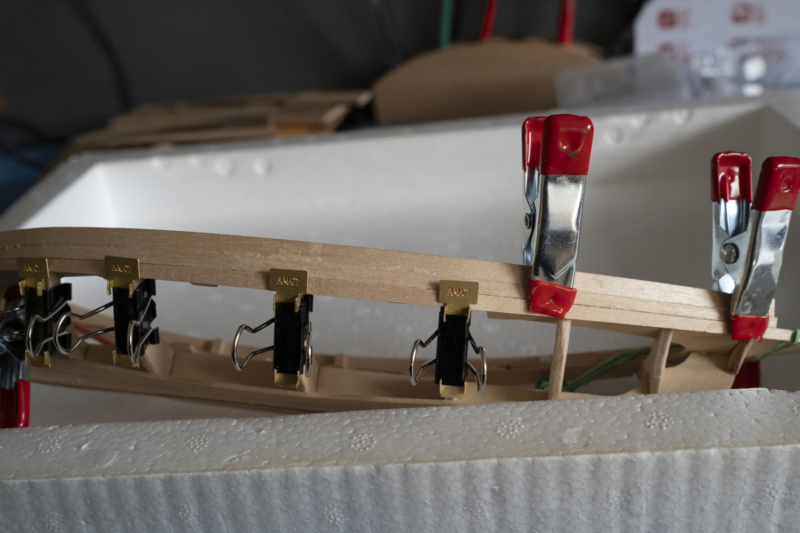

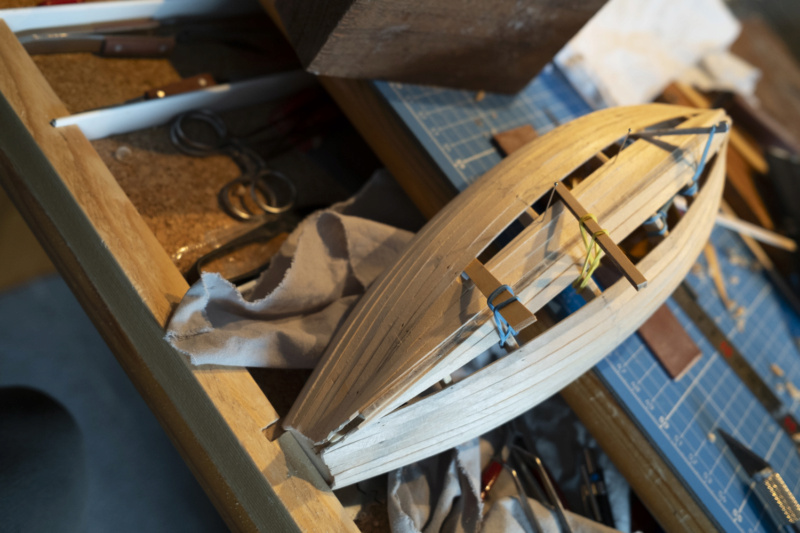

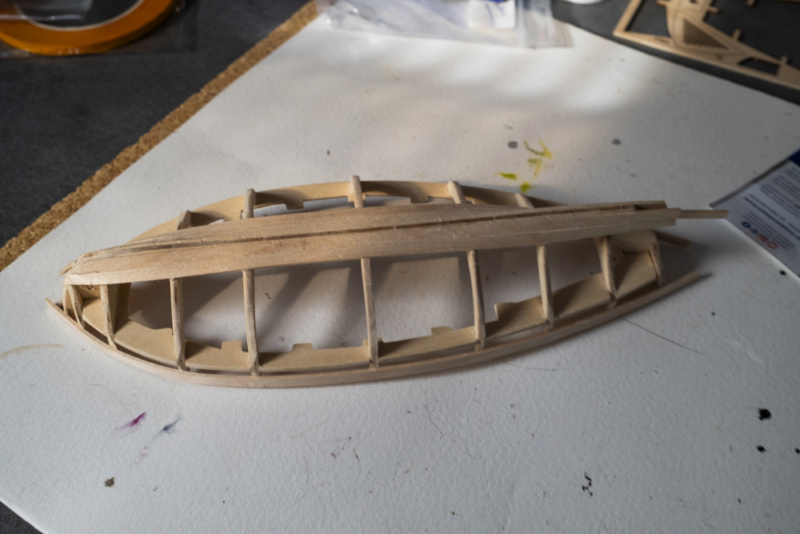

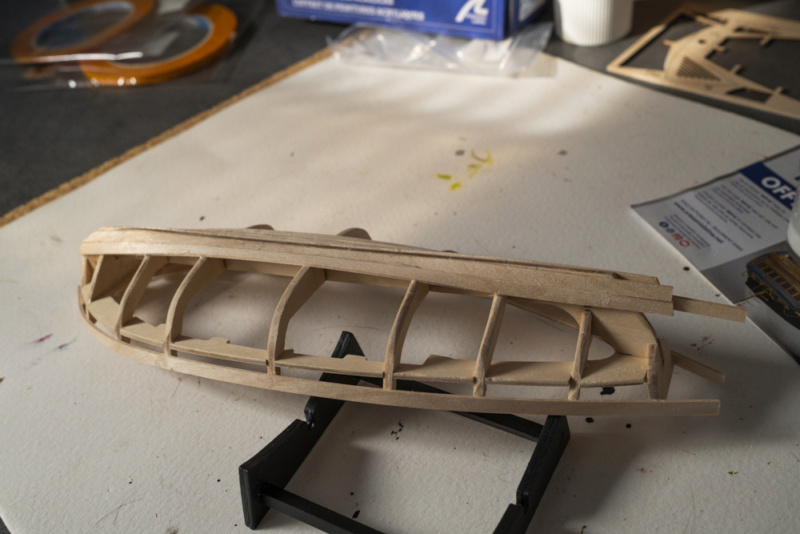

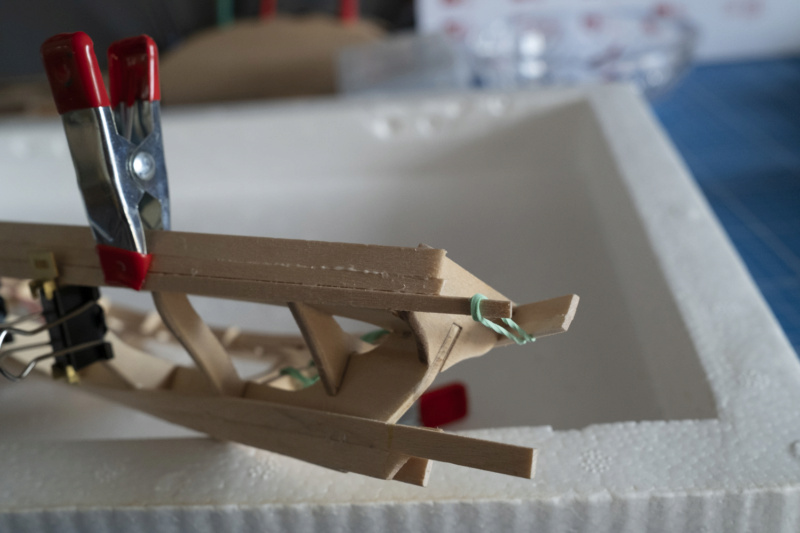

Here's the rest of the hull planking with the tapered strakes

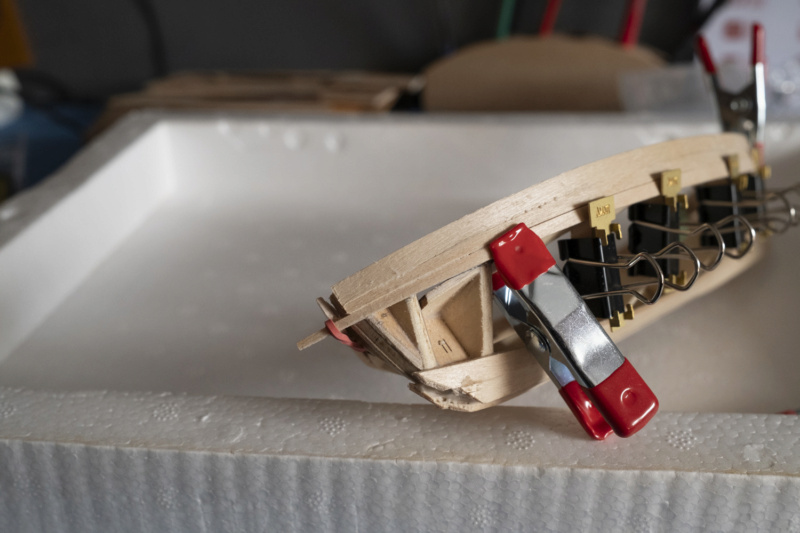

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_10



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_11



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_12



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_13



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_14



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_17



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_16

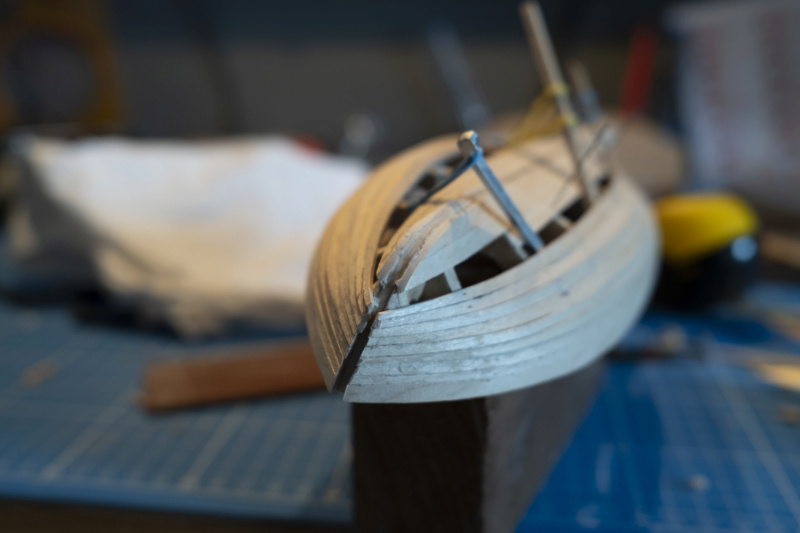

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_15





If I'd known, I would have tapered the second strake near the keel. That would have been easier for the width of the strakes at the bow.



Link to comment
Share on other sites

Hi everyone

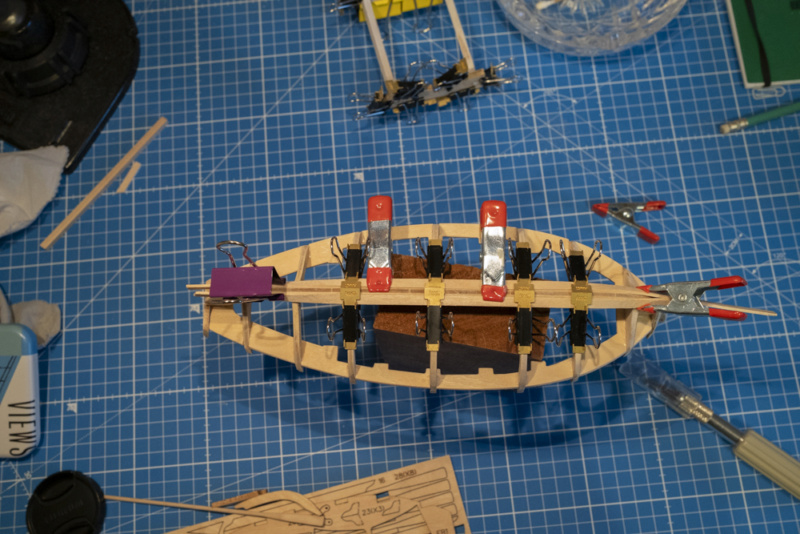

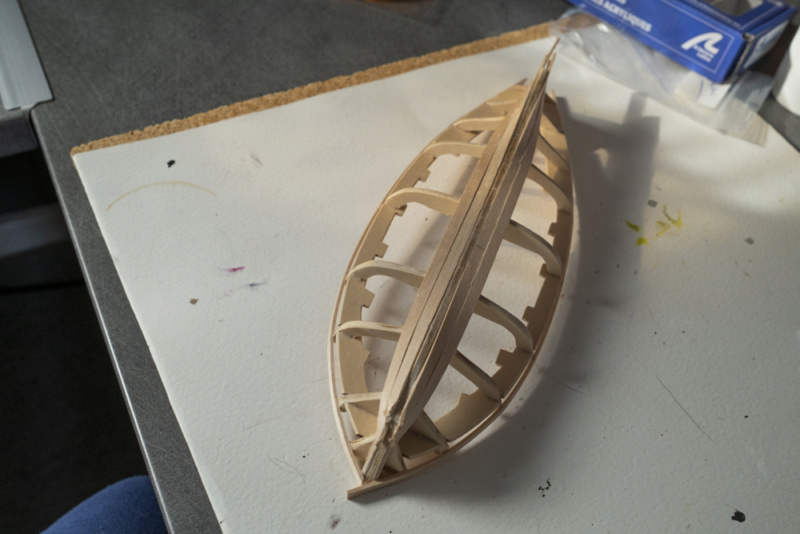

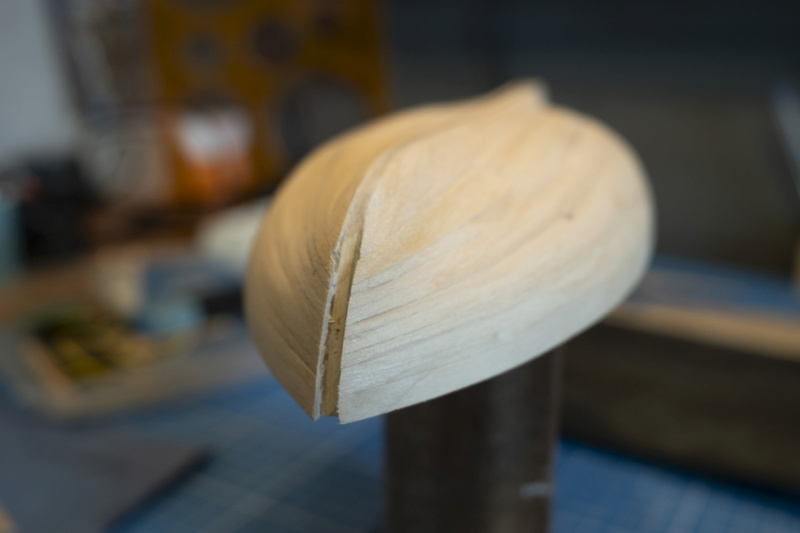

The hull is finished, first sanding with 80 grain sandpaper to try and remove the biggest irregularities ...

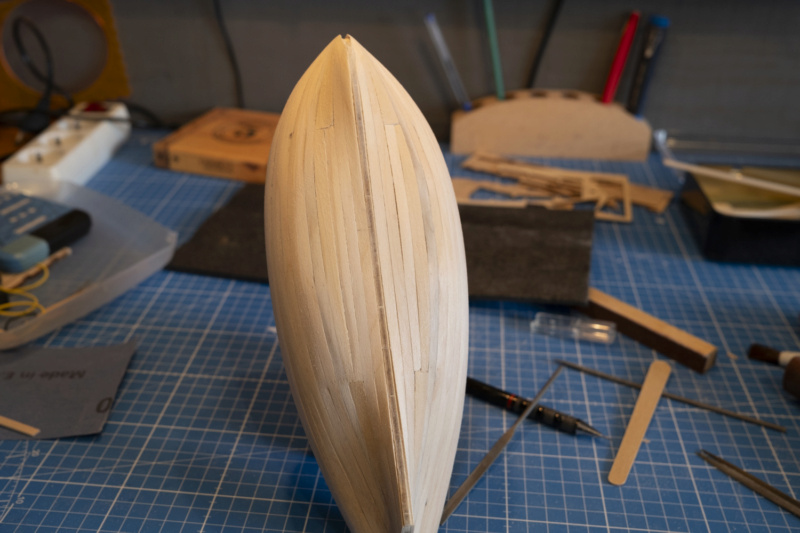

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_18



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_19

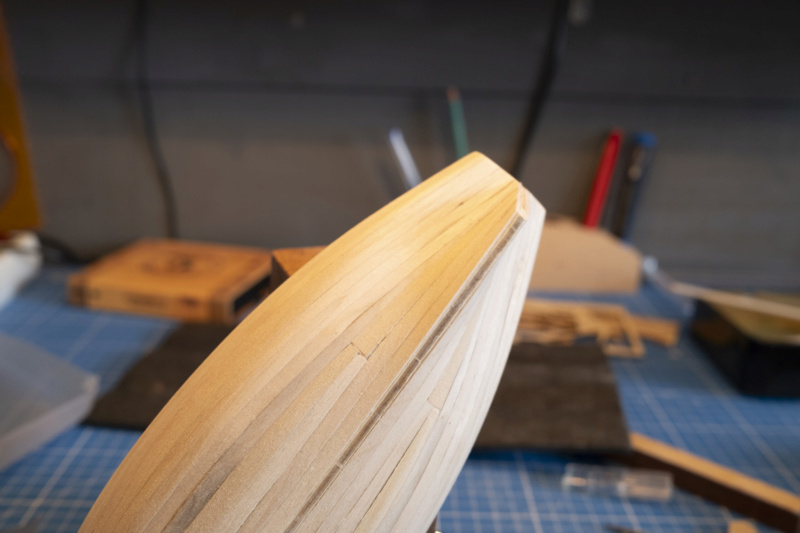

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_23

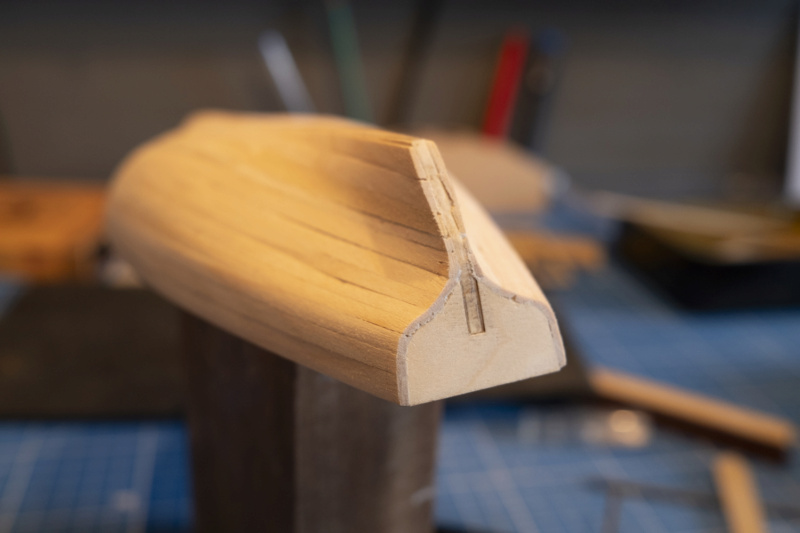

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_24

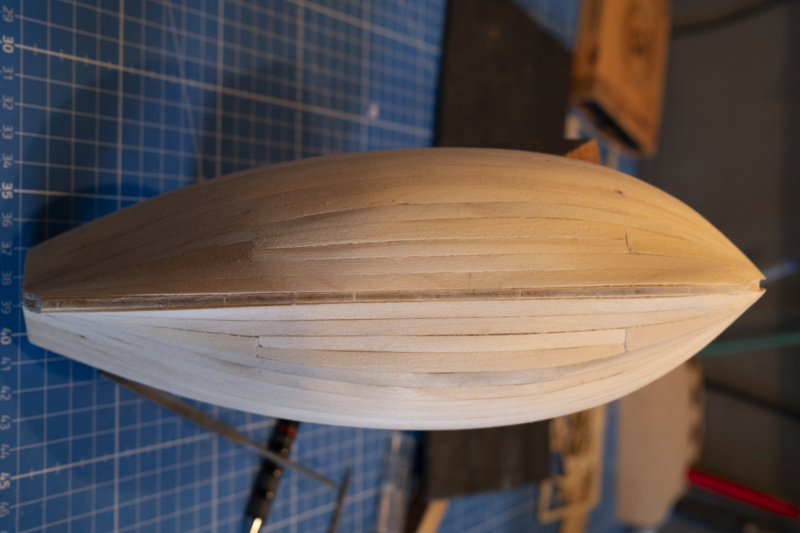

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_25



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_26

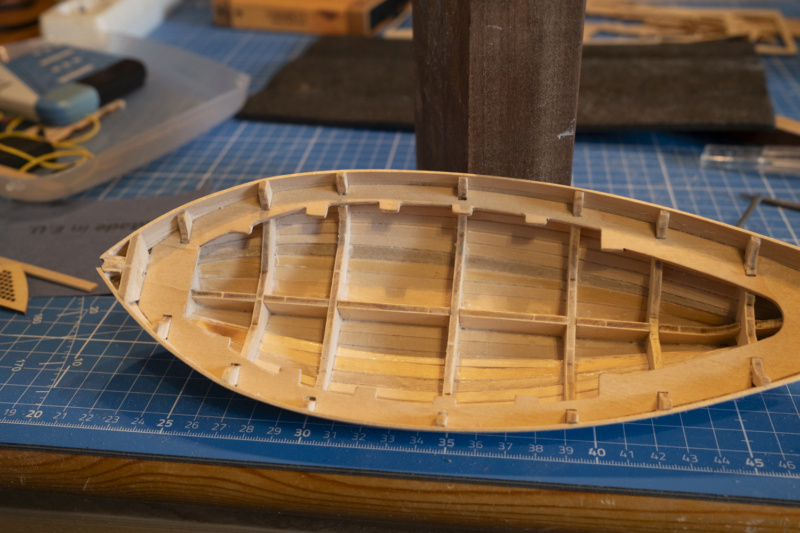

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_28



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_27

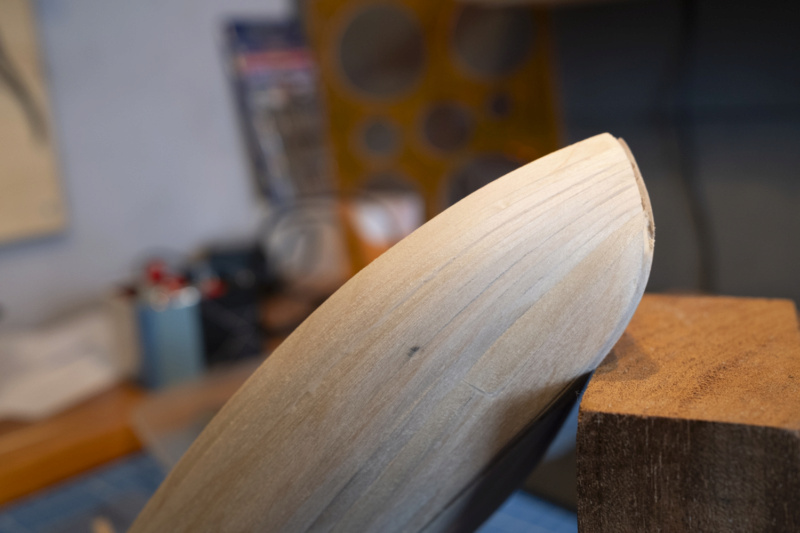

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur Jolly_29





The hull planking is finished, and I'm going to think again about the choice of paint, but not necessarily the one recommended by the manufacturer.

Link to comment
Share on other sites

Hi everybody !

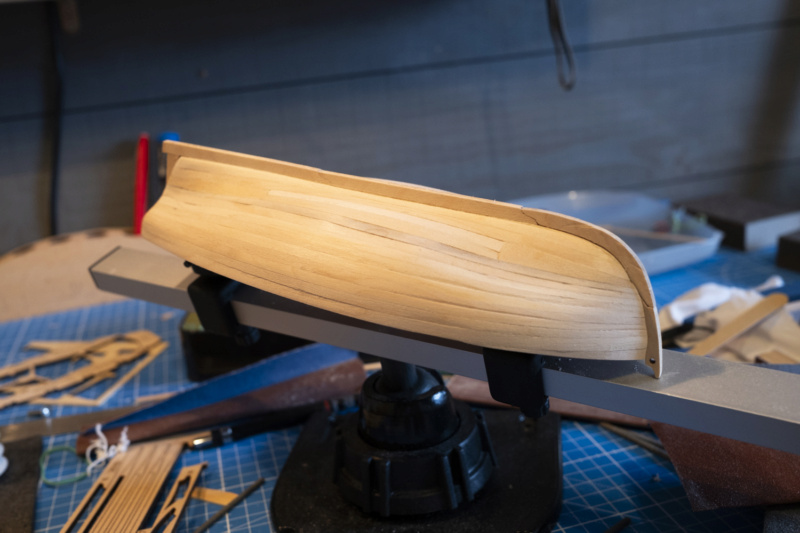

keel installation, stern post and  keel bow ....



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Jolly_30



As for the rest, I did some research on the web about this boat and it clearly appears that there are many variants
and the kit I bought is far from a proven historical version. Perhaps it's different with more prestigious boats?
In short, I've decided to take a step back from the kit plan and try to make a few modifications that will in any case be no less valid, even if I make a few mistakes.

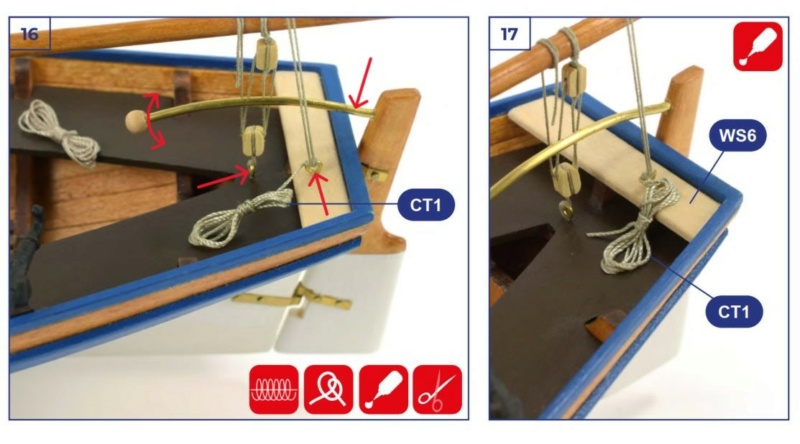

first point :   Here I find it a little odd to attach the pulley and rope on either side of the tiller. I'm going to move these two fixing points.



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Jolly_31

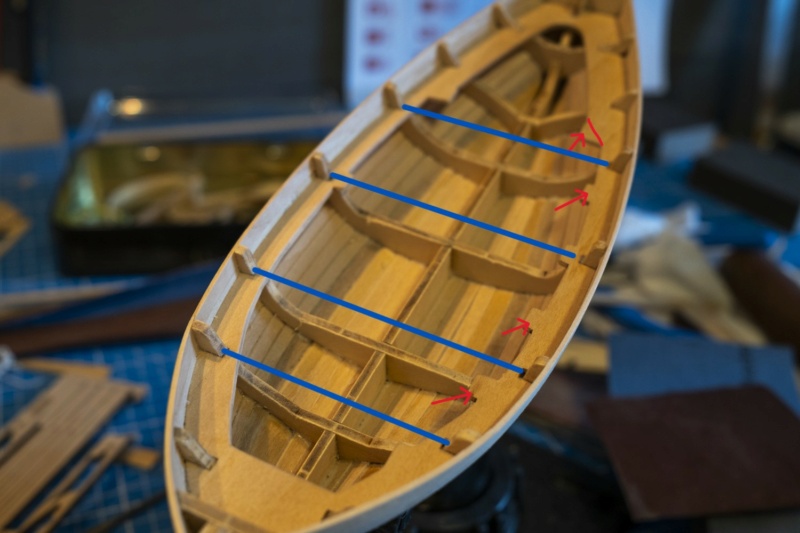

Second point: In my opinion, there's a bit too much “bench” in the rowboat and, what's more, the black elements added on top next to the couples make the whole thing unnecessarily heavy ....



So I'm going to remove a bench and fix the seats at the level of the existing couples (in blue) ....
This will have the effect of shifting the mast a centimetre towards the stern .... and I'll have more space in the boat to add a few elements ...



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Jolly_34





third point: Finally, for the oars, the kit proposes to create a half-round on the gunwale, which doesn't seem very practical for rowers, so I'd modify this point.



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Jolly_35



Thank you for your attention and see you soon

Link to comment
Share on other sites

Hello,



Work progresses slowly .....

A small attempt to age the deck ....The idea being to show a little wear due to the placement of the rowers' feet.
The benches are level with the adhesive strips.



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7710



 here I'm puttingtying the hull ....



HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7711

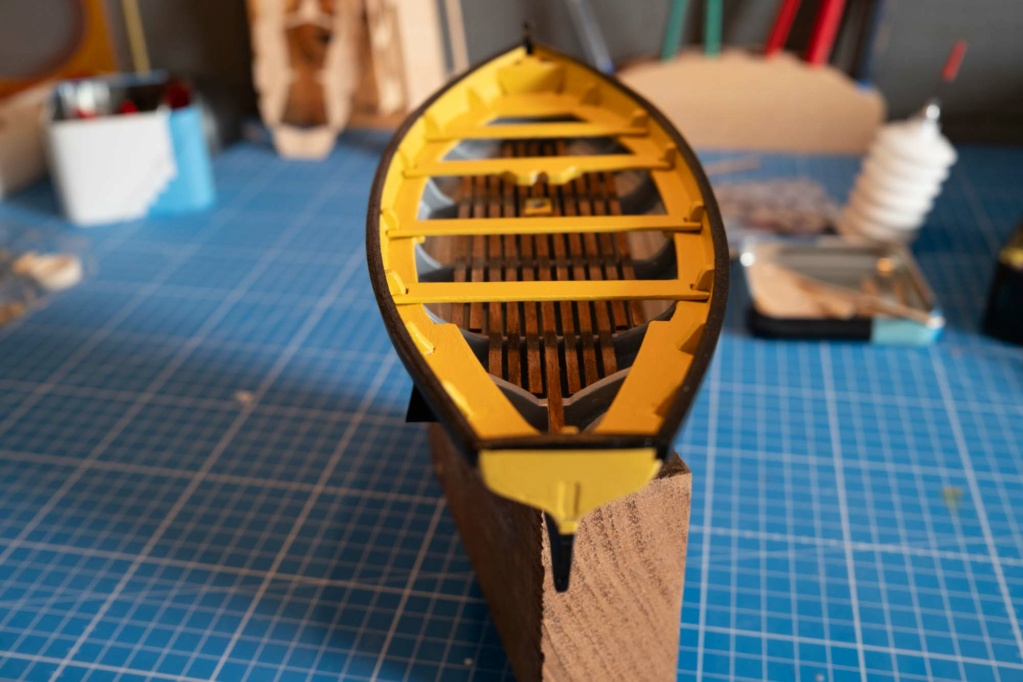

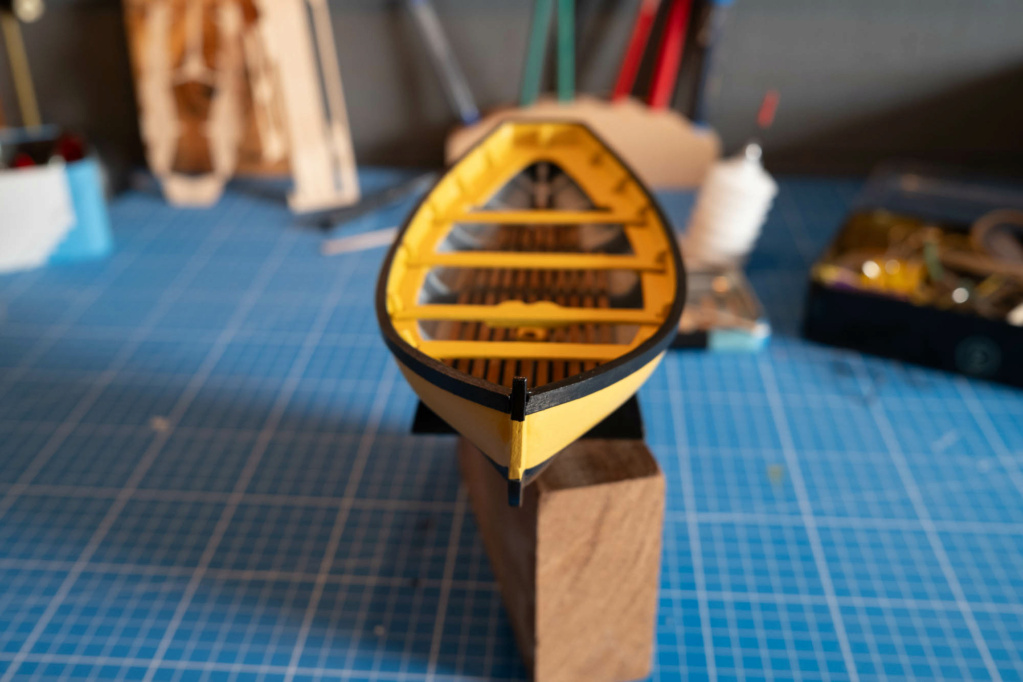

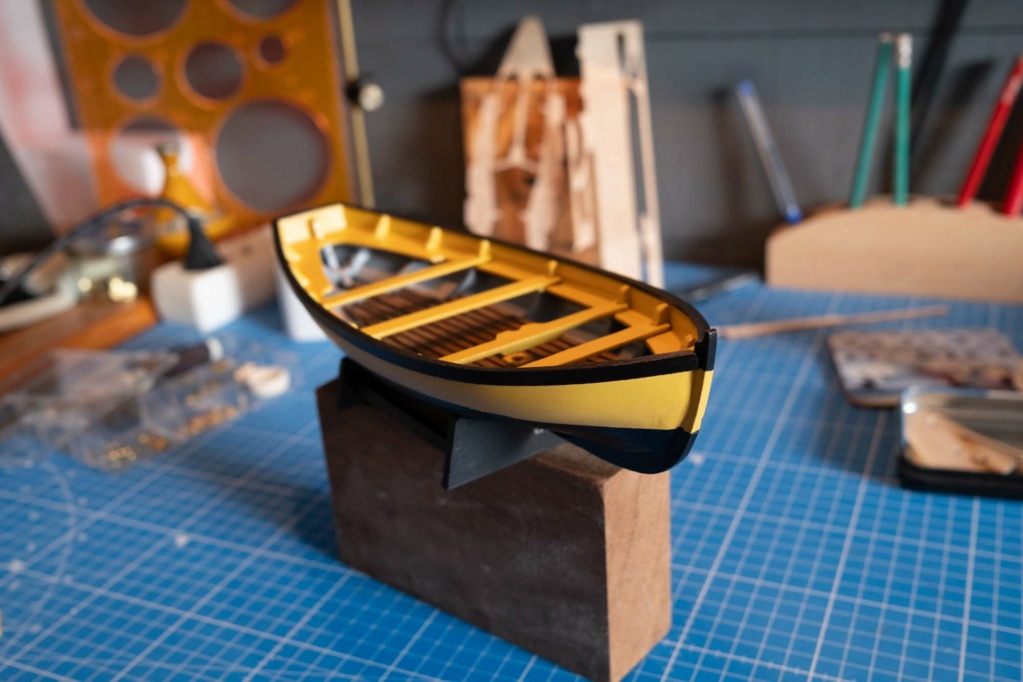

and here after the painting





HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7813





HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7811

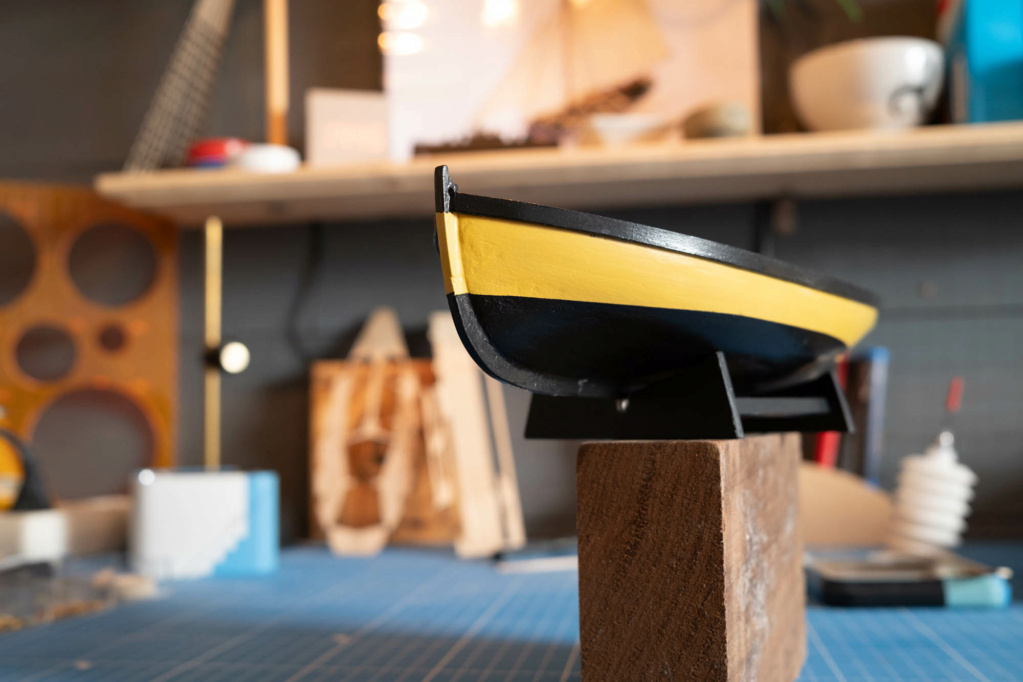

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7814




HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7817

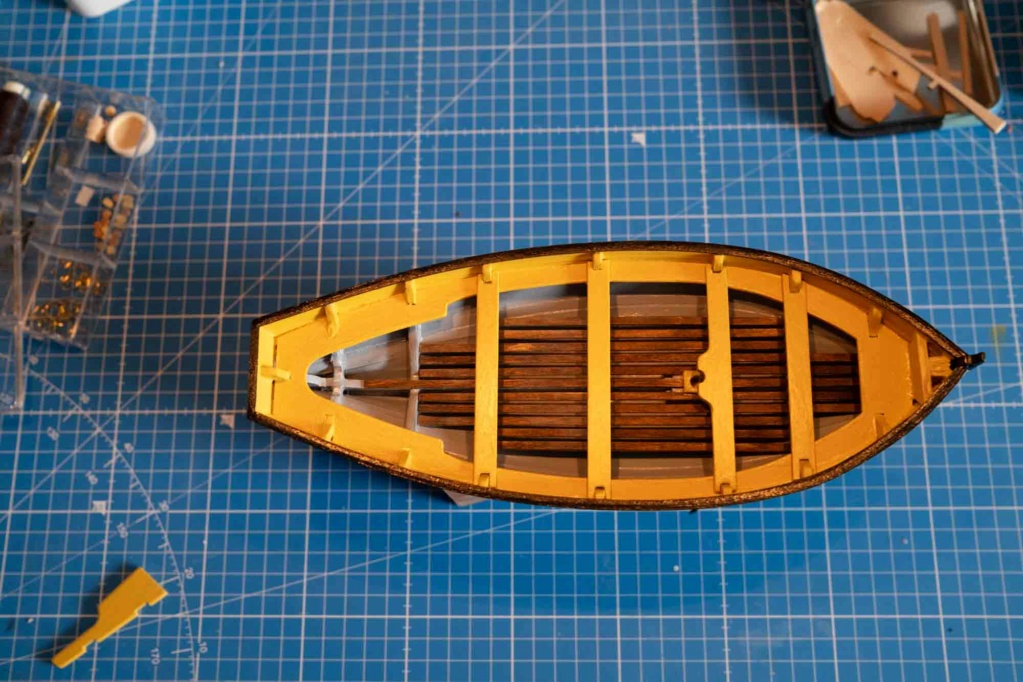

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7810



have a nice day ....

Link to comment
Share on other sites

Very nice work.  :cheers:

Bob M.

Start so you can Finish !!

Finished:         The Sea of Galilee Boat-Scott Miller-1:20 ,   Amati } Hannah Ship in a Bottle:Santa Maria : LA  Pinta : La Nana : The Mayflower : Viking Ship Drakkar  The King Of the Mississippi  Artesania Latina  1:80



 Current Build: Royal Yacht, Duchess of Kingston-Vanguard Models :)

Link to comment
Share on other sites

Hello company!

Some news from Captain Bligh and his longboat

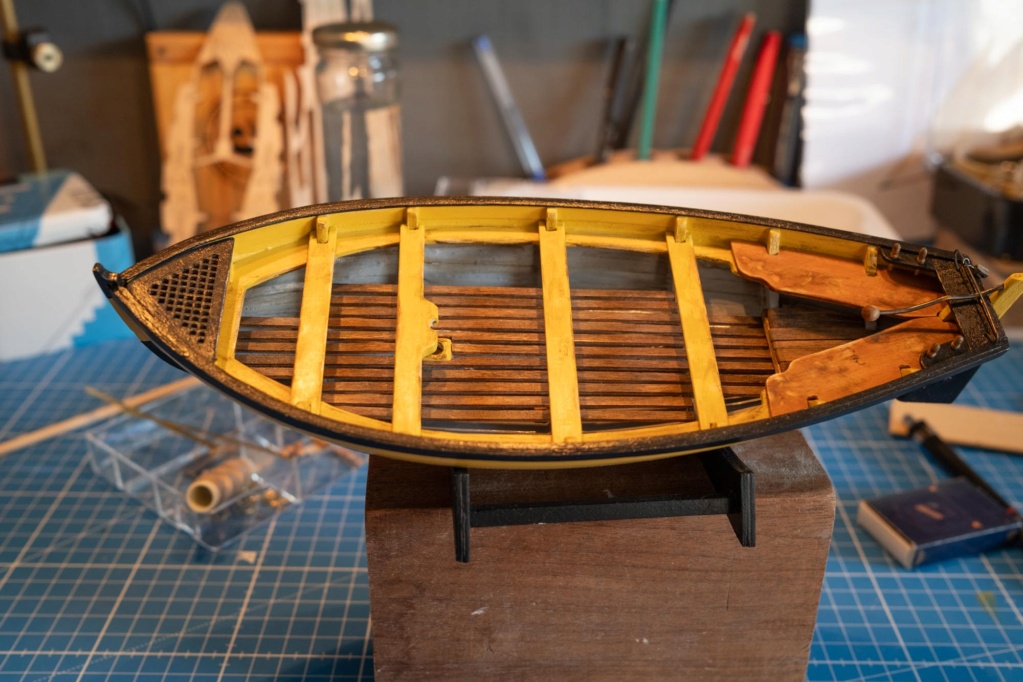

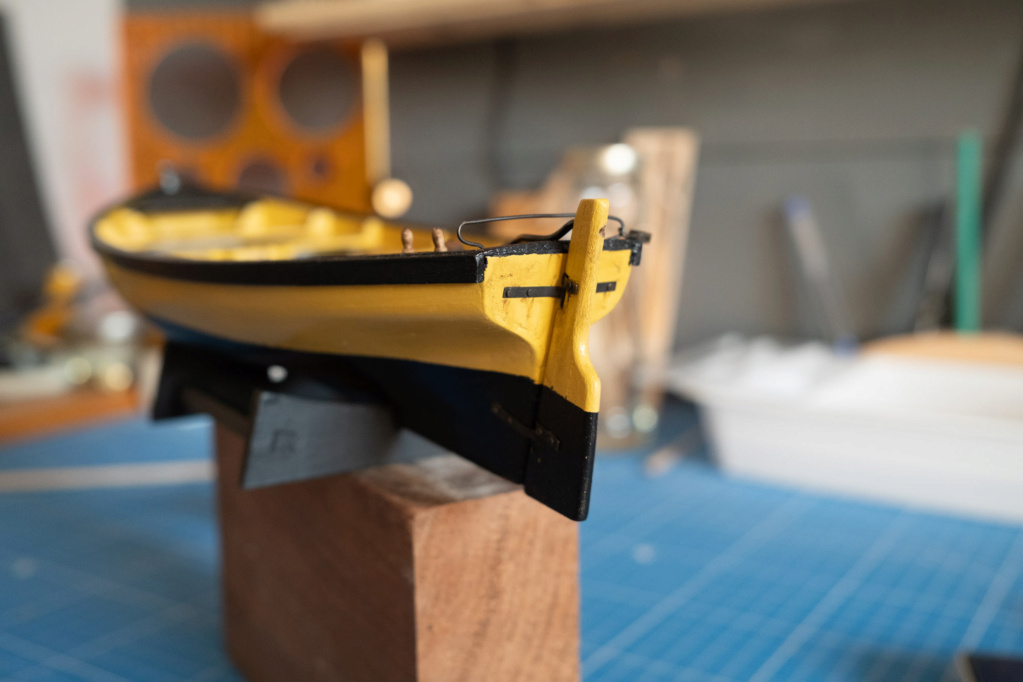

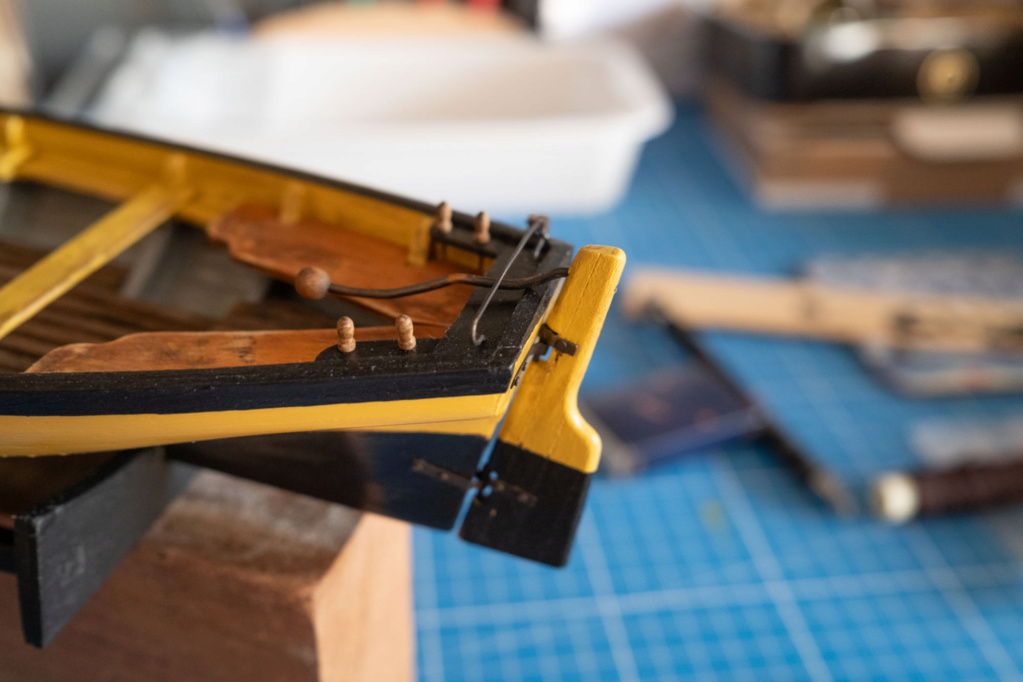

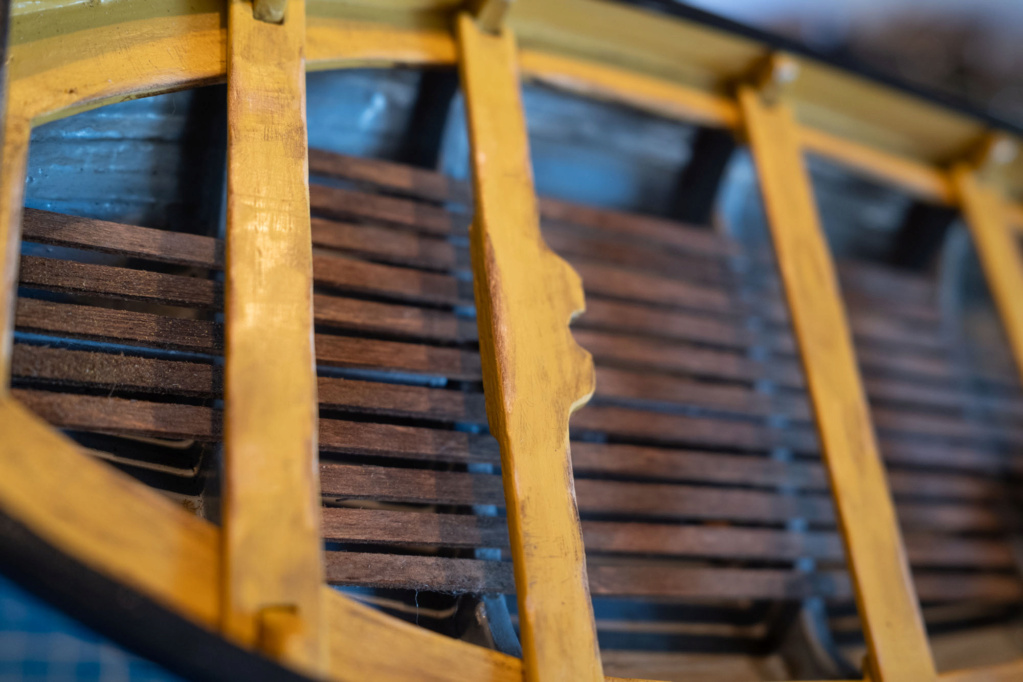

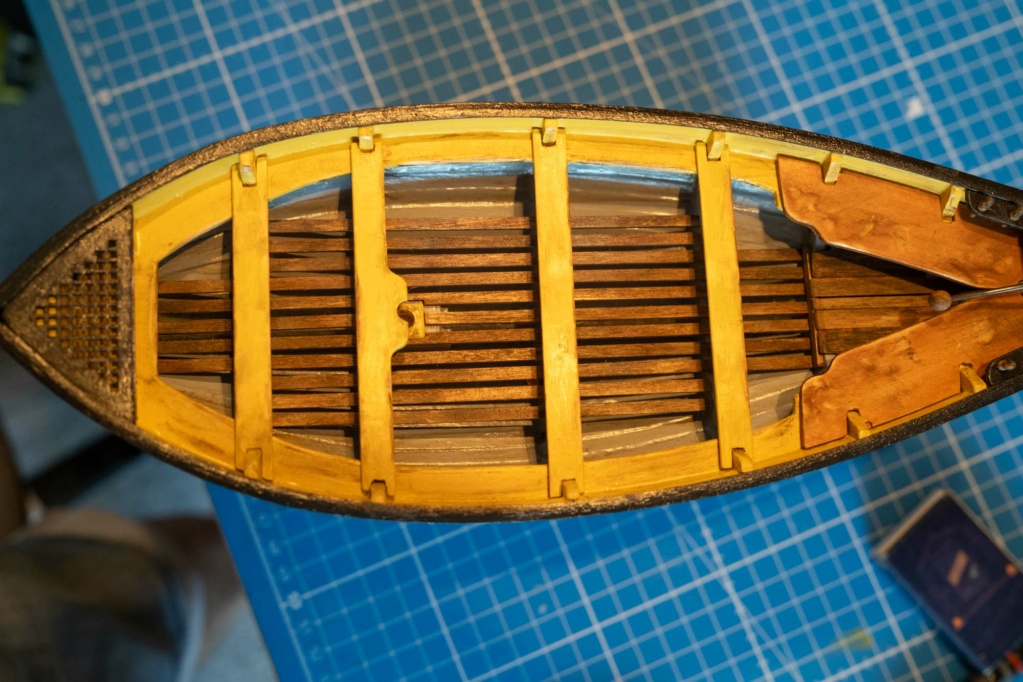

Since the last post, I've: fitted the rudder, created a small battened deck for the helmsman, fitted some  belaying pins to the cockpit for the ropes, installed a tiller for changing the tack, I've seen this on a tuna boat but I don't know if it's done on a longboat? and I've also tried a little ageing of the boat, just the inside and the stern for the moment .....



some views of all this:




HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7819

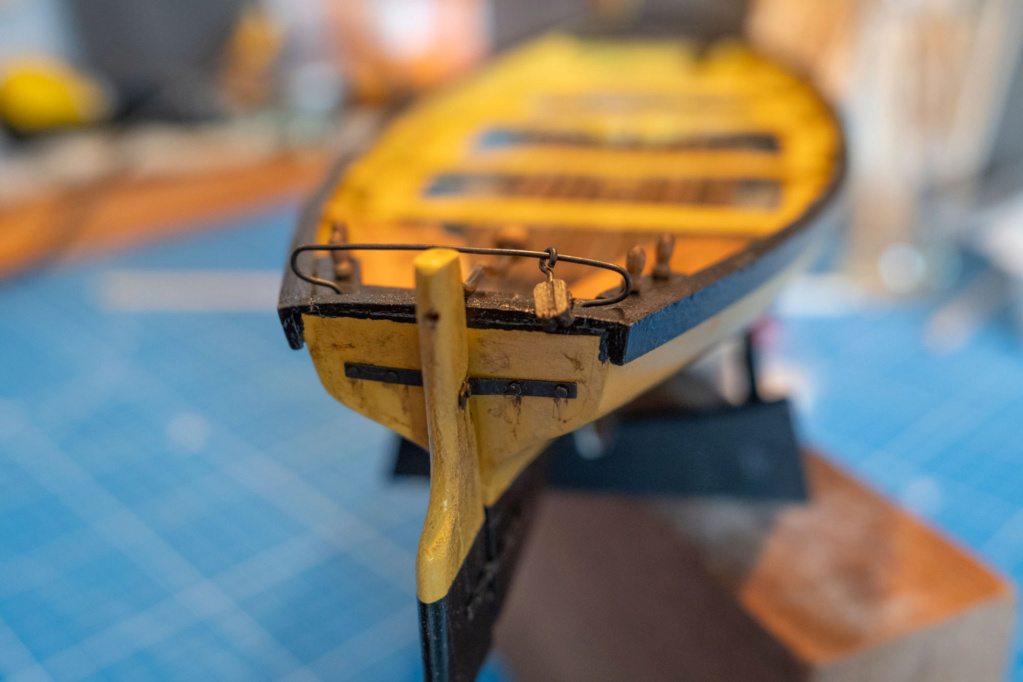

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7820





HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7821

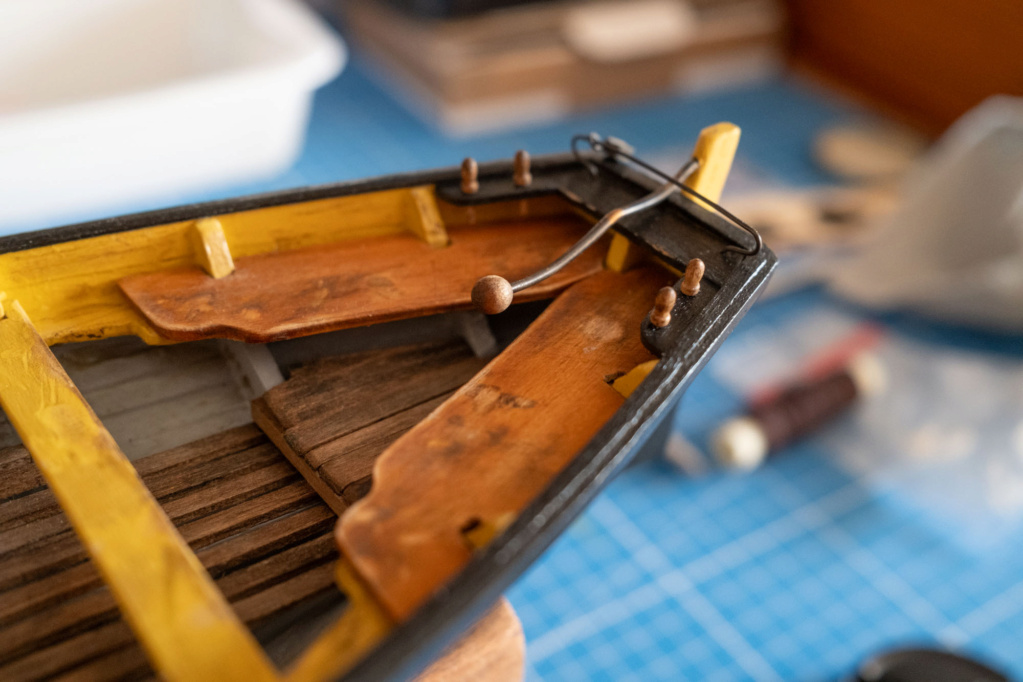

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7825

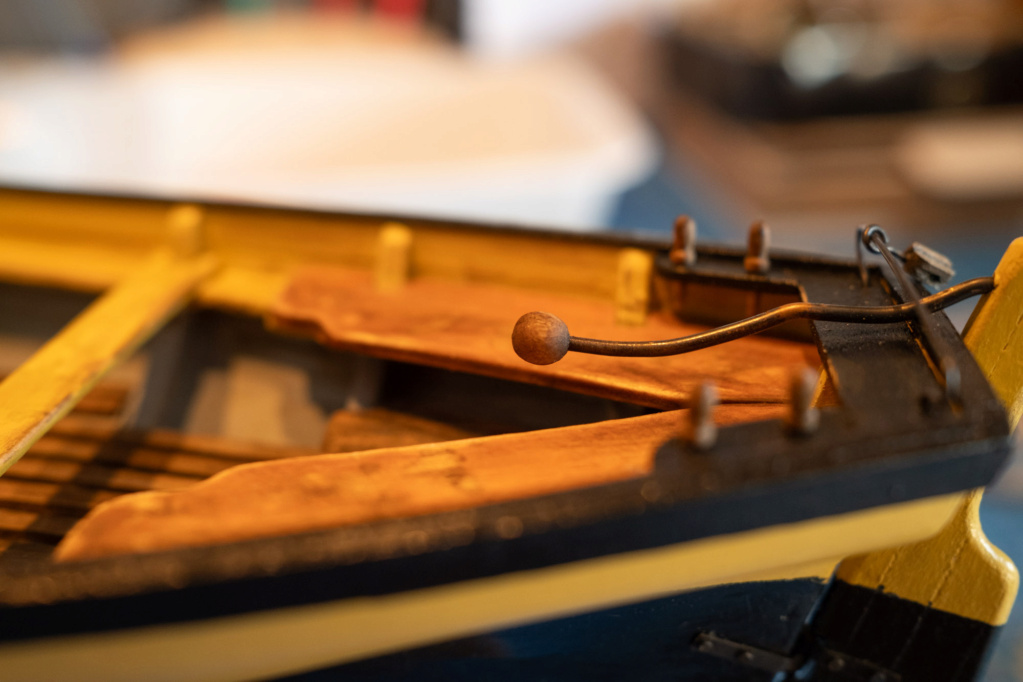

HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7828





HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7827





HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7830




HMS Bounty's Jolly Boat [Artesania Latina 1/25°] de yann kermeur - Page 2 Dscf7831



have a nice day .....
