Mary Rose 1511 — the epitome of the Northern tradition

[Waldemar]



The results of the analysis of the design method applied to the construction of the iconic ship Mary Rose presented here, although perhaps no longer entirely unexpected at this latest stage of investigation undertaken, quite decisively complement and correct previous understandings of the history of shipbuilding in this early period. This case emphatically demonstrates that shipbuilding methods that can be called Northern European (as opposed to Mediterranean) are not, as hitherto thought, confined to the early modern Netherlands, from where they were supposedly spread over time to the other regions of the continent. On the contrary, the increasing number of examples being studied show that this is in fact a building tradition that is omnipresent throughout all northern Europe. Suffice it to say that long after the Mary Rose 1511, an exactly identical design method, with all its specific paradigms, was still applied at least 200 years later, for example, for the construction of the very successful Flemish predatory privateer ships, such as the highly regarded Neptunus of about 1690, and described by Chapman as an „extraordinary sailor”, or vessels of Louis XIV's navy of various sizes, such as the light frigate l'Aurore of 1697 (detailed presentation forthcoming).



Even if one is not interested in issues such as the historical context of ship design, familiarity with these methods and the ability to apply them in practice may prove useful to today's authors of reconstructions in order to obtain reliable shapes. It is also worth adding that the ancient design methods, correctly applied, virtually guarantee the immediate fair shapes, without the later, punitive synchronisation of cross-sections, waterlines and buttocks, which was in fact not practised in this early period at all.



This particular study is based on the published documentation of the ship in two excellent monographs of the Mary Rose — Mary Rose. Your Noblest Shippe, ed. Peter Marsden, 2009 and Tudor Warship Mary Rose, author Douglas McElvogue, 2015. In contrast, one need only caution against the disastrous in content and effect chapter ‘Hull Design of the Mary Rose’ in the first of these monographs, both in a general sense and for me personally. The attempt there to reconstruct the Mary Rose's design method seems to have led to an even more distortion of the lines of the shipwreck than nature has done in 500 years and, as a result, a lot of time was wasted sorting this out somehow. As always, I could also count on the invaluable help of my friend Martes.

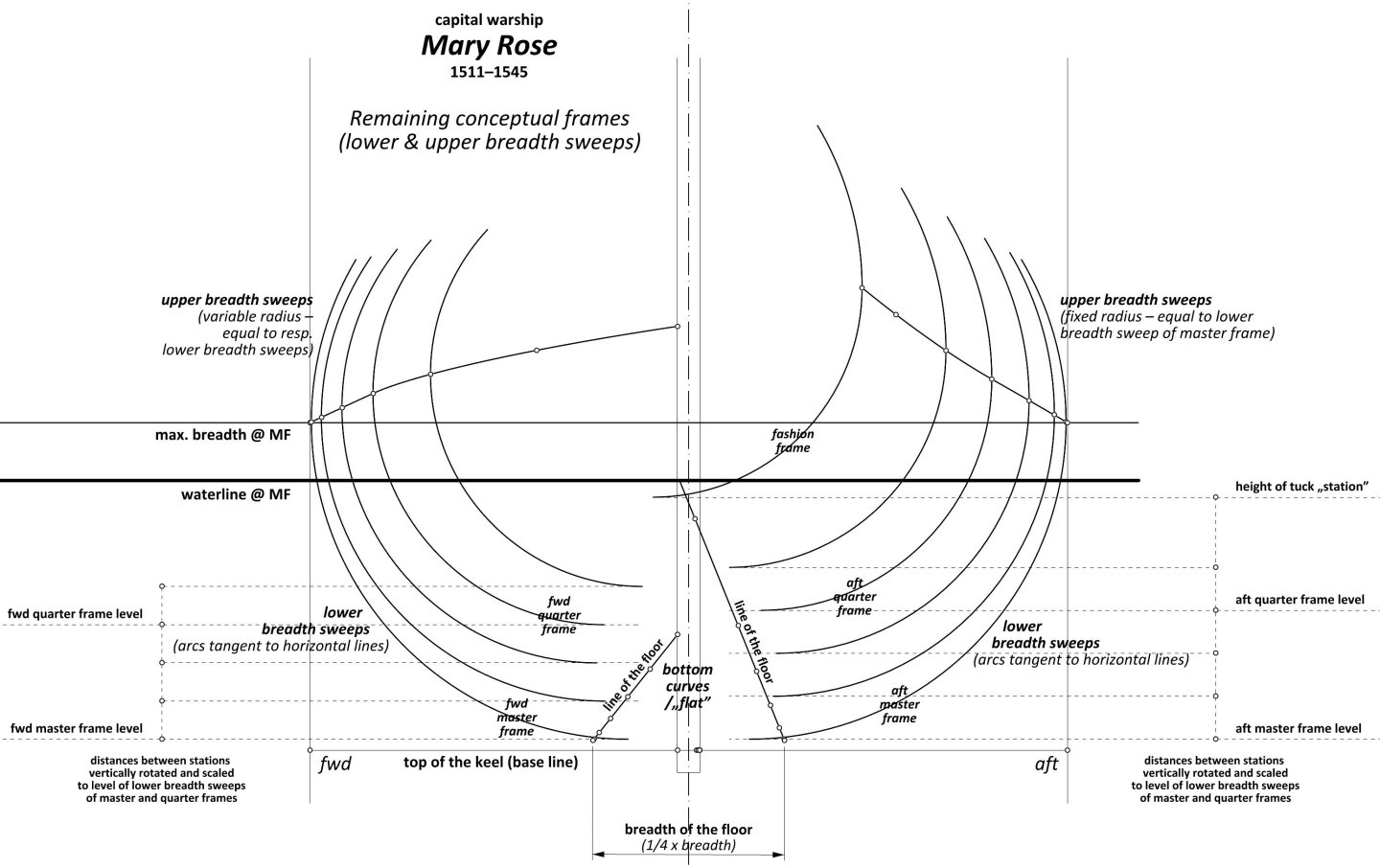

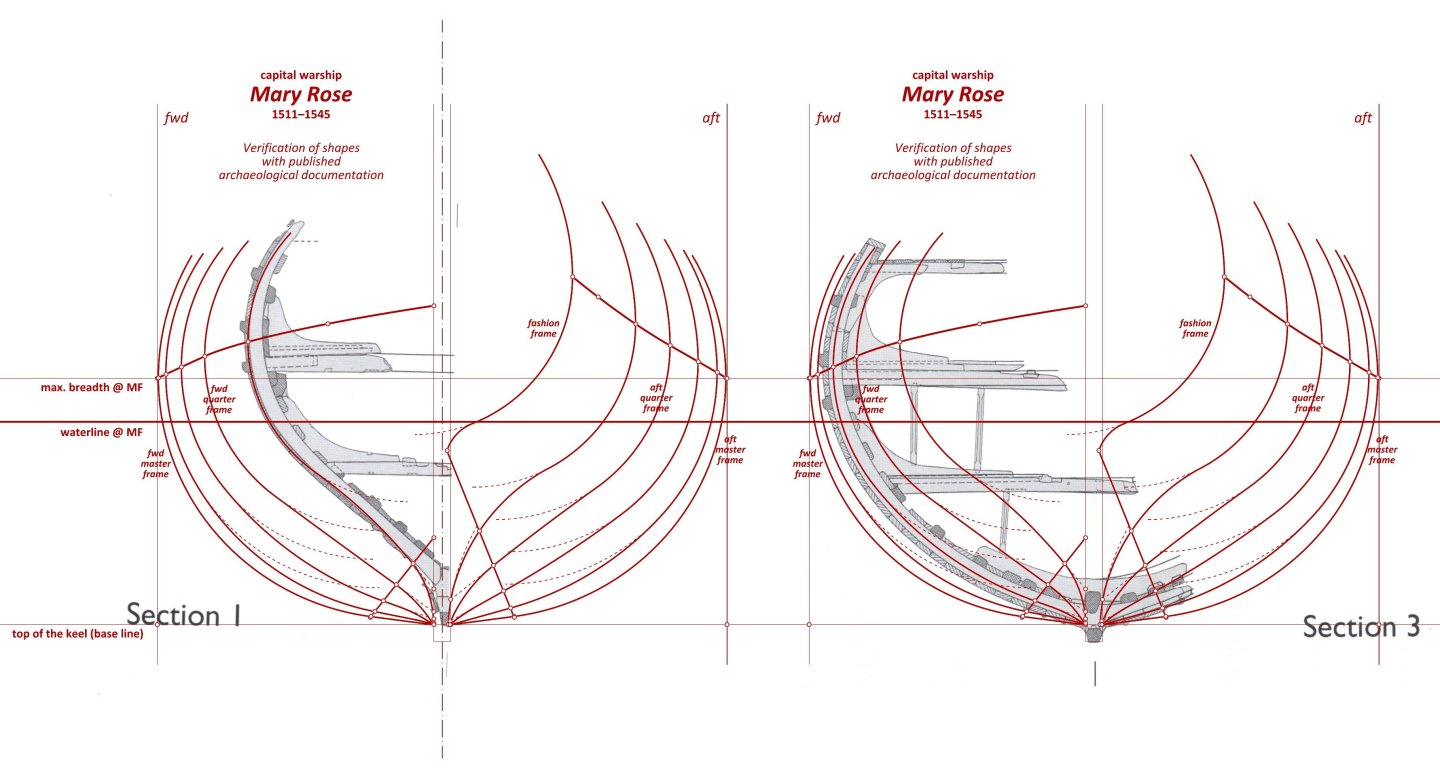

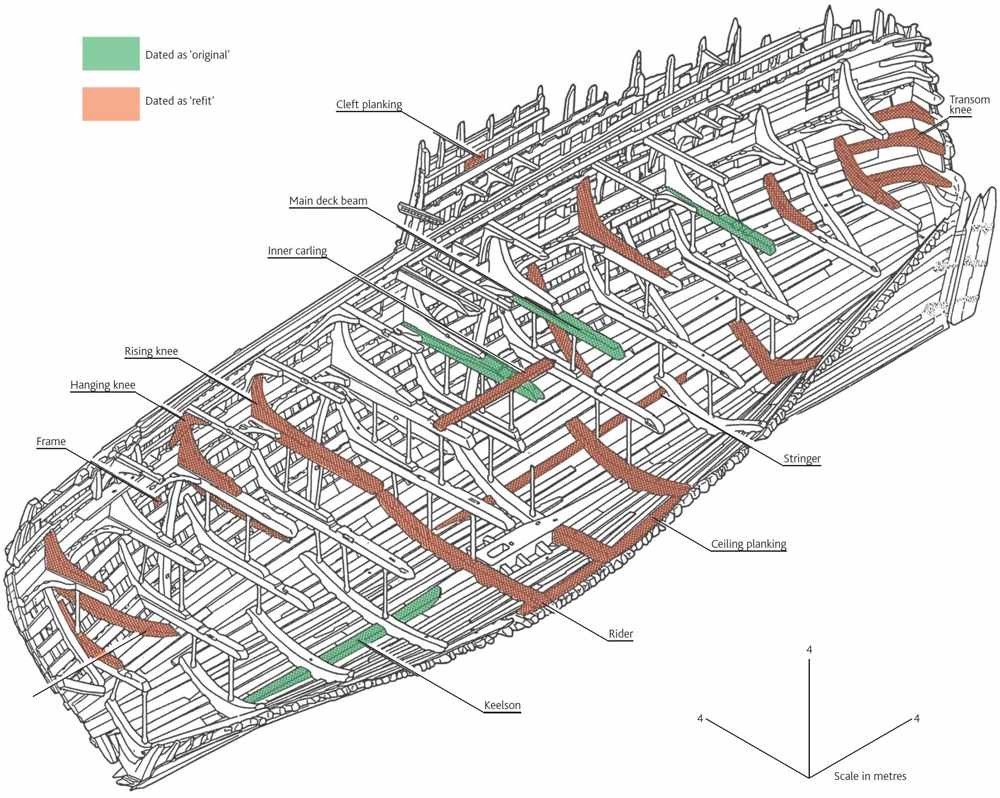

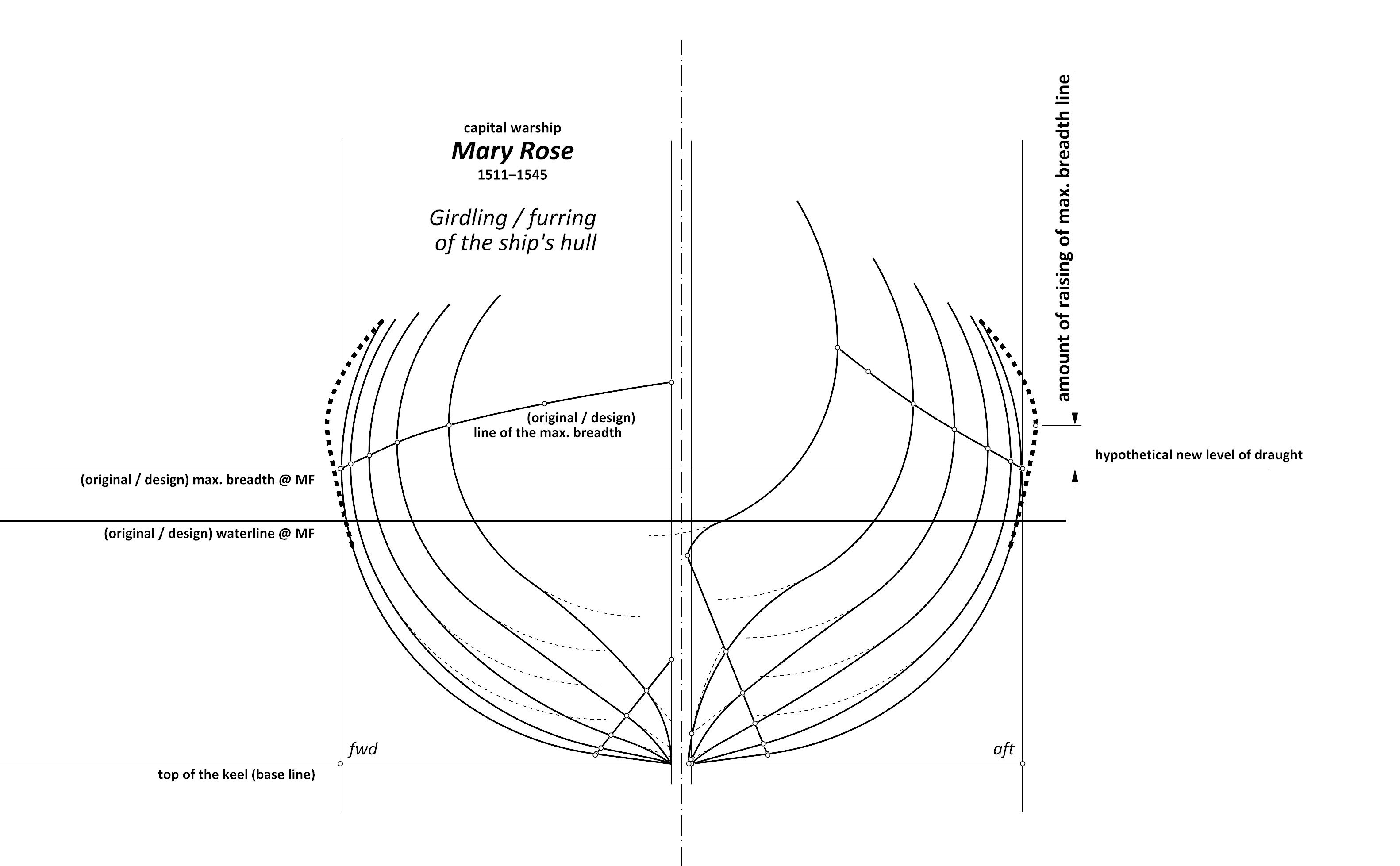

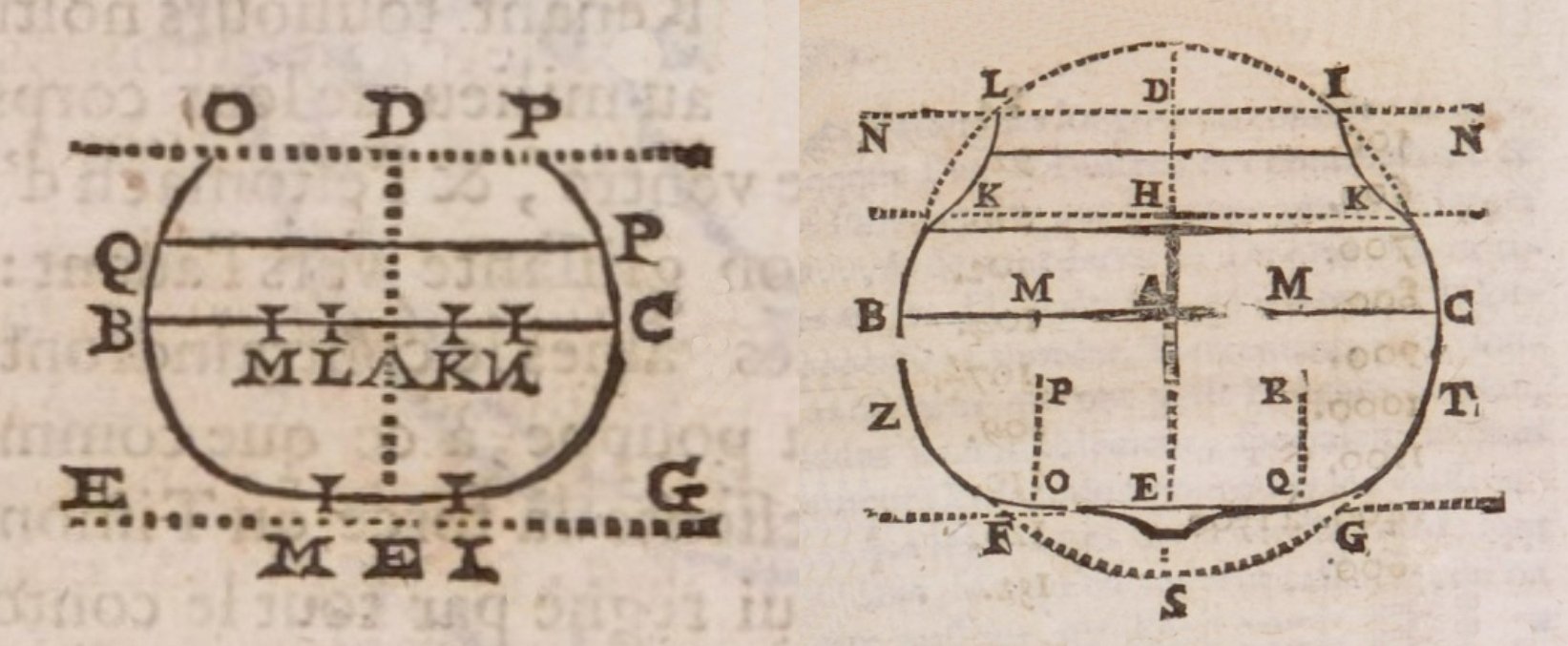

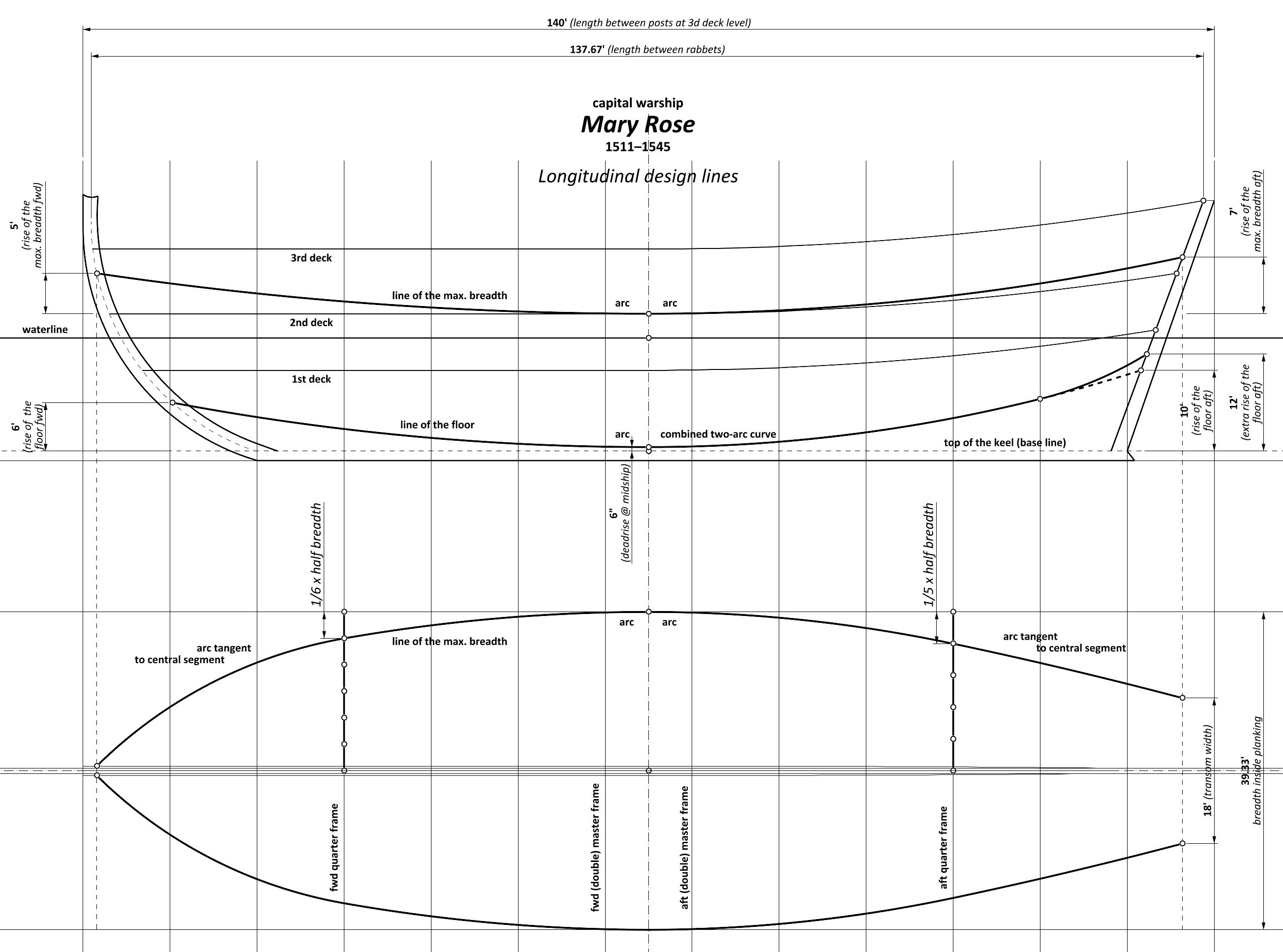

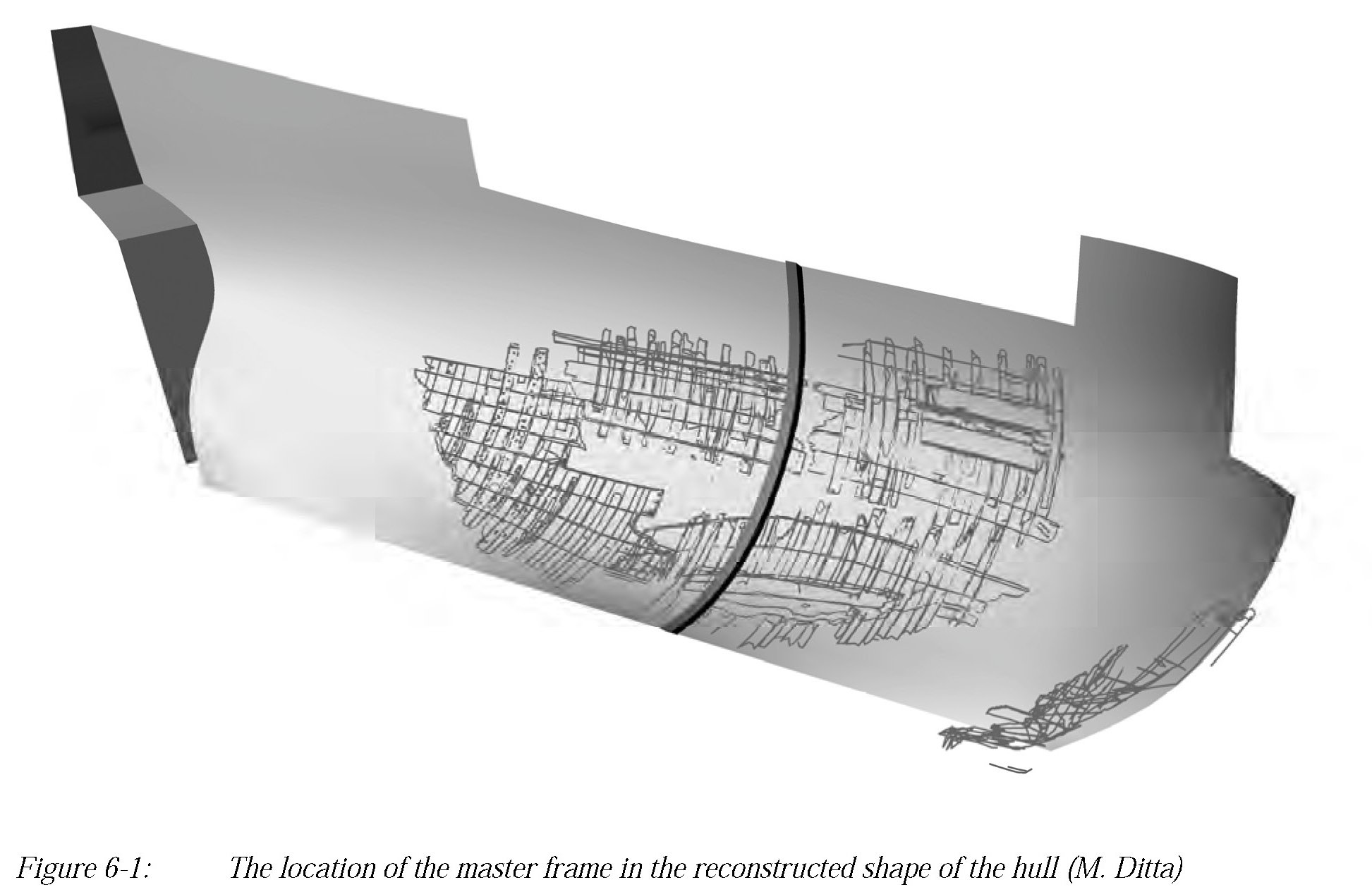

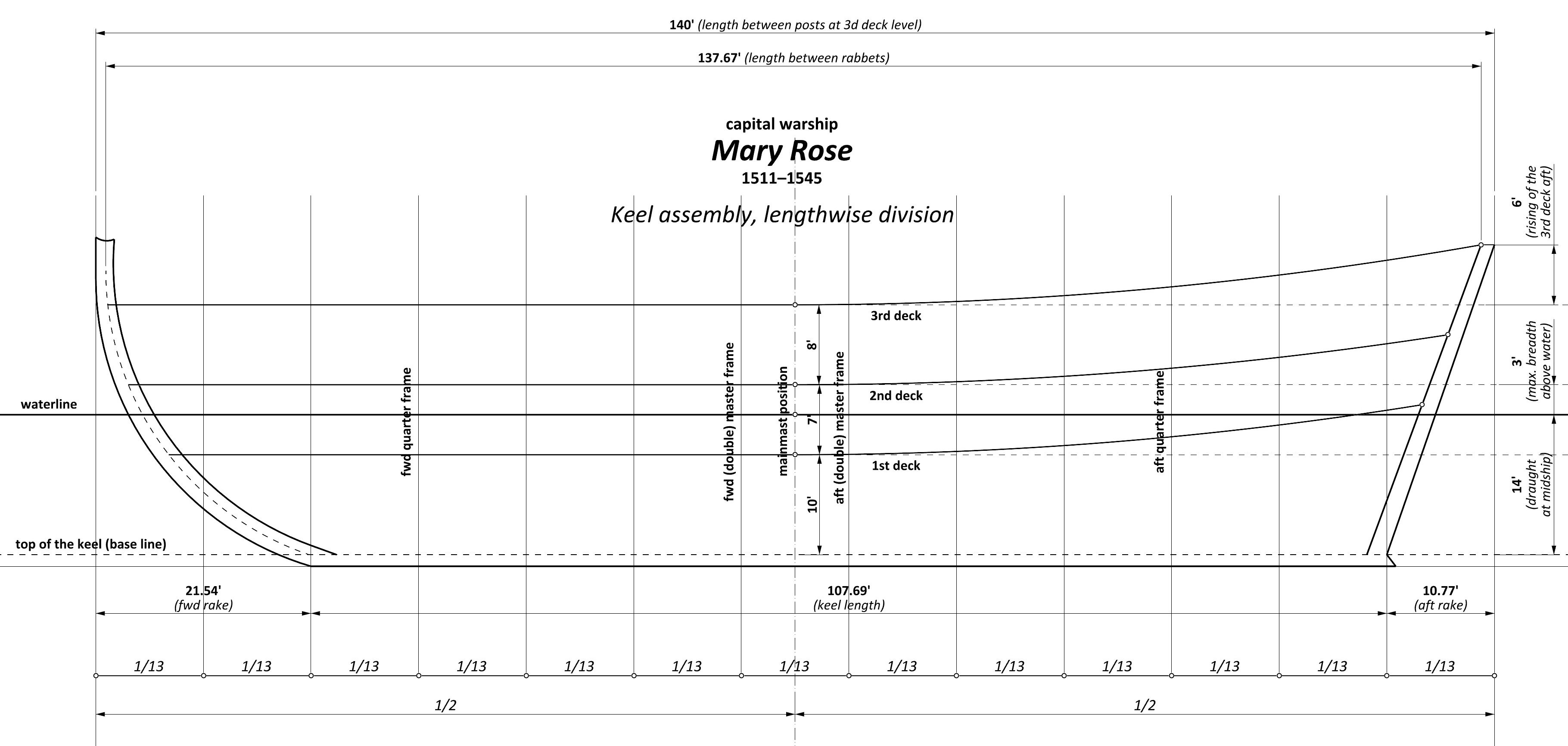

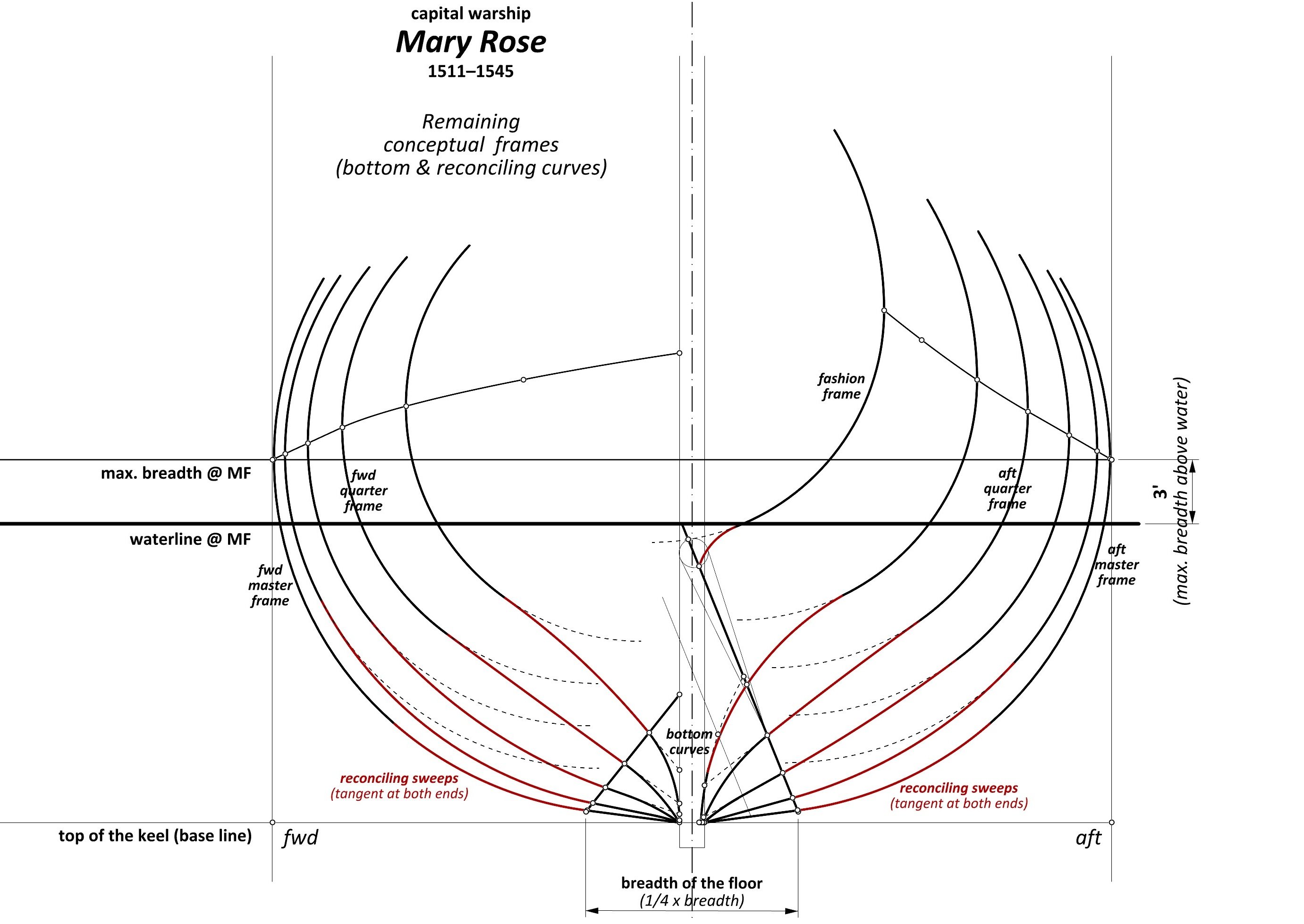

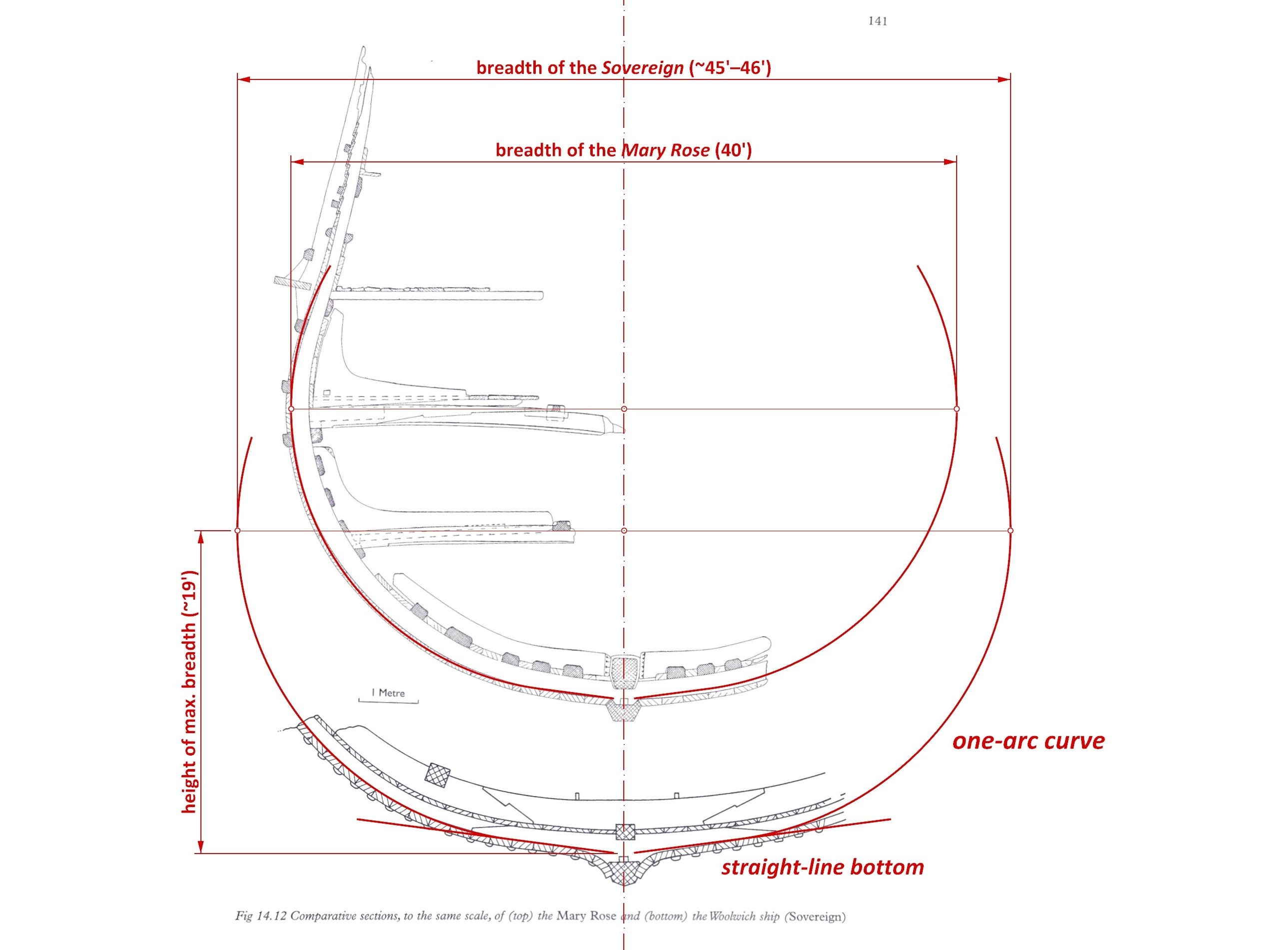

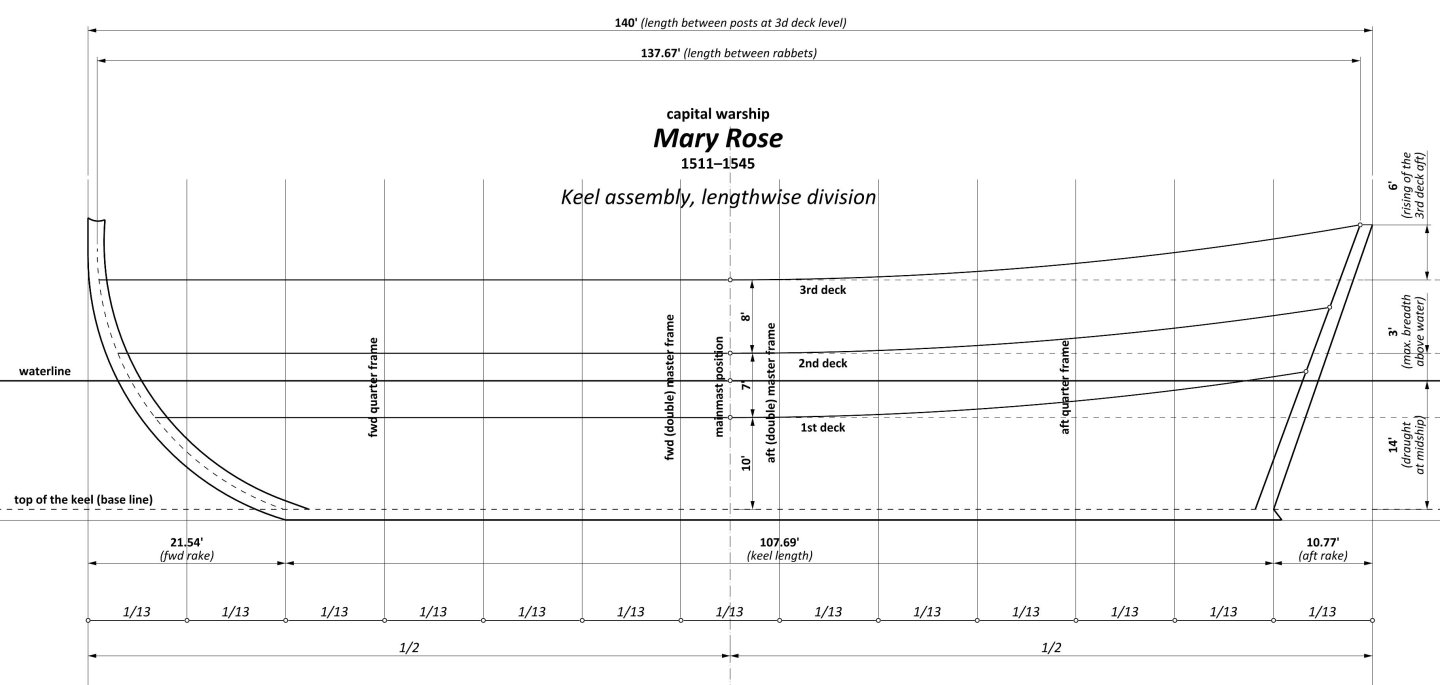

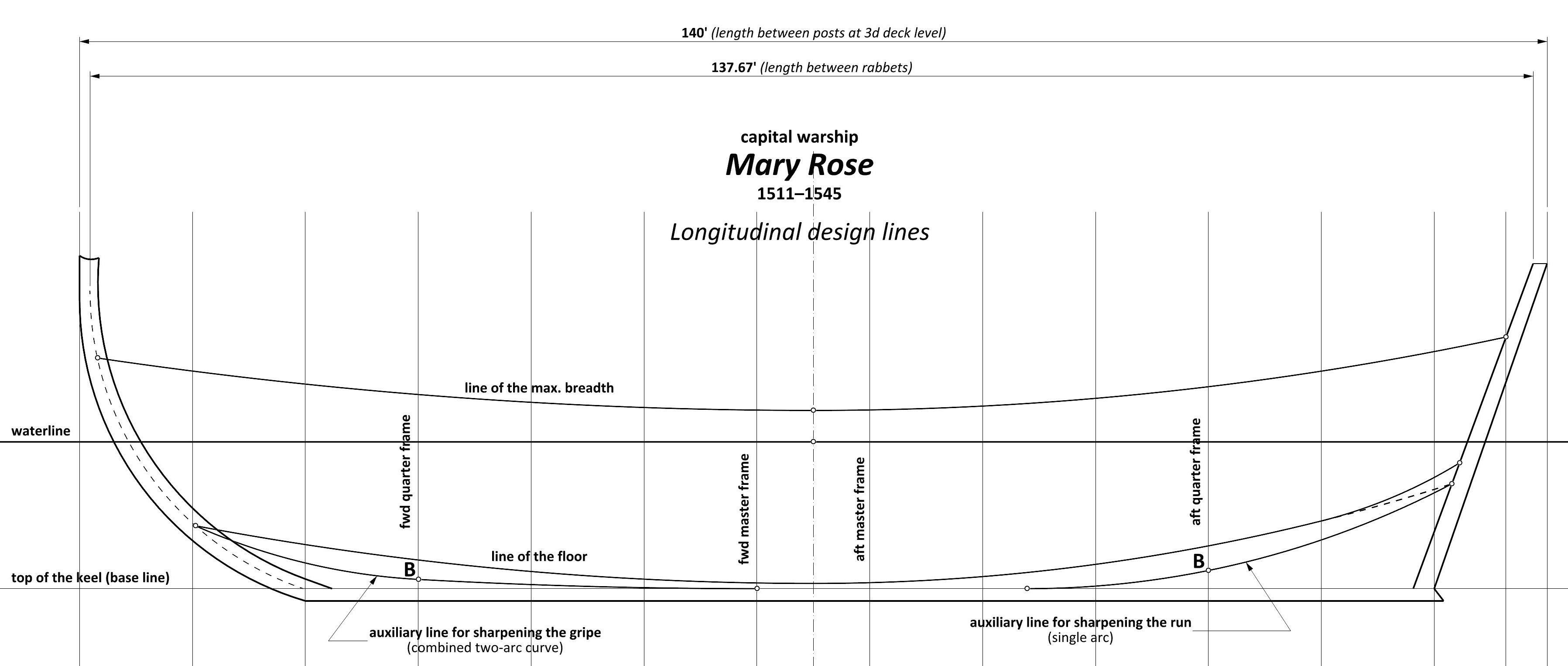

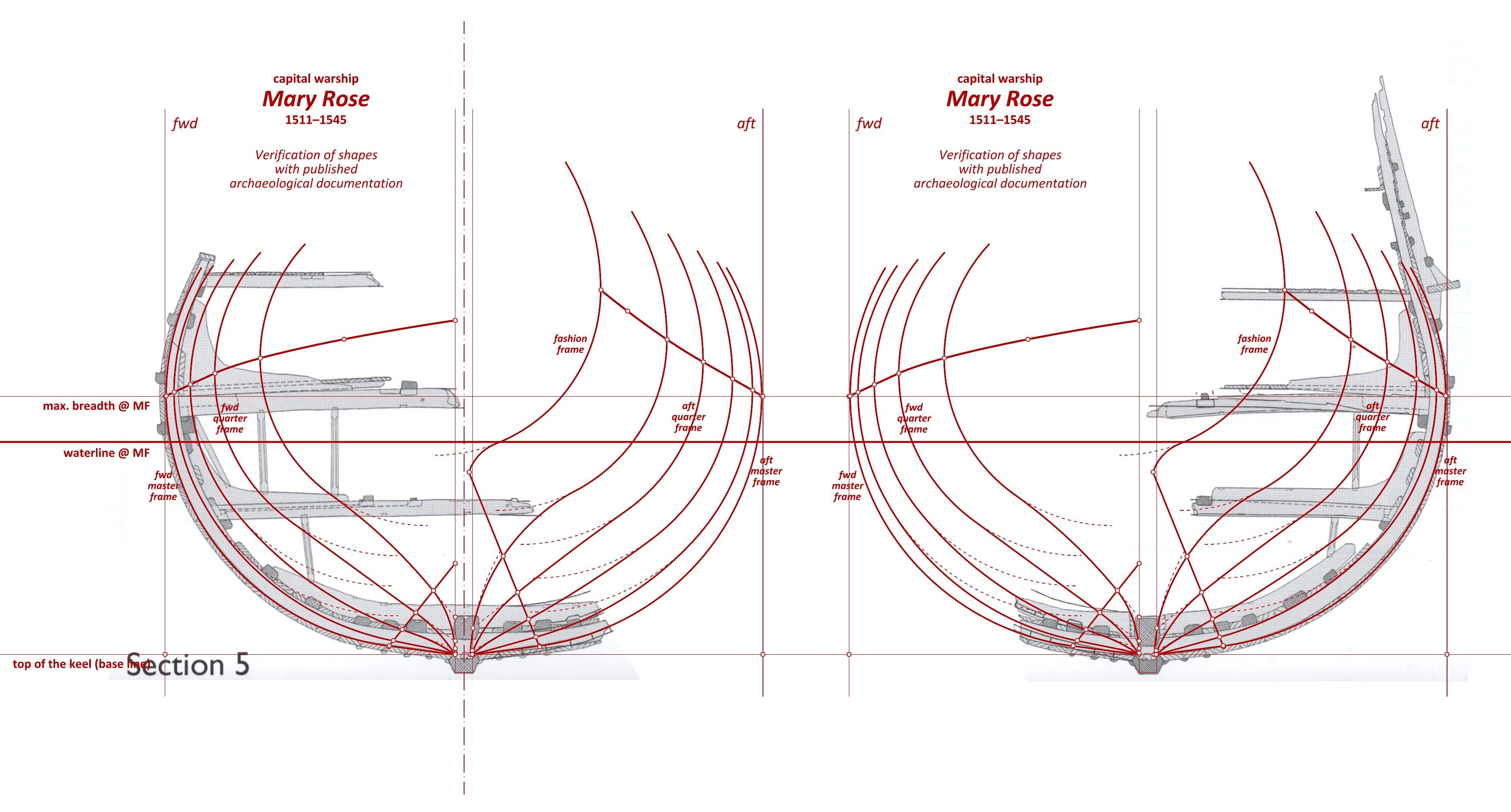

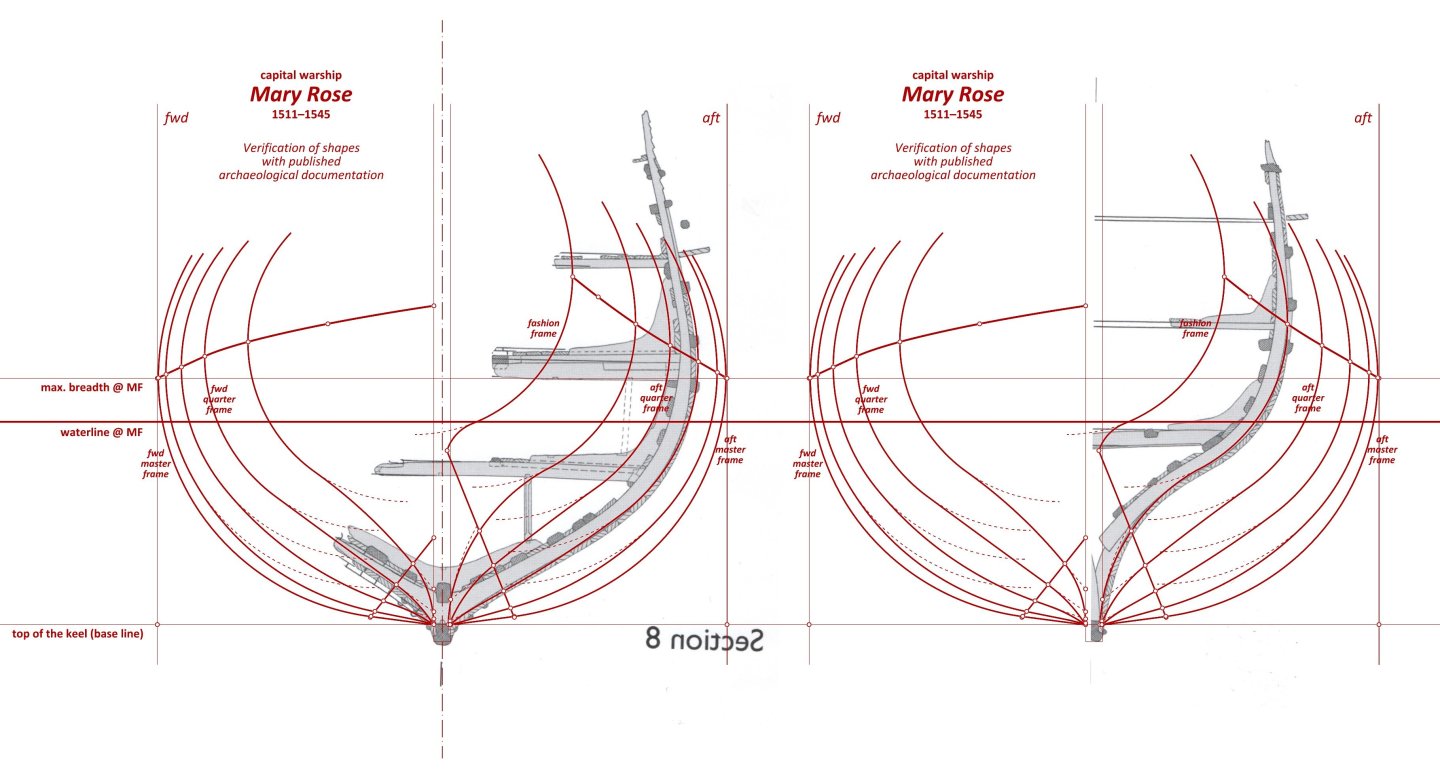

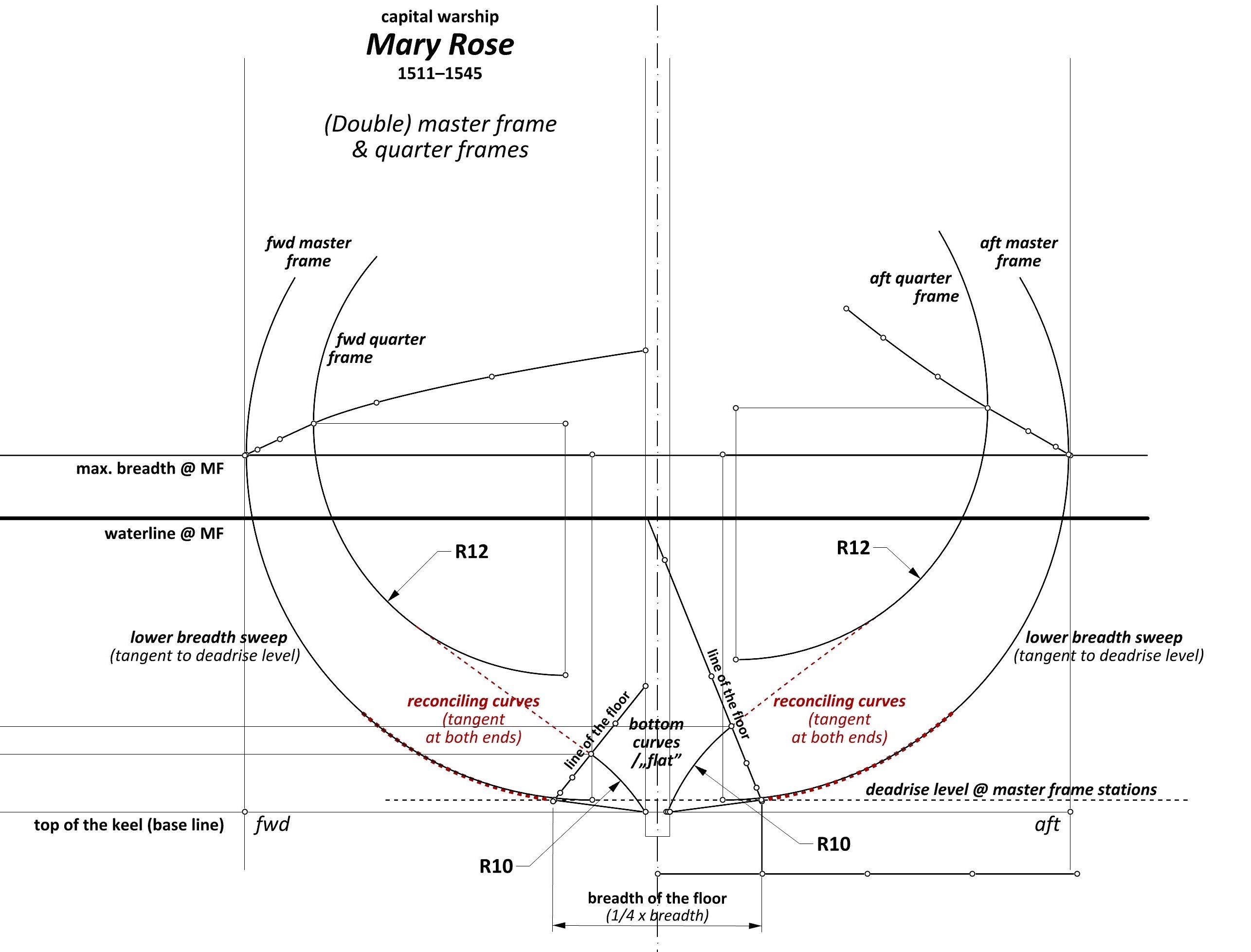

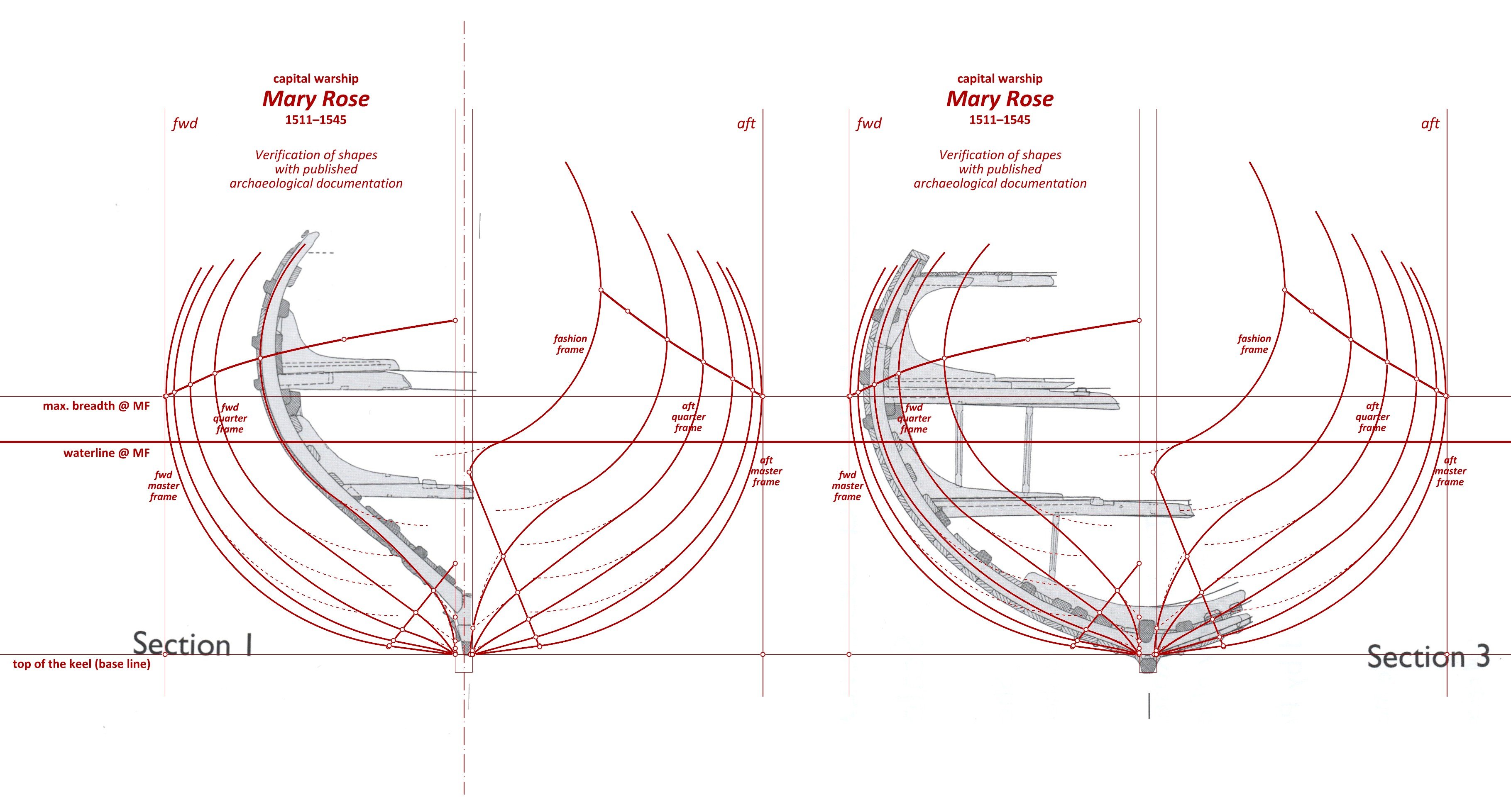

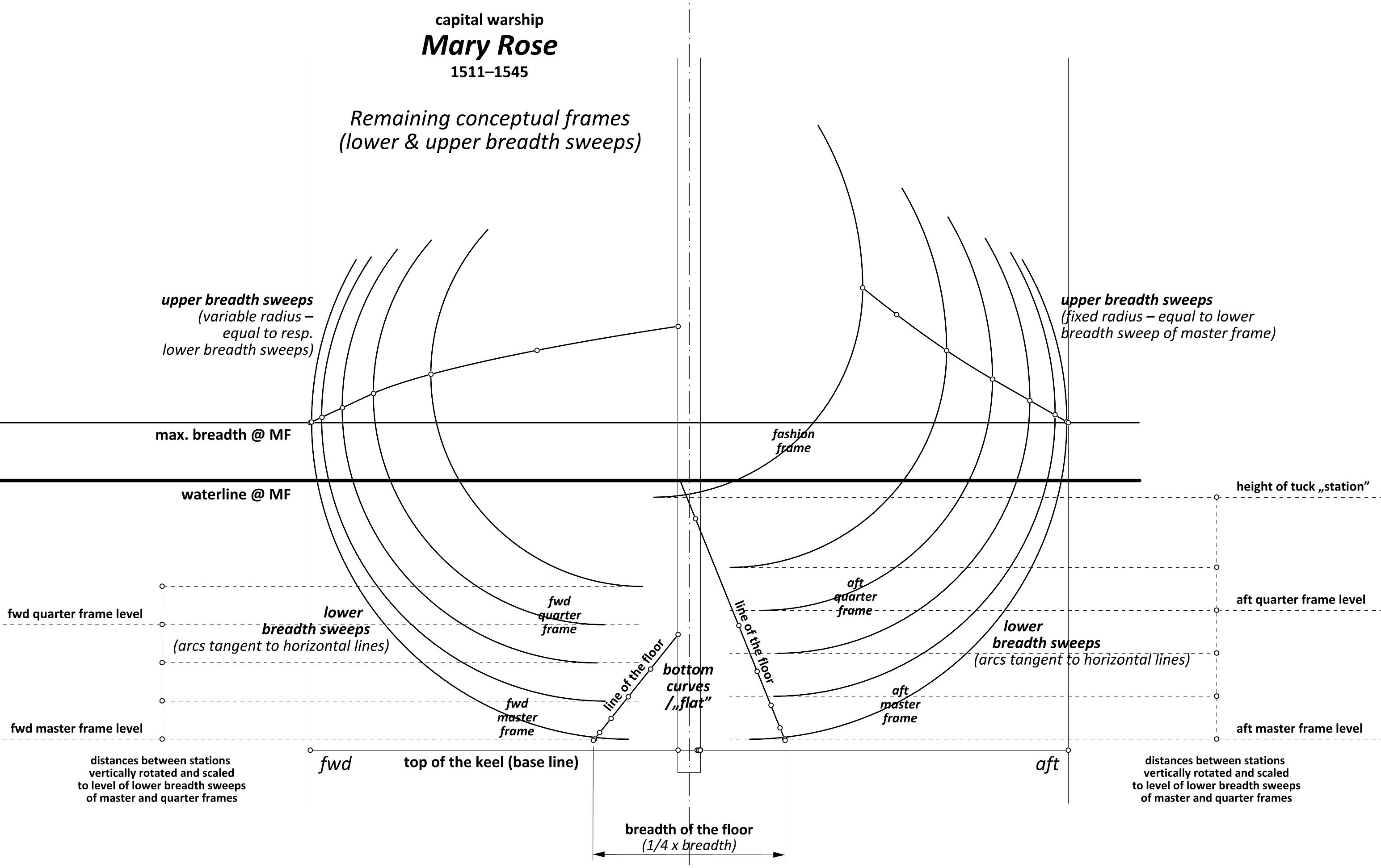

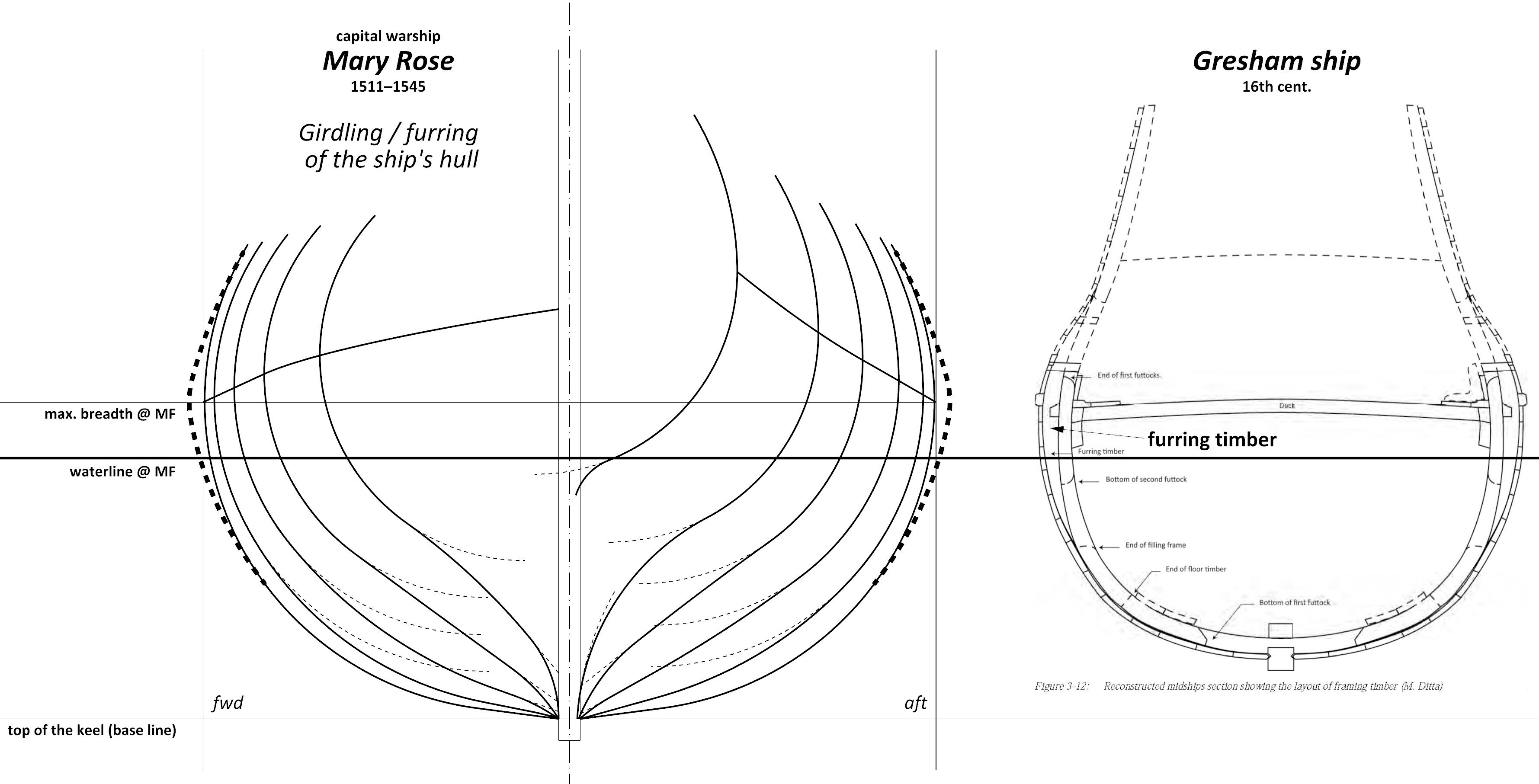

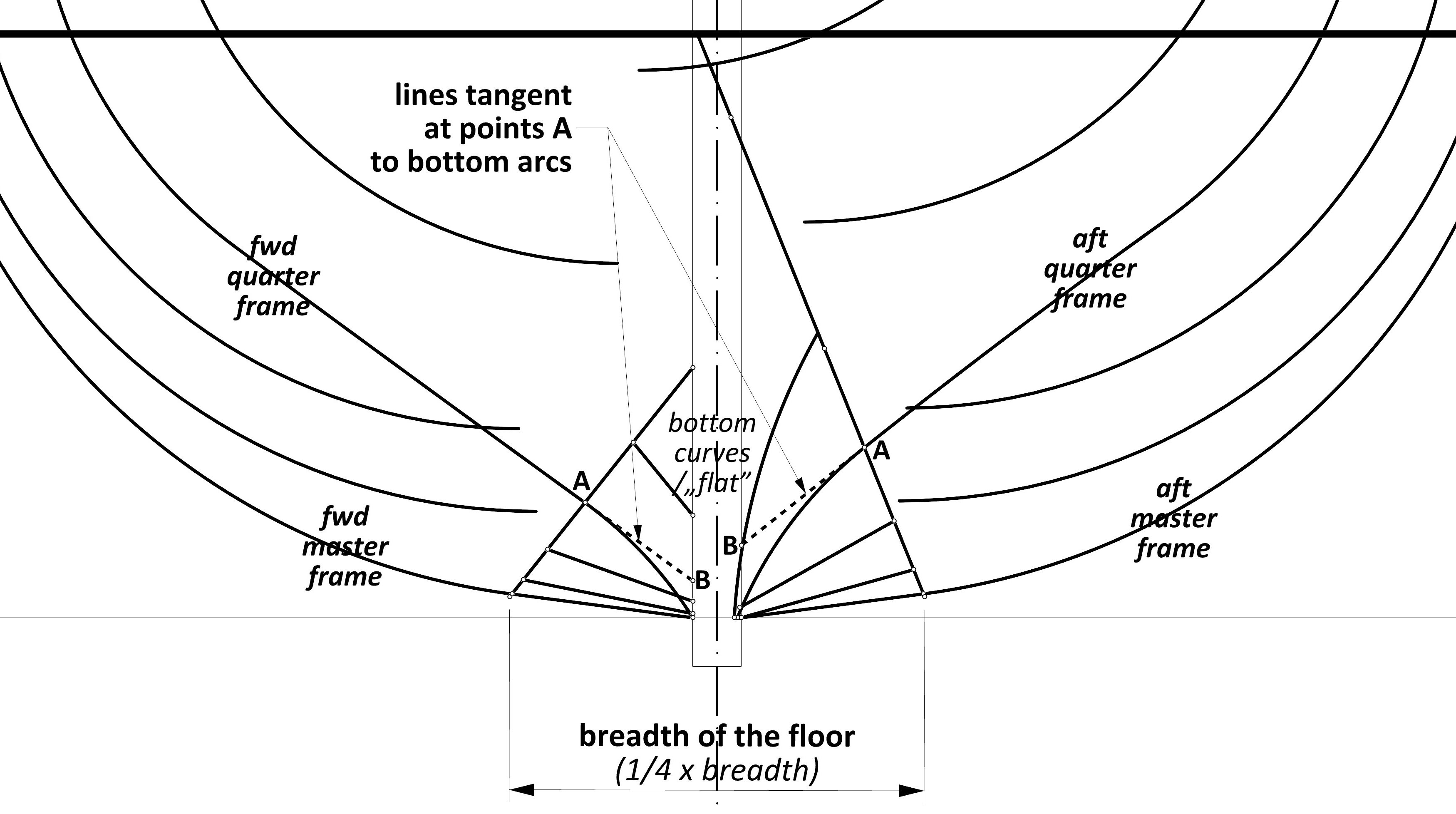

So much for the introduction, and before the actual detailed explanations, here are a few welcome renders showing a graphical overview of the results obtained:

















Edited yesterday at 07:10 PM by Waldemar

[Baker]

Nice work, This shape looks familiar to me

Didn't the Mary Rose originally have a round transom in 1511. And only after the conversion a flat one?

[Waldemar]



20 minutes ago, Baker said:

Nice work, This shape looks familiar to me

Didn't the Mary Rose originally have a round transom in 1511. And only after the conversion a flat one?



Thanks. The reconstructed design lines may indeed suggest some modifications to the stern. I'll show what's involved a bit later, in the correct order, as it's probably still a bit early for such details now, and the presentation graphics are not yet ready.
