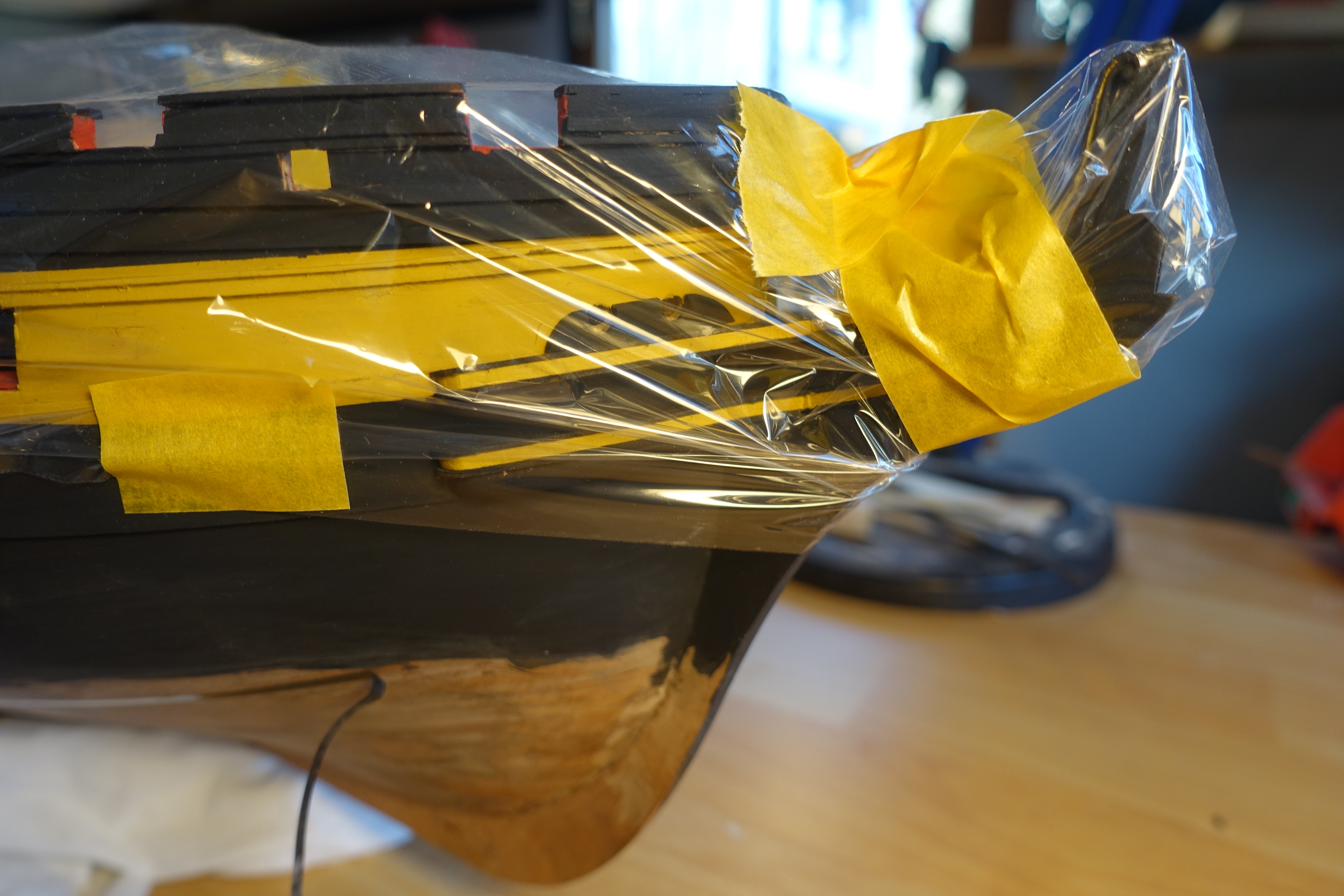

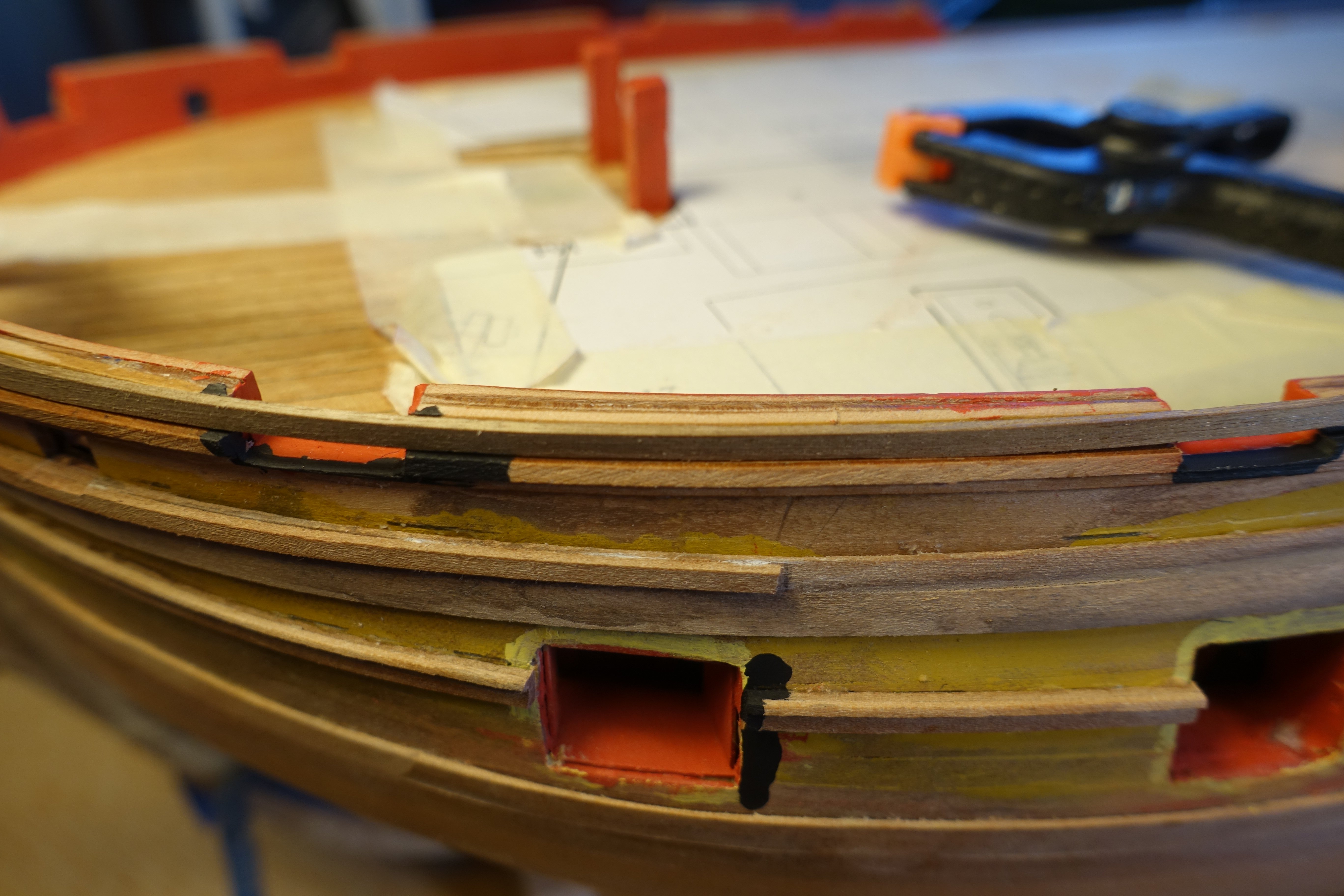

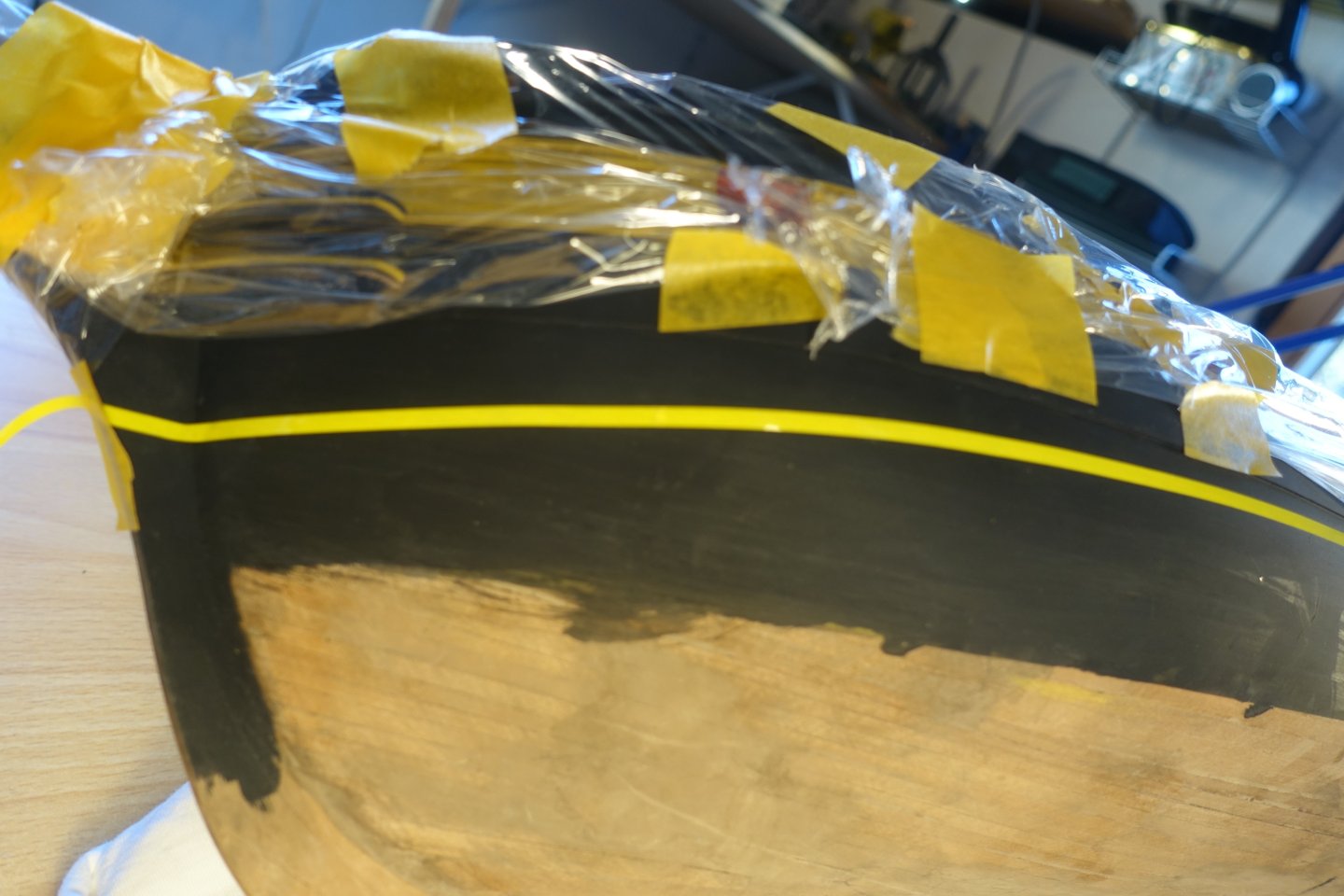

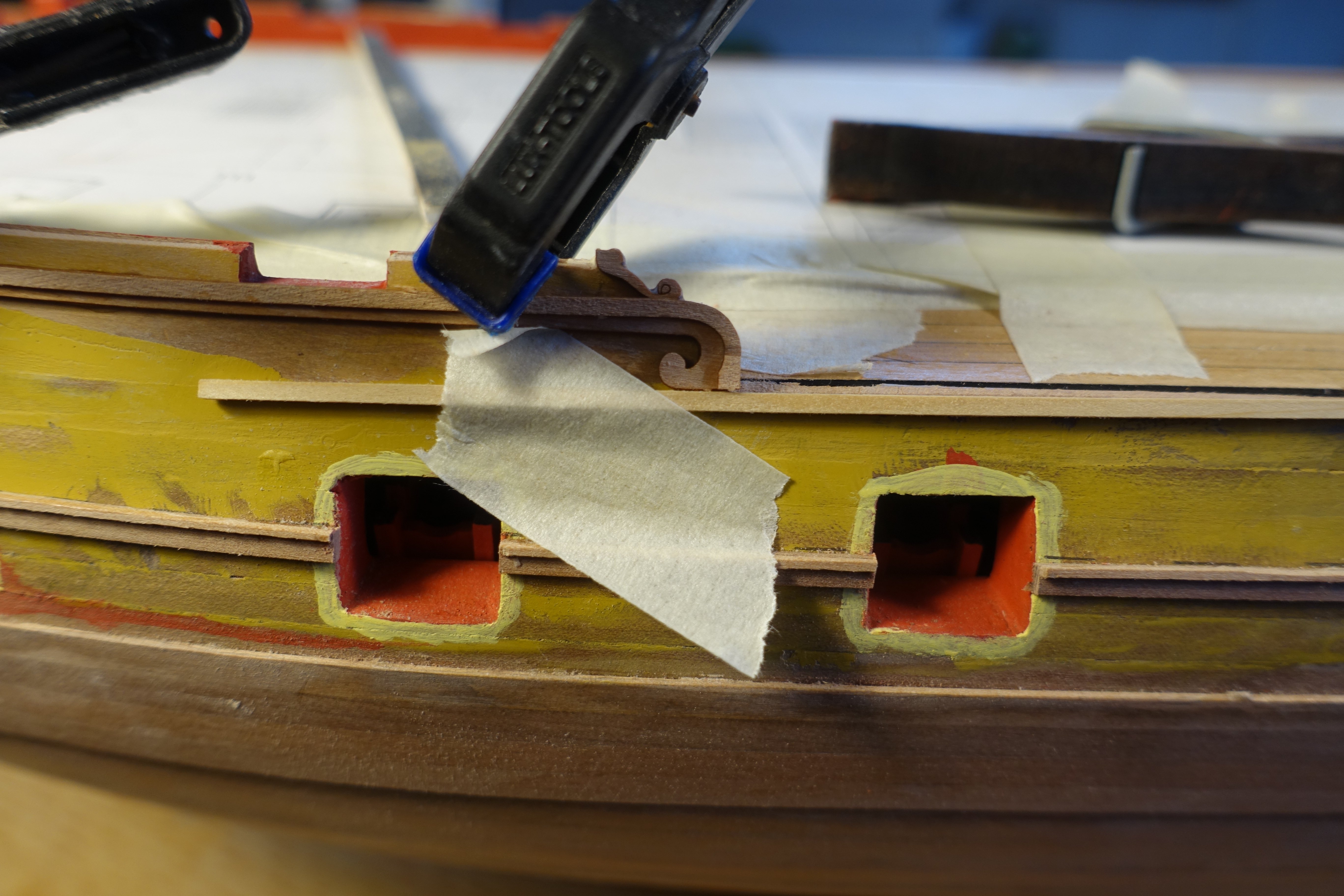

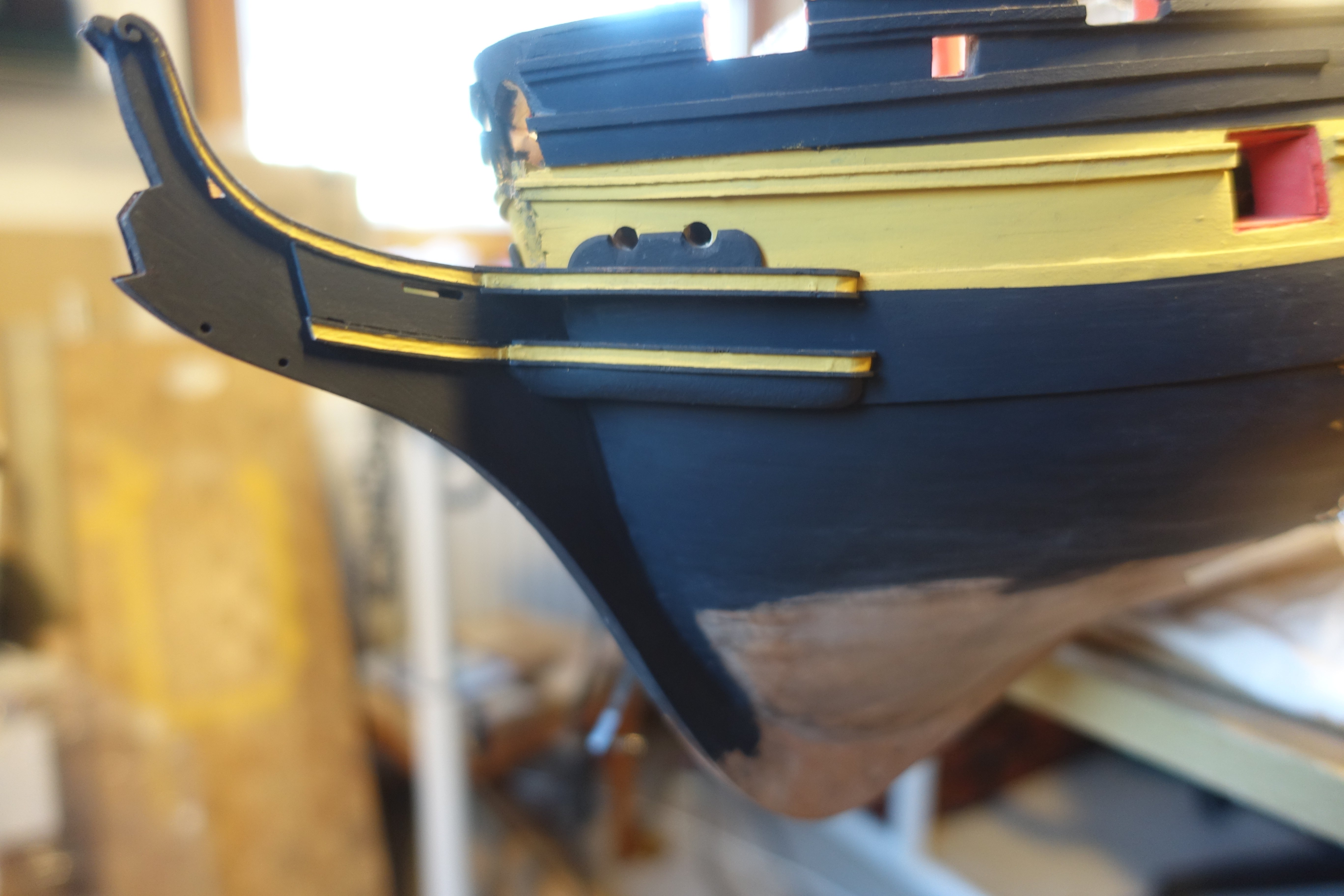

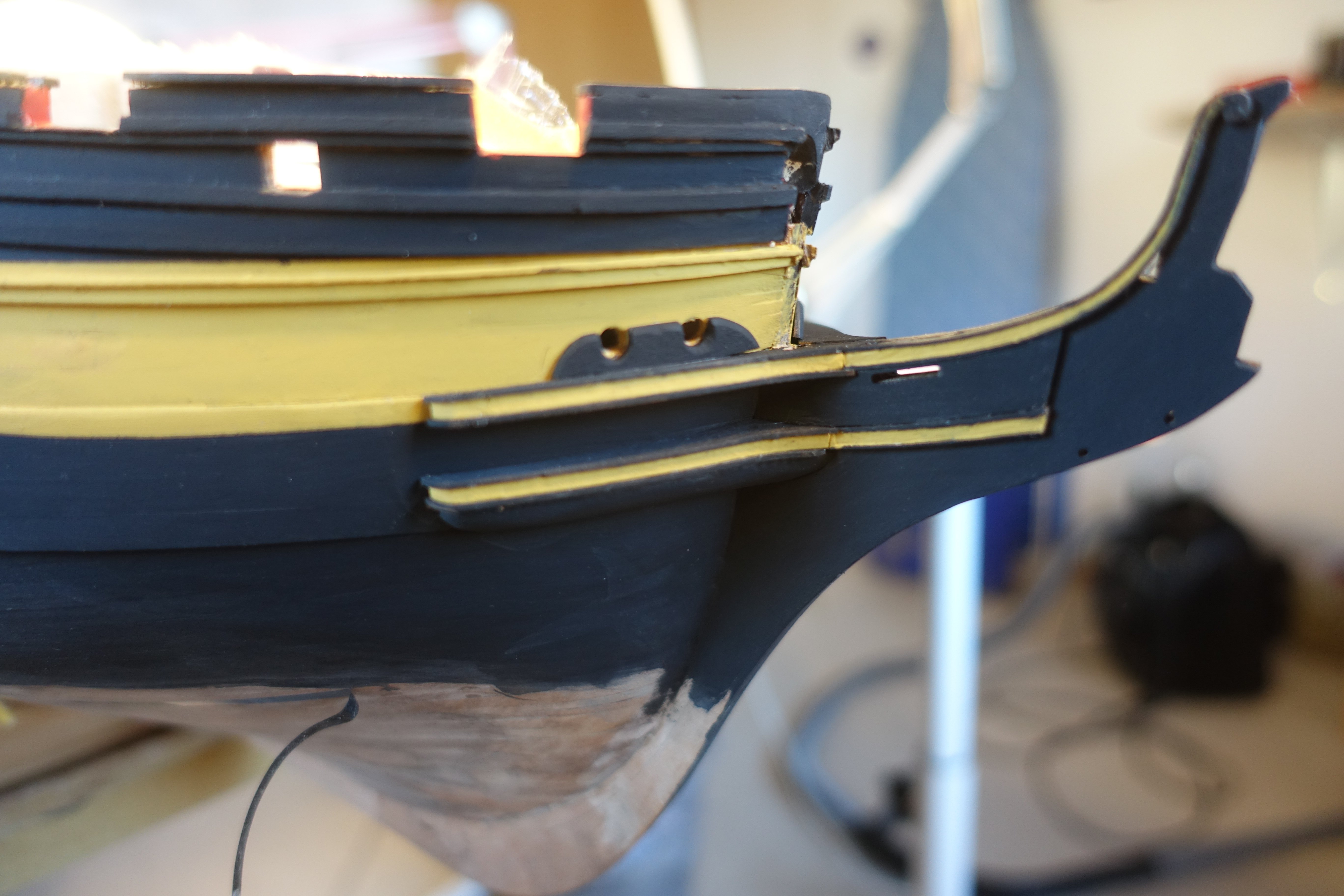

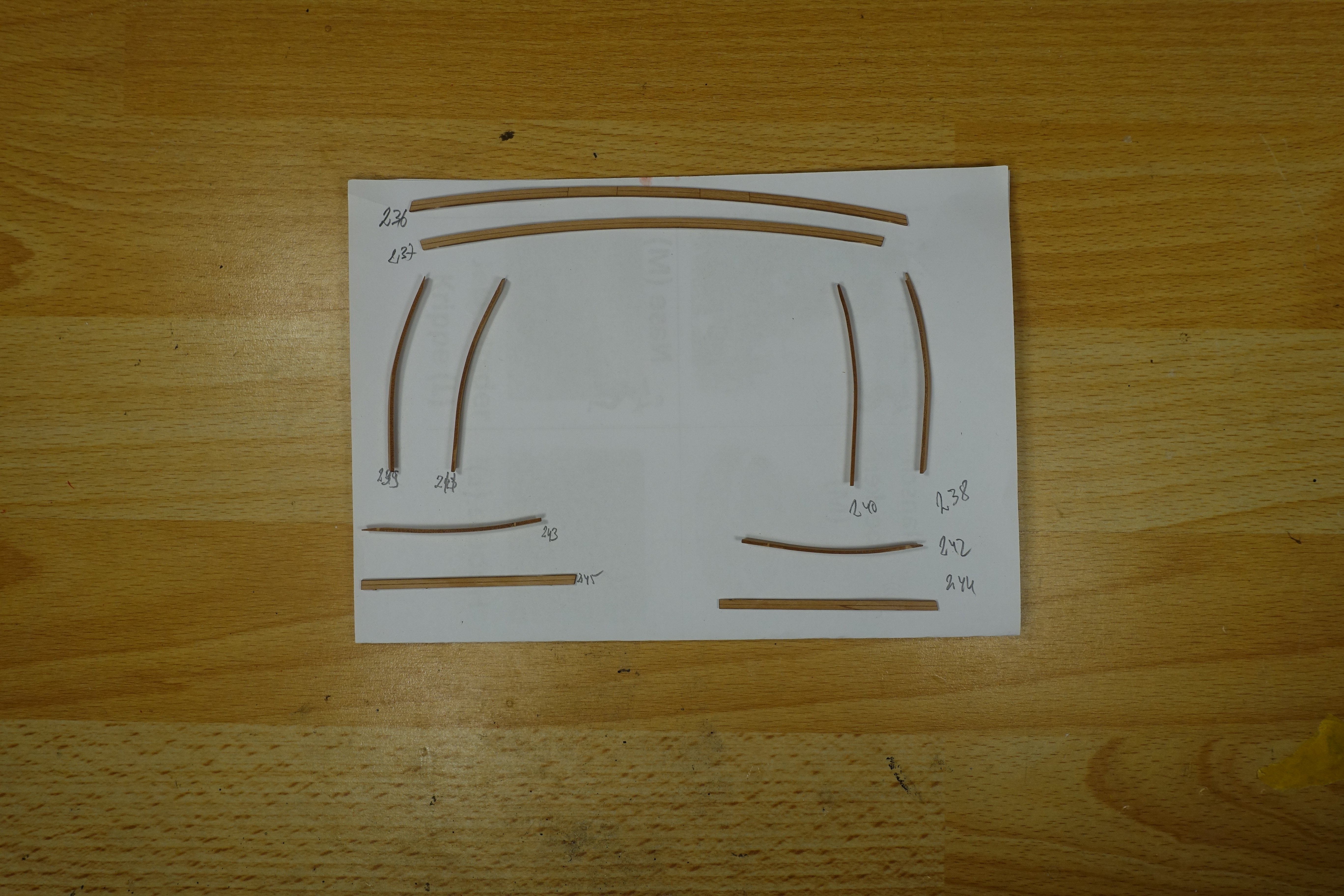

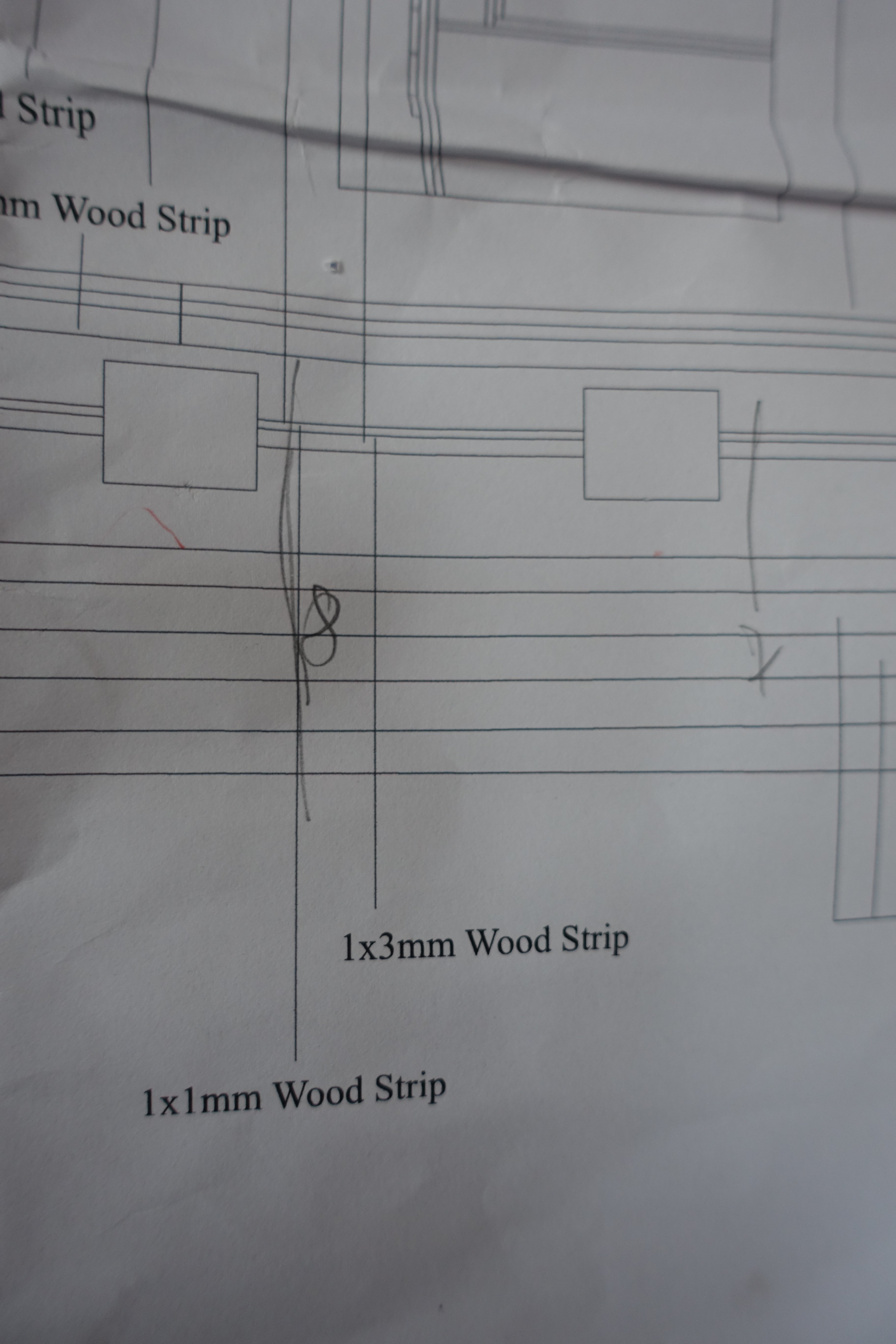

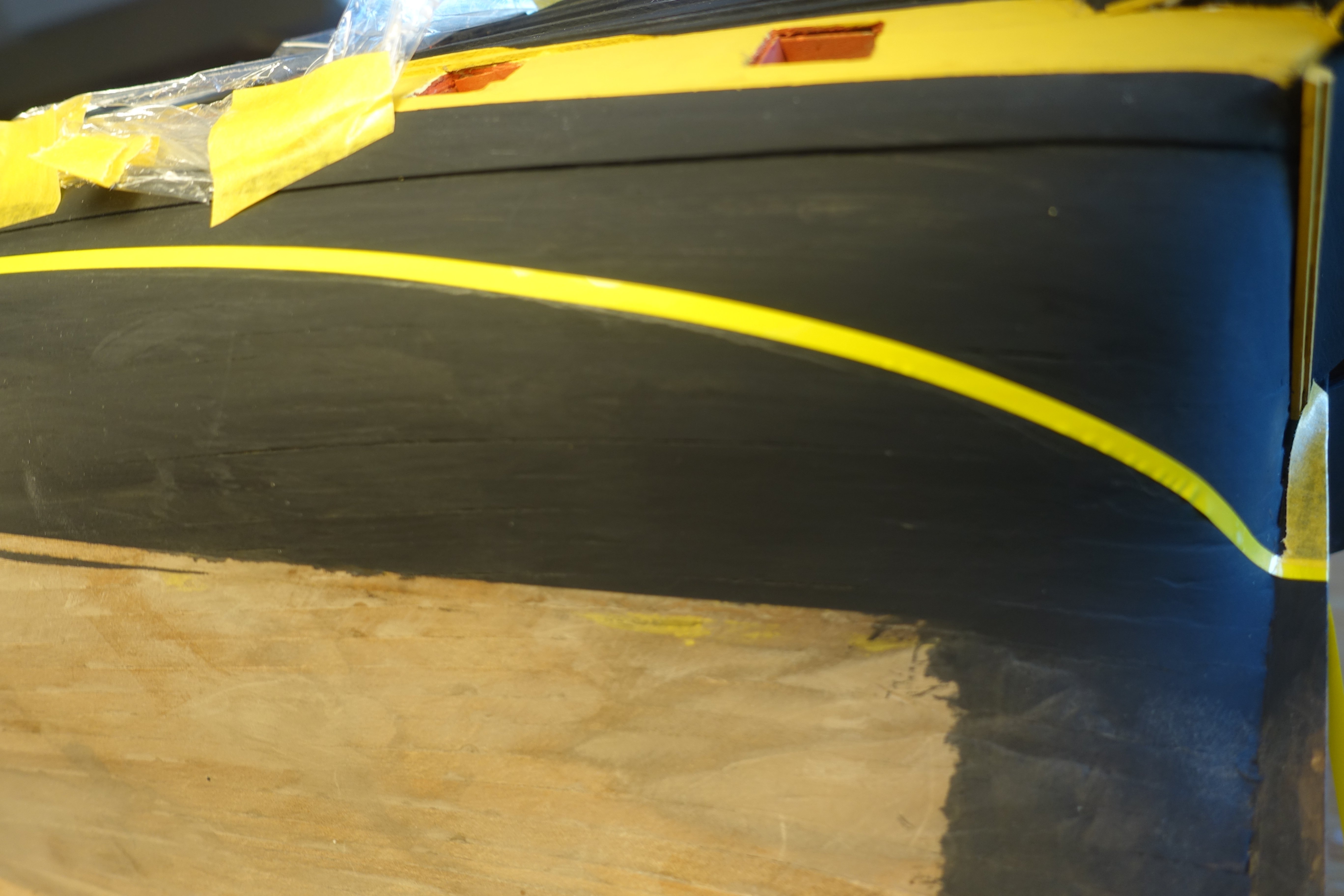

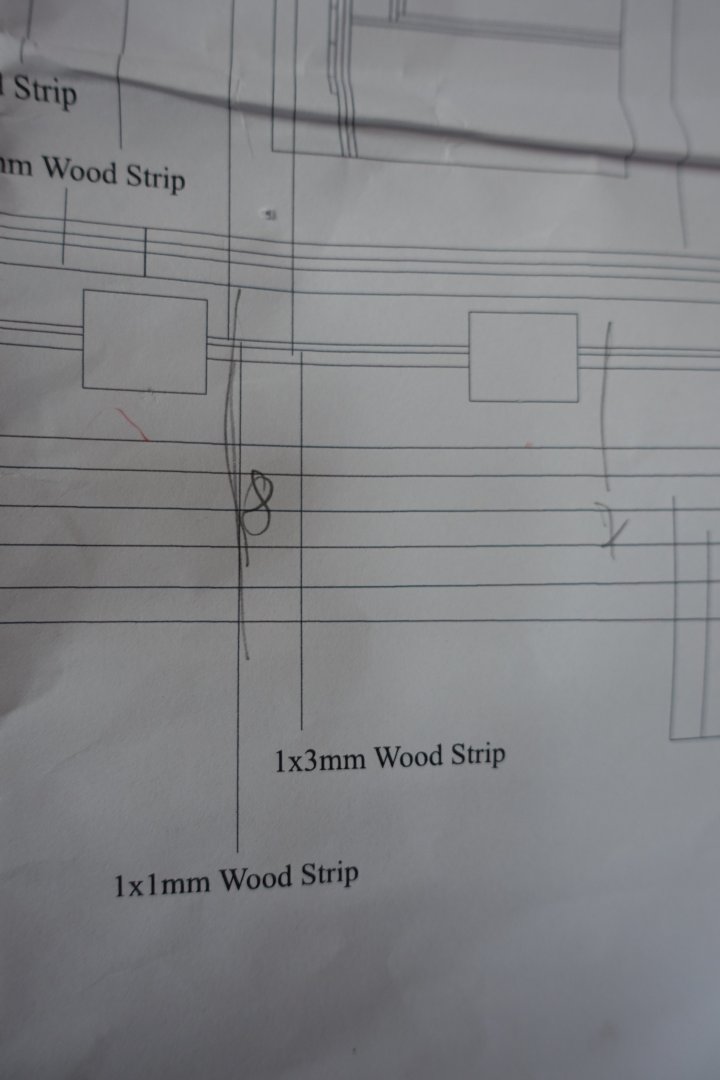

Planking the remaining bulwark / garboard strake on the port side When planking, I largely followed the building instructions. First, a strip was glued under the pattern of the outer bulwark. For this and the other strips, I alternated between cyano gel and PVA, using PVA mainly to create contact with the previously glued strip or pattern. A second strip was glued underneath and the openings for the gun ports were cut out/sanded. For the guiding strip of the wale, the distances between the lower edge of the gun ports and the upper edge of the wale were first measured at the individual gun ports and a marking tape was drawn along the points. Glue was applied accordingly and the strip was glued in place. Likewise, three strips were glued for the garboard strake. To plank the remaining bulwark, four planks were needed at the widest point. Accordingly, the strips were tapered at the stern and bow and then glued. The strips were attached in such a way that the space between the gun ports was left for the last strip, which made the adjustment much easier. The gun ports were then sanded free. It took longer than I thought. Now it's the turn of the starboard side.  

First and last shroud is mostly sufficient. Clark

Chris has since provided the boats in 3D print/cast form, but I still like the original version better. If you take the necessary care, it's also a lot of fun to make them. Plus, as Schooner also found, with time you get more skilled at it. Have fun with it too. Clark

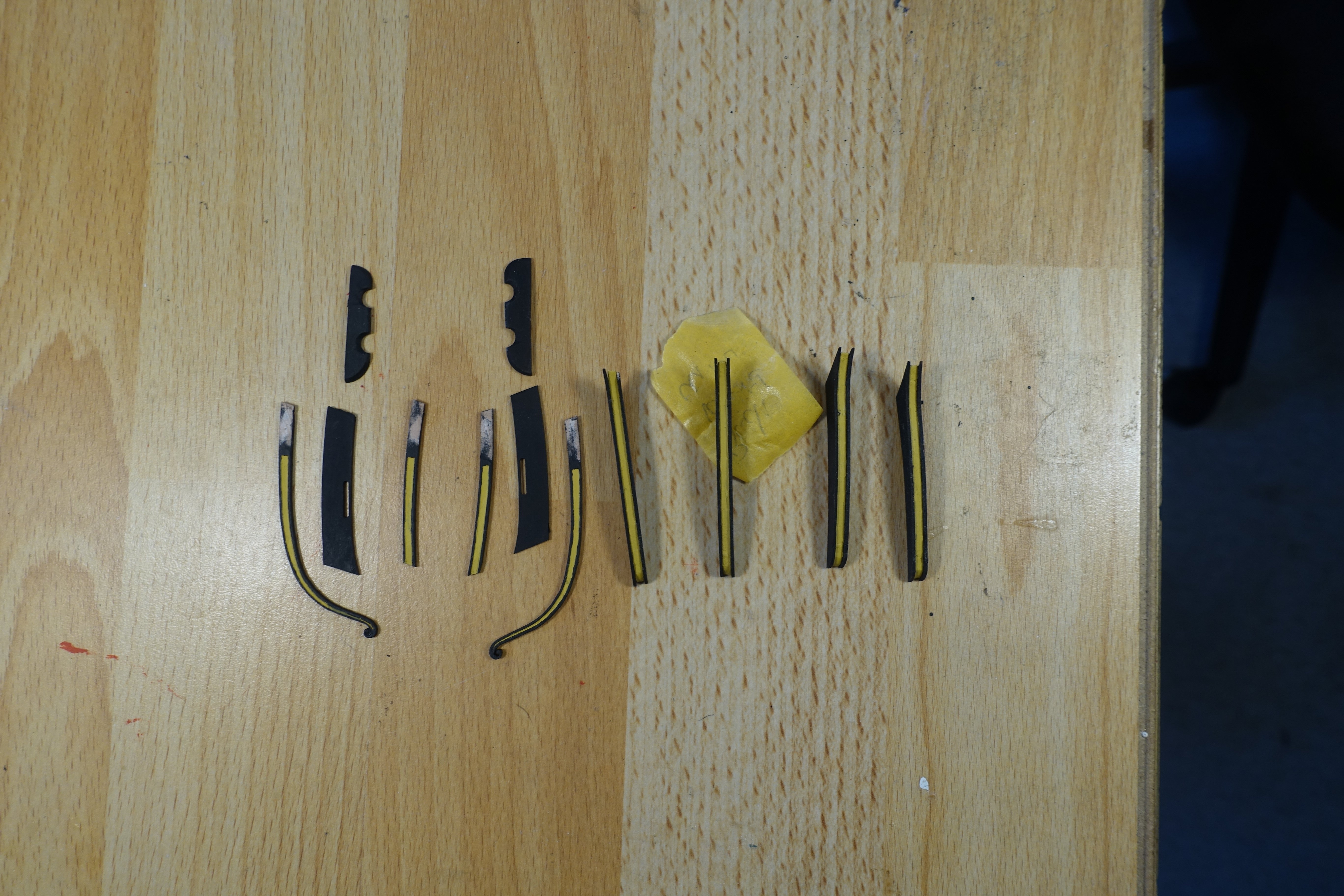

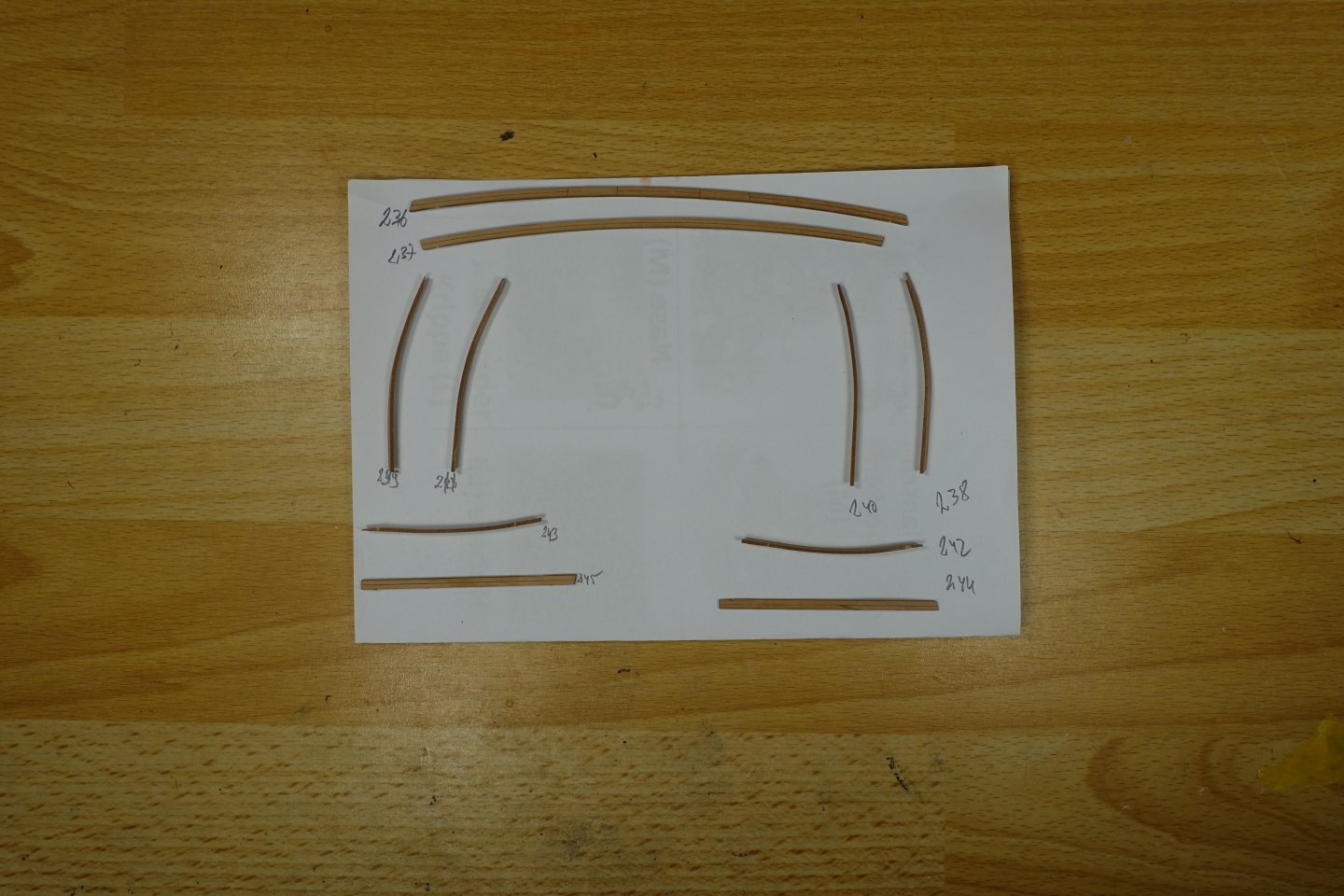

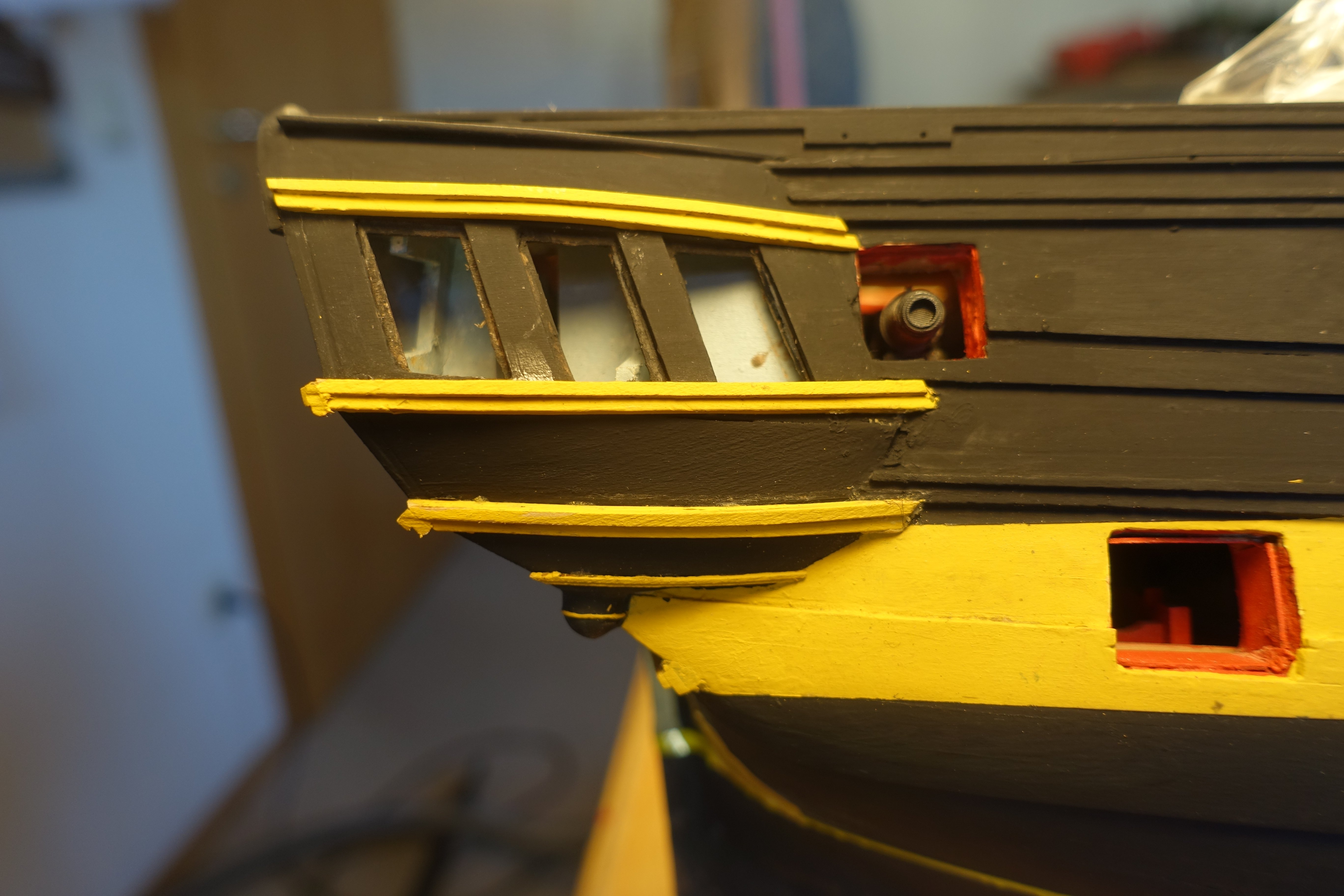

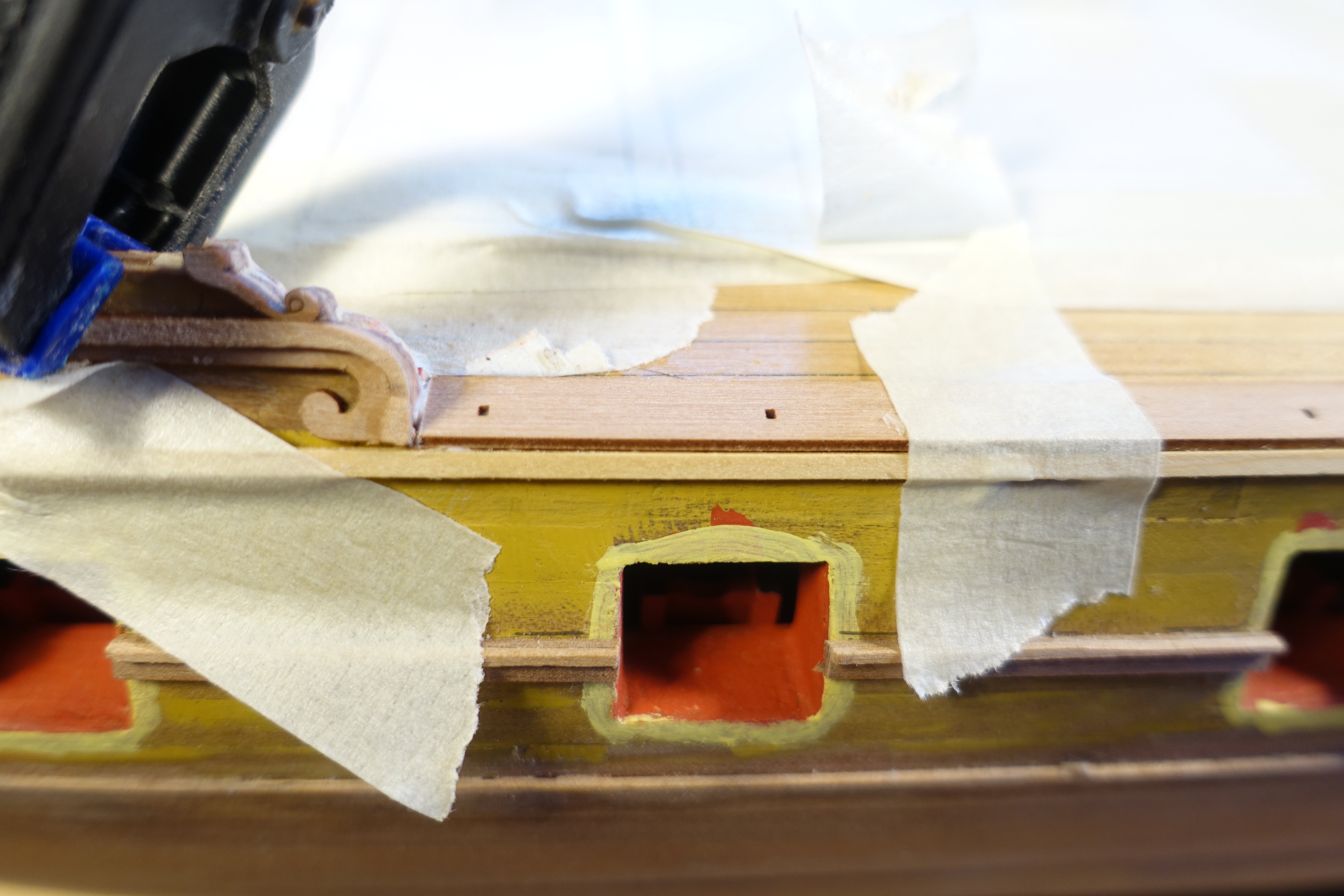

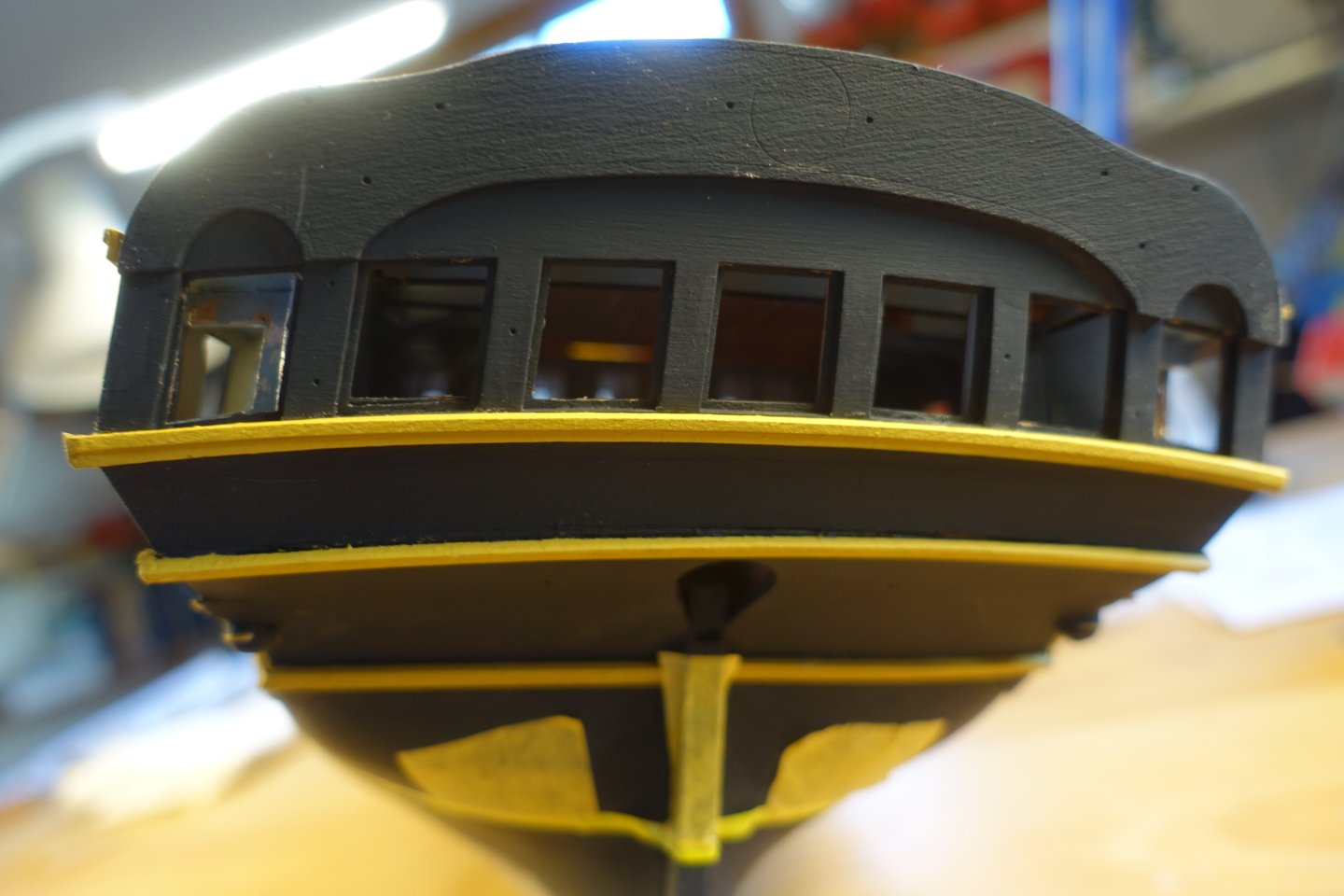

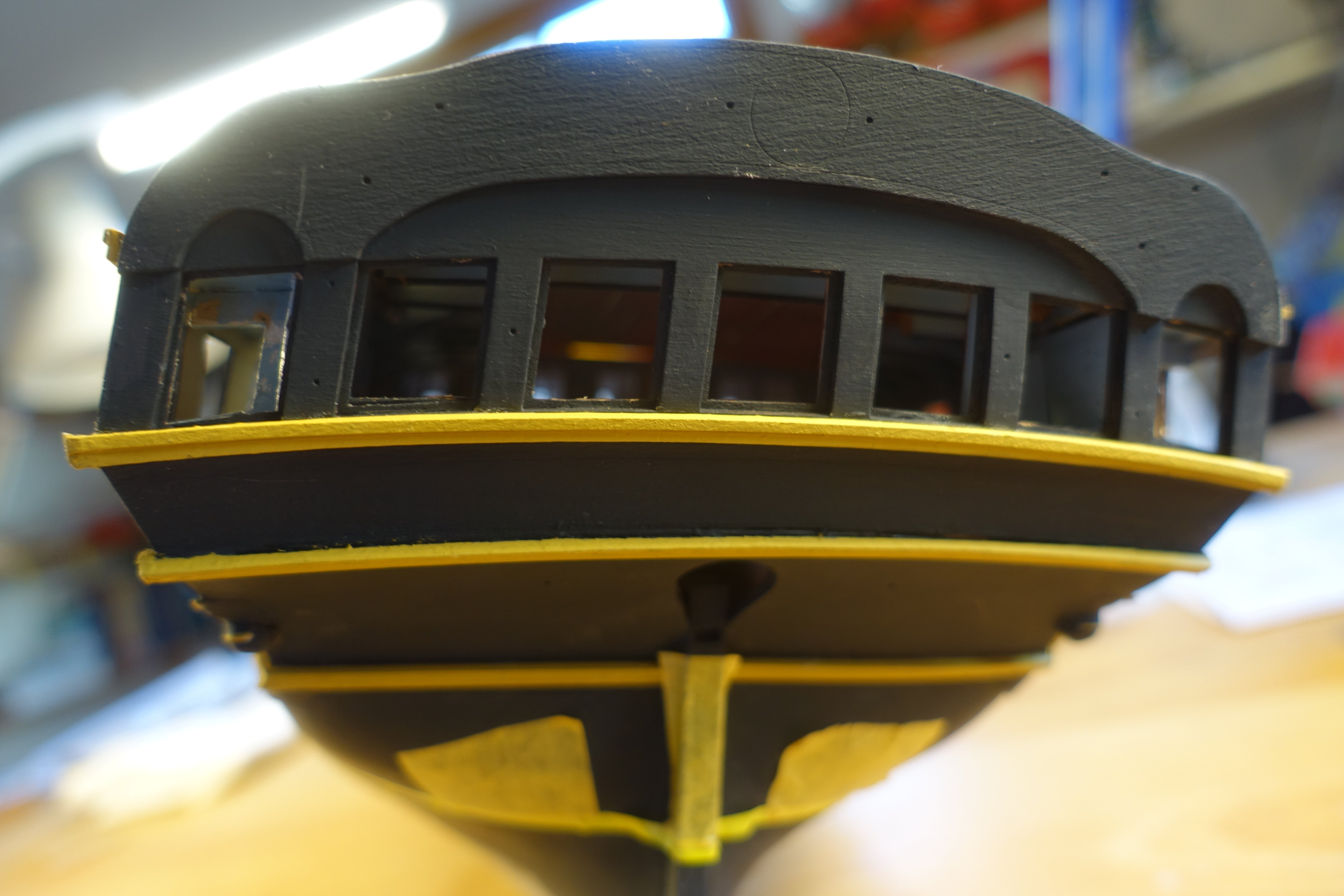

Maybe you can glue small pieces of wood strip on the corners and under the rail of the Quarter Gallery, to simulate a transition to the rail of the transom. I think removing everything again will end in disaster. Clark

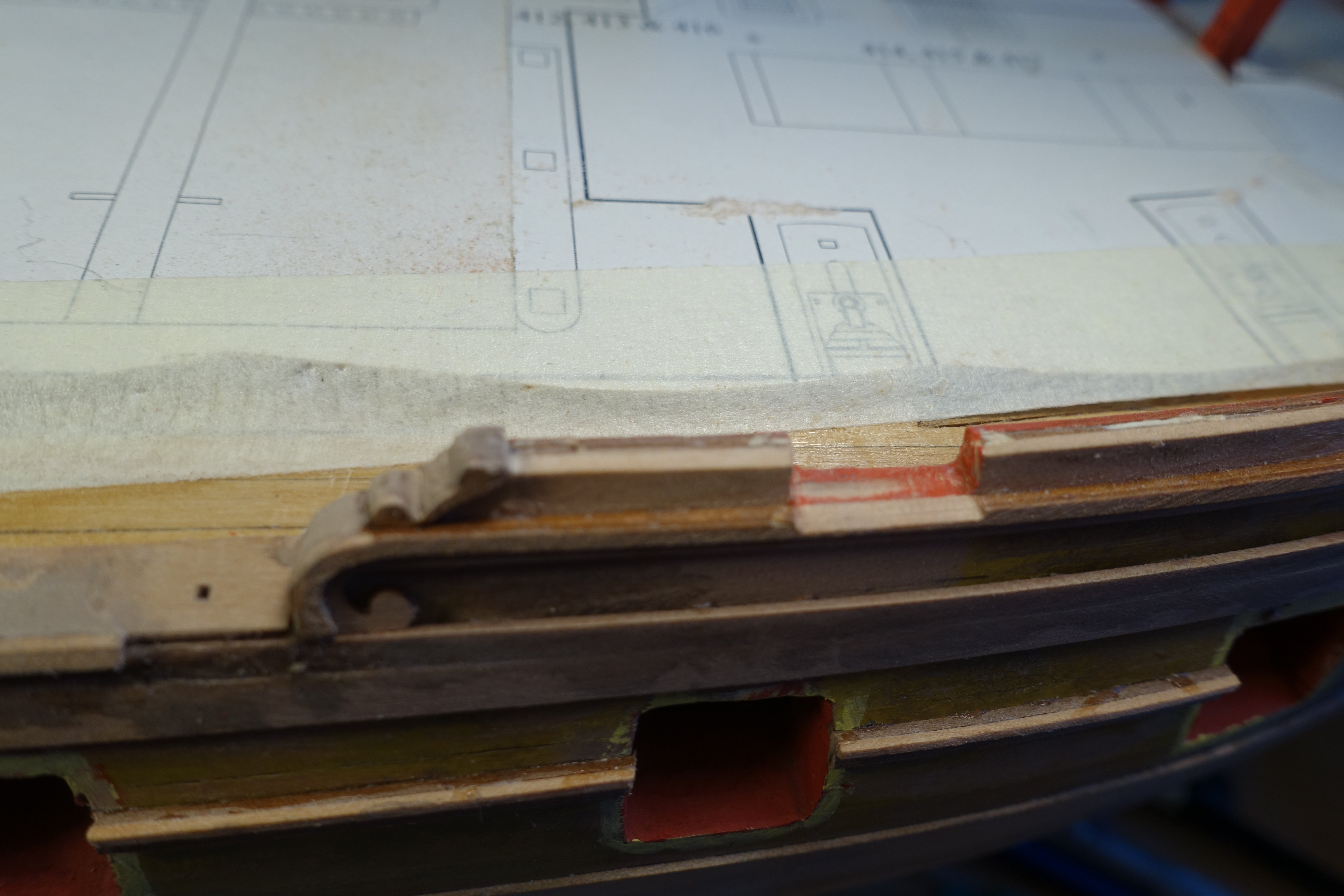

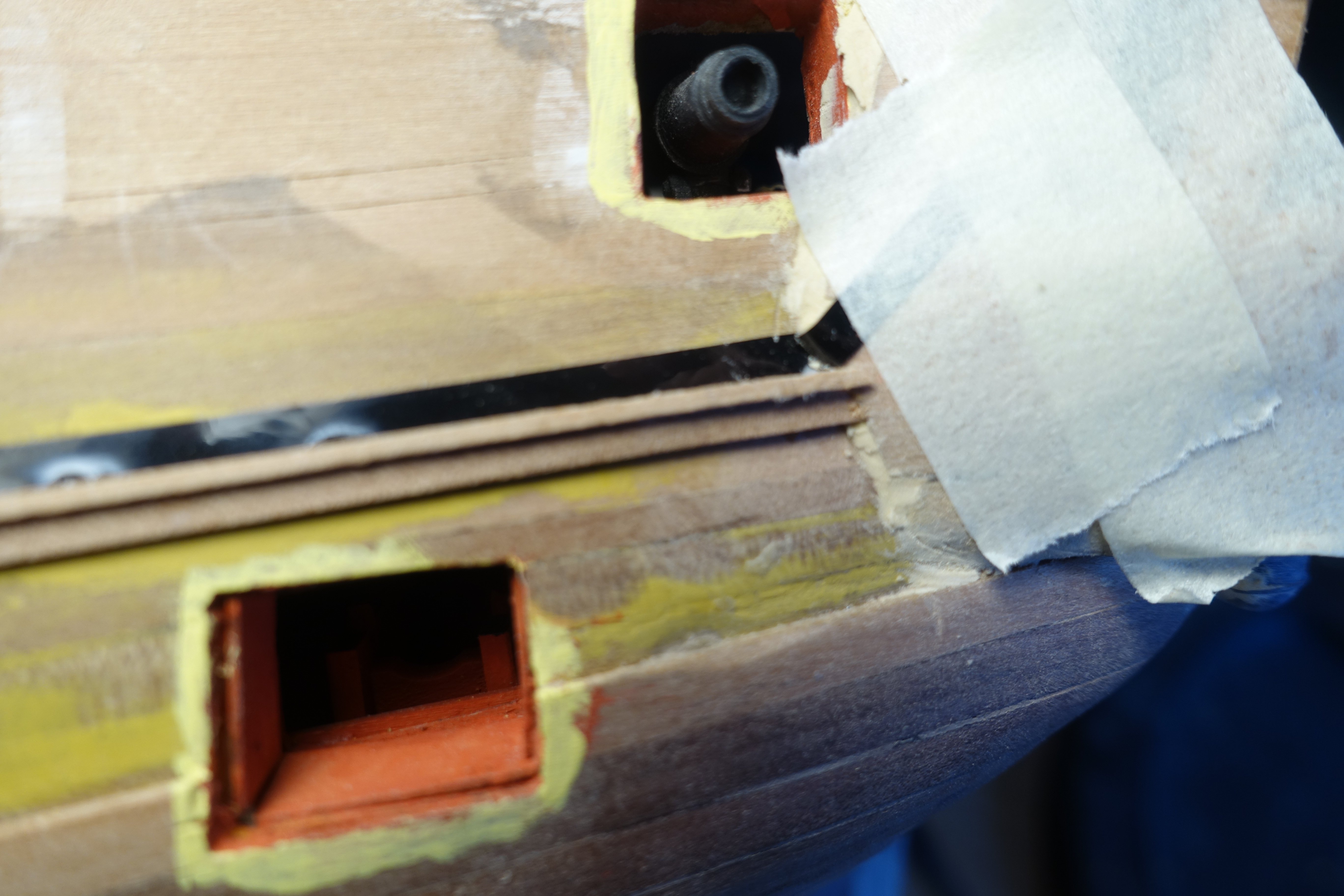

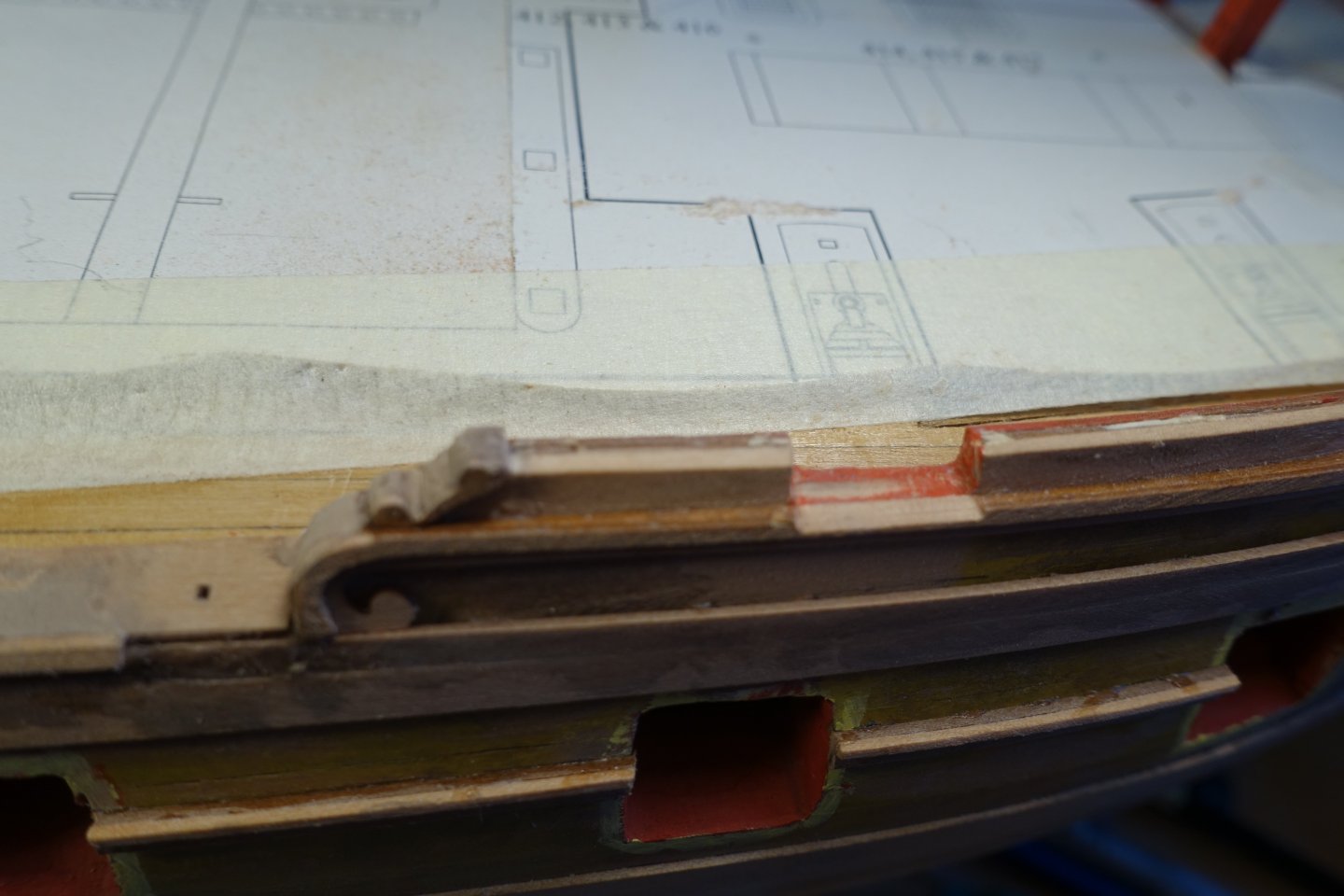

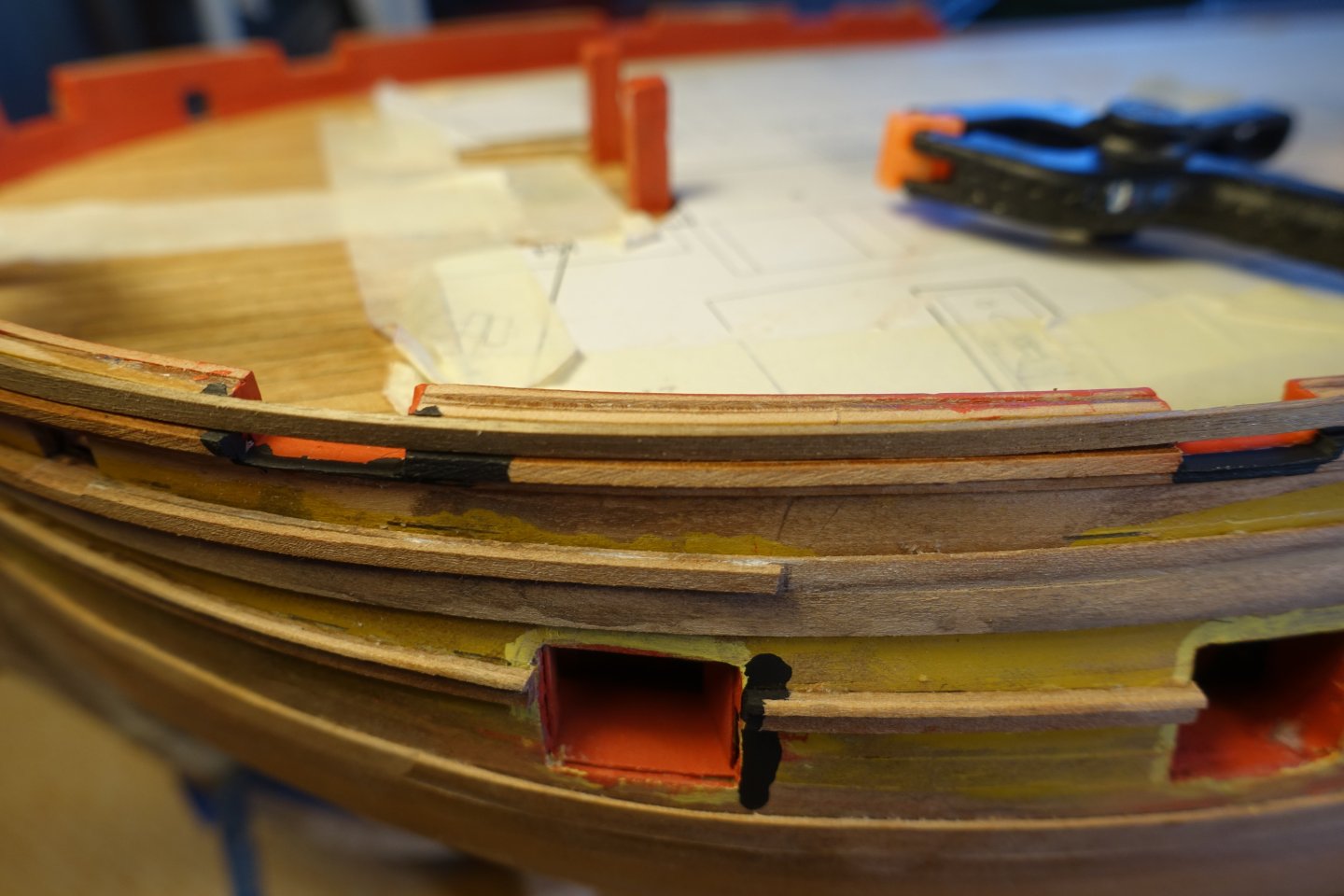

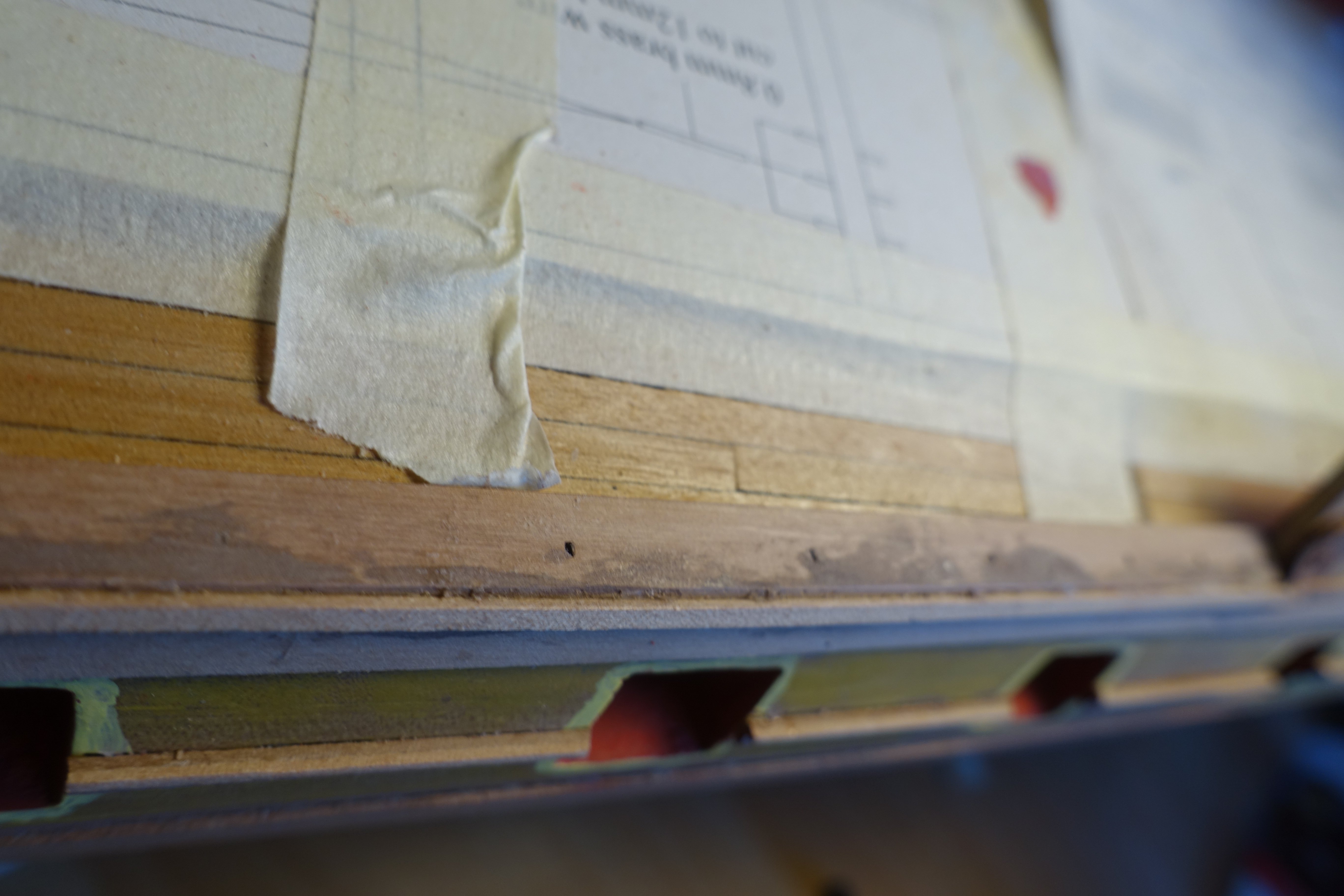

Preparing the second planking First, the gun ports were sanded flat. In the photo, you can see the sanding sticks and the file I used for it The rear side of the poop deck was adjusted. However, no sanding work was necessary on the deck. However, the rear supports protruded a little. The protrusions were sanded flat. The protrusions were sanded flat. The supports for the captain's cabin bench had to be lightly sanded. The bench protruded slightly and was then adjusted. The transom and upper counter were adjusted. The edge was lightly bevelled so that the edge of the counter would match the transom. The lower counter was watered and bent. The upper edge of the lower counter did not quite fit the upper counter. The counter was lightly sanded in the centre to make it fit. The lower counter was dry fitted, the lower line marked and the first planking removed accordingly. The lower counter was glued in. The cores of the stem post, keel and rudder post were glued in. The casings of the stem post, keel and rudder post were applied. These also form a rabbet for the second planking. The outer bulwarks in the stern and bow areas were glued on. However, the cut-outs of the outer bulwark for the last two gun ports were about 0.3 mm larger than the cut-outs in the underlying bulwarks. The gaps were filled. With the other gun ports, everything fit exactly. It may be because I watered the inner bulwark and not the outer one. However, I let it dry for more than 24 hours.

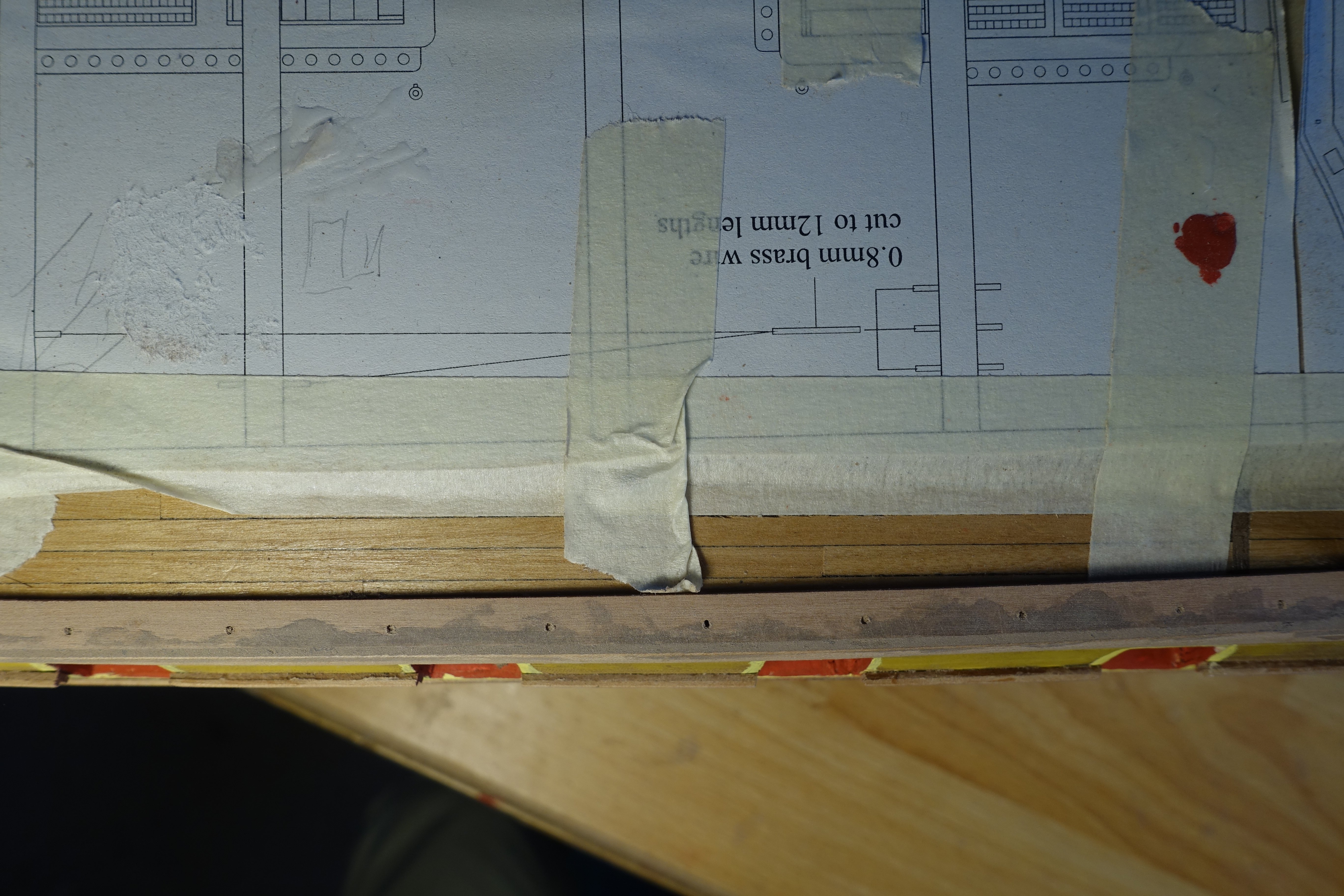

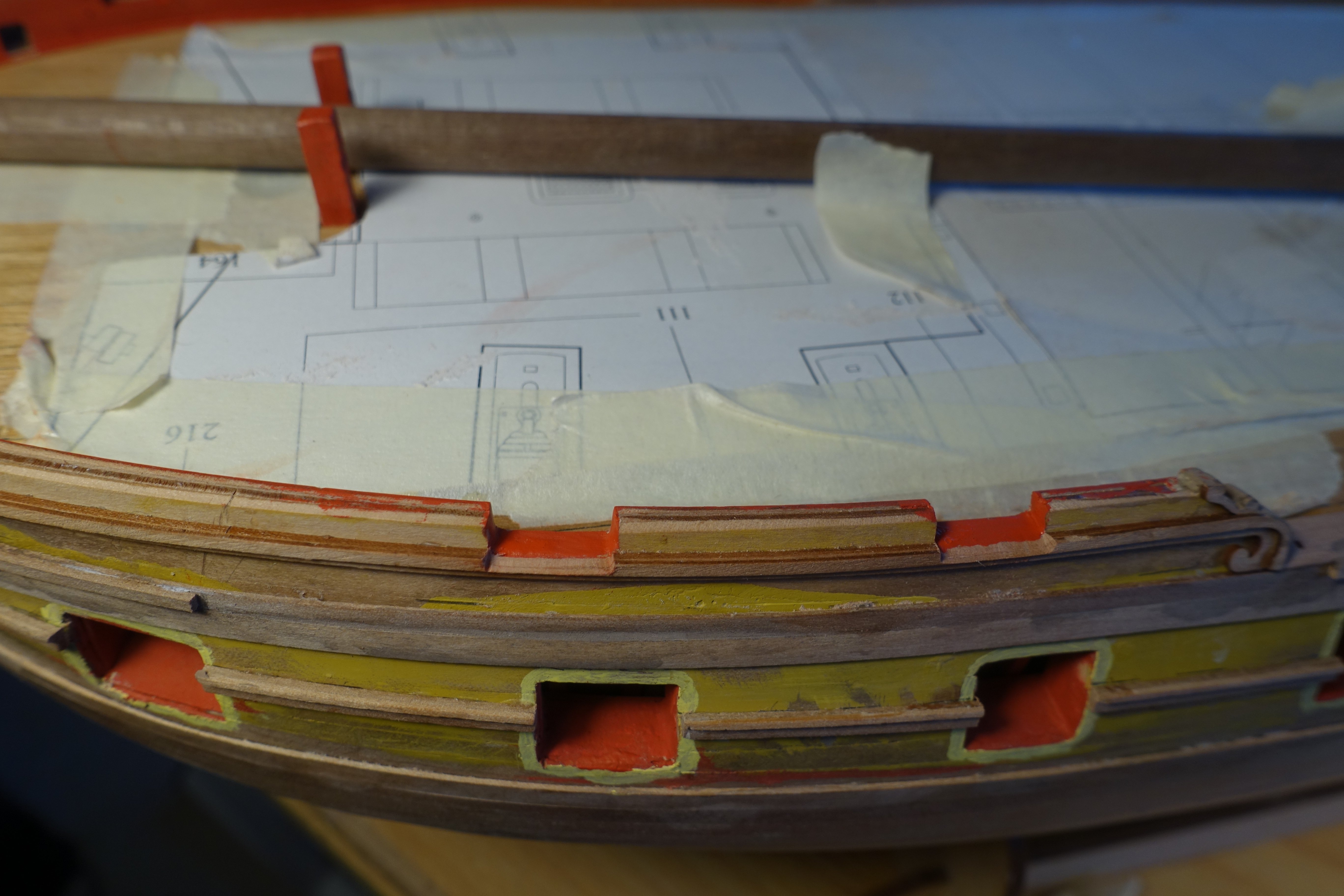

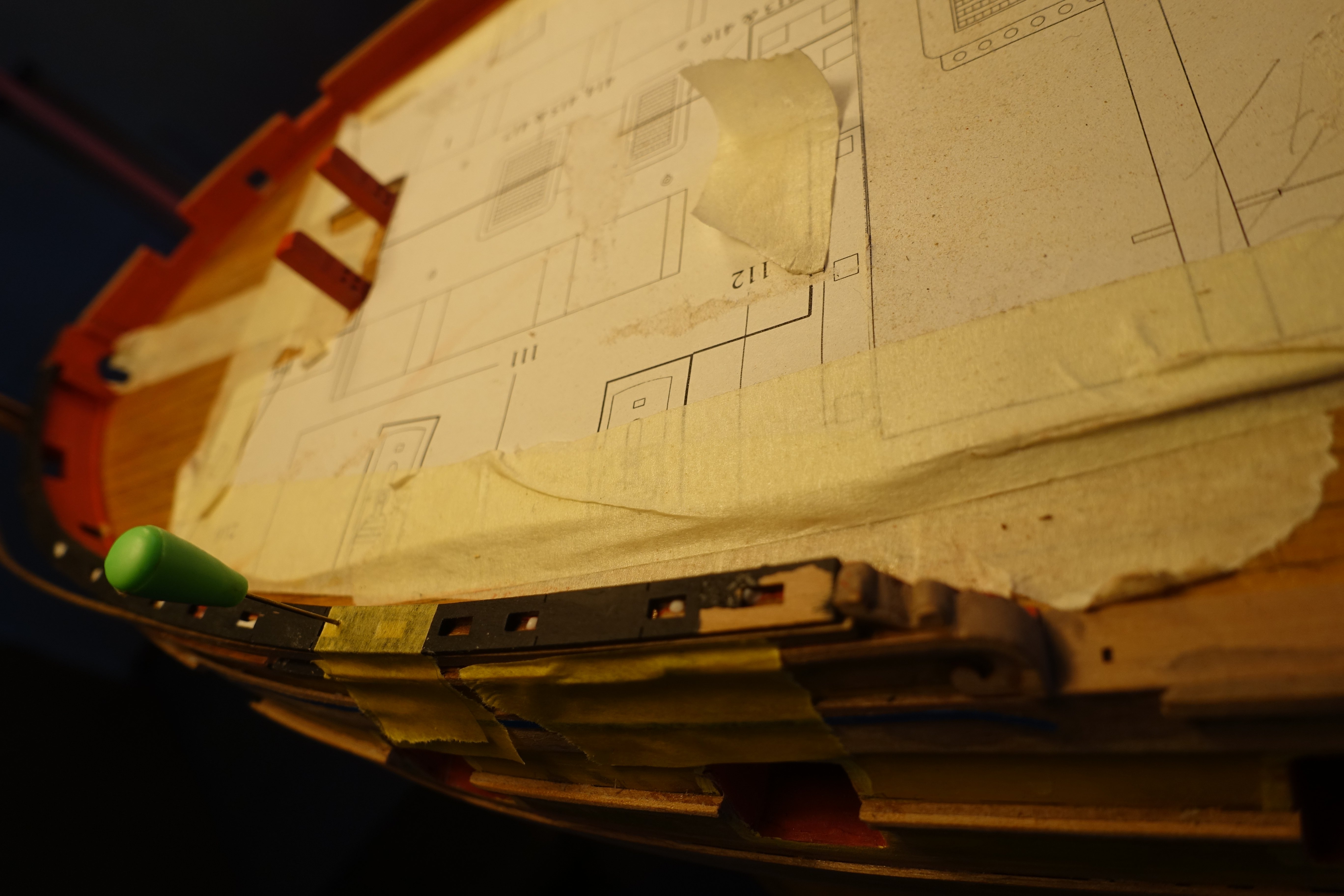

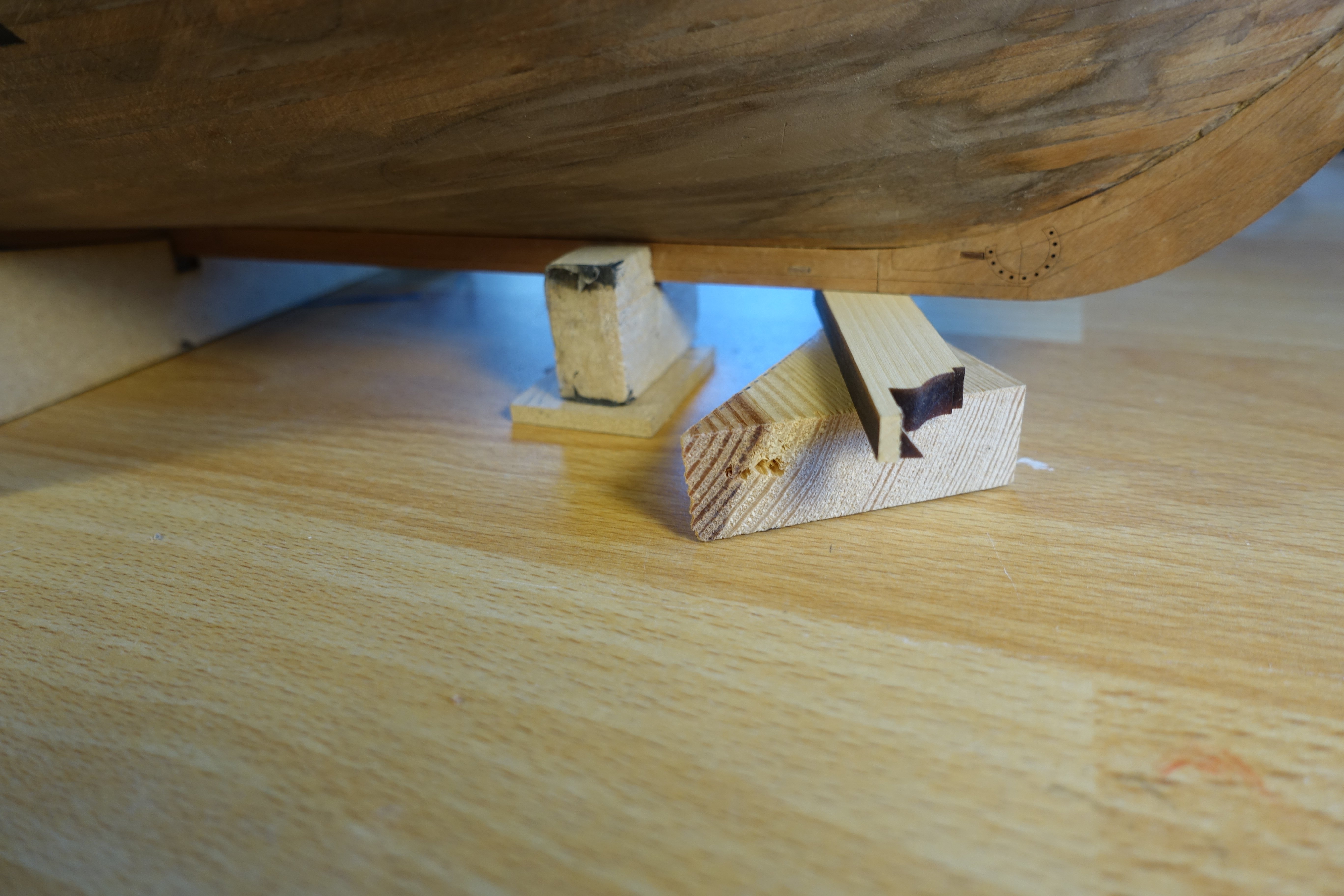

Sanding first planking First of all, I used the Dremel to smooth out the transitions and protrusions between the strips. All further sanding was then done by hand with 60 and 120 grit sandpaper. Then, with the help of the dry-fitted casings of the stem, keel and rudder post, I checked whether there was enough space to be able to carry out the second planking with the one-millimetre strips later. The casings form a rabbet against which the strips of the second planking will later rest. As can be seen in the picture, the strip does not make close contact in all areas at the bow. This is especially the case where the inner core of the stem post is fitted. Nevertheless, I will not make any corrections yet because I want to see how the planking will turn out in the end. In the area of the keel, the template for the garboard strake fits perfectly. A small slot had to be filed in the inner keel for the LED cables to exit There was not a well formed rabbet in the area of the rudder post. This is mainly becauseI filled some areas with filler. Excess material was sanded. I hope everything is prepared for the second planking.  

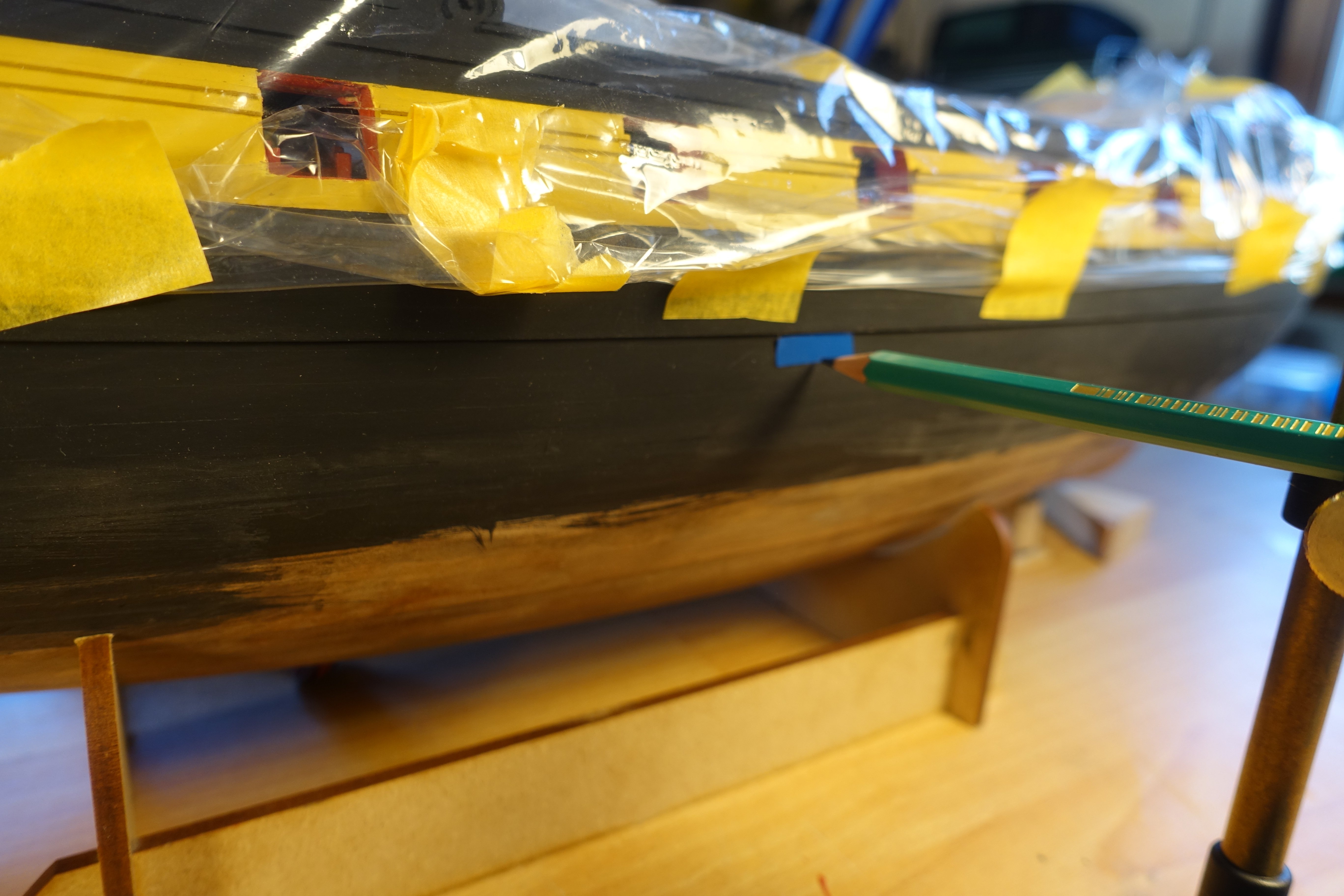

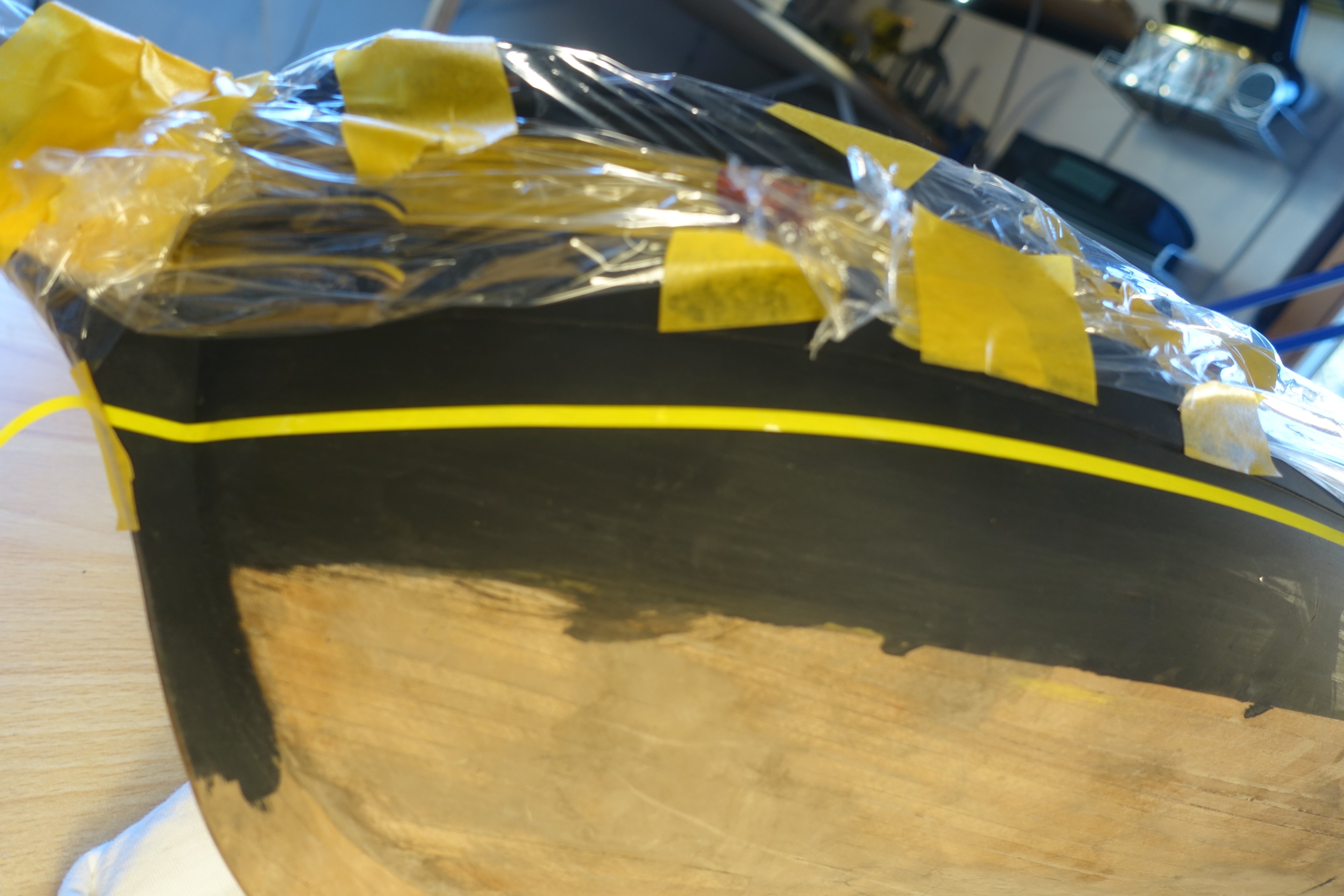

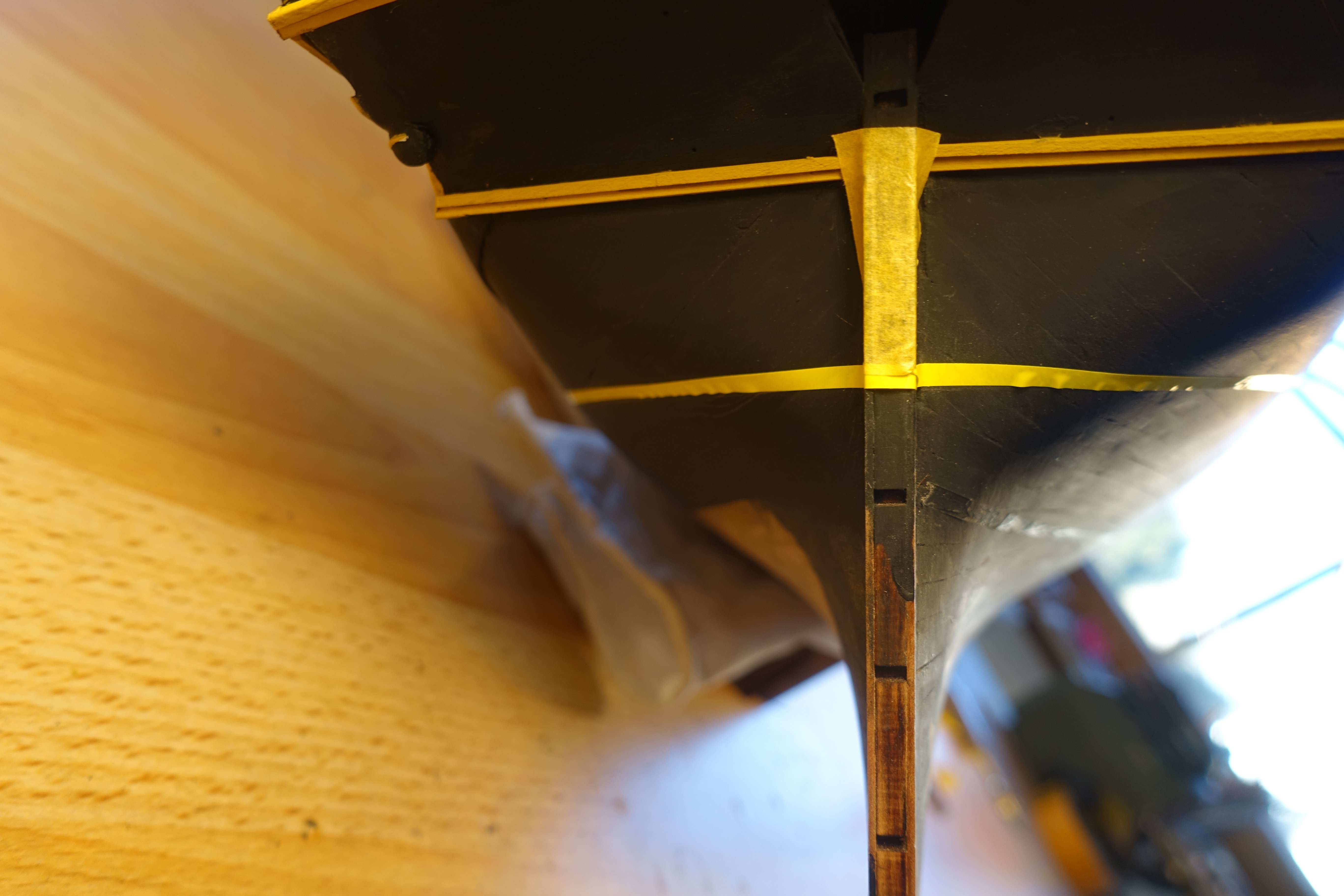

After 6 planks per side had been attached, the width of (this time) 5 planks was measured at frame 9 and the distances at the other frames measured with the help of the marking tape and Chuck's planking fan, An additional plank was fitted above the garboard strake, as I find it more comfortable to fit the last plank at this height. Further progress on planking There are only a few planks left now. I have already applied some filler in some places to close gaps. At frame 9 it becomes clear that a little more than 6 planks have to be fitted. Nevertheless, I have calculated with 6 planks. Towards the stern, the narrow point is at frames 13 and 14. I decided not to use stealers, but to taper the planks accordingly. Plank section starting at the stern (starting point (stern) left), fully tapered Plank section starting at the bow (right), fully tapered. In this way, 5 planks were laid until only one plank layer was missing. Here you can see the strong tapering of the planks in the area of frames 13/14. The last plank was divided into 3 sections. The plank starting at the bow reached to frame 8. It was fitted by eye, i.e. holding it, roughly marking and cutting it, and then filing it. Fitting the stern strip and centre strip Centre and stern strips attached. As you can see, I did the planking differently from the James instructions up to the area of the rudder post. I think it's easier to get a smooth transition this way when sanding. Now, sanding is next. As can be seen in the pictures, I have already partially started with it. But it is far from being finished. Given the size of the hull, it will probably take some time.  

Thanks. Looks fine.

I'd like that too Clark

Patina sounds good. But by copper patina I mean a green colouring. Can you post a few pictures so that we can see this? Does the patina intensify over time? Which sealer do you use? Clark

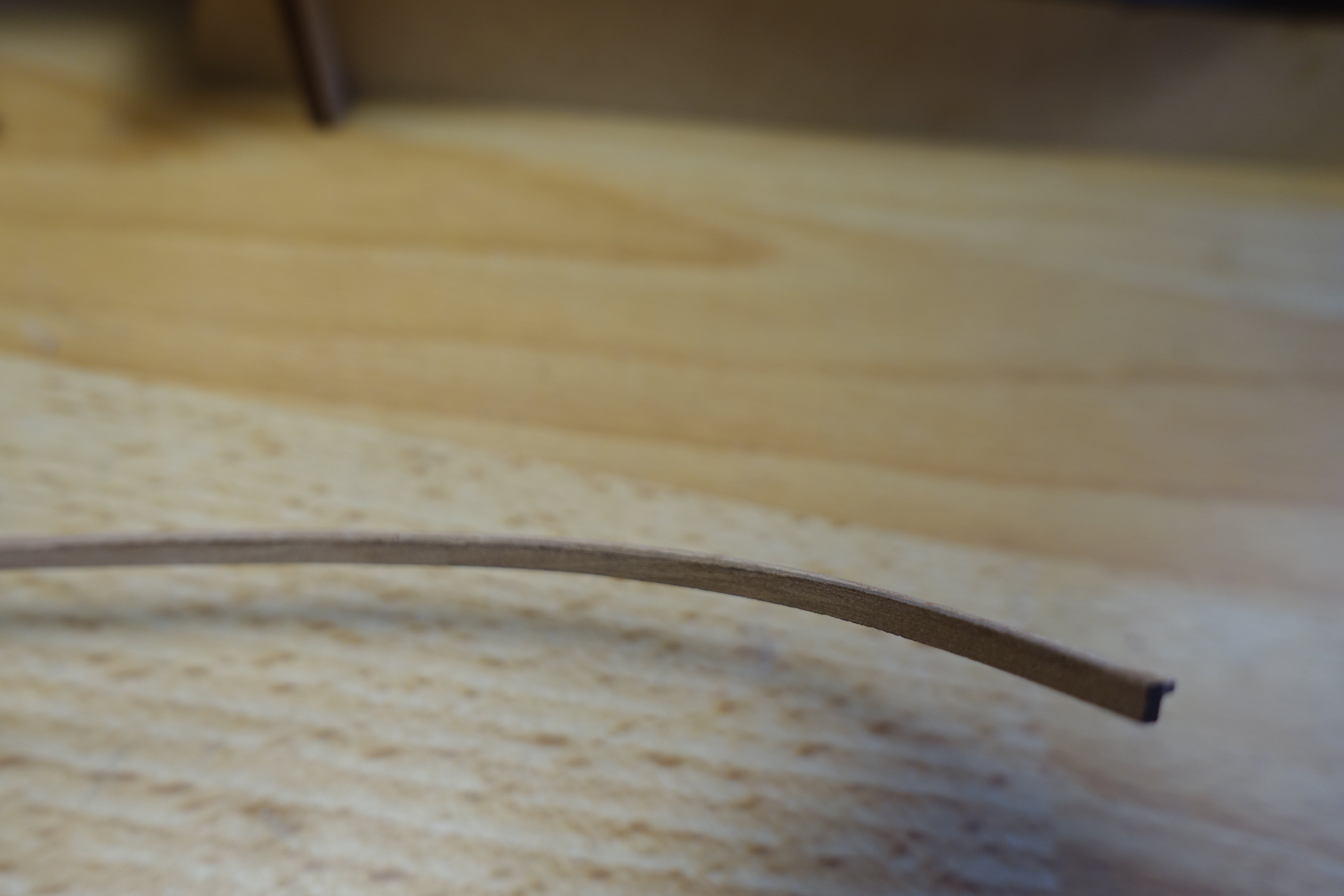

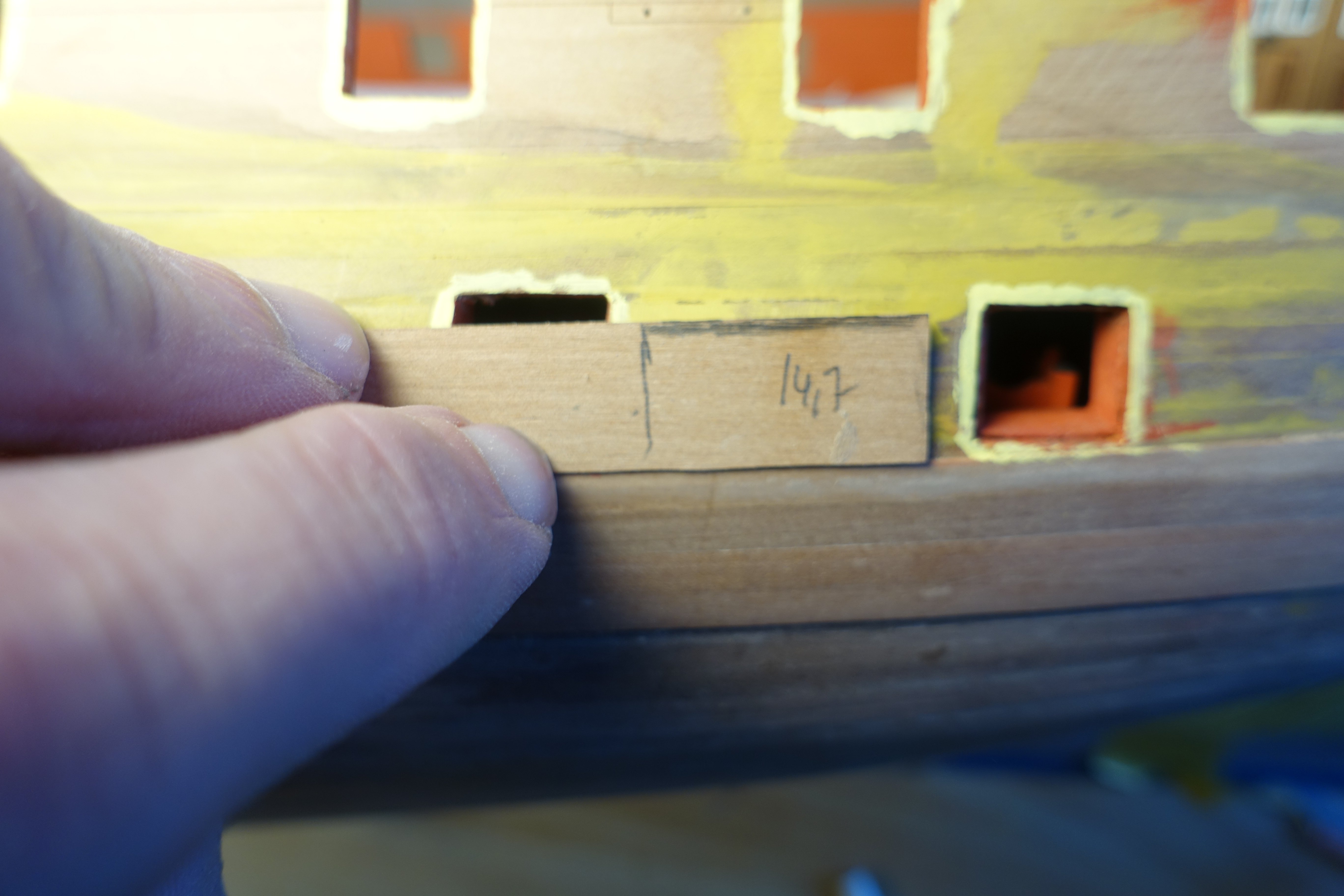

In my opinion, the most difficult part is adjusting the planks at the stern. First, I created a template to capture the bevelling at the stern post. A plank was held up and marked where the bend begins (see thin pencil lines) The plank was then hot bent The bend in the longitudinal direction was made with the fingers 4289 Subsequently, the bevelling at the stern post was transferred and the strip was then attached. In the beginning I wanted to lay 7 strips in this way, but then I interrupted after 6 strips and measured the remaining distance to the garboard strake. It was already clear that the stern area would also need to be slightly tapered. For the next section, I calculated with 6 planks and used the marking tape to show the course. Here, too, it can be seen that the bow area needs to be tapered more. As before: measuring the distances between the frames using painter's tape. Gluing the tape onto a board and calculating the plank width using Chuck's planking fan. Two planks of the new section are laid, also tapered at the stern.  

Hi Tim. Thanks for the encouraging words. Opinions are divided on the planking and everyone has their own method. It always makes me feel good when every strip fits. Clark

The planking is slowly progressing. First, I added another plank at the top that was not tapered. The gaps in the stern area bothered me a bit more, so I applied a little more putty. Everything is very provisional and will be sanded down further. It makes sense to attach a gaboard plank, especially to such a large hull. However, I didn't have any planks of sufficient width available. So I used a paper strip and double-sided tape to glue two 6 mm planks together to make a 12 mm plank. To better adjust the garboard plank, I provisionally joined the stem with its covering and roughly fitted it in place. Then I marked the positions of the first bulkheads. Incidentally, the stem fits perfectly into the recesses. The garboard plank was first adjusted outside the hull and then on the hull and then glued. However, no glue was applied in the stern area, because here the plank sections will be removed later so that they can merge into the MDF core to allow the stern post to sit correctly. As far as planking is concerned, everyone has their own method. I always think it's good if the first planking already anticipates the second planking and therefore believe that the first planking should be trimmed accordingly. To determine the number of planks still needed, I measured the length at bulkhead 9. The length was 149 mm. With a plank width of 6 mm, this corresponds to 24.8 planks, which is quite a number. So to plank the first section, I glued 7 plank pieces together and marked the width at bulkhead nine and in the area of the rudder post. With the help of the markings, the plank course was marked with a marking tape. 4244 Below the black marking tape, a tape was attached to the bulkheads, on which the respective bulkhead numbers were written. The tape was then removed and glued to a board. To determine the plank width at the respective bulkheads, I used Chuck's Planking fan (see NRG). This was held up to the respective bulkheads, the respective section cut off and glued to the bulkhead position marked on the masking tape. With the help of the markings on the strip, the strip can then be tapered. I always taper in pairs so that the strips on the port and starboard sides are the same. 4272 To position the strips correctly, I marked the cut side. This side will then face the bulwark for all planks. When I join the section of planking that comes from the bow with the section that starts at the stern, I will always offset the contact points according to the scheme that is also used for the deck planking. 4280 Now there are still 24 planks to lay, if I have calculated correctly.  

Thank you very much, but I'm not sure how the distance between the bulwark and the strip will turn out. I'll continue planking for now. Thank you also for all the work you put into the prototype and the instructions.

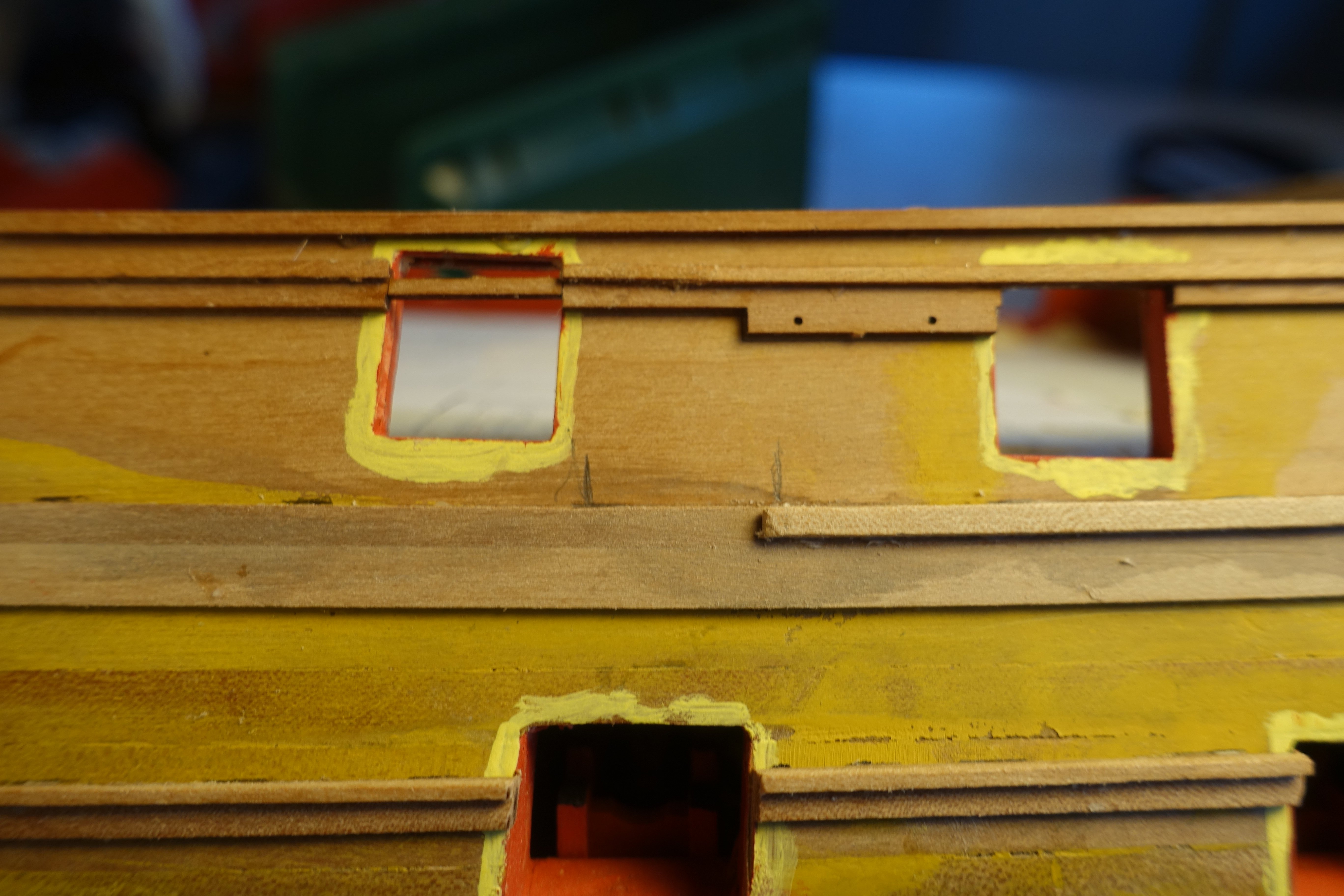

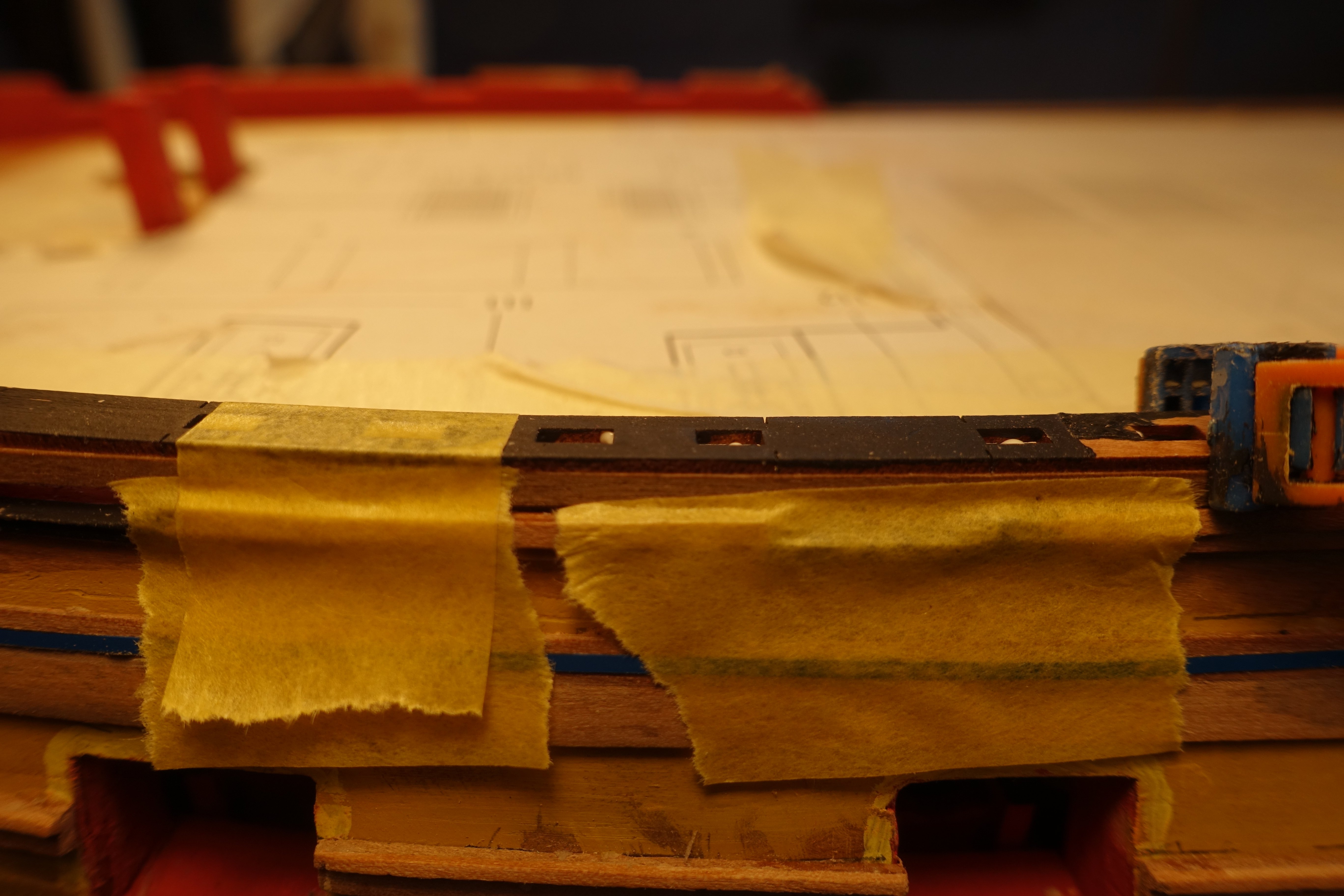

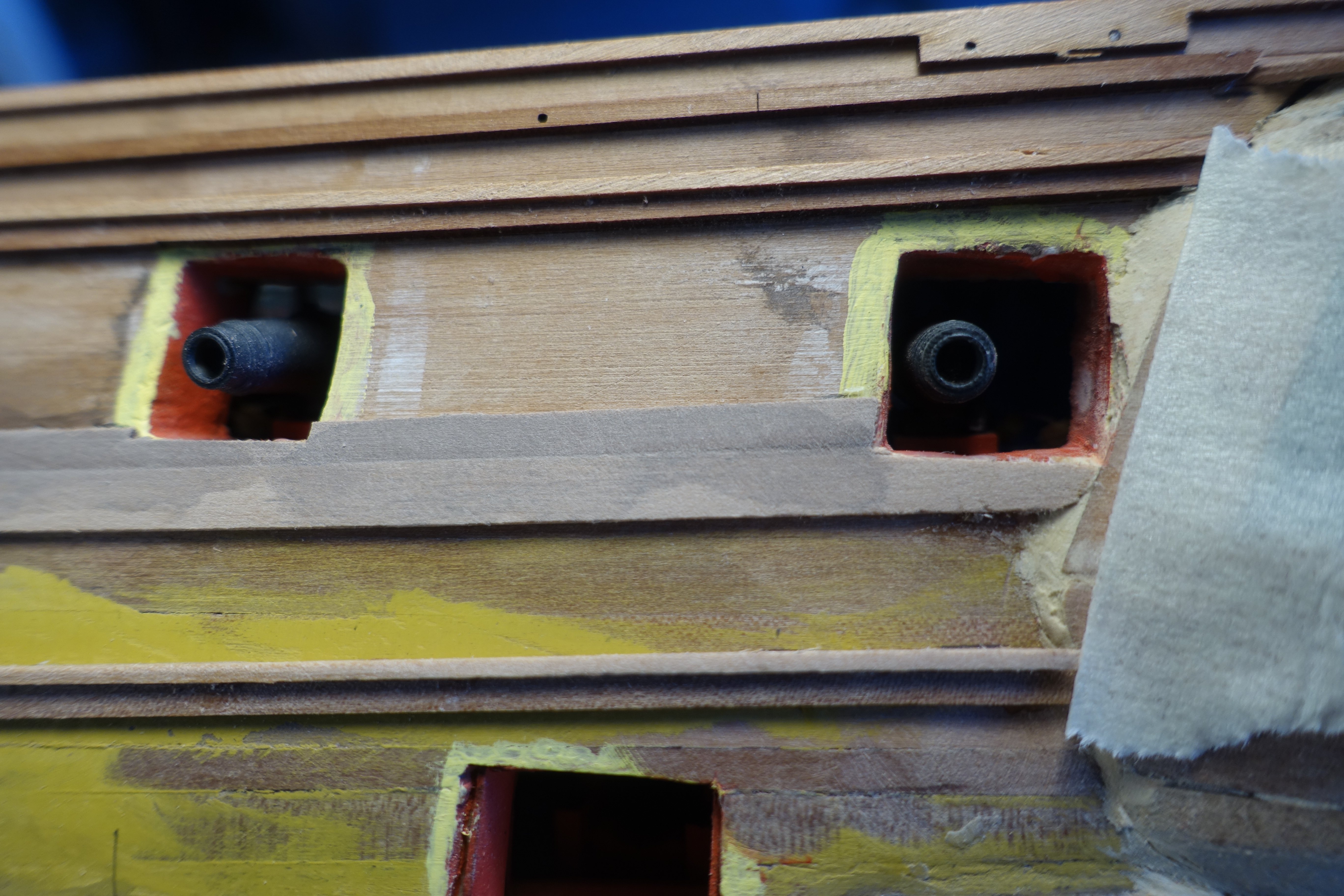

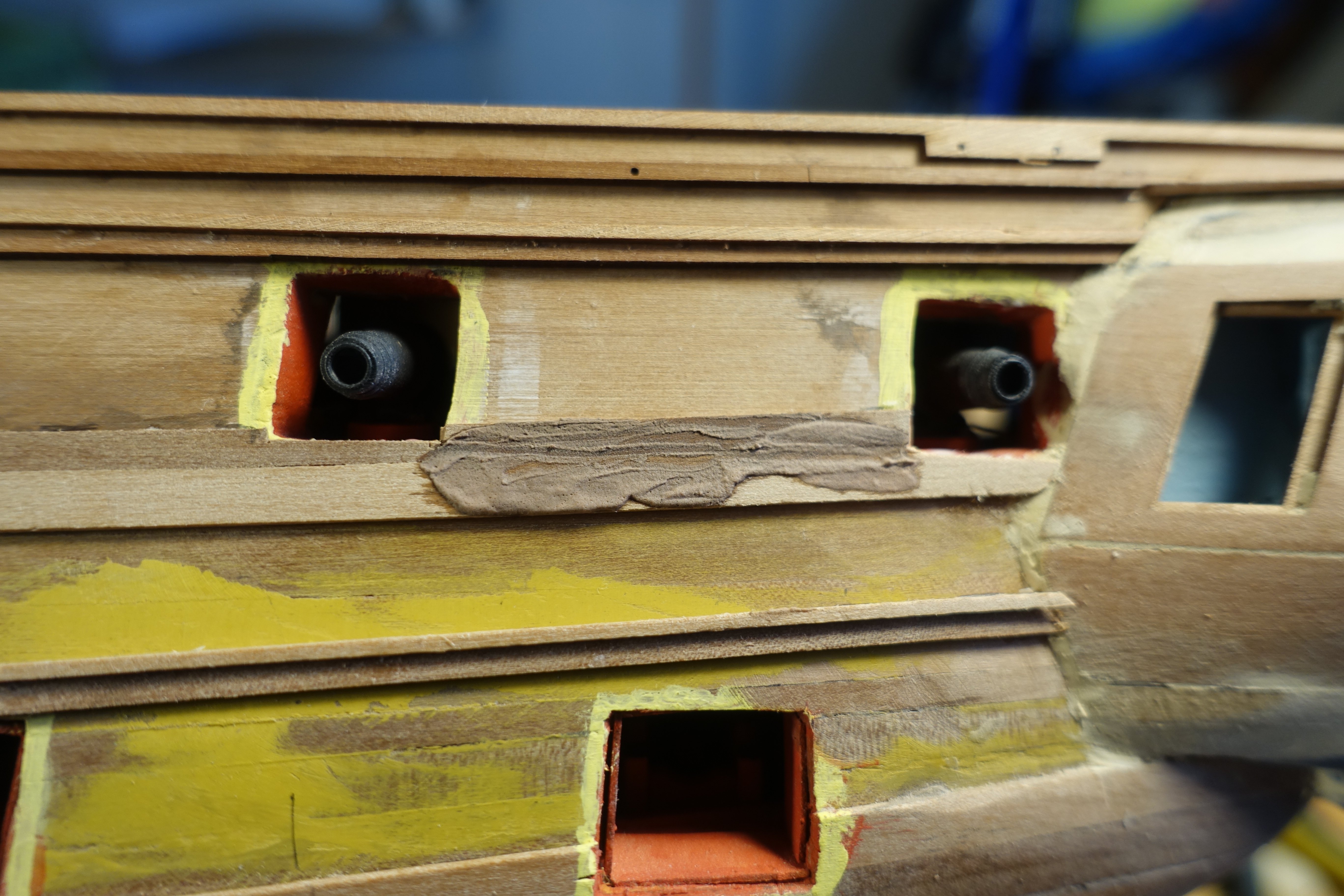

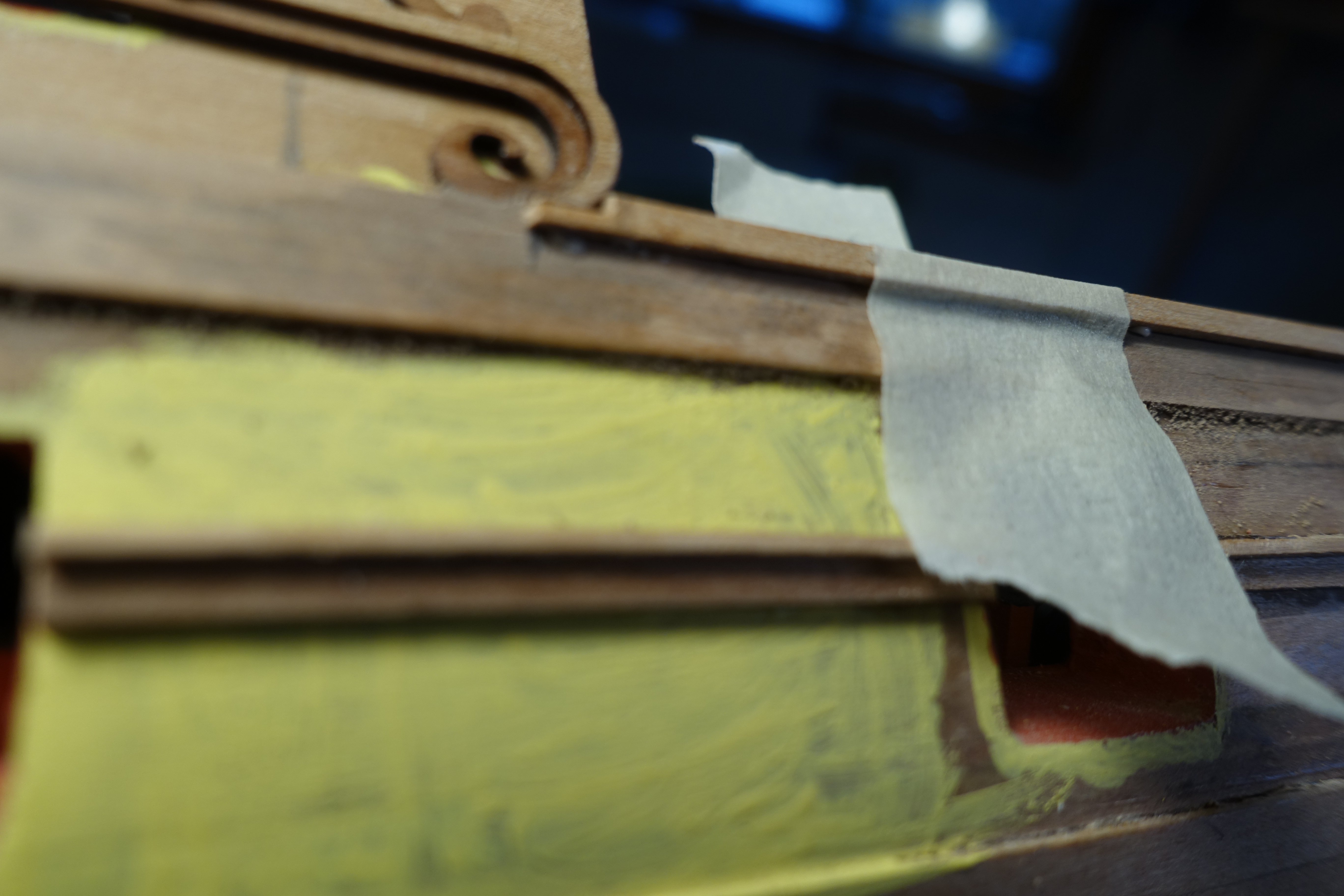

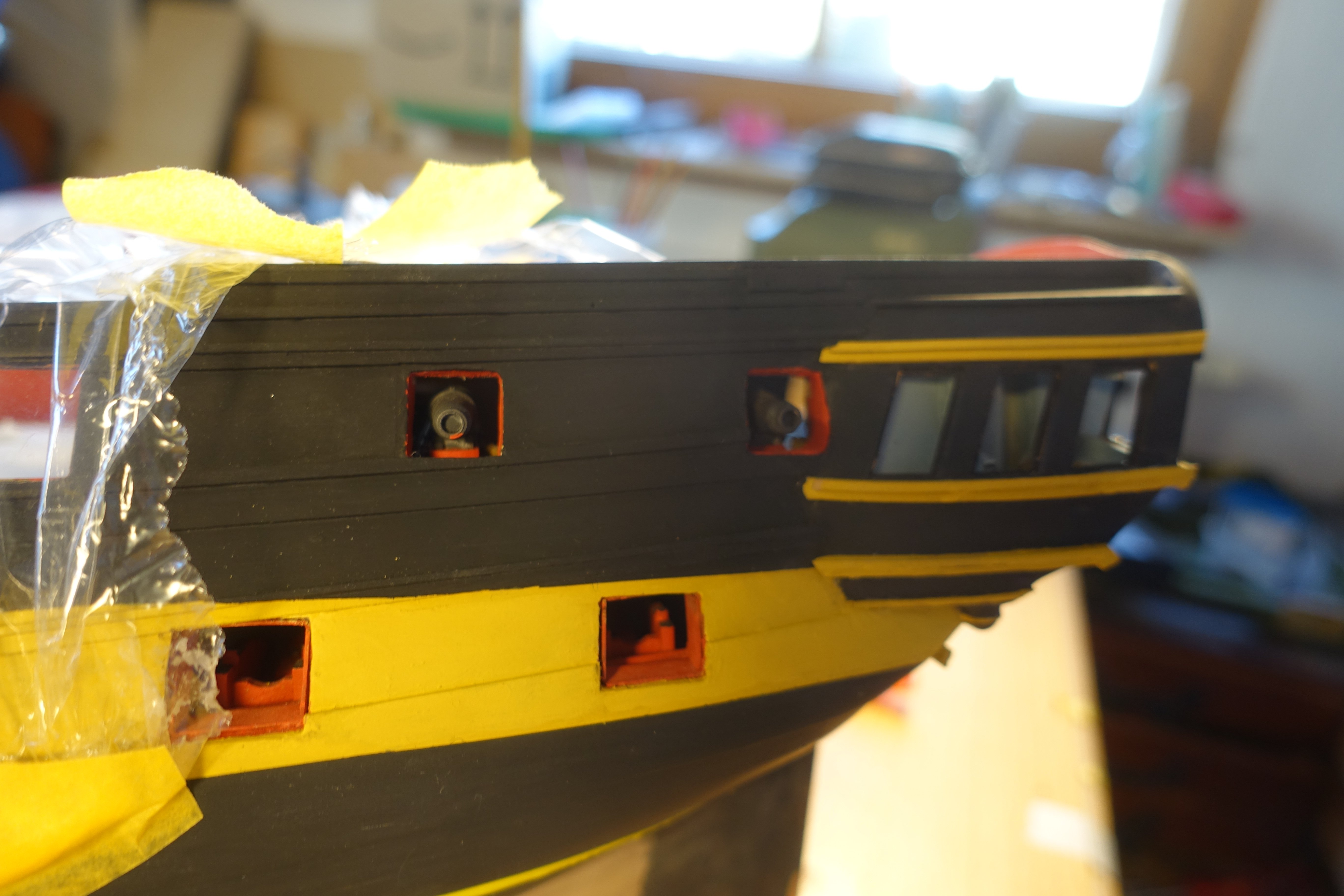

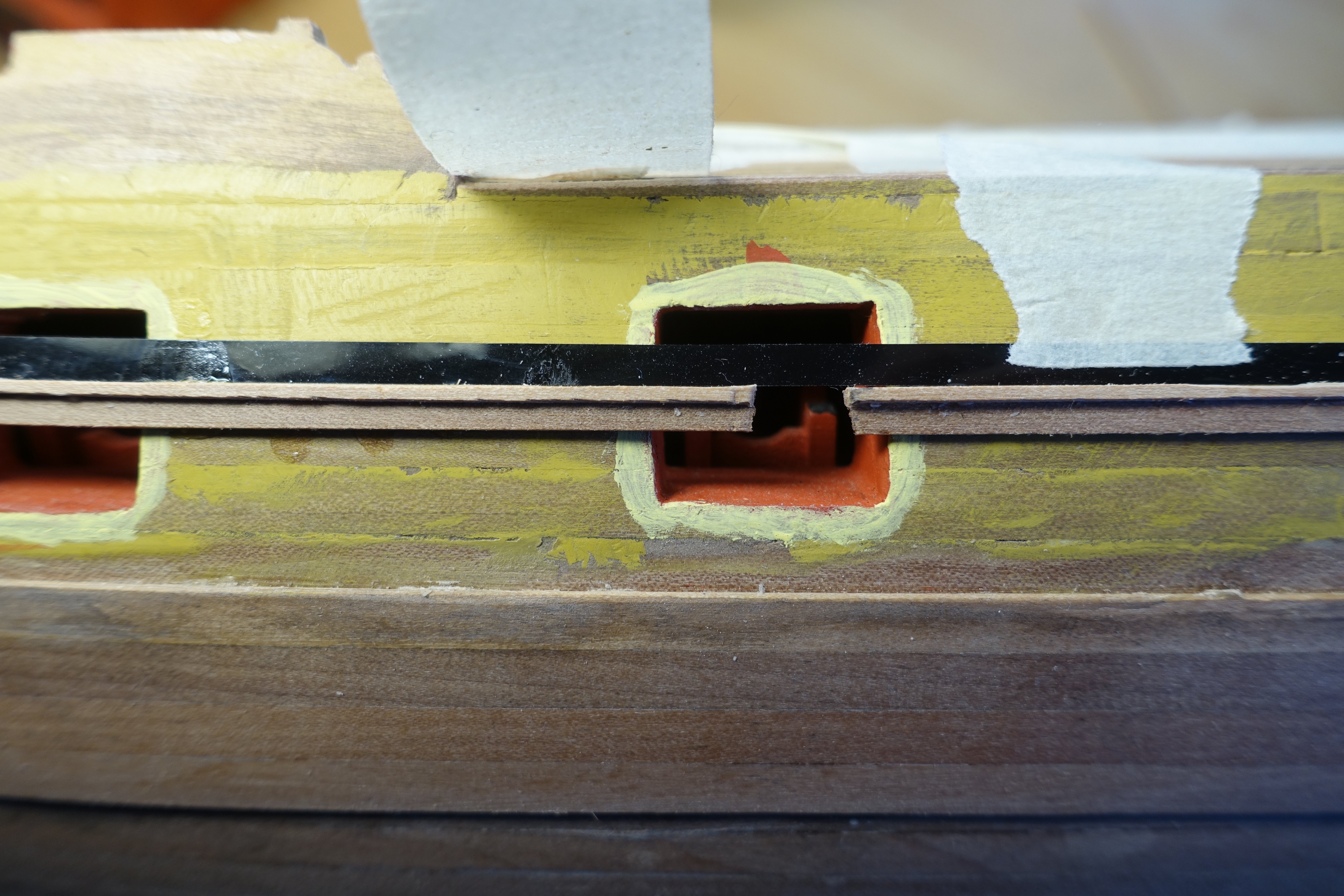

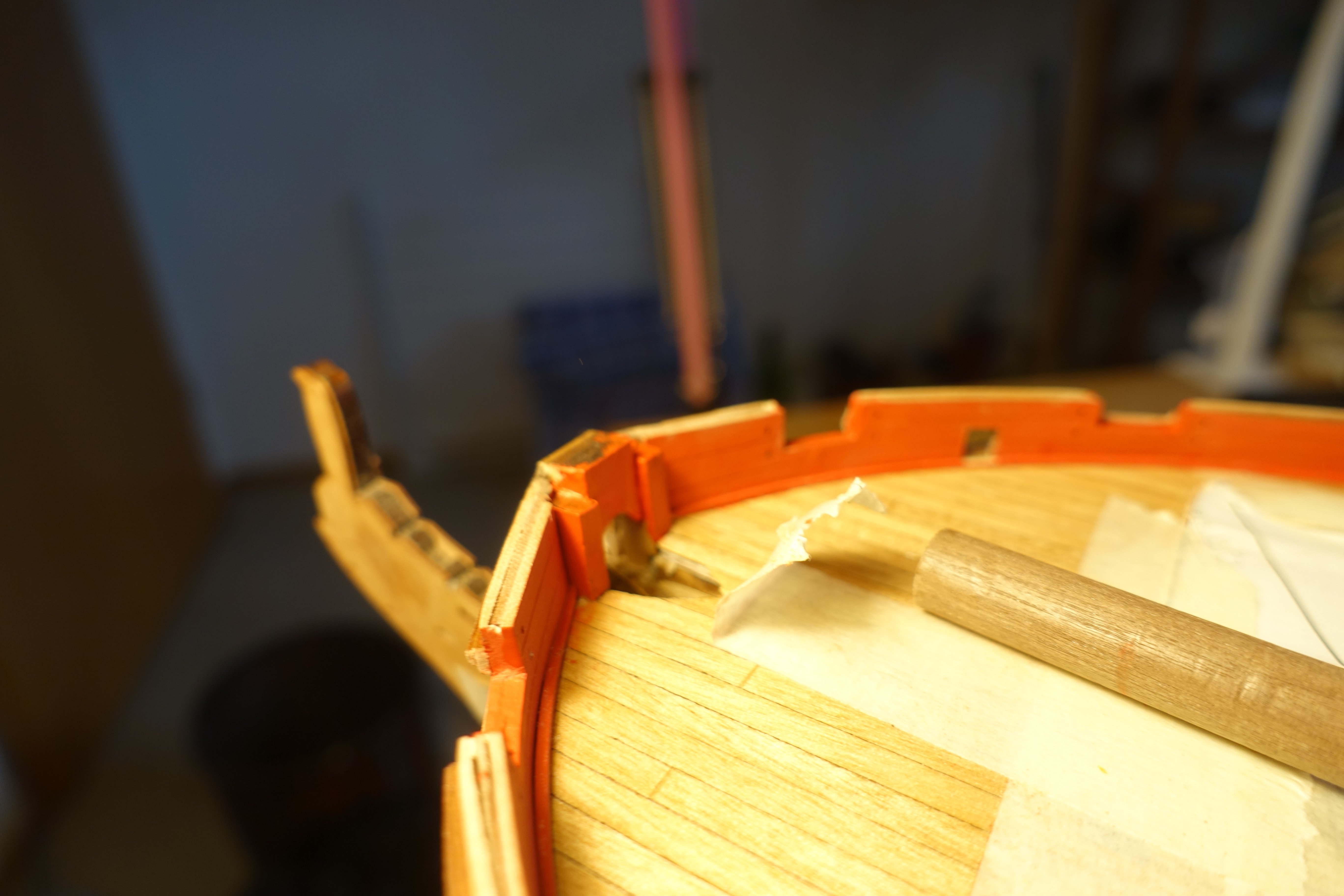

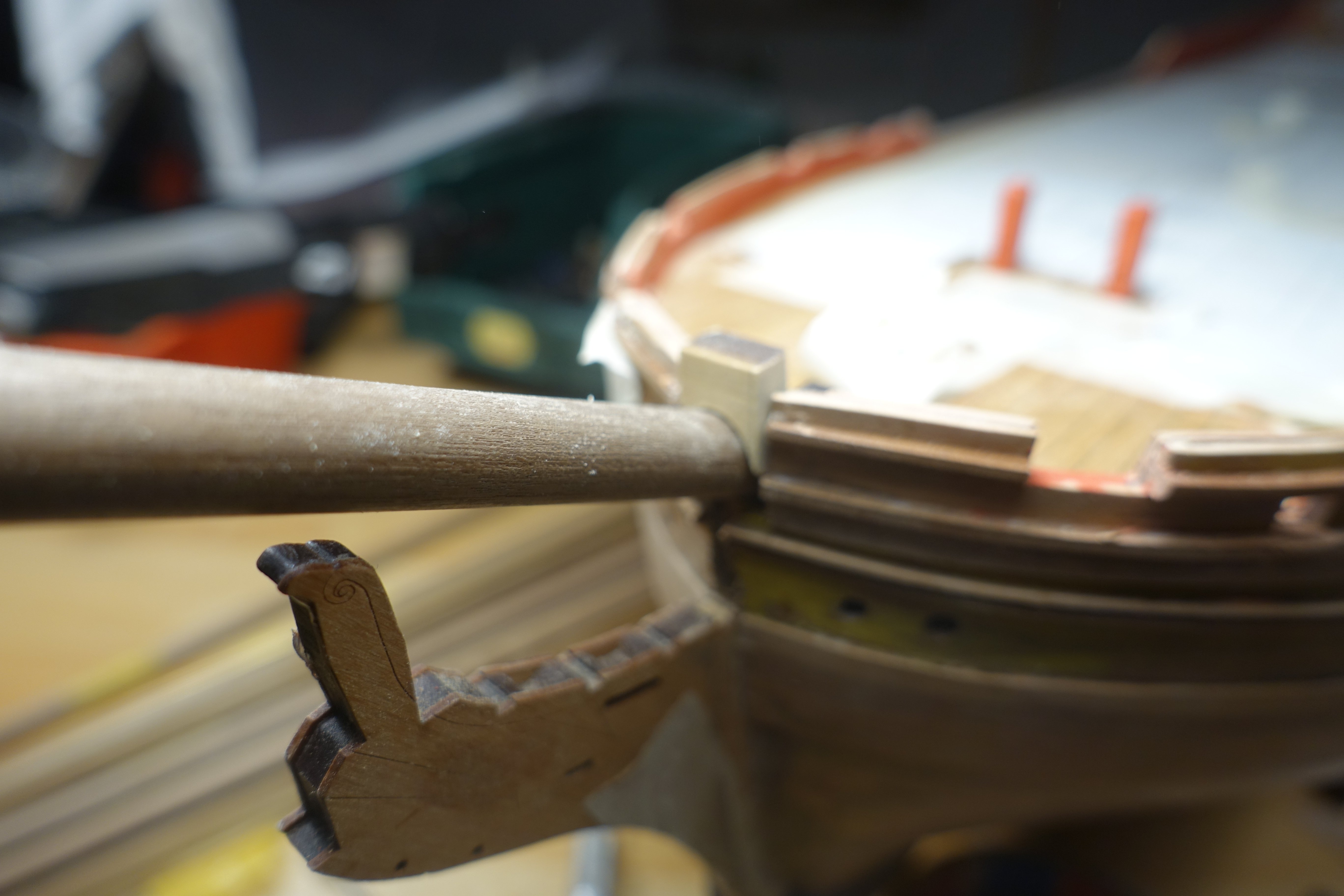

Next, the outer bulwarks have to be attached, along with the strips that form the lower boundary of the gun ports. The main strip for the lower edge of the gun ports was easy to lay. For the stern area, I hot-bent a second strip and then laid it with the front part butted up against it. However, I am not completely satisfied with the way the strip runs in the stern area, so I will have to make some improvements. In the middle area, small gaps of approx. 0.1 to 0.2 mm in size were visible between the edge of the gun ports and the border moulding. I filled this with liquefied putty. The gun ports will have to be sanded flat later anyway. That's the nice thing about working with wood. You can fix anything somehow. A strip had to be glued over the gun ports. There was a gap of about 1 mm between this and the lower strip. This was also filled with diluted putty, avoiding the area of the gun ports. To fix and align the aft bulwarks, I pushed a square rod through the last gun port flush to the aft and upward. With the help of spirit levels, the port and starboard bulwarks were levelled against each other. Clamping the bulwarks after gluing them proved somewhat difficult, since the clamps should not touch the LED under any circumstances, so that essentially only the area of the gun deck gun ports was left for the clamps. The bulwarks in the bow area are a good match. What I don't like at all is the transition at the stern. I'll probably have to add a little more putty here over the next few days.

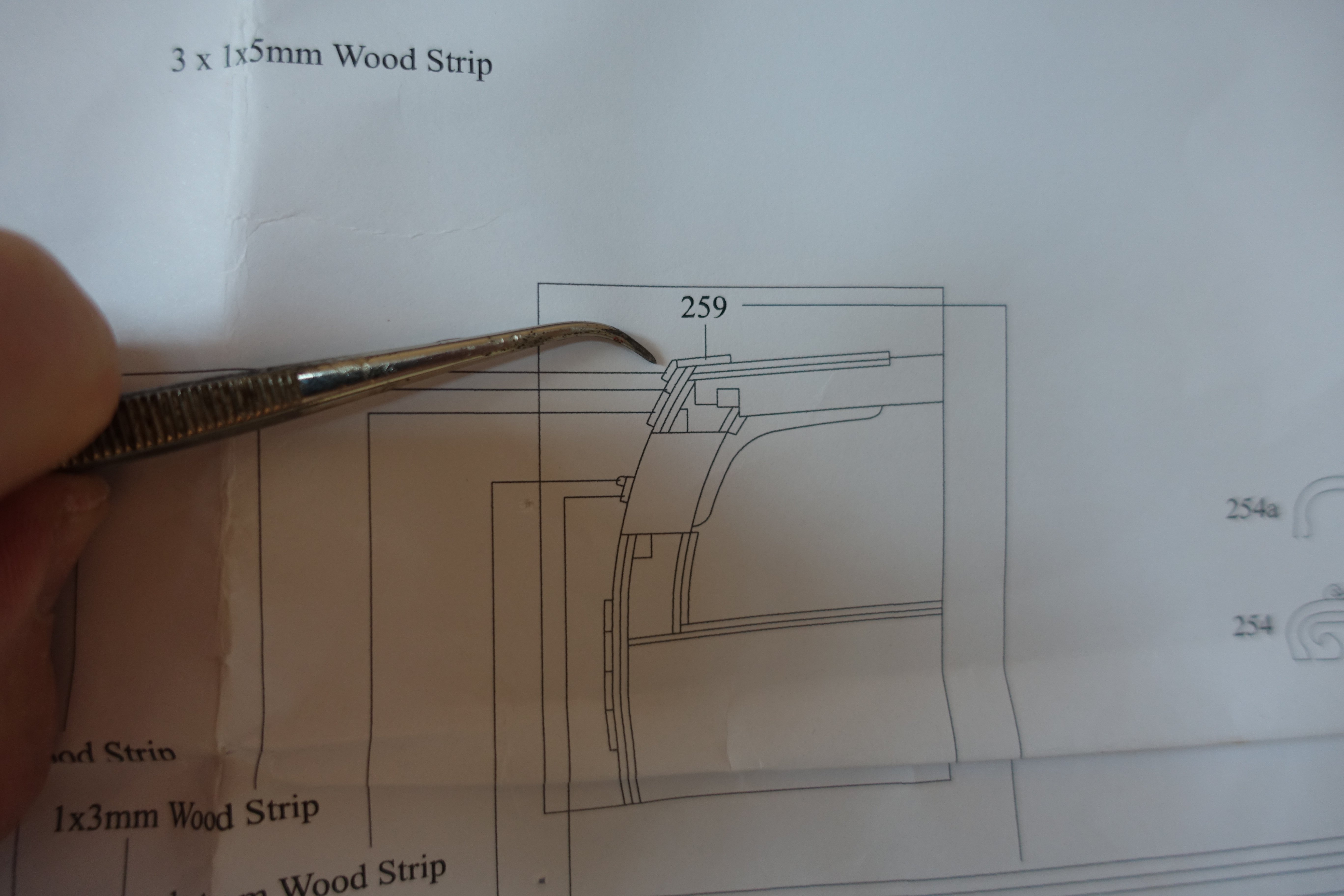

After my experience with the installation of the LED on the starboard side, I would like to explain the installation of the LED on the port side in more detail. This is described for the installation of the LED above the canon deck First of all, I got a rough idea of where to position the LED. The LED should not be visible from the outside or from above. That means they should be located away from the gun ports and also covered by the knee. Accordingly, there are only 4 positions where the LED can be attached for the rear gun deck. Under QDK 18 and upwards, it makes little sense to position the LED since this area is later covered by the poop deck. As can be seen from the illustration, the LEDs are to be attached towards the bow in front of the corresponding deck beams. First of all, I reinforced the corresponding areas by gluing in small pieces of strip between the support beam of the deck beams and the longitudinal beams of the gun ports. Marked by the tweezers in the picture. Then the area directly in front of the deck beam was filed down to the gun deck. This is to be able to bend the LED downwards later. Then the holes for the anode and cathode of the LED had to be drilled. To correctly determine the distance between anode and cathode, I built a small marking aid. This was given a little colour and then the marking was placed on the previously filed section After drilling the holes, the LED was inserted. To avoid getting confused, I always arranged the anode (long leg, ending at the red wire) on the right. Then the LED was bent over to the deck. It was checked whether the lying knee fits over it. About 0.5 mm of the thickness of the knee had to be removed in the LED area (sorry for the bad quality of the picture). Then the wiring was done, with me always connecting the resistor to the anode. As you can see, I am not an expert at soldering. I also made a rough plan for the LED under the poop deck. Since I want to leave the poop deck largely open later, I used yellow LEDs for this area. With the LEDs under the forecastle, it should be noted that the horizontal knees are attached with the orientation astern, so the LEDs and the recesses for them are positioned towards the stern behind the deck beams. Overall, I am very satisfied with the effect.

Did you ever try wipe on poly (wop) for the natural wood? Otherwise you may try the variants on wood remnants precoloured. Clark

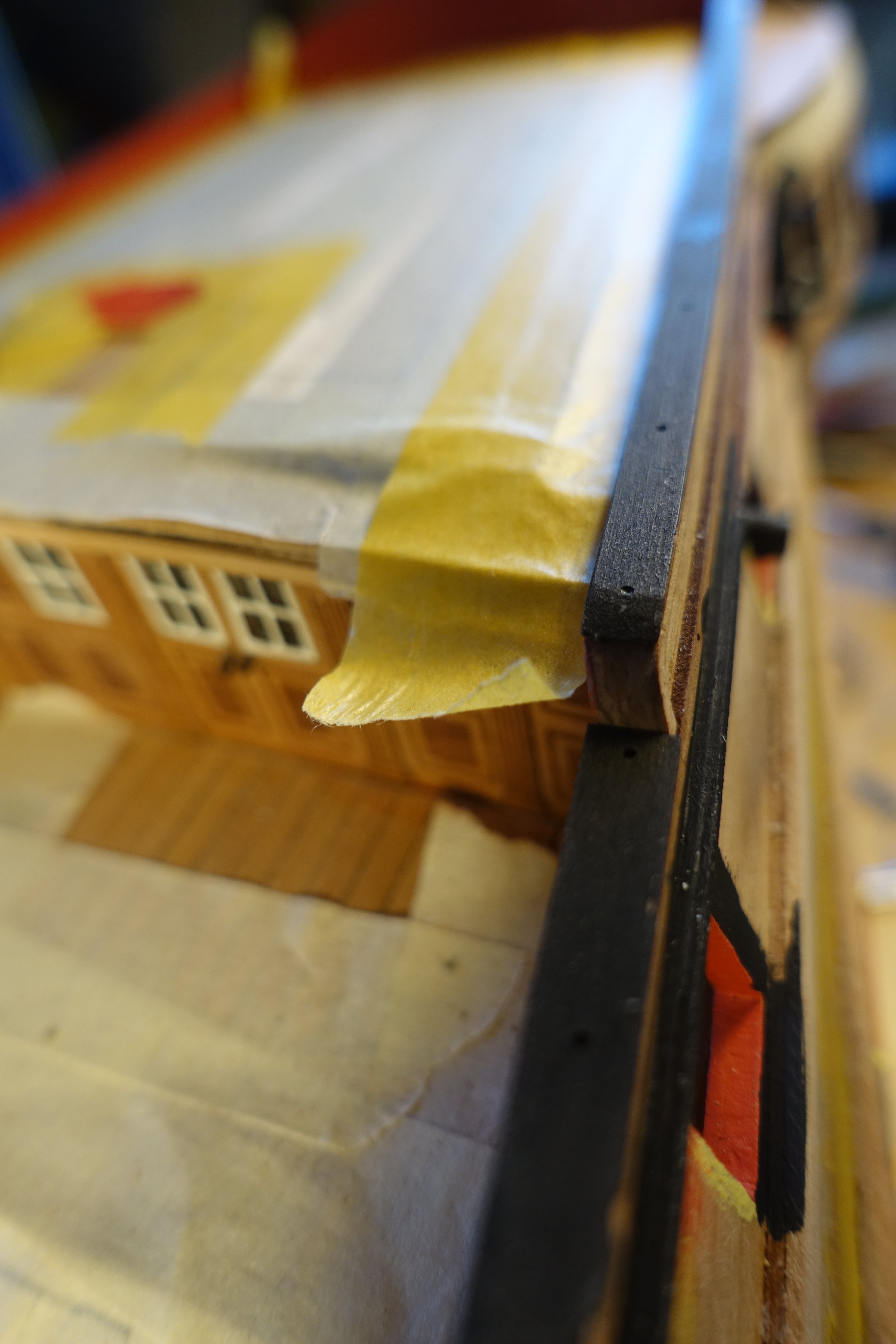

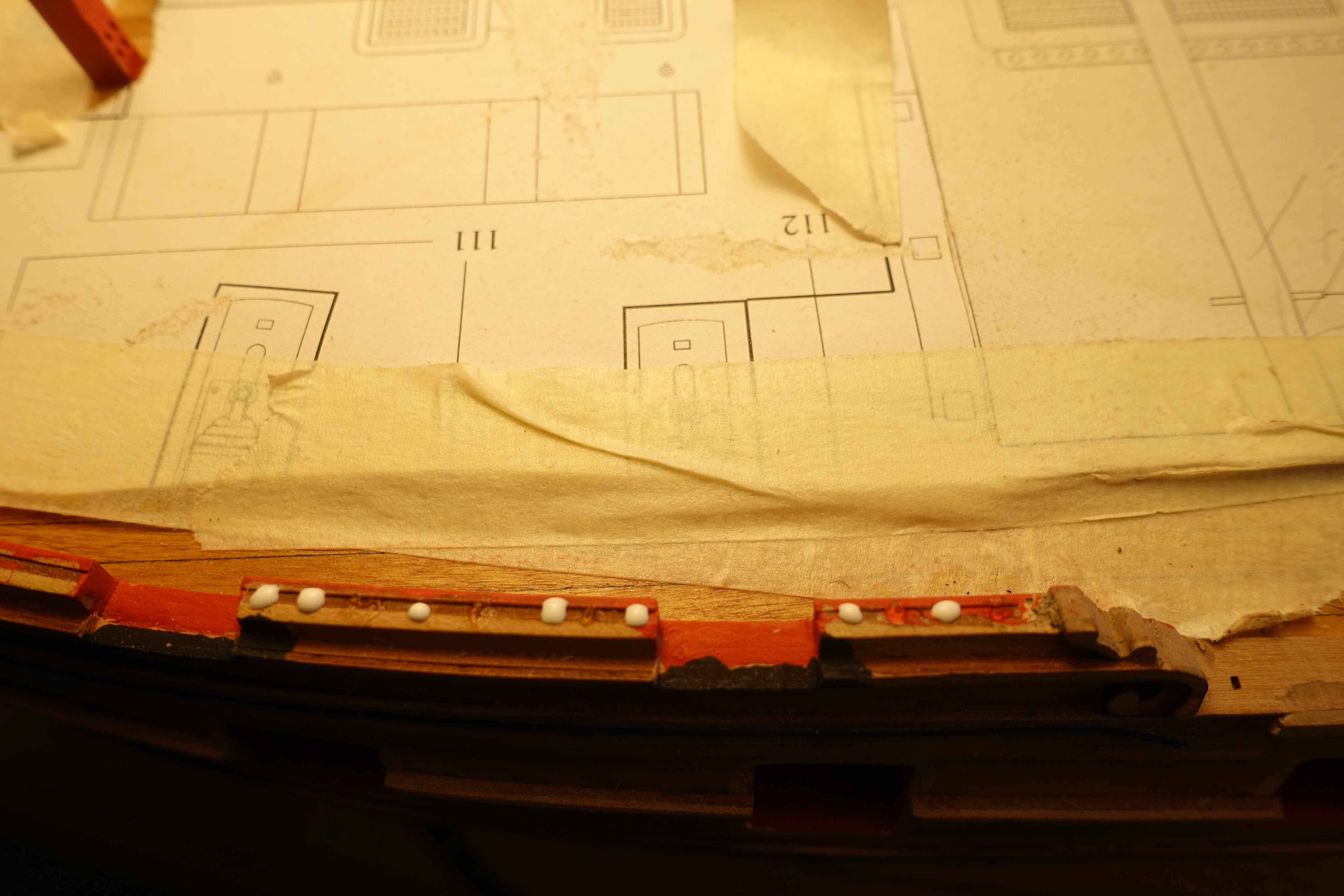

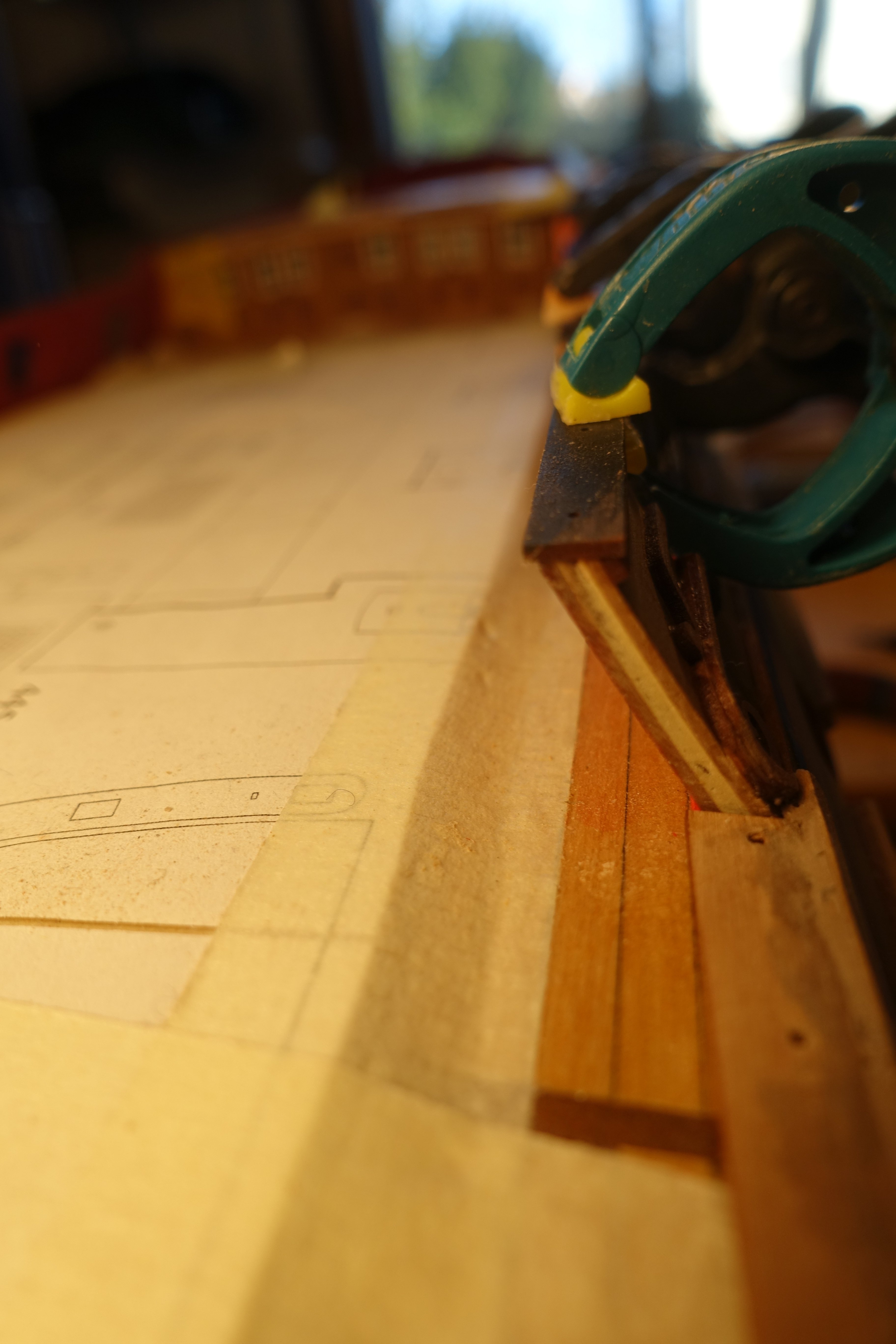

The projection shown in the previous post is bridged by a small strip on the back so that the two sections of the bulwark are now in line on the front. The supports for the deck beams were glued in, with the alignment being ensured by means of a dry fitting of the beams. To sand the bulkheads, the Indy was clamped overhead in the Amati clamping device using the dowels inserted in the fore and main mast openings. I first sanded with a Dremel and then with the self-made sanding sticks that I had already used on the inner bulwark (80 grit). I checked the fit with a strip, especially in the area of the gun ports. Then I started the LED wiring. The wired were fed through the centre of the keel between bulkheads 9 and 10. The branches for one LED above the gun deck then went between two bulkheads till I reached the space between bulkheads 13 and 14. Then it got tight. Therefore, from the luster terminal between bulkheads 13 and 14 the following wiring was installed: 1x supply for the last LED above the main gun deck. 2x supply for two LEDs (yellow) above the quarterdeck/under the poop deck 1x supply for the port side. It all looks pretty messy, but it works. I have had my experiences with laying the cables on the starboard side. I hope to be able to show an improved installation of the LED on the port side in the next post. Happy New Year

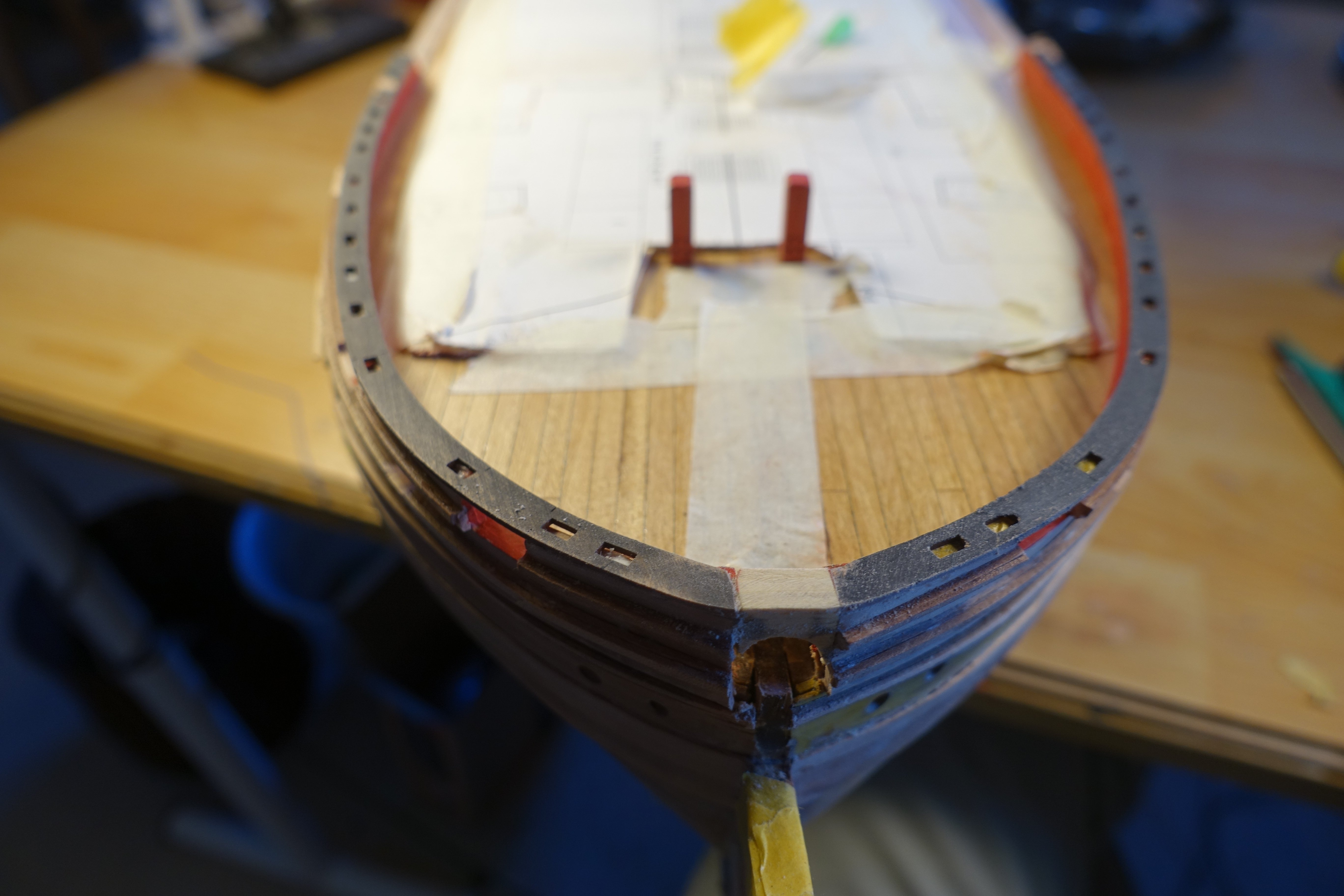

The deck was prepared for installation. First, I set the markings for the subsequent planking. I assumed that with a maximum plank length of 8 metres in the original at a scale of 1:64, the maximum plank length on the Indy is 125 millimetres. For easy calculation, I assumed 120 millimetres. Assuming that the planks were laid with a fourfold offset, a distance of 30 millimetres is necessary from offset to offset. In addition to the offset lines, I also added additional markings where the upper edges of relevant bulkheads run. This is for later mounting of the brackets for the Indie overhead. The deck was glued using the technique described by Blue Ensign in his Indy blog. . That means first one side was glued and then the other side. However, PVA glue was only applied in the middle area to begin with. For the outer area, the Indy was turned upside down and PVA was applied from below using a brush. However, a centre bridge broke off during attachment and was lost. In the picture you can also see that the lower deck half is displaced by about 0.3 to 0.5 millimetres. I checked the bow and stern again. However, the deck halves are exactly centred there. So I didn't correct them any further. The deck will also be planked, which will help to even out any such errors. I made a replacement for the missing centre bridge out of plywood Next, the horizontal gun port strips and the vertical frames were glued. The vertical frames are position-specific, but Chris marked them so precisely that you can't go wrong if you can read. This also further stabilises the bulkheads. When installing the stern frames, it was important to note that the LED cables would later have to pass through these frames. I therefore removed the vertical leg from the middle stern frame so that it would still be possible to feed the wires through the hole drilled in bulkhead 18. When positioning the poop deck beam ledges, I was afraid that there might be a little too much play at the stern. To align the ledges here, I therefore provisionally attached the deck beams of the deck and applied PVA glue moistly with a brush to the joints of the ledges. To sand the inner bulwark supports smooth, I laid the Indy on its side and fixed it in place with the help of the Amati apparatus. I sanded the bulwark supports and the vertical gun-port strips again with my sanding sticks. In the straight area, I essentially orientated myself on the bulkheads. These are ideally aligned, so that mainly the vertical gun-port strips were sanded into alignment. In the bow area, the orientation was based on the curved longitudinal strips for the gun ports. The result was checked with a thin strip. I also sanded the support structures of the rear cabin smooth at this stage. LEDs are to be installed here and it would be unfavourable to start the sanding process again after the LEDs have been installed. Before I fitted the inner bulwarks, I first constructed a bracket with which the Indy can be fixed overhead later when planking. A 10 millimetre dowel sanded at the side, was passed through the opening for the foremast. A 5 millimetre sheet with a walnut reinforcement was then used to further stabilise the dowel. The sheet was then fixed to the bulkheads below with screws. As the deck will be planked over later, the screw holes are harmless. A suitably prepared 12 mm dowel was passed through the opening for the main mast and stabilised accordingly. The Indy can later then be clamped into the AMATI holding device using the two dowels The inner bulwarks were first soaked with water, then clamped to the spars, left to dry overnight and glued with PVA glue the next day. In the picture you can also see a small protrusion of the aft bulwark near the deck compared to the bulwark laid in front of it. The projection is aligned from the other side with a small wood strip.

The longitudinal beams fitted well. In some places, light blows with a small hammer were necessary. When fitting the deck beams, I was initially surprised that 3 of the cut-out beams were left over. Here Chris probably thought that some might break. When sanding the bow and stern formers, the laser carbon can be used as a guide. Here I first sanded with a Dremel and then reworked with self made sanding sticks (80 and 120 grades) to work out the curvatures. The fillers for the stern area were glued into the last bulkhead, with a 4-millimetre MDF spacer used for the simulating the stern post. Everything fitted perfectly and no sanding was necessary. Congratulations, Chris. Contrary to the description in the building instructions, I also glued on the lower stern fillers (but not to the false keel) so that I could work on them. I found this easier to do outside the hull. I used a thin strip to check the shape. I also applied a little putty in the area of the lower stern filler to get a better idea of how the planking would go.

Hello Blue Ensign, Thank you for stopping by. So far, I have not worked with LEDs. I think I will have to try a few things when the build is more advanced. I will probably install the LEDs when the 3D puzzle phase (your term) is over. Clark

After I had finished the Sphinx, I wanted to continue with the Indy. There are good building reports on MSW. Therefore, I will mainly show what I will change compared to the building instructions. I was so sorry that you can't clearly see the lower decks on the Sphinx, even though Chris had planned some openings there. It's similar with the Indy. In my opinion, the openings through the decks are too small. I will therefore follow the approach of Blue Ensign. He has greatly expanded the breakthroughs through the upper decks. In addition, I plan to illuminate the lower decks with a few LEDs. First of all, I had to choose the LEDs. There are now countless variants available, all of which have their advantages and disadvantages. I decided on 3-millimetre LEDs in ultra-bright yellow diffuse (1600 mcd, 1.9V, 20mA) and ultra-bright warm white diffuse (2800 mcd, 3.3V, 20mA). To avoid having to rely on batteries, I also purchased an LED driver (12-volt DC output). The yellow LEDs then require a resistance of 510 ohms, while the white ones require a resistance of 470 ohms. Then I tried it out to see if it would work at all. Then came the early Christmas and I unpacked the Indie. First of all, I was amazed at the size of the Indy. This is also described in the other blogs, but when you see it in front of you, you are initially blown away. So there should not only be room for the Indy, but also for the associated plans. The next step was to think about the routing of the wiring. In the middle of the hull, this is certainly not a problem. The problem is the LED wiring under the poop deck. To get a first idea of how the wiring should run, I made a rough drawing. Holes were drilled in the bulkheads on both sides. For the double bulkhead 9, the two individual bulkheads were aligned using the keys supplied in the kit and then the holes were drilled accordingly. The wiring in the rear area had to be routed slightly differently so that the rear bulkheads had their outlets drilled higher up. I hope that the wires can then run accordingly later. The bulkheads were inserted and fixed with the holders. Here, too, I was amazed by the precise work of Chris. No reworking, let alone major filing, was necessary. Only the pegs were a bit difficult to push in, so I bevelled them a bit for better guidance. The bevel was only made on the front and rear side of the pegs. At the bottom left of the picture is a bevelled peg and on the right is a peg before the bevel. The bulkhead ears protrude quite a bit, especially in the rear area. I am therefore very afraid of breaking them off and have constructed a provisional railing for them. I used the leftover material from the MDF sheet in which the bulkheads frames were in. The fillers for the bow were slightly bevelled. I have not yet done this at the stern because I want to see how the planking at the stern will be done later. I did not modify the deck planking any further. The same applies to the hatches and the openings of the companionways. These areas of the deck will hardly be visible. To glue the steps of the ladder, I used a right angle and held it against a piece of balsa wood that was fixed with pins.
