  1. Thank you, Wayne, it is a great pleasure for me to know that you and Allan follow my work, I consider gratings where Hatch is written as well
  2. Hi, and thanks 🙂 Allan, I am looking at the drawings, and I was wondering if there were any gratings in the lower and upper decks, I only see them shown in the forecastle deck, it's correct?
  3.

    Hi, Allan, I am looking at the drawings of the Euryalus, and I was wondering if there were any gratings in the lower and upper decks, I only see them shown in the forecastle deck, it's correct?   tanks 🙂
    1. allanyed

      allanyed

      Hi

      Yes, the hatches  would have had gratings on them on the upper and lower decks.   The attached drawing by Wayne Kempson has the lower deck  showing the hatches.  These would definitely have had gratings.  Same would apply to the upper deck.    I left  off the gratings on the ladder way hatches when I built my model of her.  Wayne followed conventional drawing techniques of the time in that the gratings were not shown on the original drawings.  If you look at the attached original drawing of the FC and QD, you will see that the gratings are not shown.    Please  email me directly at allanyed6469@gmail.com as I check it far more often than MSW,  or call me anytime on Skype to chat.   My Skype address is allan.yedlinsky    Ciao

      NMM QD and F'castle.JPG

      lower deck & orlop cabins.PDF

    2. allanyed

      allanyed

       Hope both drawings came through OK.  Allan

  4. Hello, thank you all and thank you, Allan, I am very happy that you like my model, I know San Casciano well, a friend of mine lives there, and Florence, I worked on it, I hope you can return to Italy, of course you will be mine guest, and then we will drink not only grappa, but also good wine☺️

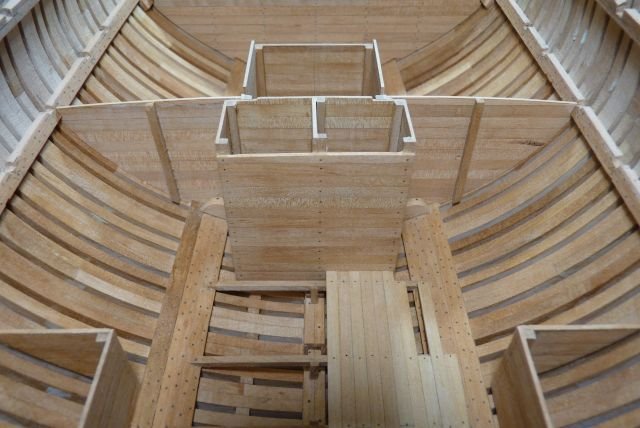

  5. The wood always moves, due to humidity, temperature, my hull is firmly at the top, med below, to reduce movement, it is better to insert the fillings in winter, or in any case when the wood has more humidity, then the temperature will rise, and the humidity will drop, small gaps will be created, and the hull will have little movement
×
×
