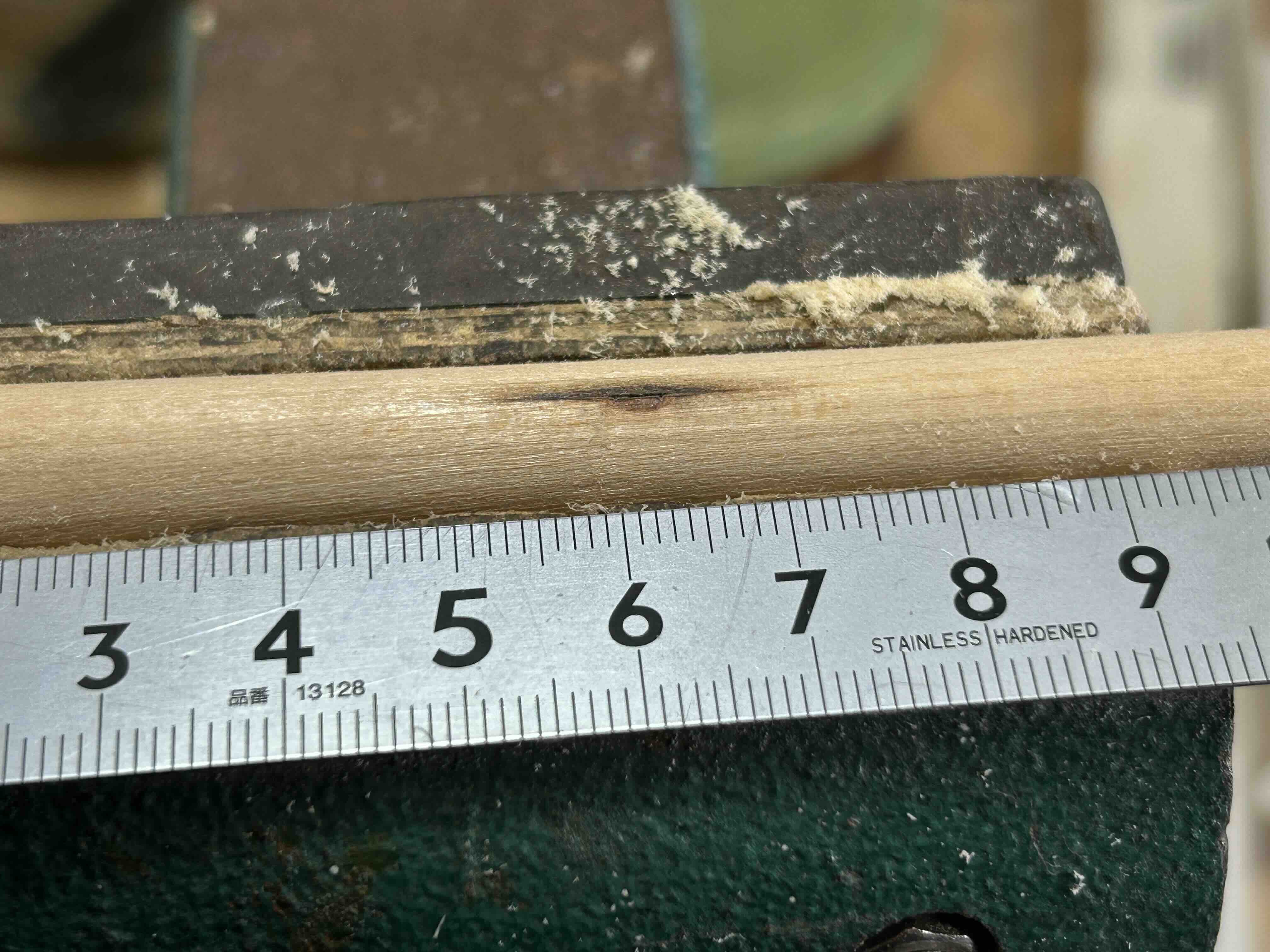

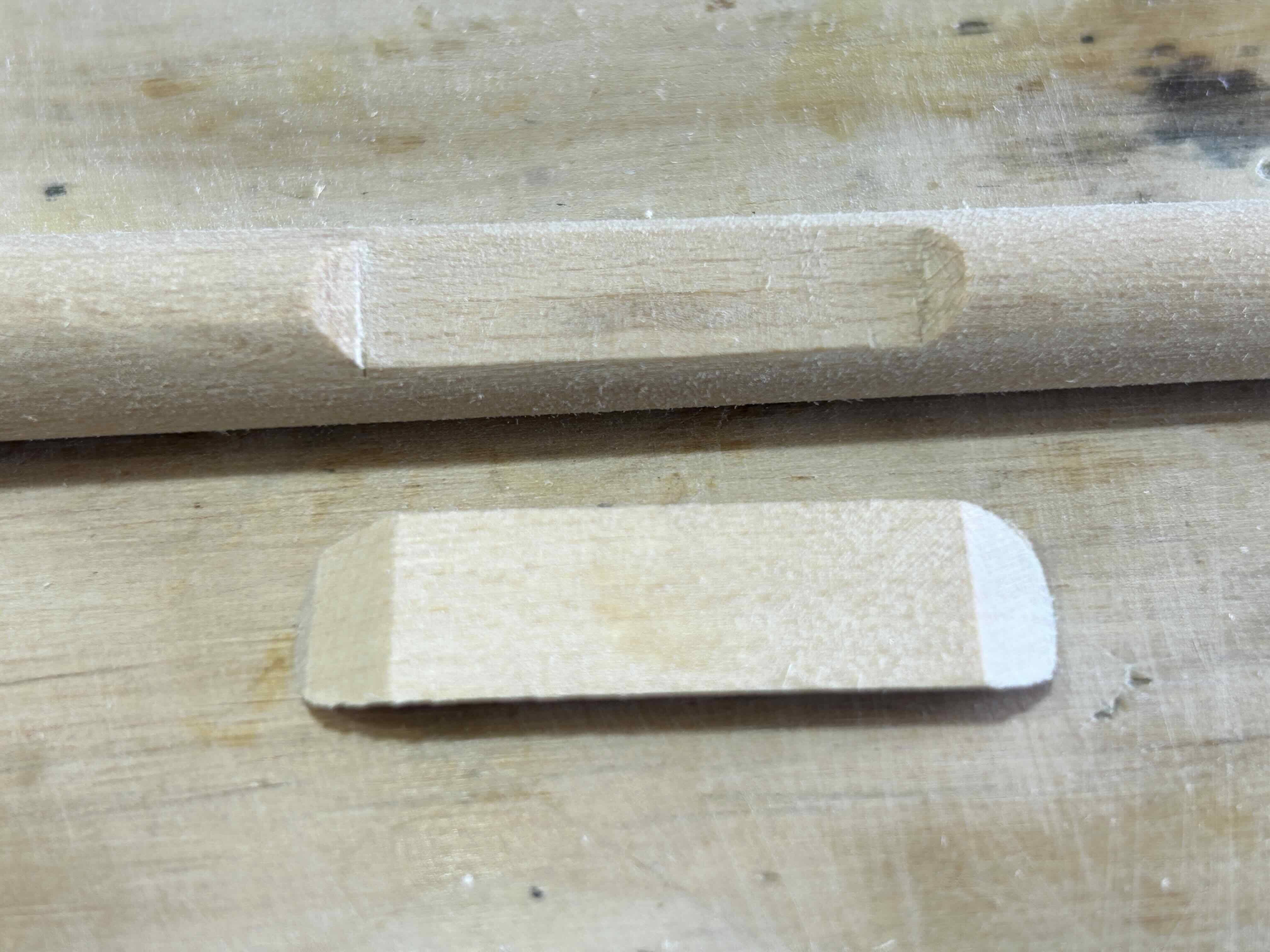

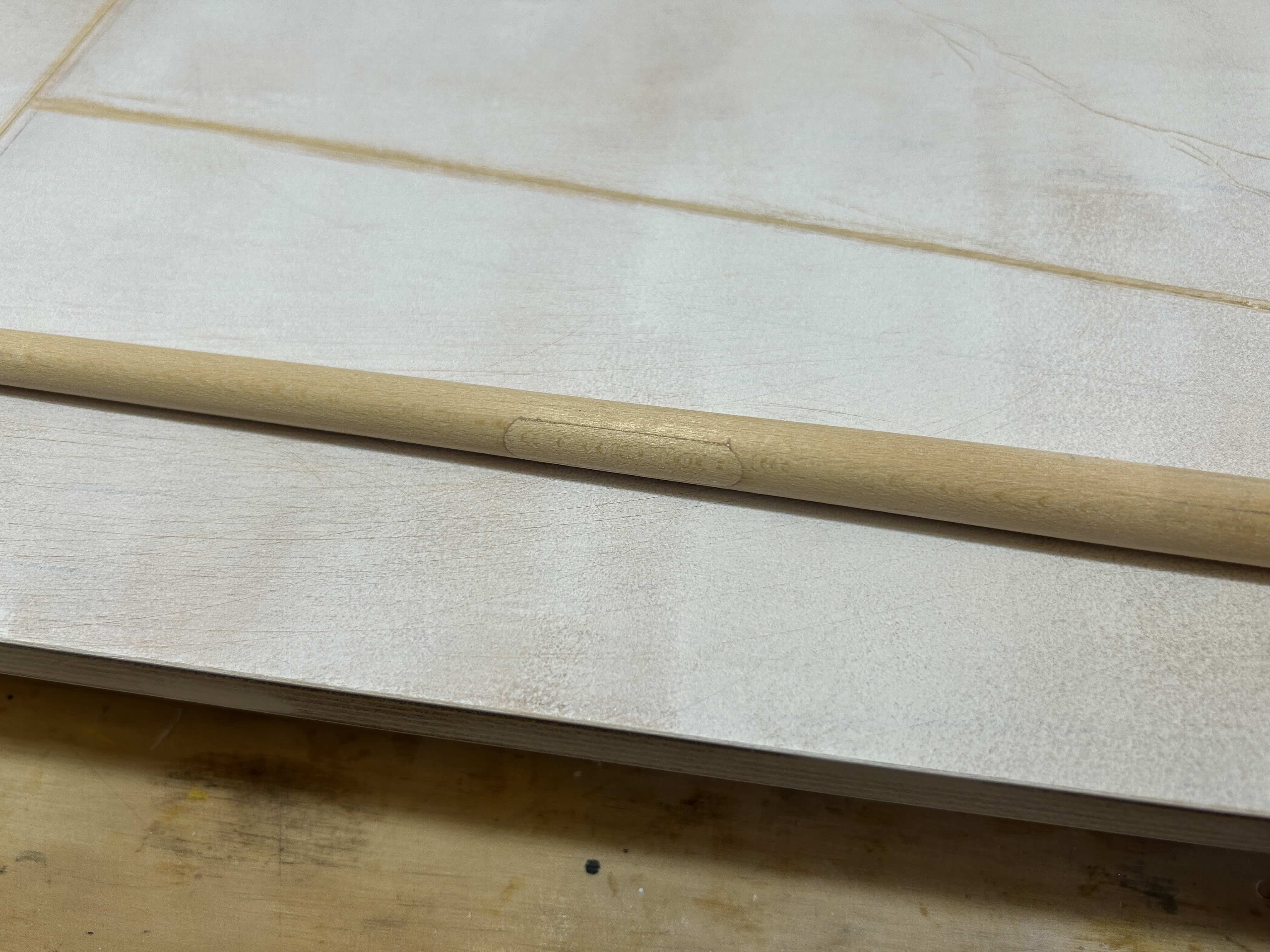

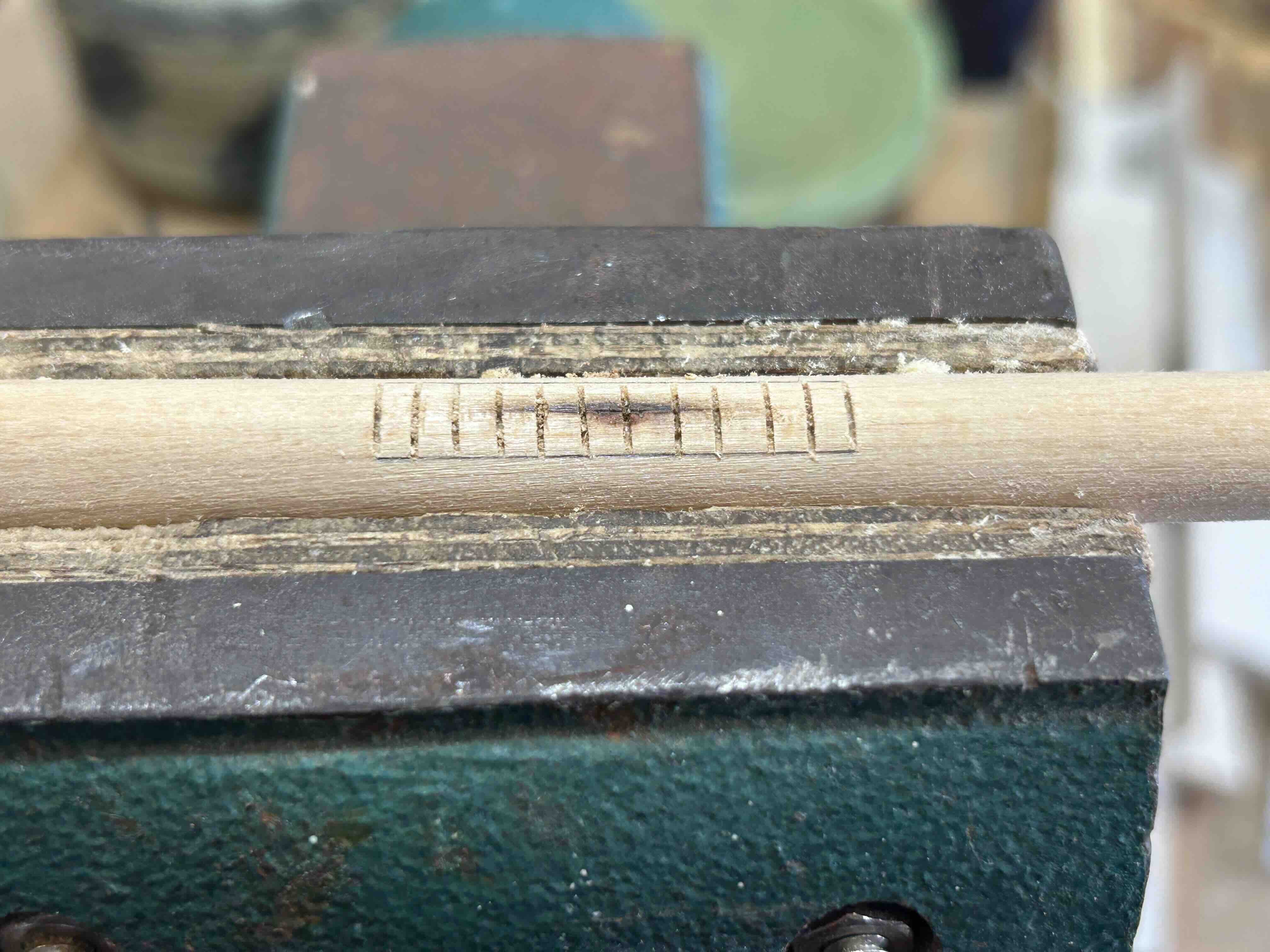

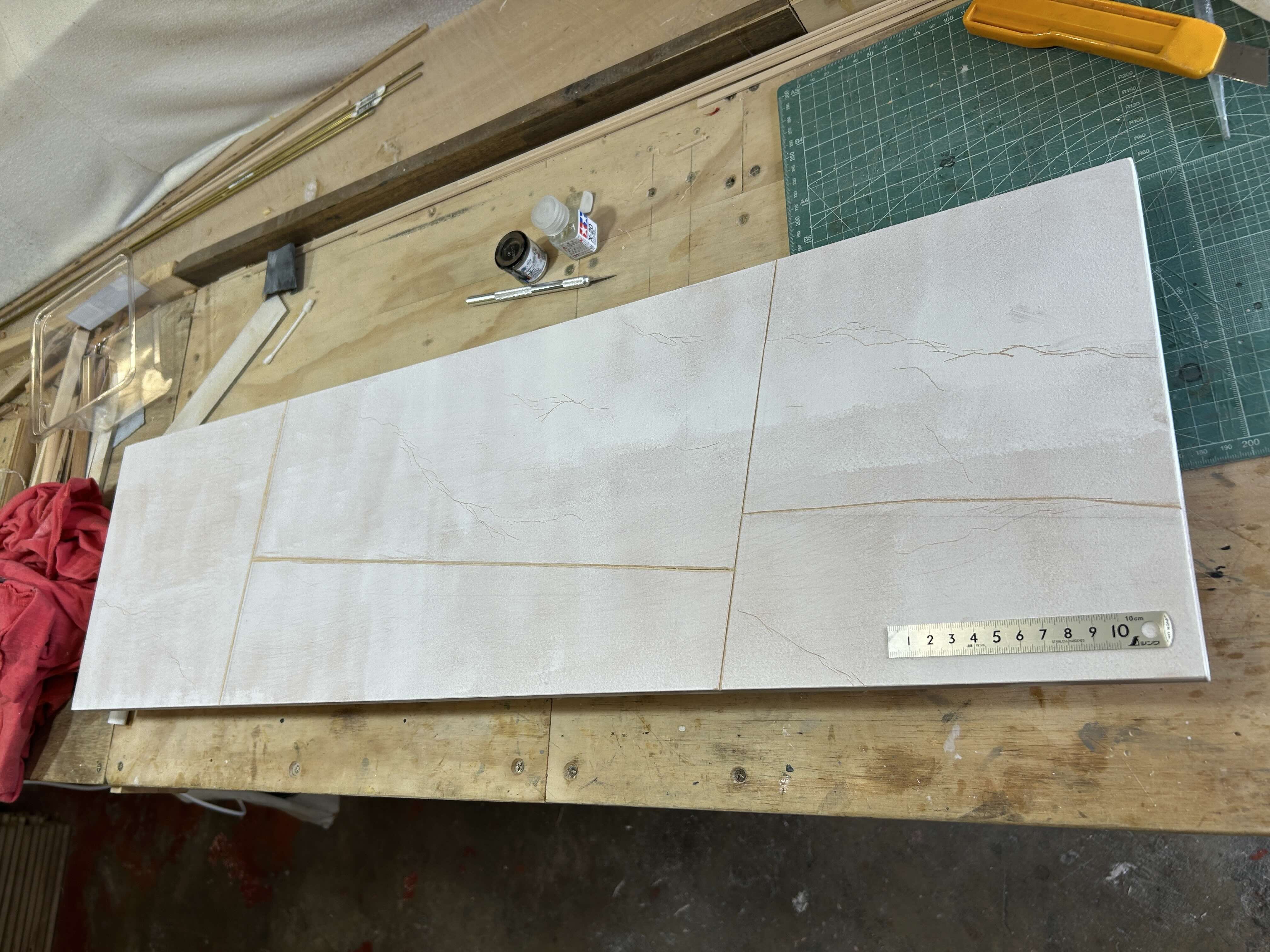

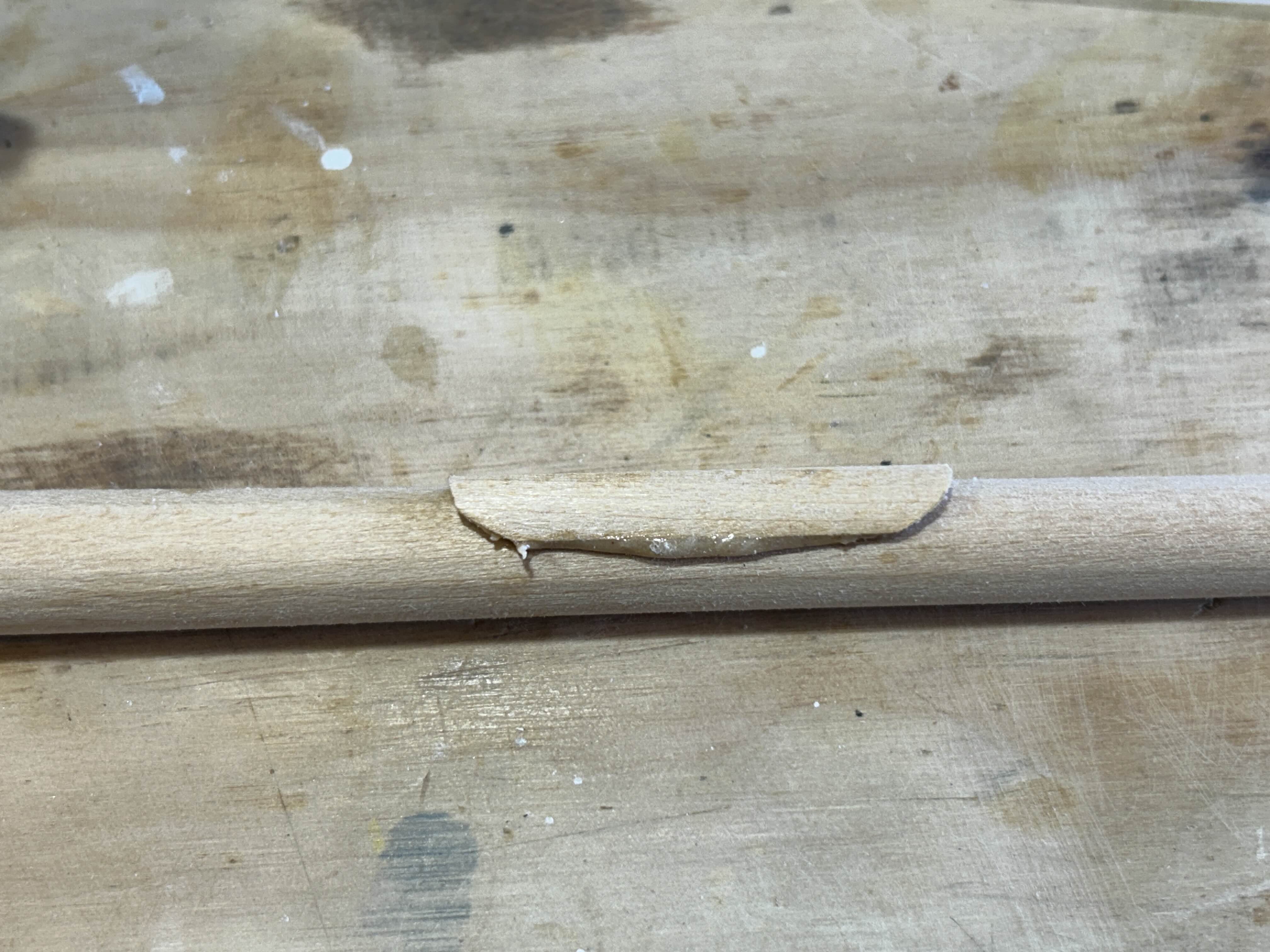

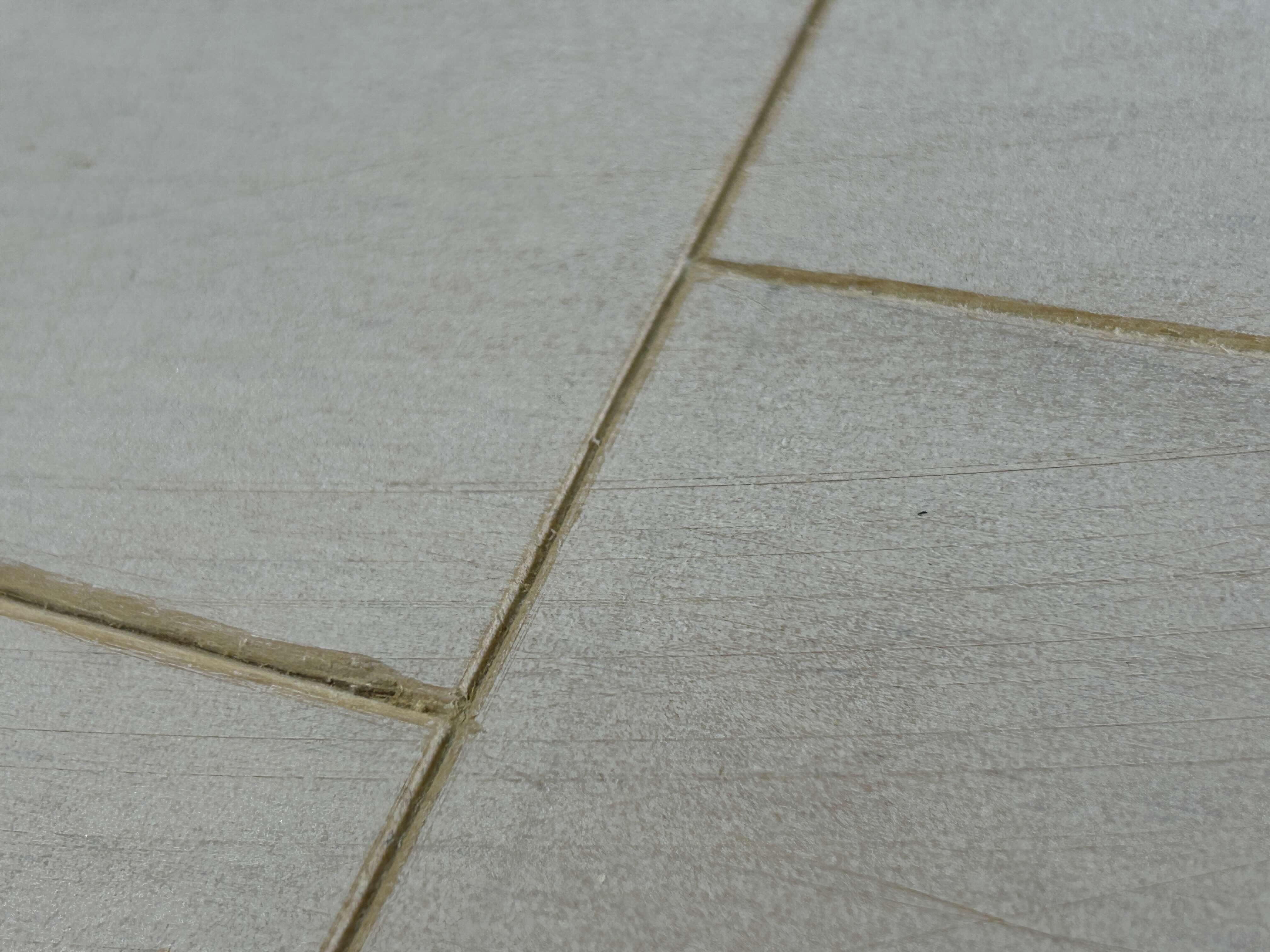

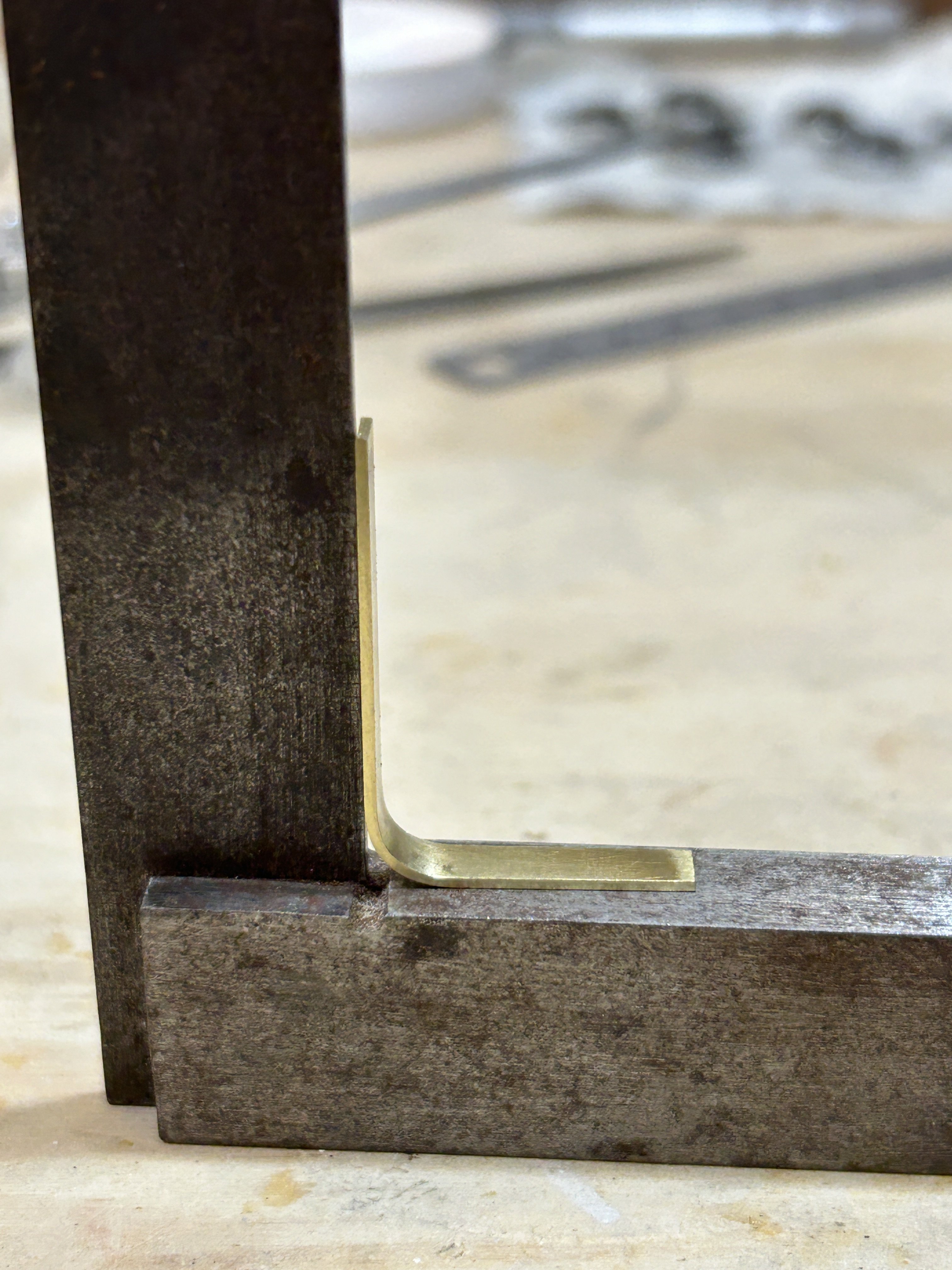

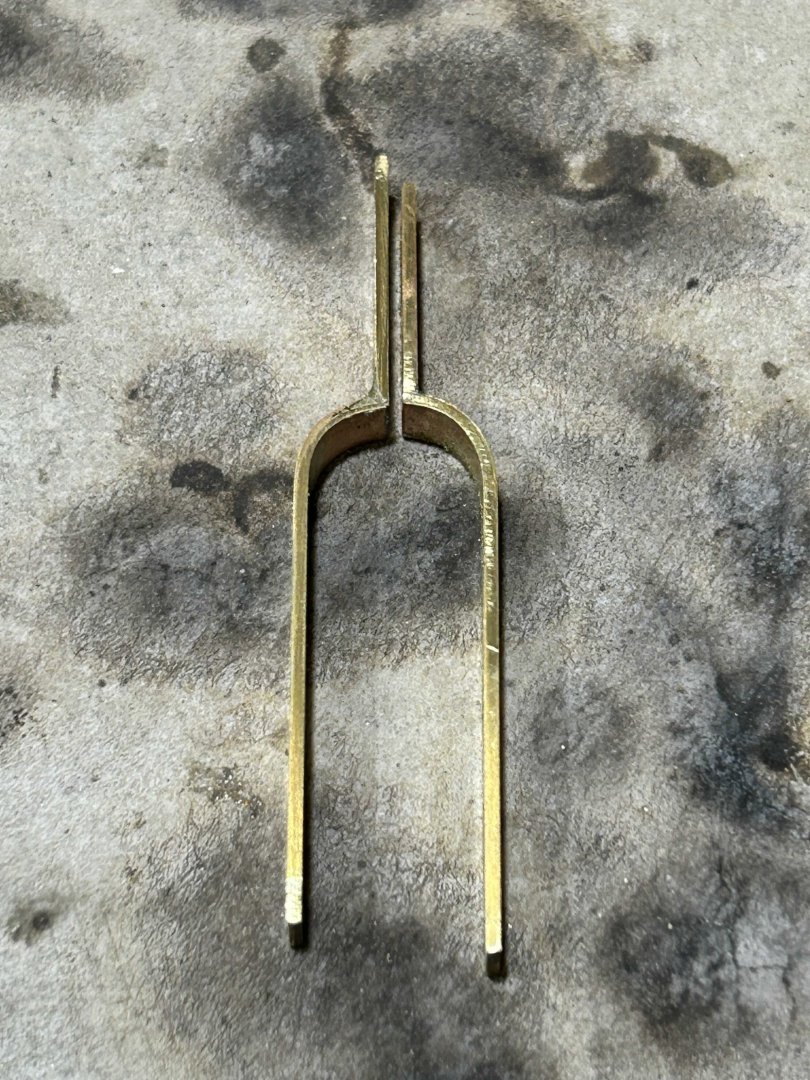

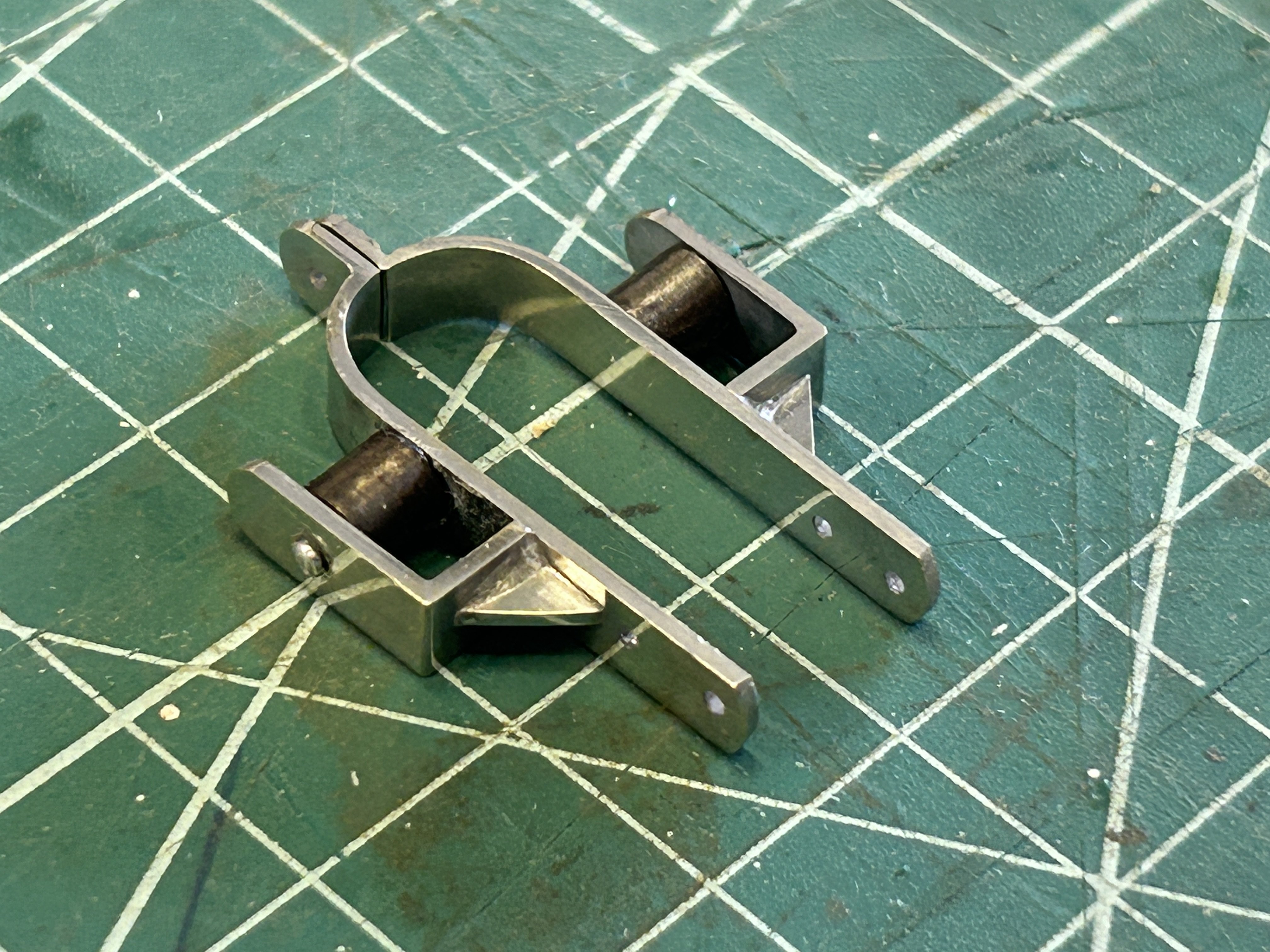

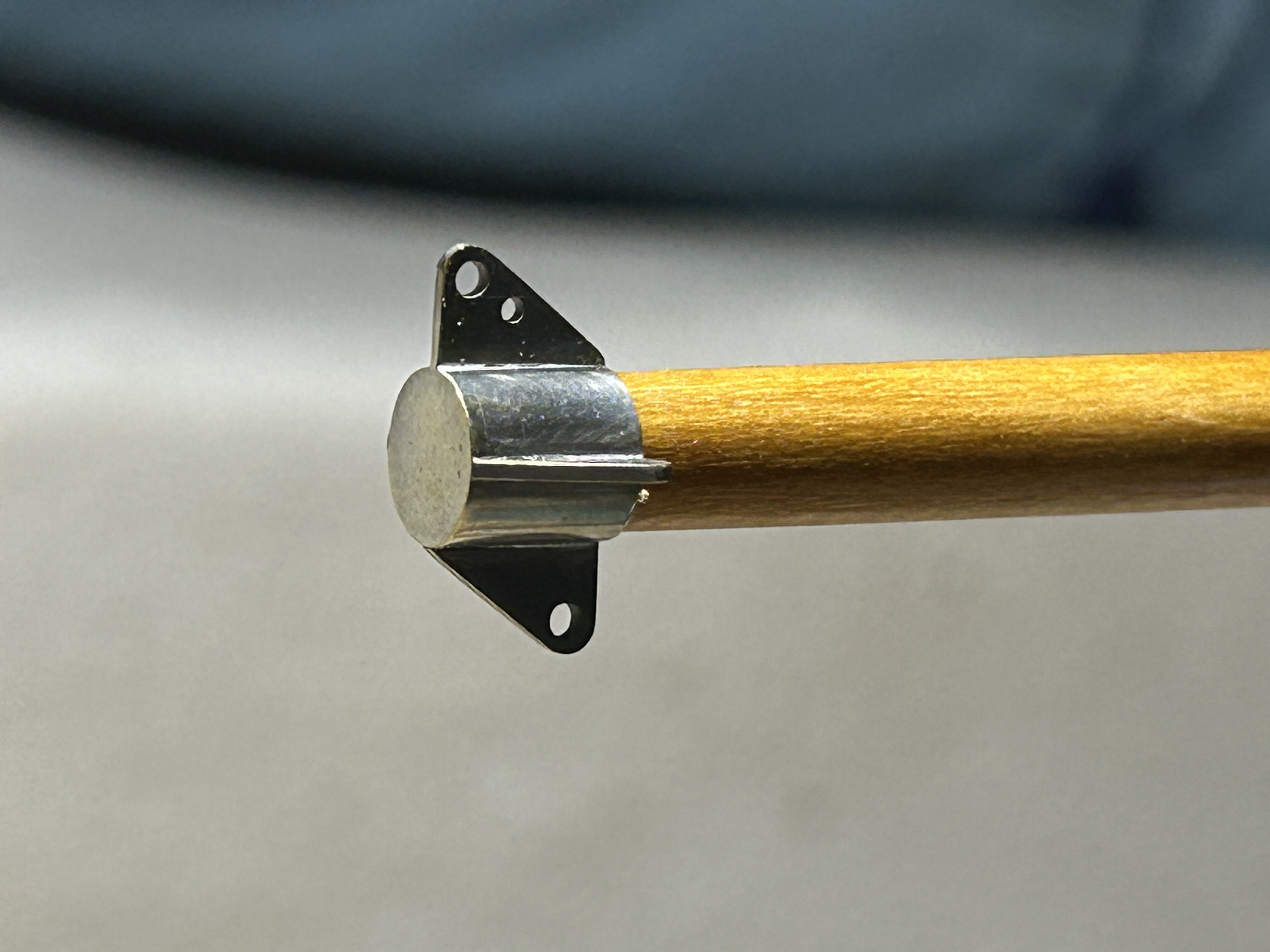

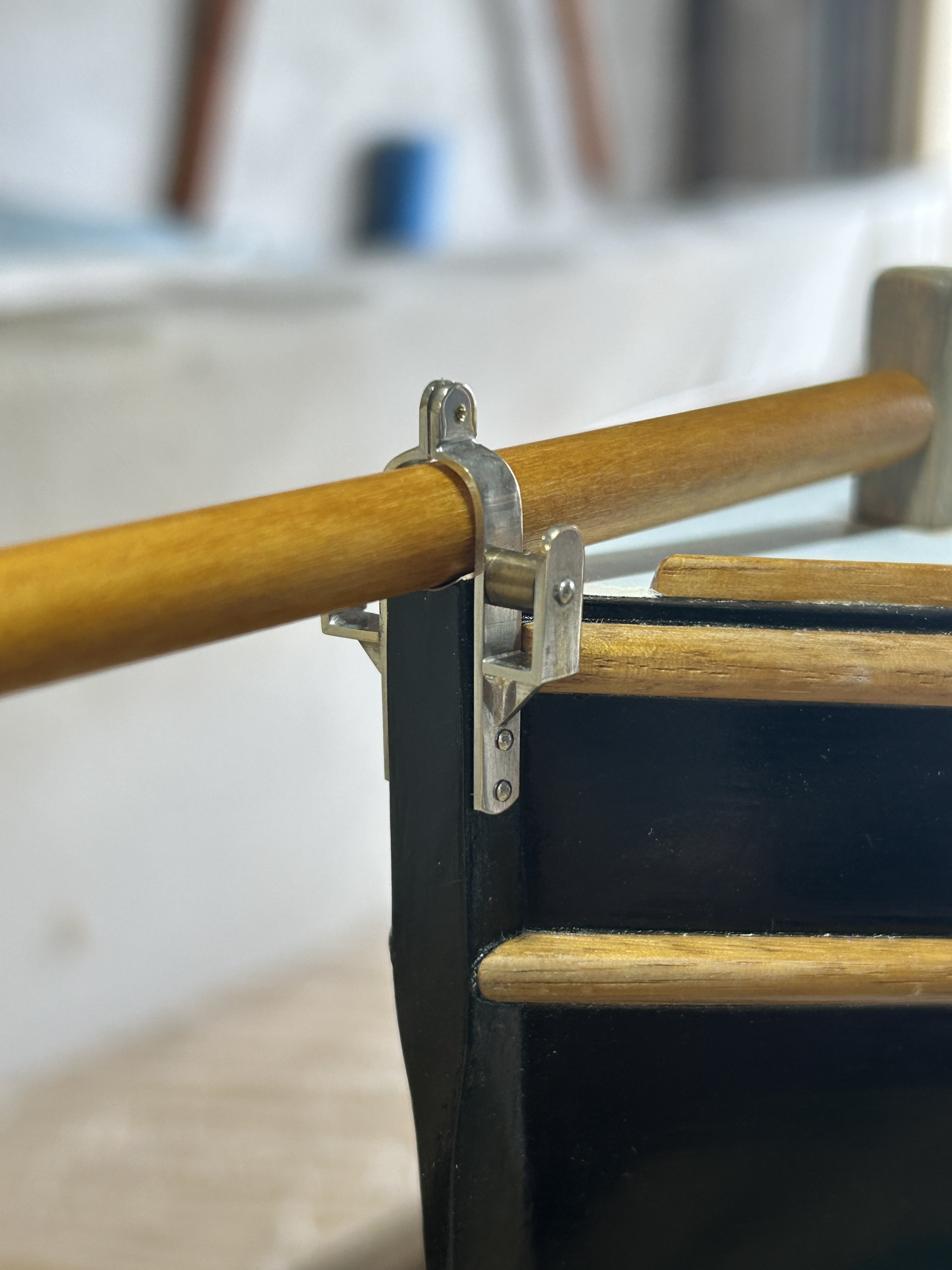

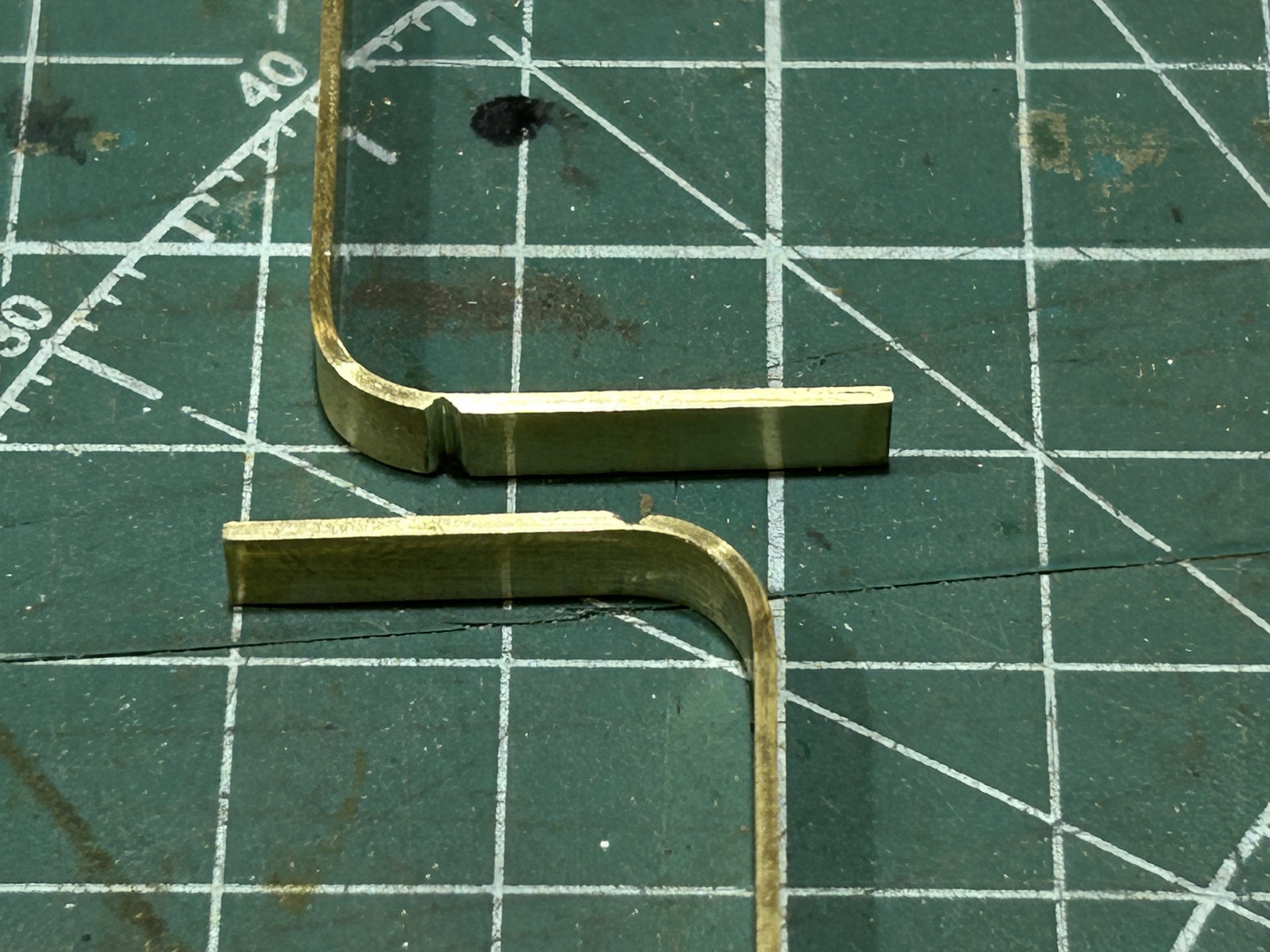

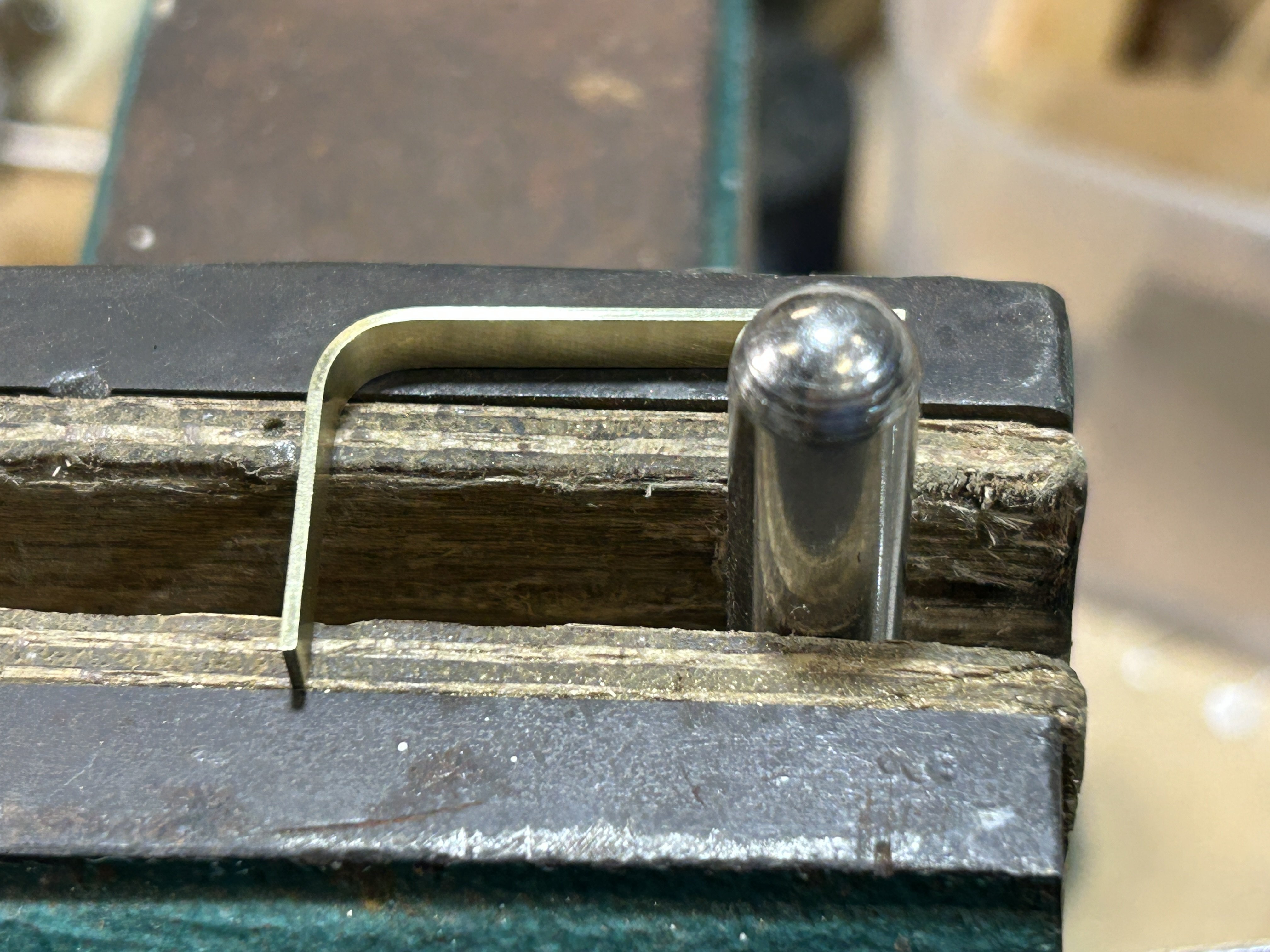

Thank you. More metalwork, this time the gammon & cranse irons, & installing the portholes. The 'glass' was the right thing to do, & the effect of the reflection heightens the depth relative to the hull line. Thanks for the frank advice, it was good. The cranse iron done & on the end of the bowsprit, it's some tube, capped & with flanges. It's unusual to have the end capped, but looks good. The gammon iron is a bit more complex. Here's the actual: I had to cut some strips off 0.8mm sheet, then do 90º bends around a suitable rod. Adjust to square: The back-cut v joints for the 90º folds: Soldered: Then the brackets that take the bow rollers, plated etc. The rollers are tufnol I think, so they are coloured brass. And installed. The bracket at the top still needs a 'bolt'. The bowsprit on the actual boat is (what we call) Oregon Pine, I think is actually called Douglass Fir, so mid orangey brown, the scale one is Limewood, with enough coats of shellac to get the colour. thanks all,

Hi Trevor I will follow with great interest, I like 1:12 & hope to build a scale of an open rowing skiff one day.

a great job & a very interesting ship, & I found your improvements also very interesting

Thanks everyone. More metalwork: this time the bowsprit chain plates. The whisker stay chain plates are pretty straightforward, note the portholes openings have been cut. 0.8mm brass sheet, which is probably a little heavy. The bobstay chainplate is more complex, & it became clear that with my simple kit multiple solder joints in this case would be very difficult, so I made the main parts from one sheet (0.5mm), with back-mitres so it could be folded & then soldered to fill & stabilise the folds. Then the chainplate cleat was soldered to the edge, tinned etc (cleat 0.8mm thick). A paper template was used to confirm the fold angles, as brass is only happy to be folded once, & solder never.... The fixings are some 1mm diameter brass rivets approximately 7mm long, so a 1mm hole, add some CA glue & press the rivet into it. The back-mitring was done with a jeweller's saw & also a small file with a square cross section. The mitre is also slightly wider towards the edges, so that the main piece could be curved to suit the stem profile. The side flange fixings are some unbelievably tiny brass nails, too small & I could hardly pick them up.

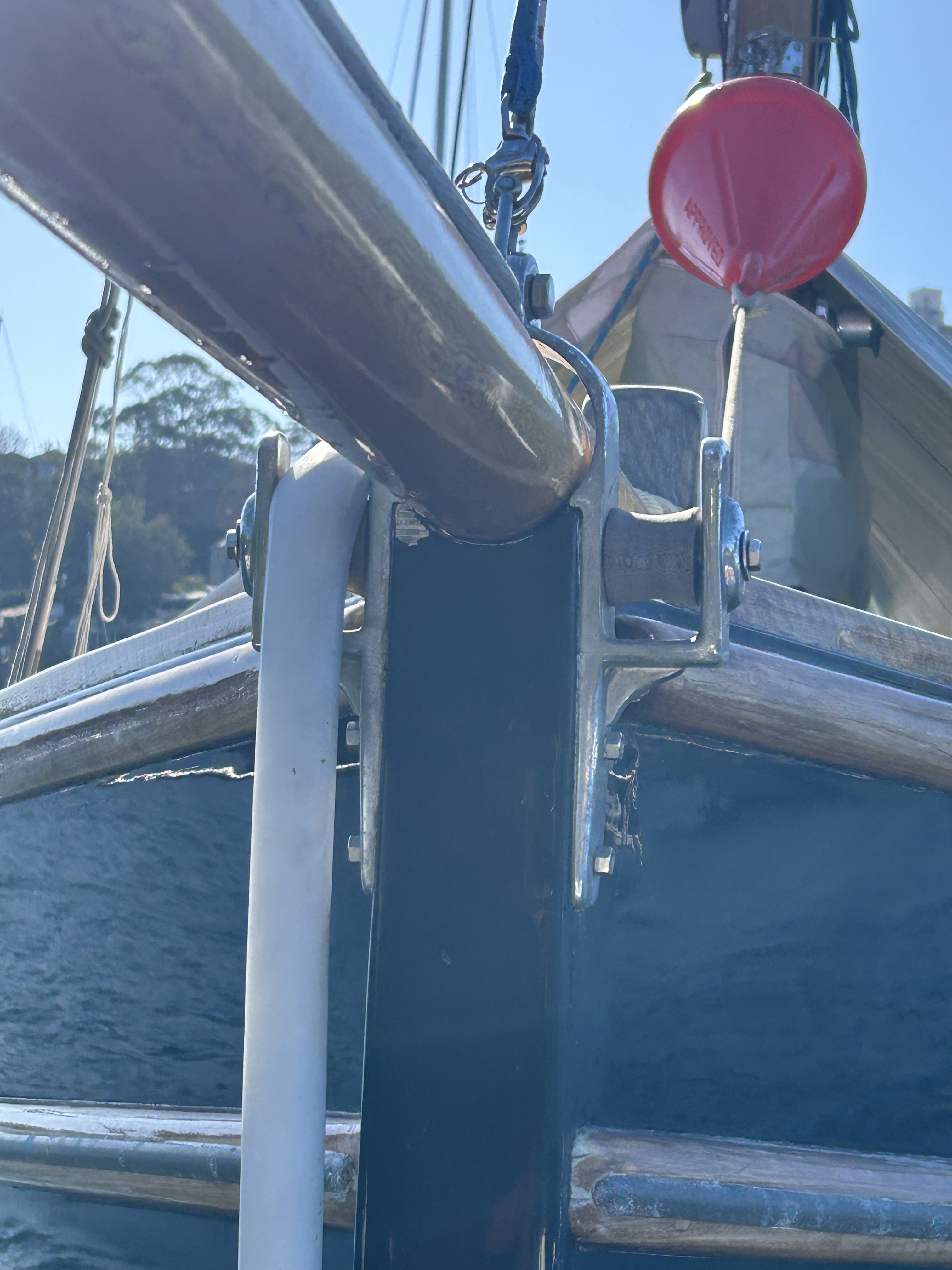

Thank you for the advice re the glazing of the portholes, & I have taken that advice. Also, I did pick up an error in the portholes as previously made, which has now been corrected. I went to the boat to confirm the setout of the portholes & saw that the glass is actually set back from plane of the hull, I assumed it was in the same plane - soooo, back to the drawing board. I was able to salvage the rings, they were the part that took some time. So, now remade & awaiting some 1mm acrylic sheet. I will work out some way to increase the gluing surface area for the acrylic, probably some tabs that glue to the outside back part of the tube. And all done. Some of them in the photo below appear to have flaws in the soldering joint - that's just a trick of the reflections, the joints all came out well.

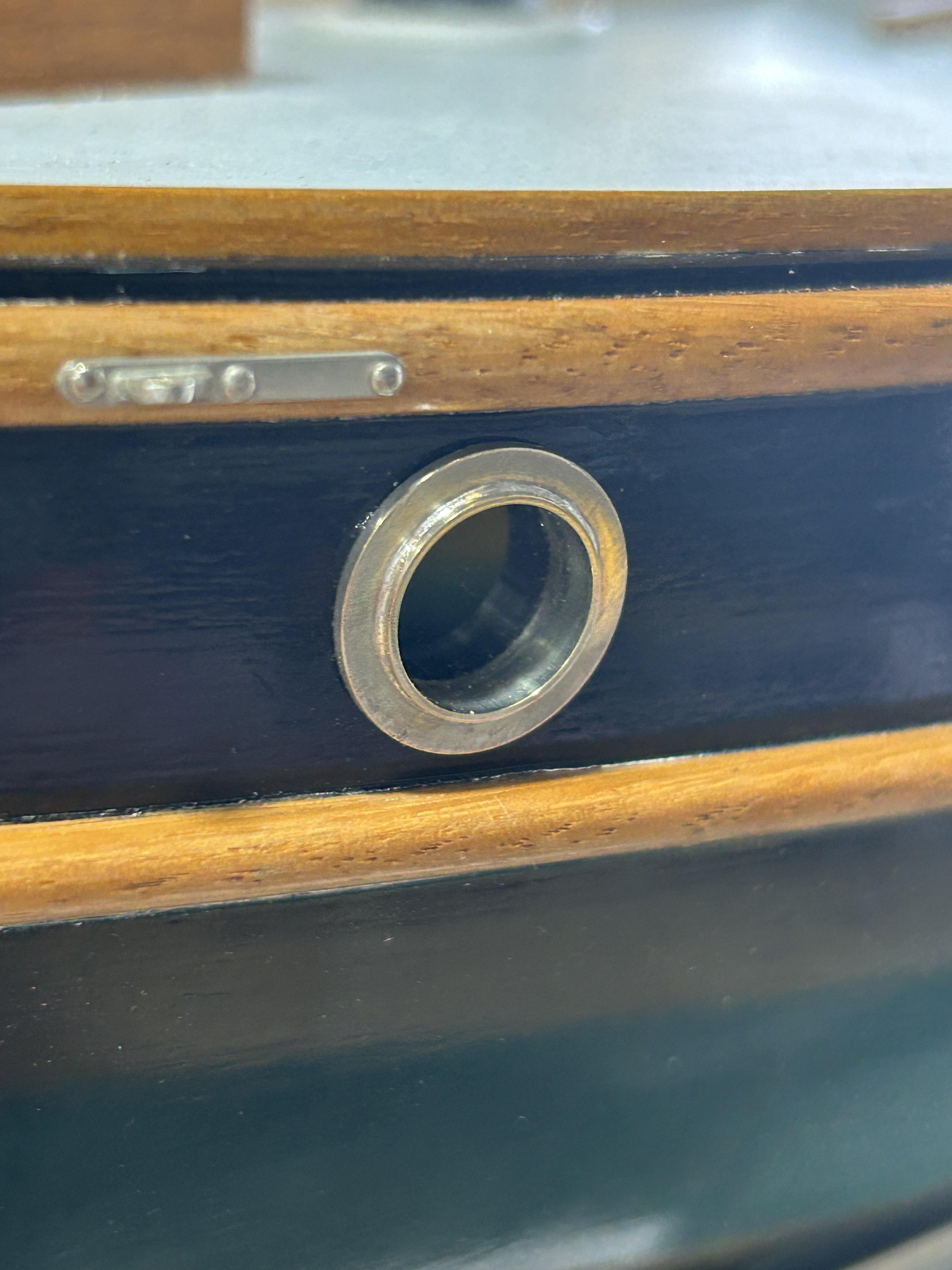

On with the various details: Chain plates plated & installed with glue, nb: with a 1mm diameter brass rod below, into the deck structure. The traveller is from 2mm brass rod, & the details from brass rod centre drilled to slide on. I made a cardboard template to bend the shape over, although it didn't work fully as the shallow curve had to be done by hand as the metal didn't take the shape on the template. The legs extended down into timber take give a good glue fix. Tinned & polished. The purchased scale winches were plated, & with the spacers for the smaller ones - kindly made by Bedford - fitted, they look good. Also, small bevels to the lower outer edges, to look right they must have a small gap to the timber they sit on. The mast seal was made from 4x 2mm acrylic layers, laser cut into sized doughnuts & sanded to give the rounded edges, painted etc. The actual fitting is a roofing rubber seal with a rubber piece that can be trimmed to suit the size of the pipe (or mast). And the portholes...I had some brass washers & started by enlarging the centre holes to suit. 2 small & 4 large. The washer is on the right, on the left are the washers with the ID adjusted, by hand with the rat tail file & finished with sandpaper wrapped on some dowel. I then had to reduce the OD, & for this I made another version of the home-made lathe. This time using a piece of timber dowel with a centre cut & a timber wedge to lock the washers in place, Crude, but it worked well. I held sandpaper against the spinning edges until the diameter was right. The washers got extremely hot, so actually it was some rags below the sandpaper, & you can see the dowel is slightly scorched. Then soldered the thin wall brass tube pieces to transform them to the portholes. The lip created by the tubing is a small but visually significant detail. In this case I won't show the fixings (6x c/sunk bolt heads on the flanges), as I believe they would be visually much more noticeable than on the actual boat, so in this case they will be left off. There are some flaws, & of course I didn't photograph those ones....but not significant enough (I think) to be an issue. The hull the portholes sit on is jet black, & won't put 'glass' into the porthole apertures. But after considering it, I will paint the part of the hull visible through the portholes - but a slightly lighter shade than full black. In reality, glass will reflect surrounding light more than the hull paint & so will appear paler. I'll do a v dark brown/grey, just add a small amount of tints to some black base. thanks,
