  1.    clearway reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  2.    FriedClams reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  3.    clearway reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  4.    Jack12477 reacted to a post in a topic: 1204m Shmel Riverine gunboat by RGL - Tiger Model - 1/35 - PLASTIC
  5.    clearway reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  6. clearway
    you are welcome- it is good seeing a different take on the diorama as most i have seen show the ships ice bound or in open water- looking great so far. Keith
  7.    clearway reacted to a post in a topic: HMS Terror by Jond - OcCre - 1:75
  8.    Nirvana reacted to a post in a topic: 1204m Shmel Riverine gunboat by RGL - Tiger Model - 1/35 - PLASTIC
  9.    lraymo reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  10. clearway
    She certainly looks the part- i have heard the two ships were merchant rigged regards running rigging and Matthew mentions the large iron truss still attached to the foreyard so i will be fitting an iron swivel truss to my Erebus (i rigged my Terror with chain trusses navy style) and would alter the way the yard halliards / tyes are rigged. as regards the flying jib it would not be furled on the flying jib boom which is why you don't see it on illustrations and the boom would be run out if it was needed with the sail then run up. Keith
  11.    clearway reacted to a post in a topic: HMS Terror by Jond - OcCre - 1:75
  12.    clearway reacted to a post in a topic: HMS Erebus by Ship_Right - OcCre - Scale 1:75
  13.    clearway reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  14.    Glen McGuire reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  15.    Canute reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  16.    Keith Black reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  17. clearway
    Gotta love when a plan comes together -nice work there Keith Keith
  18.    clearway reacted to a post in a topic: Lula by Keith Black - 1:120 Scale - 1870s Sternwheeler Supply Boat for Floating Pile Driver
  19.    Canute reacted to a post in a topic: 1204m Shmel Riverine gunboat by RGL - Tiger Model - 1/35 - PLASTIC
  20.    Old Collingwood reacted to a post in a topic: 1204m Shmel Riverine gunboat by RGL - Tiger Model - 1/35 - PLASTIC
  21.    Keith Black reacted to a post in a topic: HMS Erebus by clearway - OcCre - 1/75 scale - bashed
  22. clearway
    haven't looked in for a while...... wow as always! keith
  23.    clearway reacted to a post in a topic: 1204m Shmel Riverine gunboat by RGL - Tiger Model - 1/35 - PLASTIC
  24.    clearway reacted to a post in a topic: 1204m Shmel Riverine gunboat by RGL - Tiger Model - 1/35 - PLASTIC
  25. clearway

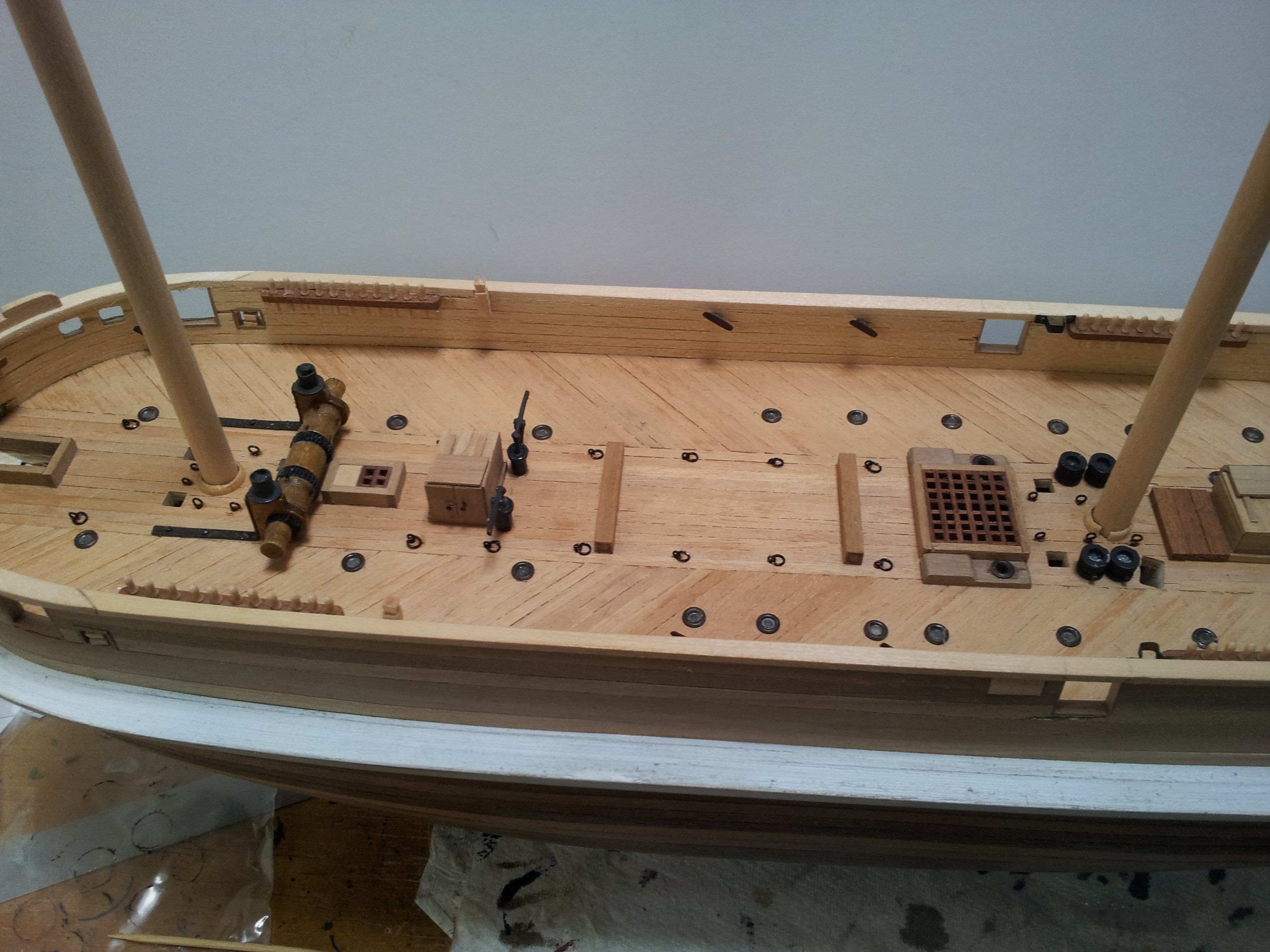

    Thanks for looking in- have started putting the eyes in the decks around the masts and also between the helm timbers for the blocks to guide the steering ropes from the drum on the helm to the blocks on the bulwarks which take them to the tiller (eyebolts fitted for those too), also fitted the timbers midships for the boats to rest on (don't know why Occre have them on gallows)? Also fitted the Kevels for the main and foremast yard halliards. still need to fit the eyebolts with the rings for securing the anchor chain. Take care all Keith
  26. clearway
    7mm is close enough - in full size terms you are only talking around an inch - i made my bowsprit around 7.5 mm diameter tapering down to around 6mm towards the cap Keith
  27. clearway
    once finished this diorama is going to look awesome- regards masts, rigging etc i used James Lees 'Masting and Rigging of English Ships of War' Keith.
  28. clearway
    the doubling at the mast head (from the top to the mast cap) should be around 4-5 times the diameter of the mast head- yes you can see on Matthews plans that the doubling is about twice what occre give- on my Terror from the top to the masthead is around 35mm on the fore and main masts and a little less on the mizzen. here are the lengths in feet of the bowsprit and lower masts (outboard for bowsprit and above deck level for masts) from the 1838 admiralty order for a 10th rate frigate which the mast diameters tie in with (occre actually got the topmasts bang on)! bowsprit 29' - 22 1/2" dia. foremast 48'6" - 22 1/2"dia. mainmast 53'6" - 24" dia. mizzen mast 43' 6" - 18"dia. taken from Lees 'Masting and Rigging the English Man o War' hope this helps Keith
  29. clearway
    good feeling when the whisky plank goes on! regards bowsprit 11mm shouldn't really make much difference to be honest- another thing to watch out for is the mast doubling which needs to be more than occre give. Keith
  30. clearway
    well done Kev- another one down the ways
  31. SaltyScot started following clearway
  32. clearway
    Thanks for the likes and comments - always appreciated. After putting it off for a while have made the brackets for the davit posts and painted/ fitted them (sorry didn't get a pic before in the bare brass), using some scrap brass etch formed them using pliers and drilled a 0.68 mm hole in the 'lugs' then tacked them to the capping rail with CA gel then drilled and fitted Peco blackened brass track model railroad pins cut to length also with a drop of CA. I am making the posts that hold the skids 4mm square and the others 3mm. Also did a little more work on the bowsprit with the bees filed to blend with the bowsprit, blocks of wood fitted underneath for the fore topmast shroud sheaves and the jib boom saddle fitted. take care all Keith
  33. clearway
    The jib boom on all sailing vessels is made so it can be shipped and brought further inboard especially in port to prevent it getting snarled up - the flying jib boom is about two thirds the length of the jib boom and likewise when stowed it wont protrude much beyond the jib boom. Keith S and myself couldn't agree regards the gaffs on the fore and main, while they are there on the earlier expedition there isn't any sign of them on the newspaper illustration showing them leaving on the Franklin expedition- my main argument being they were to help in calm weather where as the steam engine that was fitted would make them redundant. all the standing rigging would be able to be removed and stored so would really depend on what moment in time you want to "catch" Also unlike Michaels drawings it looks like no mizzen topgallant masts were fitted or royal masts above the topgallants (they aren't there on the model of her as built at the Topsham museum) Keith
  34. clearway
    nowt wrang wid that keith looks great😁 Keith
  35. clearway
    from drawings and paintings i have seen it looks like they struck everything bar the lower masts , bowsprit and shrouds/ forestays for them, the jib boom would have been brought in as well with not much protruding beyond the cap. it is nice to see terror can still mess with peoples heads😁. Keith
  36. Consitution started following clearway
  37. clearway
    Cheers Keith- snook under my radar- i was thinking should i review the kit but James saved me a job😁 Keith
