Dave Wood Posted August 19 Share #1 Posted August 19 I have started today on a 3d model for 3d printing of Sea Cloud - this 1931 ship is pictured by me last year in Malaga and Cadiz. (from P&O Cruises Azura). The design will be done in Autodesk Fusion 360 and then printed multi colour on a 3d printer. This will be my first sailed ship and previous cruise ship models I have produced are all more recent ships. First prototype picture of a test ship with sail attached too. Background info on the ship here - with pictures of the ship in full sail and details of its fairly long history. https://www.seacloud.com/en/sea-cloud/ My most recent conventional cruise ship model is here - this is a 1:500 version of Cunard Queen Victoria. This ship is about 300m long and the model about 60cm long - vs Sea Cloud being 109m long - so the 1:250 Sea Cloud model will be about 2/3 of the length of this model or about 42cm. Might decide to increase the scale a bit if the detail proves challenging to model/print at 1:250. ccoyle, KeithAug, yvesvidal and 1 other 4 Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...
Dave Wood Posted August 20 Author Share #2 Posted August 20 (edited) Design starting to come along nicely Added some more detail Edited August 20 by Dave Wood Added some more detail GrandpaPhil, ccoyle, yvesvidal and 1 other 4 Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...

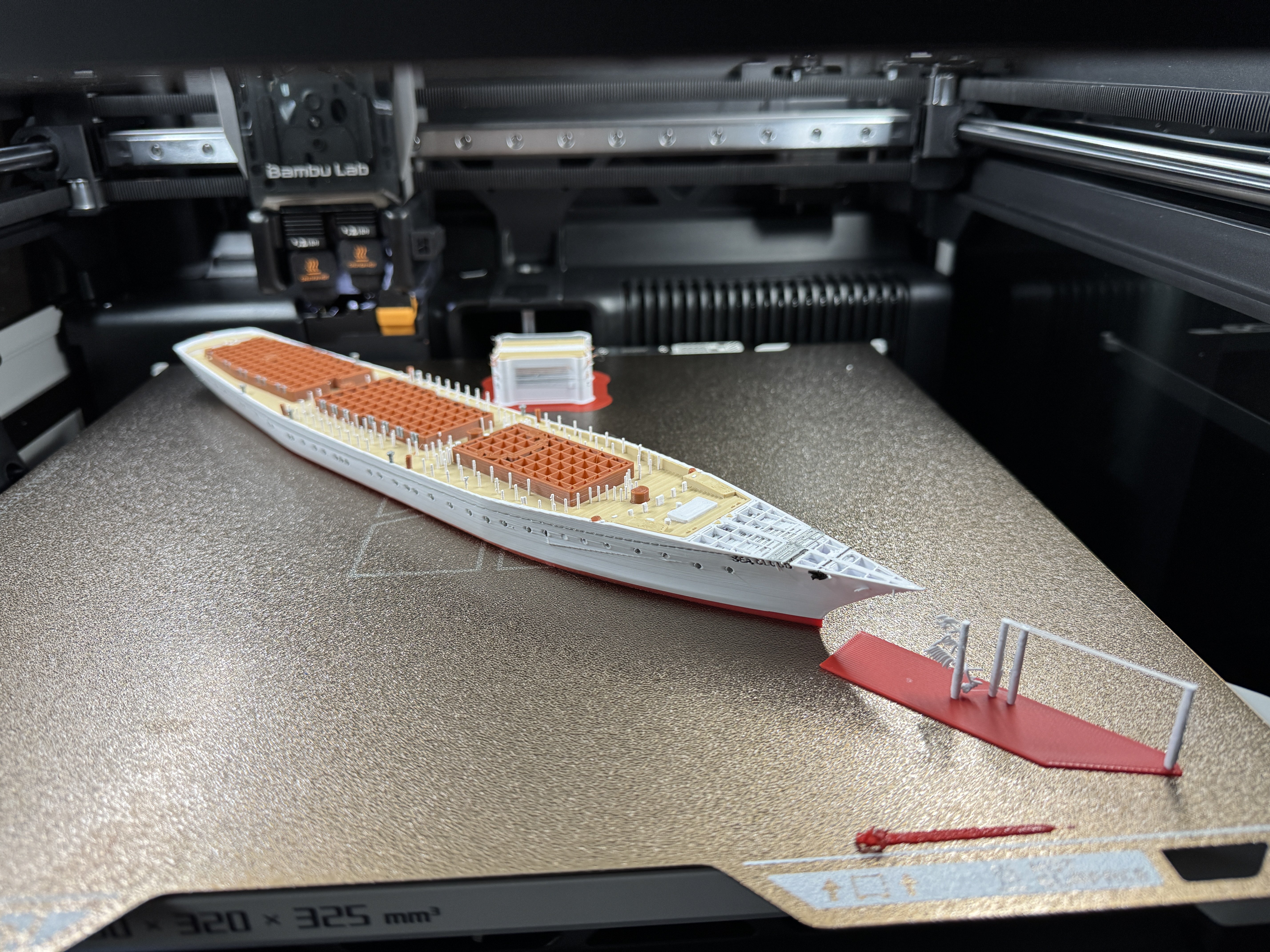

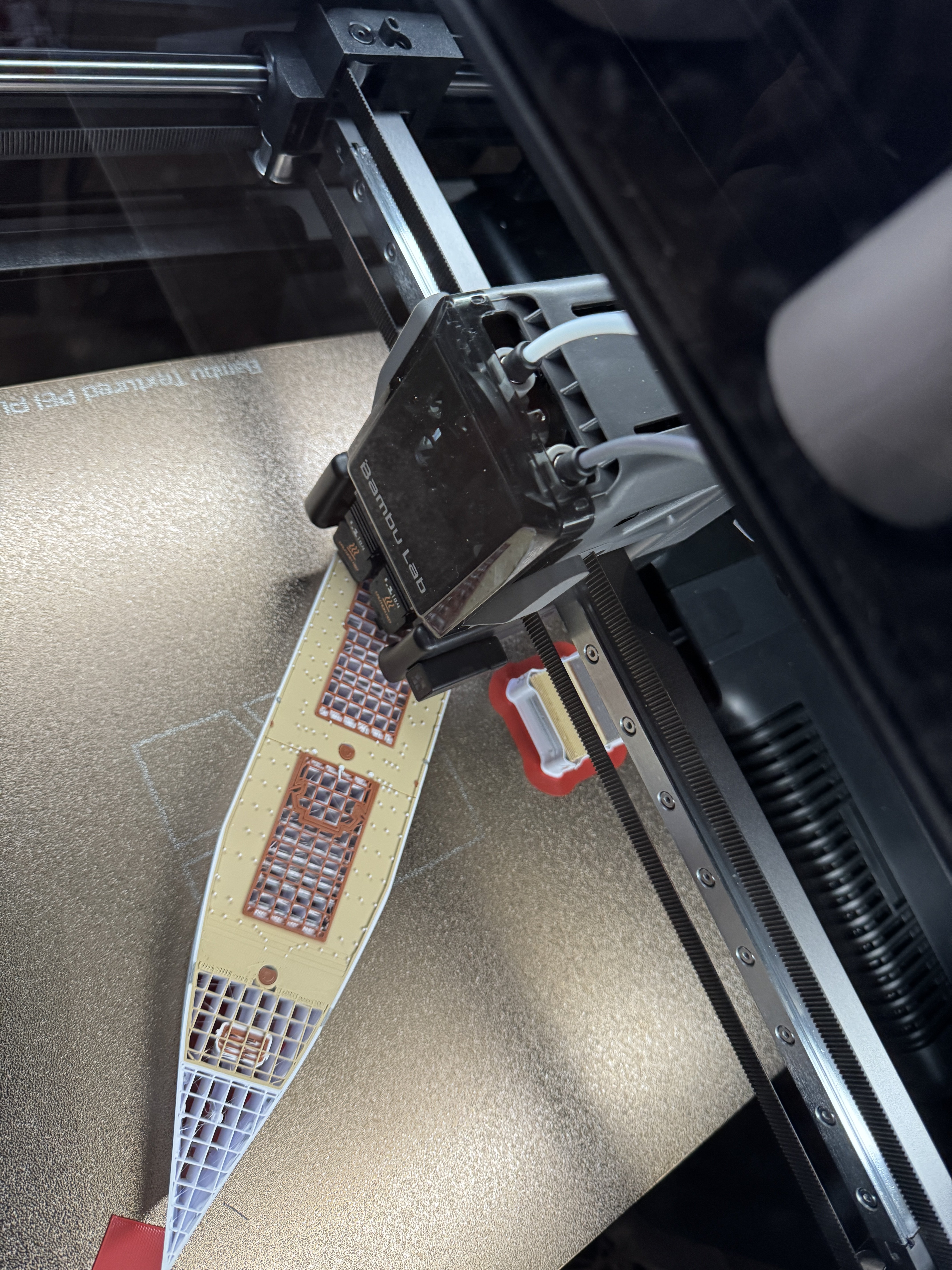

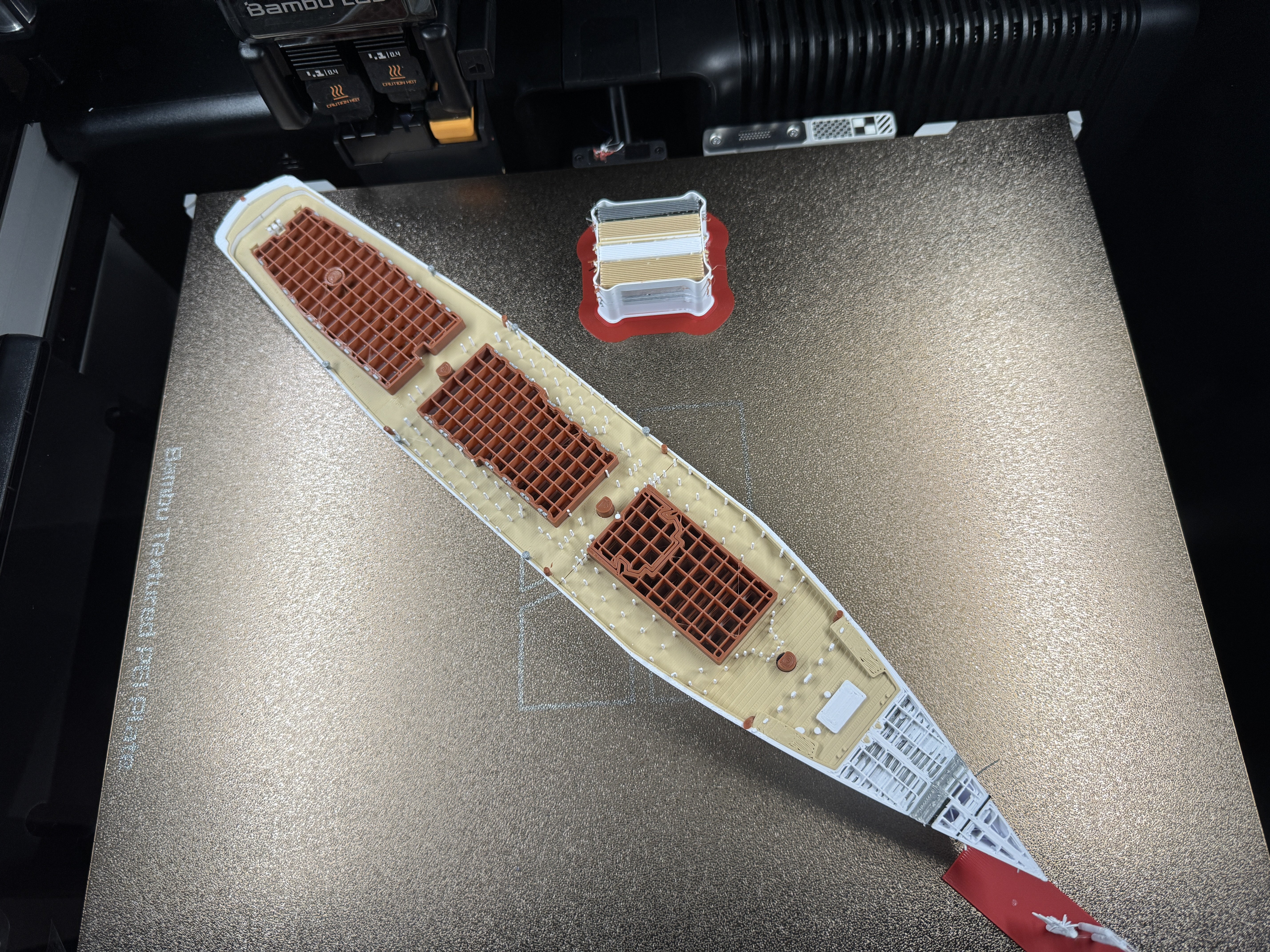

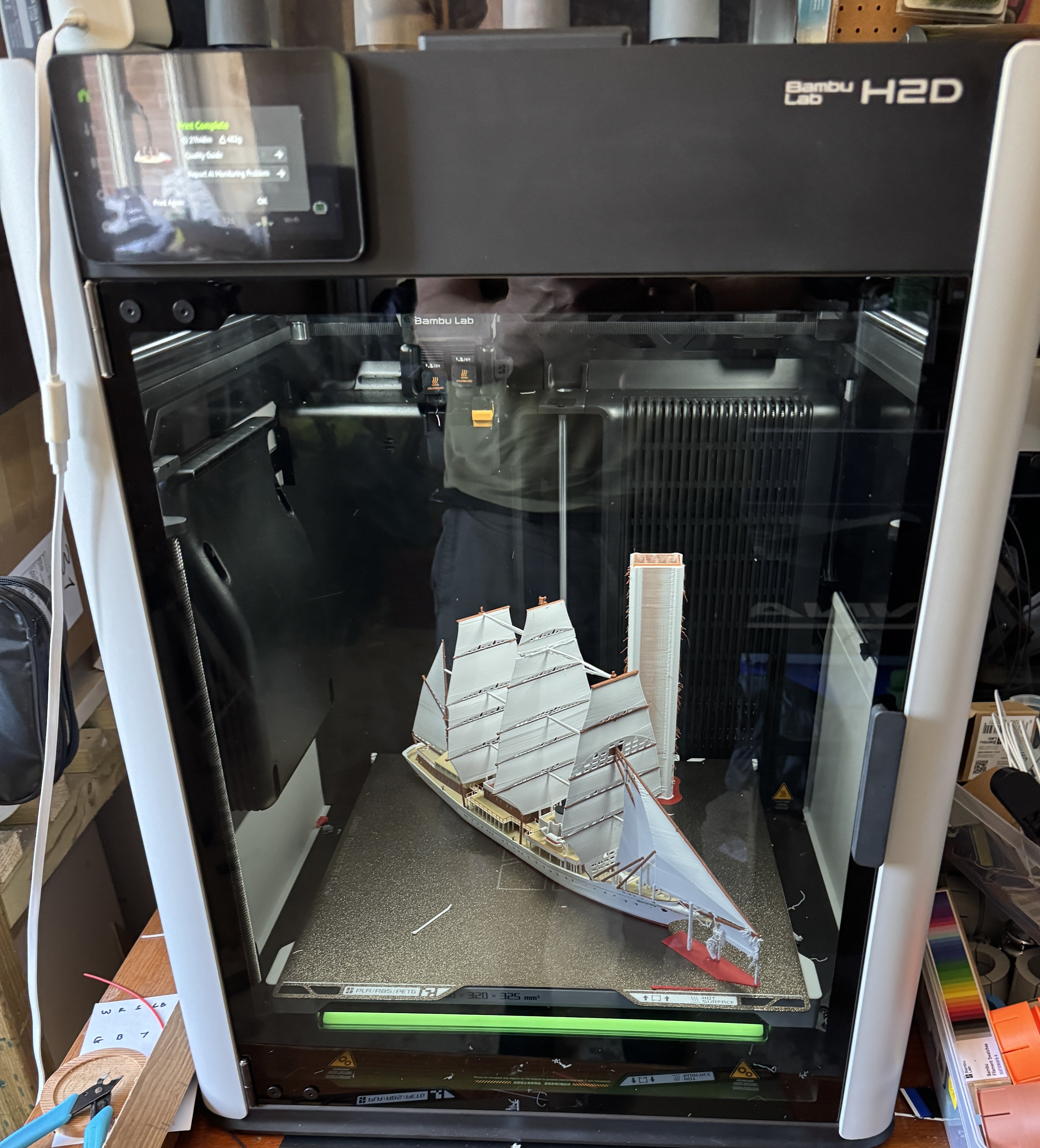

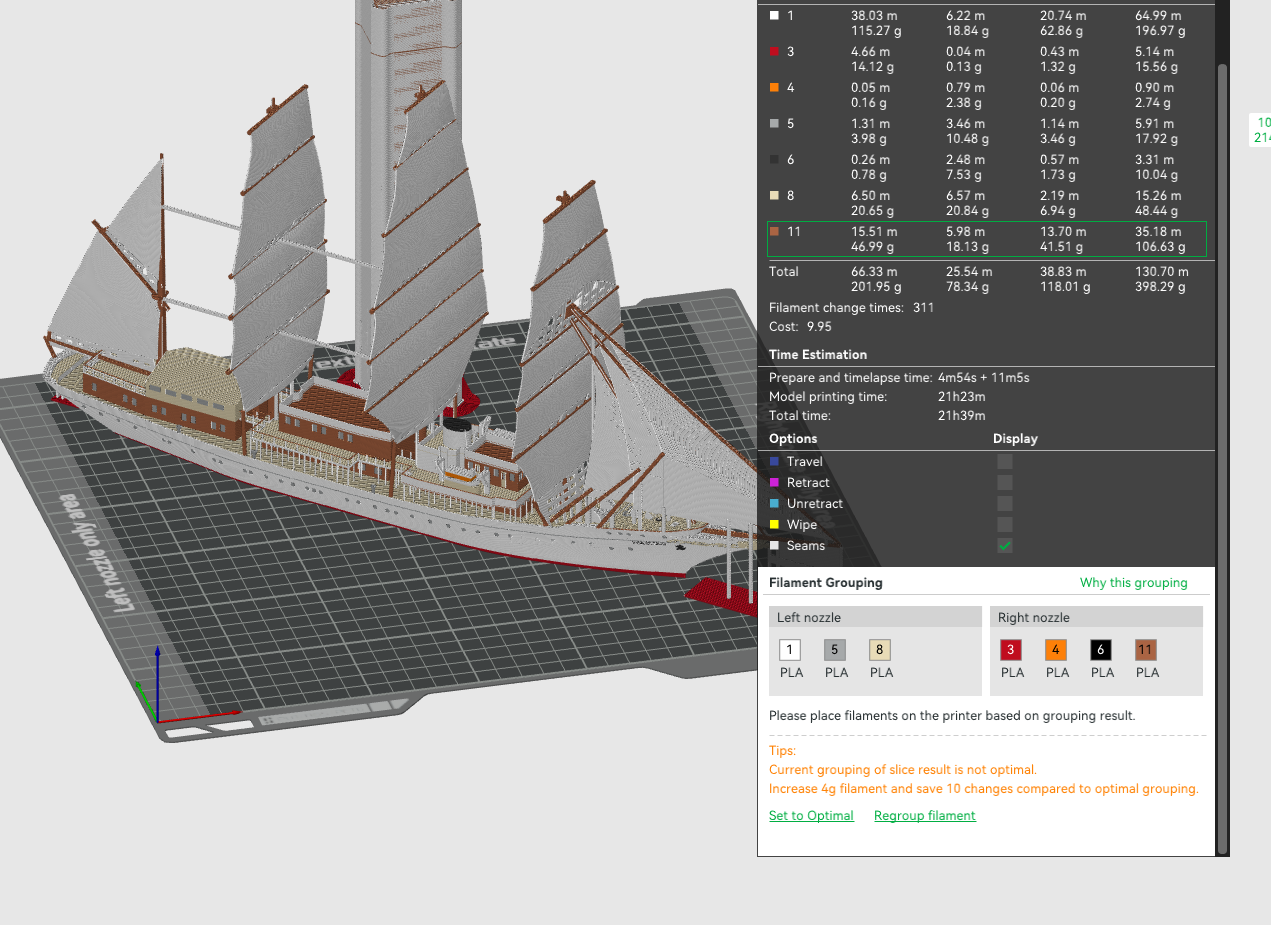

Dave Wood Posted August 20 Author Share #3 Posted August 20 Tried a test print of the little sail at the top of the front mast to see if it would be practical at 1:250 scale. Came out pretty well. Illustration of the size of the ship at 1:250 scale compared to build plate - so should only need to split it once in the middle. Lots more detail to add - especially the ropes, windows, doors and deck furniture. yvesvidal 1 Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...
Dave Wood Posted August 21 Author Share #4 Posted August 21 (edited) Quite good progress today on 3d model. Need to do some more work on the sails and add more details - but might try some test prints before going too much farther. Some comparison shots Rendered version With some other much larger cruise ships Edited August 27 by Dave Wood Removed other ships yvesvidal and KeithAug 2 Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...

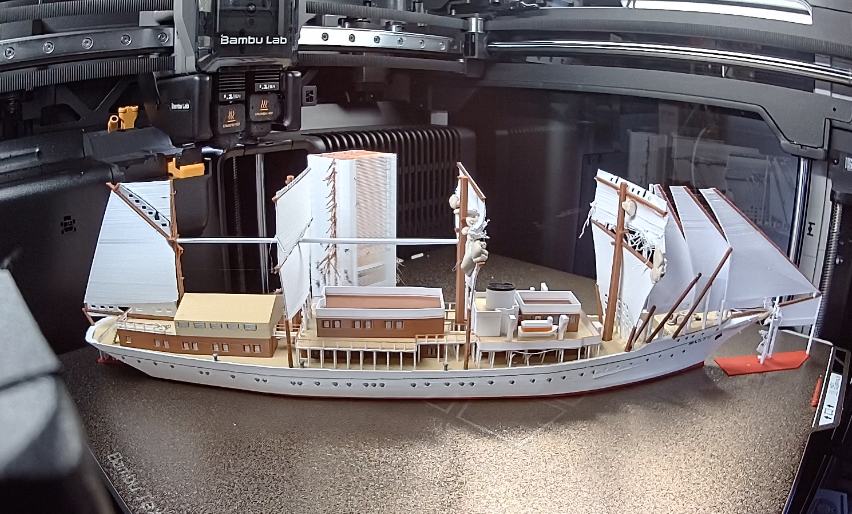

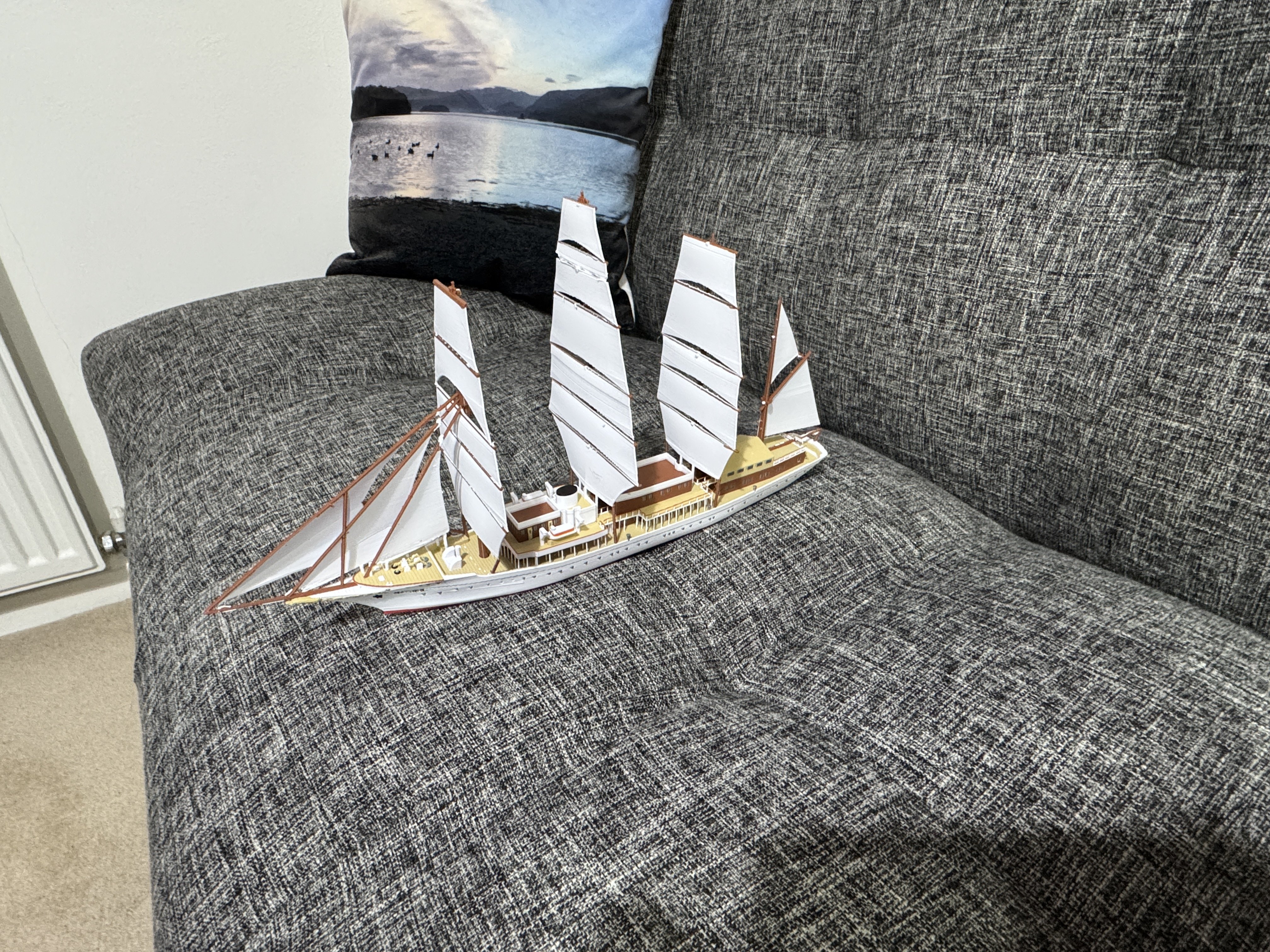

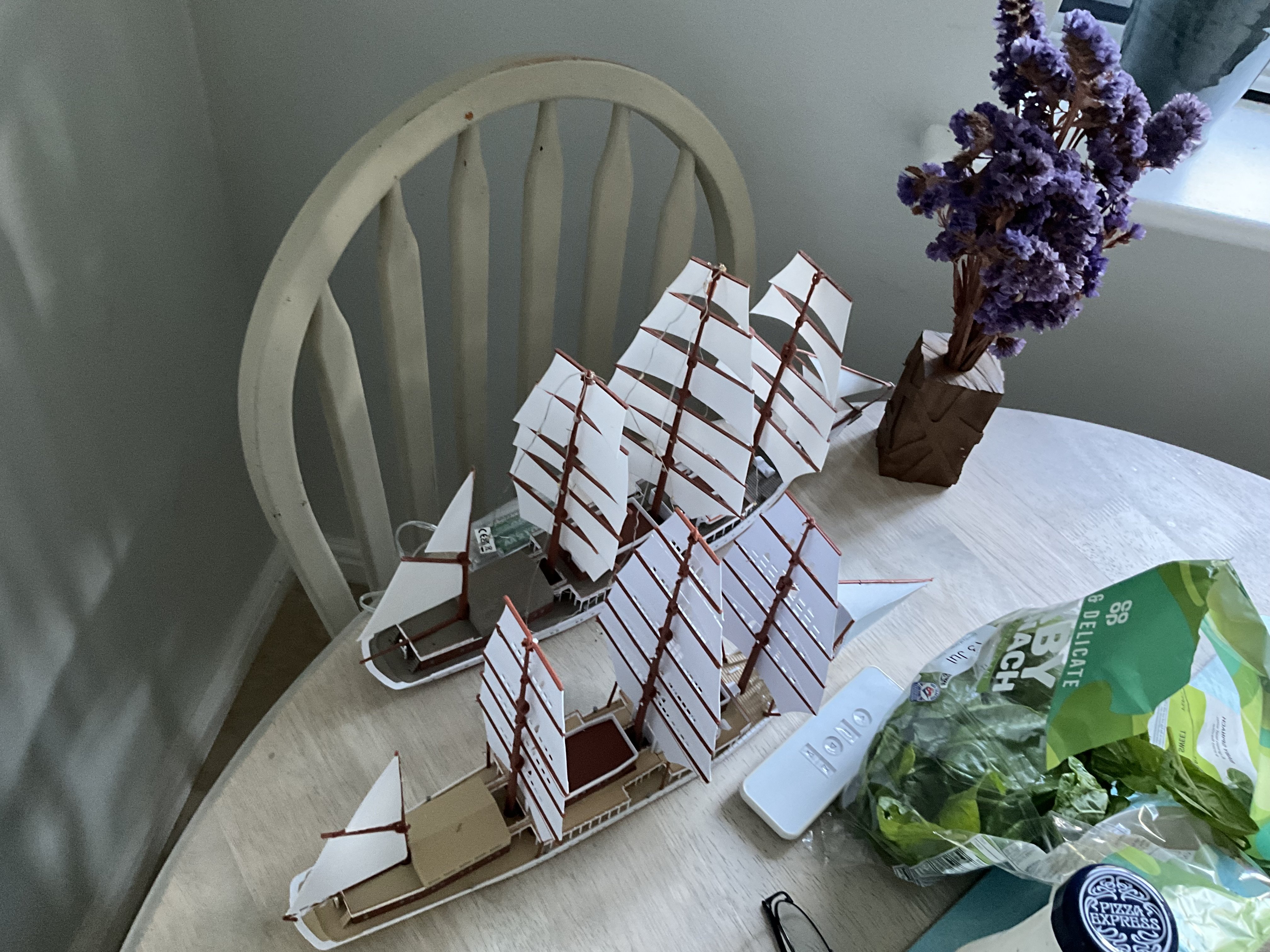

Dave Wood Posted August 24 Author Share #5 Posted August 24 (edited) Missing sails added and individually shaped for each mast. Update - added a few more ropes Edited August 24 by Dave Wood Added some ropes KeithAug 1 Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...
Dave Wood Posted August 24 Author Share #6 Posted August 24 Fair bit more progress on the some of the deck stuff and decoration woodartist, yvesvidal and KeithAug 3 Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...
Dr PR Posted August 25 Share #7 Posted August 25 Are you by any chance the NAVOCS A-6905 Dave Wood? Quote Phil Current build: USS Cape MSI-2 Current build: Albatros topsail schooner Previous build: USS Oklahoma City CLG-5 CAD model Link to comment Share on other sites More sharing options...
Dave Wood Posted August 25 Author Share #8 Posted August 25 7 hours ago, Dr PR said: Are you by any chance the NAVOCS A-6905 Dave Wood? Not afraid not whoever that is. Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...
Dave Wood Posted August 25 Author Share #9 Posted August 25 Has been wrestling with what to do about the ropes - whether to 3d print them etc. - Decided in the first instance to try making them out of copper wire led strings - The wires are doubled up and are about 0.25mm diameter - with the led's about 100mm apart. Should like quite good hopefully. Example render attached. Day time Night time yvesvidal and KeithAug 2 Quote Dave Wood Current Builds - Virgin Voyages Resilient Lady 1:500 (BL), Sea Cloud 1:250 (MSW), Celebrity Apex 1:500, P&O Cruises Britannia 1:500 Previous Builds - P&O Cruises whole fleet at various scales (1:1000, 1:500, 1:250) (MSW,BL) ., TUI River Cruise Skyla 1:250, 1:500 (FB), V V Resilient Lady 1:1000, Celebrity Apex 1:1000 (BL) Future Build Plans - Cunard Queen Mary2, MV Africa Mercy (WP), P&O Cruises Oceana, RCL Oasis Class Ship. Link to comment Share on other sites More sharing options...
