3D Printing Cannons in Resin

[thibaultron]

Commonwealth 18 Pounder 108



Commonwealth Pattern 18 Pounder 108 Charles II Cypher Full Size_2959_63mm.stl



Commonwealth Pattern 18 Pounder 108 No Cypher Full Size_2959_63mm.stl





Commonwealth 18 Pounder 114



Commonwealth Pattern 18 Pounder 114 Charles II Cypher Full Size_3124_46mm.stl



Commonwealth Pattern 18 Pounder 114 No Cypher Full Size_3124_46mm.stl





[thibaultron]

Commonwealth 24 Pounder 102



Commonwealth Pattern 24 Pounder 102 Charles II Cypher Full Size_2798_76mm.stl



Commonwealth Pattern 24 Pounder 102 No Cypher Full Size_2798_76mm.stl





Commonwealth 24 Pounder 108





Commonwealth Pattern 24 Pounder 108 Charles II Cypher Full Size_2960_16mm.stl



Commonwealth Pattern 24 Pounder 108 No Cypher Full Size_2960_16mm.stl





Commonwealth 24 Pounder 114



Commonwealth Pattern 24 Pounder 114 Charles II Cypher Full Size_3124._60mm.stl



Commonwealth Pattern 24 Pounder 114 No Cypher Full Size_3124_60mm.stl





[thibaultron]

Commonwealth 32 Pounder 108



Commonwealth Pattern 32 Pounder 108 Charles II Cypher Full Size_2959_89mm.stl



Commonwealth Pattern 32 Pounder 108 No Cypher Full Size_2959_89mm.stl





Commonwealth 32 Pounder 114



Commonwealth Pattern 32 Pounder 114 Charles II Cypher Full Size_3124_20mm.stl



Commonwealth Pattern 32 Pounder 114 No Cypher Full Size_3124_20mm.stl





[thibaultron]

I will shortly be adding the guns for HMS Tiger circa 1680. I have to finish creating the graphics.

[thibaultron]

I forgot that I have already posted the HMS Tyger cannon files.



Both the Commonwealth and HMS Tyger files have been sent to the NRG, and should be in the Resource section in a little while.

[thibaultron]

The new files are now in the NRG resources section.

[Thukydides]

These files are a fantastic resource. Very kind of you to make them available for everyone.

[thibaultron]

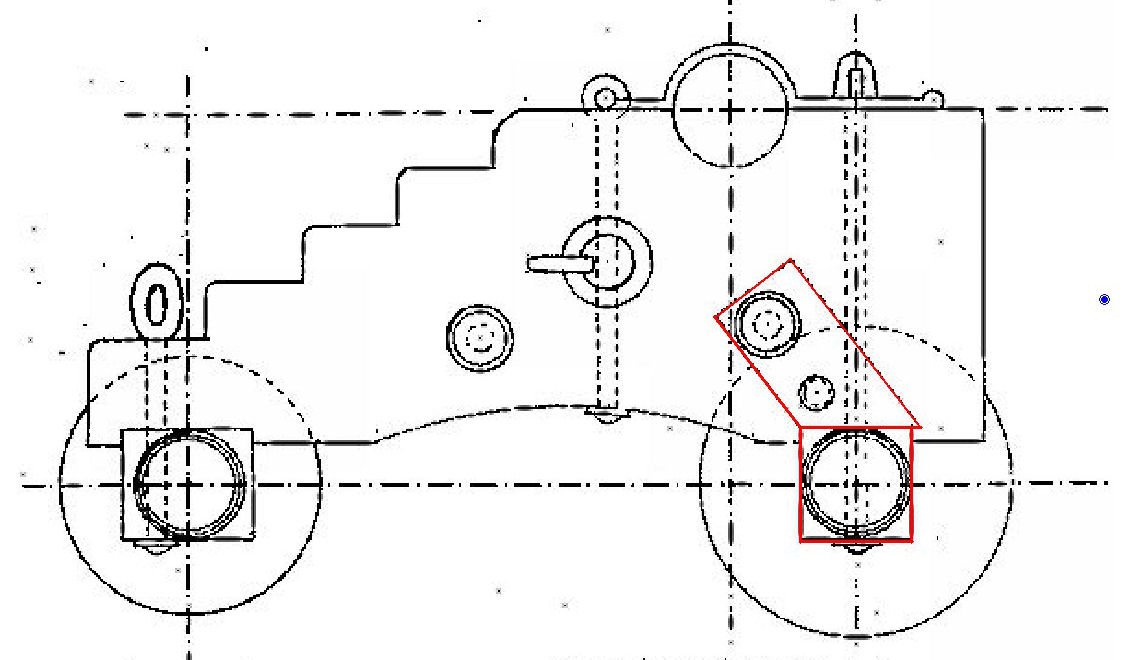

One more set of files. Several months ago I posted a file for a 9 Pounder Carronade with trunnions. Here is a file for the associated carriage that was on the drawing. This file has the carriage body as one piece with the shelf, quoin, and trucks (wheels with the locking band as separate parts. In a few days I will be posting a set of files with all the parts as separate pieces. You have to make the eyelets and rings yourself, as well as add a piece of wire for the cross brace bolt.

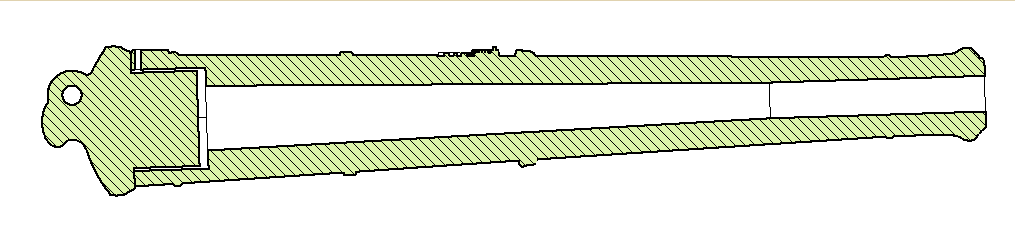

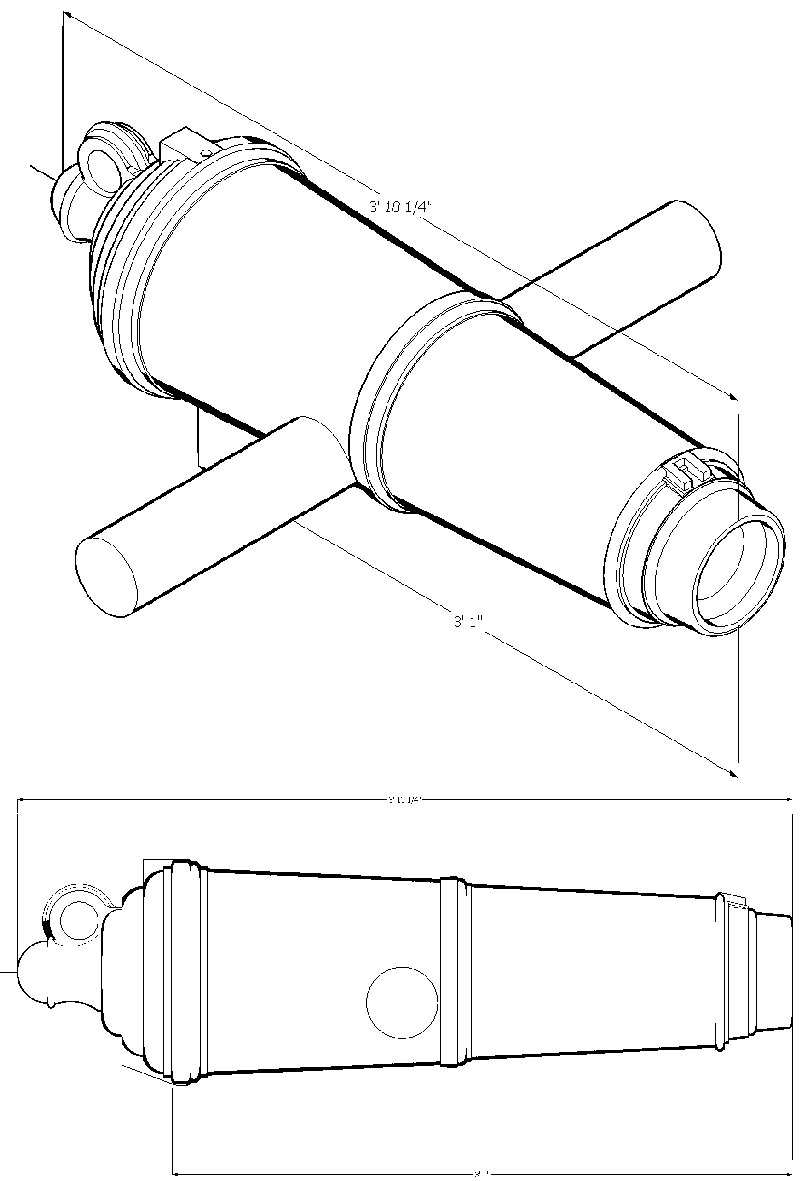

Here is a picture of the Carranade barrel and the file for it. The trunnions have been drawn over long, and should be trimmed to length, during the fitting to the carriage.



Cannonade 9 Pounder with Extended Trunnions Full Size_1174_62mm.stl

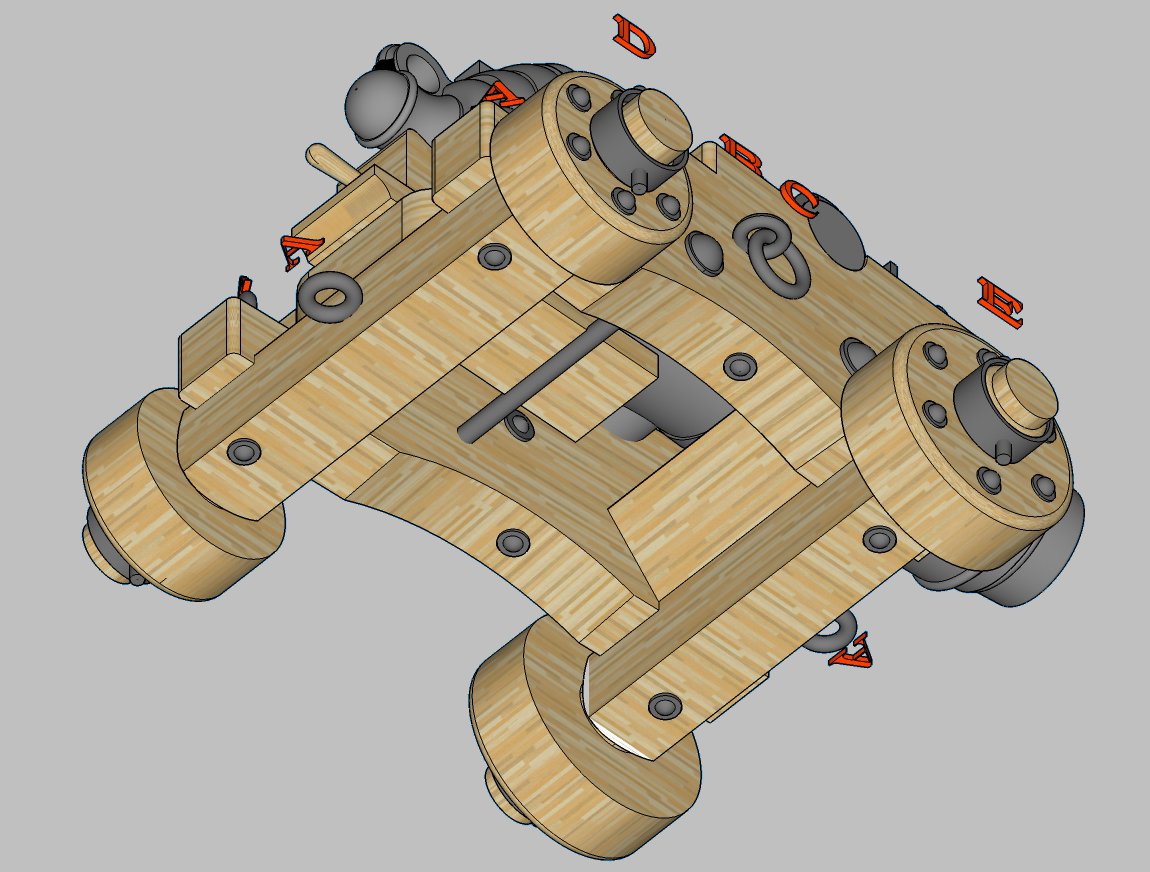

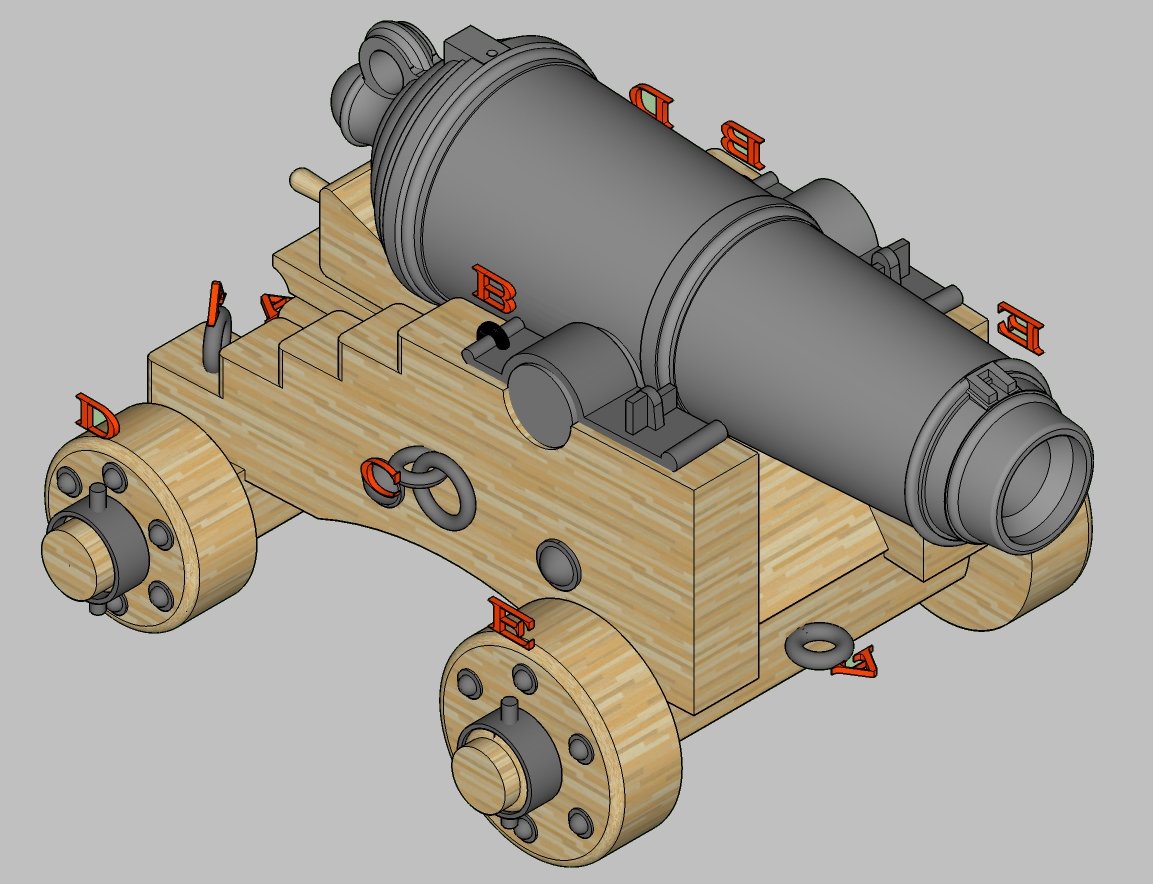

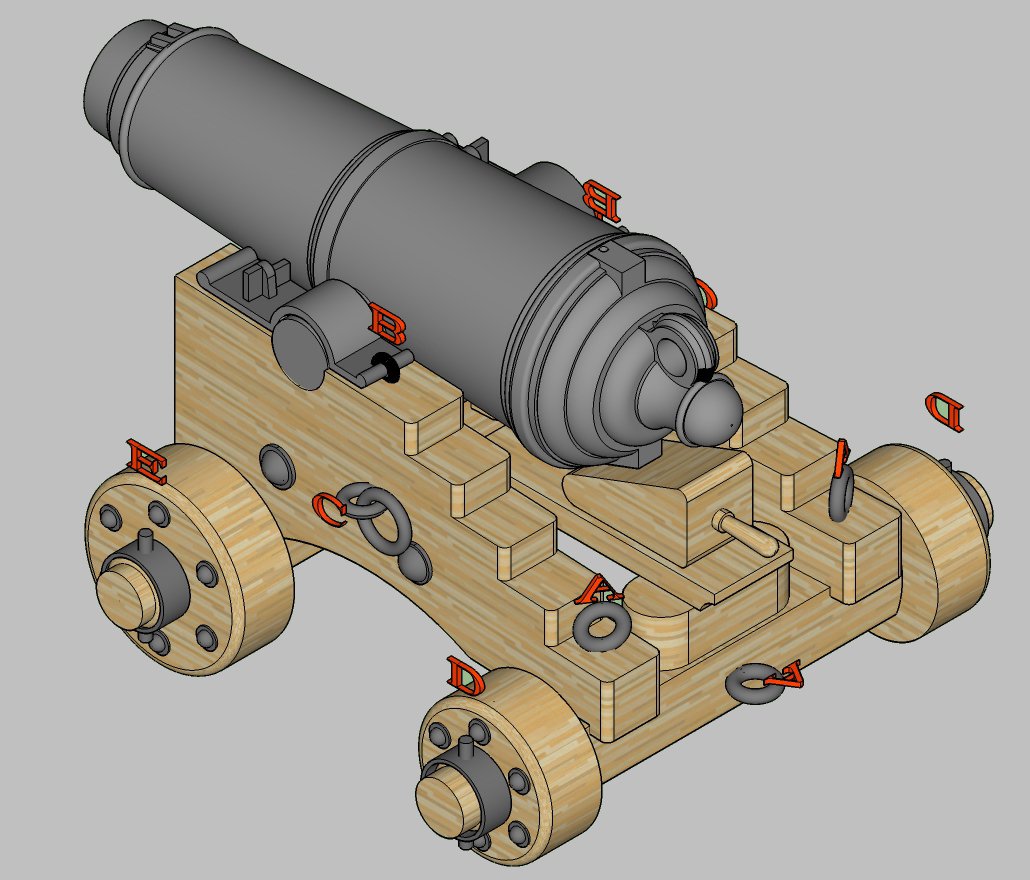

Here are the general arraignment graphics for the assembled carriage, with the various rings and eyelets labeled.

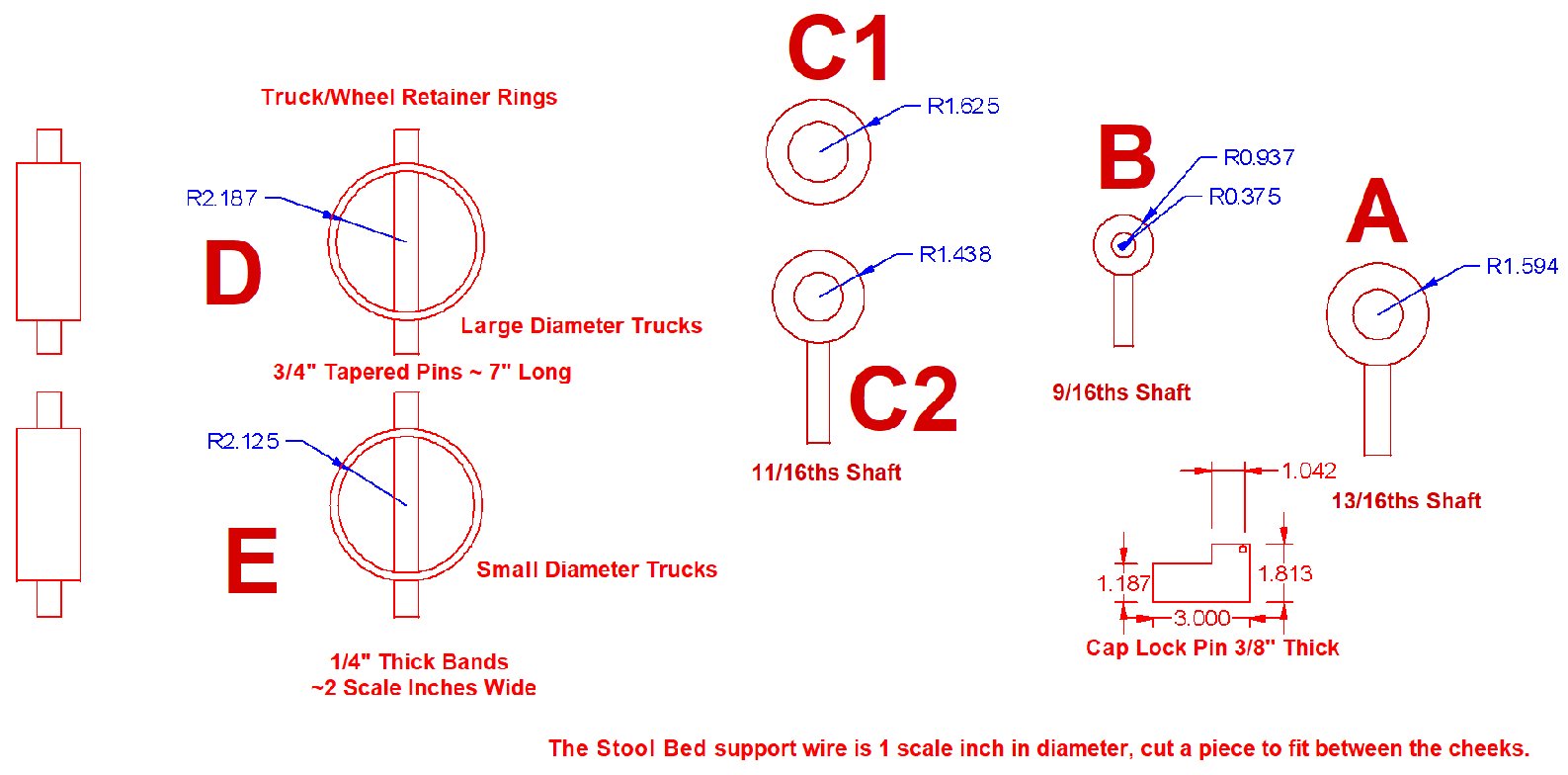

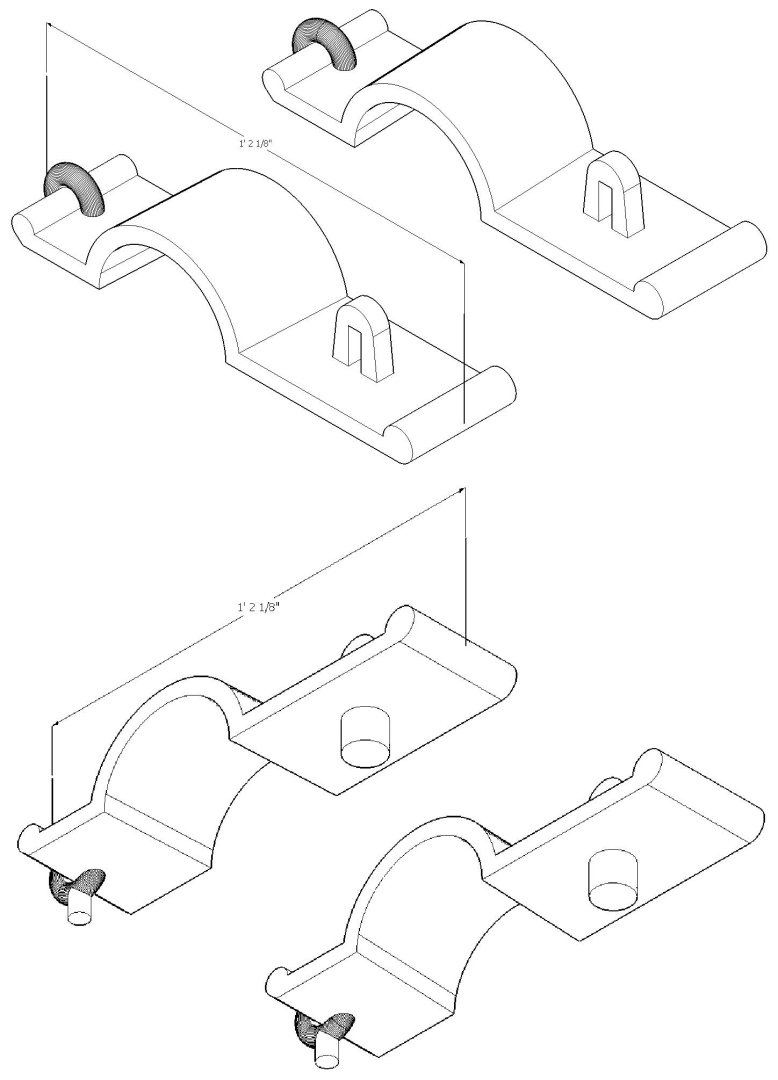

Here is a dimensioned drawing of the rings and eyelets. Note: the "B" eyelet is now a part of the caps, and do not have to be formed. You will have to put in a wire between the two holes on the inside of the carriage sides, for the cross brace. This rod also supports one end of the shelf. This rod is shown in the bottom view graphic (above).

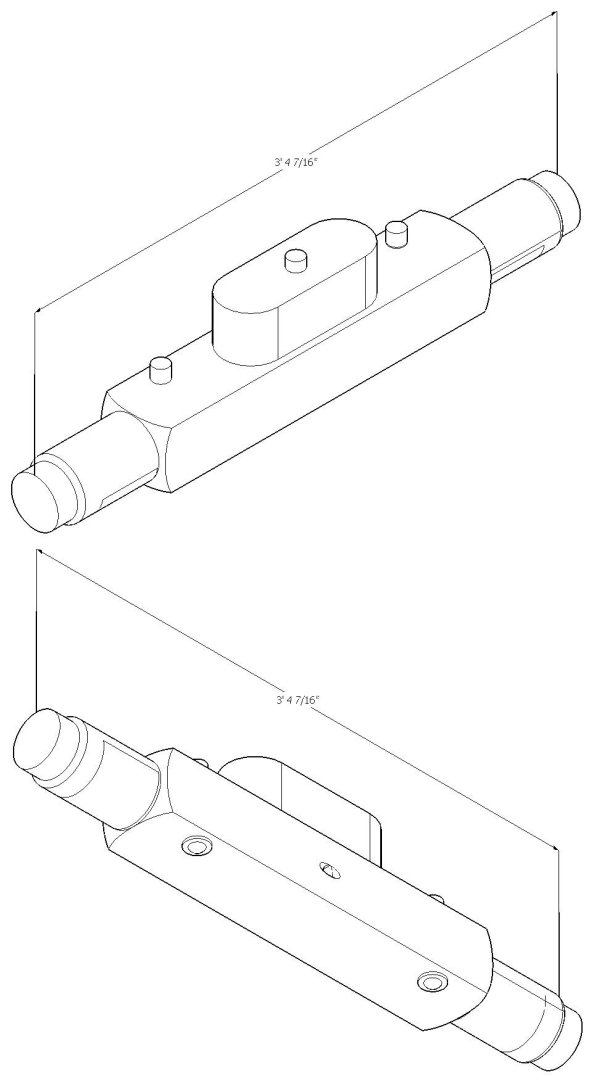

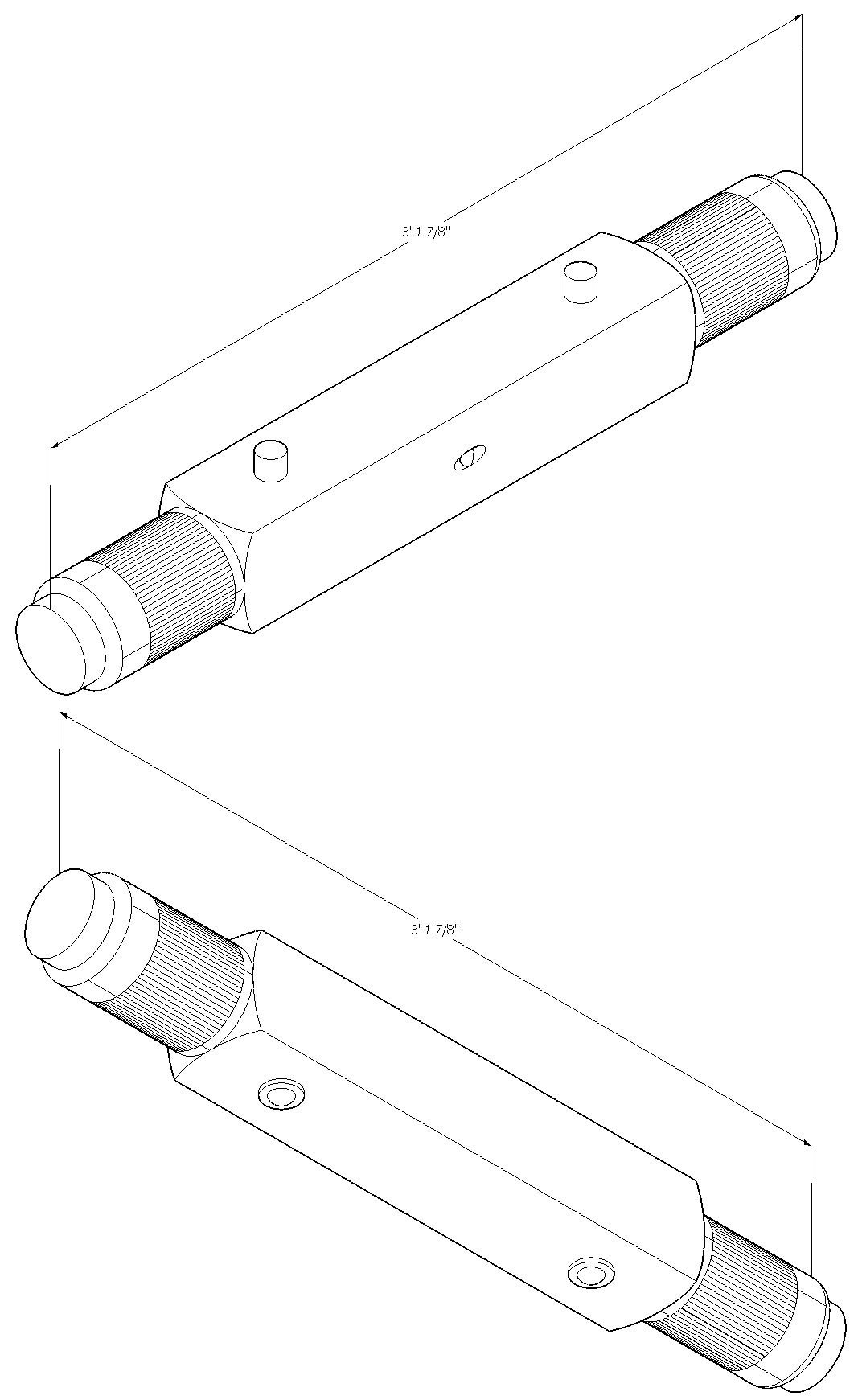

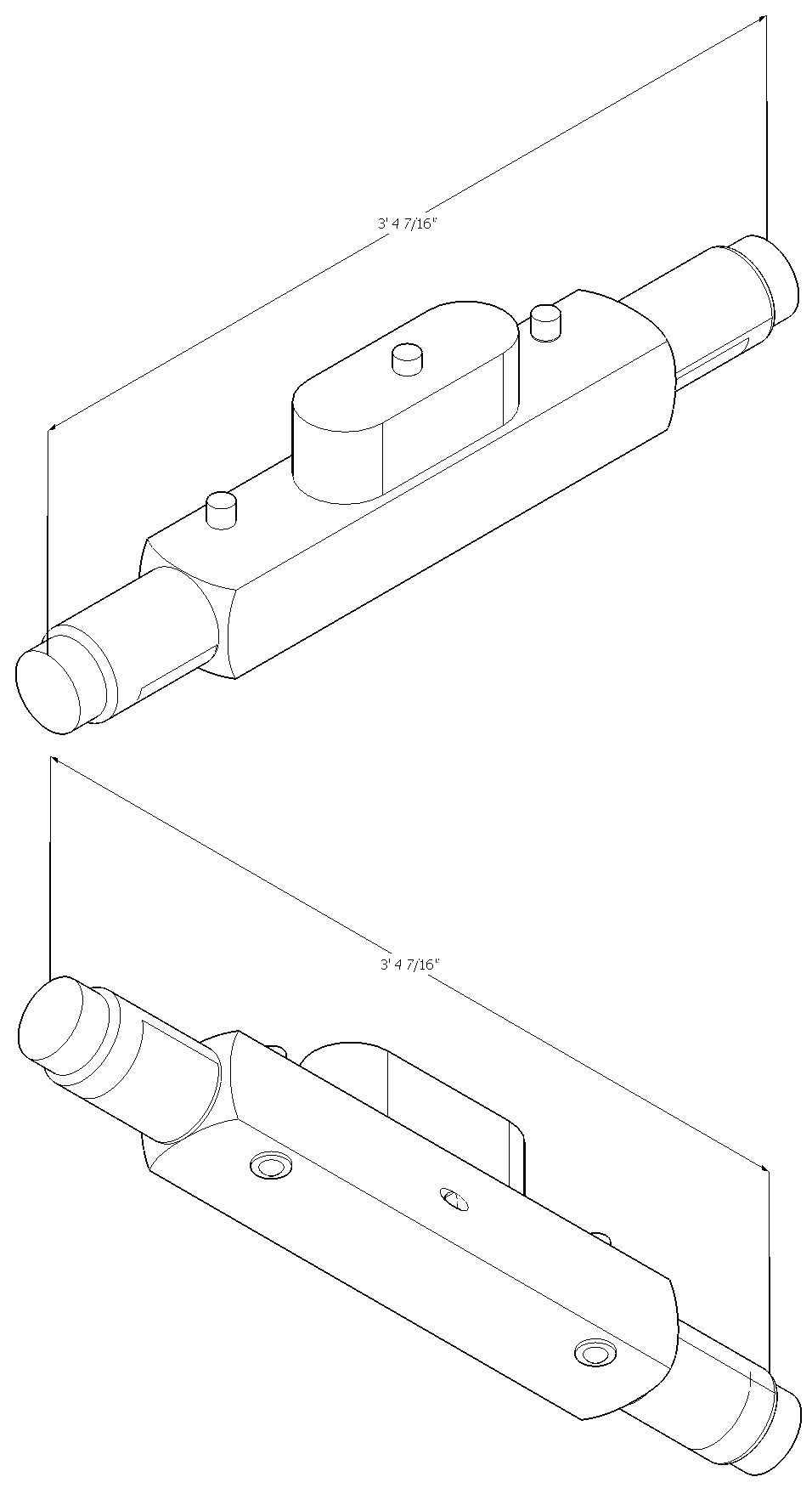

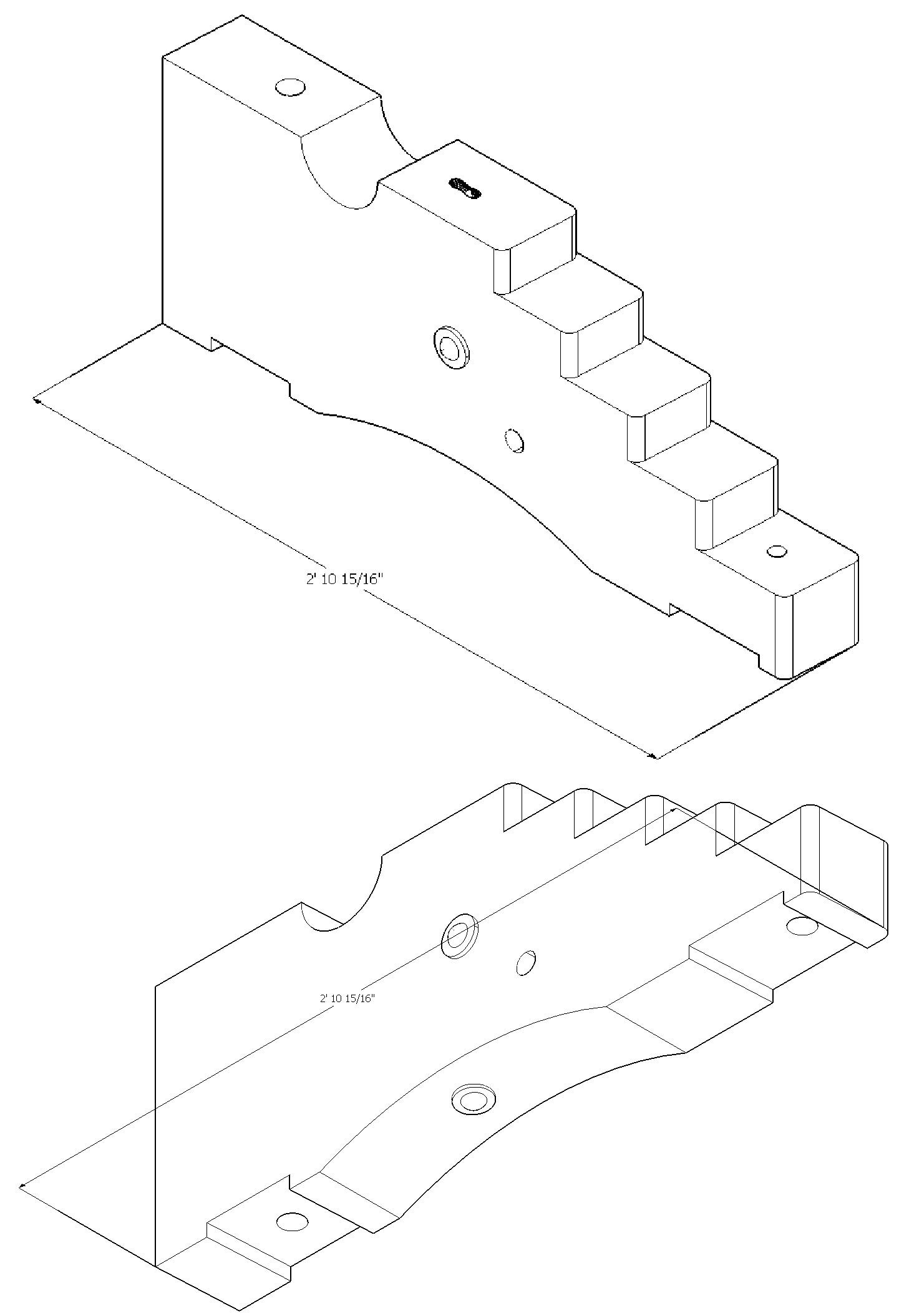

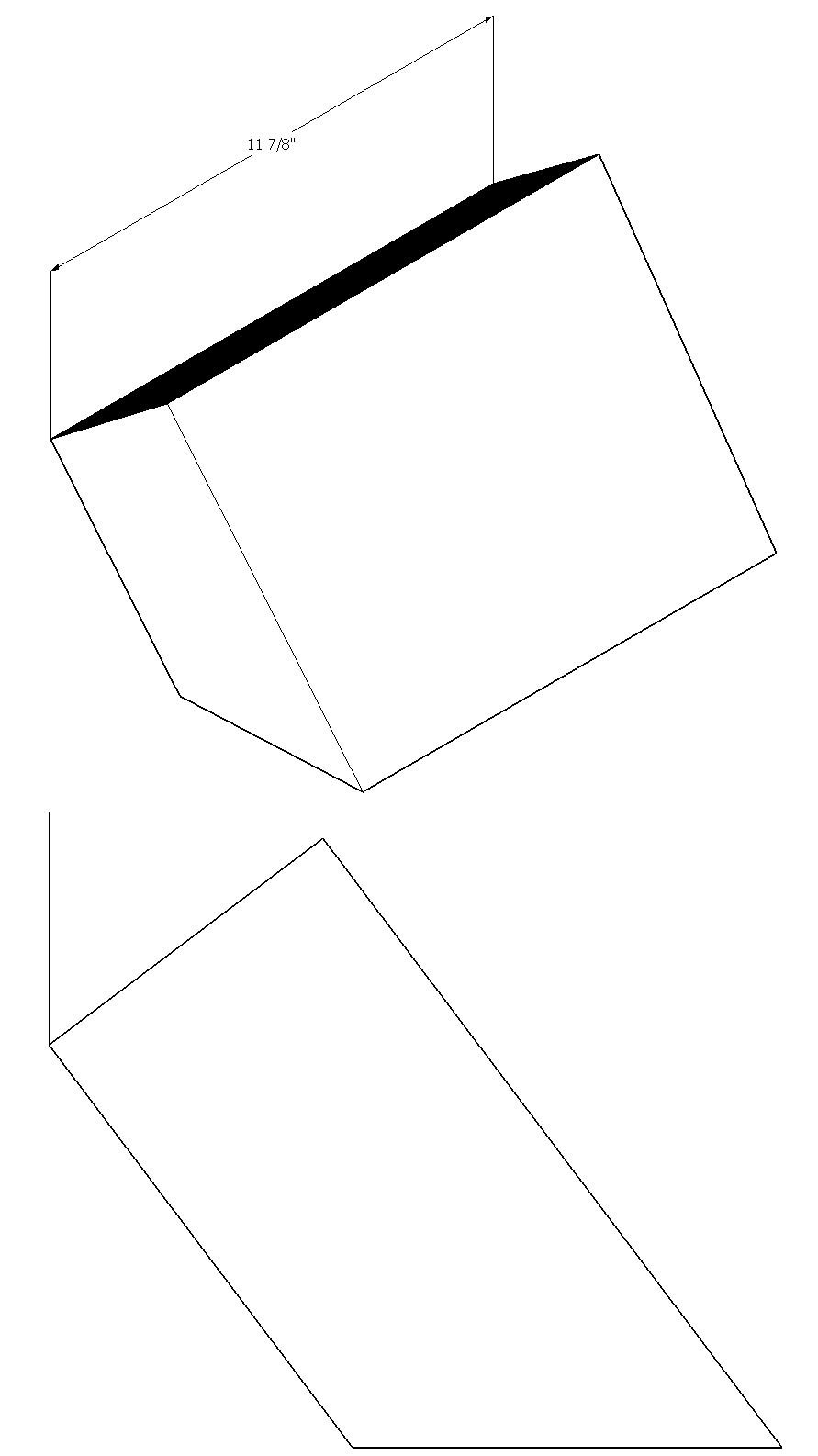

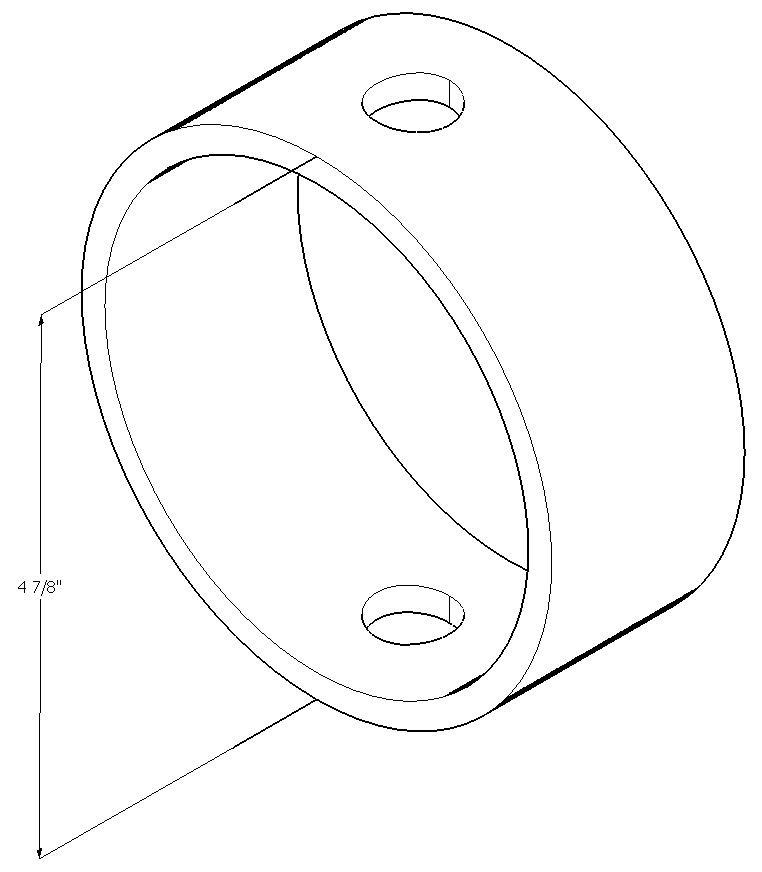

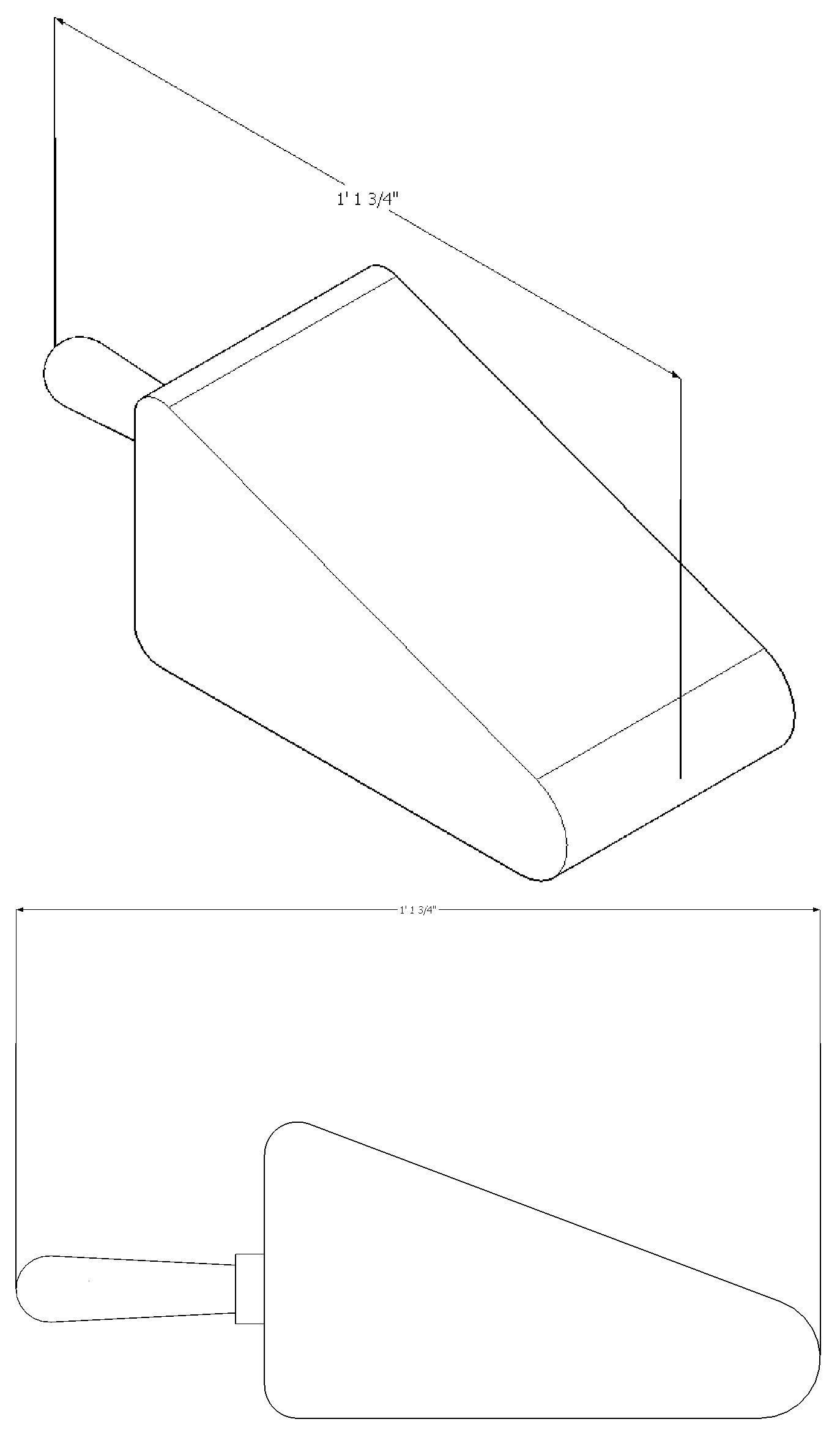

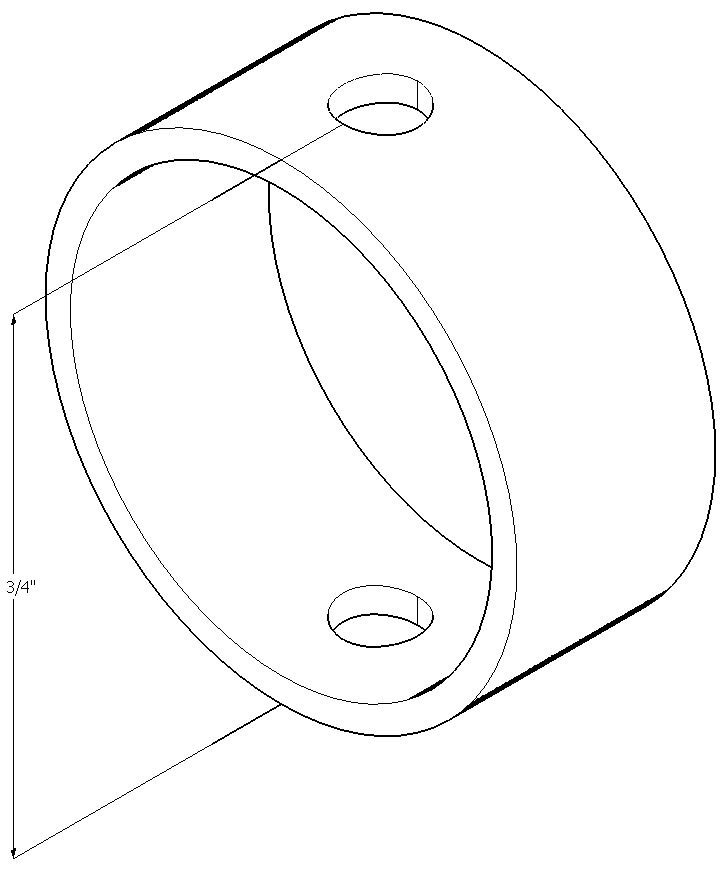

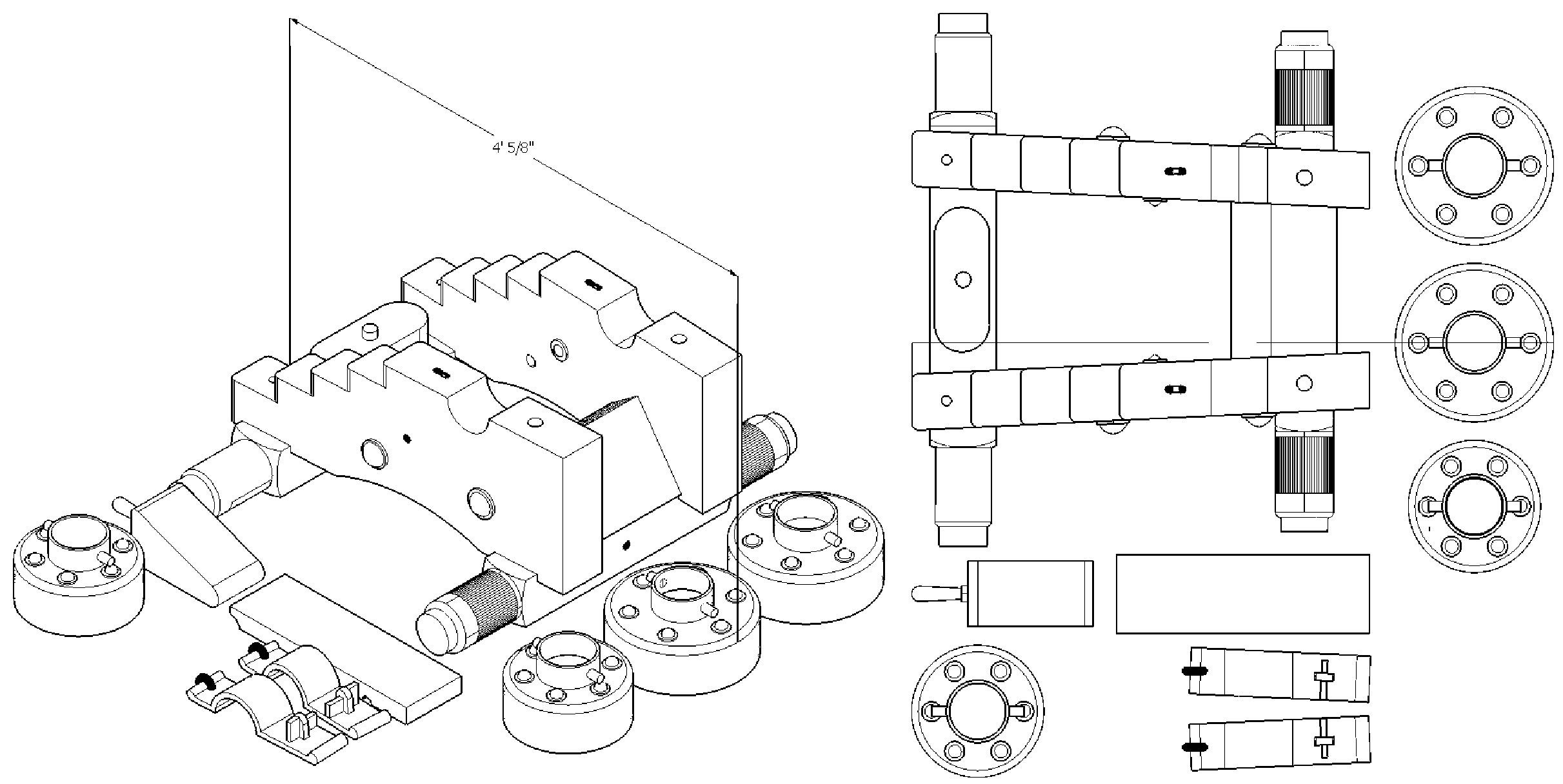

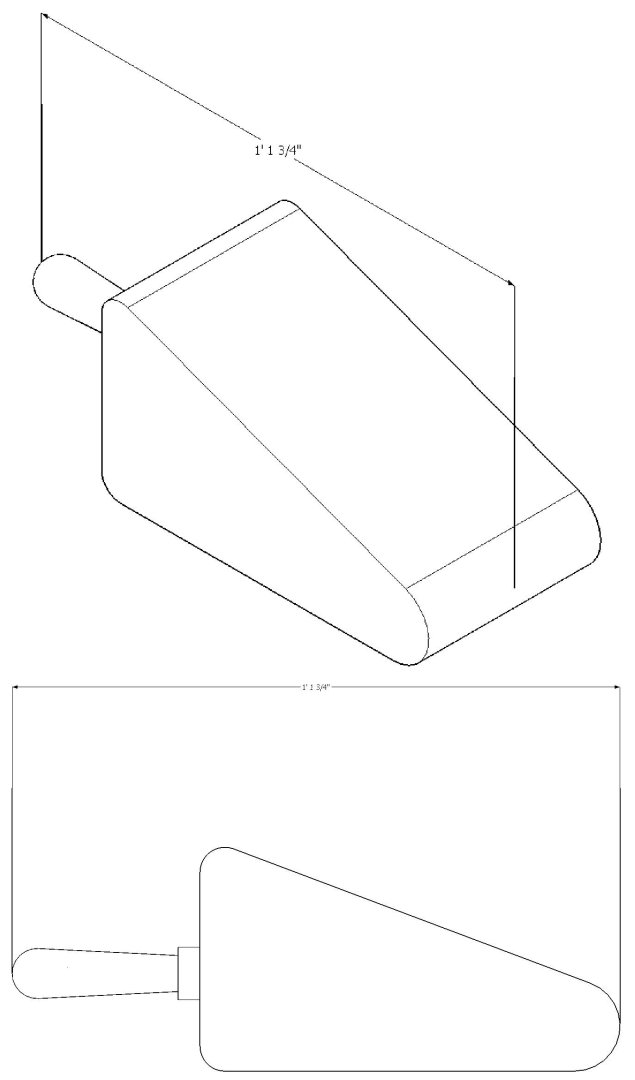

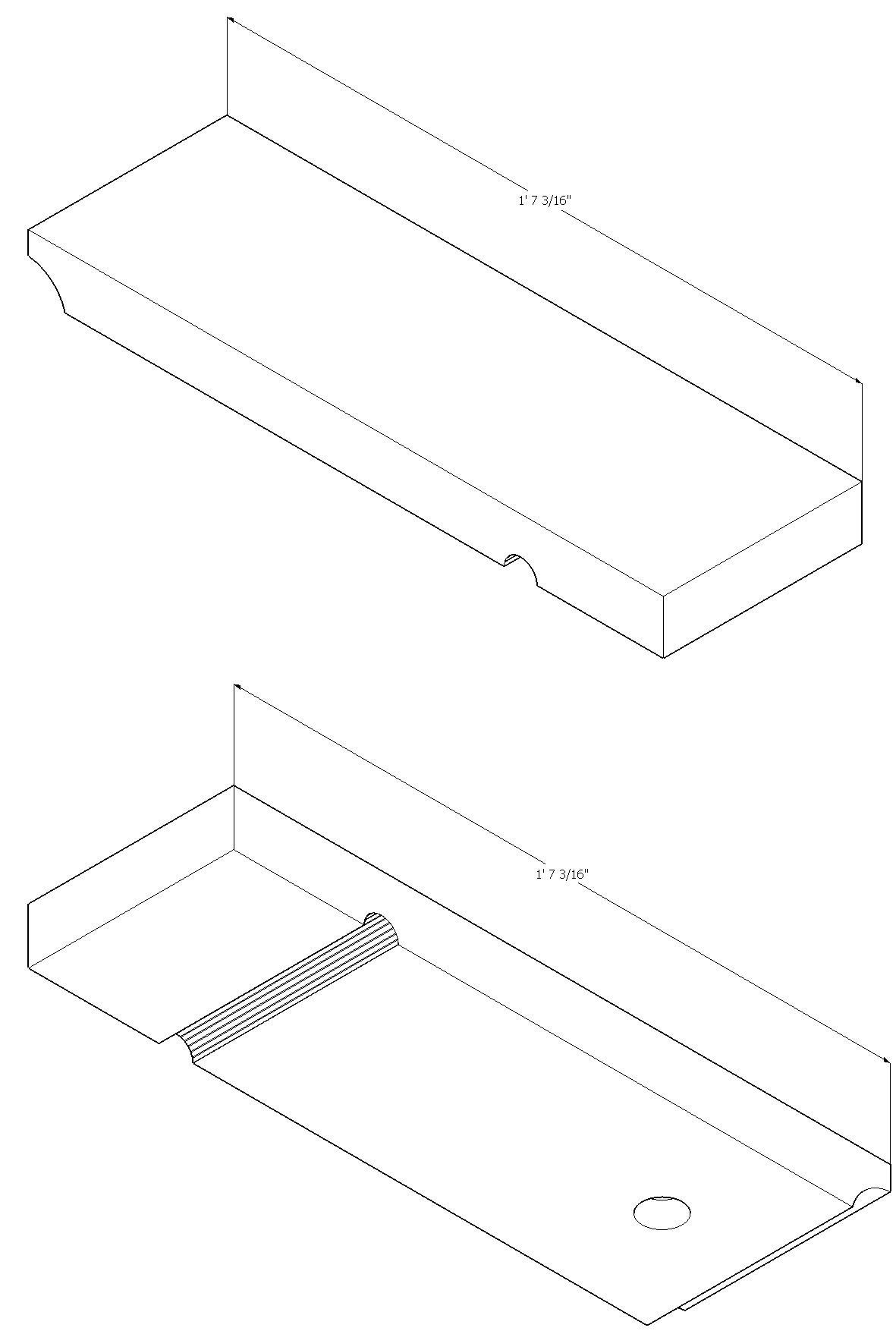

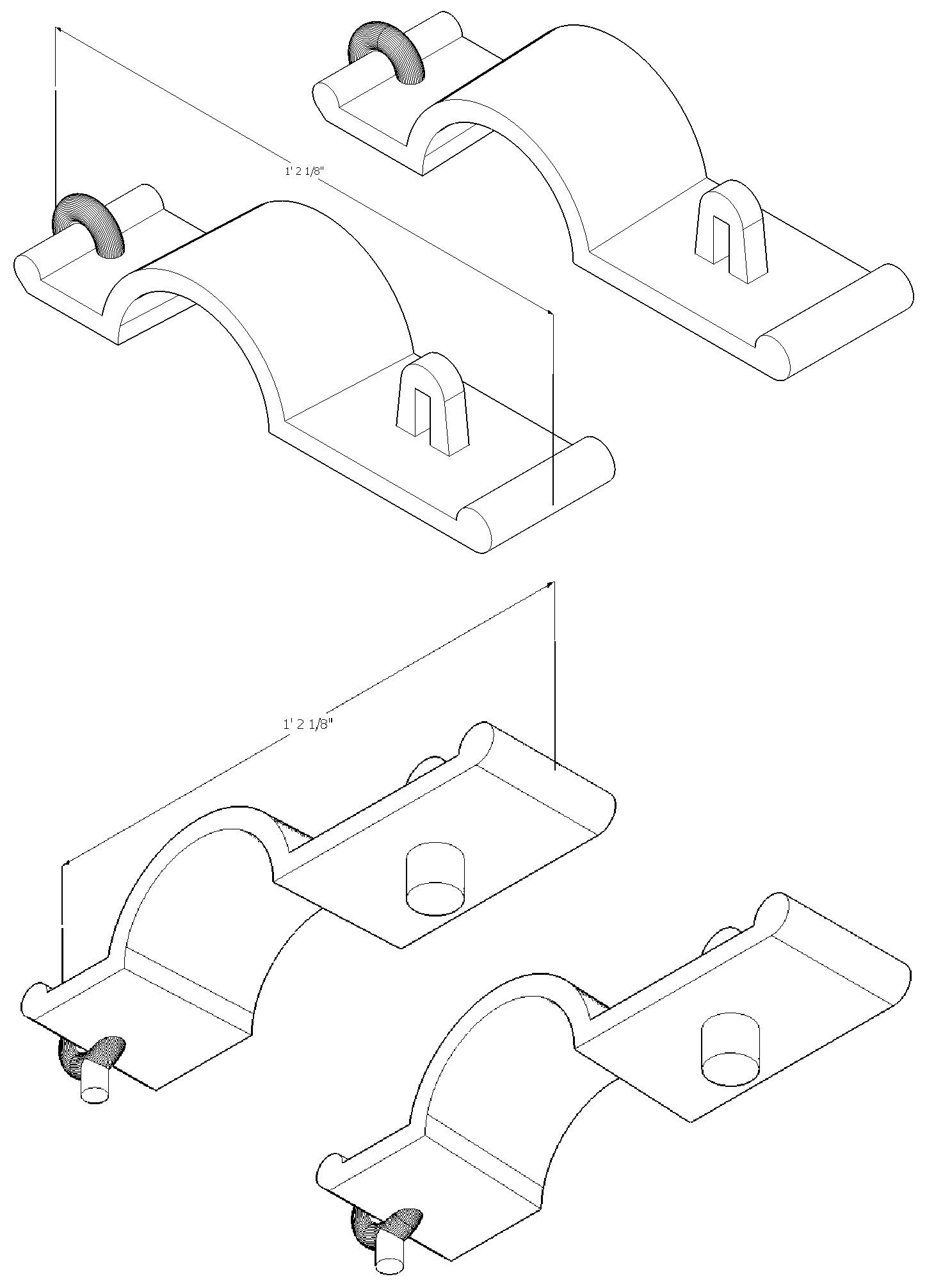

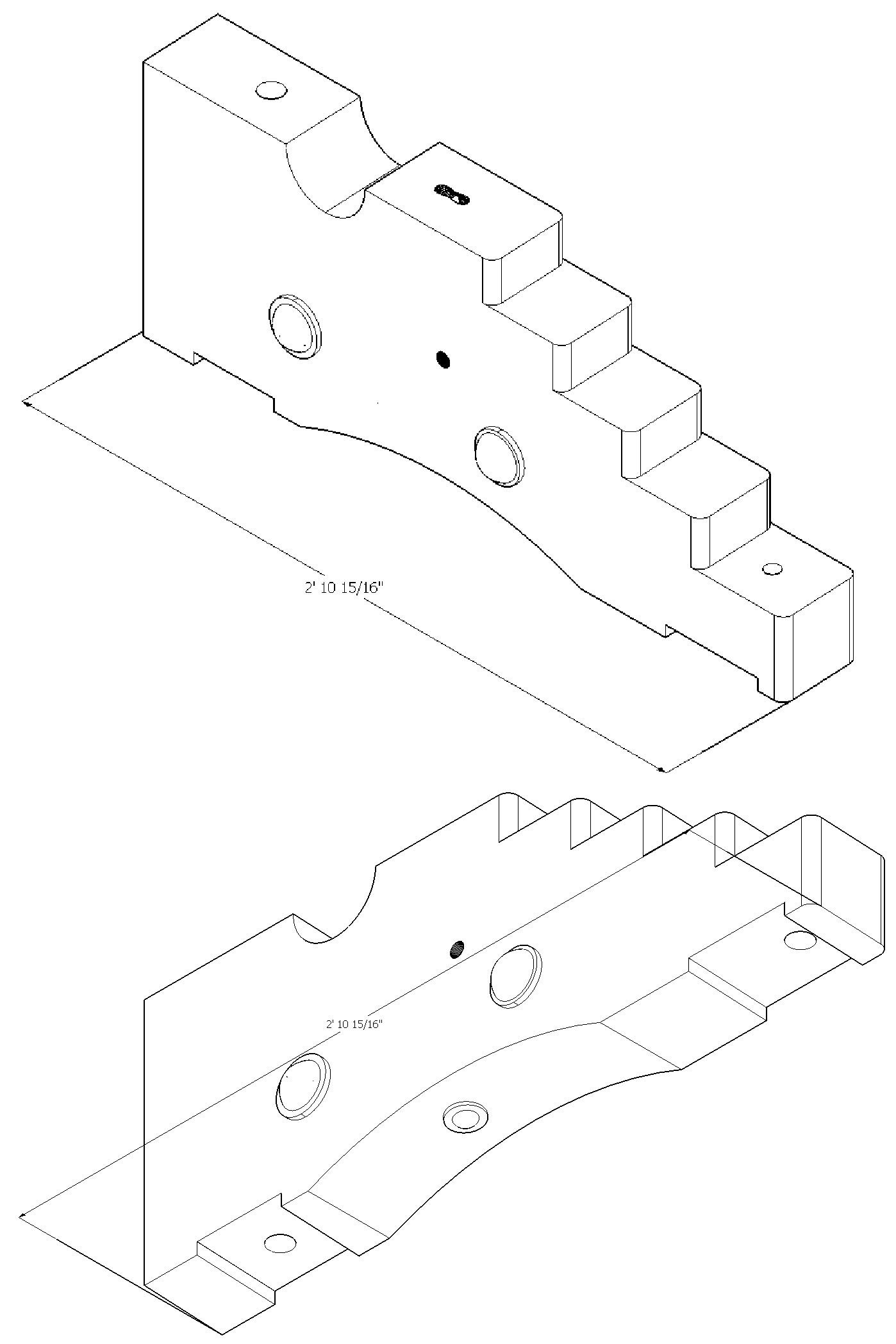

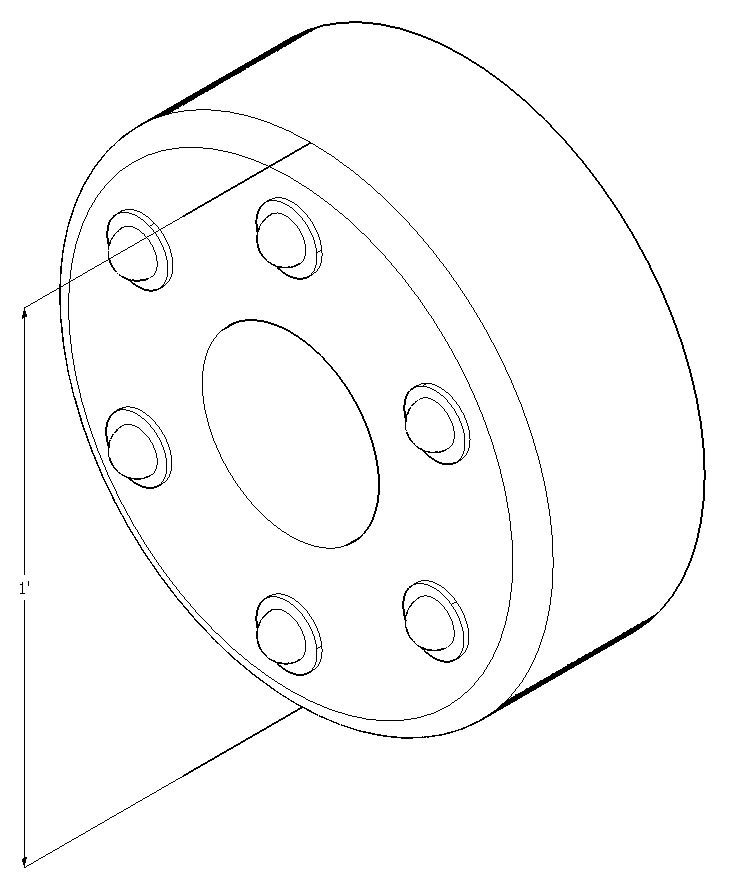

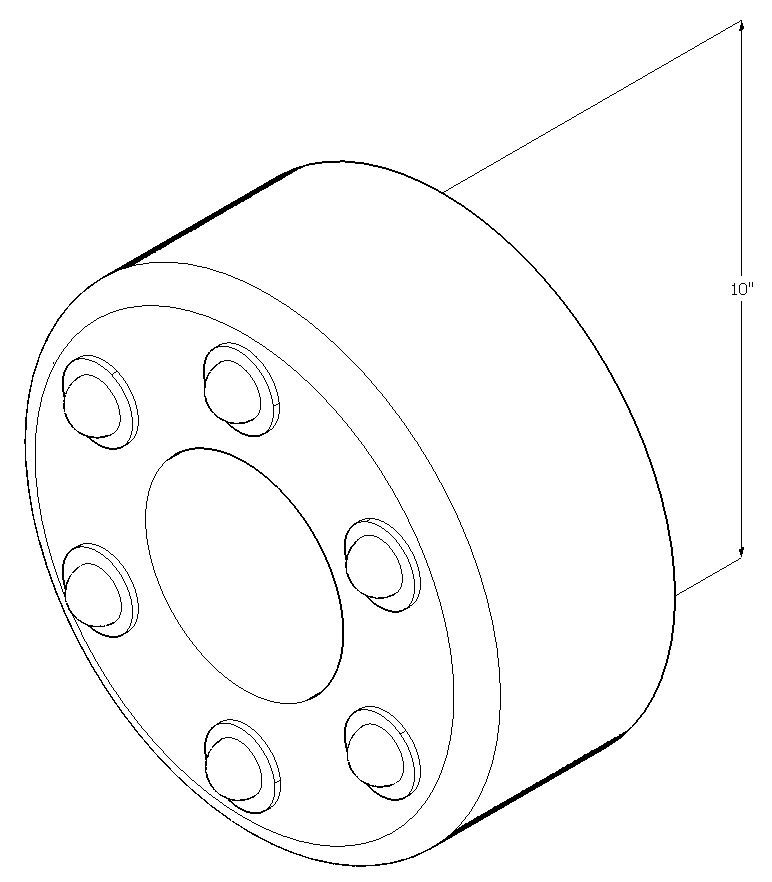

This is the drawing of the carriage parts.







This is the file.



9 Pounder Carronade Single Piece Carriage_Full Size_1235_87mm.stl





Edited yesterday at 10:05 PM by thibaultron
