USS Constitution by g8rfan99 - BlueJacket Shipcrafters - 1/98

[JSGerson]

Quote

Of course I'm already thinking of how I'm going to make any of this visible once the spar deck is in place

I too built the gun deck with a bunch of details. I made them somewhat visible by removing some of the main hatchways, spar deck planking, and beam supports. However, even with openings, a lot of the gun deck details are still obscured. Only me and the man upstairs know they are there. The image below shows the present state of my model.



Jon

[g8rfan]

She's a fine looking ship Jon. I'm definitely considering leaving off some of the spar deck, not sure I'll do both sides. I know most of what I do on the gun deck will only be known by me and God, but I will have some photos to show and it's the enjoyment of doing it....right?!

[JSGerson]

For me, the enjoyment is in the journey and this model has a multitudes of side trips, some seen by others, others not so much. Once the project is finished and on display, the fun, for the most part ends. My journey so far. is 8 years and still running😁!



Jon

[g8rfan]

I've slowly been working on the Captain's quarters. I got all the windows cut out of the doors and installed the styles for screens. I used .020" round styrene and painted them using Vallejo Air "wood" paint. This was trickier than I thought because the styles had to be just the right length. For the door knobs I used Tichy Train rivets, .020" and a touch of gold paint. Here's a pic of the forward bulkhead and the inside of the aft cabin

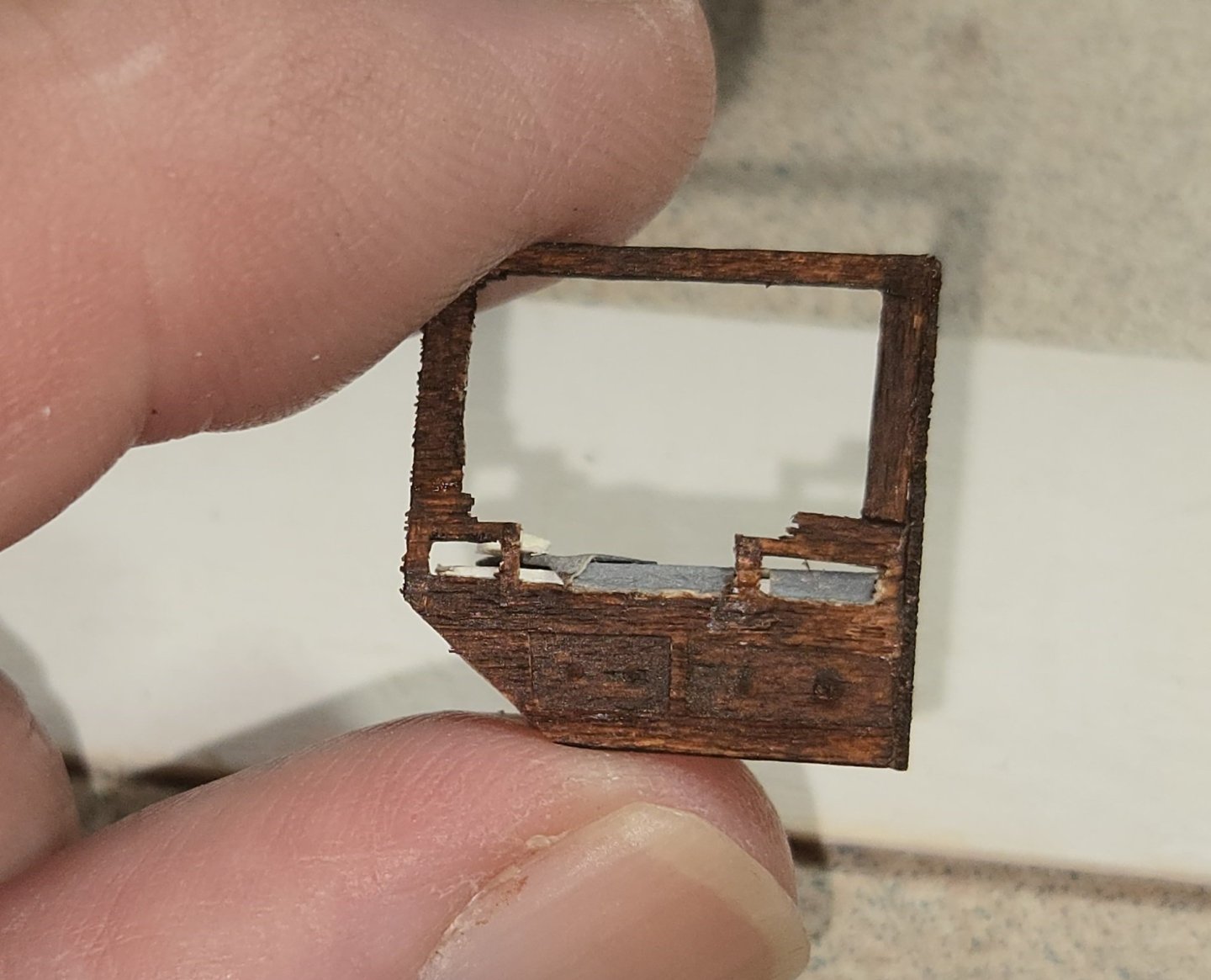

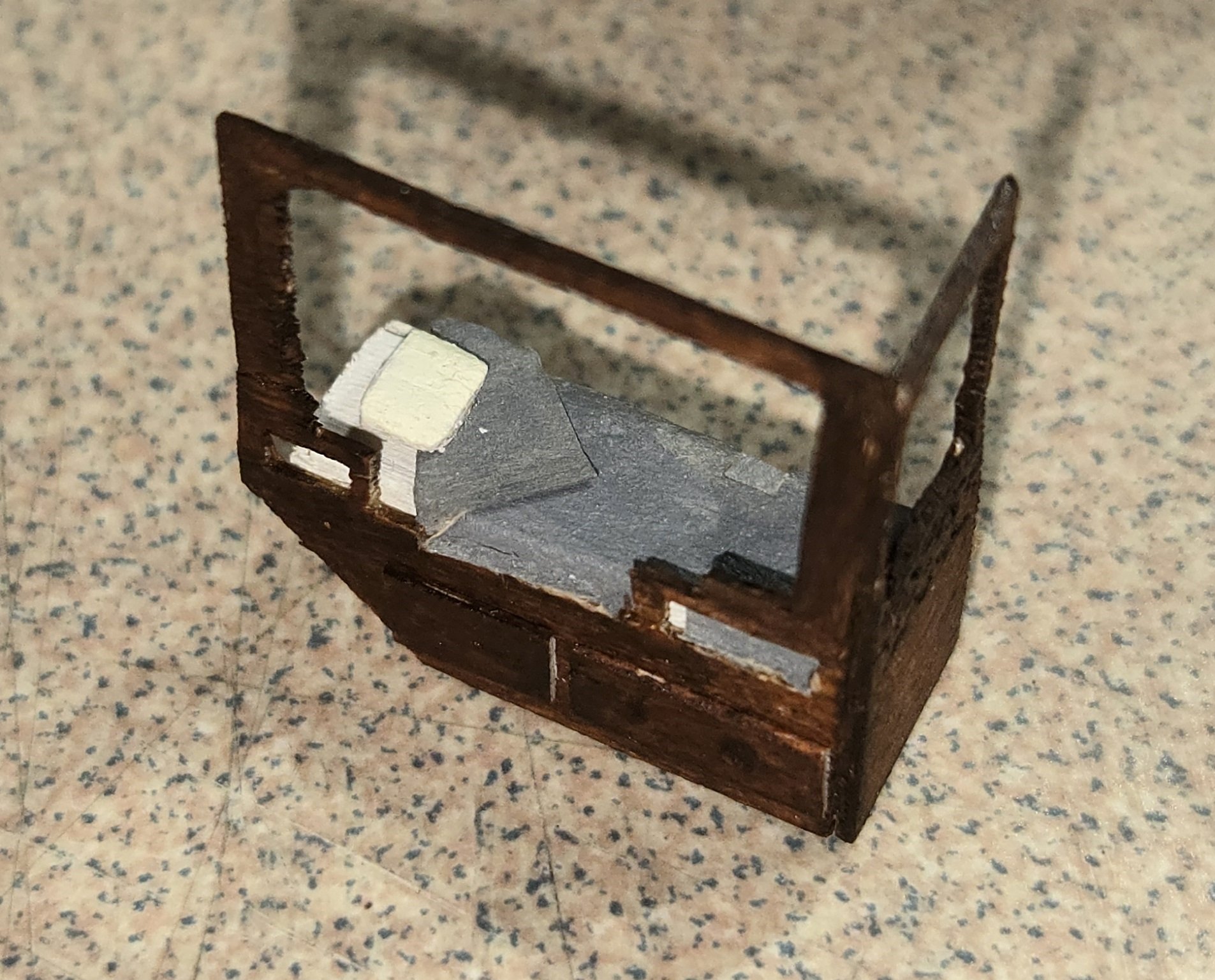

I had wanted to have some of the doors open, but there is such little clearance at the top, I decided this would be too difficult/ Next, I started on some of the furniture. The beds were cut out using the laser. The wood I used for these was maple veneer, which is .020" thick. In hindsight, I wish I had stuck with the persimmon. The maple is a bit softer and didn't seem to hold its edges well. Still it turned out pretty nice. If you look close in the photos, you can see the filigree carving in the footboard of the bed. I painted the bed covers grey thinking they probably would have been simple wool blankets. The dressers were actually multi components. The body was a solid piece of wood to which I glued the back board and the drawer faces, which again were cut with the laser. All the furniture was stained using VallejoAir "Mahogany". Although this is paint, it is so thin that it actually goes on like a stain. The last piece was the rudder box. This also was cut out using the maple veneer and the laser. I cut a block of wood using stock basswood and then attached the sides, top and the raised panels individually. I bought some HO scale furniture for the table and chairs in the forward cabin, but they're not painted yet. Also working on the sideboard. All that is yet to come









[Coyote_6]

That furniture is amazing!  Well done!!

[JSGerson]

Beautifully done!



Jon

[g8rfan]

Thanks guys, greatly appreciated. I was pretty pleased with how they turned out. Thanks also to all the likes and smileys.

[Flyfisher]

Wow! Beautiful work on such a small scale.
Lovin’ the detail

Jim

[g8rfan]

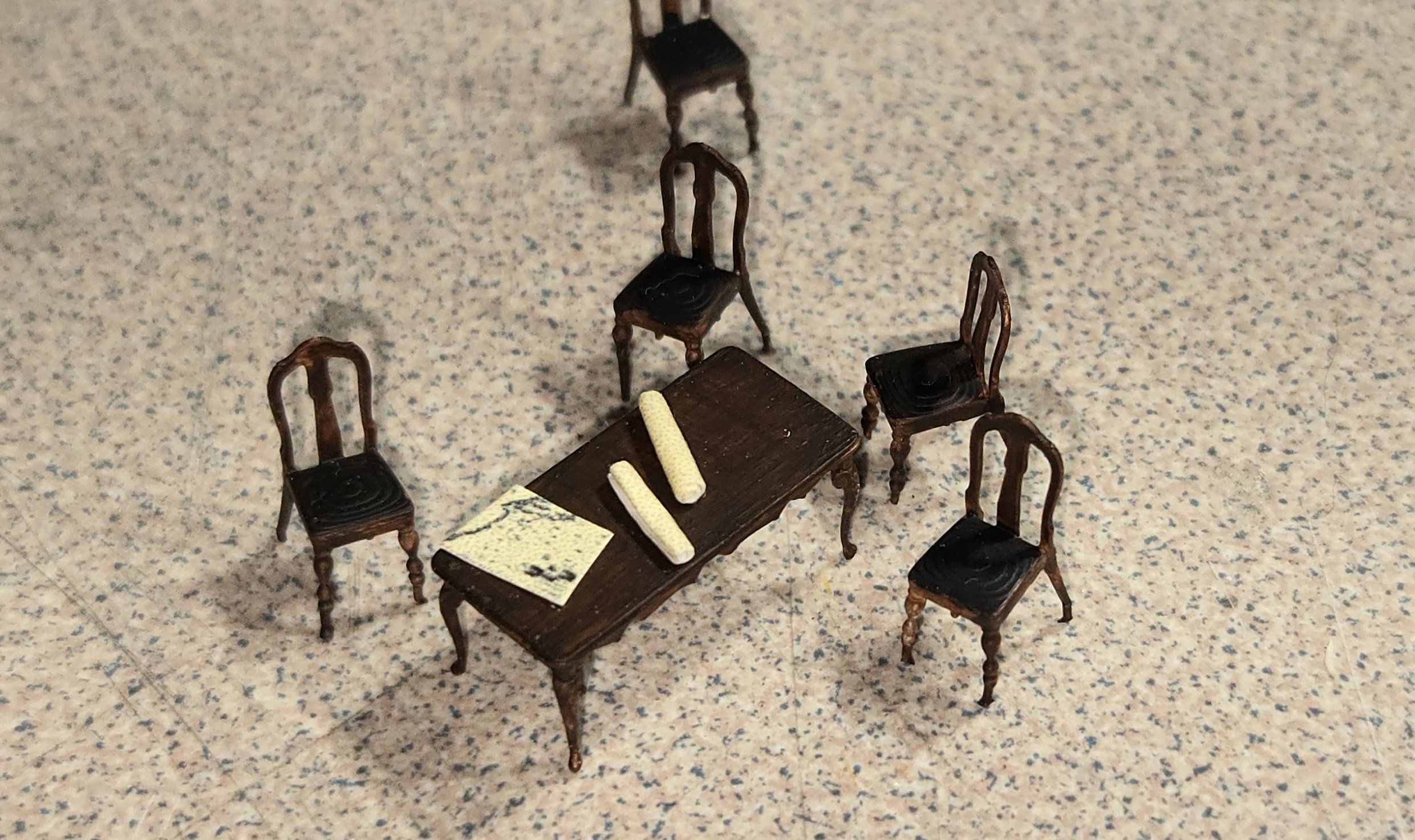

A few more details to show. I purchased a set of 3D printed table and chairs. The detail on these things is absolutely amazing. Certainly nothing that could be done by hand at this scale

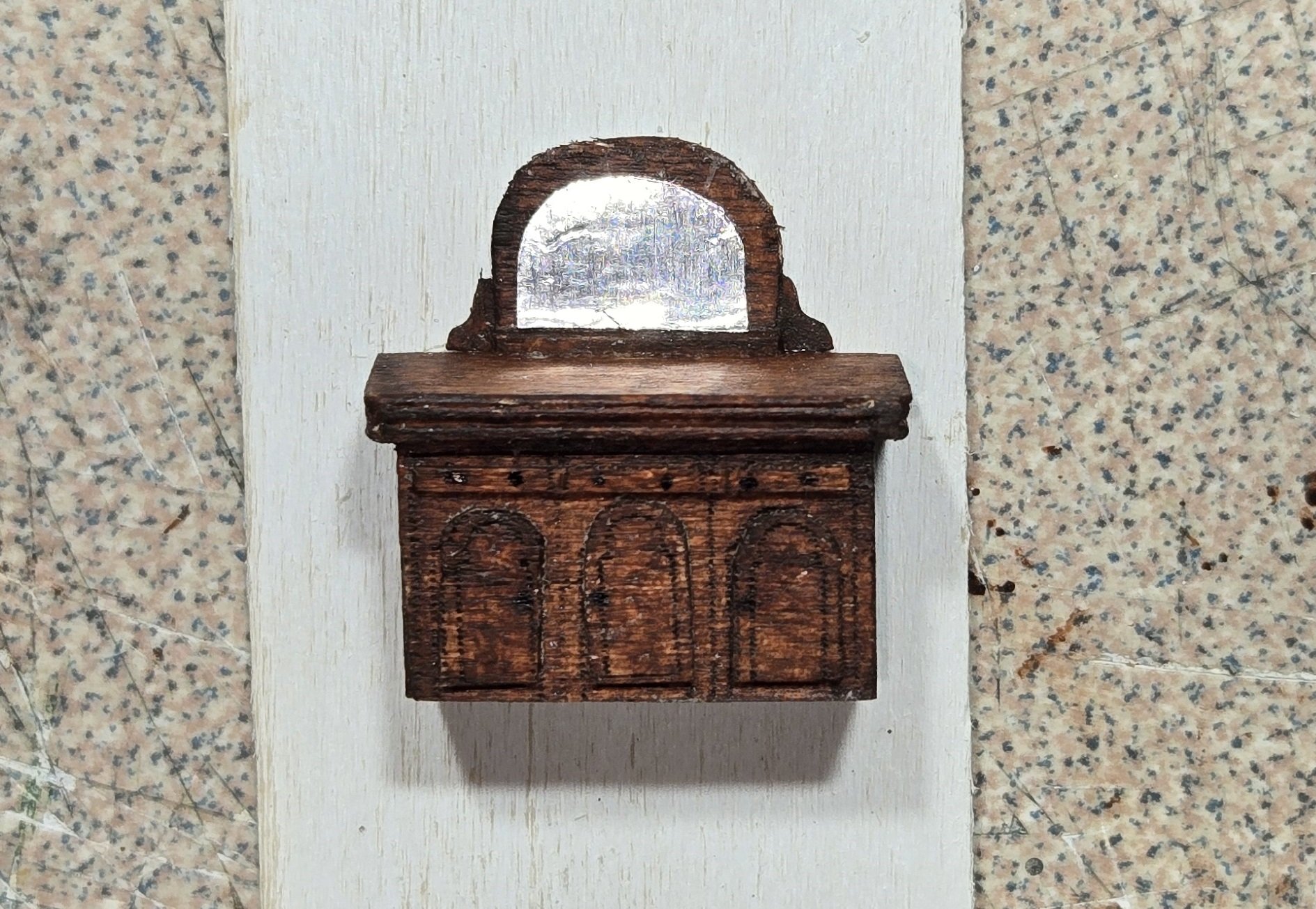

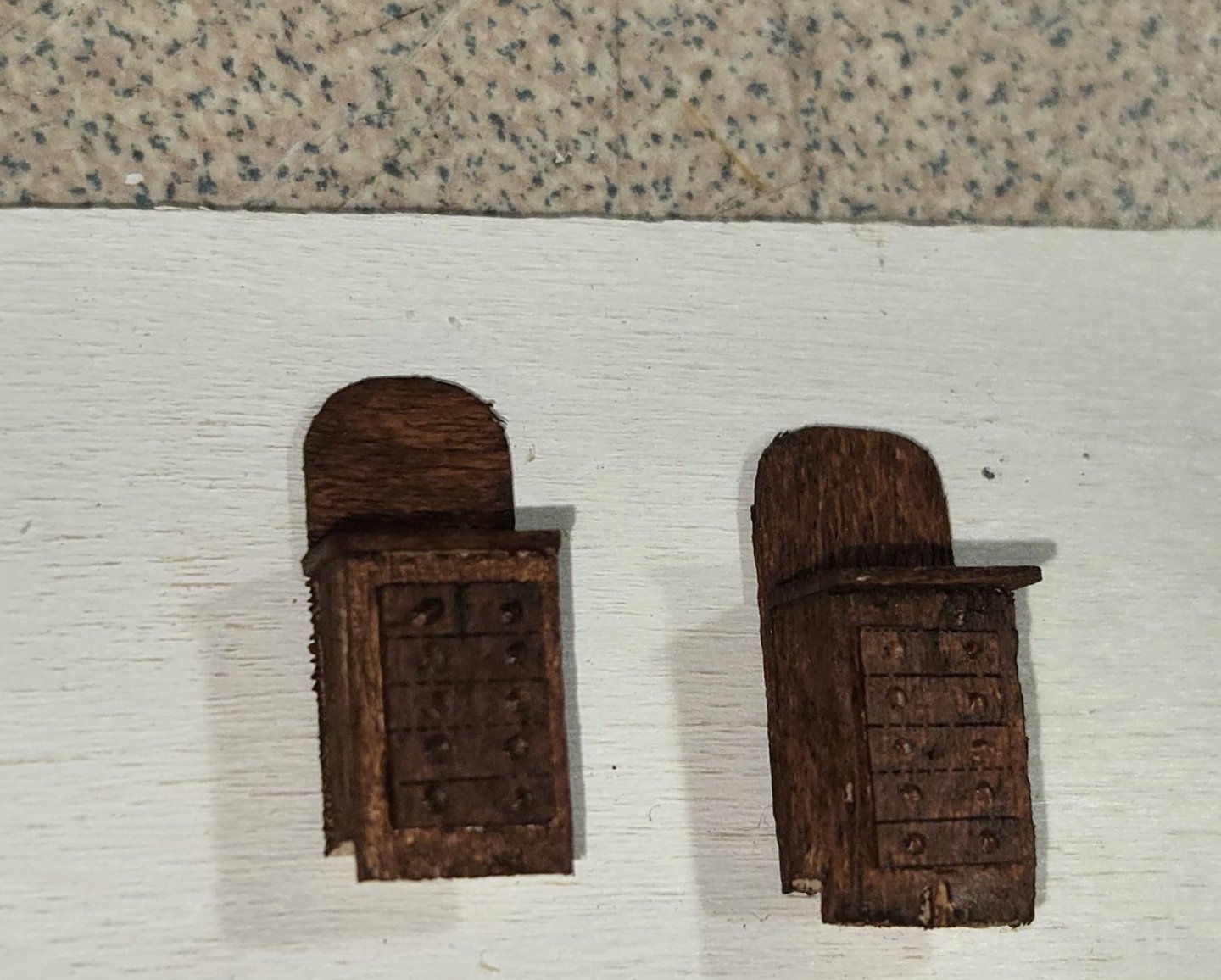

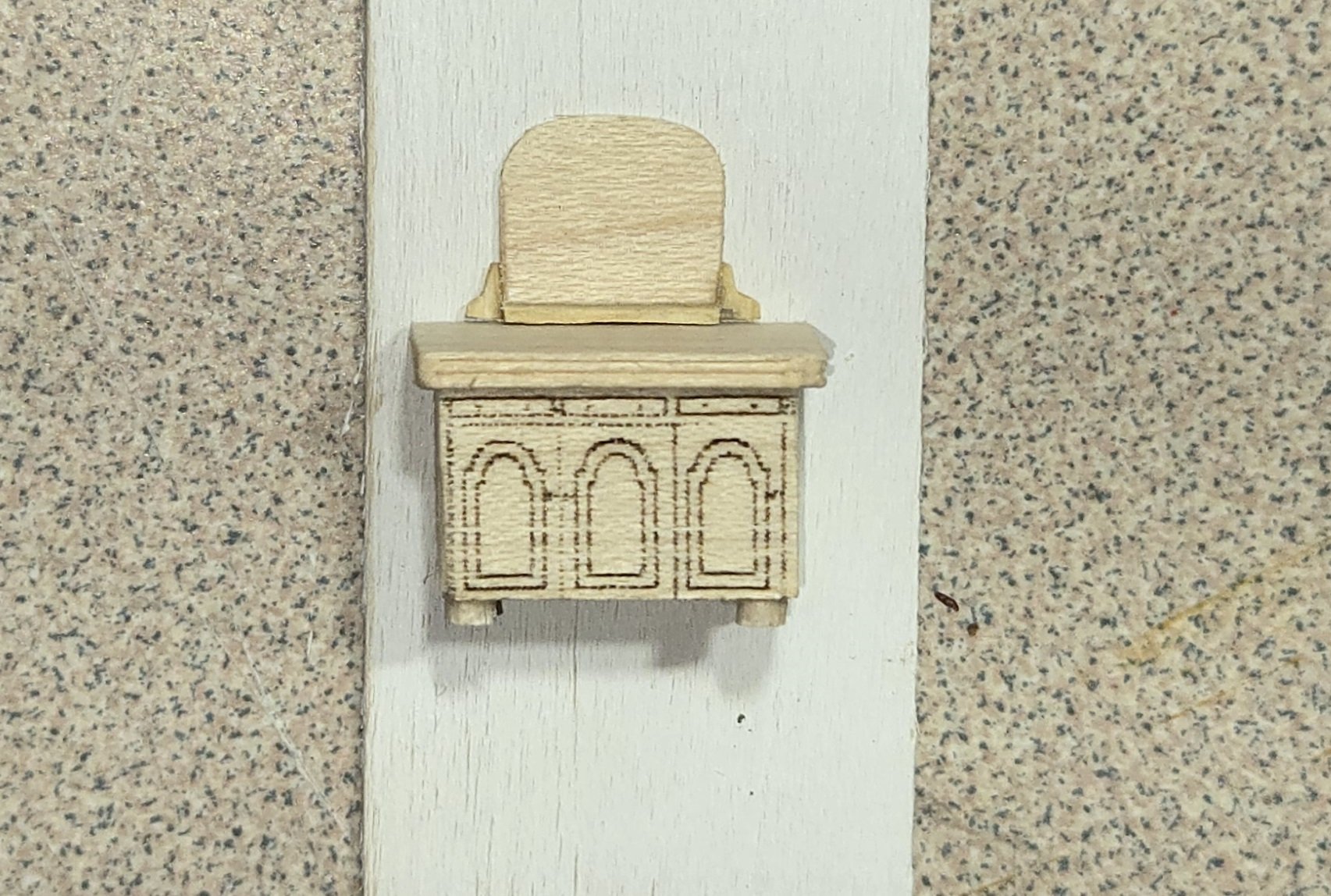

Of course I couldn't help but throw a few nautical maps on the table. I thought about getting a 3D print of the sideboard, but turned out that was going to cost quite a bit for someting that was hardly going to be visible. So I set about making one myself. The result wasn't too bad. I took aphoto prior to staining to show the details a little better

Unfortunately, after making this lovely little piece, I found that my calculations were off a little and the piece sat about 2mm too tall. So I had to trim off the feet and shorten the mirror just a little. Again, since this will be barely visible in the end, no one will know the difference. After staining, I had hoped the door details would show through, but with the dark mahogany color, the black lines were  barely noticeable, so I cut out some raised panels and drawer faces to add to the front. To make the mirror, I used aluminum tape, the kind they use on AC duct work. Here's the final look



It looks a little empty just sitting there, so I'll have to think of something to set on top of it.

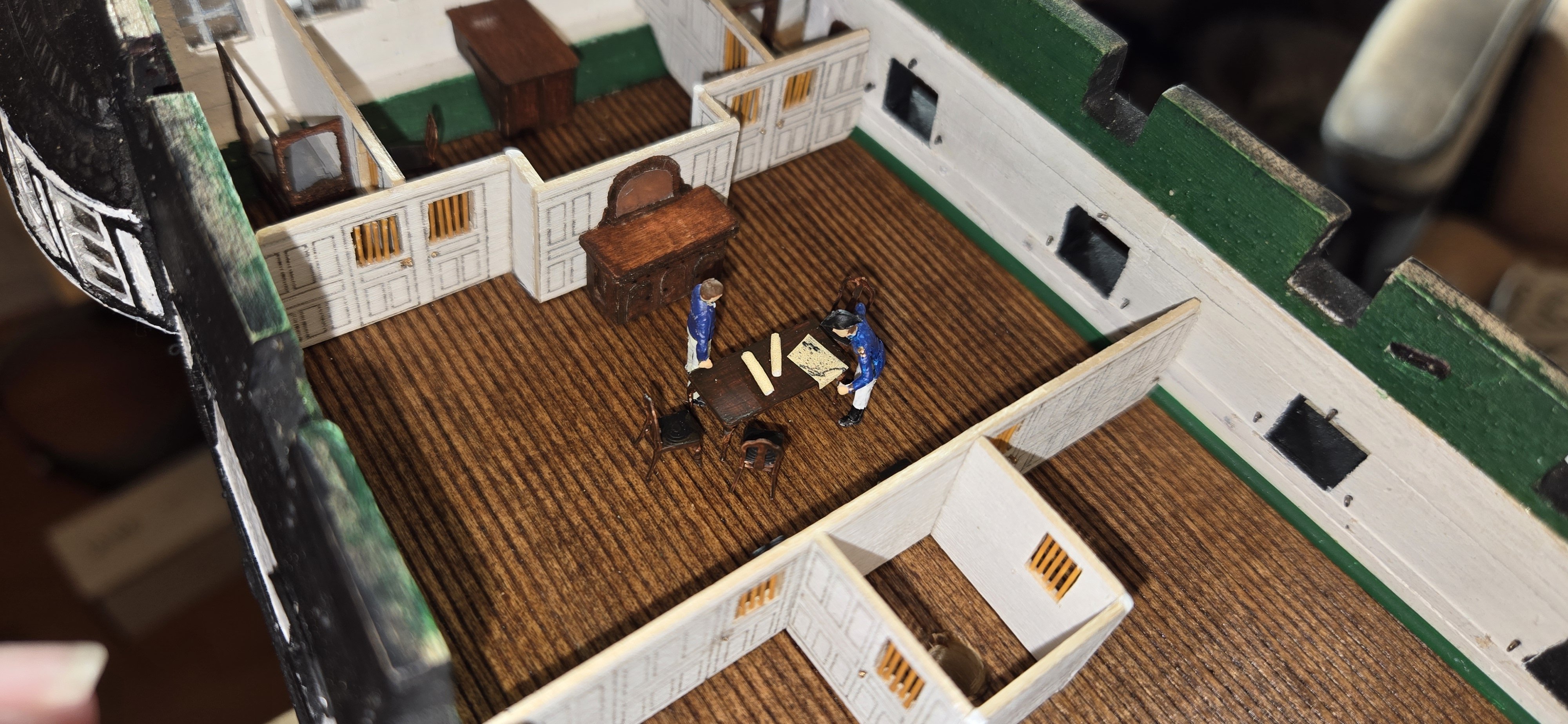

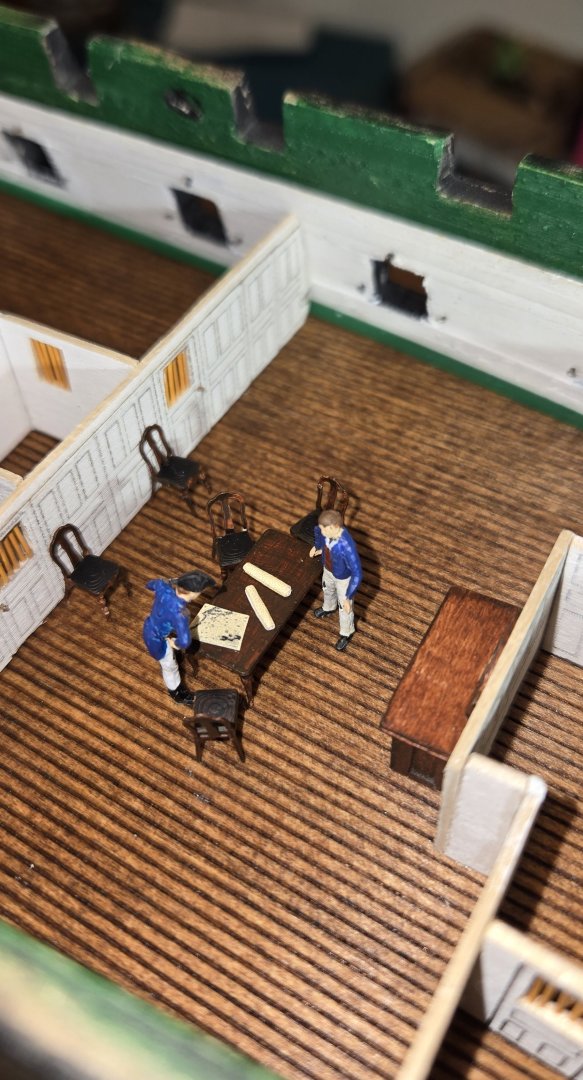

Here's a couple photos of the forward cabin with furniture in place. Naturally I had to bring some life to it and so I put some characters in as well. The captain is looking at the map, which by the way is a shrunk down copy of the east coast around Martha's Vineyard in the early 1800's.

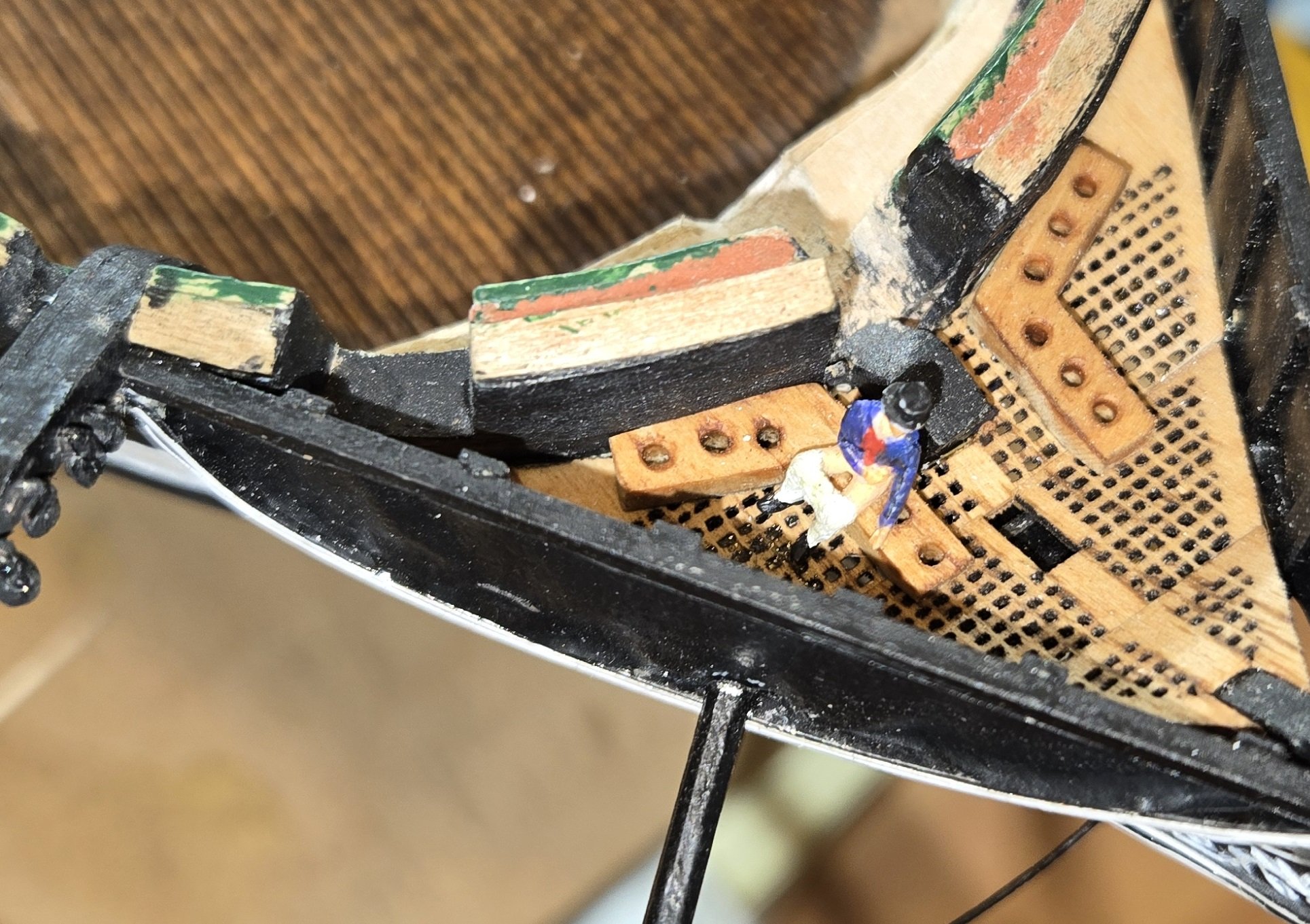

And of course since I was having fun painting little people, I figured I need to have someone in one of the most important places on the ship





At least now, people looking at the model will know what those little "L" shaped pieces are for.

I figured before I get the rest of the deck too filled up and busy, I better take care of the gunports and knees while I still have room. I got started installing all the eyebolts needed for the gun tackle. The 1/32 eyebolts supplied in the kit are way out of scale, so I used #16 fly hooks. These are actually still a little bigger than they should be (0.016" hole), but anything smaller will be difficult to attach anything to. I had originally planned to use two eyebolts, one on top the other, with a pin for the breaching lines, but quickly realized this was not going to work as everything gets too bulky and it will be impossible to try to tie to. I'm going to have to think about that one a little bit.



[JSGerson]

Well done! And I love your sense of humor. I bet you have the only model of the USS Constitution demonstrating the use of the "seats of ease."🤣



Jon

[g8rfan]

Thanks Jon, its the first I've seen. I figure if you're going to build something like this, you have to have fun with it.



I think I figured a good solution to the breaching lines. The instruction manual that came with the kit gave the following diagram of a "typical" configuration for the 24 pound guns. It shows the breaching line attached to the bulwarks with an eyebolt and ring. That's not the current configuration but certainly plausible and much easier to do, so that is what I'm planning

[Knocklouder]

Nice work, I definitely got a belly laugh when I saw your sailor demonstration the seat of ease. Great stuff

Bob  M.

[JSGerson]

I have completed the gun deck on my model and followed the photos of the real ship for fastening the ropes and tackles to the bulwarks. I am doing the same thing for the spar deck now. It was a little tricky to attach the recoil ropes between two eyebolts and adding a pin to lock them in place, but I made it work. If you are going to seize your block and tackle directly to the bulwark eyebolts, DO NOT attach the eyebolts to the bulwark first. It will be a b*tch seizing the lines to the eyebolts on the model. Seize the lines to the eyebolts off-ship, then insert the eyebolt with the attached tackle into bulwark. Personally, IMHO, I believe the use of hooks would have been more practical on the ship for quick and easy replacement when it was required.



Jon

[g8rfan]

Thanks Bob, glad you enjoyed the humor.

Jon, I'm right there with you. I thought about the process of tying off to an eyebolt that was already on the bulwarks and agree it would be far more than difficult. Best to attach the breaching lines and then insert the eyebolt. I plan to build a mock up to get everything just right prior to installation. I'm still sticking with the eyebolt/ring configuration. At 1/76 scale, the double eyebolt can be pulled off, but at my scale, to make it work and look  good, you would have to be close to actual scale and that is just not possible. It will hardly be visible anyway, so I'm going to settle. looking forward to doing the guns, although with 30 of them, I know it is a lot of work ahead of me.



[g8rfan]

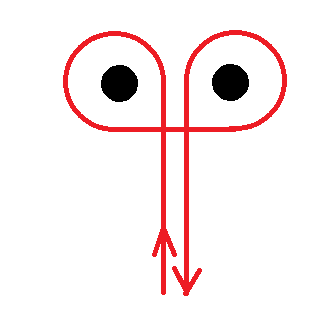

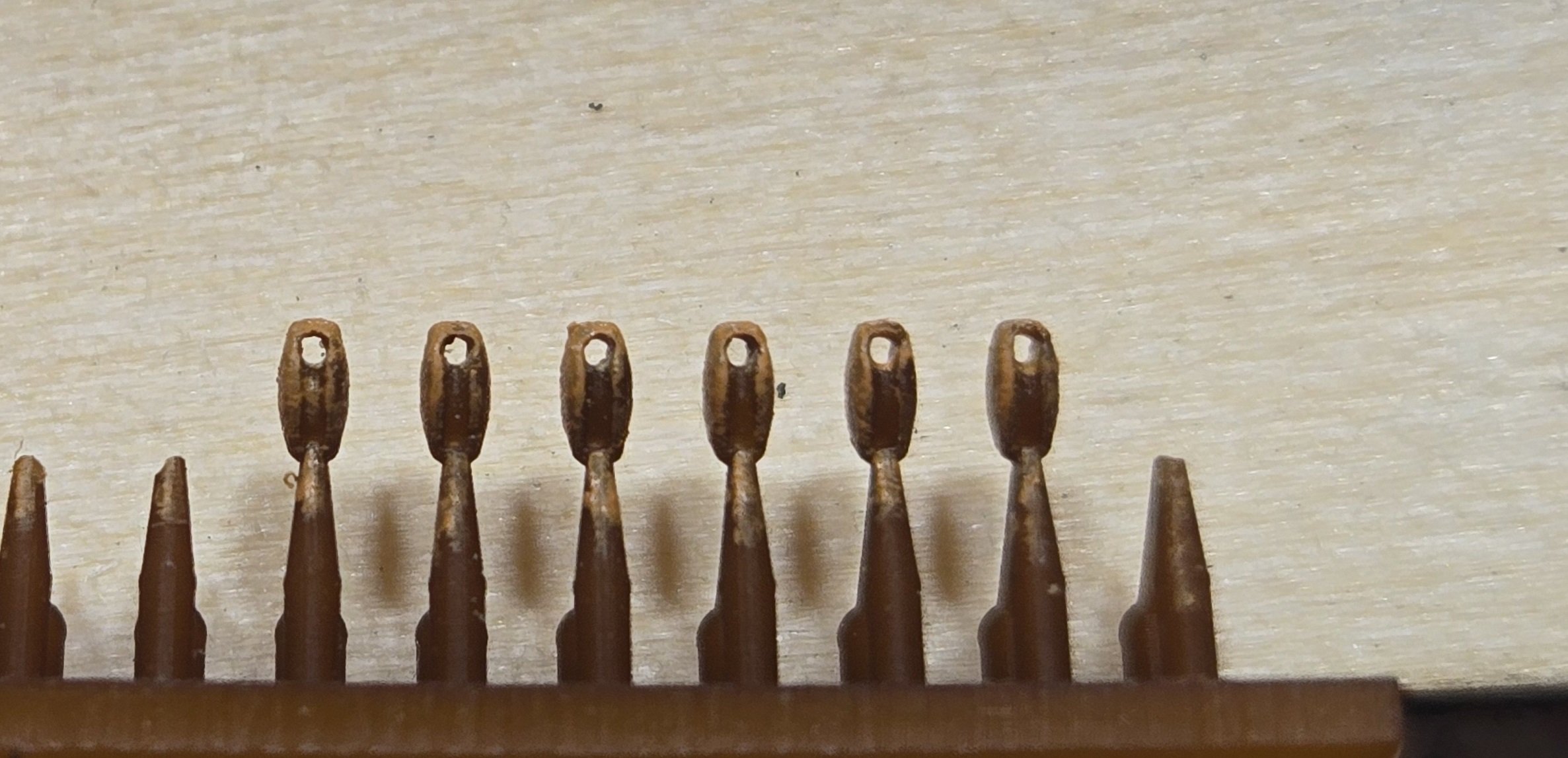

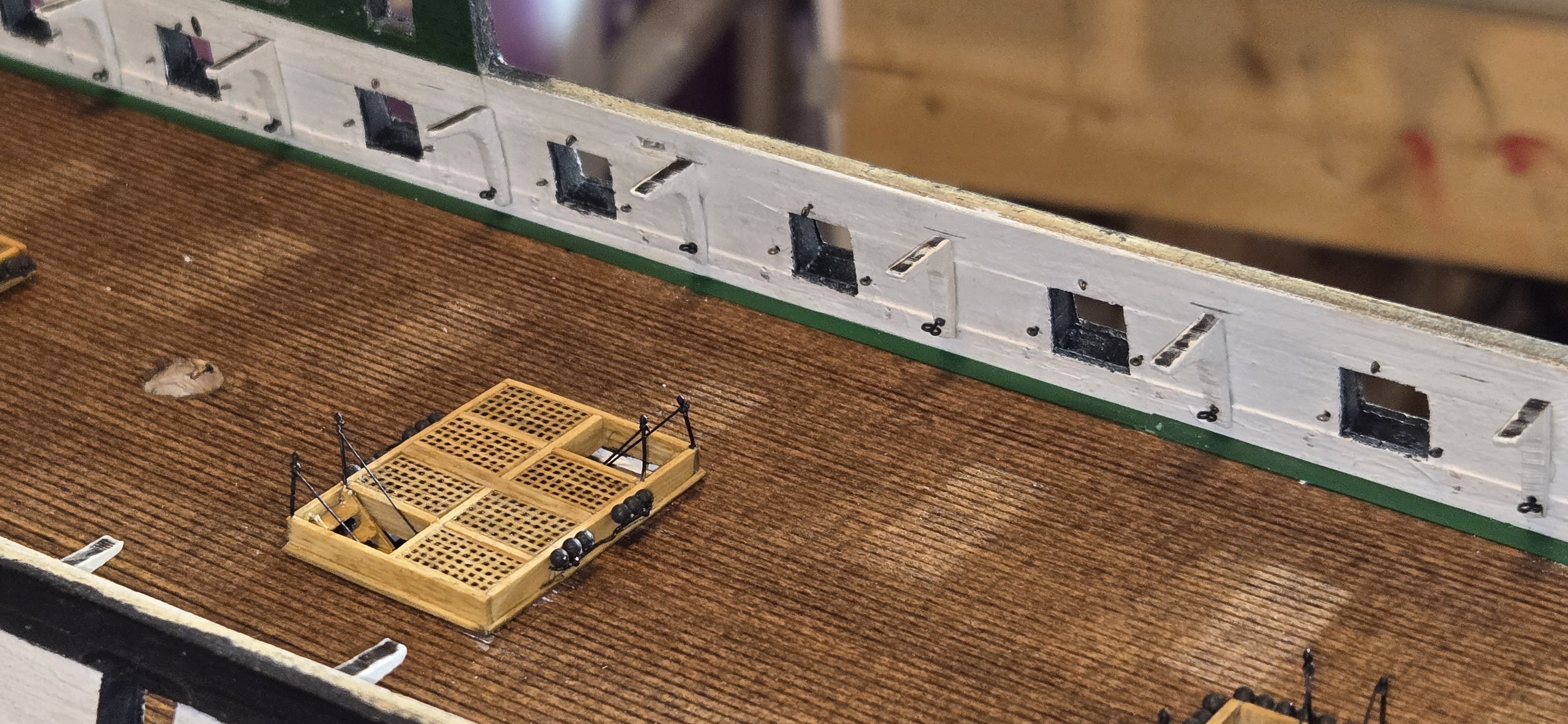

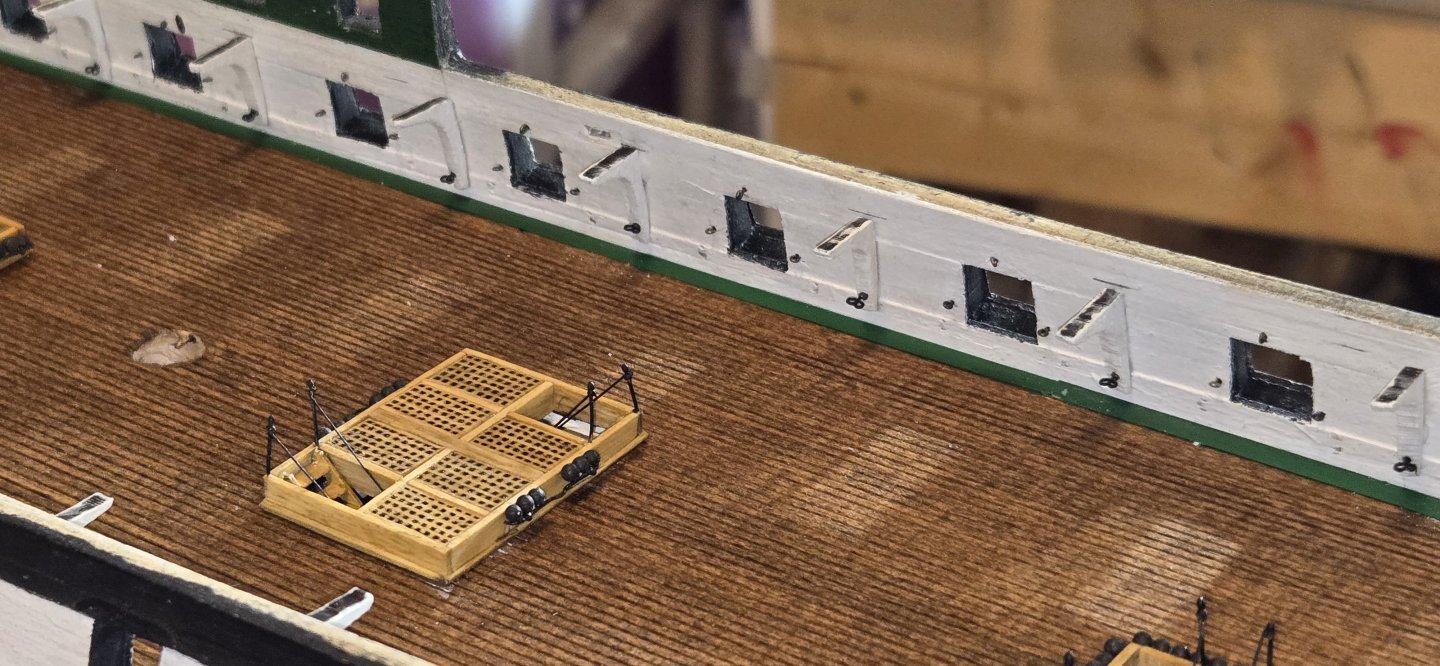

I got all the hanging knees cut out using the laser. These were then individually numbered and shaped to fit the bulwarks. The eyebolts for the side tackle are located on these knees and are "double" eyebolts. To make these, I made a little jig by drilling two small holes, very close to each other, in a piece of wood. I inserted very stiff wire into these holes and cut them short. The eyebolts were then made by wrapping 26 ga. wire around the two wires like this

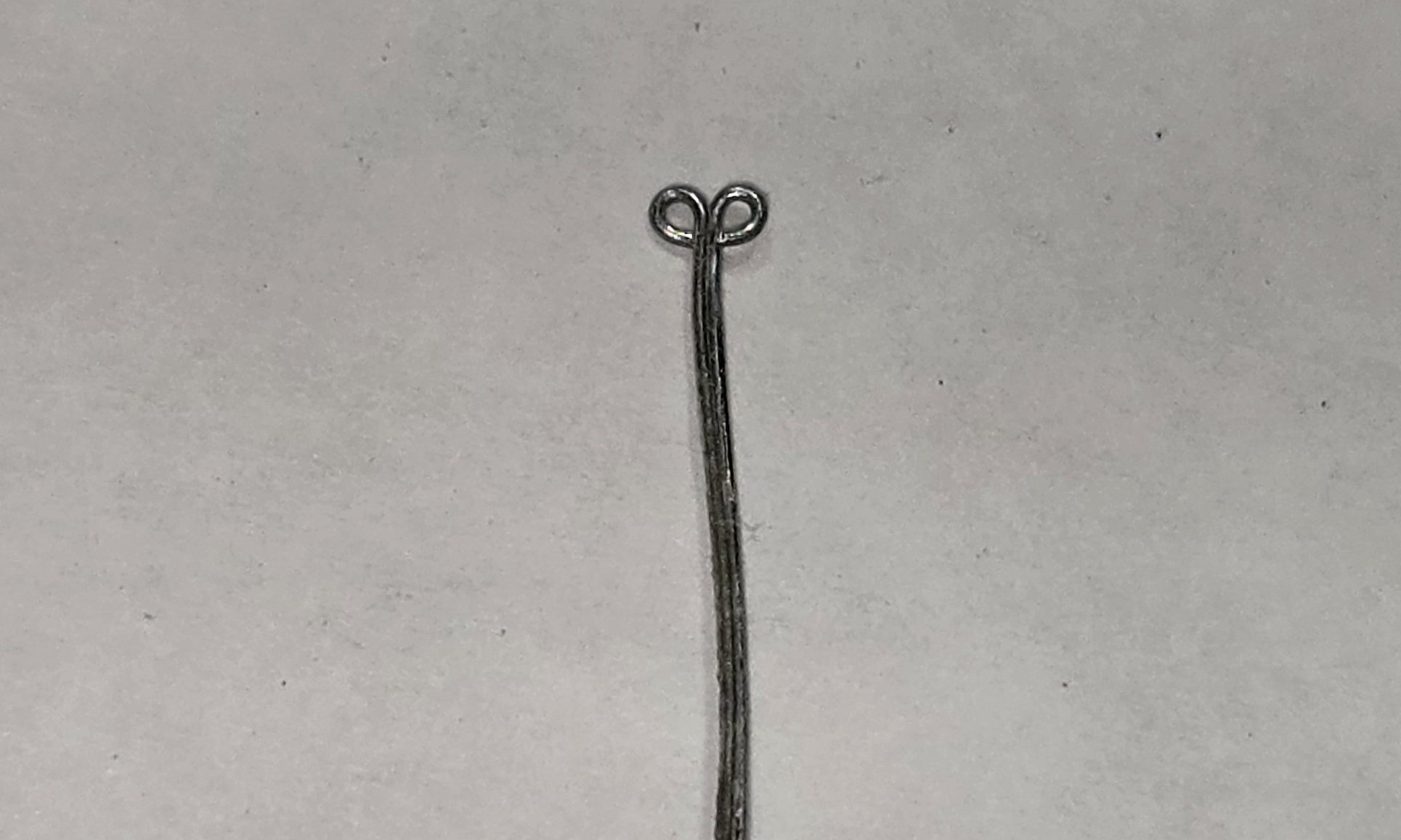

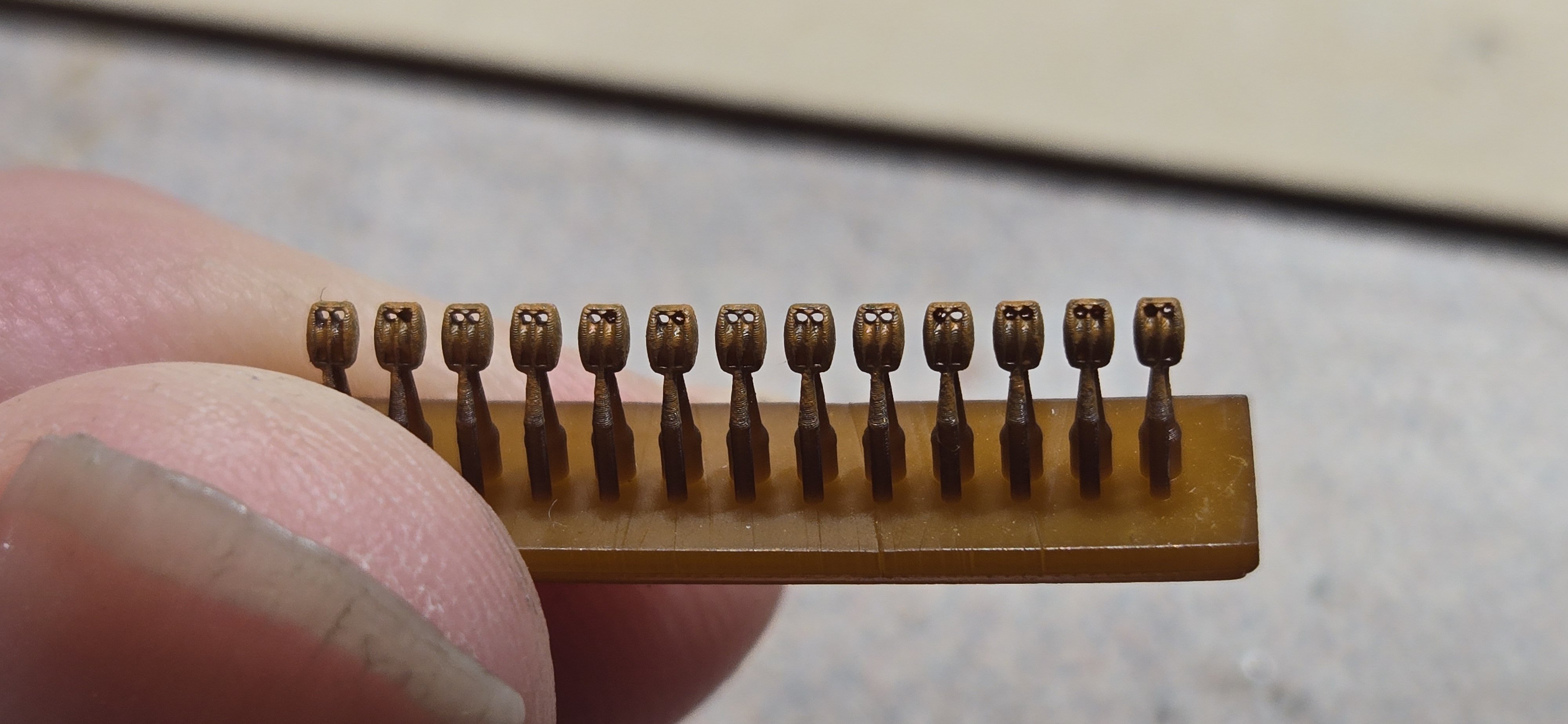

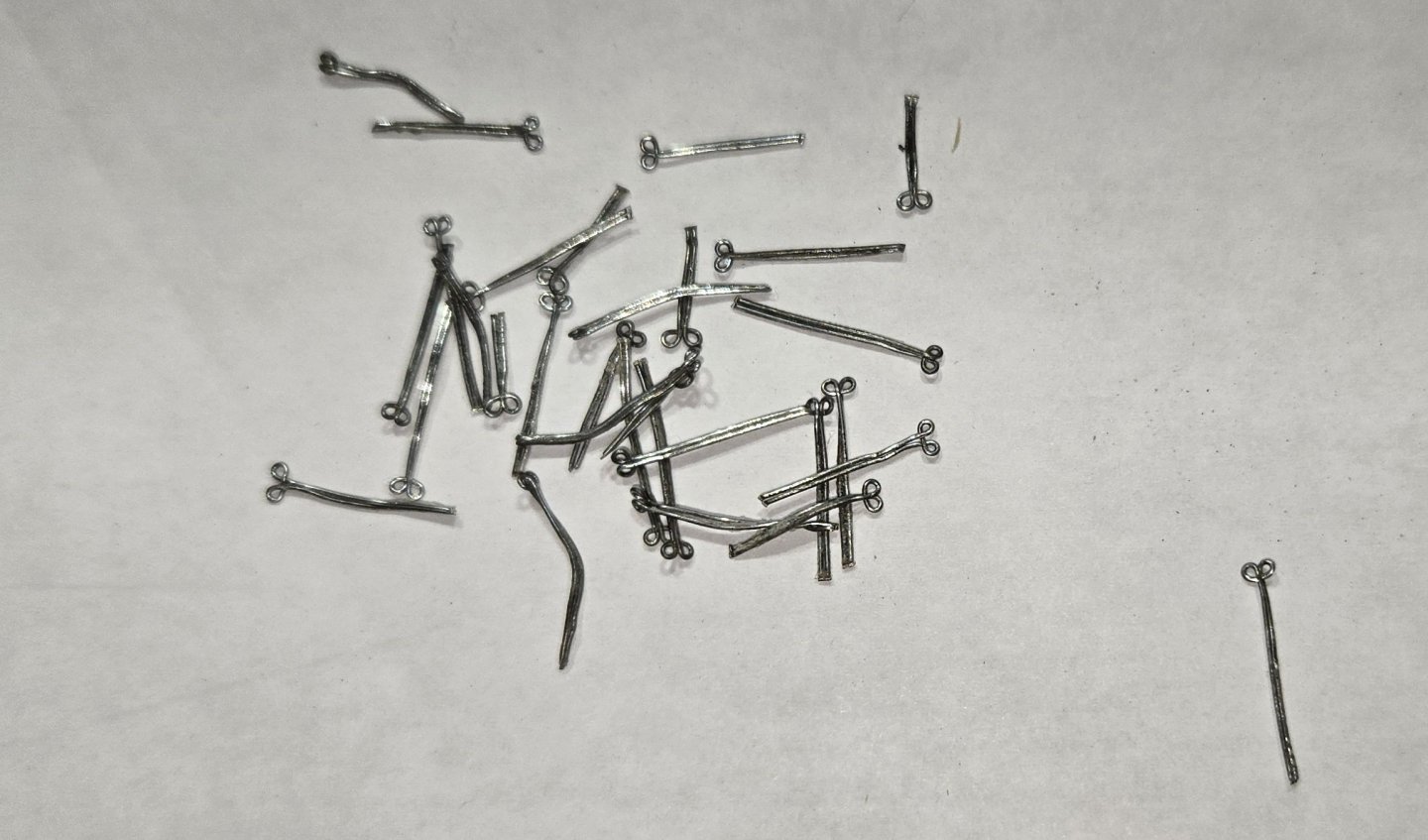

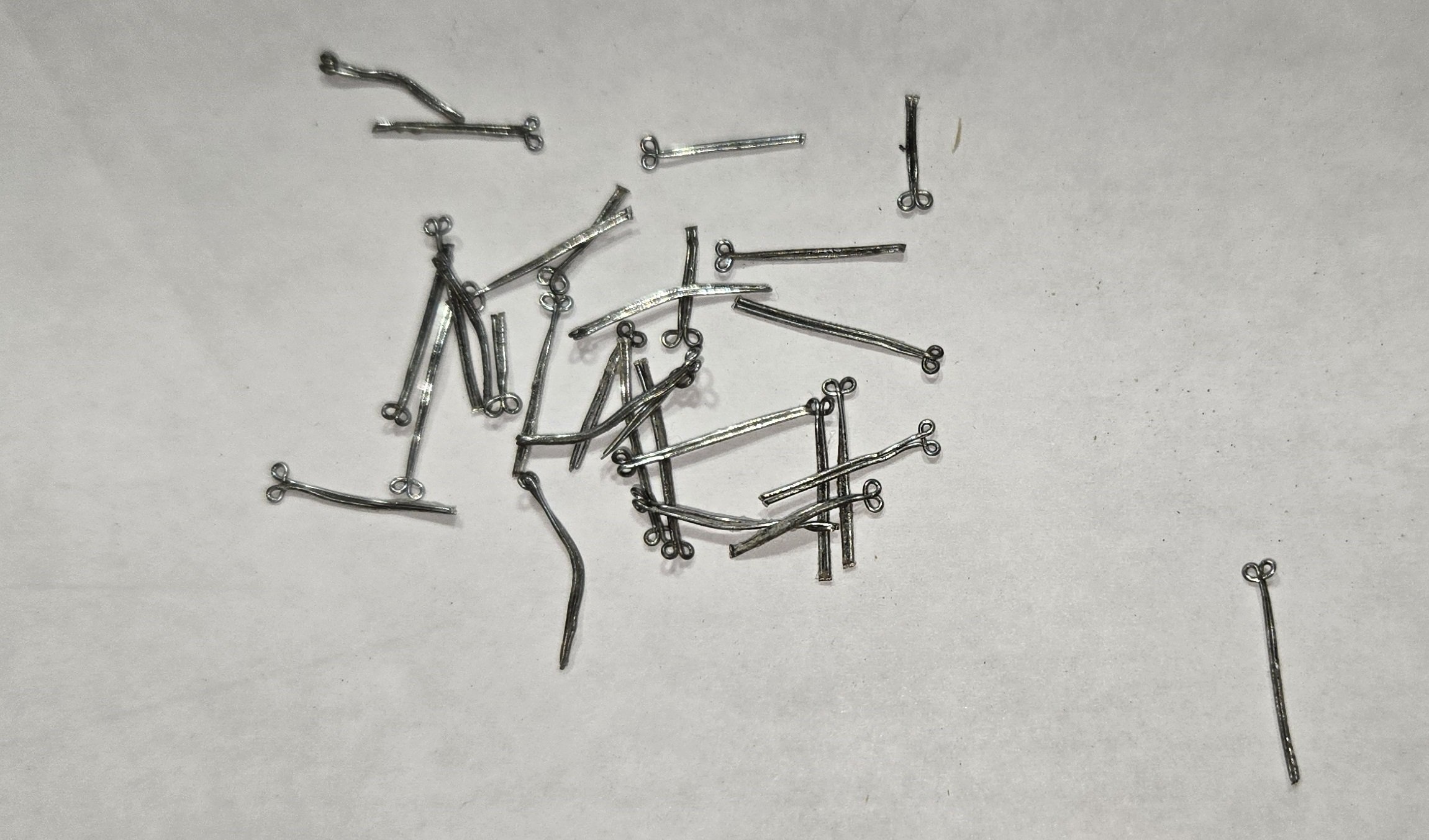

Here's what I ended up with

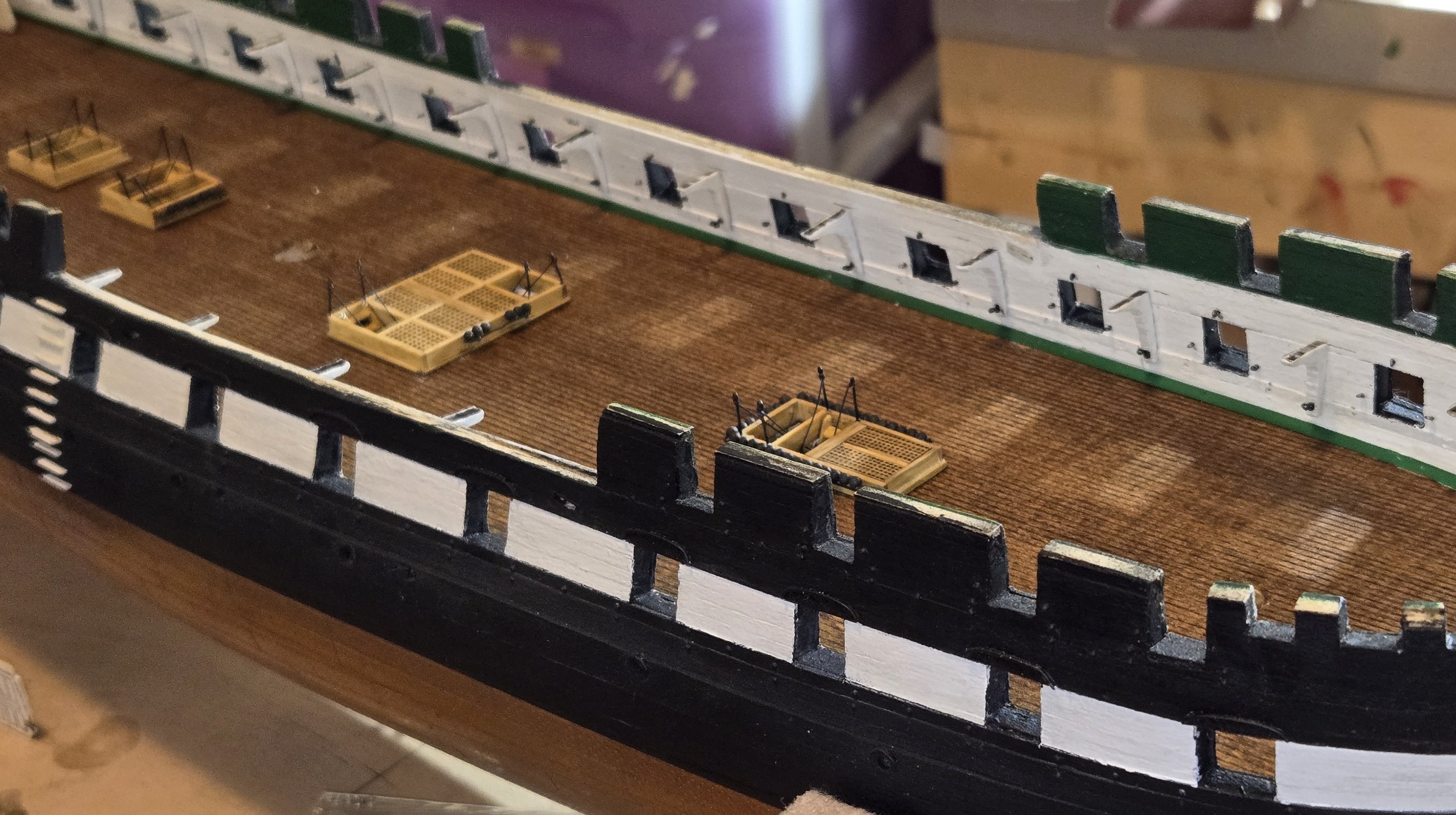

The long ends were glued together with CA to keep everything tight. I then drilled a hole into the front of each knee and inserted an eye bolt  with a little epoxy to hold it in place. Once the epoxy set, the long piece sticking out the back was cut flush. Of course the knees and the eyebolts were painted prior to assembly. Finally all the knees were glued into place



I also made up all the diagonal knees, but I'm going to wait to install these until I'm ready to put the spar deck beams in place.

Next, I'm going to get started on the guns

[GGibson]

Very creative and successful way to make the double eyebolts, Frank!  Nice work! Will need to remember this when the time comes. 👍

[g8rfan]

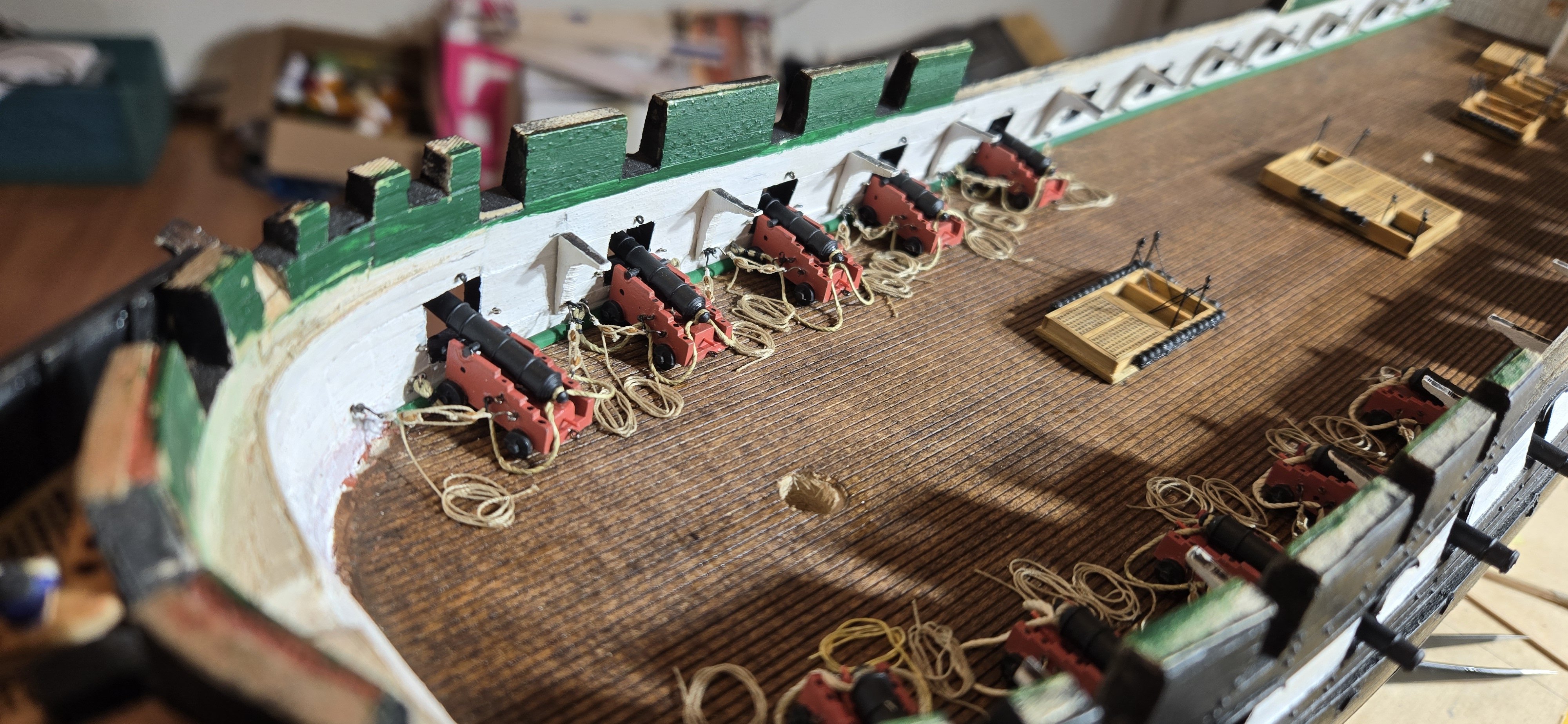

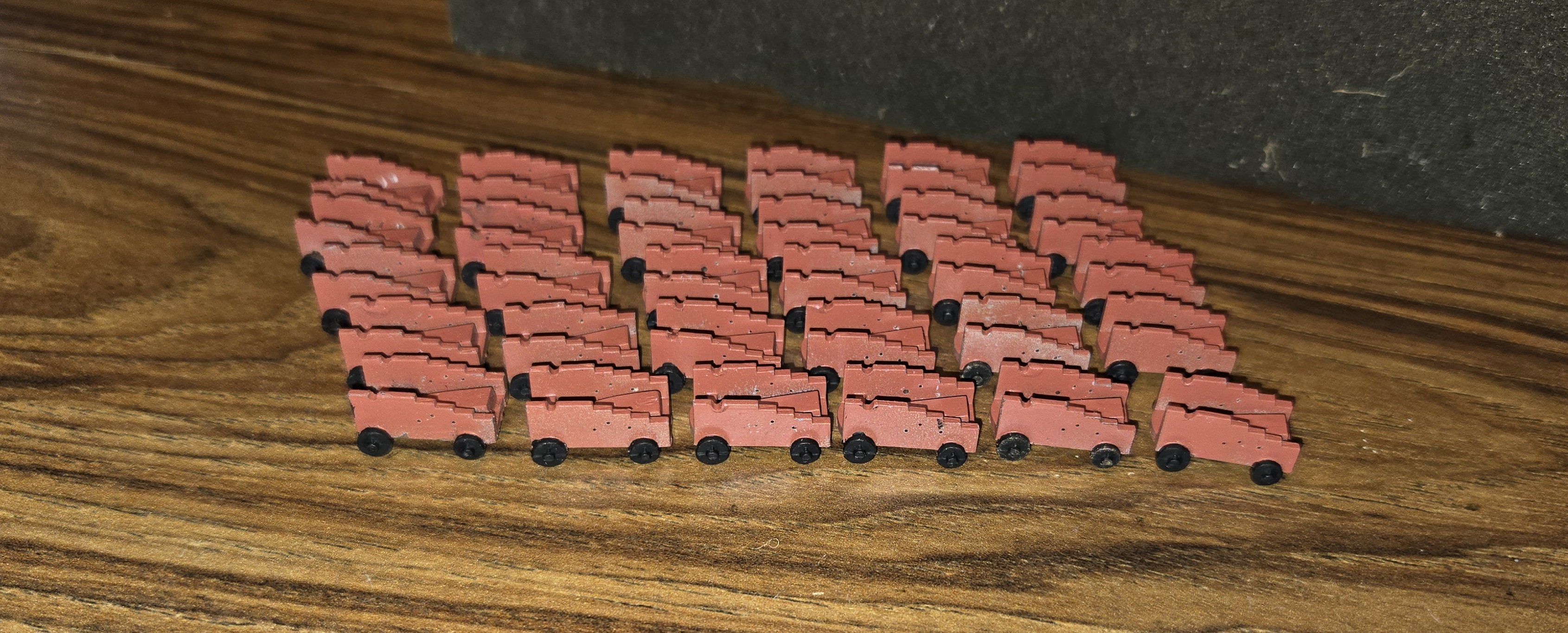

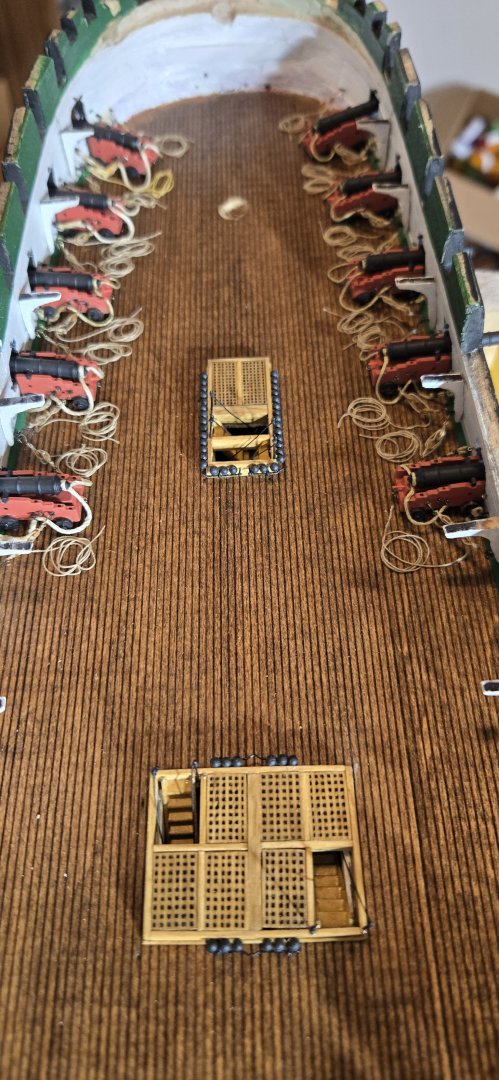

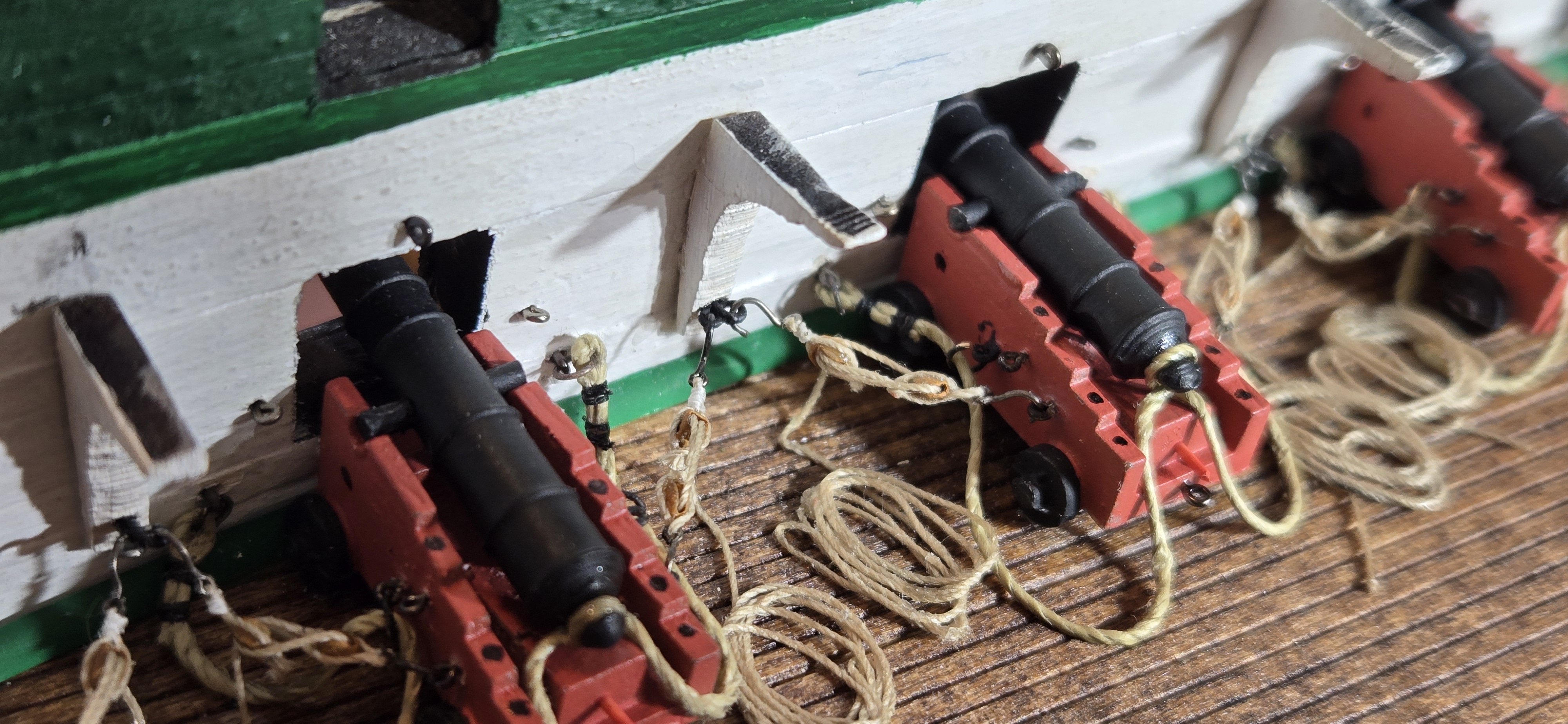

So, moving right along, having got the knees in place and all the eyebolts attached, I planned to get to work on the guns. I figured it would be best to work my way from the out side inward, since the guns were going to be difficult enough to put in place. The carriages supplied with the kit are cast metal, with the trucks separate from the body. As with alot of these cast metal parts, there is a good bit of flash that needs to be cleaned up. I took a look at the carriages in the plastic Revell kit, and they were alot cleaner. They are all one piece, The bottom is solid, which is not really accurate, but that wont be visible at all once the cannon is in place. I decided to use the plastic ones. Although painting the wheels was going to be more difficult with them already attached, I figured it would be easier than cleaning up the cast metal ones. Trying to match the color of the carriages was a bit of a challenge. To me, the color is kind of a brick red, with a touch of terra cotta. Not a color paint that I could find, at least that I was happy with. I ended up mixing a color that I was satisfied with, 60/40 Vallejo SZ Red/ Hull umber and a bit of flat flesh.

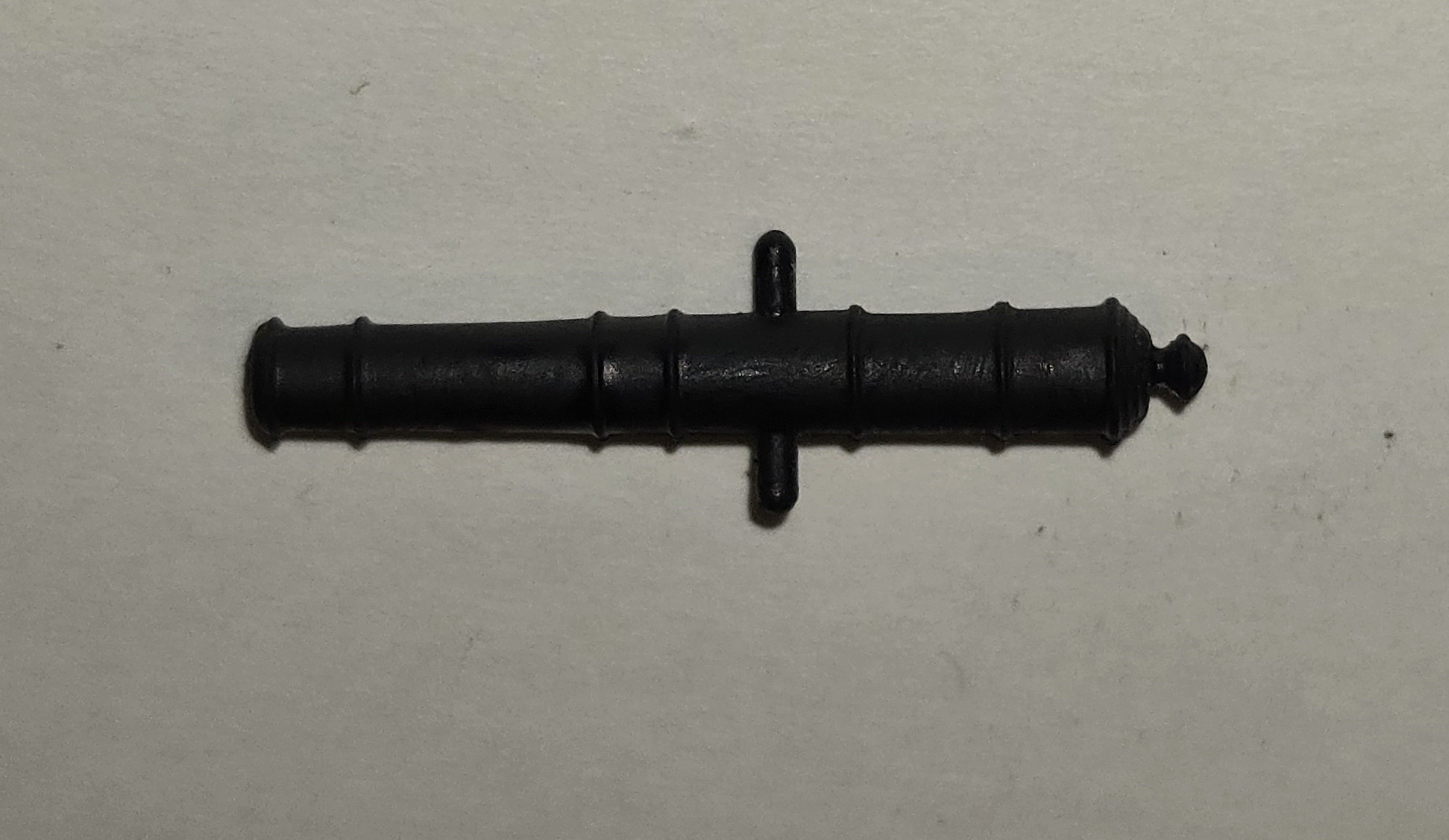

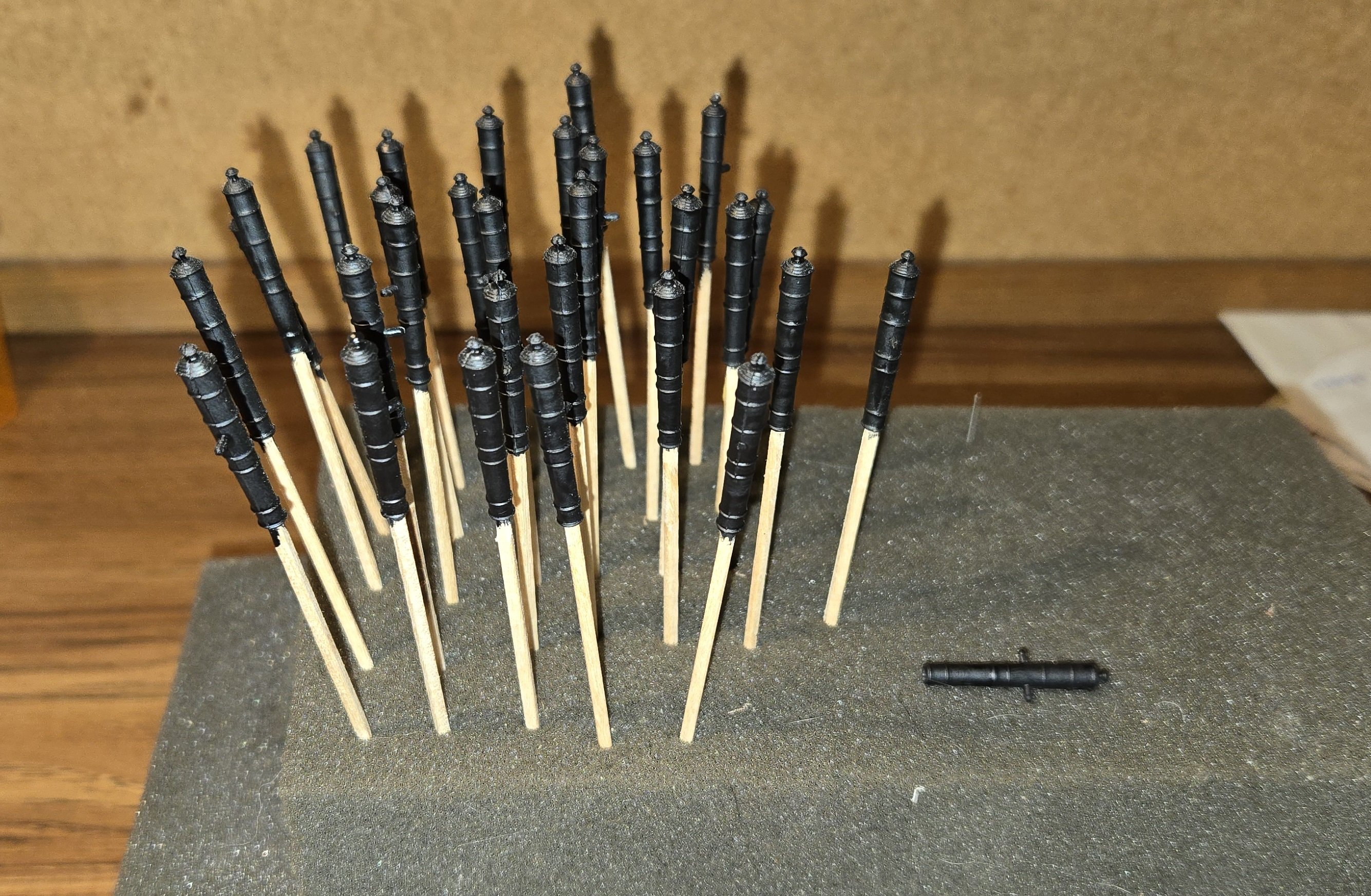

Next were the guns. Once again, the kit supplied guns are cast metal. The details are nice, and the cast metal has a nice surface to it. There were two main draw backs for these. The trunnions had a very significant bit of excess metal that needed to be trimmed away. Instead of a nice pin sticking out, it was more like a triangle.  The other thing I wasn't happy with were the barrels. These were solid and flat on the end, unlike the carronades, which are concave, giving a guide for a drill to follow. With a flat end, it was very difficult to center a drill bit. I used a small drill bit to first drill a hole in the center as a guide, but even with that effort, I still managed to blow out the sides of a half dozen or so, when switched to the larger bit. Again I went back to the Revell kit. The cannons in this kit come in two halves that have to be glued together. Unfortunately, the person I purchased this kit from had already glued these all together, and did not do that great a job. Many of the seams had gaps, none of the flash had been removed and on several of the pieces, the halves were not lined up well. Still, the barrels are hollow, and the details were very nice, so I decided to try and clean them up. The whole process went very well, and although I did manage to knock off several of the trunnions, I was very happy with how they turned out. I'll use some wire to replace the trunnions that didn't survive the clean up.

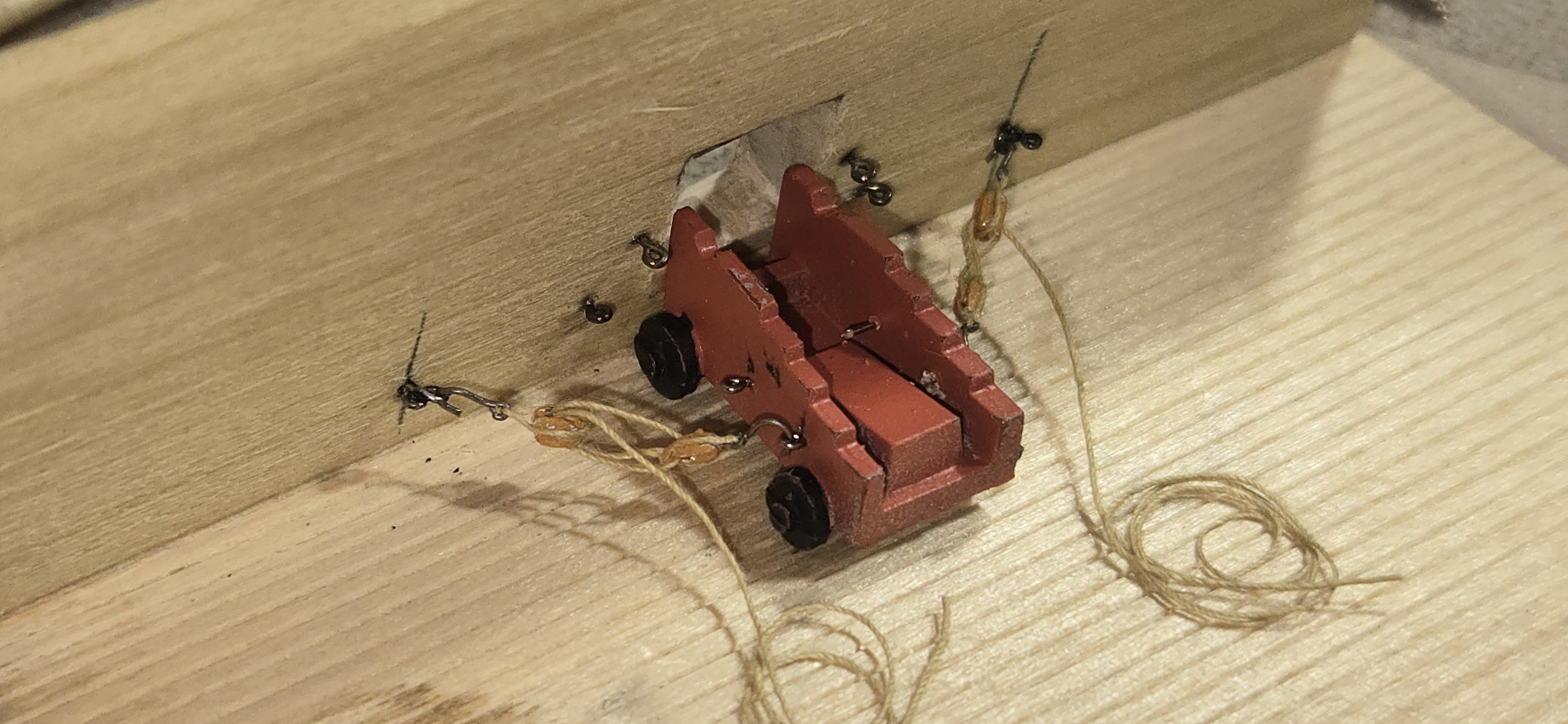

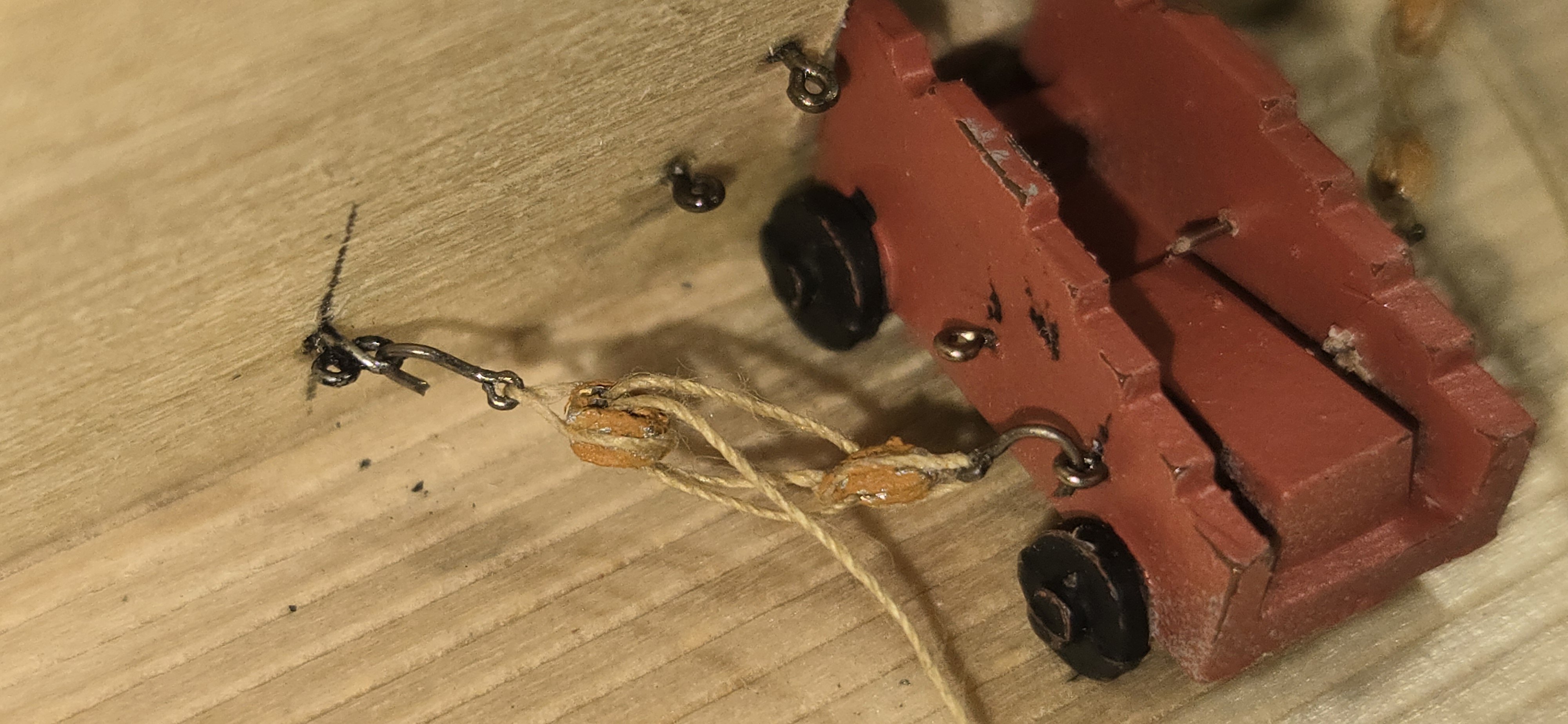

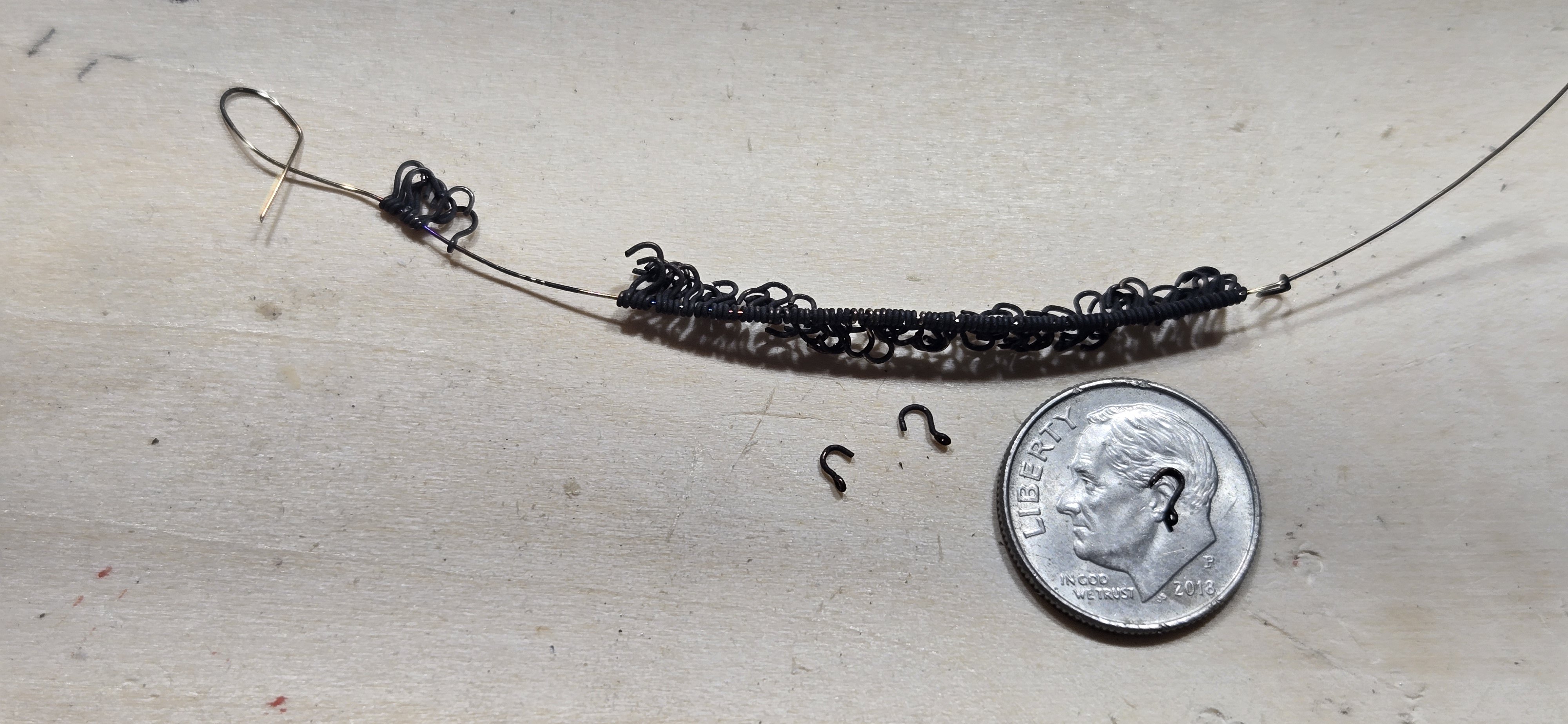

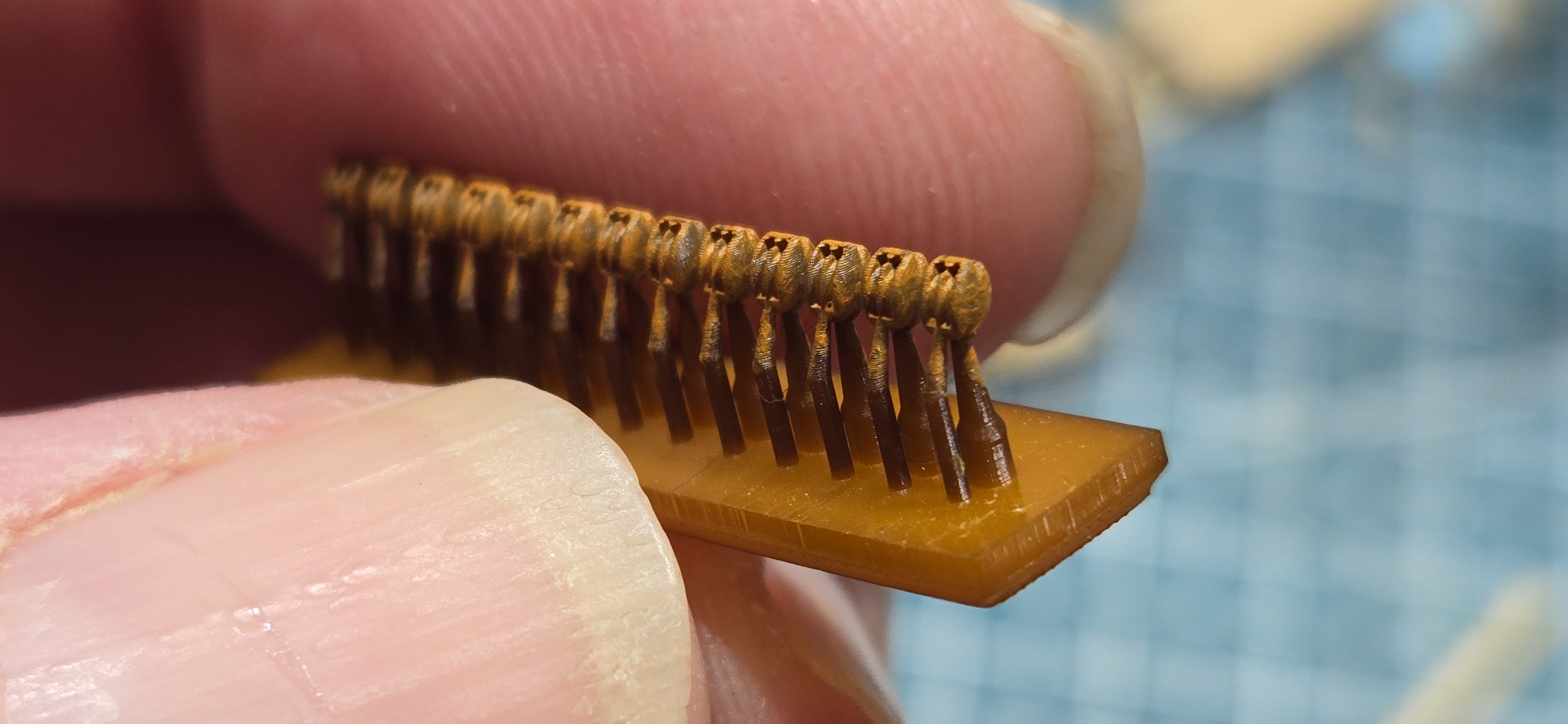

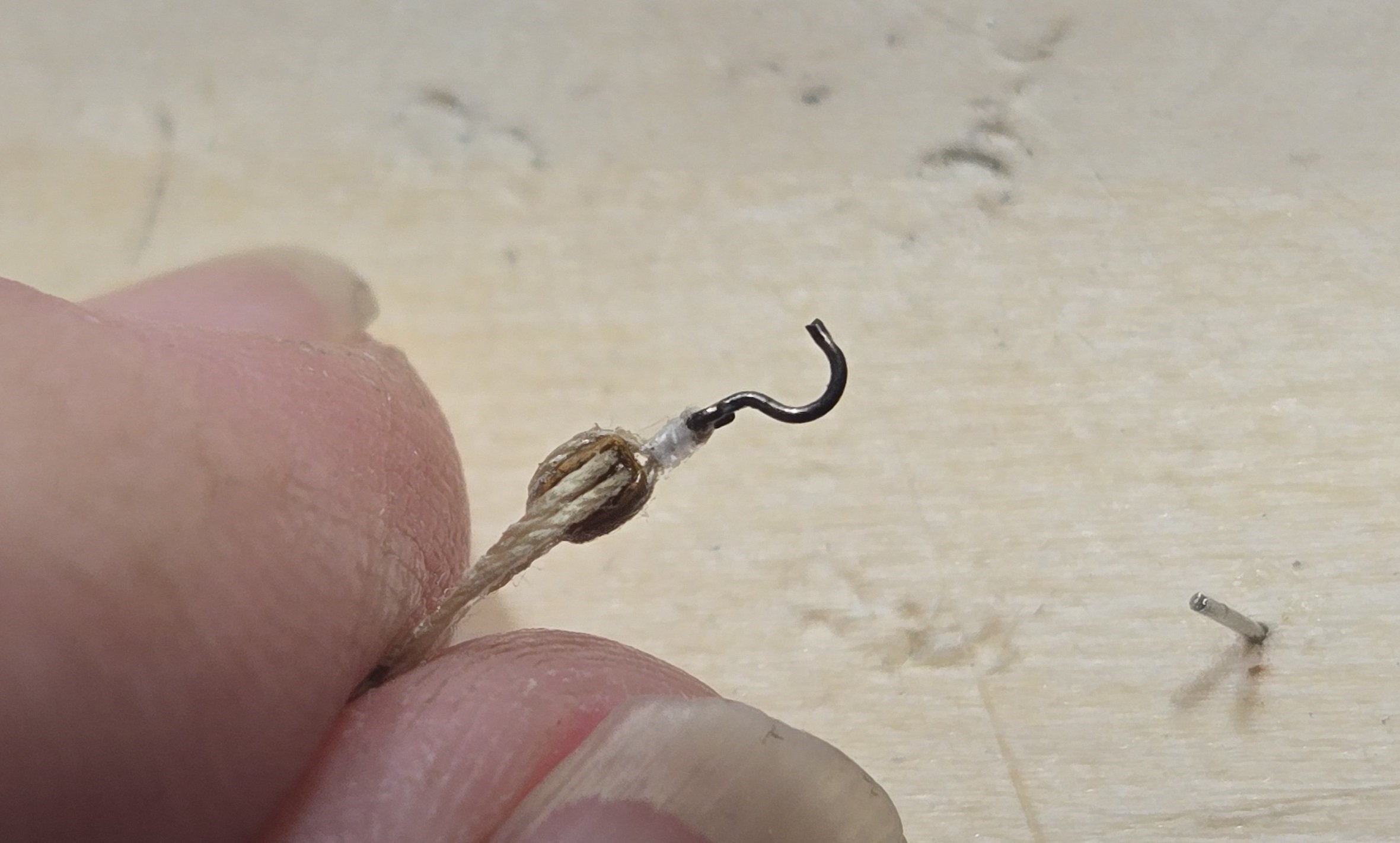

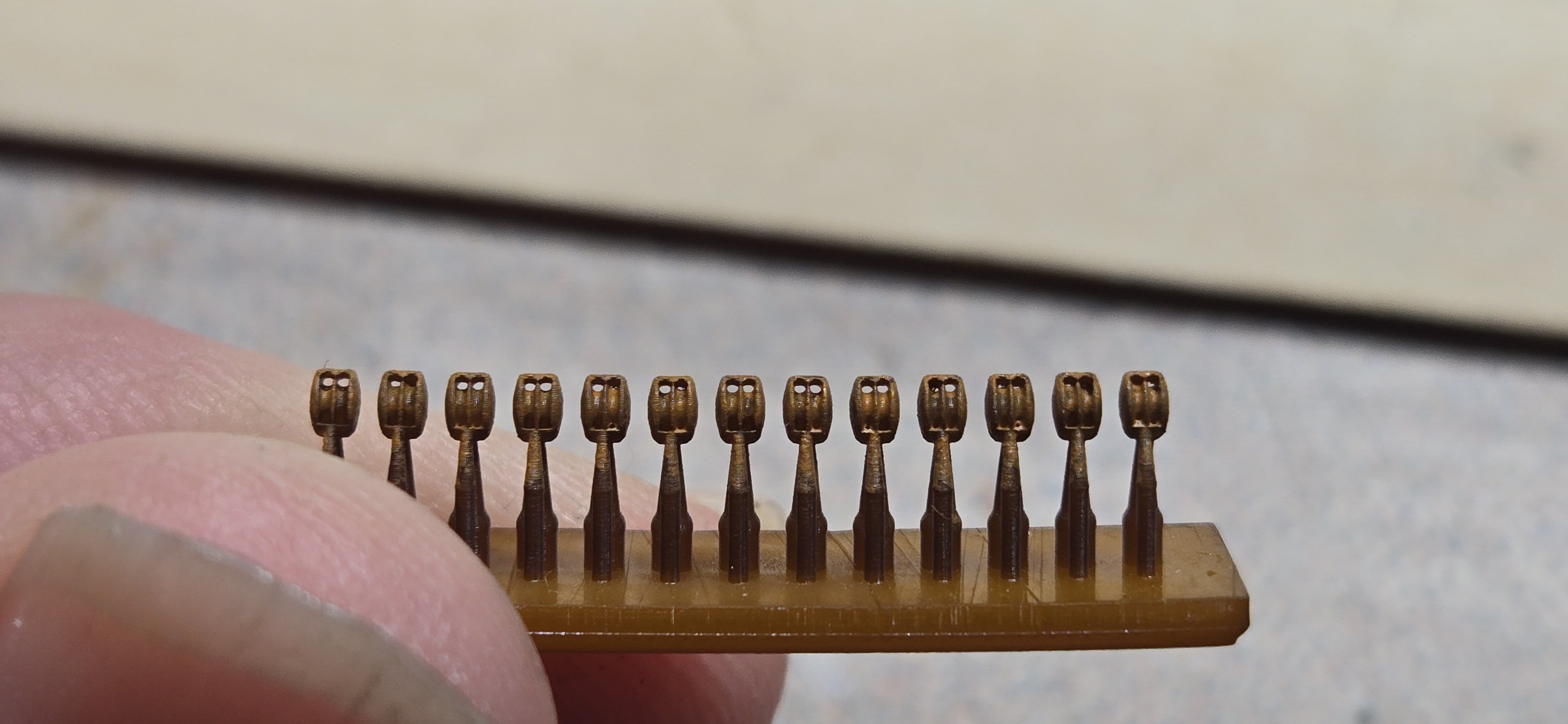

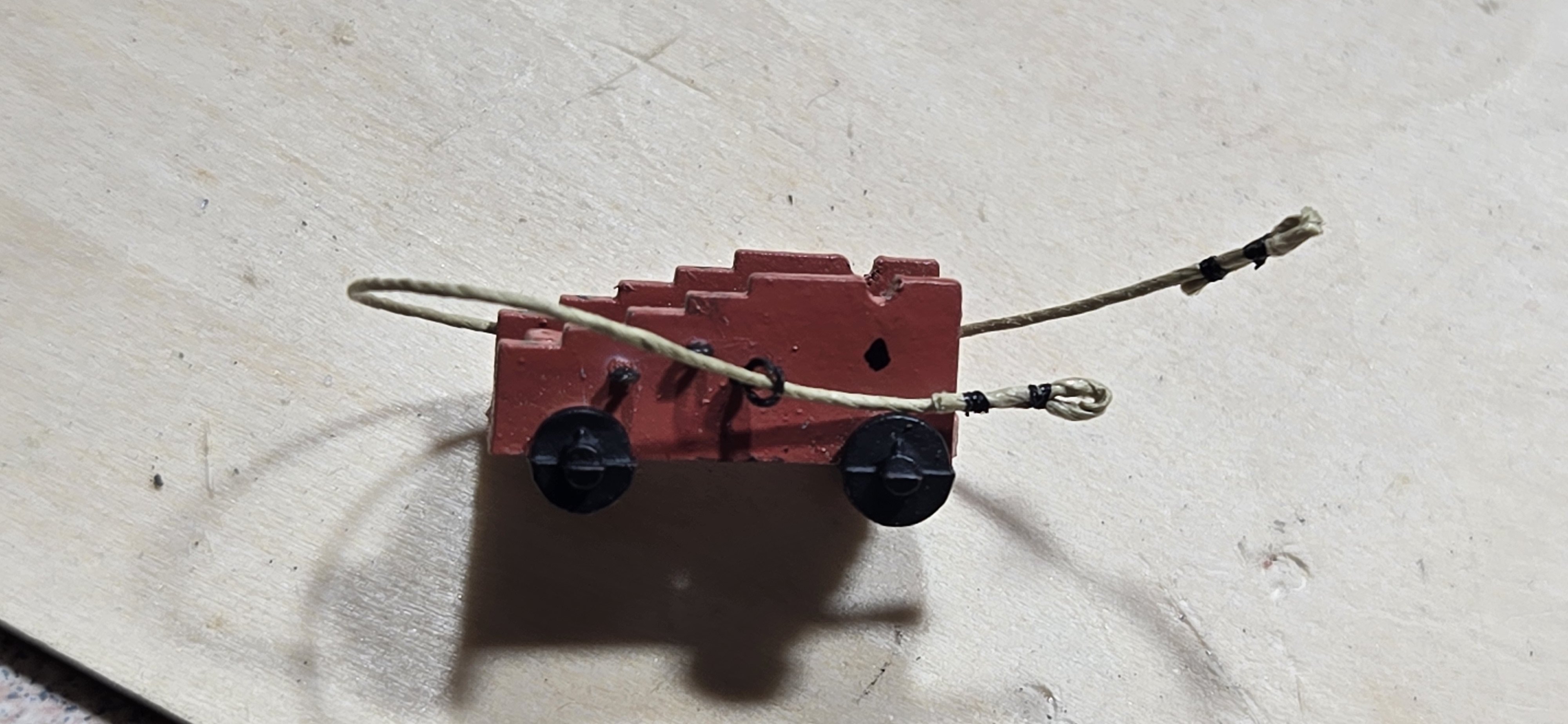

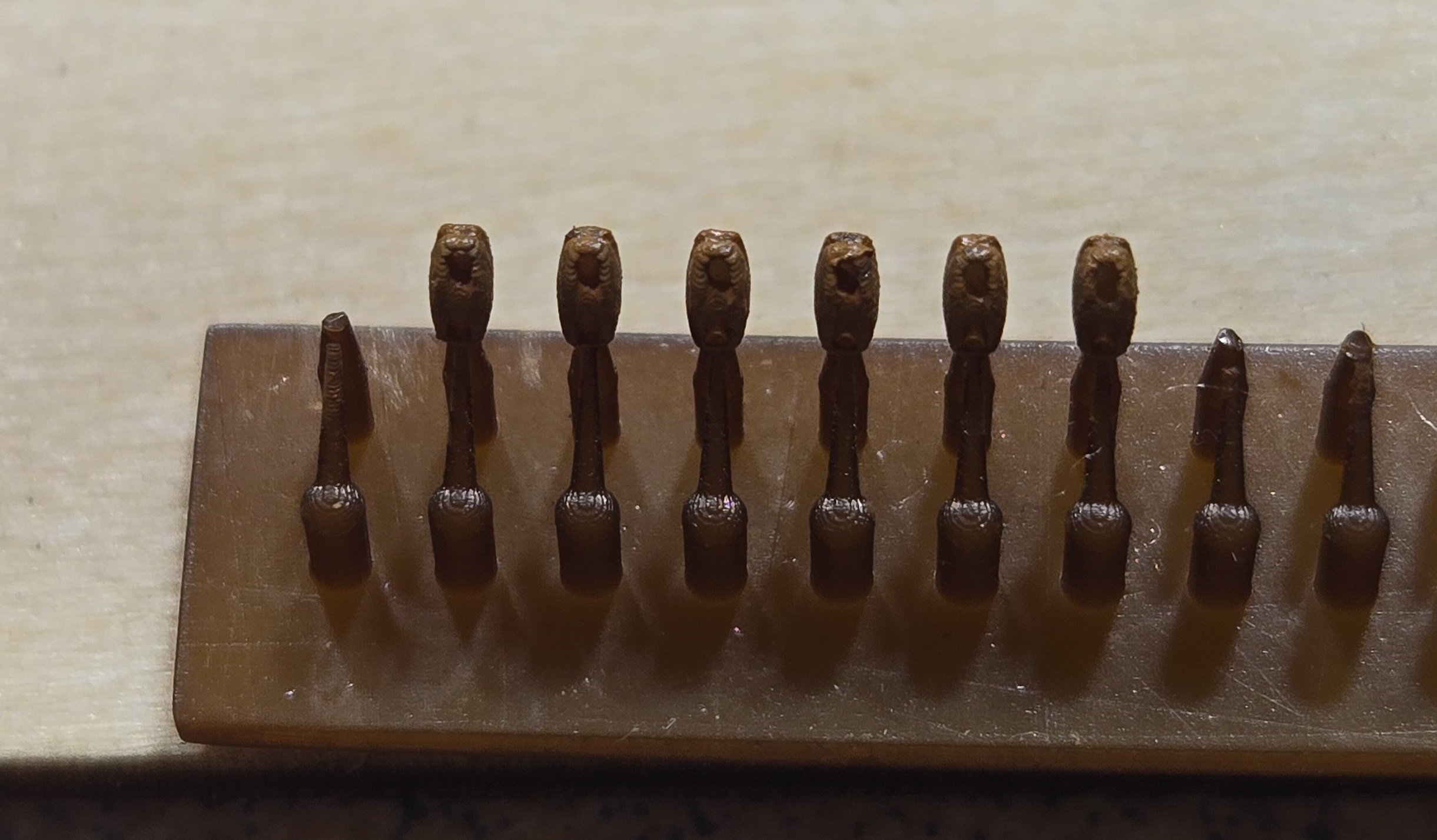

Of course, I'm planning on totally detailing the guns. Although the proper scale for the carriage eyebolts would be using the #24 hooks, these are so tiny and getting any thread or hooks into them would be at best, very tedious. I decided to go with the #16 hooks instead. These are still pretty small, with a wire diameter of .015" and an eye diameter of .048". For the ring to hold the breaching line, I purchased some 2mm jump rings. In order to get the tackle the right length and everything, I did like many of the builders here and put together a little mockup of the gun port. The kit comes with 1/32" blocks that are cast metal. These are surprisingly well done, shaped well with nice detail and clean holes. There is a little piece of sprue on the end that has to be trimmed off, but that was not difficult. The only draw back to them over real wood blocks is that they have to be painted. Painting them ahead of time is pointless. Even with primer, the paint tends to rub off with handling and if one is not very careful, the holes will get plugged and need to be drilled out again. So, they have to be painted after stropping and installing the lines, which is not easy, but can be done. Handling these tiny little pieces of course is not easy. Being totally new to all this, I definitely had to develop some skill and technique with holding them. In the process of learning this new skill, several of them pinged off like tiddly-winks, never to be seen again. Stropping the tiny things was another challenge. At this scale, seizing would be ridiculous. I was satisfied with just a drop of CA and pinching the rope together. The hooks were made from eyebolts, cut from #24 fish hooks and bent with round needle nose plyers used for jewelry making. All in all, they turned out really good. here is what my first attempt looked like:

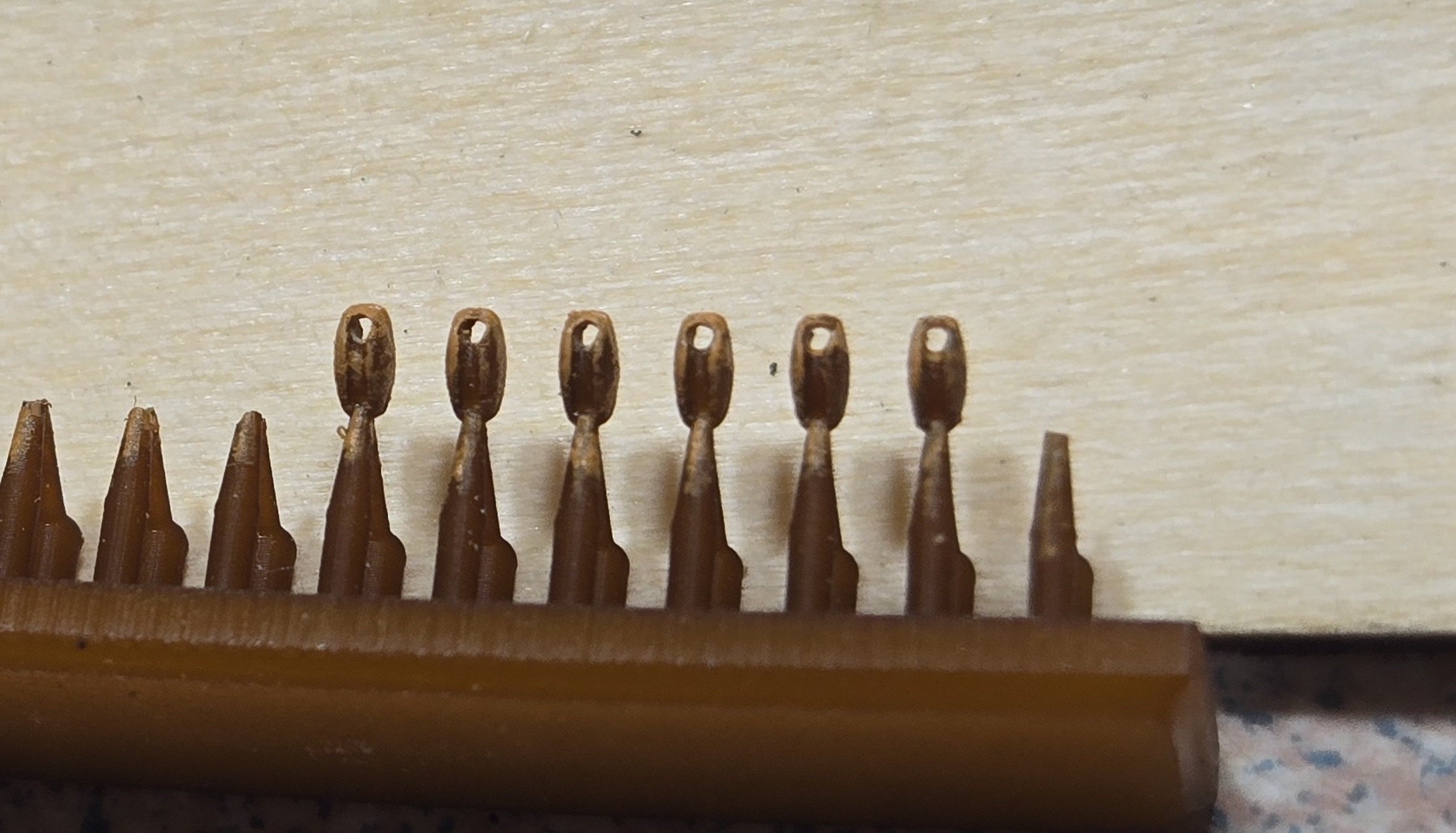

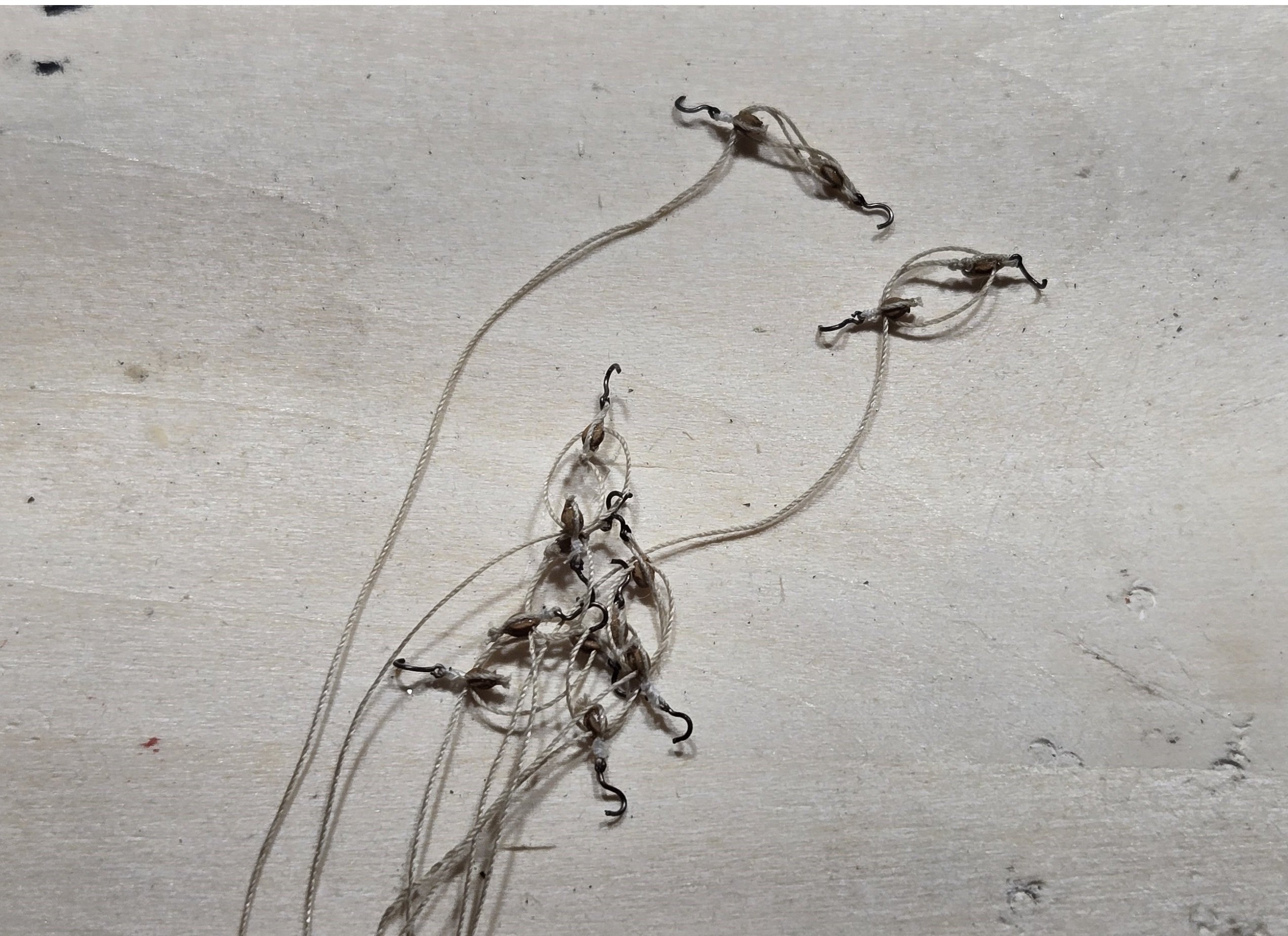

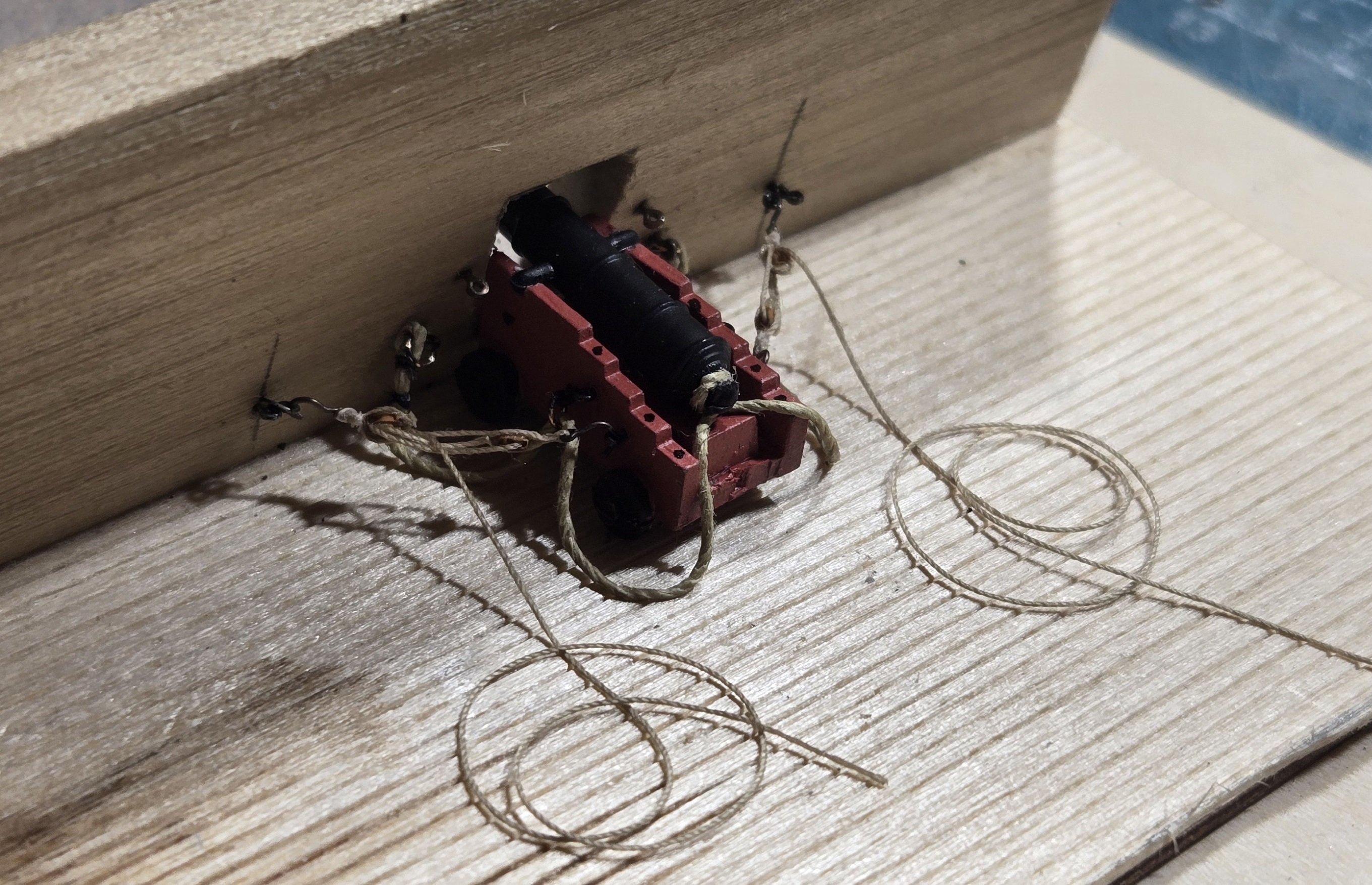

I originally planned to include the in-haul tackle, but after doing the side tackle, I realized how crowded it was going to get, especially once the breeching line was in place. Since all of this is going to be barely visible, I think i will just have the one set of tackle for each gun. I do plan on having the out-haul tackle on the backside. It was at this point that I realized the kit did not include blocks for rigging the guns and these needed to be purchased. At first, I was going to just buy more of the cast metal blocks, but thought if I'm going to buy them anyway, why not look into getting real wood.  As I was looking at sources for wooden ones, I came across a fella in the UK who makes 3D printed blocks that are colored like wood, and very reasonably priced. Decided to go with those and I am now waiting for them to arrive. I also purchased some .008 rope from Syren.

[g8rfan]

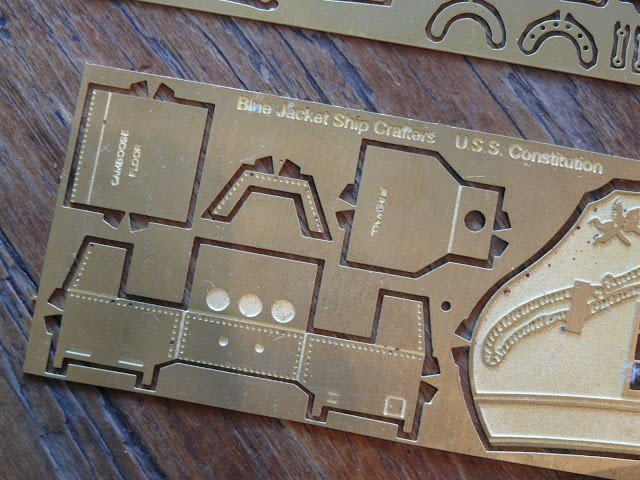

While I've been waiting for my blocks to arrive, I figured I would use the time to start on some of the other gun deck features. The instructions say it is best to start at the bow and work your way back, and one of the most forward features is the camboose. So, that's what I jumped on. The kit supplies a photoetched piece that has grooves cut allowing it to be easily folded up into the proper shape:



It's pretty straight forward and everything fits together nicely. Once folded up, I decided to solder the seams instead of gluing to give a nice tight structure. The floor has a straight lip that folds up. Looking at the actual camboose on the ship though, this front piece is curved. I decided to make mine more like the ship's, so I filed the corners of teh floor to have rounded corners and cut a thin strip of brass sheet to make the lip. That was soldered into place. Although the photoetched piece has little impressions where the side doors would be and the stove lids would be, these are flat and sorta featureless. I definitely wanted to do better. The side doors I simply cut some rectangular pieces of sheet plastic and glued in place just to give some dimension. The lids on the stove I made from brass sheet. I cut out little circles using scissors and gave them a dome shape by pressing them with a steel rod I had rounded over on the end. I made handles from 28 ga. wire and glued those on with epoxy. The rail going around the top of the stove was made using 24 ga wire and the supports for the rail were made from 22 ga. wire with a little blob of epoxy for the ball on top. everything was attached using epoxy.

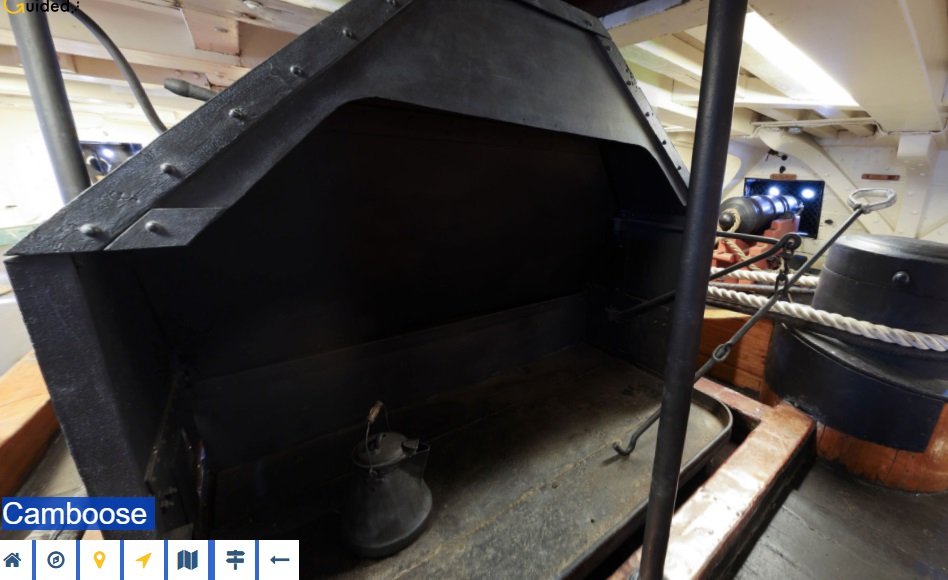

I probably should have stopped right there, but I had time to kill and just couldn't help myself. Here is a shot from the self guided tour on the museum website

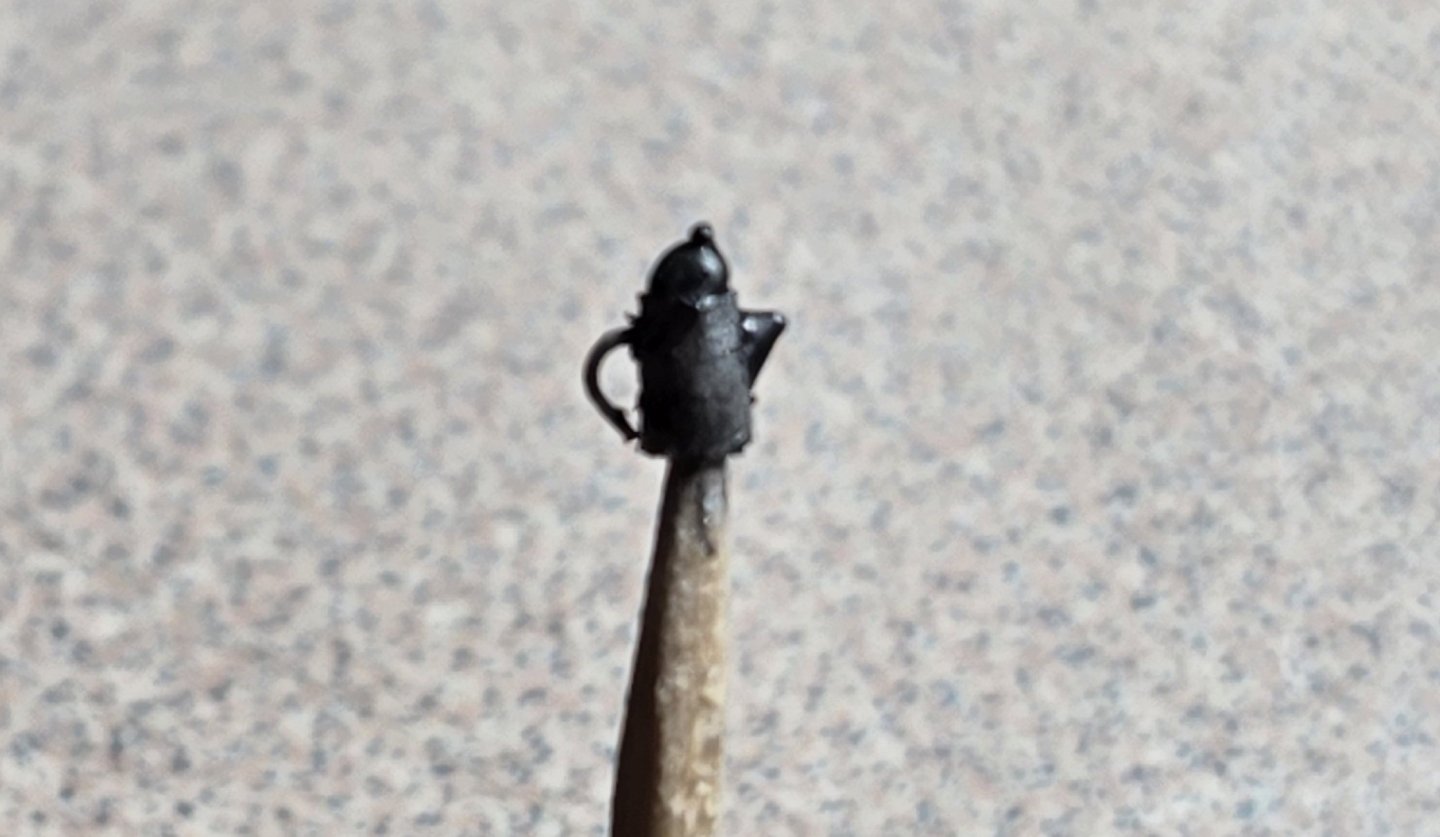

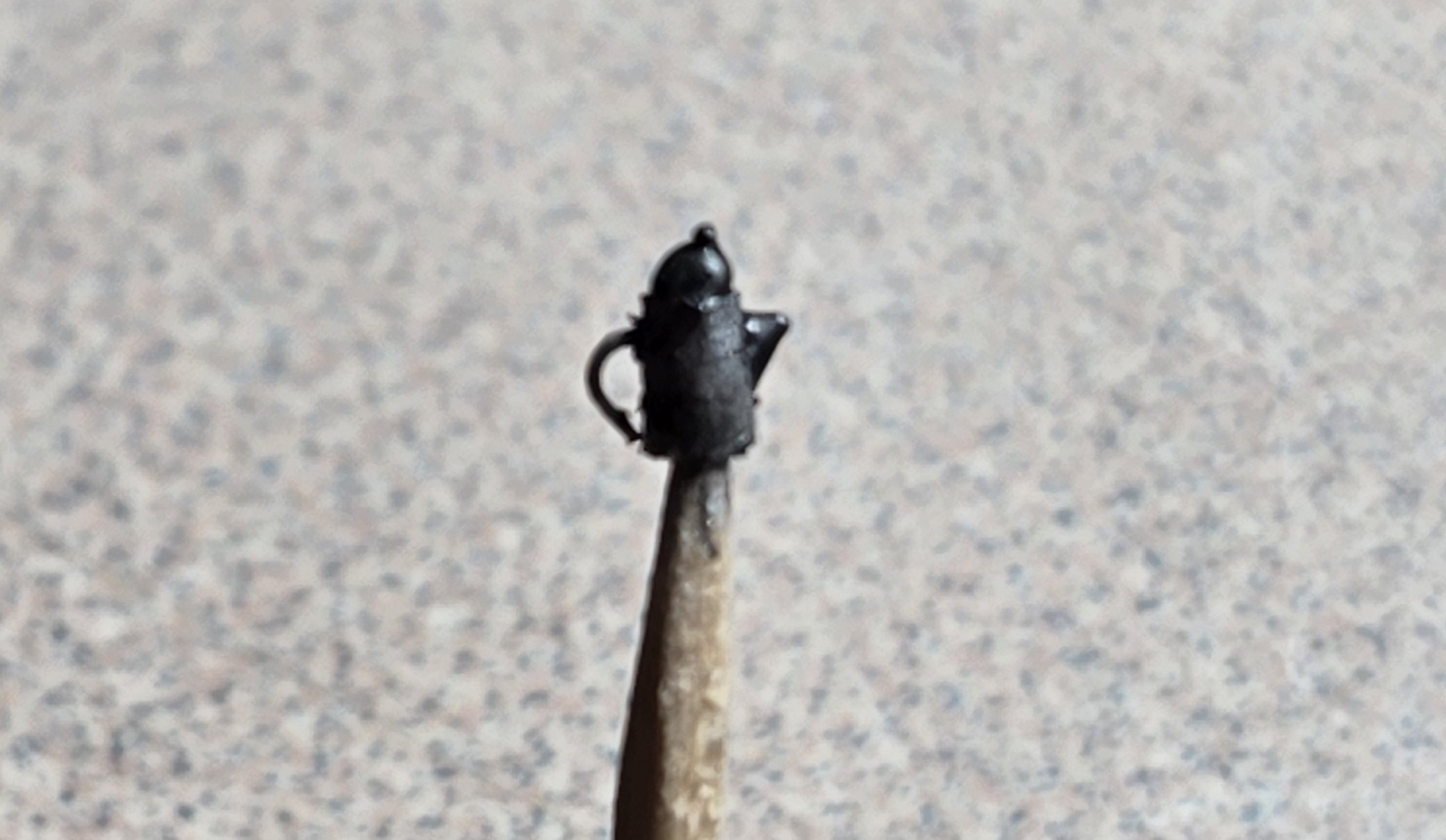

I decided that I would make everything in this photo, plus a little extra. First up, the coffee pot. I started out using 4 mm styrene tubing. Using a nail file, I tapered that down and then cut to length to give me the pot. Then I used epoxy (JB weld) to make the lid and the pour spout. Finally, I used 32 ga wire to make the handle. Here's what I ended up with after painting.



Not bad if you ask me.

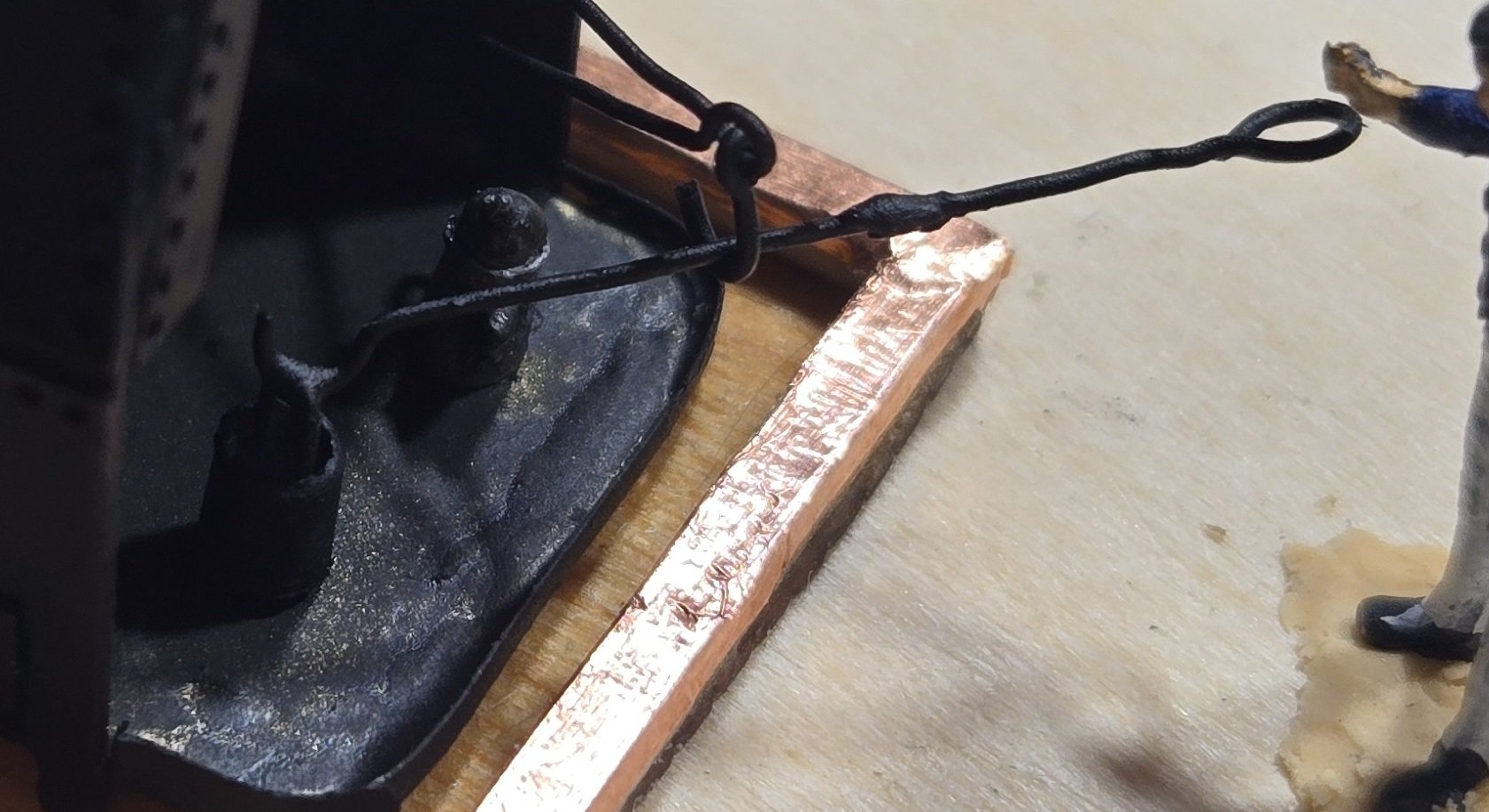

Then there was the pot lift. This was made from 28 ga wire. I used round needle nose pliers to make all the bends and curves and added a little drop of epoxy in the middle as a "stopper". To me, it wasn't enough to have the lift. It needed a pot. so, using the same styrene tubing, I thinned the walls by drilling out the center and then added a handle made from 32 ga wire. To top it all off, if you look closely in the tour photo, the lift is suspended from a hook, so, I added a hook to hold it.

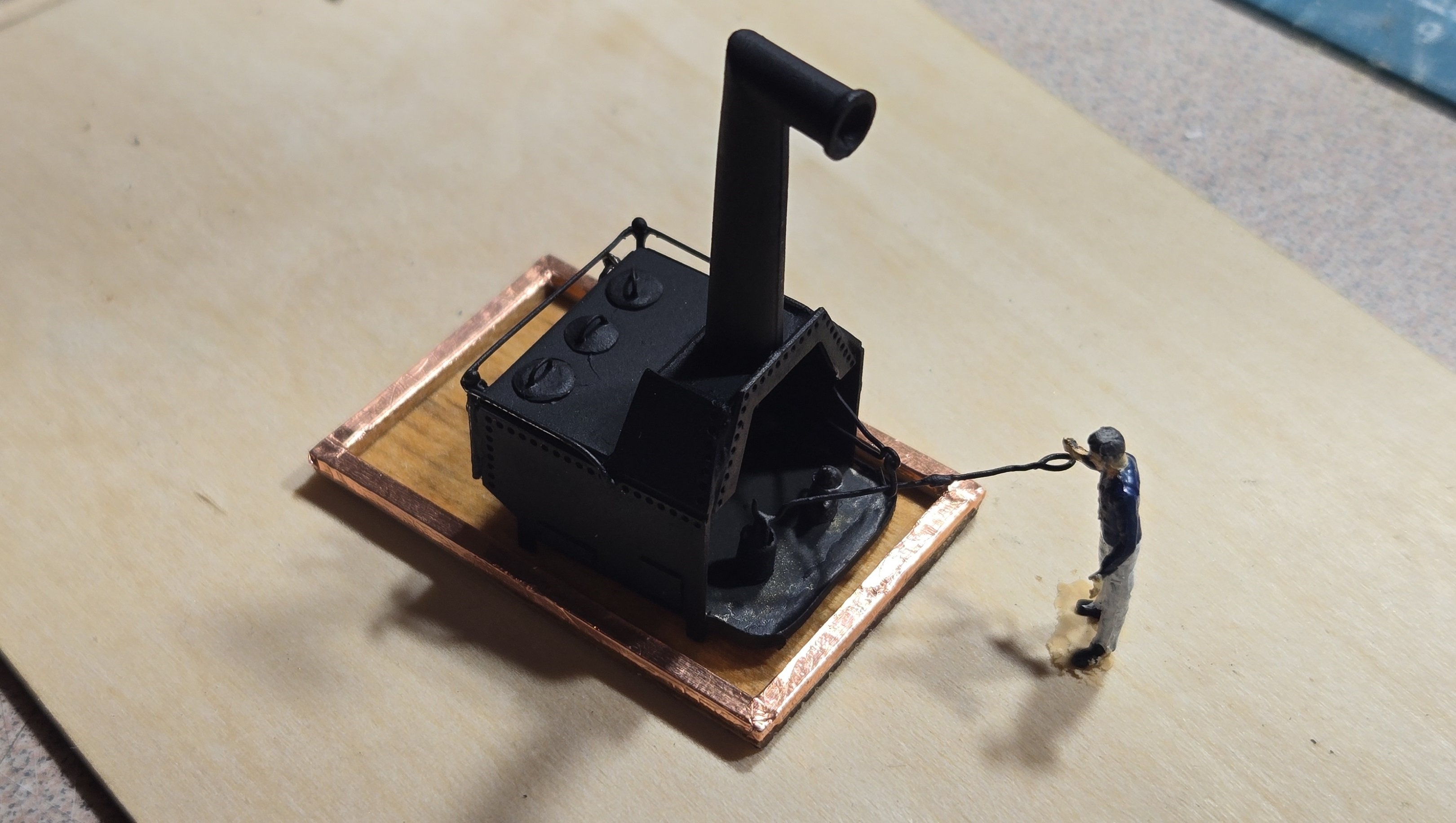

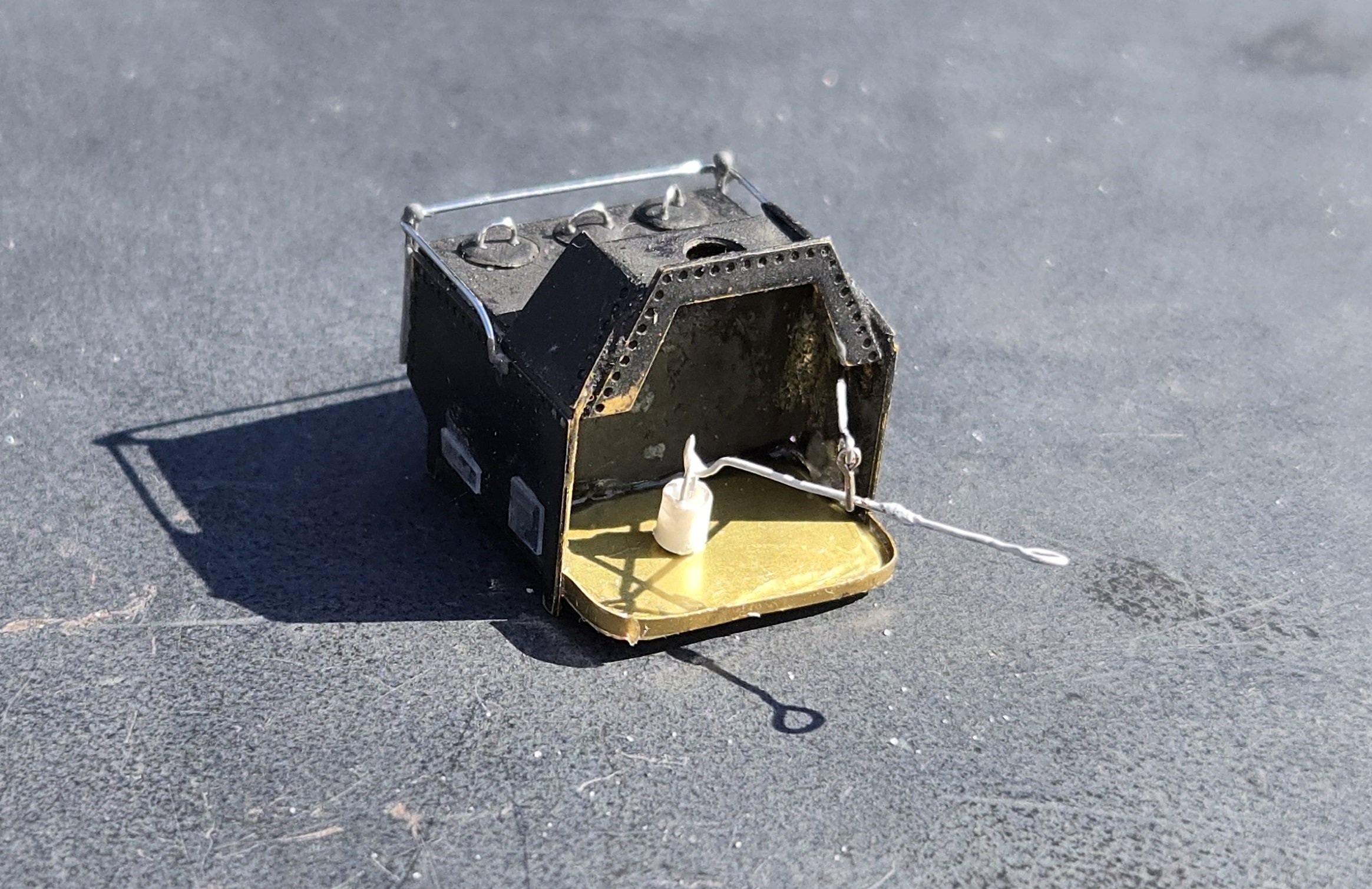

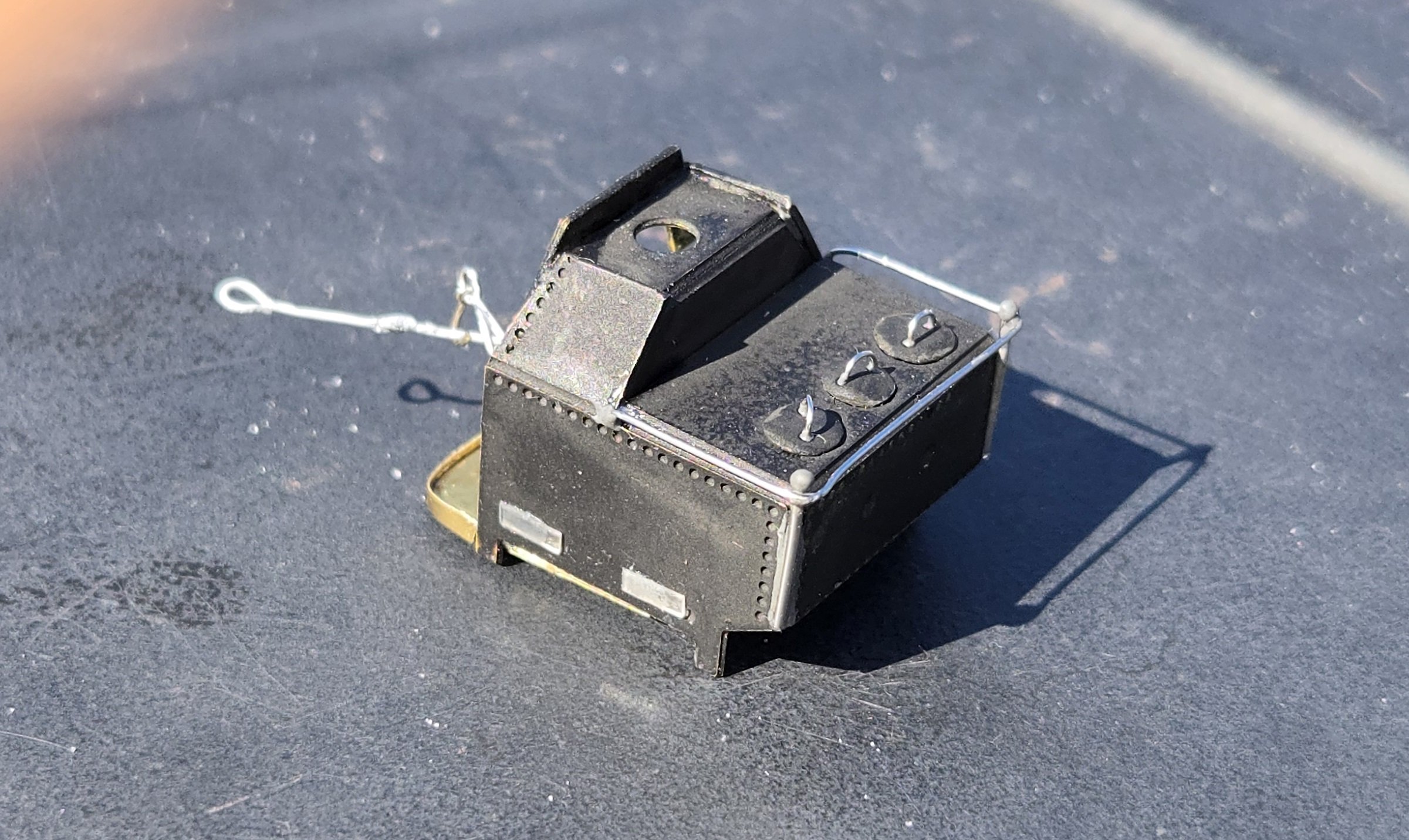

Here's my stove, that no one other than the people on this forum, me and God will ever see





The base I made from 1/16 stock glued to a leftover piece of scribed decking(upside down) with copper tape - same used for the hull. Before installing on the deck, I plan to paint the floor pan dark grey with a black wash.

After I took the photos, I realized that I forgot to add the ring bolts on the back side (I presume for lifting). These have now been installed.

Way over the top I know, but it was fun

[g8rfan]

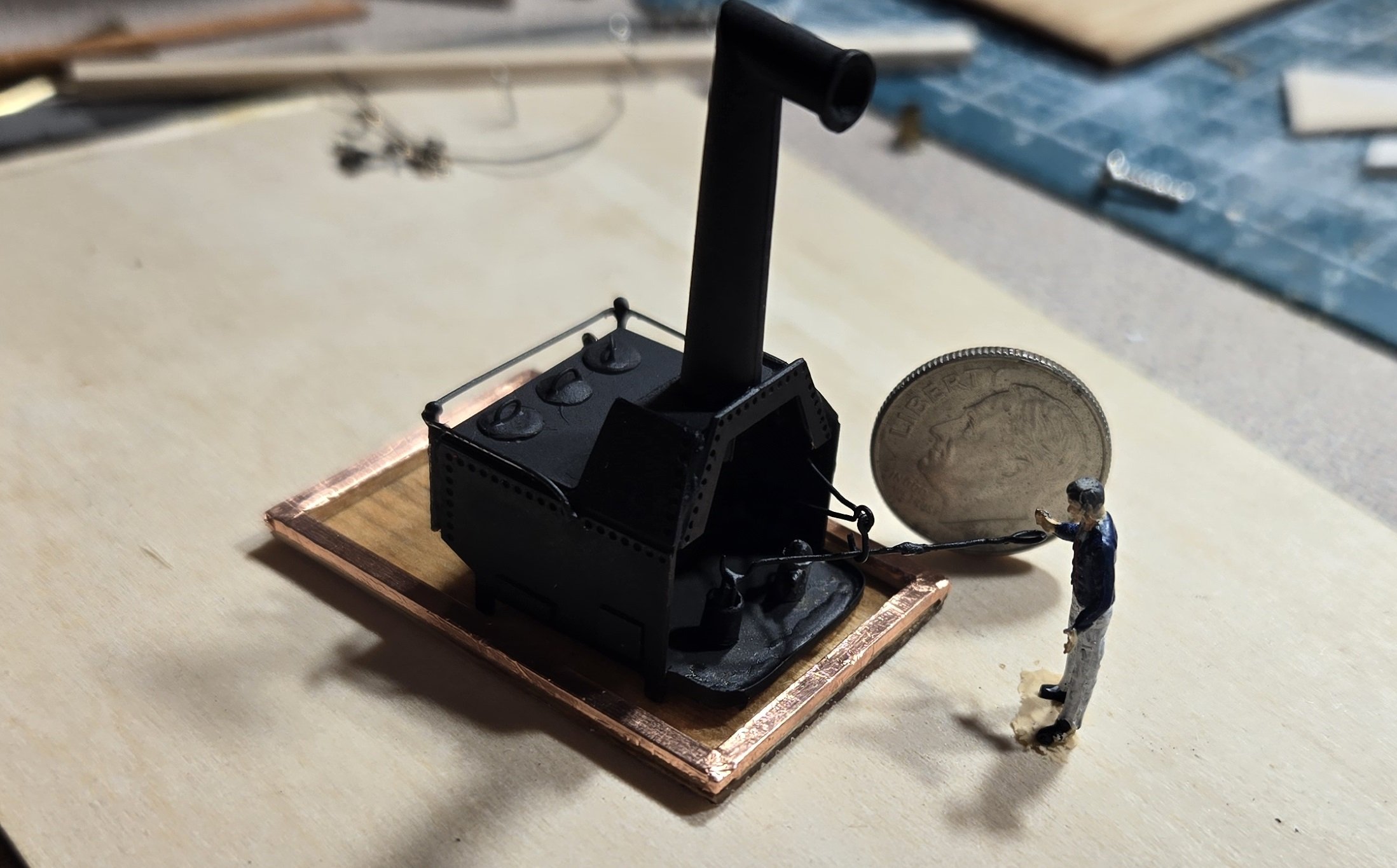

The photo above has no scale, I thought I would add this to give some perspective

[JSGerson]

You are correct, those are the fun things to make. The gun deck has lots of these gem mini-models to fabricate. Too bad very few of them will be visible enough for observers to see and appreciate fully.



Jon
