AntonyUK

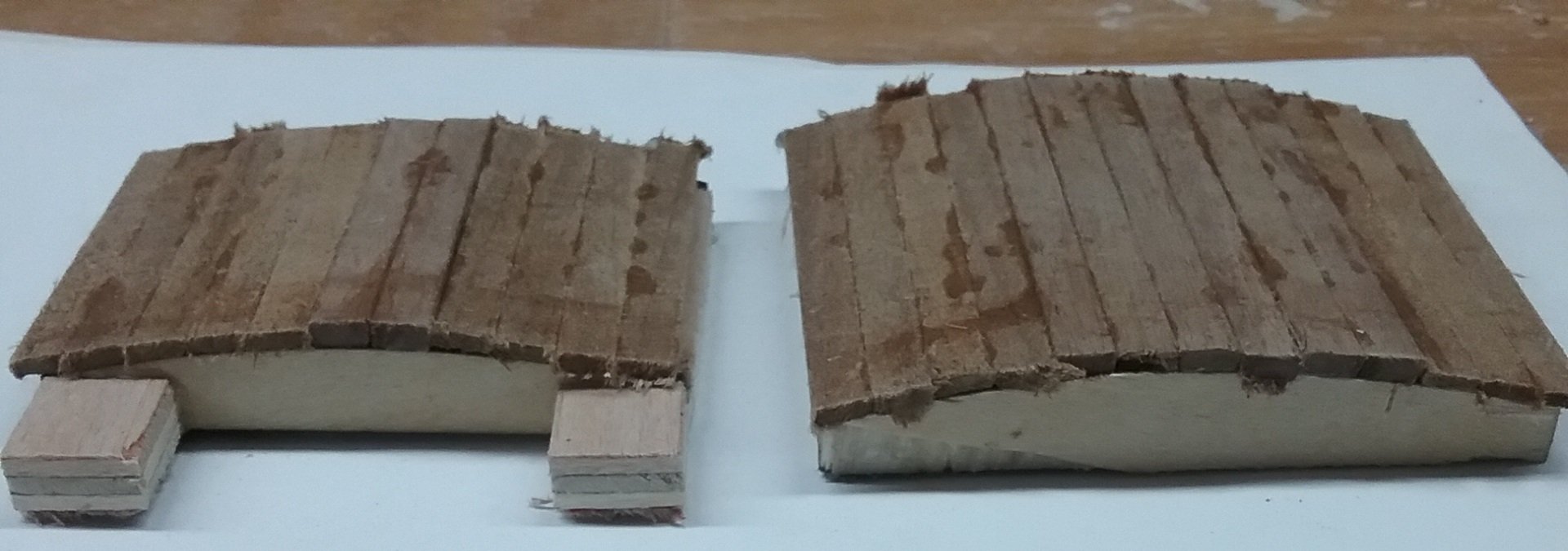

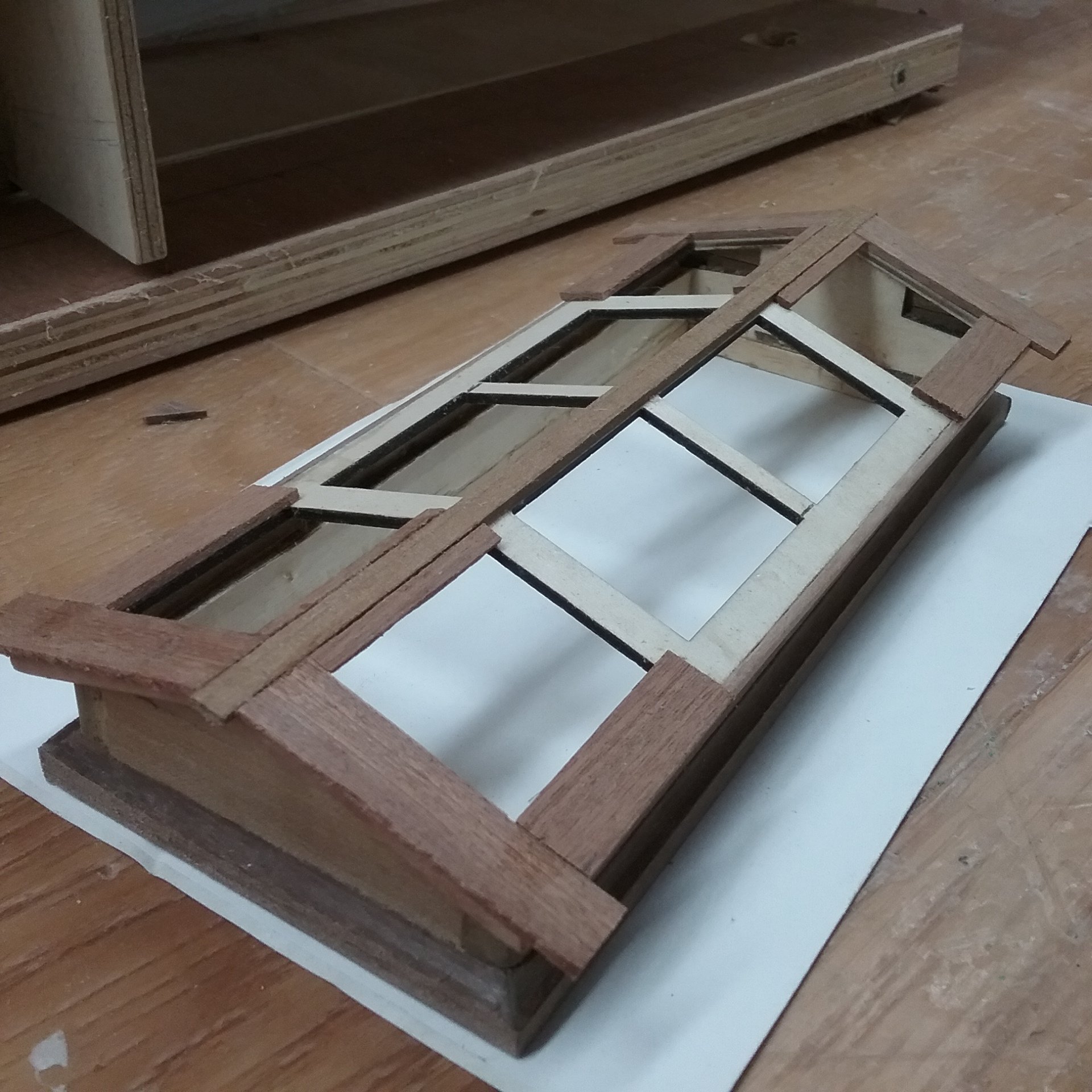

Good morning. Just a little insight into how the drawings are created. I use Fusion360 Hobby Home version. The plans were imported and scaled to the correct length at the waterline. Then there positions were adjusted to match together so that when you rotate the drawings it looks and reacts as it should in 3D. All the Components then have Drawing plane's on all X Y and Z planes added(Just a habit encase I need them latter on) Each part has its own drawing so that I can use Origin Shaper add-in to export the SVG files in the next stage. The parts are drawn one at a time in the correct order so I can see them to check on the fairings and assembly alignment. A few screenshots. The Keel is made using a bread and butter construction. This gives me a true shape and is easy to fare when it comes to the sanding. Used dowels to get the alignment spot on. The layers are 4.2mm in thickness. and the bottom one is 6mm thick. Sternpost is made up using 4 parts and and I used 16mm thick timber. All the parts were marked with a laser and also marked the rabbet line at the same time. parts were cut with correct grain direction. Final fitting with file and chisel to get the fit. The stem was done using the same method as the Sternpost. Using 14mm thick timber and the mast step was 21mm timber. The assembly matched together. Assembly with Frame drawings. Showing the lines very nicely. The frame drawing were put onto a sketch which is the size of my laser. this made it easy to manipulate the parts ready for Shaper to do its magic. The inverted building Base. That's it for now. Regards AntonyUK.

A little update after 4 hours of fairing. Using power tools and hand tools. The Keel faired to the hull. Still needs finishing before coating. Cutwater fairing is going well still needs finishing with hand tools and finer grit. another view if the Cutwater. Sternpost fairing going well. As above need finishing. More sanding before coating and recoating a few times. Regards AntonyUK.

Good Afternoon John. Yes a do have and used a dust mask for the cutting and sanding as the dust is very fine and could do a lot of damage in the lungs. Thanks for the heads up and GOOD advice. AntonyUK.

A little update. The Polyisocyanurate boards were cut down into strips that are a tight fit between the frames. over size as its easy to sand to a good fit with sandpaper. Used Everbuild 502 wood adhesive to glue the foam in place. The extra bits were flats so a little scraps are applied to fill the spaces. The interior of the hull looks like its scrap but this will be cleaned up after fibre glassing. Did a little trimming today to get rid of most of the excess foam. by trimming with a hacksaw blade and then sanding with flat board with sandpaper. and the concave parts I used a spray can with sandpaper wrapped around it to get the contours right. The photo above is the first level of sanding. will sand down till the charcoal from laser cutting is removed from top of frames. And yes this if a very dusty process and the correct type of raspatory mask and eye protection were used. I estimate the sanding will take me a few days as its easy to work with but I want to get it as close as possible to perfect before continuing with the next phase. Thanks for looking in. Regards AntonyUK.

Hi Keith. yes I have seen them. poor health ETC. Shame as I liked the Little pancho and the Forklift. I have never Not finished a model As yet... but Age and health .. Who can tell. Regards AntonyUK.

Good evening. Greg. Im'e sure he would if he was still in his workshop. I liked the choice of timbers he selected for the rebuild. Keith. Pancho has been a part of Tally Ho from the beginning. along with the hens and the dog. Always nice to see. Jim, Jerome. I like the lines of the boat and its a easy to model as the drawing have all the information needed. Just sourcing the Polyisocyanurate boards. local supplier calls it Celotex. Must be this type of foam so it can be laminated with any resin without dissolving. Then on with the fill between the frames. Thanks for looking.

The boat Tally Ho. I got interested in this cutter from a YouTube series by Leo. https://www.youtube.com/@SampsonBoatCo/videos Followed the build all the way through. Leo is a Boat builder and sailor. (His words) Started on this boat in August 2024 by ordering a set of plans from the Albert Strange Trust https://albertstrange.org/ I decided that the model should be :- 1000mm at the waterline and 1173 from Stem to Sternpost and a 287 Beam. I used Fusion360 (Home hobby version) to bring the 2D plans into 3D which took me till December. My son purchased a Laser cutter for me as a Christmas present. 22 watts and a cutting bed area of 410X400. Then it took me 2 months to learn how to use it and to set it up in my shed with a Ventilation extraction system. The software I used was Shaper Origin Addon in Fusion. to export the .svg file to Inkscape. And then into LaserGRBL for the cutting interface to the Laser cutter. The Stem Sternpost Deadwoods are 16.6 timber. They were marked by laser engraving a line onto the timbers and band sawing the parts out. They were finished to size using a Proxton mini mill to square and split the laser line. The Bow and stern sections were assembled and checked and glued. The Keel was made up by using a bread and butter construction method. The layers were cut on the laser using 4.2mm pine from my local DIY store. I had 4 dowel pin holes along the length of the keel to ensure the straight and true alignment. Dry assembled and checked for length shape and alignment. All good so on with the gluing. The frames were laser cut using 6mm laser ply. This was my first real cutting with the laser. The Bow Stern and keel were glued and pined together. Wow this is going to be a BIG model. I also designed a Jig to build the boat on fusion to help with the alignment. Building this boat inverted as it best for me. The keel and Stem and Stern post were added to the Jig then the frames were placed in place on the jig. Everything looked spot on so i glued them together. Small bits if off cuts were added between the frames to maintain the correct frame spacing. Now we are up to date with the build as it is now. Next week. Going to fill between the frames with 40mm insulation foam boards. This will provide me with something to fare the frames and to lay fibreglass onto. Not done any fibre glassing before so ANY advice would be helpful. Regards AntonyUK.

Time for a update. Most of the building has been completed and it now looks like a boat. Grandson if now getting excited as it taking shape. The thin strips are a little fragile on the joins. So I added some fillets to strengthen the joints. Superstructure is now complete. Again a few scraps to the joints to reinforce the areas. The console is as supplied with the kit. Nice. The gauges were printed on the coloured instruction manual. With a laser cut aluminium trim. Seats make up using Red vinyl plastic simulated leather. The white was suppled with the kit. Red was a Sample from E-Bay 99p. Brass nails completes the look. Sump deck getting ready to glue aluminium engine hatch in place. The platform on the stern turned out OK after the re bending of the wire. The windows. Instructions say to "glue the glazing panels to the inside of the cabin." Not possible as the panels were smaller than the cabin holes. Purchased some 2mm polycarbonate and cut then out + 2mm bigger. More varnishing this week and next week allowing time for it to dry first. We are going to add lights to this model as I can teach him to solder and he would like the lights. Then Radio and electrics insulation. Thanks for looking.

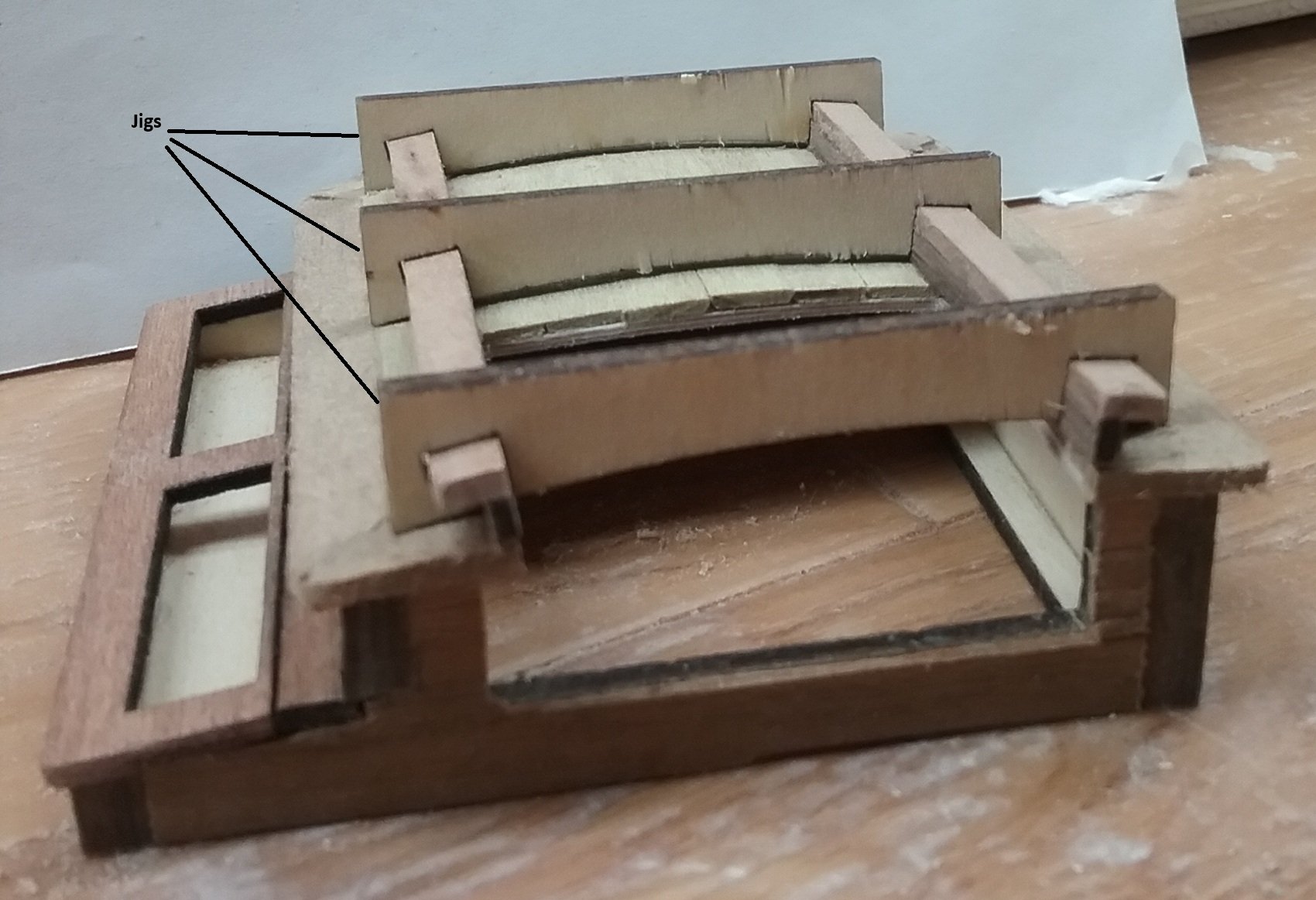

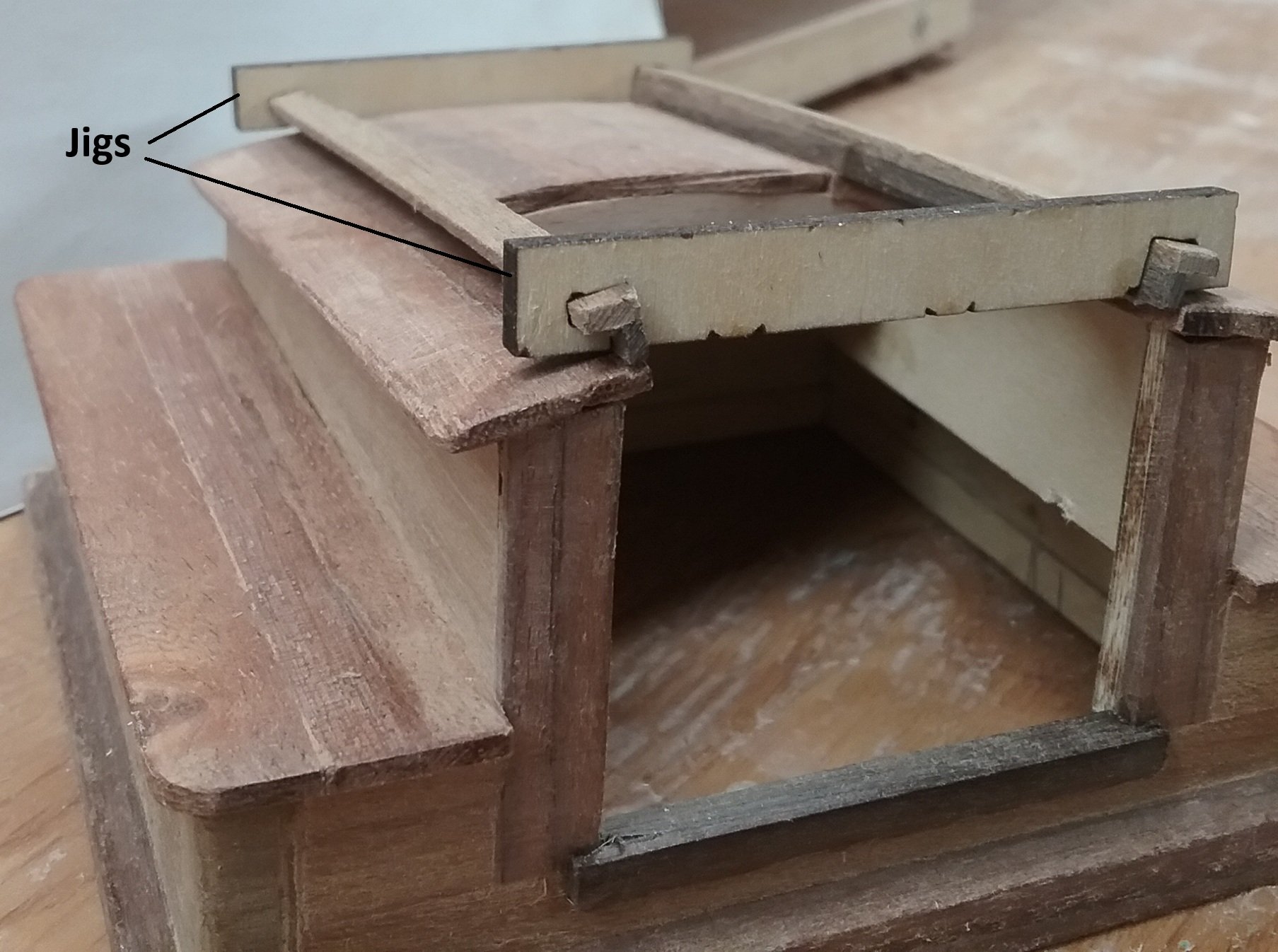

Hi Another update on the Build. Deck is now on and fitted with a slight overhang all round, I will seal this and put a "L" shaped stringer to tidy up the edge. Also the hatch sides were added which aligns the deck to the centre of the boat. I added a little reinforcing to the Bow area inside the hatch area. I covered the inside with a fine glass fibre cloth weave and resin. The hatch sides/cabin is put in place and glued only to the bulkhead/access door with a little piece of 3x3 to inside to reinforce the joint. This fit is with No trimming. Quit impressive for a kit. A jig I made up to hold the front cabin roof supports square while the grandson does the gluing. And yes I will use a little strip of cling film to stop the parts and jig from gluing together. Its taking time as he stays with us one night a week. Never rush a nice thing... Thanks for looking. AntonyUK

Just a few more pictures of the build. I am doing all the preparation work IE fairing and chamfering the edges as per instructions. And the grandson is doing all the gluing. Did not follow the instructions here as I wanted to make it easer fore the grandson to do the gluing. I like this idea of holding the top of the sides with lugs designed into the kit. That's the hull skins on and building lugs removed. So far no modifications have been make to the kit design. Hull bottom view. Side View with stand. I have put a sheet of wood inside the stand as the prop shaft cut out is a very weak area. I am planning to coat the interior with a lightweight cloth and resin. To waterproof and strength reasons. I foresee many collisions in the learning process. Regards Antony.

Hello again. Been a while since I posted on MSW. I am introducing my grandson into the model boat building. He is 7 years. The model I have chosen for him is the Aero-naut's Diva. Its a nice size and it a functional boat IE with Motor and Radio control. Opening the Box and the first thing I noticed was the two manuals. One with a lot of illustrations and text in German. and the other is in English. (which is quite good). I have already started building so I will start with the minor things I did not like. The shaft tube is 5mm dia that's OK, But the shaft is steel and it just push fits into the plastic propeller.(Not good) The motor I am using is a MFI Torpedo 400 2.5v to 12v. The coupling is a rigid shaft coupling. Now to the Kit. The entire kit is first class with laser cutting at its best. The kit has a cardboard base jig with slots for the tops of the frames to slot into. This was die cut. This was mounted on a scrap piece of 18mm plywood. Started placing the frames into the correct positions and everything fitted with any modifications. I added the motor at this stage as it was easer for him to put the M2.5mm screws through the frame into the motor. I also added a small plate to reinforce the frame made from polycarbonate. With the dry fitting done it was time to do the gluing of the body together. This went well and was held in place by elastic bands until dry. Then we added the chine stringers. These were laser cut and in the correct shape. No trimming only at the bow area were the two chine rail meet.(slight chamfer) Again elastic bands were used to hold this in the correct position until dry. The frames were faired to shape with a small sanding block. and the sides of the boat were given a little pre bending to make it easer to fit then to the boat. That's it so far. Now for the photos. Image 1 is the bow and there are two very small to add to the keel here. They need very precise positioning or the sides/skins will not fit. Image 2 is general side view. Image 3 is Motor mounting mode. Image 4 is general rear view.

Hi. Well its a nice conclusion to the build. Today the Model has been collected after waiting some 18 months for the Covid to calm down. The nice thing is my work area is free again and its time to start researching something else to build. A BIG thanks to all for your support and Comments. Regards Antony.

Hi. I also have purchased a 3D Printer (Elegoo Mars pro. ) I have used the printer for Model making components (Not ship). Hero Forge is by far the best Figurine shop I have seen. So many choices of kit. clothing. posture. and the list is endless. With the Figurine's available I will be putting some on my Ships as well. And being scalable they will adapt to any model I build. Regards Antony.
