USS Constitution by JSGerson - Model Shipways Kit No. MS2040

[JSGerson]

As it turned out, the 3-D misprinted/broken recoil rope eye bolts for are a moot point as I had to remove all of them anyways. They were very fragile, delicate, and broke when I tried to attach the required ring to them. The plastic is very stiff, inflexible, and will snap if any stress is applied to them.

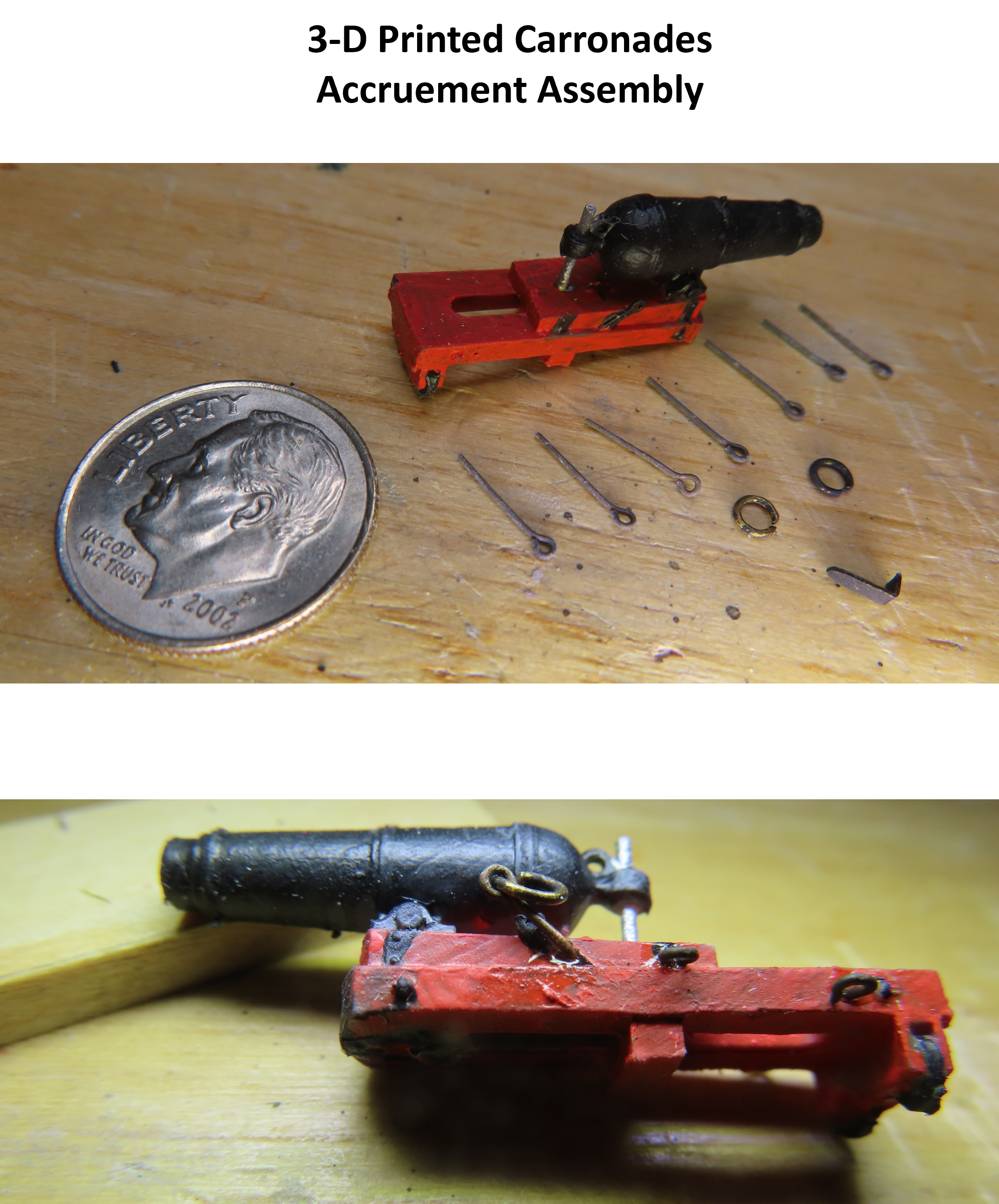

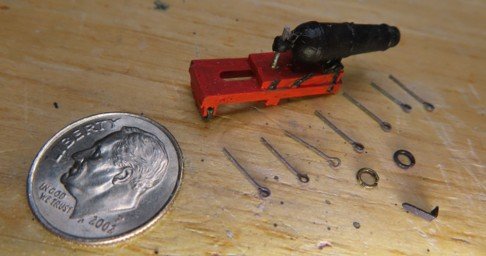

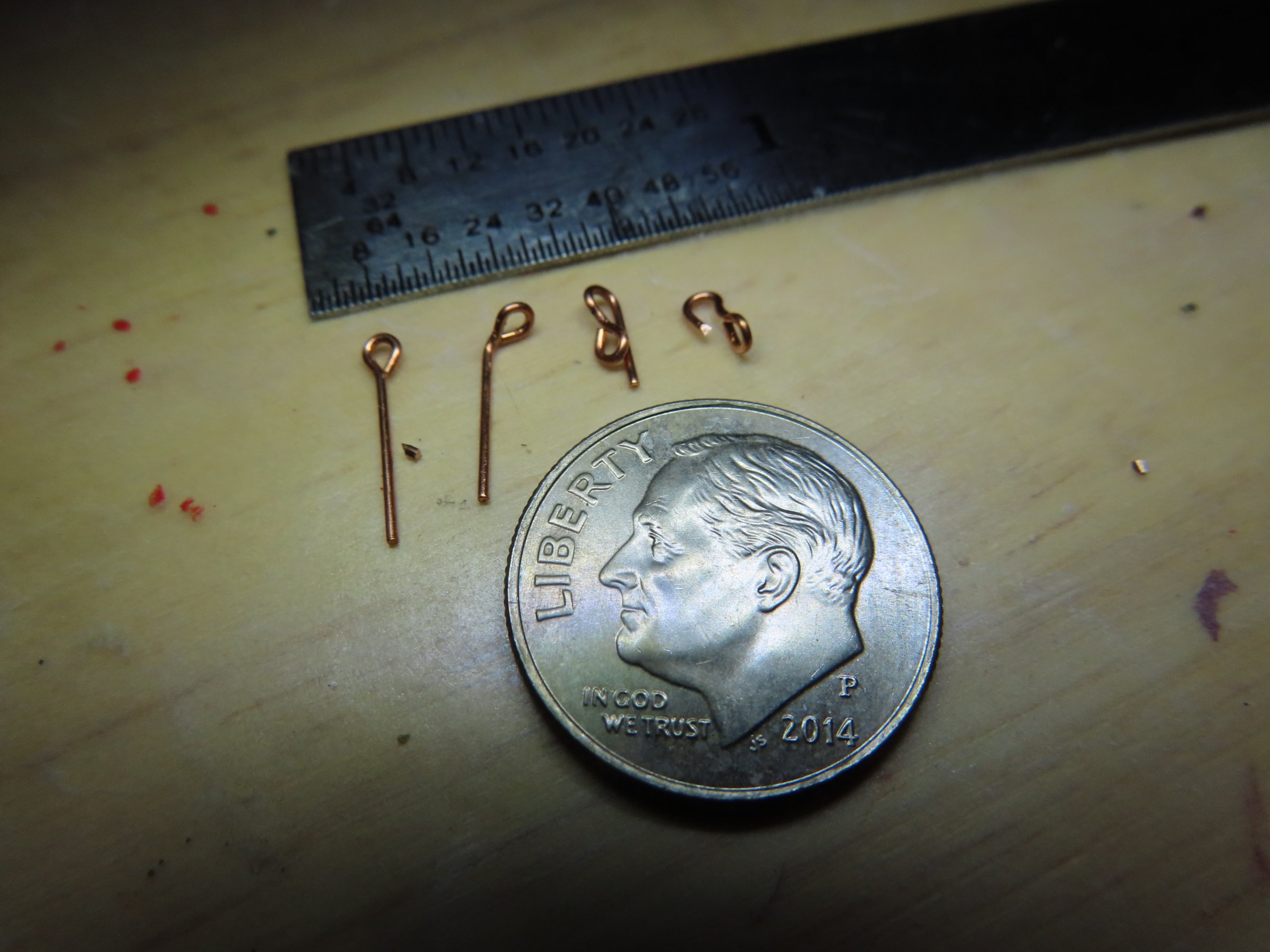

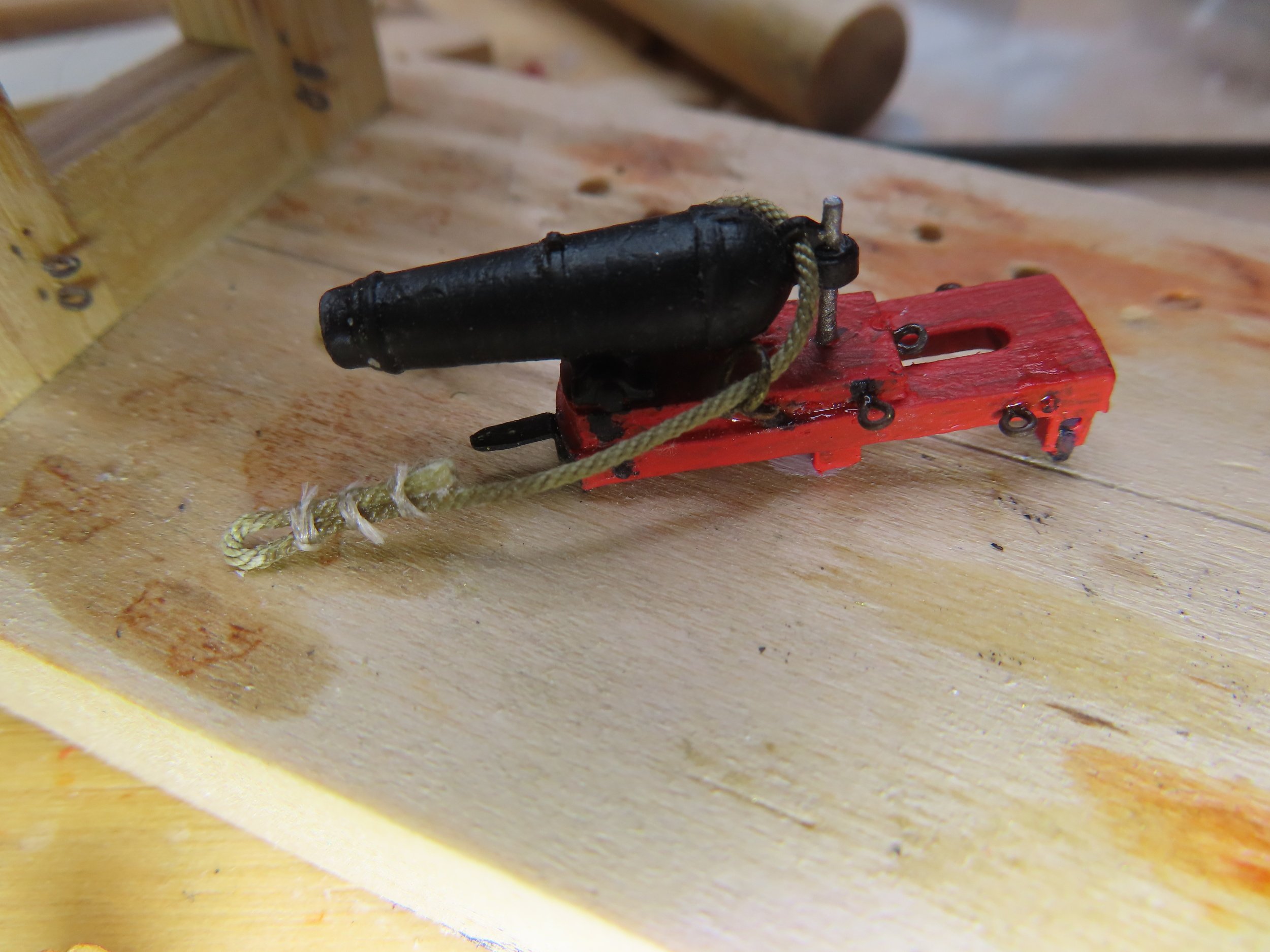

Each of the 20 carronades required seven 1/32” eyebolts, one each for the two tackles per side, one for the recoil rope per side, and one on the rear of the gun slide. The recoil eyebolts have a ring passing through their eye through which the recoil ropes are threaded. These were replaced with trimmed eyebolts bent 90° with the attached ring.

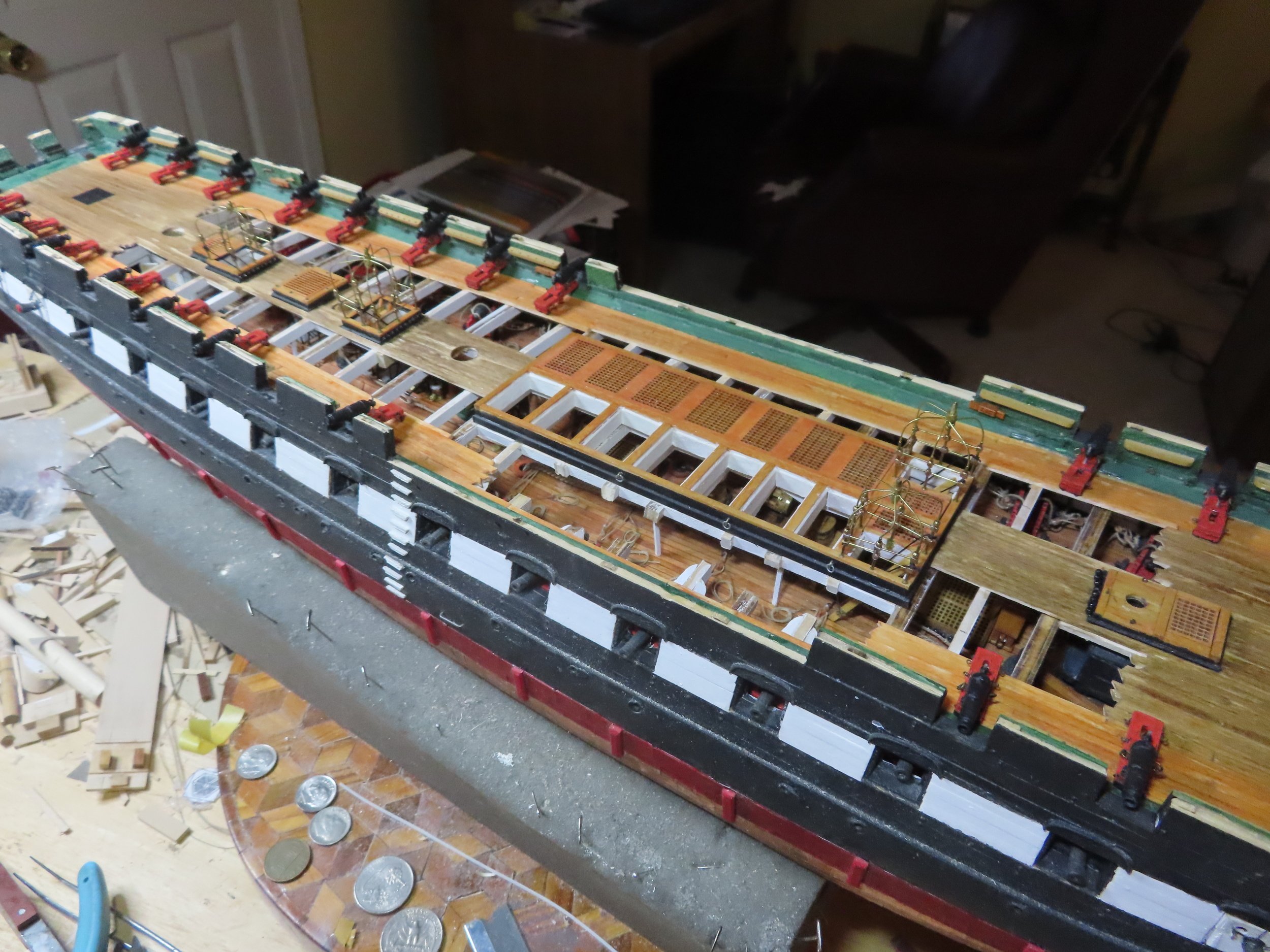

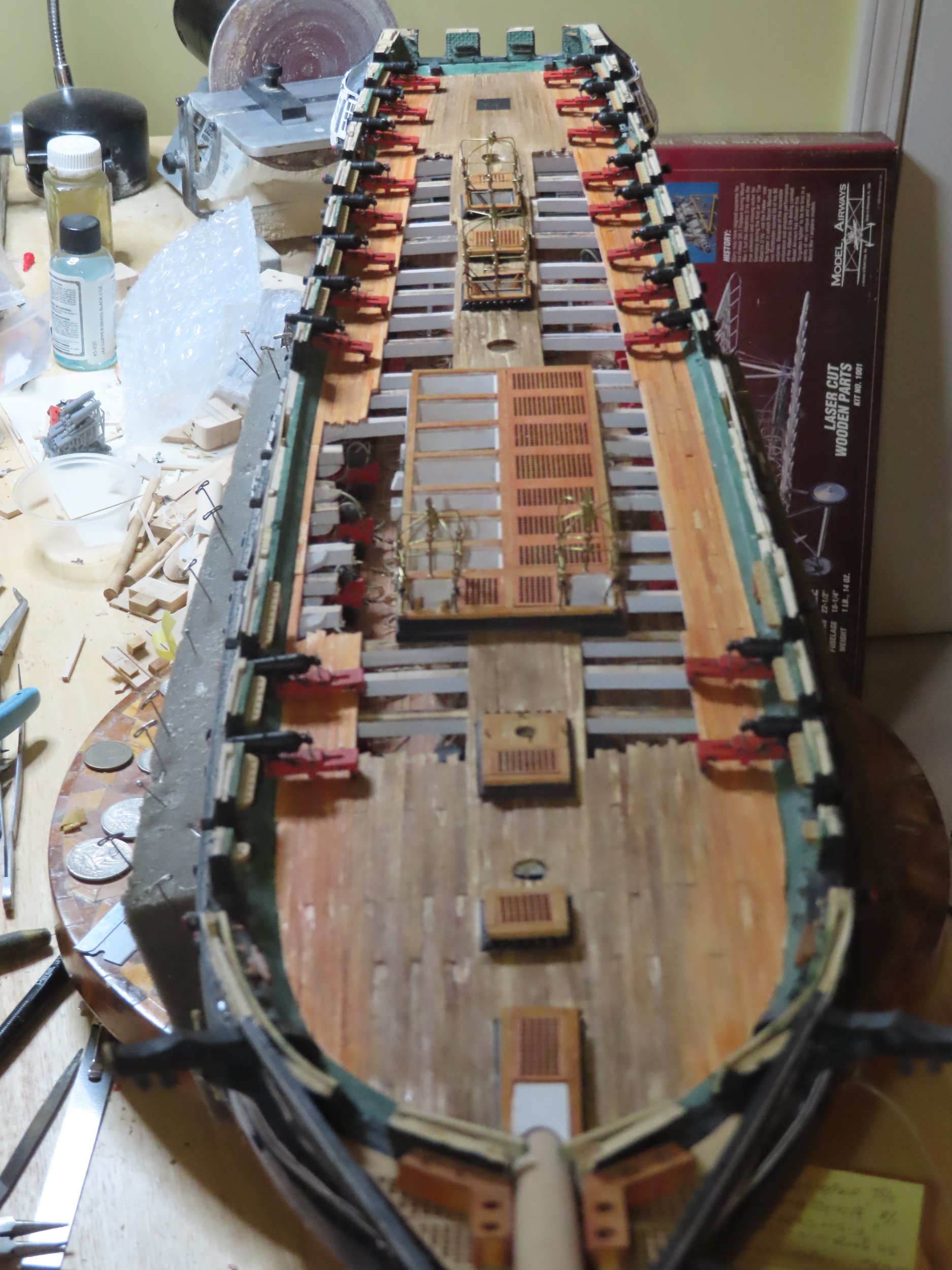

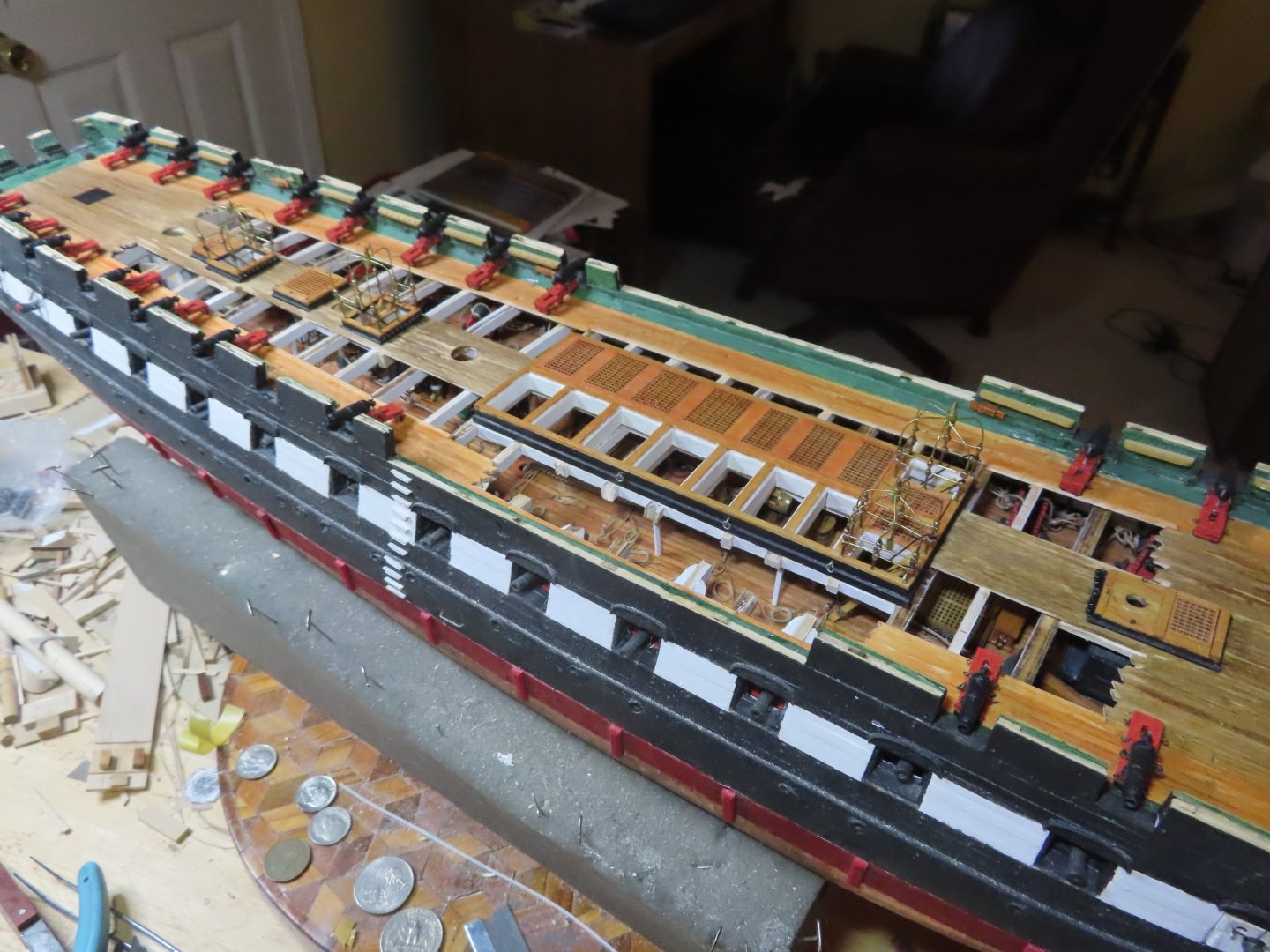

All 20 carronades were dry positioned on the spar deck ready to be rigged. First, I need to fabricate the two long guns to complete the spar deck’s armament.

[GGibson]

They look great, Jon!  I guess I will complete my Model Monkey order for the remainder I need... for whenever I get to this point years from now.  Thanks for the encouragement!
