  1. Now that the initial phase of hull planking is almost complete, I thought it would be useful to share the method I’ve been using to plank around this tricky bow. 1. Measure 80% of the 1/8” plank width and mark at the tip of the plank. It’s .1”. I use digital calipers for this. Mark 3” from the edge of the plank and draw a line from this point to mark the taper. I sand up to this line by running the plank across a 220 grit sanding block. 2. Bevel the plank to fit against the previously laid plank on the hull. 3. Soak the plank in hot water for 5-10 minutes. (This is the only time I use water.) 4. Clamp the plank to the hull and heat the plank until it’s dry. Let it cool. 5. Mark the butt joint and sand. Test fit on the hull. 6. When you have a nice fit, mark the edge of the plank to simulate caulking. 7. Apply glue and re-clamp. For the hot water I use a Keurig. I keep a disposable coffee cup in my work area. This works well since the plank lengths at the bow are short. I’ve included a photo of the clamping. Steve

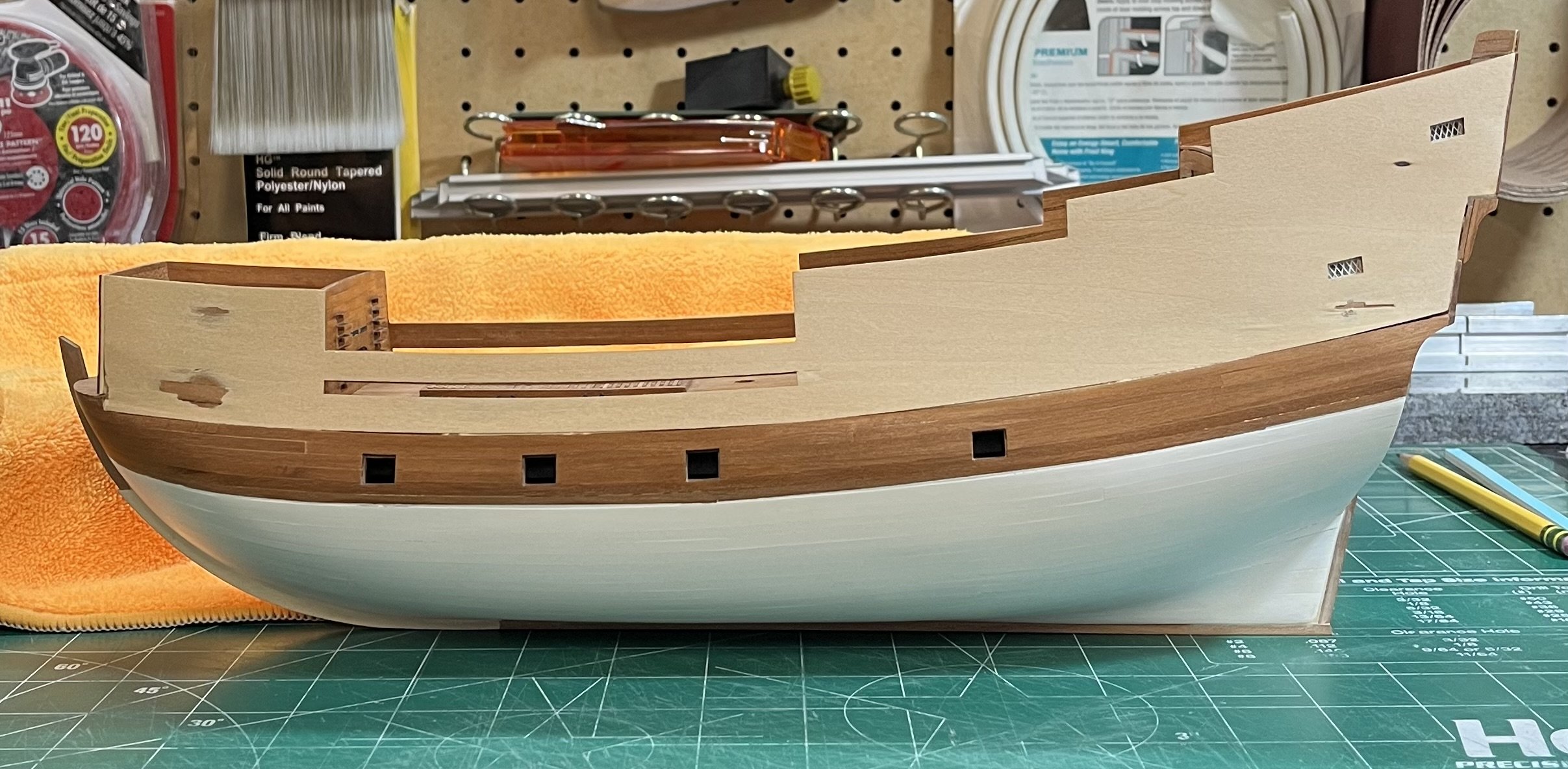

  2. Two more strakes to go port side. The gun ports are much sharper with a more consistent rabbet. The planking on this side is coming out much cleaner. I will most likely close the gun ports starboard and leave the ones port side open. I’m learning a lot from this initial planking. Steve
  3. People think everything is going to magically sand clean after sloppily planking. Don’t know why. The cleaner it is before you sand, the cleaner it will be after. One piece at a time! Steve
  4. Excited to see a Confederacy build from you, especially after an excellent Syren build! Steve
  5. Planking around gun ports- The plank is cut to size and pre-bent with dry heat. Bevel the edge as necessary to get a tight fit. Next, mark the port openings using a straight edge. I like to file the edges and then draw a horizontal reference line representing the top of the opening. Various files are used and the fit of the plank is checked constantly until there is a clean 1/64” reveal. Still working on a more uniform reveal. Steve
  6. The last version looks much cleaner and the color contrast with the boxwood is very nice. I’m going to need some moldings for my Confederacy 😜. Steve
  7. The initial planking is completed starboard. Sanding was done with 220 grit followed by 400 grit. Two coats of Wipe-On-Poly were applied with a 400 grit sanding between coats. 1/16” thick strips were a good design choice for this project. It allows for the needed sanding at the bow, which is tricky to say the least. I planked in scale length planks and left an approx 1/64” rabbet around the gun ports. Steve
  8. Here is a company I’ve used for the display case. https://www.casesforcollectibles.com/ Steve
