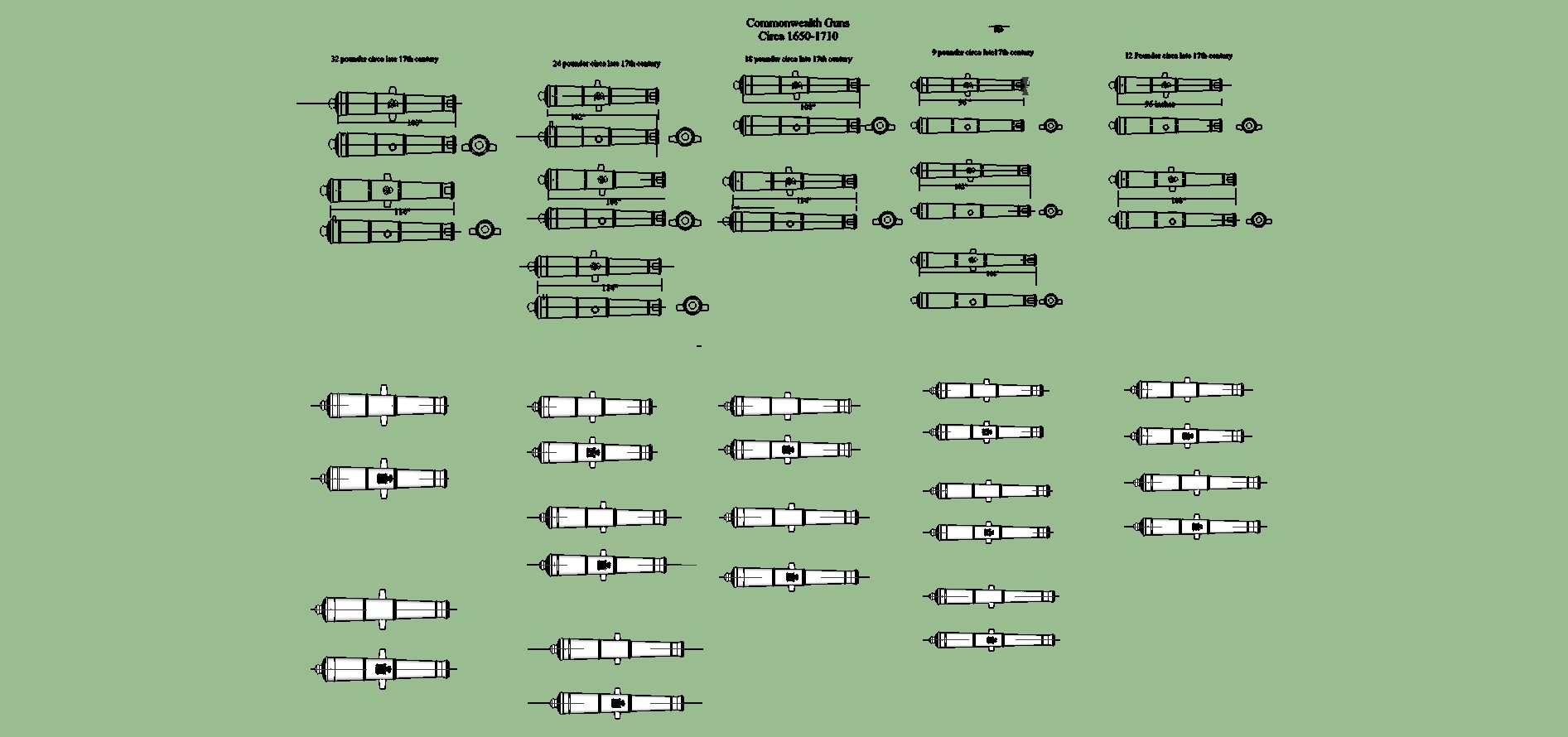

After reading the NRG link, I see one error. This project would have never been possible without Allan Yedlinsky! He came up with the idea and supplied the original 2D drawings that were the basis of the final 3D drawings. He encouraged me, as the project continued, and acted as a sounding board and reference as I found additional historic details to add to and modify the details. This would never have been possible without his input, and help!

  • 2 weeks later...
Posted

After I sent the files to the NRG, which they have added to the Resource section, I drew a set of Carronades. They have the files, but have not yet had a chance to add them. So, I'm adding them to the thread, in case someone needs them now. I'm also adding a new spreadsheet that has these added to the data. Here is a graphic of the 42 Pounder. The set includes 12, 18, 24, 32, and 42 Pounders. The STL files include a separate leveling screw. This allows you to adjust the cannon angle. The screws are over-long. They should be cut so a couple of inches sticks out when the cannon is horizontal on the carriage/slide. The screw top should be rounded.




This graphic shows a drawing of a similar type, with the length of the screw depicted.




Here is a photo of similar cannon. If you look at the right hand edge, you can just see the rounded top of the screw.




The next posts will be the files.









Posted
  • 4 weeks later...
Posted

Hi Ron,

I had the carronade with trunnions that you designed 3D printed by a fella with a resin printer.image.png.5360fd3926b78c202d2e9cdefda7368f.png

Here's my first crack at mounting one on a carriage. Thanks again for providing the files.


Cheers,



Todd



"I am always doing what I cannot do yet, in order to learn how to do it."

Vincent Van Gogh

  • 2 months later...
Posted

When I drew the Carronade with trunnions, I showed a few posts back, I used a drawing from 1826 to make it from.



9_pounder_GunWithTrunnionsandCarriage1826.thumb.jpg.b3553477adec25f61f8d08d9543e5074.jpg



Well, I decided to try my hand at generating the carriage shown for it in the drawing. This drawing does not show the parts used to elevate the barrel. The Stool Bed, and the Quoin. I went through my library, and found drawings for a 32 Pounder in the Anatomy Of The Ship book on HMS Pandora. I rescaled the carriage drawings, and found the rescaled drawings to be quite close a match in length and height to fit the 9 Pounder (the carriage was wider rescaled, but a little math got me a scaled width for the parts). I used the drawings for the two parts as a basis for new ones. I also added eyes to the front and back of the carriage, as shown in the Pandora drawings.



Here are a graphics of the carriage with and without the 9 pounder barrel. I still have to add locating holes and pins to the 3D drawing, before I generate the final 3D print files. I'll post them in a few days. The letters refer to wire eyelets that the modeler will have to make, I'll include drawings for them too. 3D printing them would be a nightmare, and the resin parts would be quite fragile. The modeler would also have to make the brass rings that hold the trucks to the axles.







I'm going to have all the major parts as separate pieces, thus the need for locating pins. The Cap Squares (pieces that holds the cannon to the carriage have to be separate anyway to allow for the cannon to be installed). Should I, also, have an assembled (except for the cap squares, and truck rings) version? There is a through "bolt" that the front of the stool bed rests on that would be hard to print, in place, especially in smaller scales.

9_pounder_GunWithTrunnionsandCarriage1826Marked.thumb.jpg.f8daf208ee29350f726589fc284851f1.jpg














Posted (edited)

Looks great Ron! Are you designing with SketchUp? Your last image makes me think so. You're really making me think about getting a resin 3D printer with all of this great stuff you're designing. I think the through bolt should added afterwards along with all of the other wire eyelets, although you don't really see it when the barrel is mounted. I'm not experienced enough with resin printing to comment on whether to print as separate pieces or all as one. Looking forward to your finished design.



Cheers,



Todd

Edited by Tossedman
Cannot spell.

"I am always doing what I cannot do yet, in order to learn how to do it."

Vincent Van Gogh

Posted

Yes, I'm using SketchUp. I have an old loaded on the computer version. Because it is so old, I have been locked out of being able to load any of the extensions. So I am being very careful to not mess up my system drive, as I can no longer reload what I have. I'm thinking of going to either the subscription versions of either SketchUp or Fusion. Hate to spend the money though.

Posted
15 hours ago, CDR_Ret said:

Or you could move to the Dark Side for free and try 3D printing using the Blender extensions.🙂

Will Blender create mechanical precision drawings? Like to 3 decimal positions? If so, I may check it out.

Posted

Got the locating pins in place. I now have to go through all the parts and validate the STL files. Then write up a PDF on assembling the carriage, and make the 2D drawings for the fabricated parts.



Here is the exploded diagram of the parts. There are two sets of caps. The first (left hand set) has the hinge eyelet as part of the part, this simplifies the building of the carriage. The second (right hand set) has just an opening to use when fabricating the hinge eyelet separately.



9PounderCarraige1826AllPartsWithLocatingPins.jpg.bc77a35a32c7ce7533983134ddd41c78.jpg

Posted
6 hours ago, thibaultron said:

Will Blender create mechanical precision drawings? Like to 3 decimal positions? If so, I may check it out.

Yessir, to virtually any number of decimal places you desire in either imperial or metric units. I use Blender mainly as a free 3D CAD  program after Sketchup was no longer free to hobbyists.



As others have mentioned, Blender has a steep learning curve, but there are helpful, experienced users in our community.



Terry

Posted

Spent some time today generating the graphics for the PDF on assembling the cannon and carriage today. I know most of you have built one or know how to do it, but someone just coming across the files might not.



I have not turned all the drawings into graphics yet, and I do not plan on coloring all the pictures, but I did color the assemble cannon and carriage. I did it mostly so that the letters designating the eyelets stand out, but it also looks cool!



Anyway here is one of the "Glamor Shots:.
