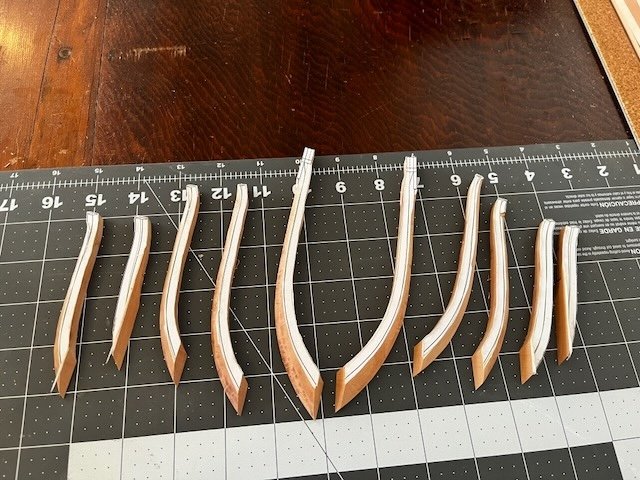

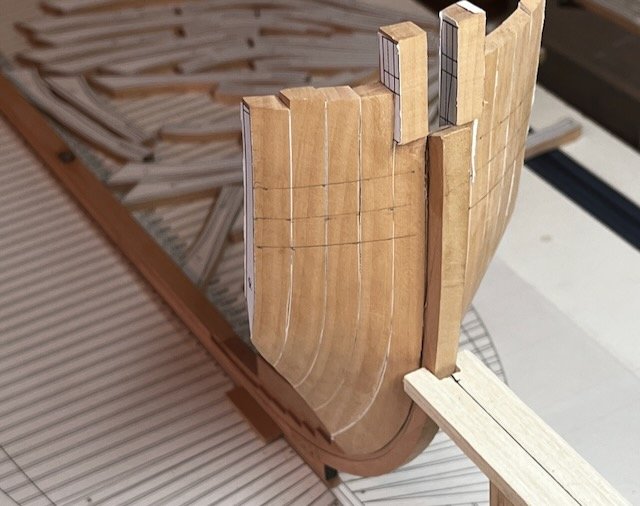

Finally some progress on the pointy end.  I cut out the frames in the usual manner.  I printed out an extra set of frame drawing, so I could add them to both sides of the frames.  I did some pre-beveling, and then glued all the frames together into 2 stacks (not shown).  I then did some shaping on the inside and outside of the frames before temporarily attaching to the stem.  I marked the heights for the hawse holes and the level of the material that will remain when I cut the air gaps.



IMG_8030.jpeg.2d011beae9b2087bb2f90f94bb1d95c3.jpegIMG_8034.jpeg.73e824b2269b6fb62e7de81a514d7c6c.jpeg

Posted

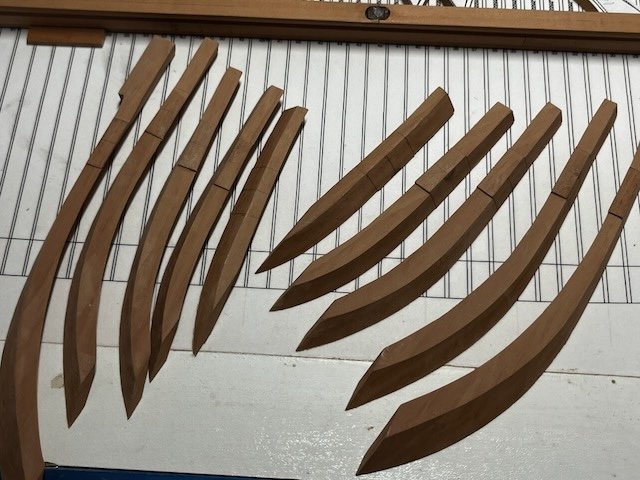

I then removed the frames from the model and pulled them apart.  This was super easy due to label paper on the frames.   I then cut down each frame using the mill to create the air gaps.  I won't even get into how many hawse timbers I made to get to this point before everything looked right and fits properly with the first cant frame.  Next I will file in the hawse holes per the instructions in the Swan practicum.  I also still need to do a bit of shaping of the bollards to get them to fit properly on the tapered stem, and then I will try to shape the knight heads.


Adam

Posted

Looking very good, nice and clean and sharp.

I am at a similar stage in my build and am finding it hard to be so exact. I suspect my present attempt at the hawser timbers will end up as a useful practice run 😀



-‐-‐--------------------------------------------------------------------------------------

Current Build Hayling Hoy 1760 - First POF scratch build



Completed HMB Endeavour's Longboat by Artesania Latina

Completed HM Armed Cutter Alert by Vanguard Models

Completed 18ft cutter and 34ft launch by Vanguard Models

Completed Pen Duick by Artesania Latina

Posted

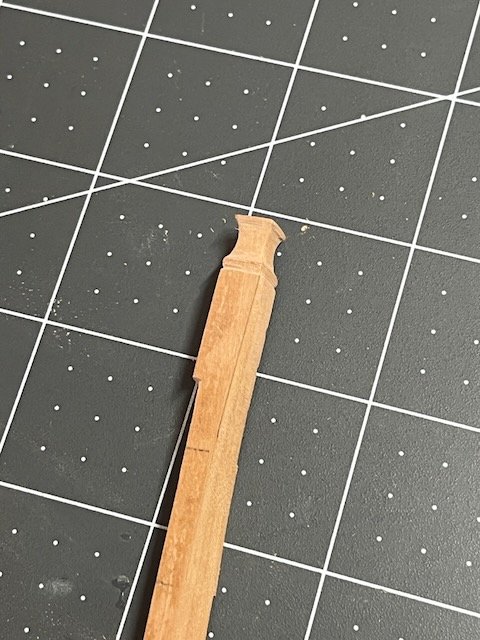

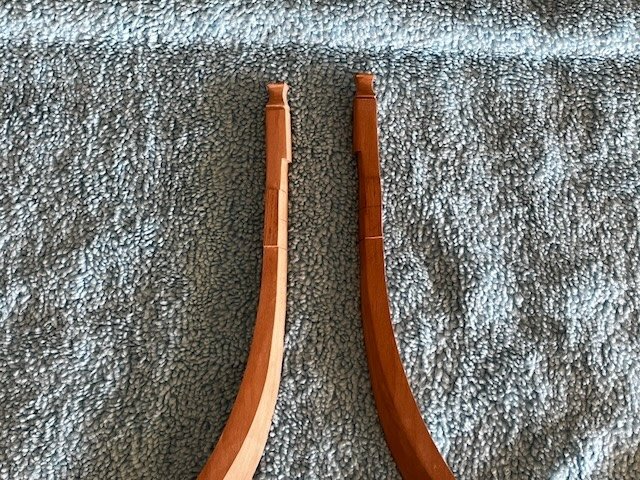

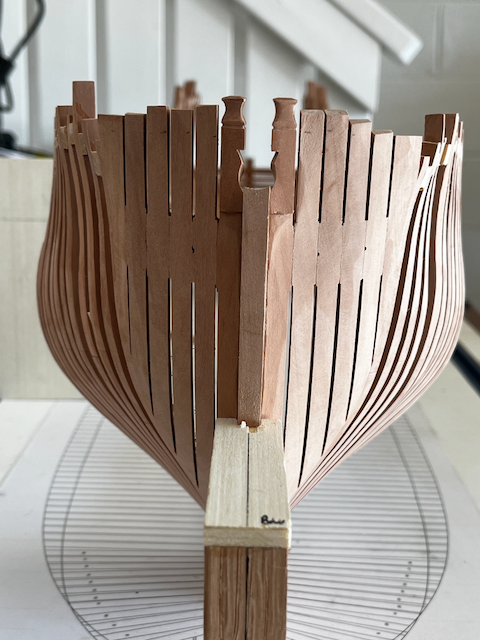

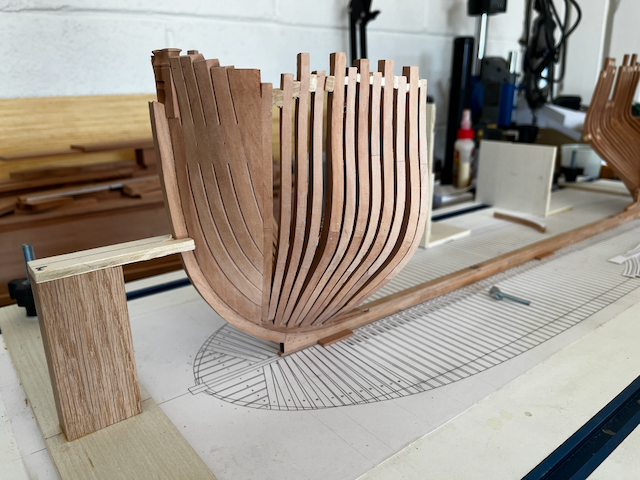

I formed the knight heads on the top of the bollard timbers.  I just used chisels, files, etc.  The shape on my admiralty draught was relatively easy to form.  Next step will be to file in the opening for the bowsprit and its chock.  I hope not to encounter another piece on the ship as complicated as the bollards.
