Danish cannons for 3D printing

[TJM]

Hi All,



Greatly inspired by @thibaultron's efforts to design and share 3D printable STL files for various series and times, I thought I would do the same for the very niche area of Danish Cannons. I am researching this for my own projects, and thought I would share with everyone. I will make occasional updates when I have new designs to share.





For this first post, I have found a series of cannons from the period 1720-1750. They are from a Kaddet book and the scans cam be found here: https://www.arkeliet.no/sources/kadett_fm_1700/kadettbok1700t.htm



The series is one of the most complete onse I have found and includes: 3 pdr, 4 pdr, 6 pdr, 8 pdr, 12 pdr, 18 pdr, 24 pdr, 36 pdr and 42 pdr cannon designs, sometimes severel versions/lenghts of each.

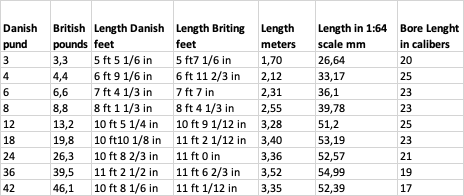

I have started with just one lenght of each as can be seen in the table below.

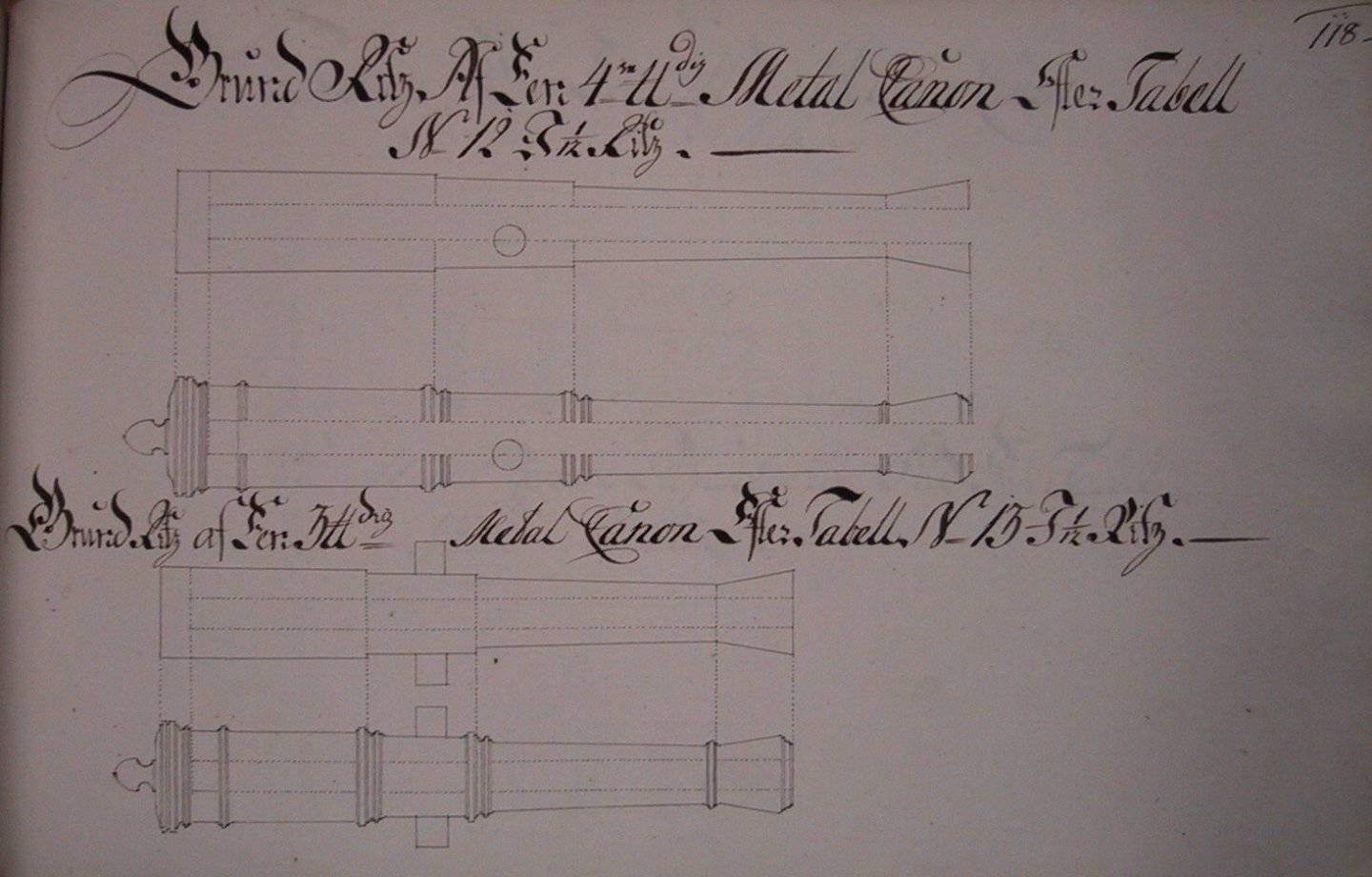

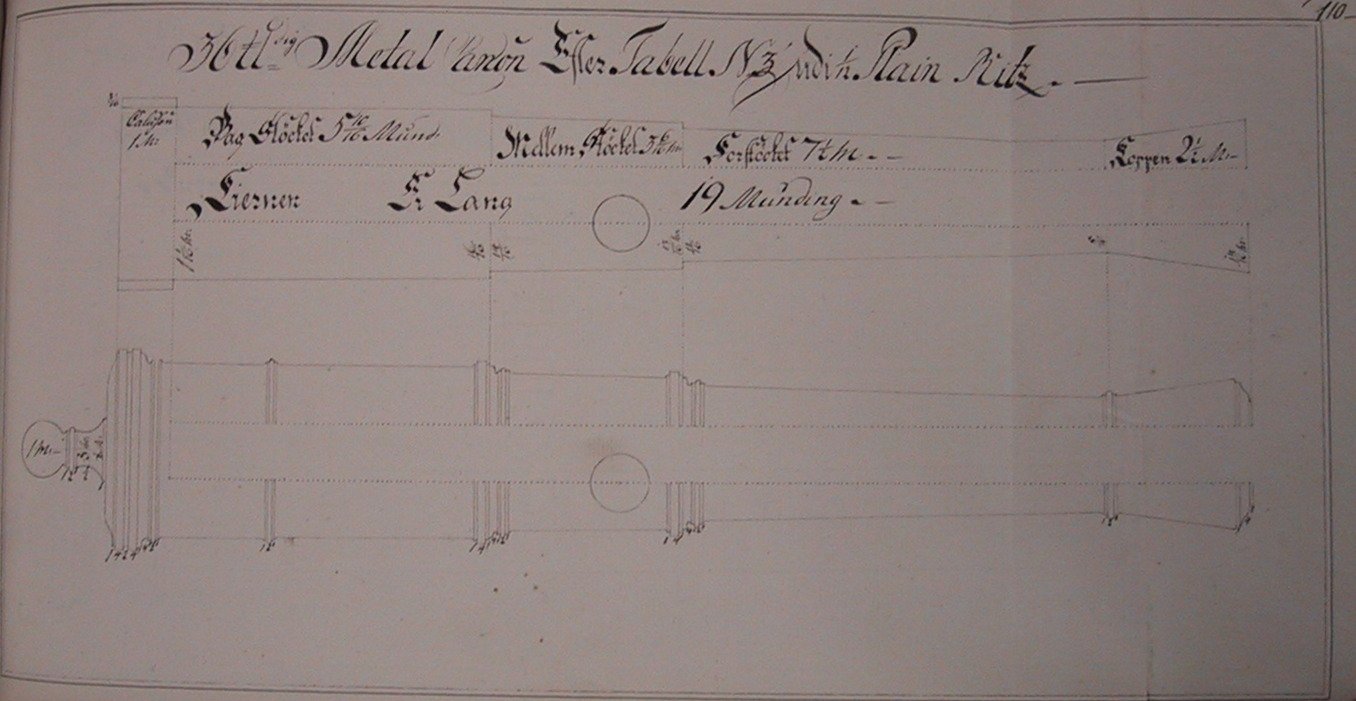

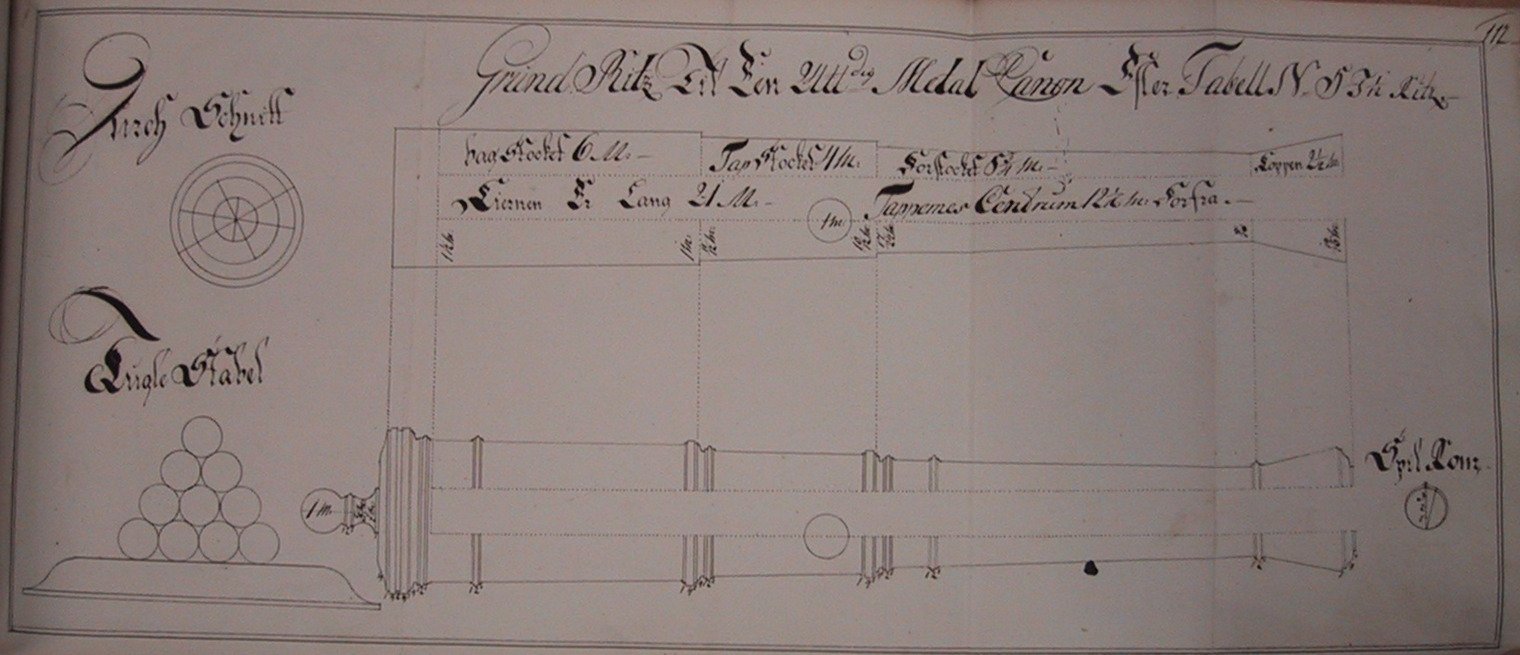

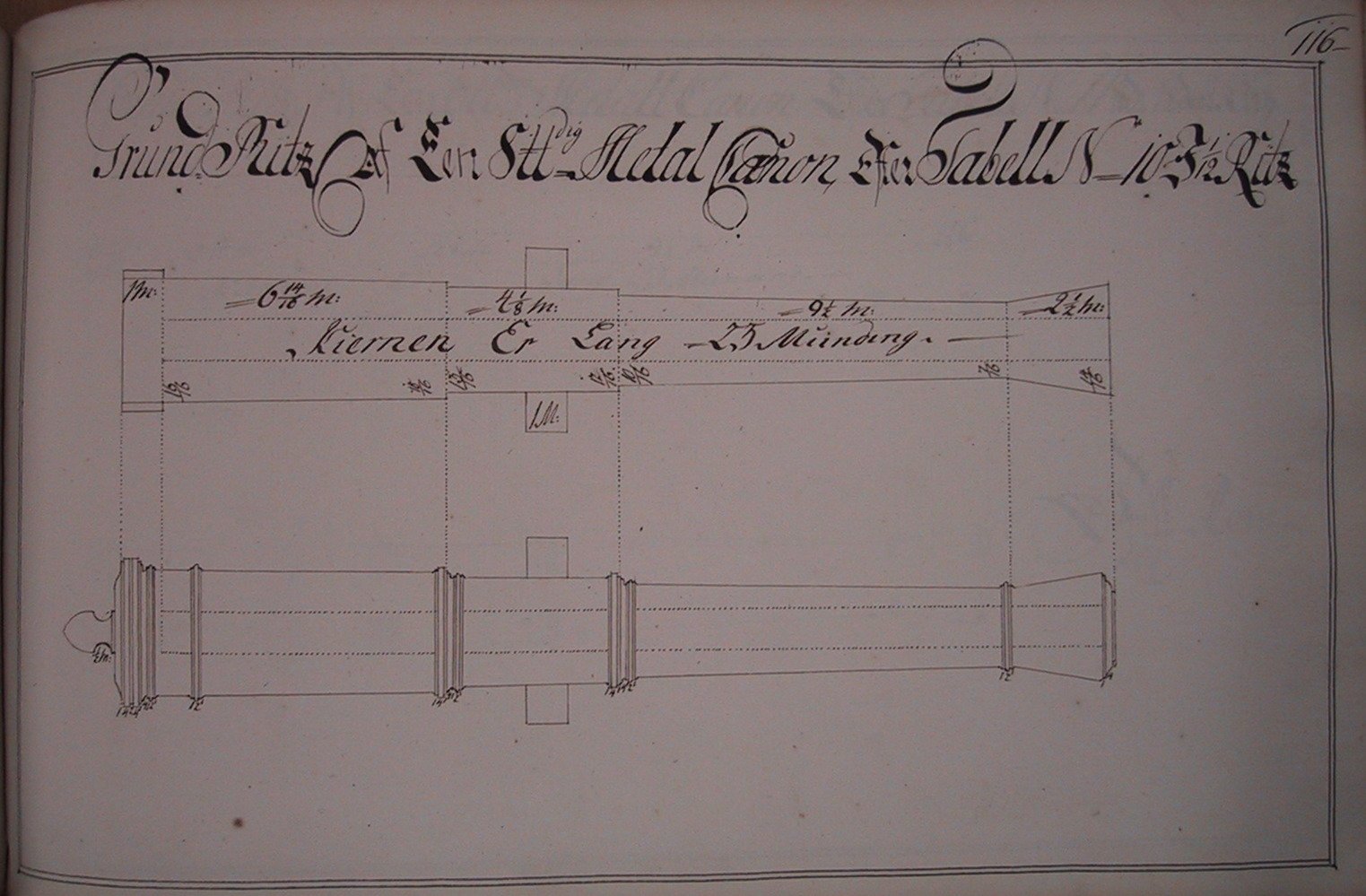

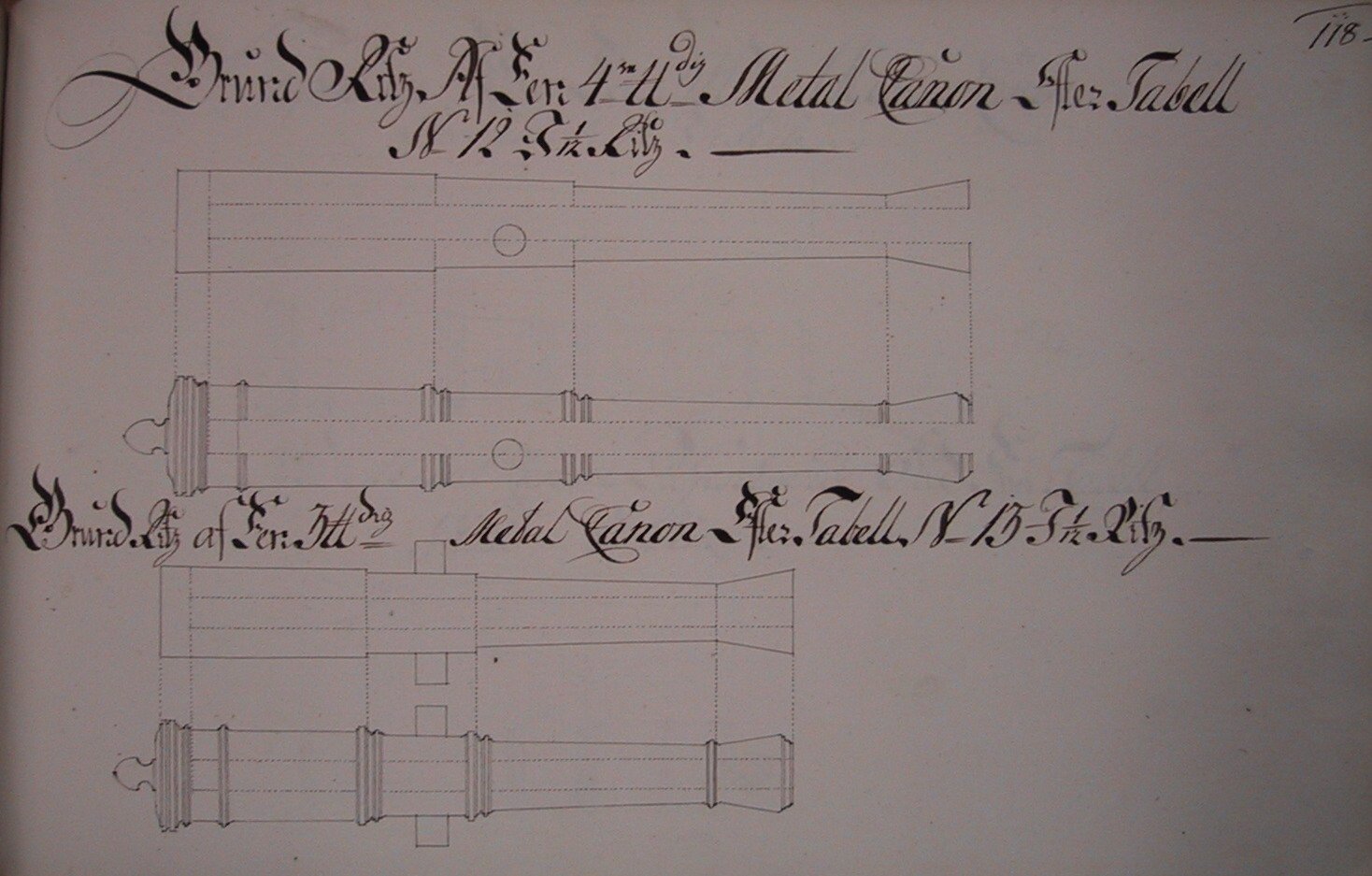

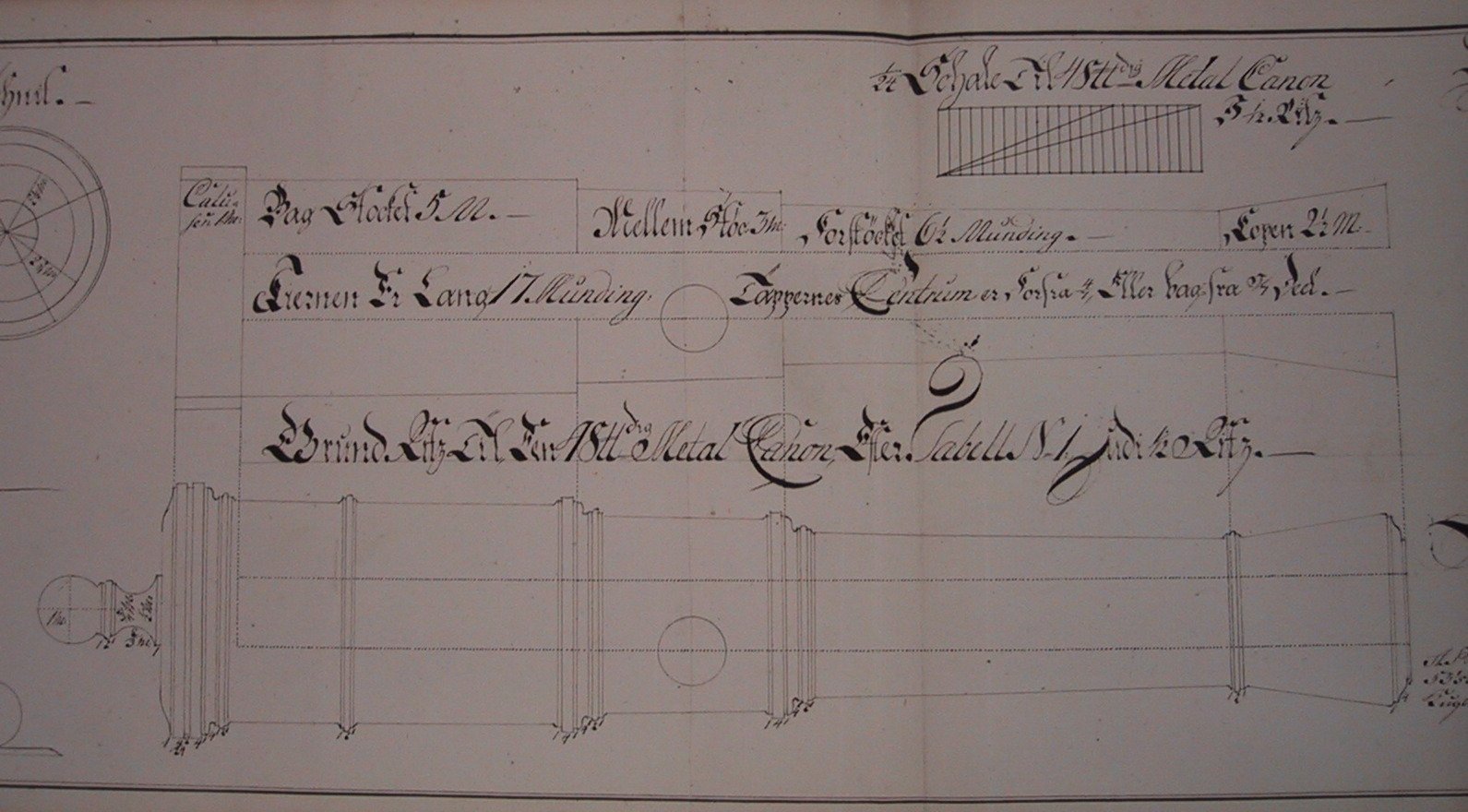

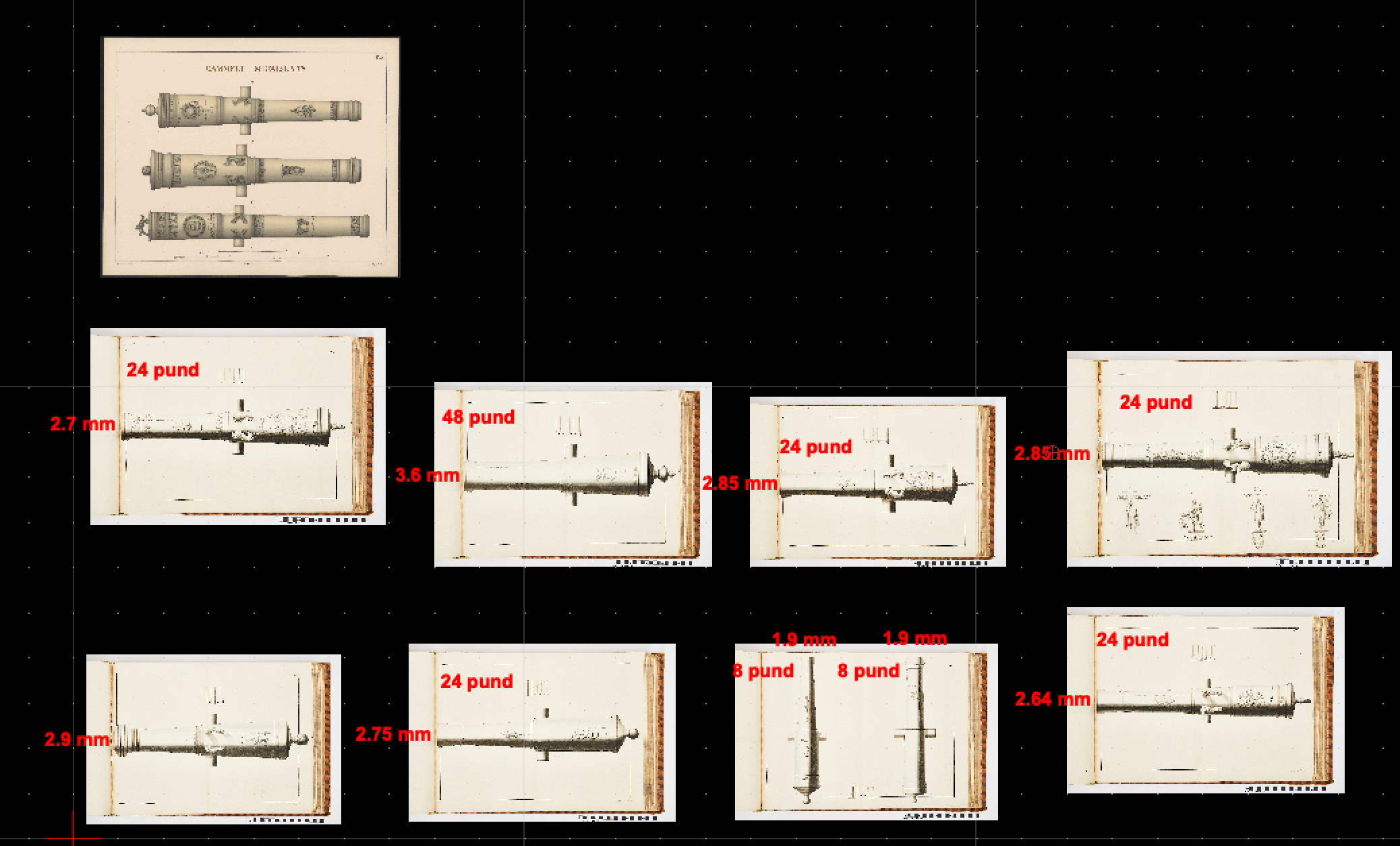

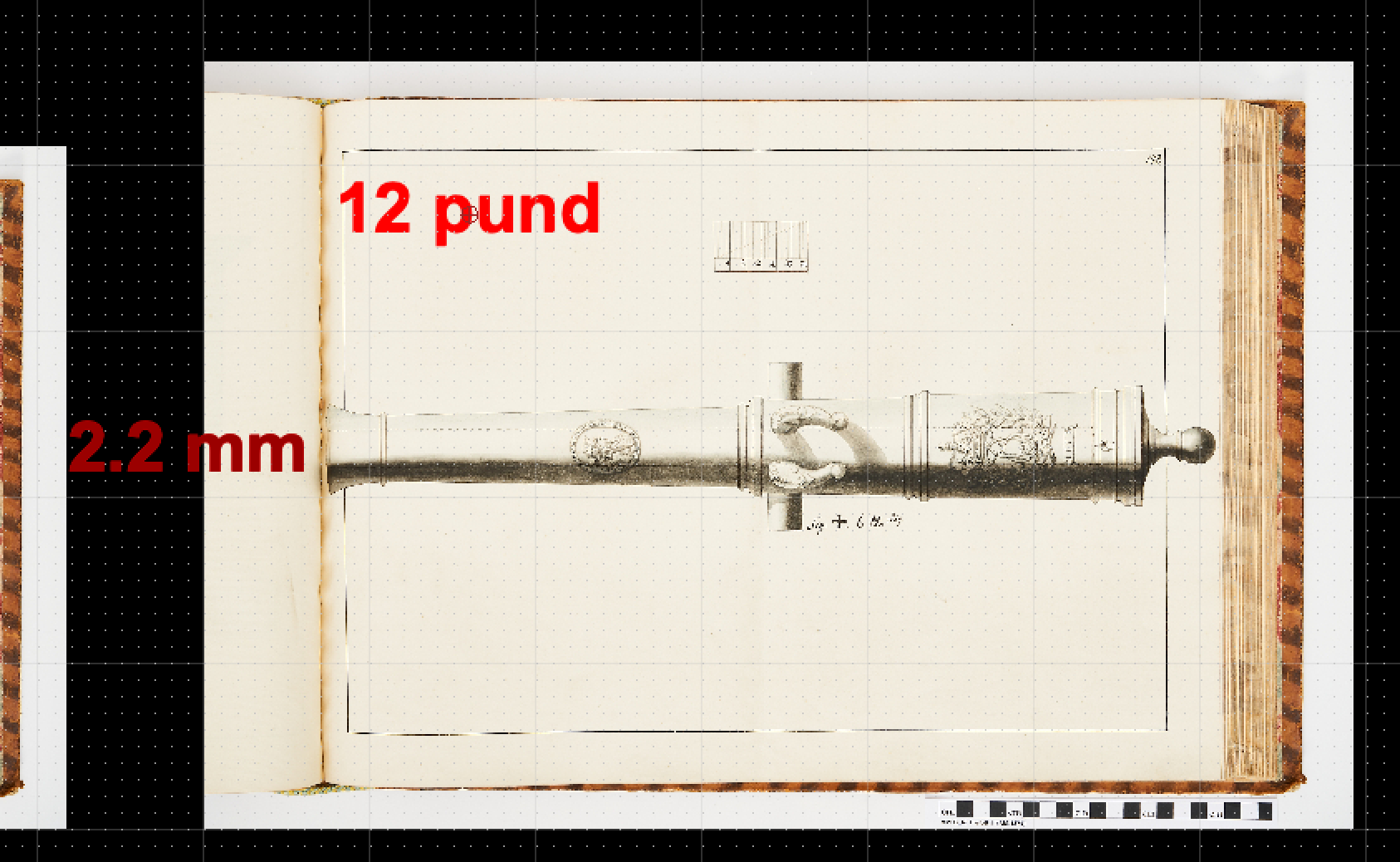

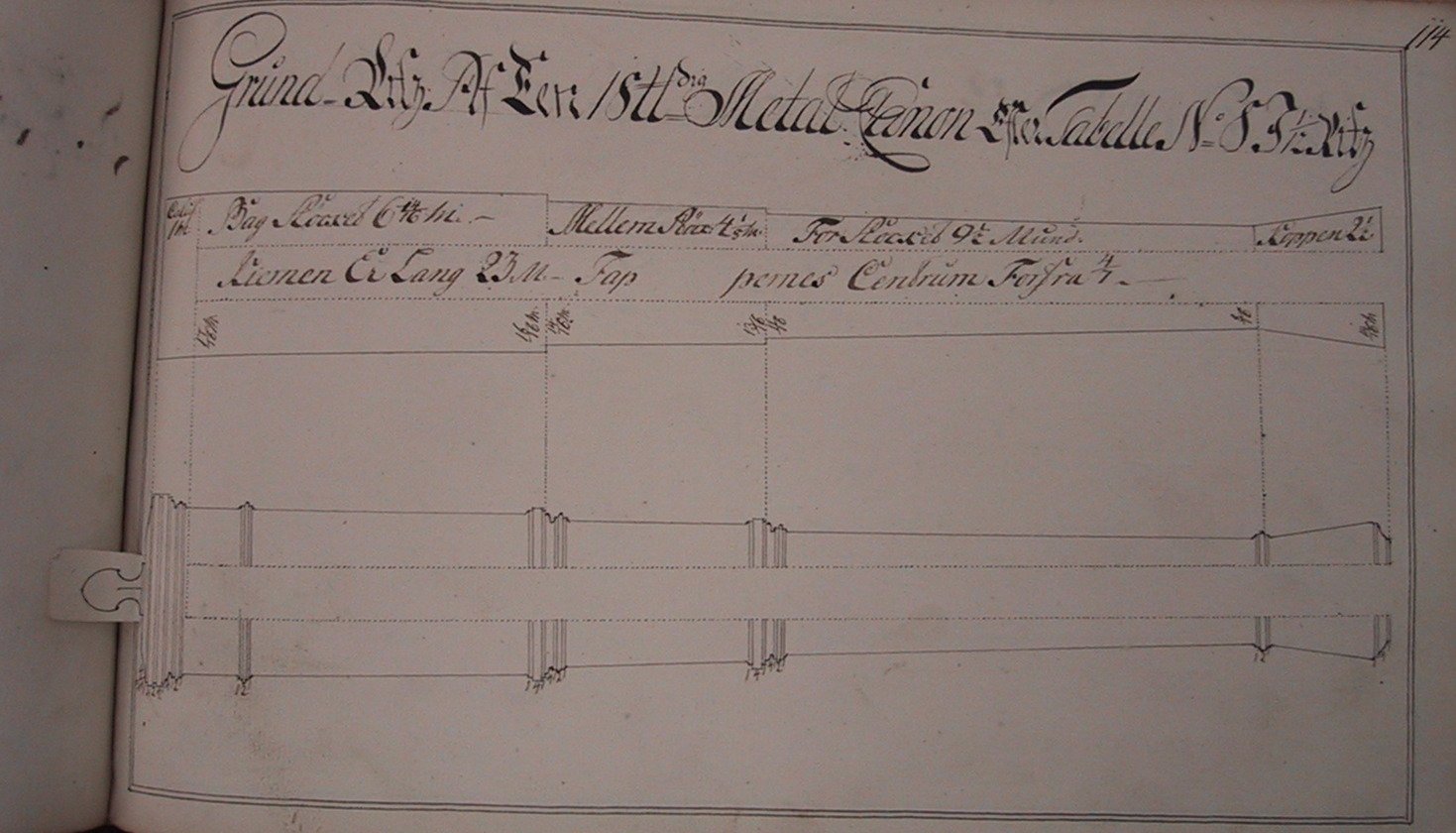

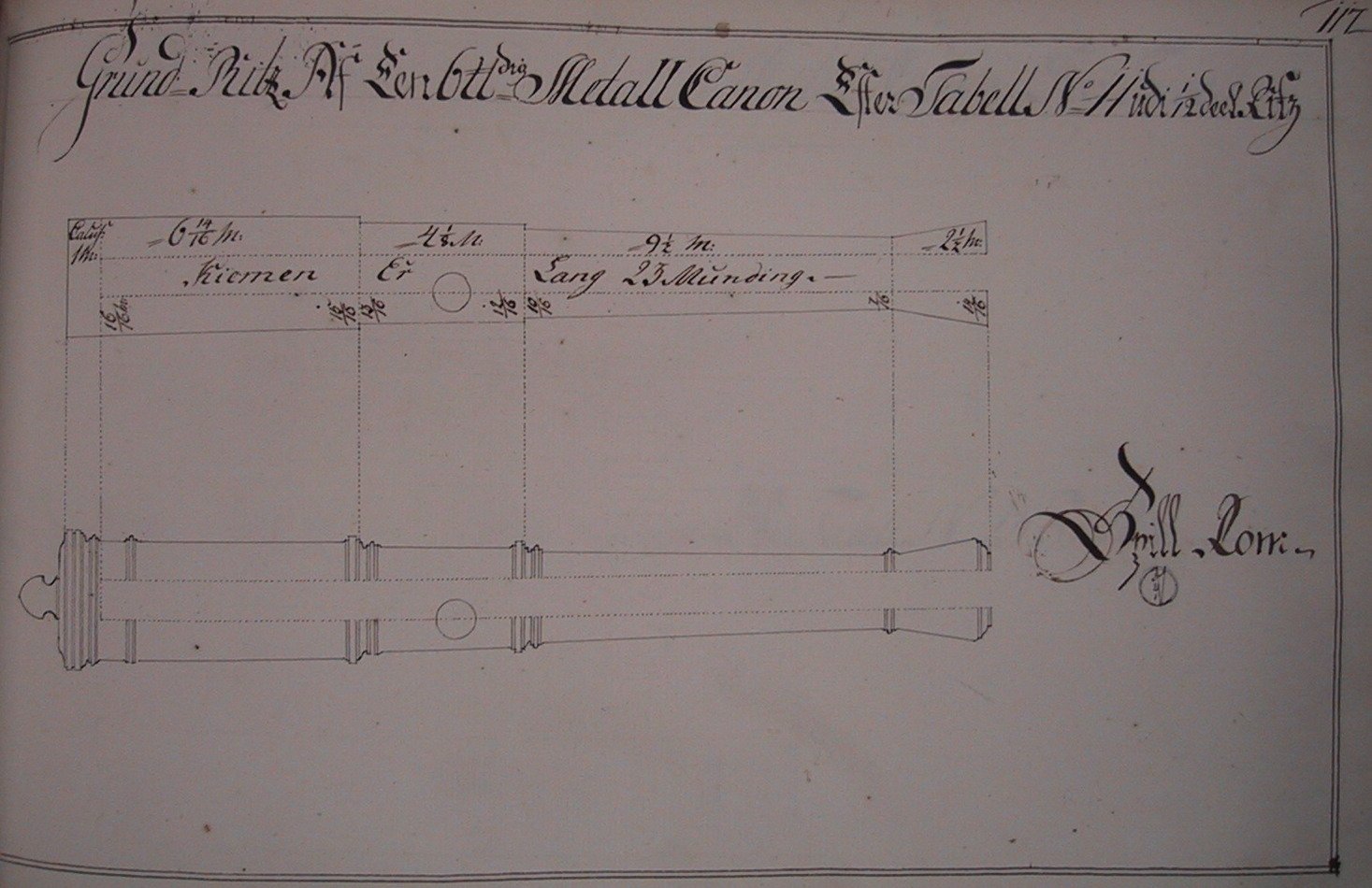

Here are the drawings used:

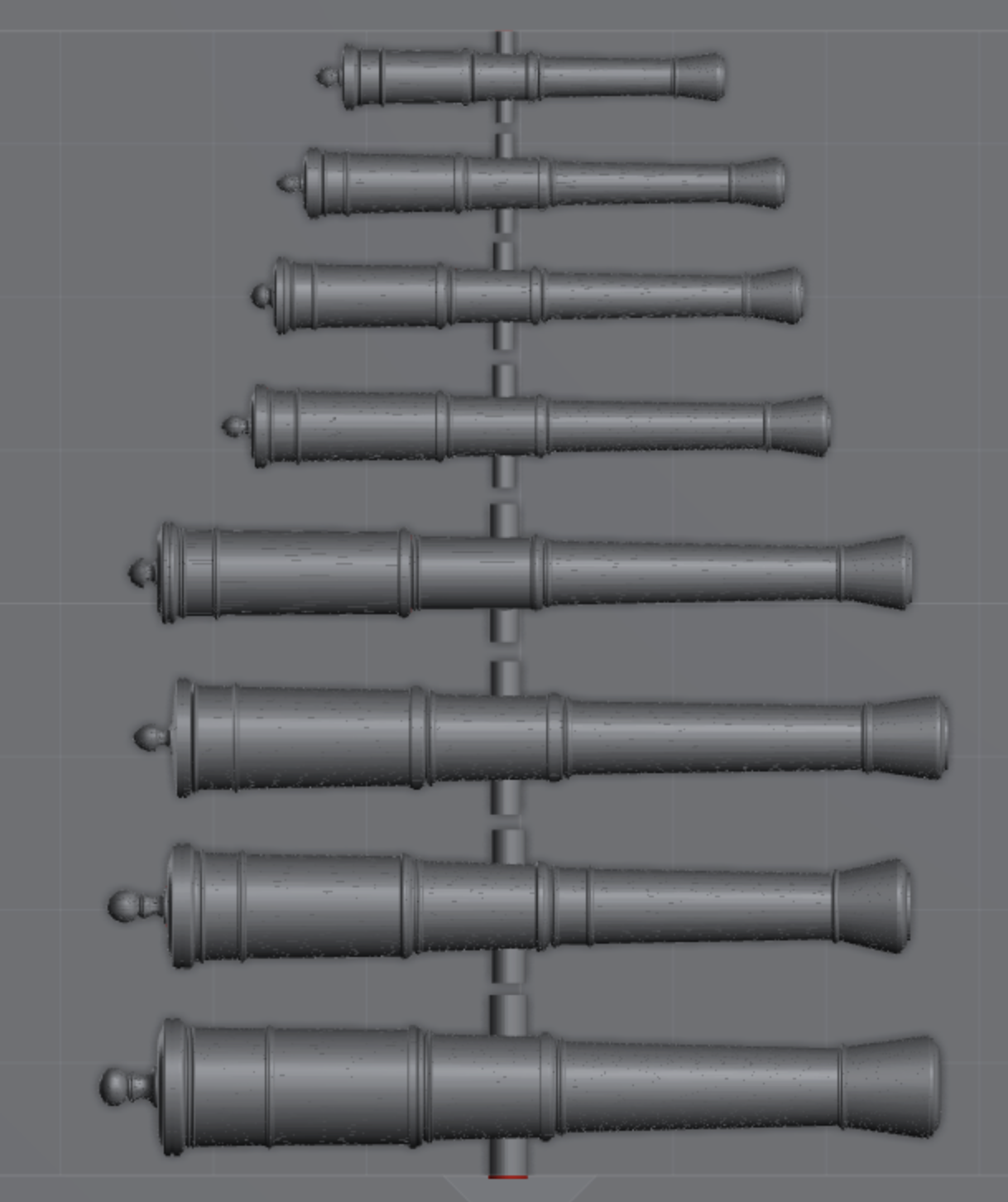

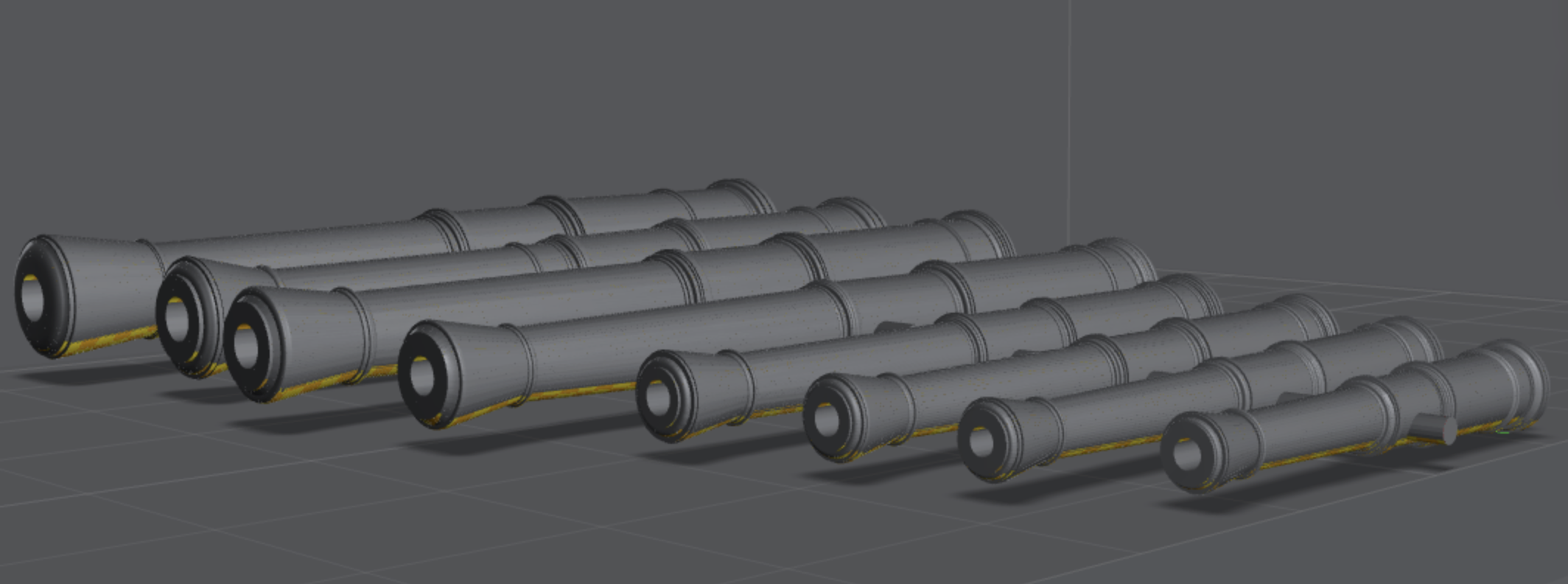

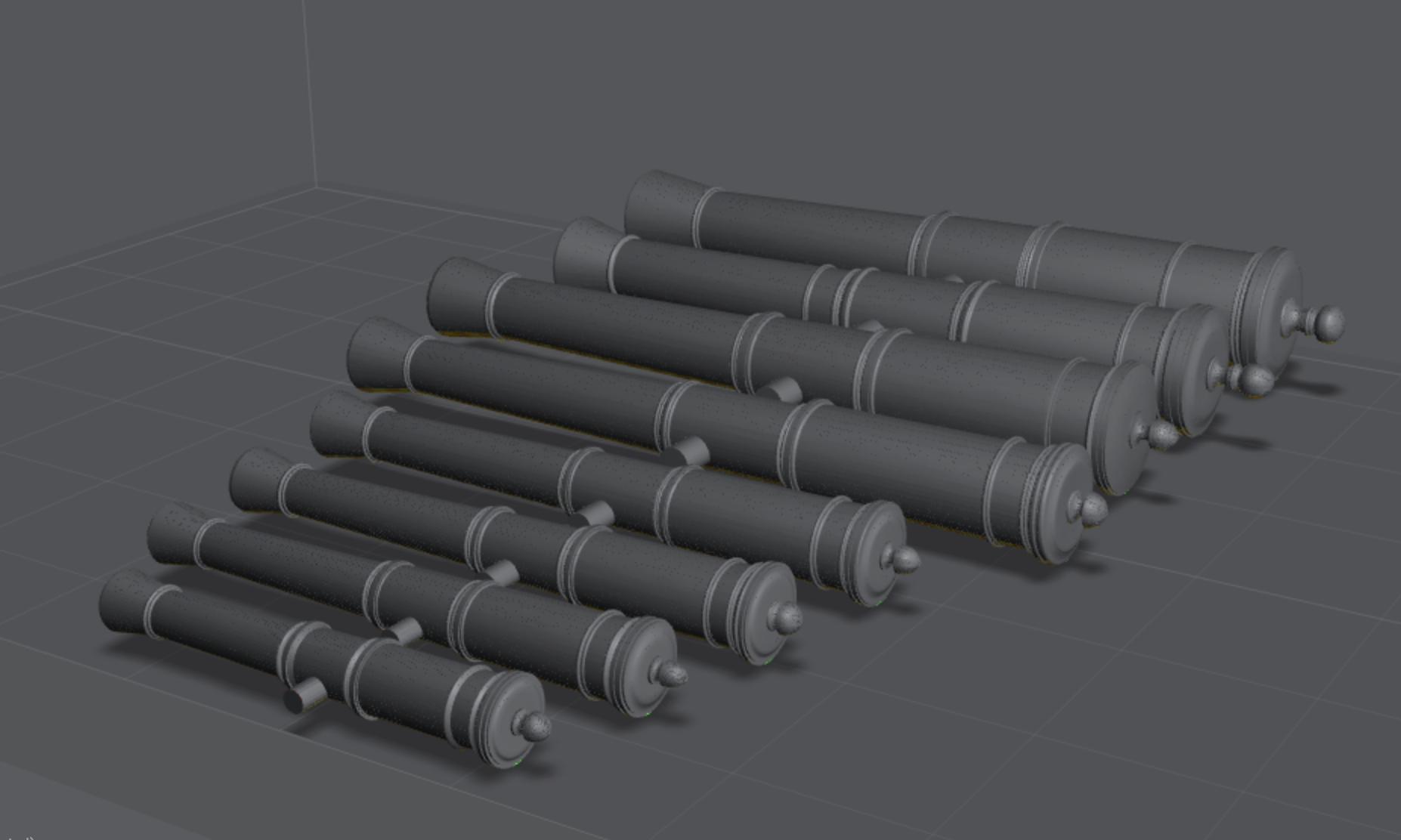

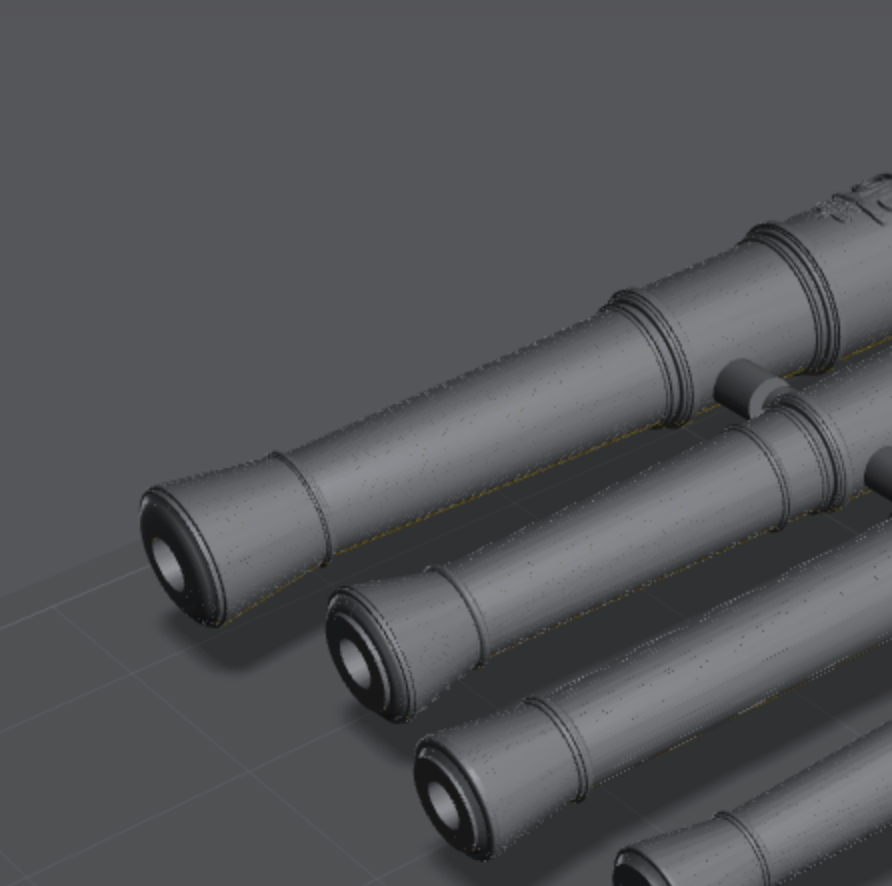

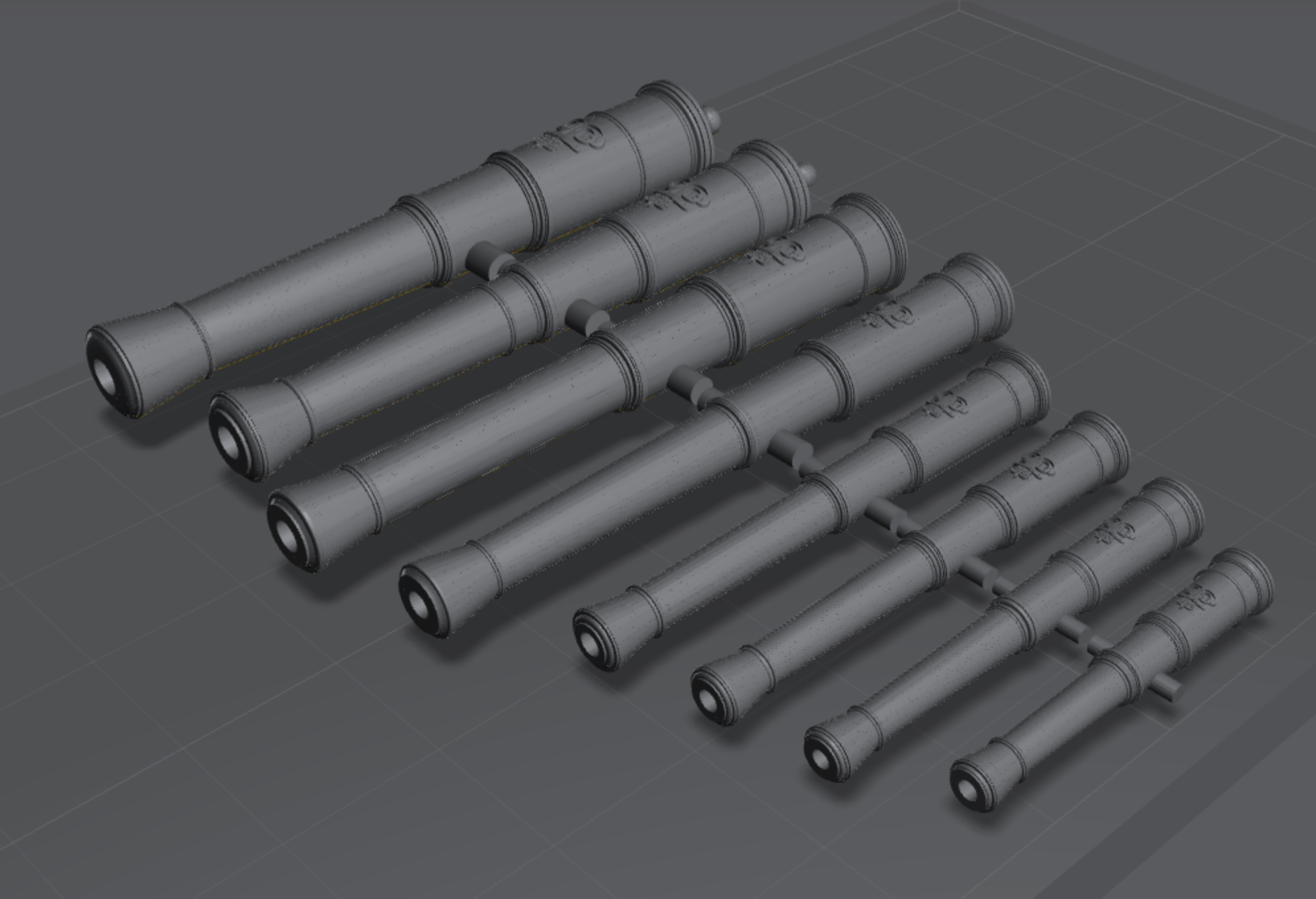

Here you can see the files, except for the 42 pounder:

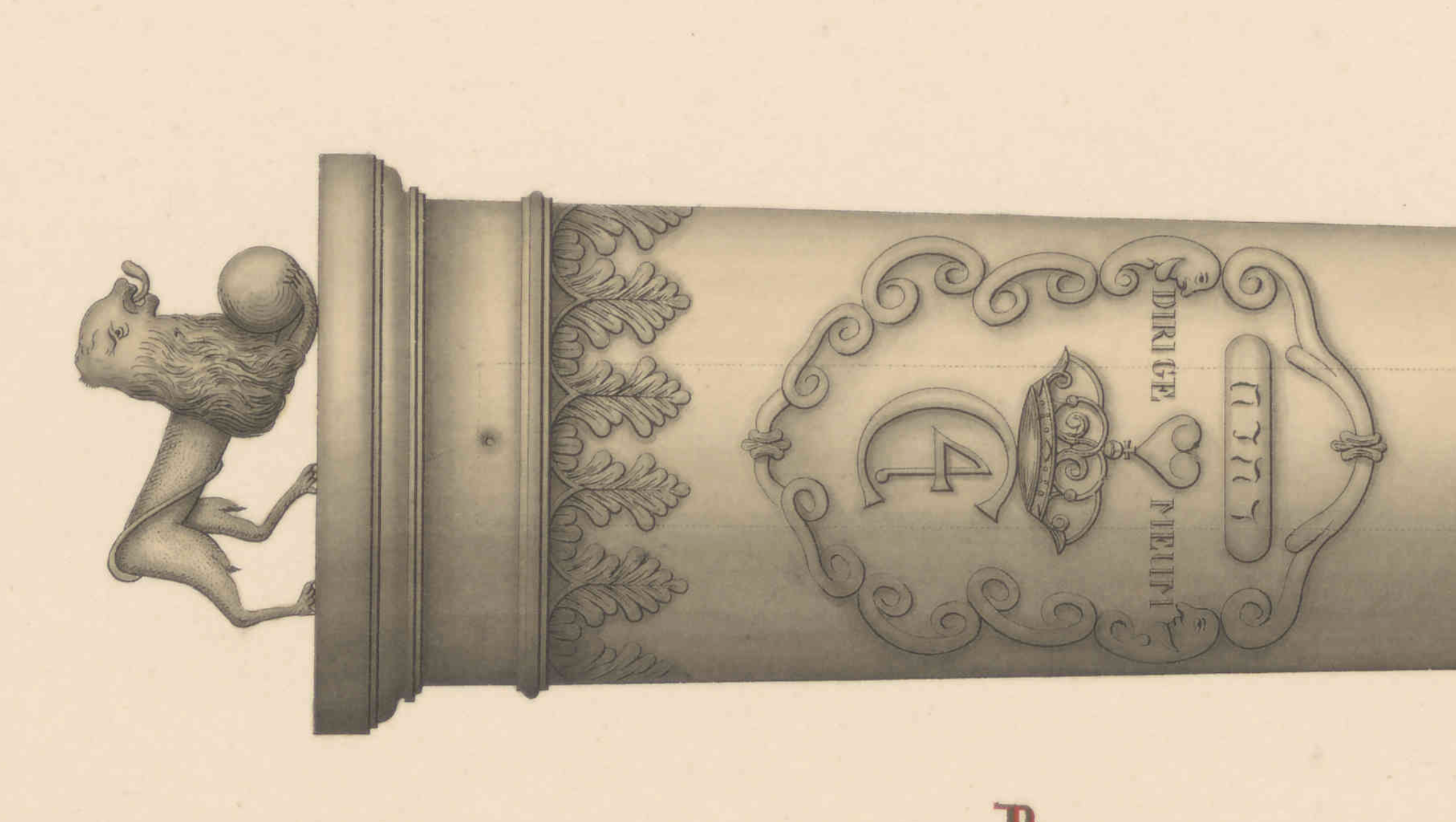

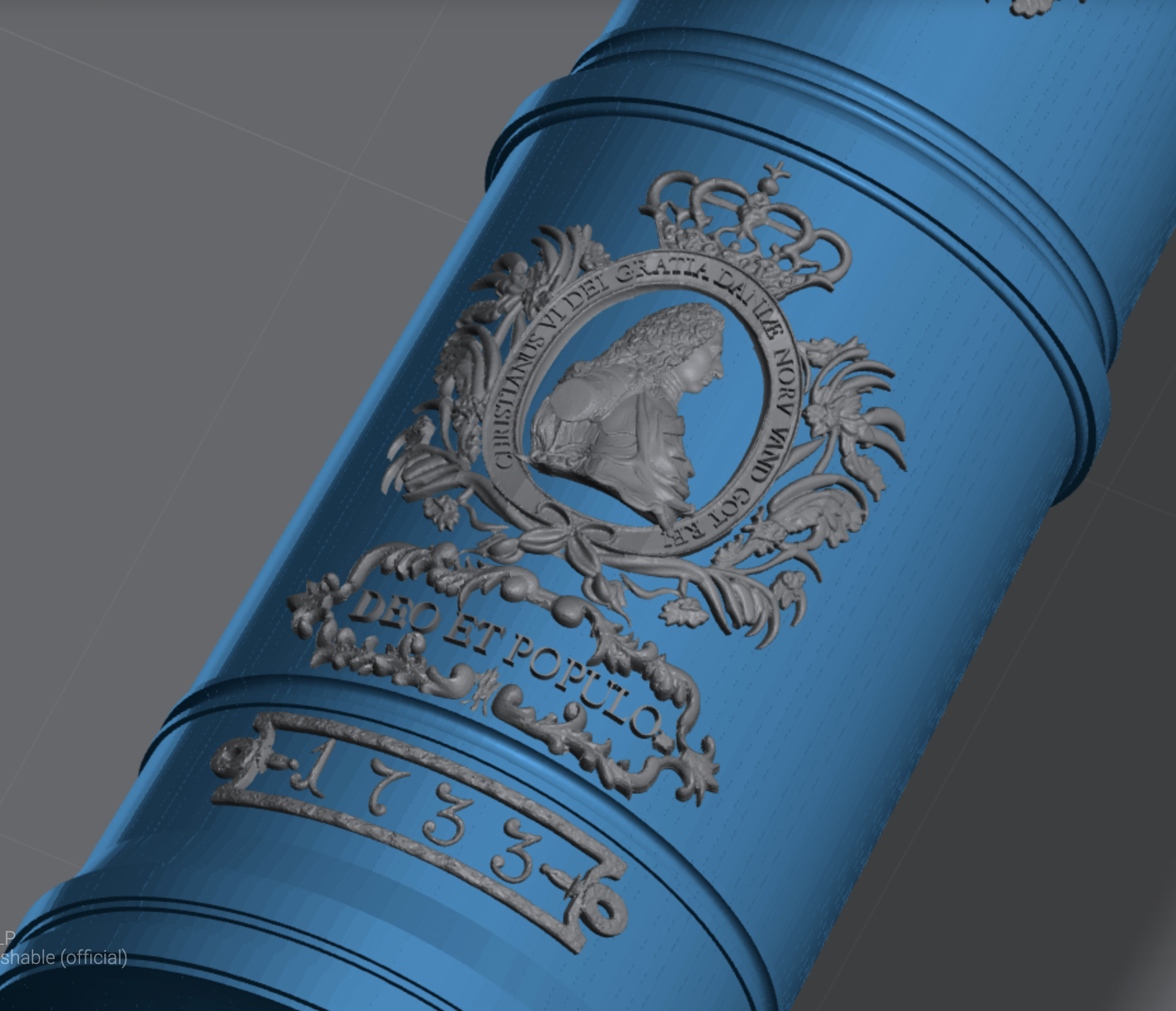

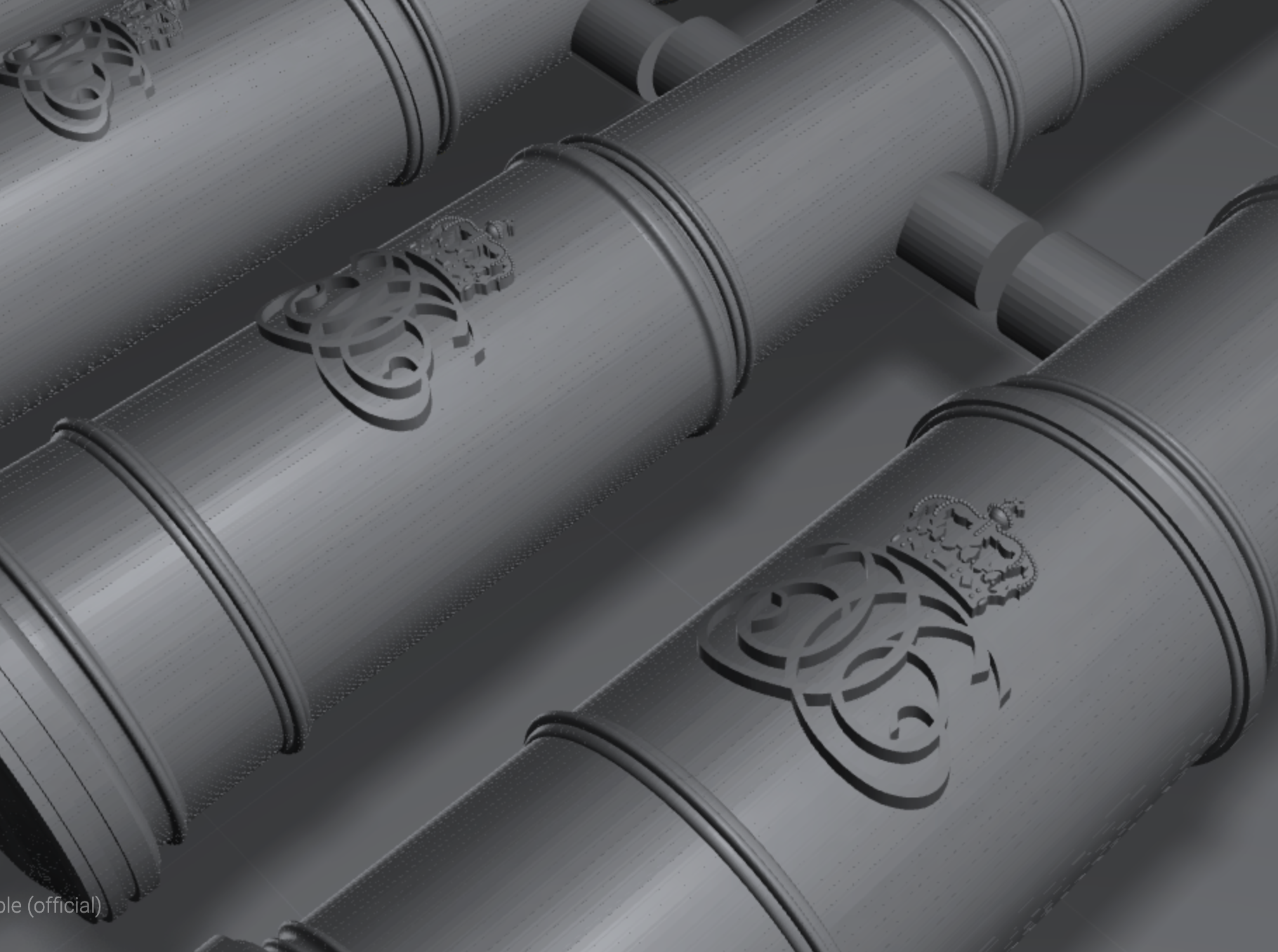

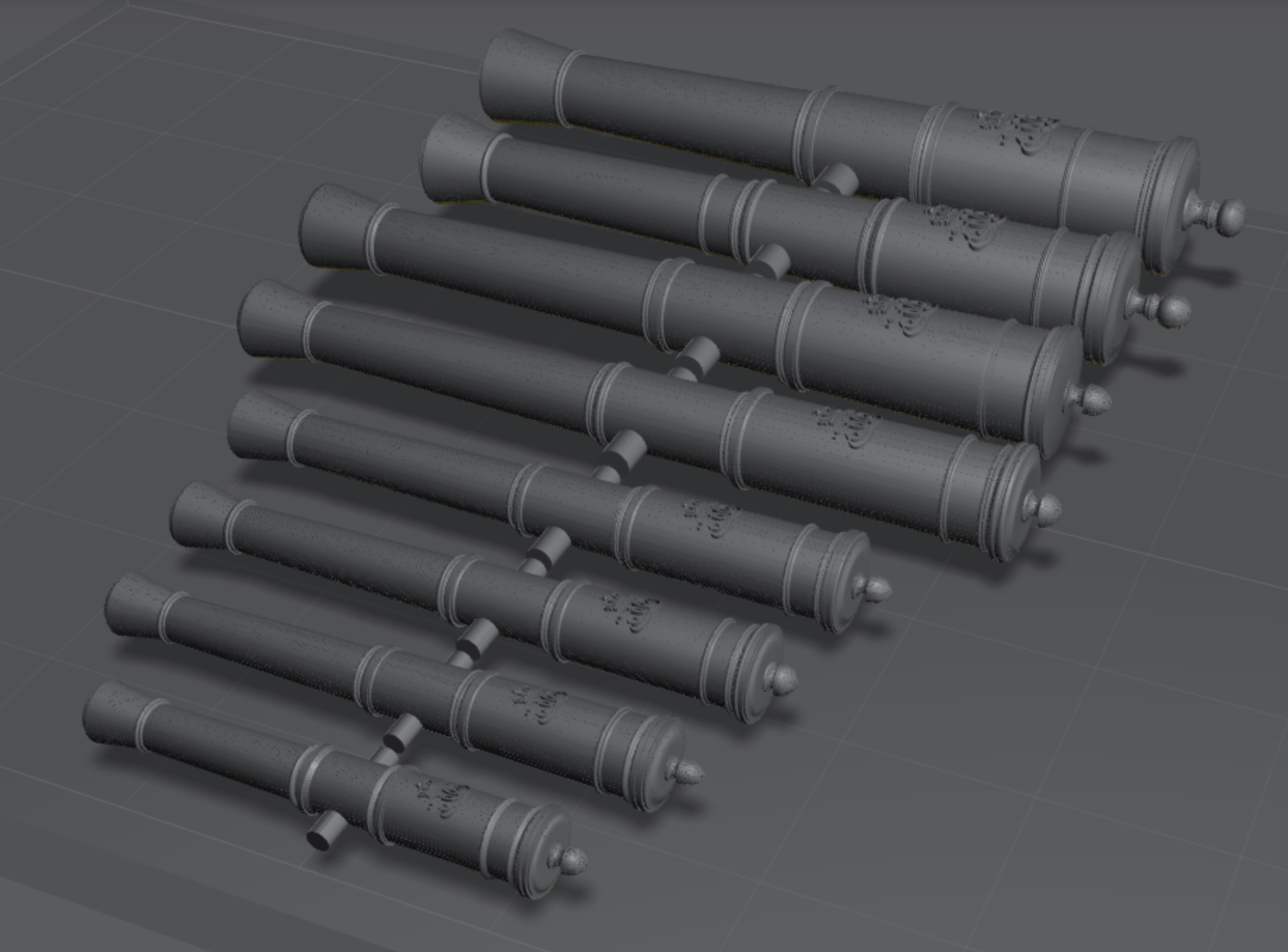

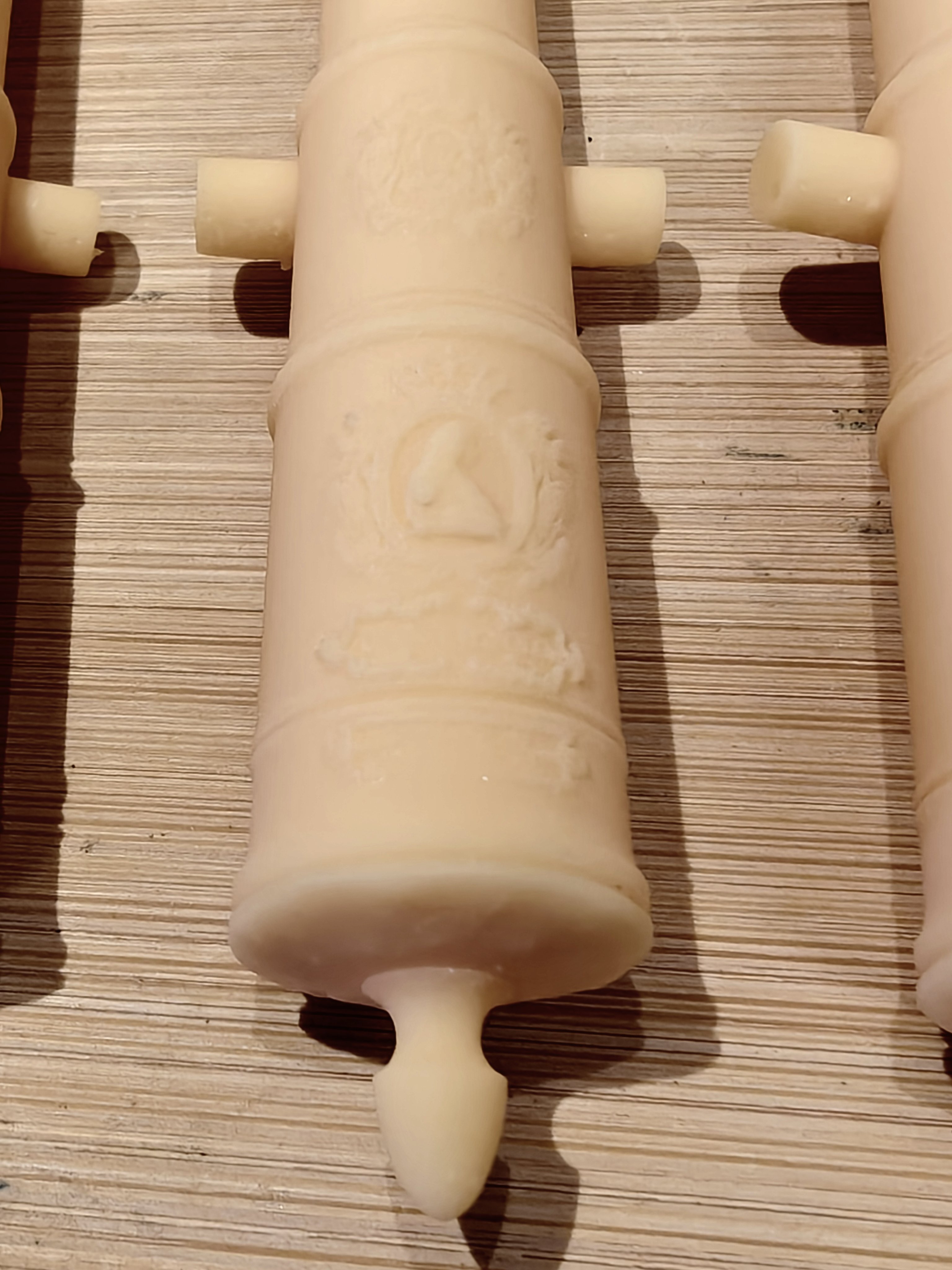

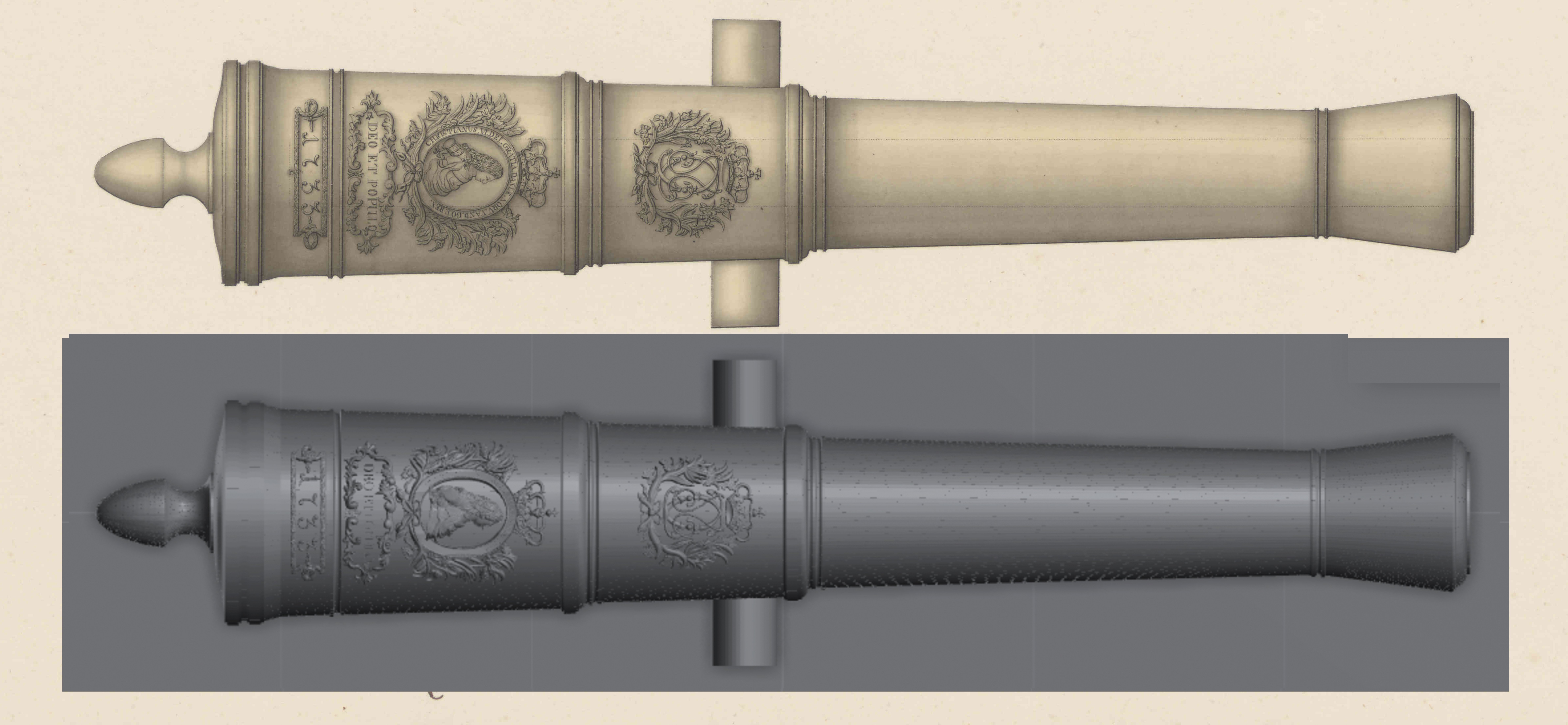

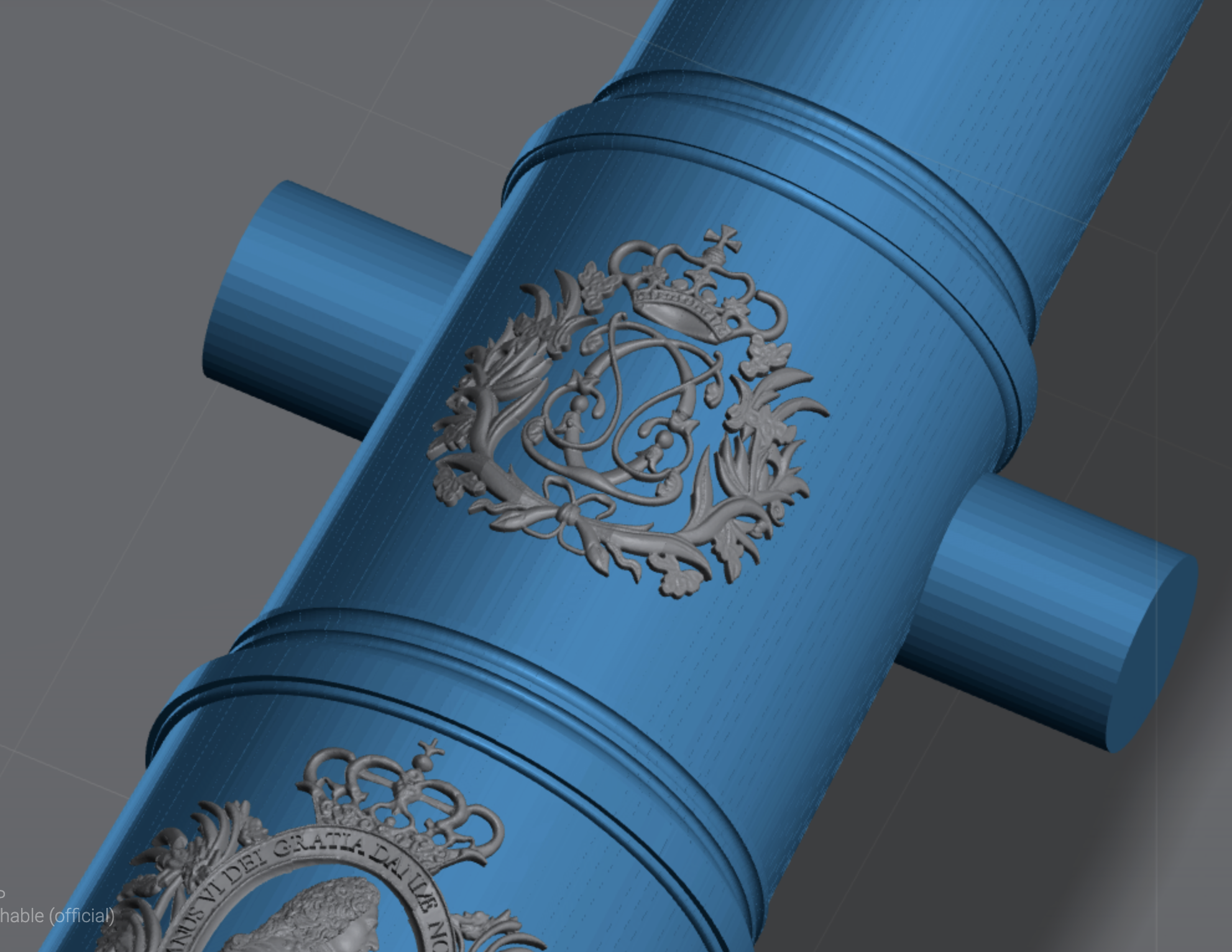

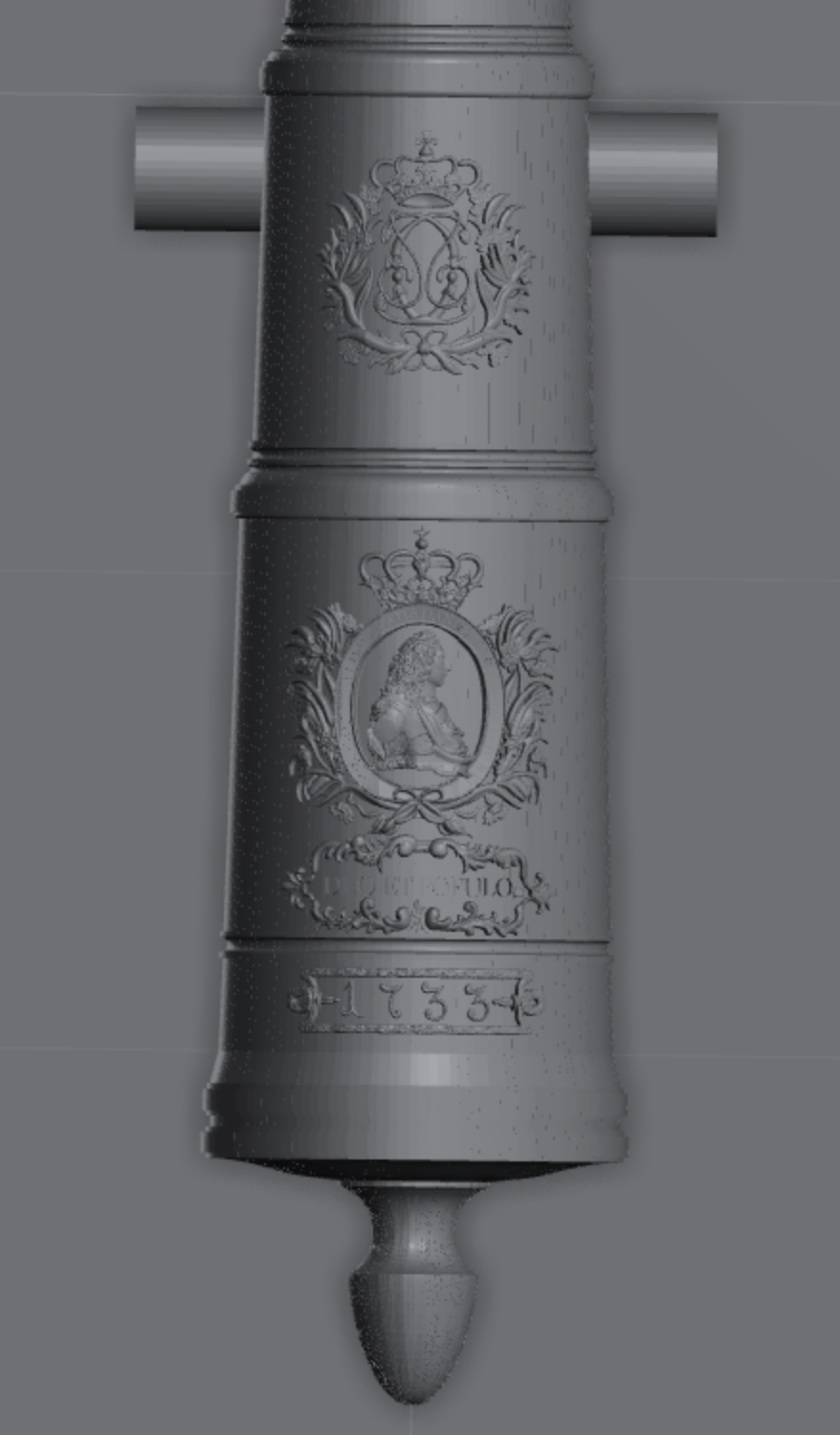

And then I have versions with the monogram of King Christian VI, which should be appropriate for the period (though Frederik IV and Fredrik V could also be appropriate).

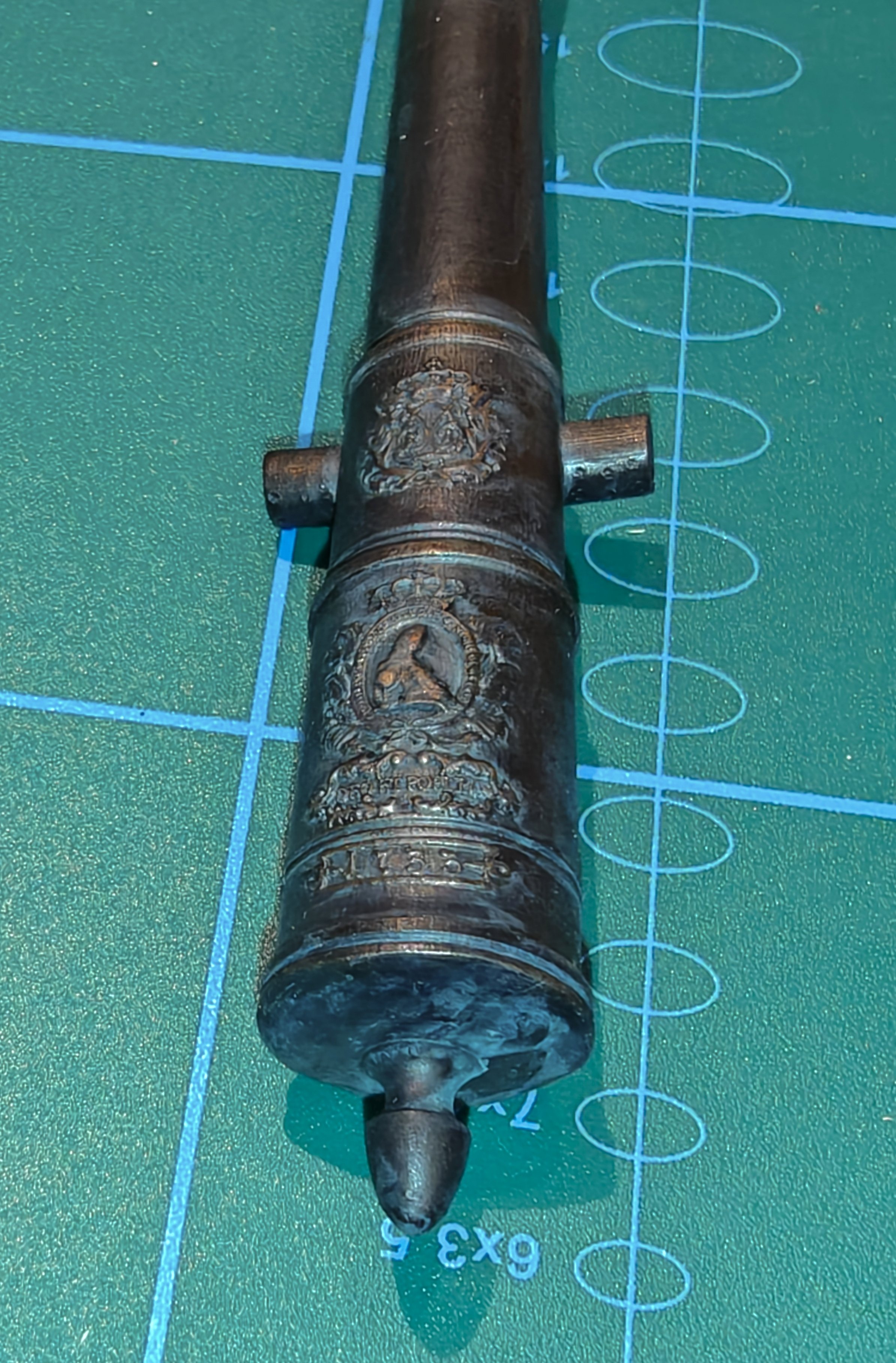

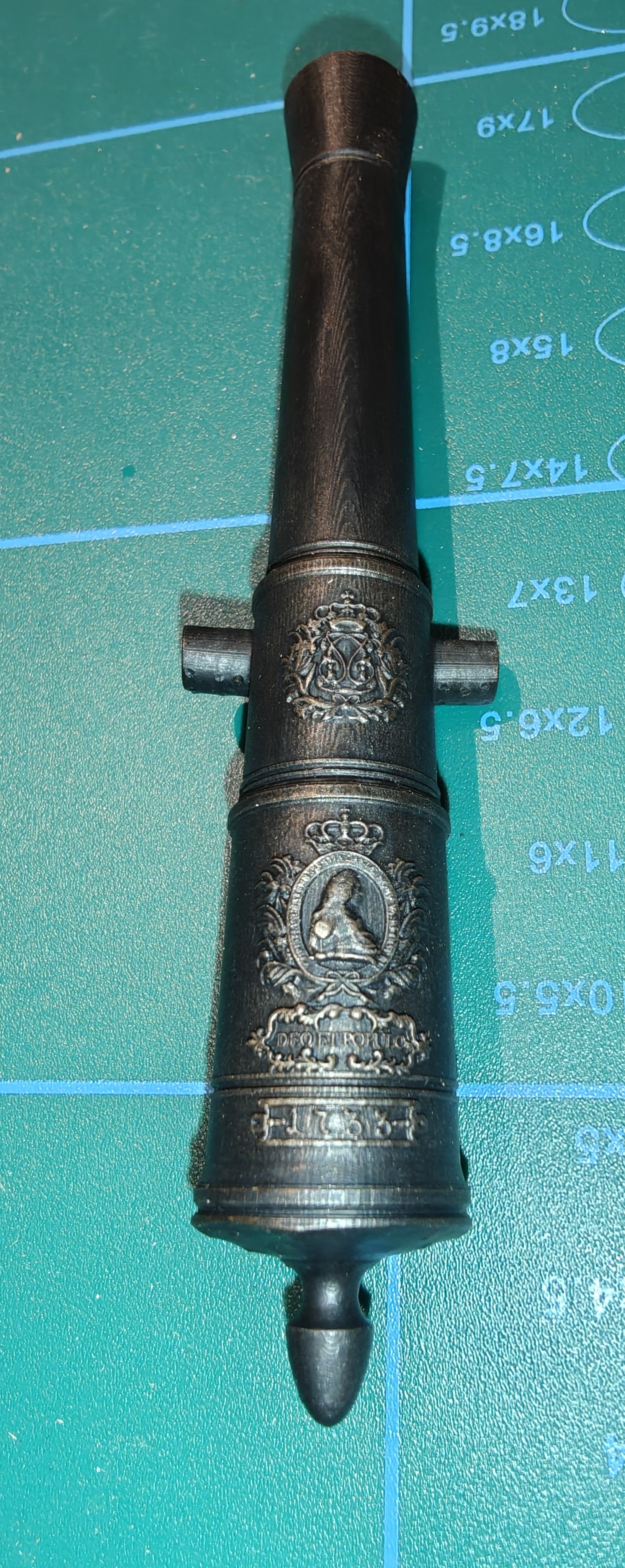

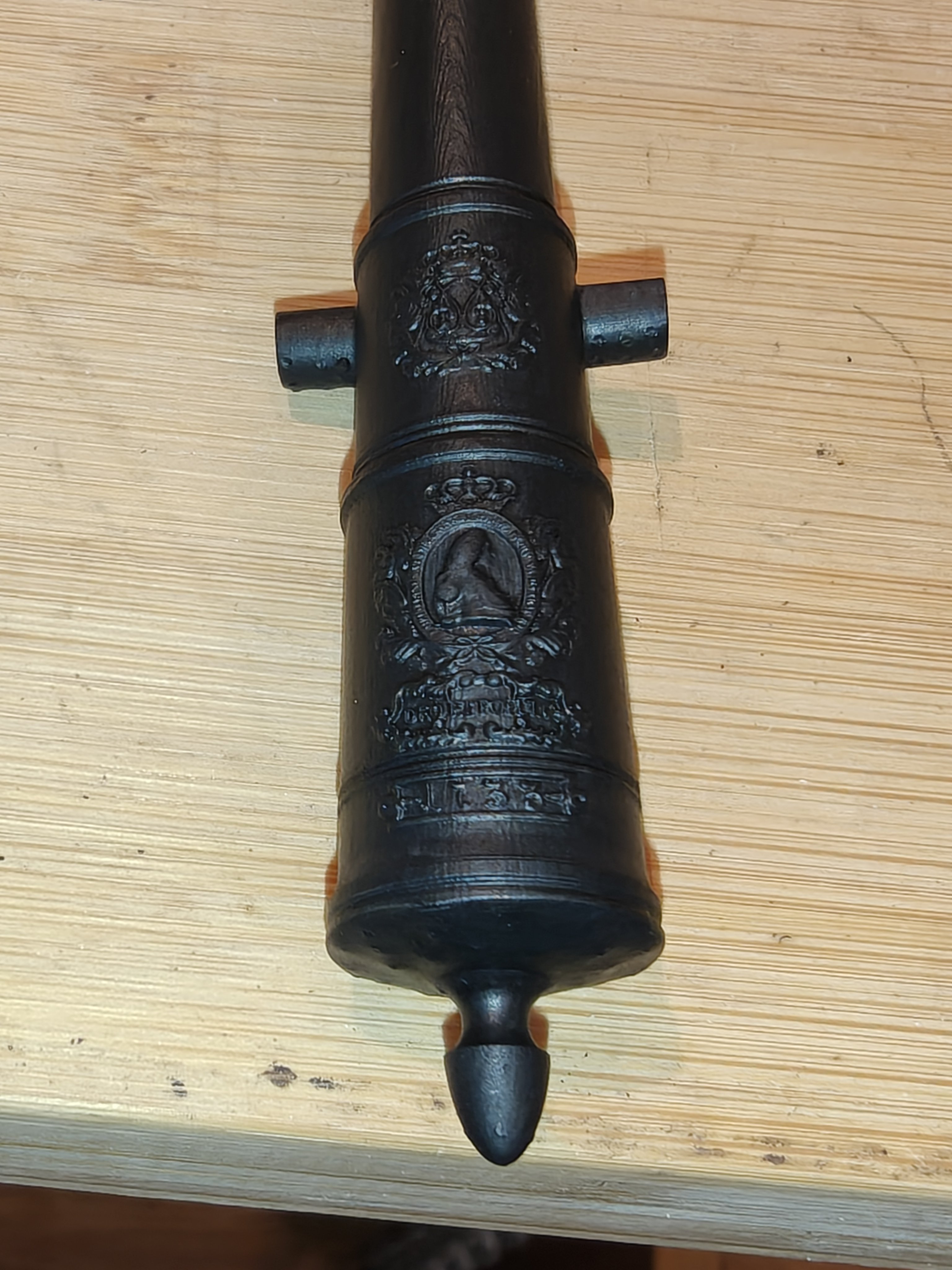

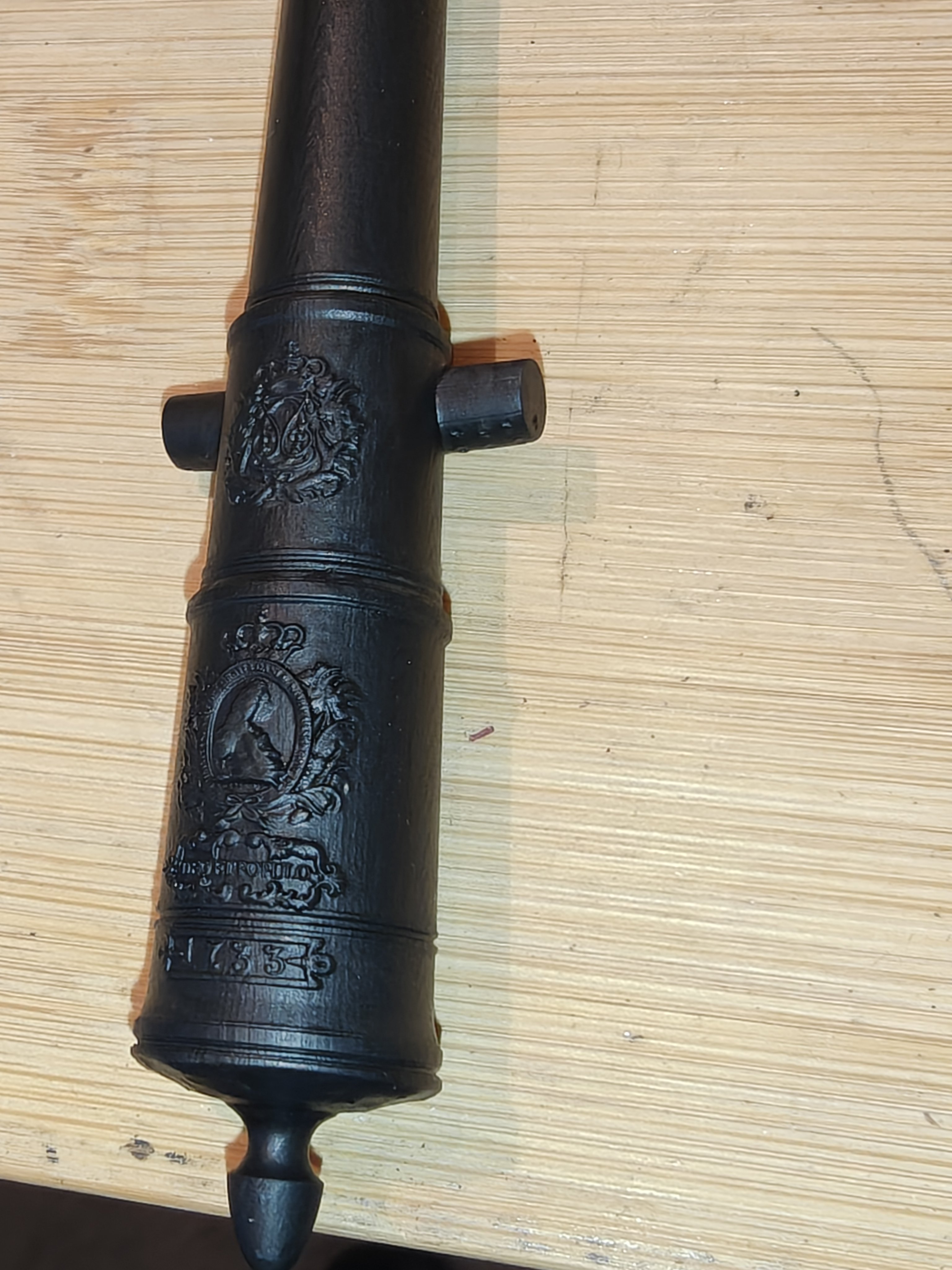

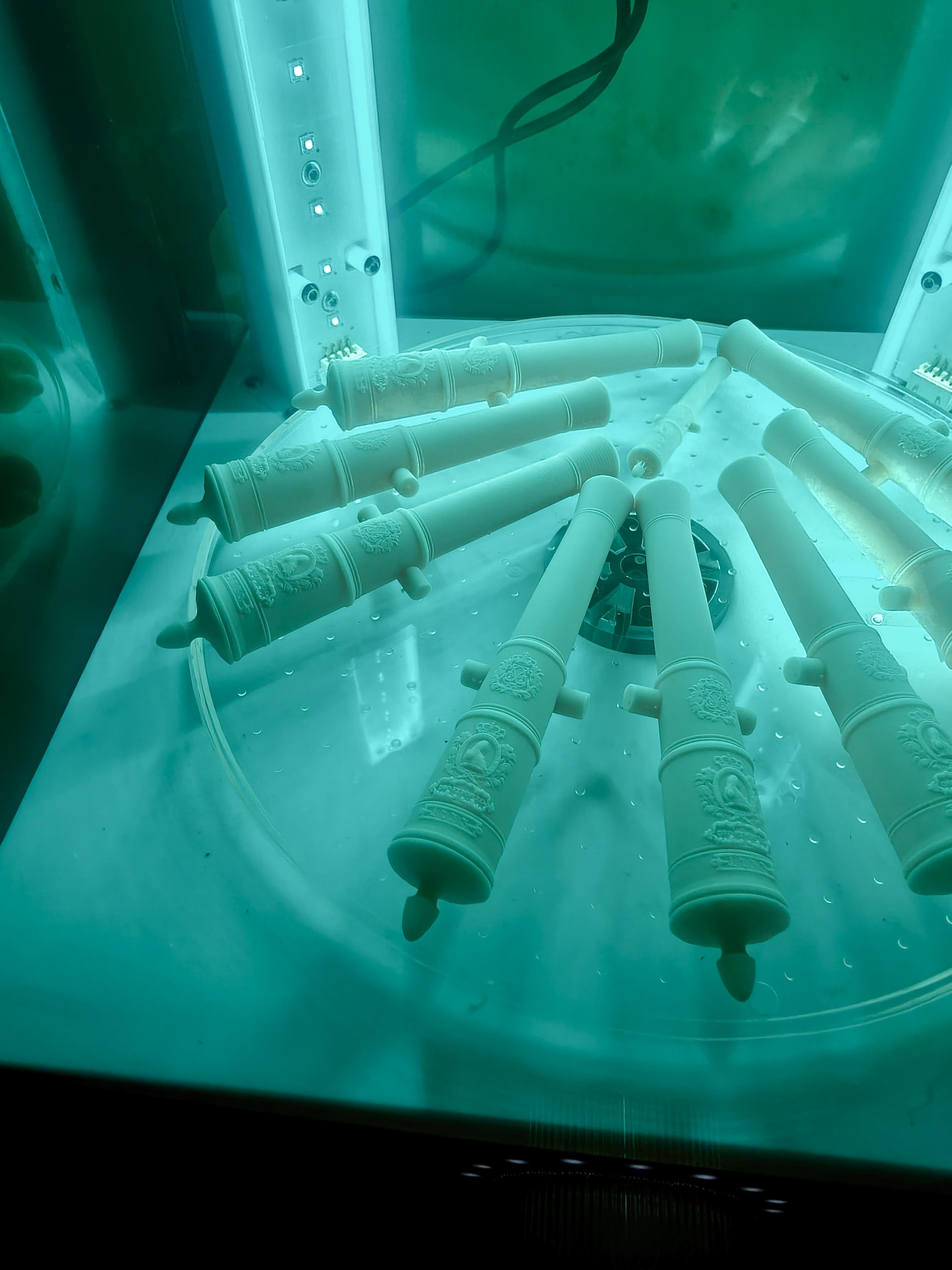

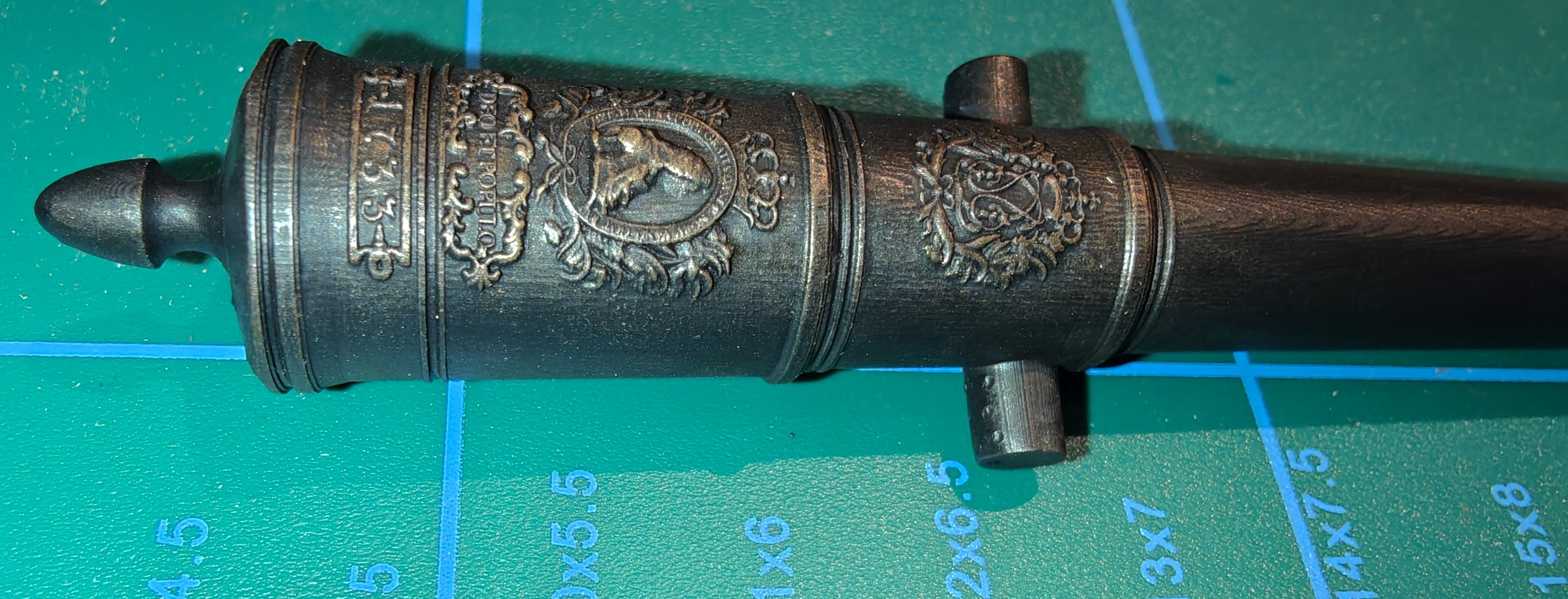

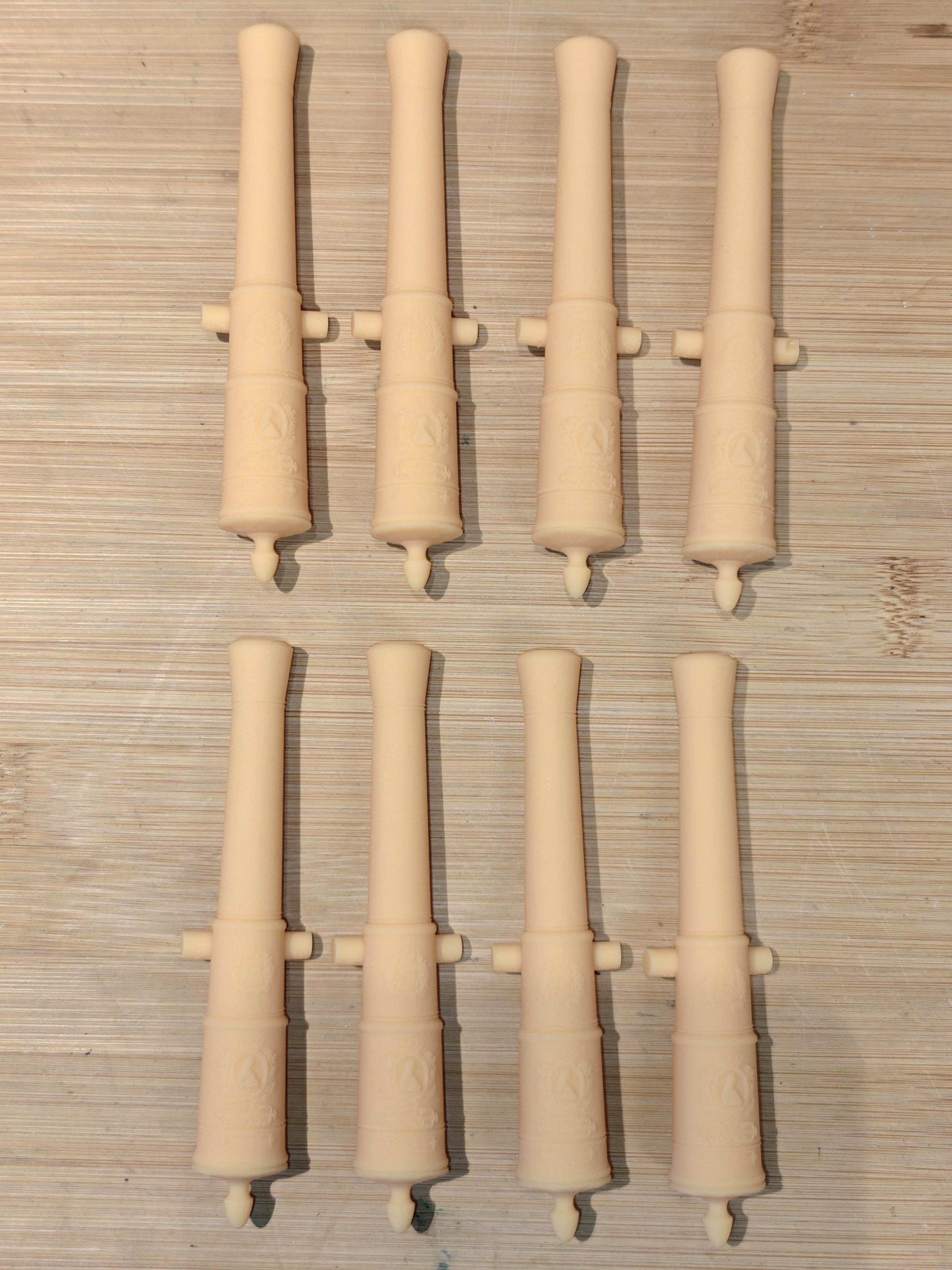

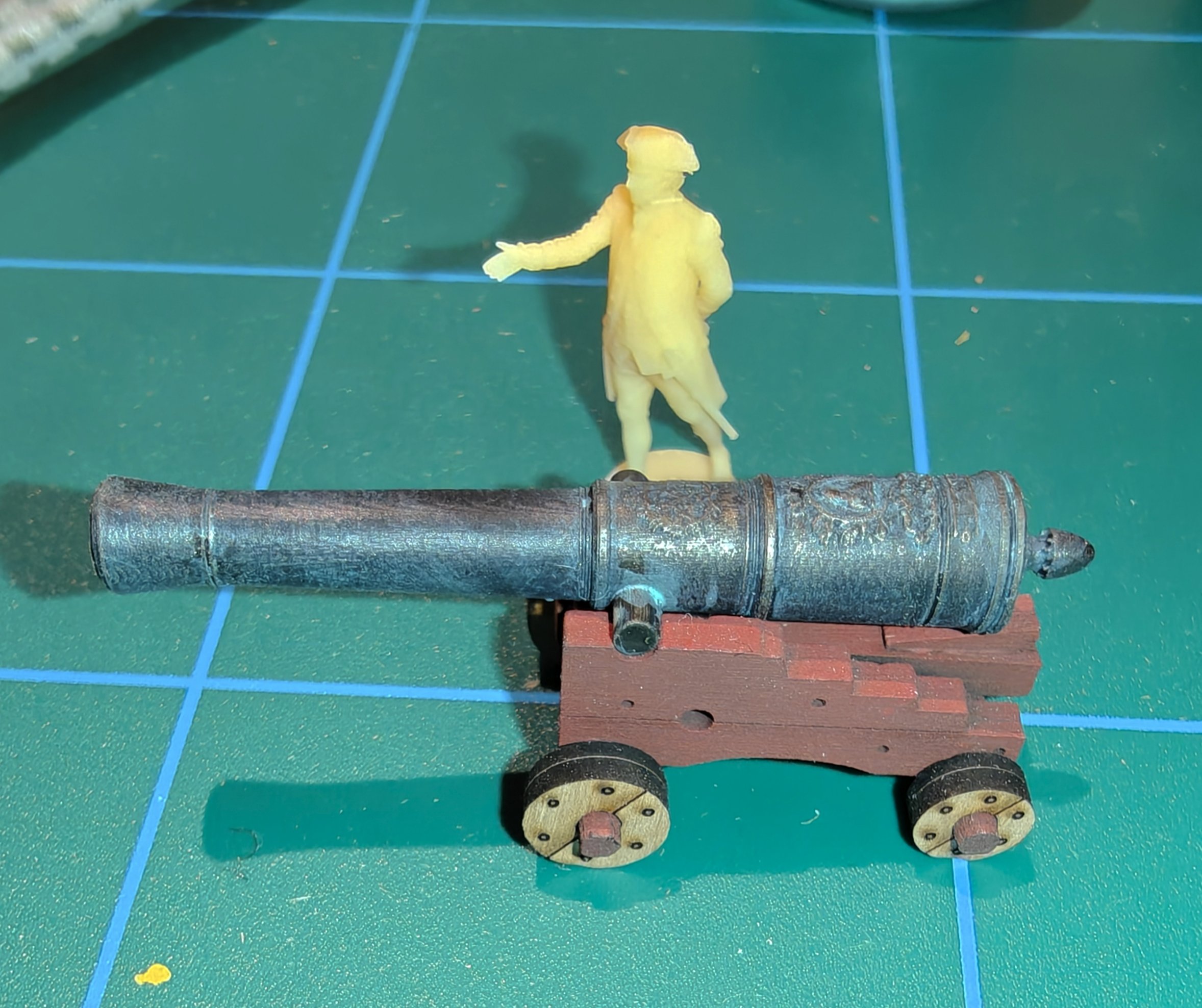

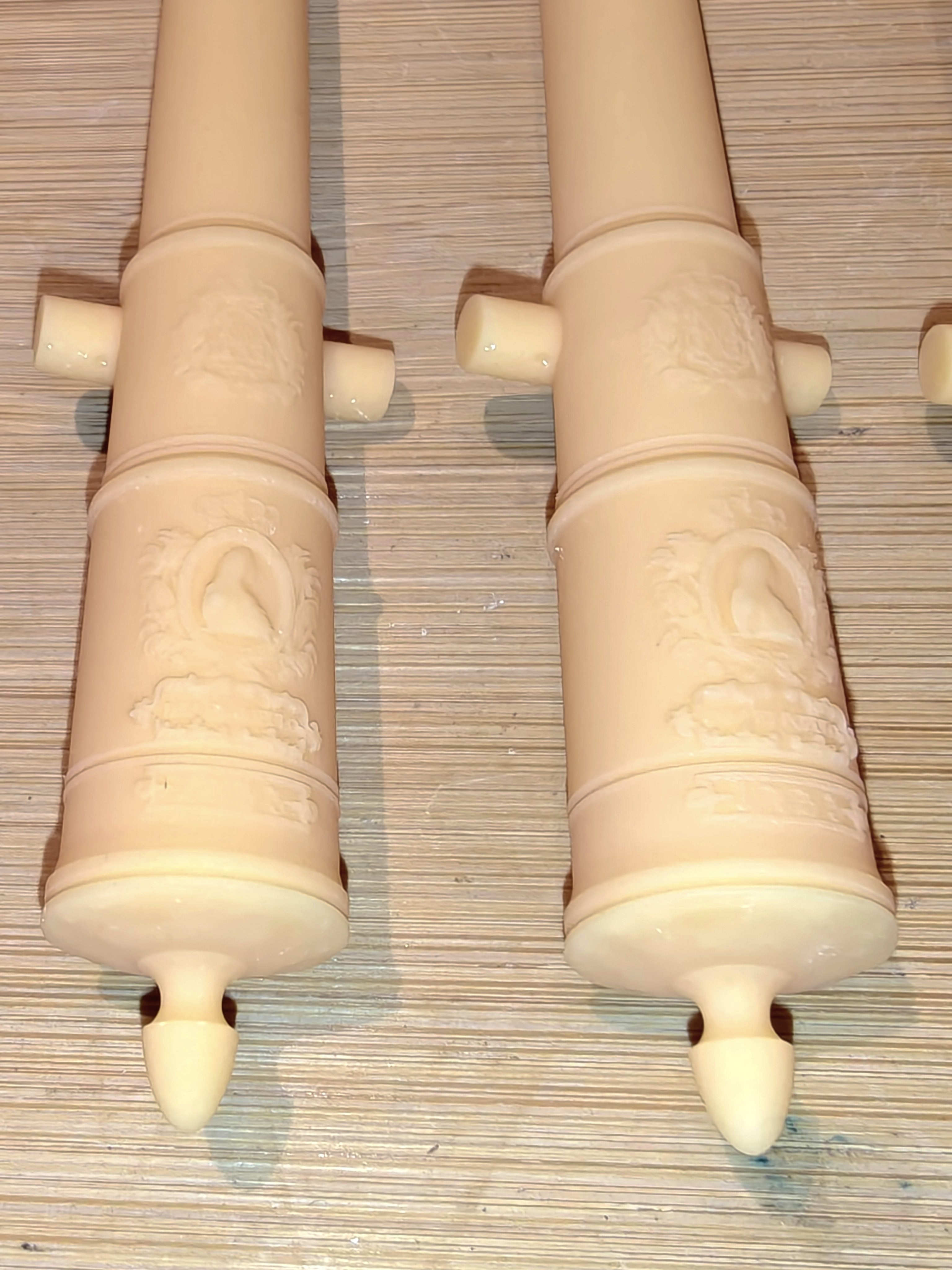

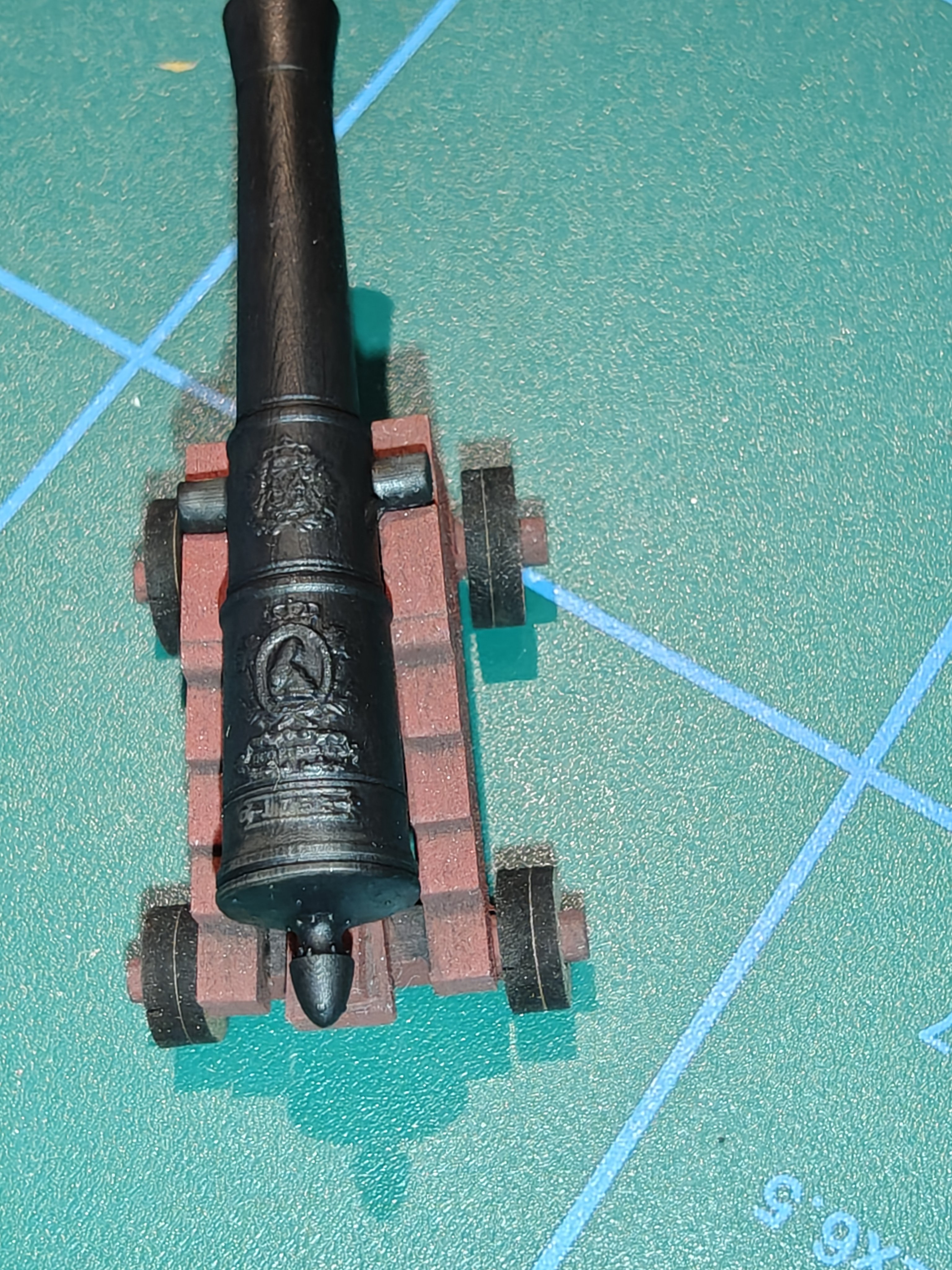

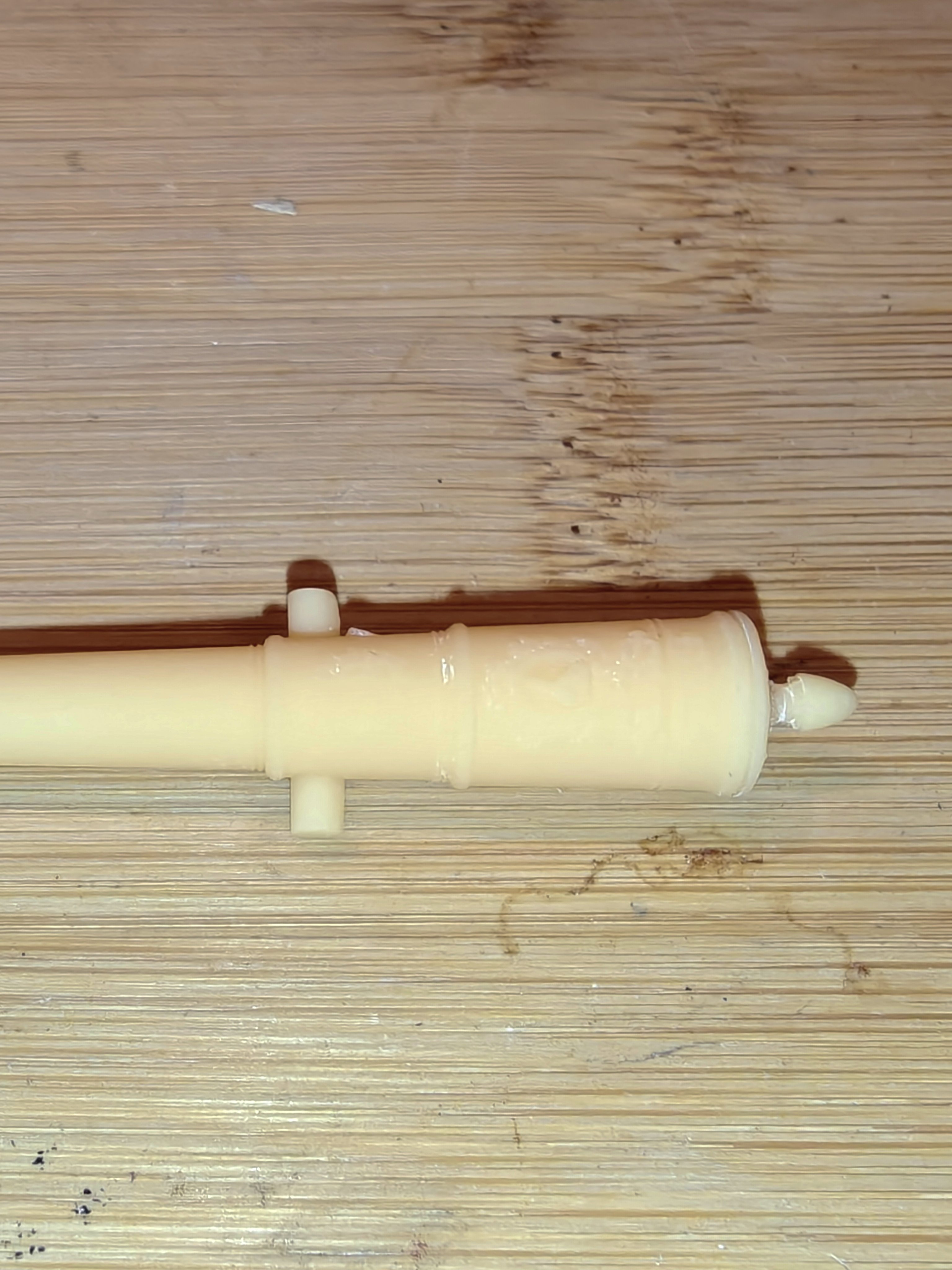

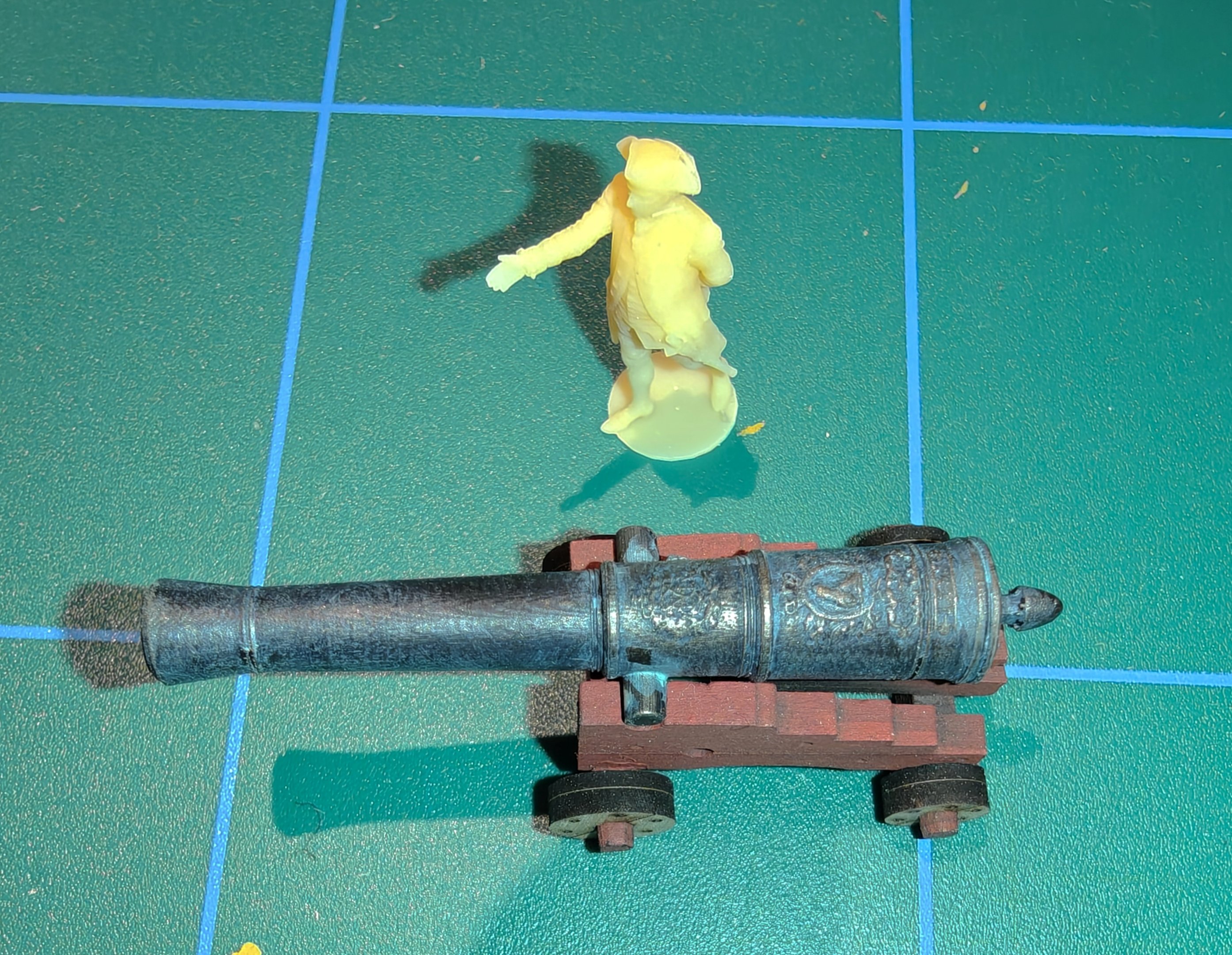

You can see some of these (8, 18 and 36 pounders) printed in 1/32 scale in @Beckmann's build log for Tre Kroner.



The STL files are in 1:64 scale, but are of course easily re-sizable to any other scale.



I will attach the STLs in the next few posts





BR

TJM









[TJM]

3 pounder - no monogram:

3 pund.stl



4 pounder - no monogram:

4 pund.stl



6 pounder - no monogram:

6 pund.stl



8 pounder - no monogram:

8 pund.stl



12 pounder - no monogram:

12 pund.stl



18 pounder - no monogram:

18 pund.stl



24 pounder - no monogram:

24 pund.stl



36 pounder - no monogram:

36 pund.stl



42 pounder - no monogram:

42 pund.stl

[TJM]

3 pounder - C6 monogram:

3 pund C6.stl



4 pounder - C6 monogram:

4 pund C6.stl



6 pounder - C6 monogram:

6 pund C6.stl



8 pounder - C6 monogram:

8 pund C6.stl



12 pounder - C6 monogram:

12 pund C6.stl



18 pounder - C6 monogram:

18 pund C6.stl



24 pounder - C6 monogram:

24 pund C6.stl



36 pounder - C6 monogram:

36 pund C6.stl



42 pounder - C6 monogram:

42 pund C6.stl





[Thukydides]

Super cool that you are willing to share this with everyone. Great job.

[thibaultron]

Great work! Thanks for sharing them!
