RossR

I know you put the production of your ropewalk on hold due to tariff issues, any plans to reprice it and start production again. I might be interested in paying a few dollars more to get one.

I have built two Occre ships with the 0.6 mm second layer material, I wish you the best of luck trying to bend the material laterally, but I haven’t seen anyone pull it off successfully on the forum. if you figure out a method that works please post about it. A lot of users would be interested. Good luck.

I posted some pictures of my shipyard a year or so ago, but over the weekend I make some changes. The two work surfaces used to be opposite of each other with the took box in between. I decided to create an L shaped work surface to take better advantage of the light from the window. I still have my comfortable chair for watching the Premier League on Saturday and Sunday mornings.

I was just looking at my Beagle, and with the boat mounted on the deck you can barely see the windlass. Your work looks so good you may want to consider not mounting the boat so you can see the other features better.

Your workmanship is fantastic. I really like the way your windlass turned out.

I really like the look of individual planks vs drawing the joints. Great job.

Your build looks fantastic. I think Occre does a great job on these street car and tram models. Can't wait to continue following your progress.

Fairing the interior of the bulwarks is going slow, but I am starting to make some progress. I have been practicing working with Syren's 3/32 blocks that I hope to use for the rigging on the guns. These are incredibly small and after many attempts that failed I am starting to get some better results. This is one of the first almost passable attempts I made. The rope is .008 inch diameter. I am struggling to get the rope through the holes on the blocks, so I have been drilling the holes out. I am trying to use the techniques Chuck has shared using CA to help secure the block. This attempt is a little shinier than I would like from the CA used. I am using 150 weight Gutterman Mara thread for the sizing. I was hoping to use some that was even thinner, but I am struggling to find any in the US. Chuck shared a reseller in the UK that sells it, but I am a little nervous about navigating the tariff mess we now all have to live with right now. This is another attempt that I am a little happier with. I made the hooks from small Brass eyepins. They measure about 1/8 inch long. I would like them to be a little smaller, but I don't think I can make them any smaller. I have ordered some 1/8 inch blocks from Syren. If the .008 inch rope with fit through the holes on those without being drilled out, and they don't look too big I might use them instead of the 3/32 to avoid having to do all the drilling. I suspect in the end I will drill out the 3/32 inch blocks to keep things in the proper scale.

I have been practicing with 3/32 inch (2.5mm) for my USF Essex and I can attest to how difficult it is working with blocks this small. Practicing is helping. I have some time before I am ready to rig the guns.

I think they look pretty good. Keep it up.

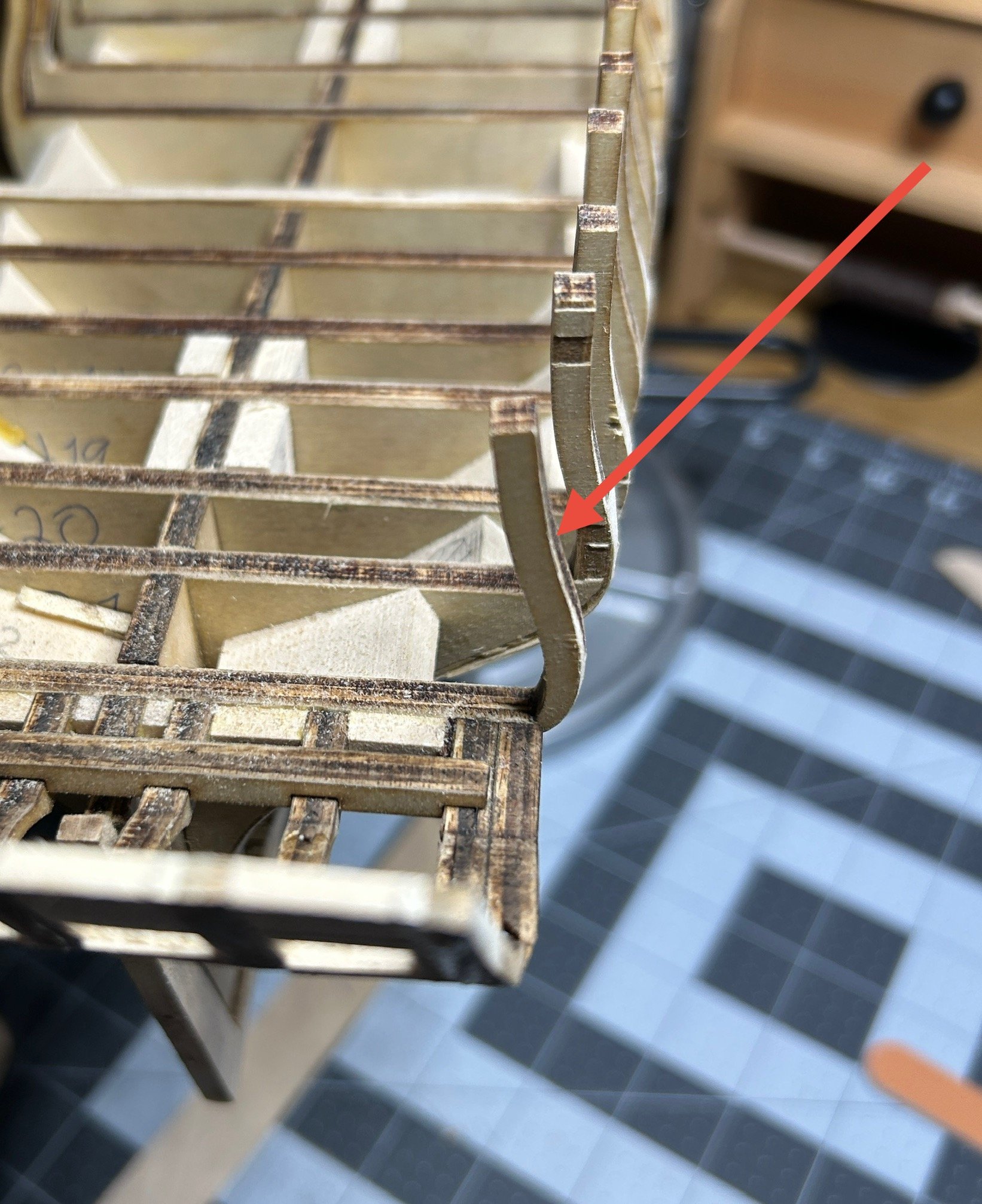

I have made repairs to the gun port frames that ended up a little concave due to my aggressive sanding. Here is a picture showing what I am talking about. After adding a piece of 1/32 inch or in a couple cases 1/16 inch material I sanded them flush using a finer grit wheel on my Dremel. 120 and 240 were used. Now on to the interior work on the gun port frames.

I haven’t had the pleasure of working with most of the woods you are listing, but with those options I would leave basswood off the list.

Thanks I appreciate the tip. In my post about the outsides I said I started with 60 grit disks. After further inspection of my work, that was a little aggressive. Some of my lintels and sills have a concave surface that I will be addressing this weekend. I will include pictures of the issue and the fix on my next post.

Thanks for sharing this. Considering upgrading the cannons on my current build. I will check this KTL model shop a look.

I have made some progress on sanding the gun port frames on the outside of the hull. I used a disk sander on my Dremel. I used a 60 grit disk for parts were a lot of material needed to be removed and then 120 grit for the finer work. I still need to do a little fine sanding. A the bow I needed to add extra material to get the curve of the bow right. I still need to sand the extra material down. I also need to start the interior. This will be a challenge as my Dremel, even with the flex tool will not reach into the interior with the disk sander. I am looking at purchasing the right angle attachment. getting into the bow and under the interior section that slopes toward the interior of the ship will be difficult. If anyone has any other suggestions for how to get in there to sand I would love to hear it. I can't wait to get this part done and start the planking.

Thanks. Unfortunately that now means tariffs. I have been practicing your technique with 3/32 blocks. Need the smaller thread.

Does anyone have a source for a tan colored Gutermann Mara 220 thread. I looked at Wawak where I have purchase Gutermann thread before and they only offer the 220 in 5 colors and in very large spools.

Good luck. I would encourage you to start a build log. Great way to get feedback and advice.

As usual, your work looks fantastic. The gun ports look great.

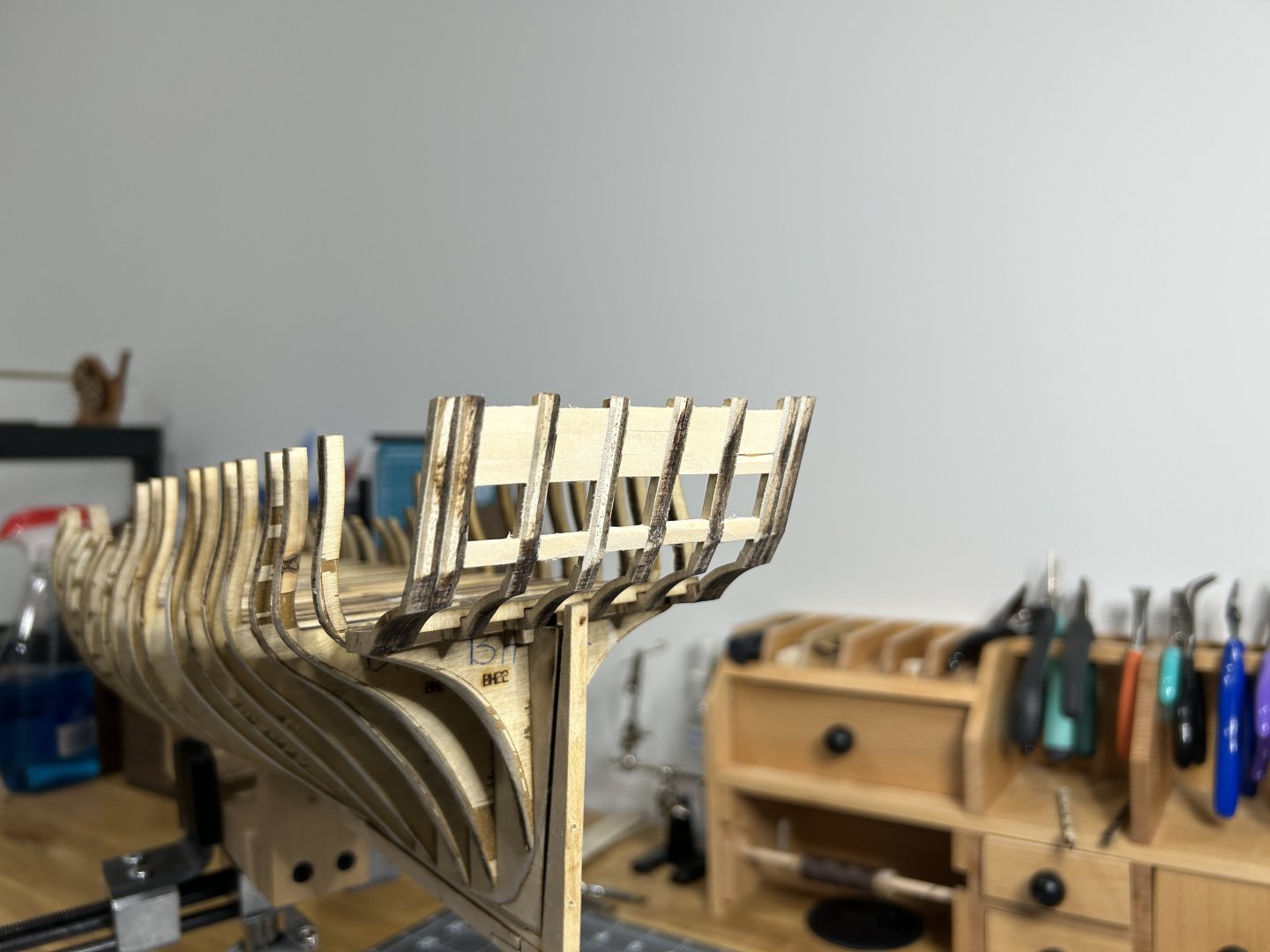

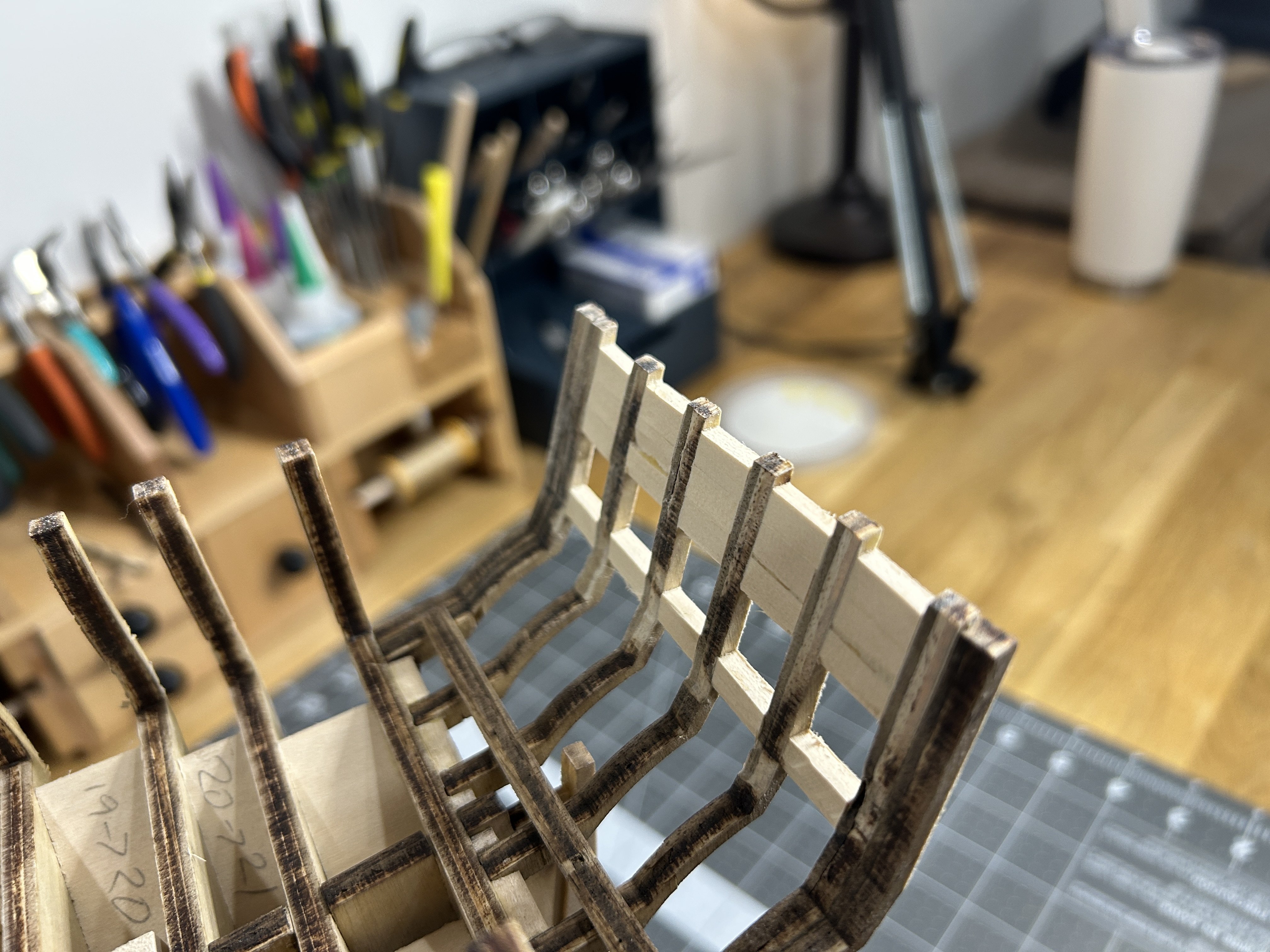

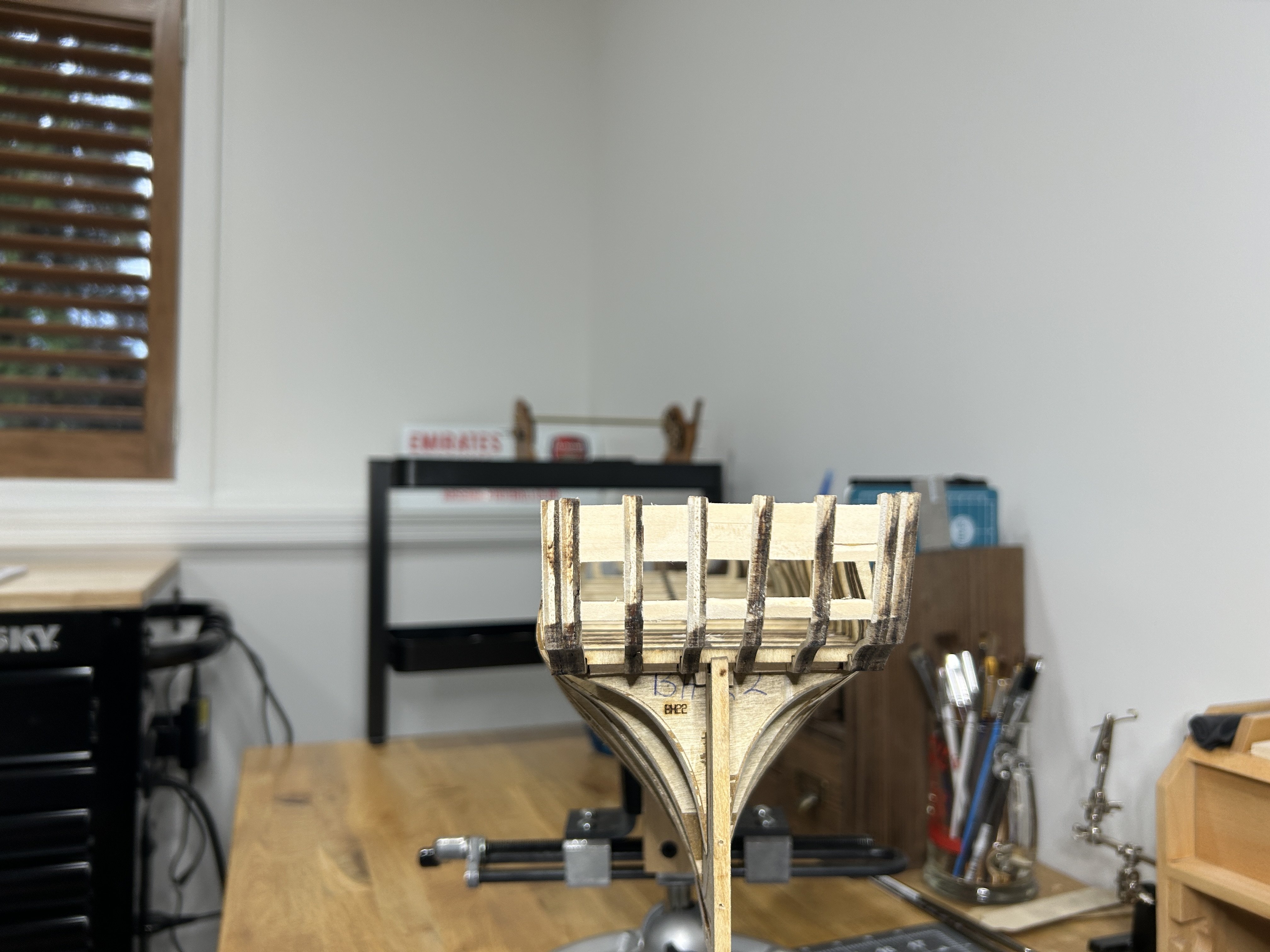

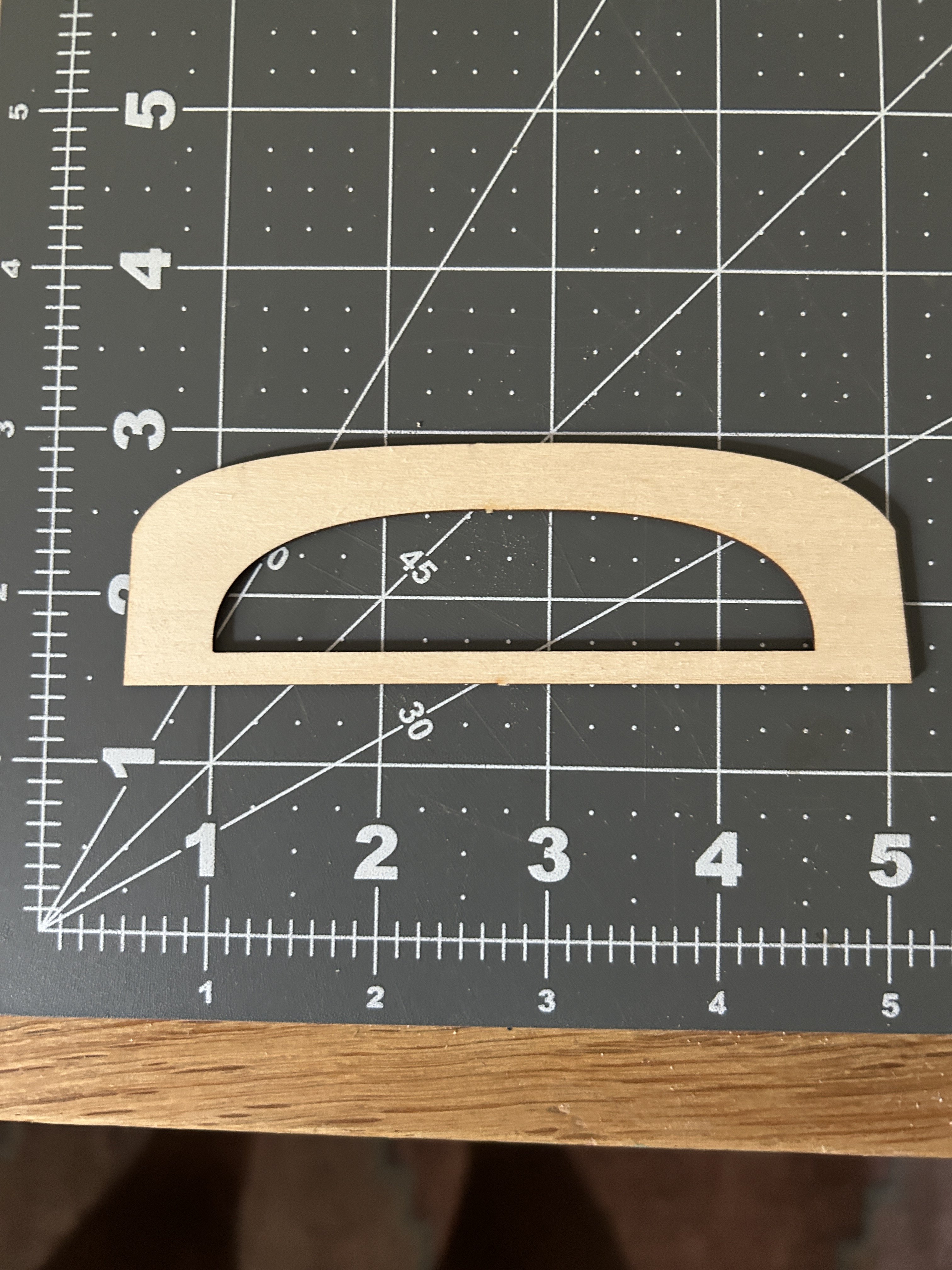

I have all the Gun Port frames added now. I still need to do quite a bit of sanding and then there will be some gaps that need to filled in with wood filler and then more sanding before the blanking begins. I did decide to go with some upgraded wood for the planing around the gun ports on the gun deck. I recieved some Alaskan Yellow Cedar this week and I am looking for ward to working with it. As I have mentioned, one of the challenges in framing these is that the are all rectangles. The sills follow the upward curve of the deck and the sides are straight up and down leading a non-rectangular shape to most of the gun ports. In order to get the size of the ports currect I did make a plug that represented the shape of any gun ports that happens to be a rectangle. I them used a hemostat to hold the plug and used it to determine the proper height and width of the ports. I will be working on the sanding in my garage as soon as the weather cools a little bit. In the meantime I will get started on assembling the gun carriages and I bought a bag of 3/32 blocks from Syren. They are so tiny. I am going to practice with them a little to see if I can use them for the gun rigging. I don't know If I can pull off working with blocks that small.

Great work.

I love the big windows.

I already have the sills and lintels replaced on the port side. I am so happy that I removed all the framing on that side and started over. On previous builds I would have accepted the poor result and kept going. I will be adding the sides of the gun ports next and then add the gun ports on the quarter deck. I did get the Alaskan Yellow Cedar to use for the section of the hull that isn't painted. Really excited for that.

I would be painting the hull at the gun deck level, not the deck itself. Leaning towards the Alaskan Yellow Cedar depending on the lead time to get it.

I have a planking decision to make. The prototype of the model has a band of about 5 strakes along the gun deck that are not painted, but are stained with Minwax Golden Oak stain. The instructions say that on the actual ship this section of the hull would have been painted yellow occre. If you followed my build log of my NRG Half Hull, you may remember that I was disappointed in how the basswood looked after staining. My previous 3 models were from Occre and they supplied Lime Wood that I thought stained very nicely. I have since acquired some MInwax Pre-Stain and the results with Basswood are much better using the pre-stain before the stain is applied, but I am still not sure if the look of the stained Basswood is what I want. Tonight I reached out to Modelers Sawmill about the lead time on some Alaskan Yellow Cedar. I can get enough material for the 5 strakes that I would leave unpainted for about $25 - $30. I am seriously considering going this route. I would still use the kit provide Basswood for the parts of the hull that are painted or covered in copper. I think I would forgo any stain and just add a coat of shellac to the AYC. I would love to hear if you guys like the idea of the Alaska Yellow Cedar or the yellow occre paint for the planking of the hull at the gun deck.
