Brilliant to see you back at this work 👍🏻 One is always a bit apprehensive, when there is a long period of silence. I forgot about your home-improvement trials and tribulations. Having gone through a couple of home renovations myself, I know what the challenges are and that one has to constantly keep the contractors on their toes. Luckily, our constractor very early on understood, that his client knows a bit about the business 😈

Tempering plastics is a common technique, say when hot bending shapes in acrylics, they are put into an oven at 70°C together with the template over which they are bent in order to settle and remove internal tensions and thus prevent the formation of tension-cracks.

... It says 18 cubic feet of records.

Hawse-pipes Hawse-Pipes As I was dealing with fairleads through the bulwark, I decided to continue with the hawse-pipes as well. After some deliberation, I also decided to go fully ‘plastic’. In the past I fashioned the hawse-pipes and the entry-/exit-reinforcements from brass tubes with rings soldered on. Set-up in the horizontal milling machine for drilling the hawse-pipes Here the actual pipes are very short and go through a massive layer of polystyrene. So, a separate pipe is not really needed. For drilling the 1 mm holes, the model was set up on the horizontal milling machine. The reinforcement rings were cut from 0.5 mm diameter polystyrene rod (or perhaps rather wire). To this end, the polystyrene wire was wound around a 0.9 mm drill-shaft, which was easier than expected, and then the springiness was taken out by slightly tempering it at 100°C with my hot-air soldering gun. From this spiral, the rings were cut. The rings then were sanded flat on one side and cemented to the bulwark outside and inside. A first try with polystyrene cement was not very successful, as the ring began to spread open upon contact with the solvent. I then used the artificial-nail cement, composed of acrylic solution and cyanoacrylate. After the cement had cured, the hole needed to be bored out again and smoothed. Outboard view of the hawse-pipes Inoard view of the hawse-pipes As sobering these close-ups are with respect to cleanliness and crispness of the execution of the work are, they also show strikingly, where touching-up is really needed – not something that one sees very easily even using magnifying glasses. To be continued …

There may be an element of truth that 'green' was considered unlucky. A common pigment, that was first synthesised in 1802 is Schweinfurt Green, which is copper(II)-arseniteacetate and is poisenous. It was widely used, even in the manufacture of wallpaper and home-paints. In the country of its origin, the pigment was forbidden already in 1882, but its use in antifouling paints permitted.

That would be the subject of a book that I wanted to write for a long time (being a geochemist by training). You are absolutely right, that certain pigments were too expensive for rough shipboard use and others would not have been sufficiently lightfast. So, Boudriots list is a good starting point, as it mainly contains natural earth pigments that meet both requirements, beeing cheap and being stable. One would need to precise which decades of the 19th century we are talking about, as the pigment industry rapidly evolved in the course of the century. The evolving (industrial) chemistry led to the capability of synthesing certain pigments and thus becoming independent from the varying quality of natural mineral pigments. The increasing availability of by-products from coal-gasification from the 1840s on, lead also to the development of tar- and phenol-based artificial pigments towards the end of the 19th century. Interestingly, while the range and availability of pigments increased, from the 1860s on, ships became more sombre in livery, with black and white dominating, with the exception of spars and funnels that were ochre. Between the 1820 and the 1860s, ships were often quite colourful, with inside bulwarks, deckhouses, and the tips of spars painted in pastel ochre, green, or blue. With these pastel colours, a small amount of pigment could go a long way, when mixed with a white base pigment. BTW, the off- or dirty white mentioned in the literature is due to cheap and not very well refined lineseed oil and resins that yellows upon oxidation. This also makes coloured pigments dull. And from the mid-1860s on commercial antifouling paints in a variety of colours became available, not only in red ochre, but also in greens, blues, and browns.

As one never knows which part would break, I would assume that at least one piece would be big enough to shape the main-topmast and the main-yard. Lower mast can not normally be replaced while at sea.

To this I would add 'patience'. Patience and to be content with stepwise progress (and sometimes set-backs) is the key to success - as you demonstrate all the time.

Nice work, but weren't those bits not normally set on top of the deck-planking and the plates screwed down through it to some beams?

Made them only once and used heavy dark brown knitting yarn. This was twisted tightly and then soaked in shellac. Afterwards, it was roughend with coarse sandpaper. The tooping-lift then was fiddled through with a needle - as the yarn was two-strand, this was quite easy. In 1:60 scale it looked reasonably convincing. I actually bought some pipe-cleaners at the time (about 45 years ago), but dropped the idea, as running the topping-lift along the twisted wire didn't look good and it was impossible to dye the bright green fibres.

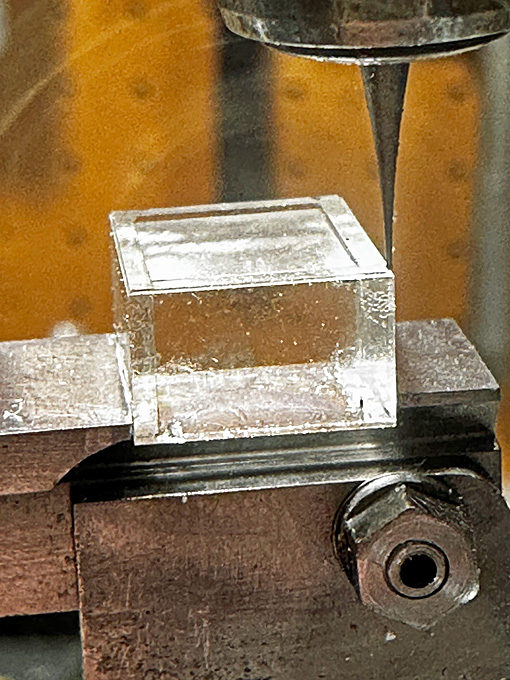

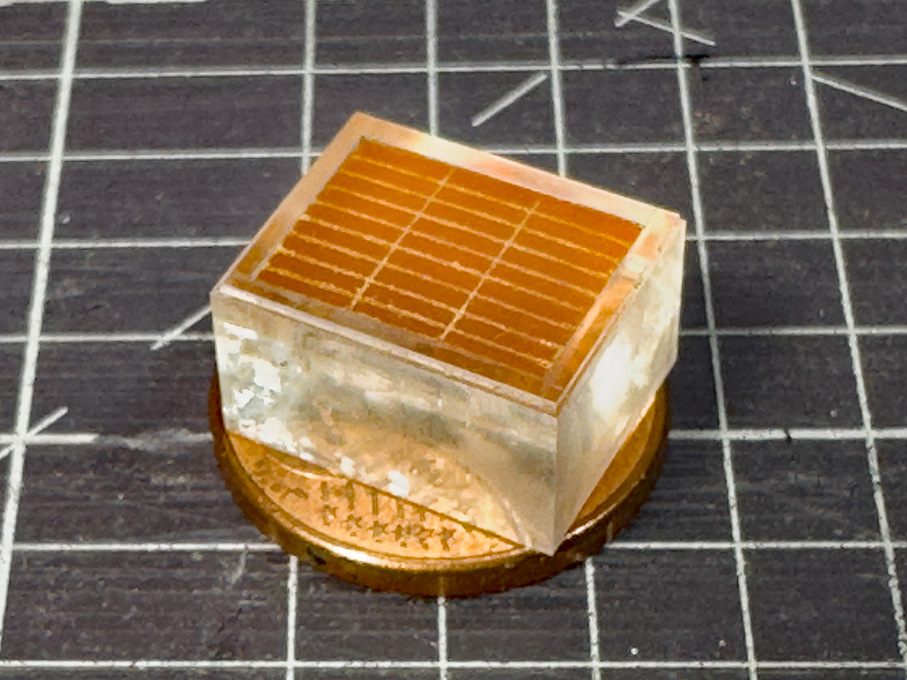

Thanks, gentlemen for your encouraging words ! Of course, acrylic glass was my go-to material. The first one came out ok, but then the second one snapped, and the third one jumped into some black workshop hole, when almost finished 🤬 ... I was too lazy to pull out the table saw and cut more acrylic glass strips, so I grabbed some suitable polystyrene strip and gave it a go. Acrylic glass machines and files/sands almost like metal, but small parts are rather brittle. When machining polystyrene, one has to be cautious to not overheat it, but it does not file very well and when sanding it leaves some 'fuzz' behind. Scraping with a scalpel takes care of that. However, being softer, it als more foregiving when handled. My concern is, that the softener in polystyrene will diffuse out over the decades and make it brittle. I also breaks down when exposed to UV-light, while acrylic glass largely remains unchanged over many decades. However, when painted, the risks are much lower.

Actually looks as if the dumb ferry is tied up to the sternwheeler? Over here in Europe there were various places with sidewheel-ferries, I seem to remember having seen one on the Fal River in Cornwall in around 1978 and very vaguely also on the Danube in the early 1970s.

I think they put this light groove between the locating holes, because the locking pin would otherwise mar the rails in an uneven way, looking unsightly.

Pay attention, some of the pumps shown above are actually pumps for flushing the seats of ease, rather than pumping out the bilge. What material was used for the pumps depends on the availability of materials, technology and last not least the economic circumstances. Another factor to consider is the repairability by the owner and crew. Cast-iron became more widespread only from the middle of the 19th century on. Therefore, I would assume that in the USA log pumps would have been very common way beyond the middle of that century. At least in Europe they were.

Cleats and Bollards In addition to belaying pins, also various types of cleats are distributed around the ship. Their type and location had to be reconstructed from various sources, such as models and early photographs. On paintings of such vessels, they are generally not visible. The first type concerns very large cleats that stretch across two bulwark stanchions. They are used for belaying heavy ropes, such as the main sheet. If they have a fairlead in middle, they also serve as mooring cleats. Mooring cleat (old photograph from unidentified book) The photograph was imported into my 2D CAD program (EazyDraw) and the outline traced and scaled to size. This served as the basis for the laser-cutting file. Material for two cleats was cut. The cleats are laminated from four layers of Canson-paper (if I had a more powerful laser, of course, they could have been cut from some 0.6 mm thick material in one go). The resulting part was finally filed to shape. The fairlead is a copper rivet. The completed mooring cleats I am not sure, whether the pipe of the fairlead is in some way supported in the space between the cleat and the bulwark planking. I have not been able to find any photographs that show this detail. However, for practical reason I inserted a square piece of polystyrene with an appropriate hole drilled through. This allows me to insert a shortened hollow rivet from each side and hide the seam conveniently. As the cleats will be represented in varnished wood, as can be seen on the above photograph and various models, it allows me to locate the cleats after all the painting is done. Fairleads from the outside Looking at the close-up photographs, I think the fairleads should have been turned a bit smaller on the outside diameter, but I am going to leave them like this. I also realised that my planking looks pretty awful and needs to be worked over … There are also several heavy cleats needed to belay for instance the backstays or the ropes used to secure the anchors. They are of a type that seems to have fallen out of modern use, namely half-cleats combined with a bollard Combination of bollard and half-cleat (old photograph from unidentified book) The shape was developed in the 2D CAD program and measurements for the machining derived from this. The rough shape was milled out of some 1 mm x 3 mm polystyrene profile. In fact the enveloppe is only 1 x 1.5 mm, but the additional material is needed initially to be able to hold the part in the vice. Milling the rough shape of the bollard/half-cleat combination Milling the rough shape of the bollard/half-cleat combination – close-up The final shape was given with the aid of various metal- and diamond-files and scraping to remove the fuzz from filing. I am using for this a ‘French’ type of pin-vise, on which I replaced the brass jaws with ones made from wood. One should note that, as they will attach to bulwark stanchions, their back has to be slightly curved. Filing a cleat to shape Roughed-out cleat (top) and finished cleat (bottom) To be continued …

Coming along nicely! In the past I used cored solder to represent such cringles. The bore was widened to a flare with a punch. The colour is close to zinc-plated hardware.

Finally got around to take a picture of the little rolling mill. As I said, it design purpose is to enlarge wedding-bands and the likes. For this different shaped grooves are cut into the rollers and there are several rollers with different groove geometries. As in this application the rollers would run at different speeds, two cranks are foreseen, allowing the move the ring forward and backward. However, I plan to fit a couple of meshing gears, allowing the run the rollers synchronous from one crank as would be needed for rolling wire. This also frees one hand to feed the wire in.

It seems that the Staedtler MARS QuickBow set does not have the straight handle, there is no slot for it. I have various sets, from my father/mother and perhaps older ones, plus my own, which is from 1966 - they all have this straight handle.

Perhaps the real ones have a plastic sleeve over them - paint would wear off quickly. Personally, I think brass looks nicer, but that then would be a deviation from the original - unless you can find old colour photographs from a time when they devoted the effort to polish the brass perhaps ...

For engraving in metal there are two methods: - filling in with (black) paint; this should be a hard paint, so acrylics are not a good choice, as once the paint is dry, you would rub down the excess with fine(st) emery paper; this is a common process for instrument scales, door-signs, etc. - applying metal black (on suitable metals) and then same process as above. In principle the same technique can be applied to wood too. However, the wood needs to be sealed first with wood-sealer and then some gloss(!) varnish, so that excess paint can be wiped off quickly. Finally, the varnish can be rubbed down again or some matt varnish applied on top. Again this technique can also be applied to (laser-)engraved surface that have been painted. One would not rub down the varnish, however, but rather apply a thin coat of matt varnish. I have used all of the above techniques on a variety of materials.

Can't you make such boxes yourself? You could fashion them as open trays right away. I don't know in what sizes cardboard is sold in the USA, but if there are sufficient lengths, one can cut strips of the desired width and assemble them with old-fashioned packaging tape (the one that needs to be wetted, not the self-adhesive one, which looses its tackiness over the years) or perhaps duct-tape. I for myself made a wall-hanging rack with horizontal shelves, so that short pieces can be kept at the front. Not an ideal solution, but the wall above my machines was the only place I had and here in Europe all materials are sold in 1 m lengths.

I think we had discussions on drafting implements in another thread quite a while ago. There is also an intermediate option, but I am not sure of the correct technical term in English. The translation from German would be something like 'funnel pen', which is quite descriptive. It is essentially a thin tube (the outside diameter determines the line width) with a funnel-shaped reservoir on top. A thin wire in the tube allows to declog it, when needed. It's the low-tech predecessor of the 'modern' drafting pen. They are designed for use with inks, rather than paints. However, I know from my mother that they are also used with gold suspensions in porcelain decoration. A while ago we discussed druxey's technique of making sails and I understood that drawing those lines with a bowpen also aims to add volume to the line to simulate the doubling of the seams. How much volume do those road-lining pens add ?

Perhaps your knight is a 'dragon whisperer' ? Many years ago I built a model of a Knight Templar with the same kind of helmet. One thing I was never too happy with it the metallic appearance of the material. Somehow, the surface of these castings is always a bit uneven. I never tackled another model like this, but perhaps today I would look into smoothing the surface with a burnishing steel or agate, rather than just polishing it with a felt-wheel. Has anyone tried to burnish such metal parts ?

Indeed, finding the right sequence of placing things on the model can cause a bit of headscratching, demanding foresight exercises, and imagining of possible interferences ... I tend to make the parts separately first and then paint and assemble everything. Nice work so far, as others already said!

Have to take some pictures ... it is actually a small rolling mill from the jewellery trade to enlarge rings. It needs to be modified still to drive both rollers for the purpose of rolling wire.
