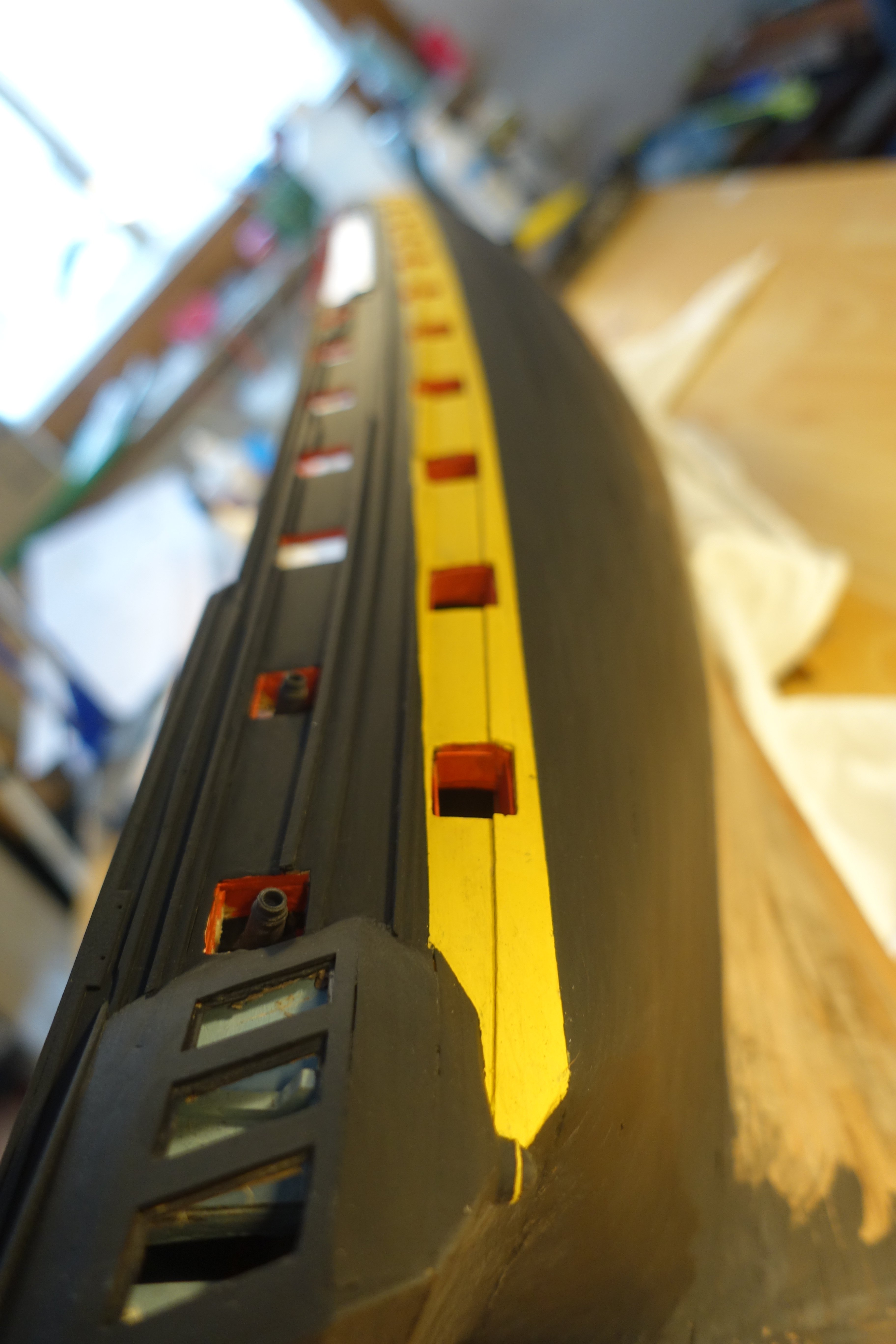

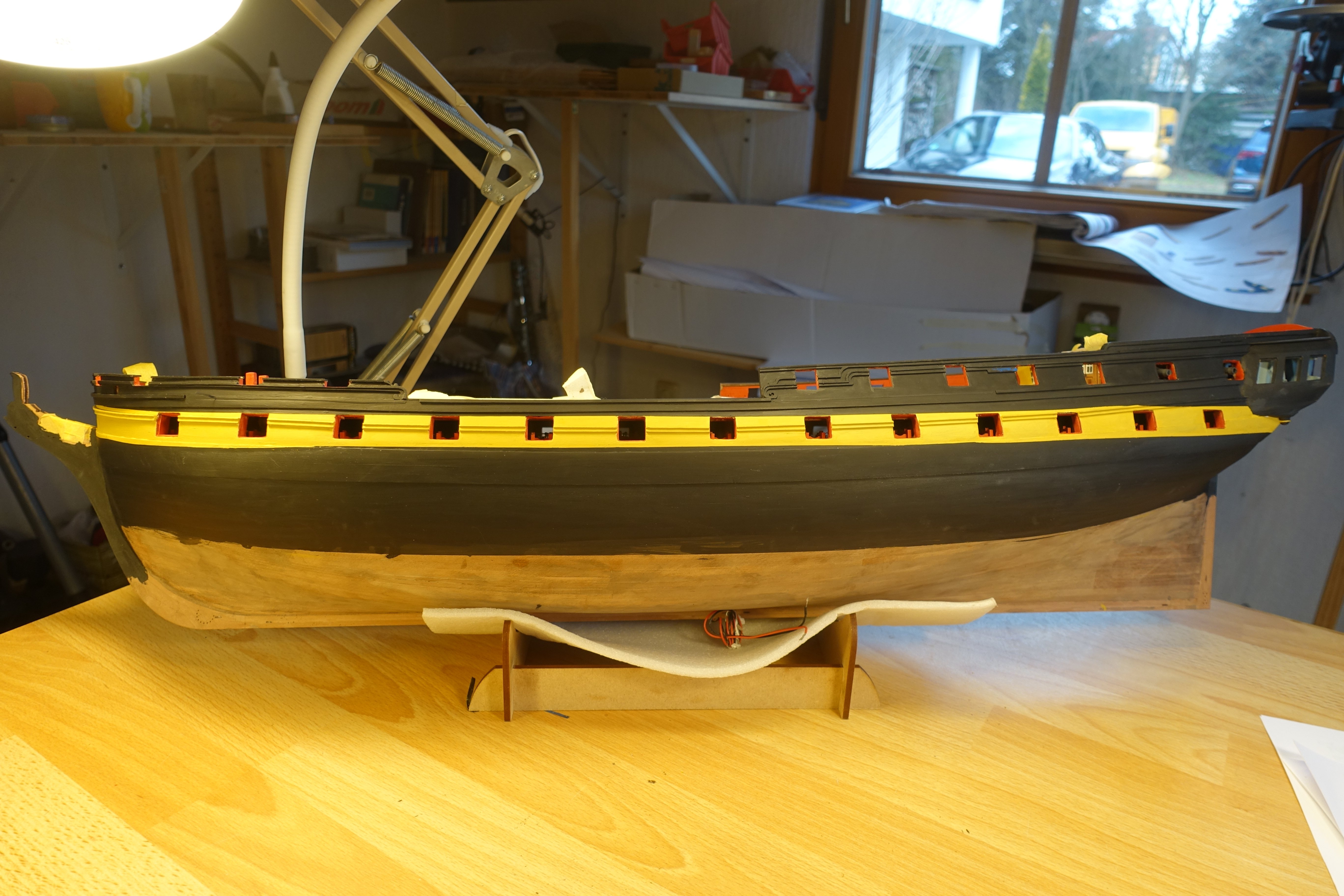

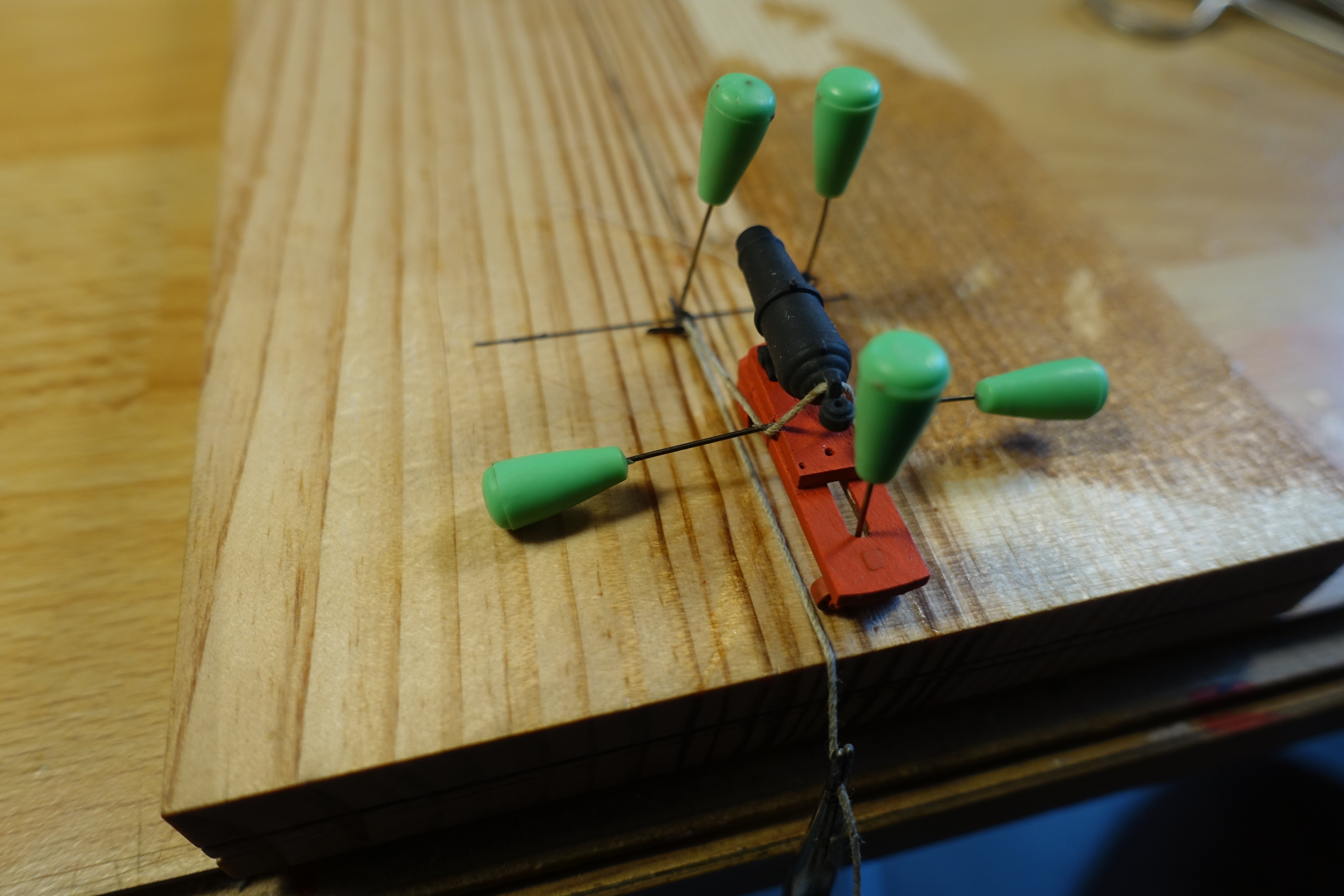

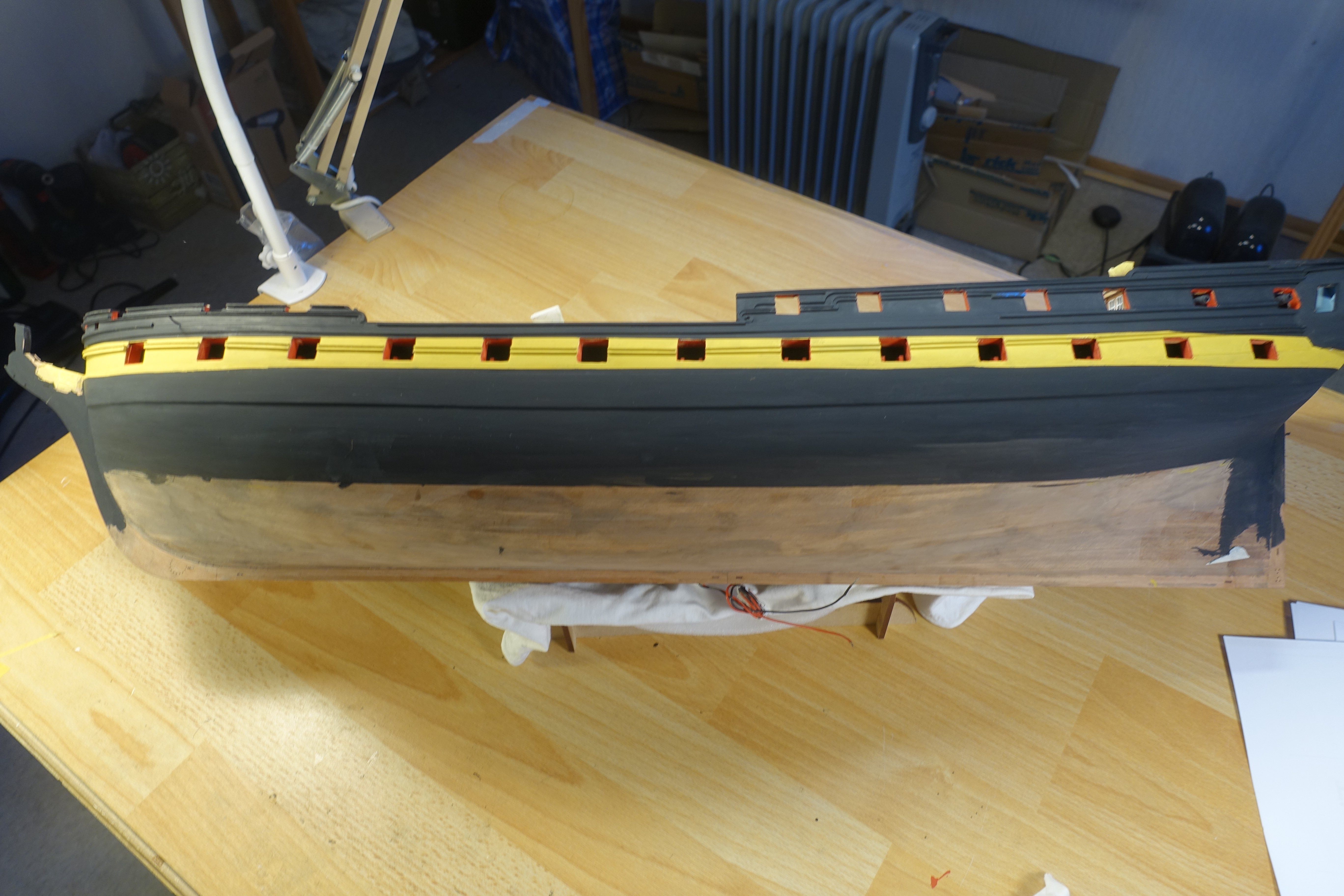

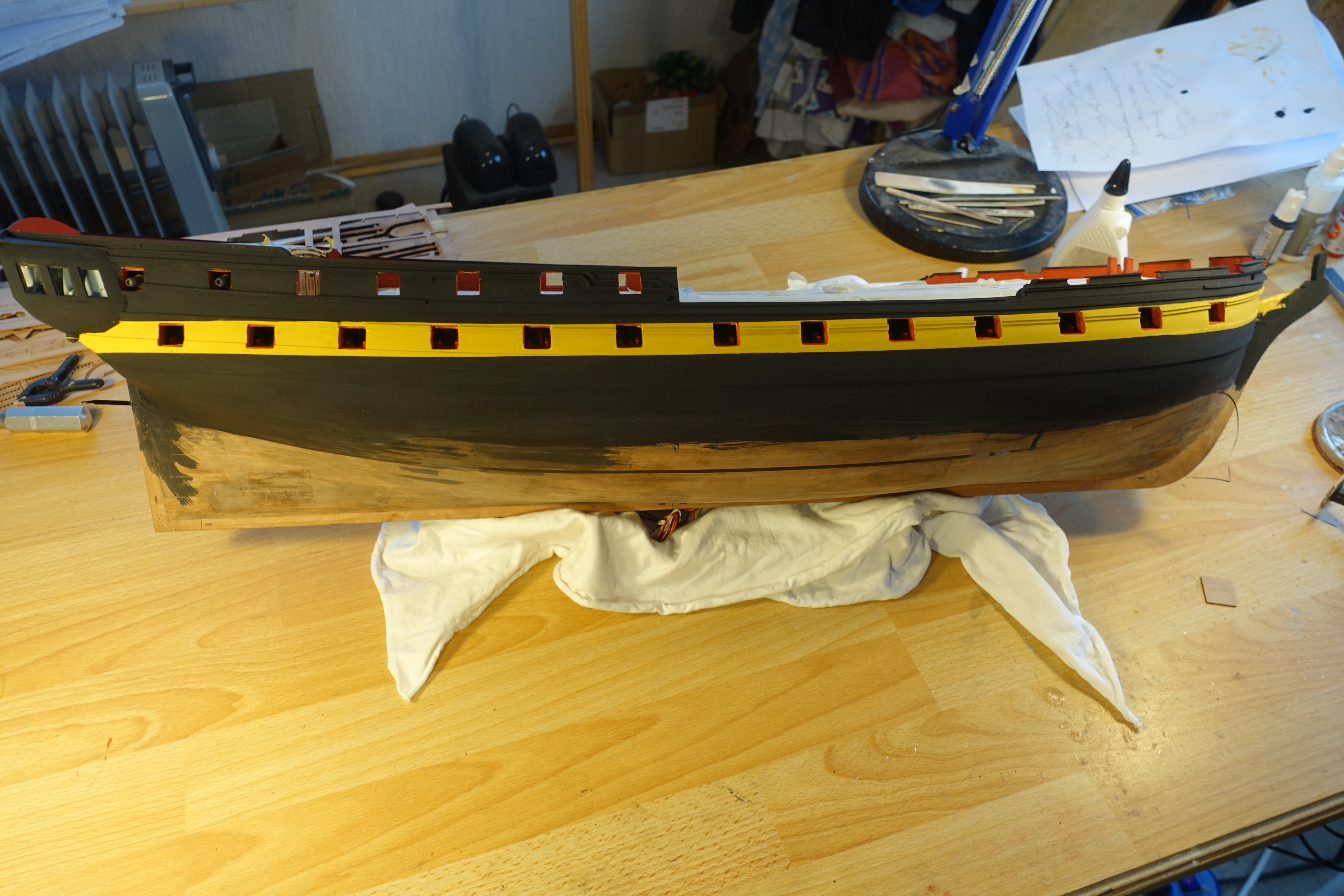

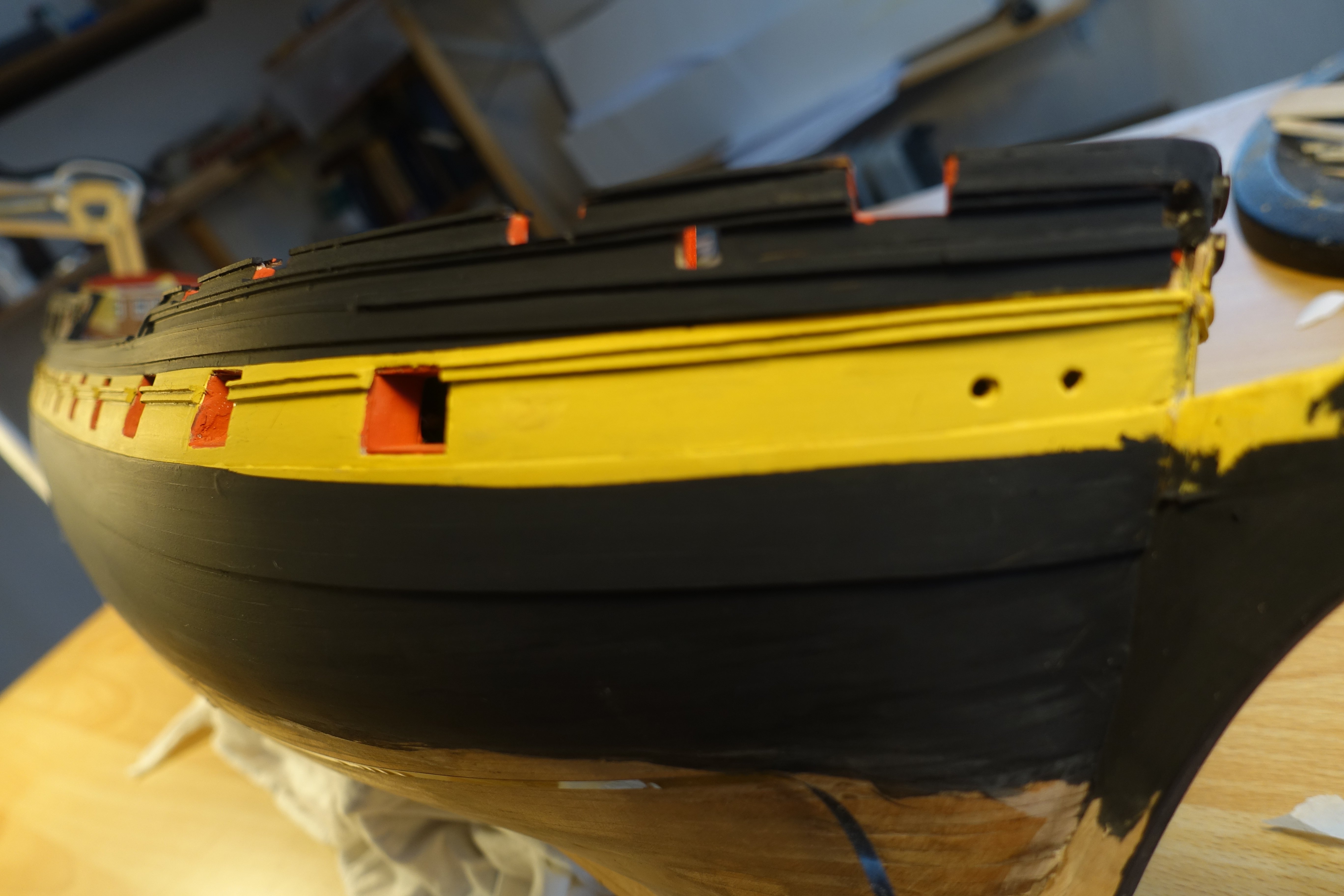

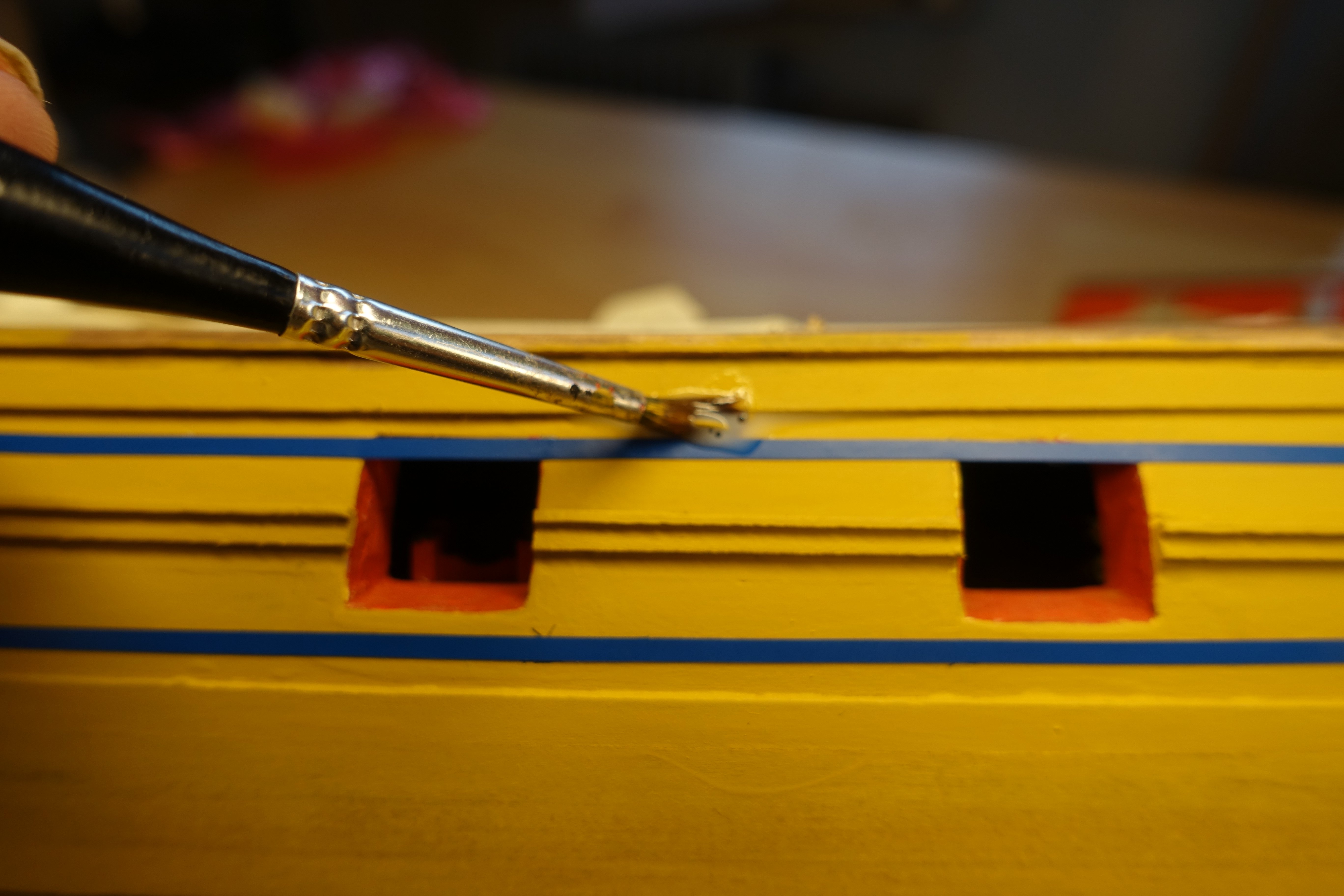

HMS Indefatigable 1794 by Clark - Vanguard Models - 1:64 scale

[Ronald-V]

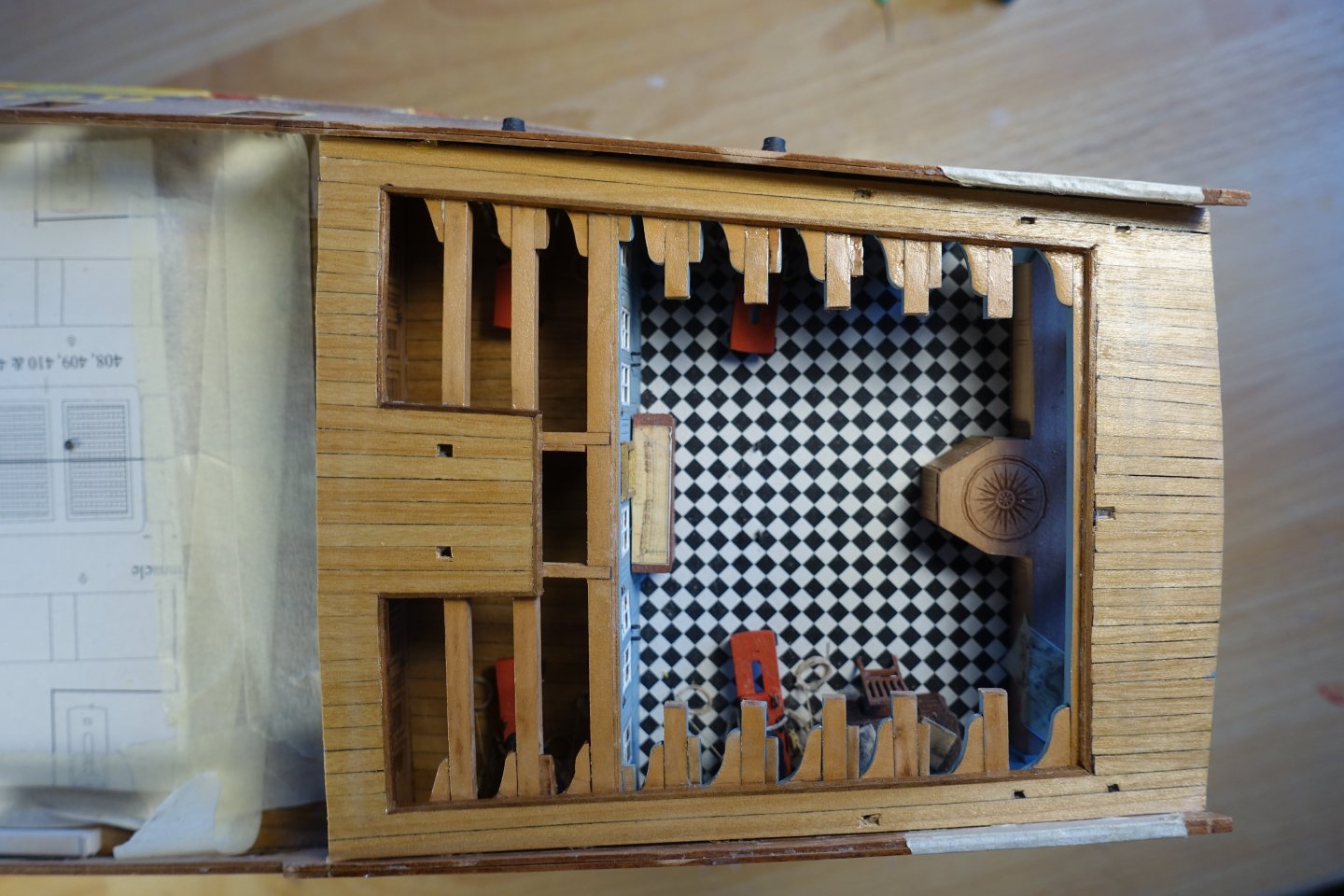

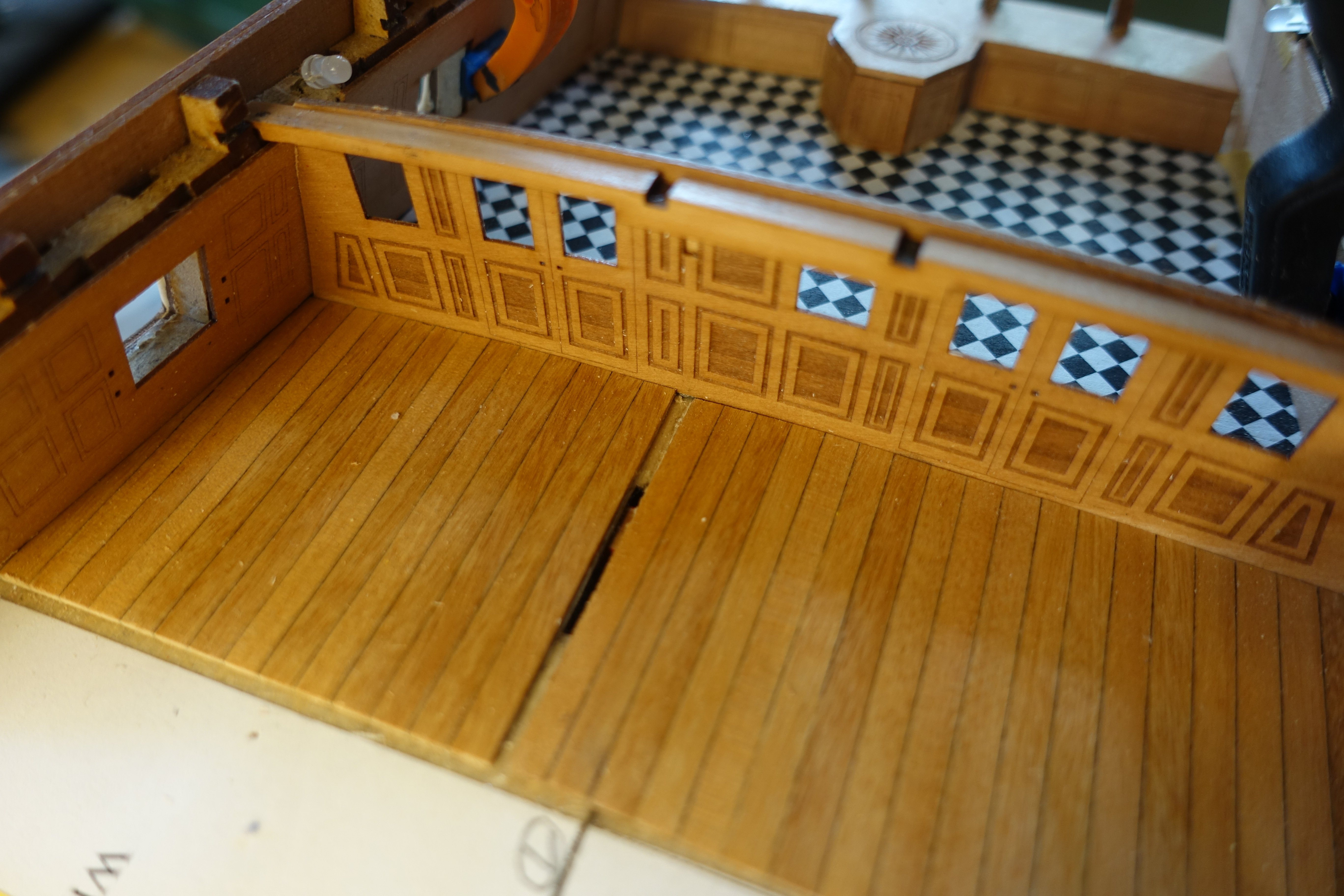

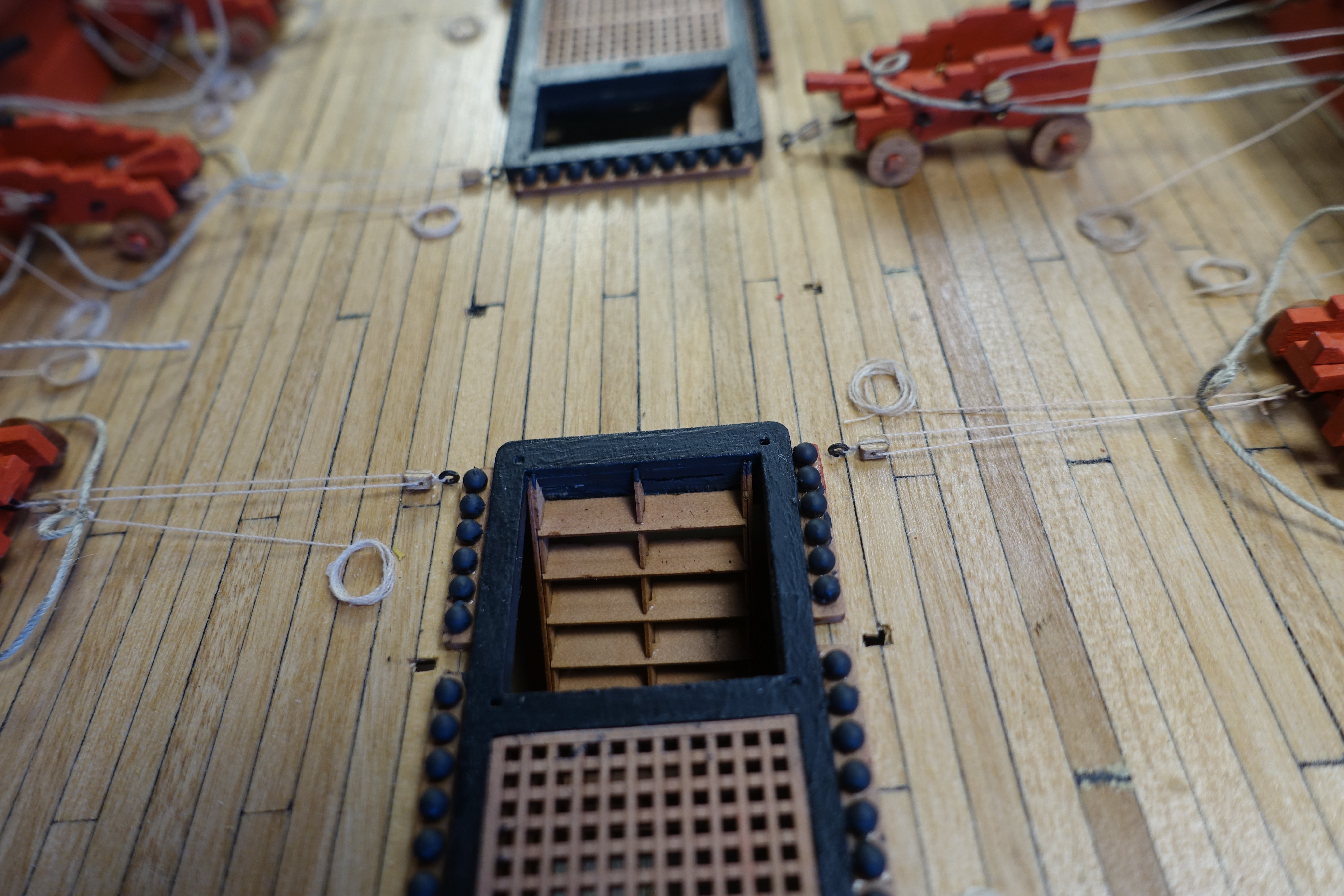

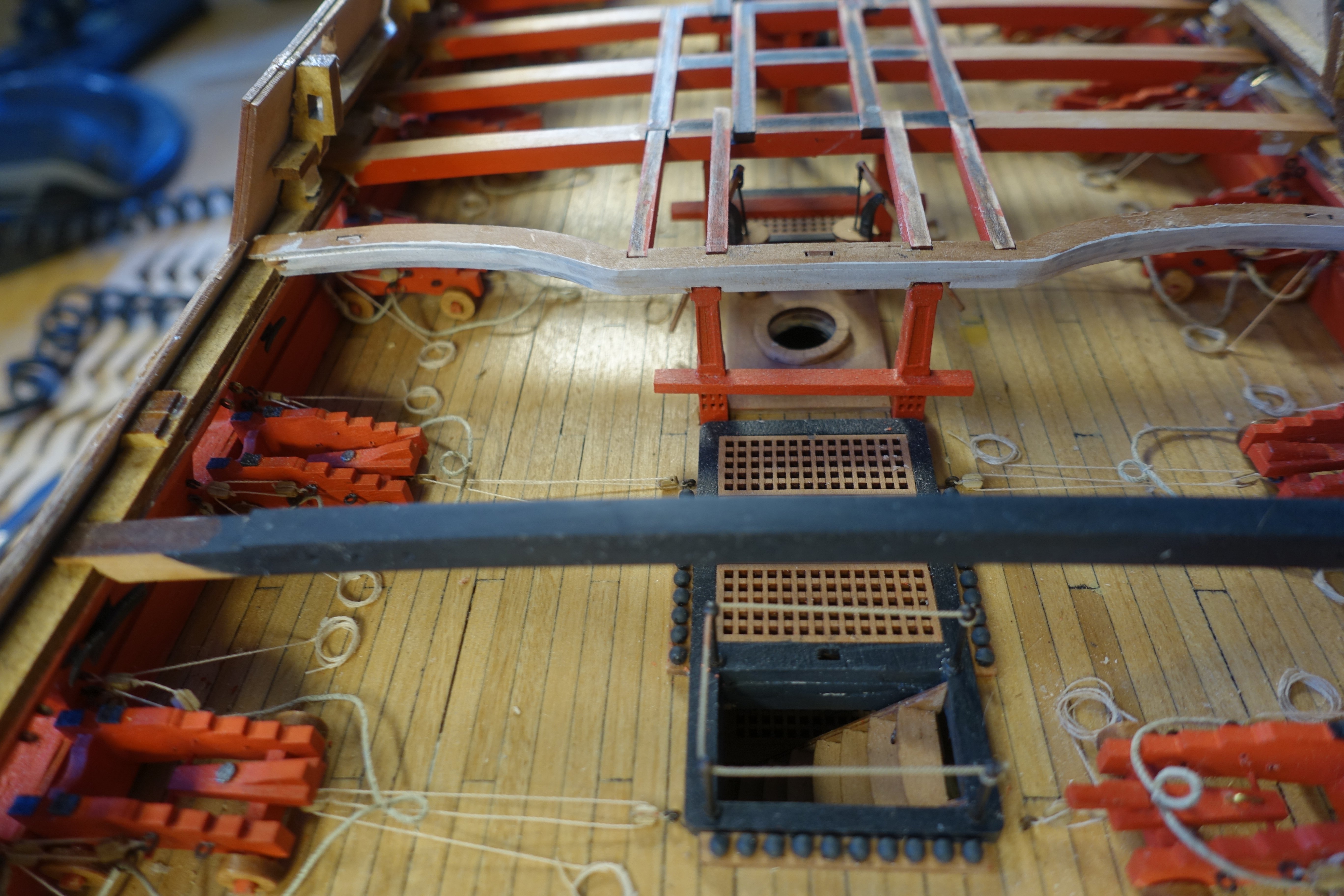

I like the look you have for the coamings/hatches with the unpainted cannonball racks (there is probably a real navy word for this  ) The distinction is nice 👍

[Clark]

54 minutes ago, Ronald-V said:

I like the look you have for the coamings/hatches with the unpainted cannonball racks (there is probably a real navy word for this  ) The distinction is nice 👍

Thank you for the compliment, but I was just following Chris and James' suggestions.

Clark

[Clark]

Just a short update

The metal parts for the stove have been etched so that the primer and paint will adhere later.





The stove was made, painted and glued in place.



Ladders, cannonballs and pumps are also attached.









[Clark]

--------------

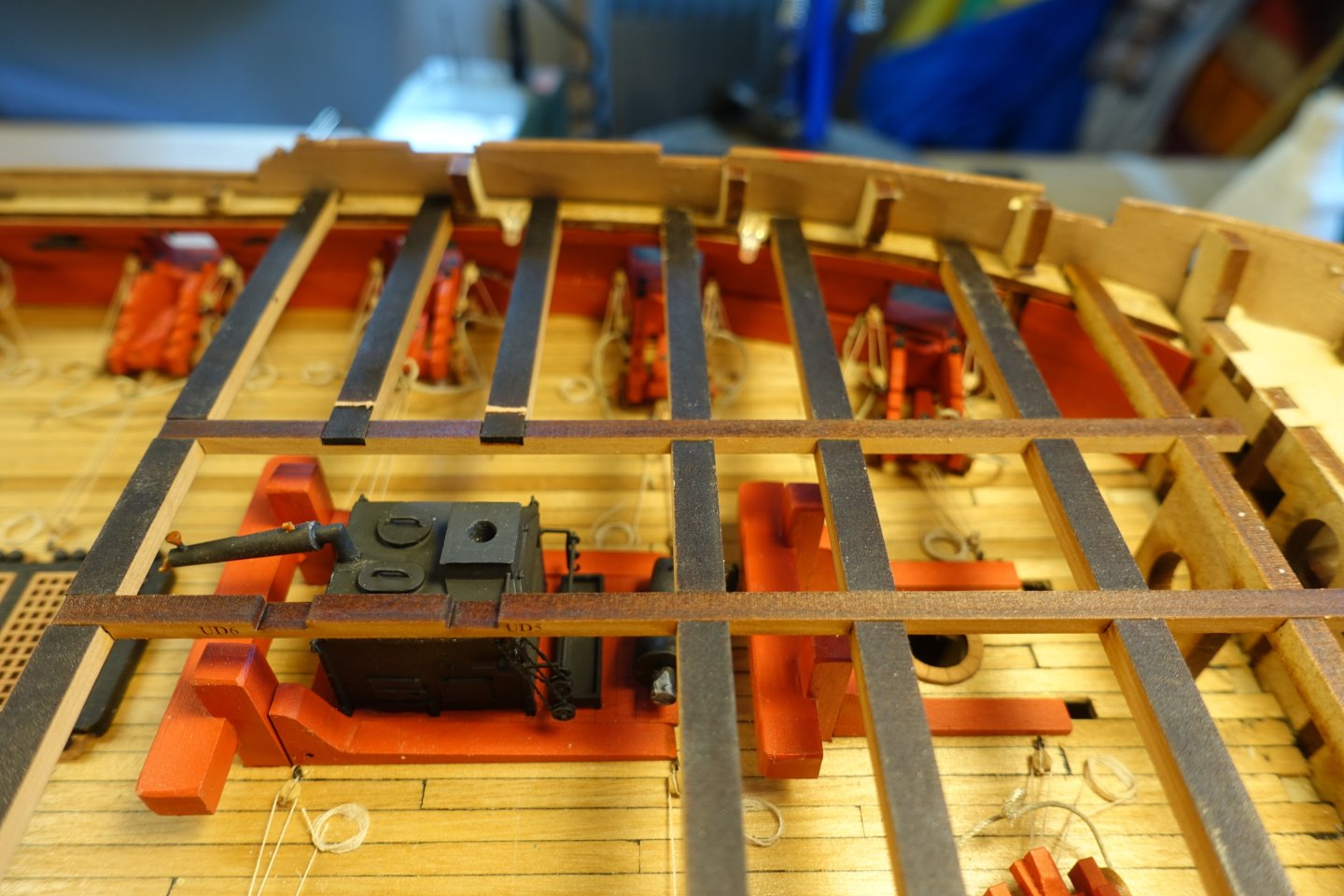

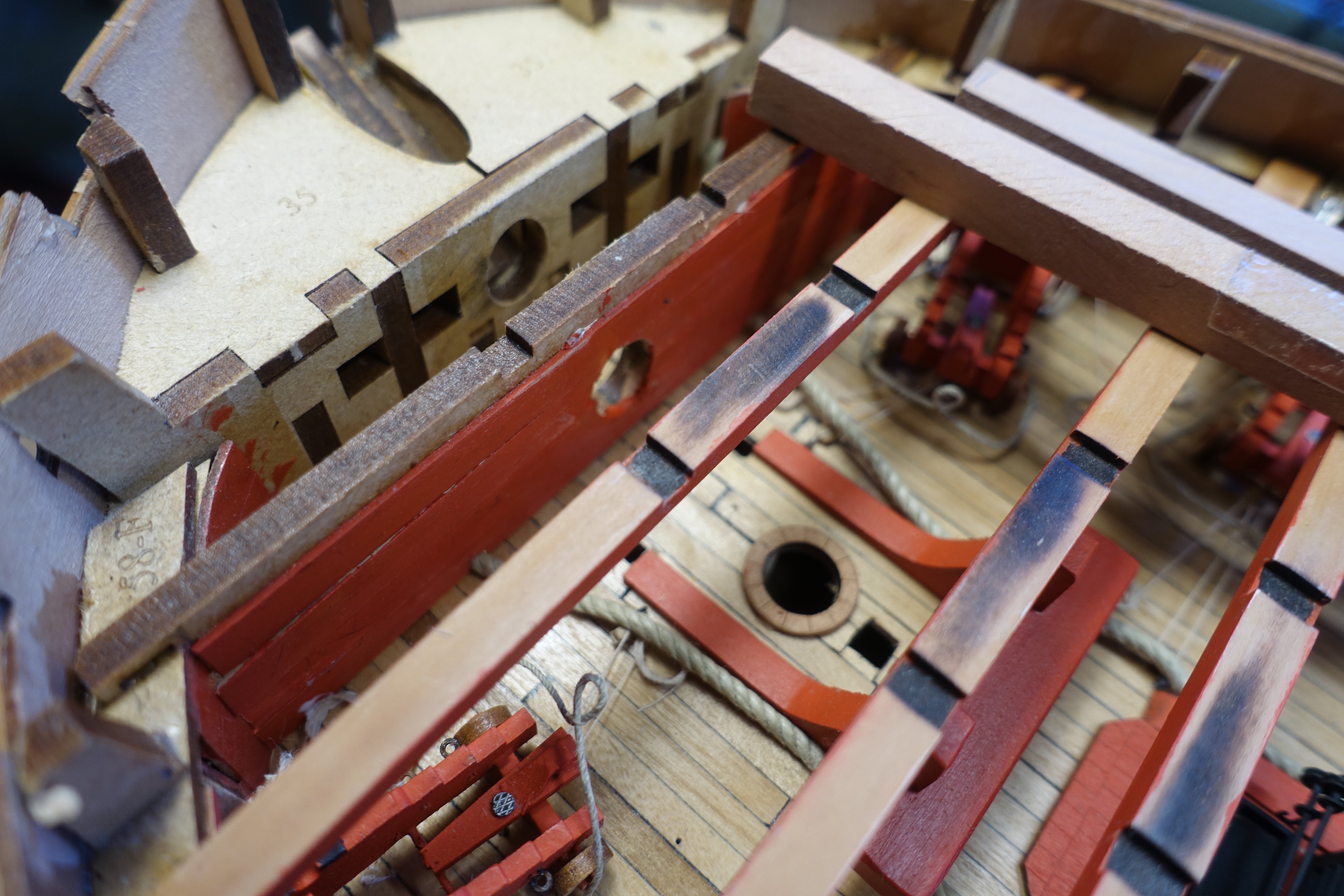

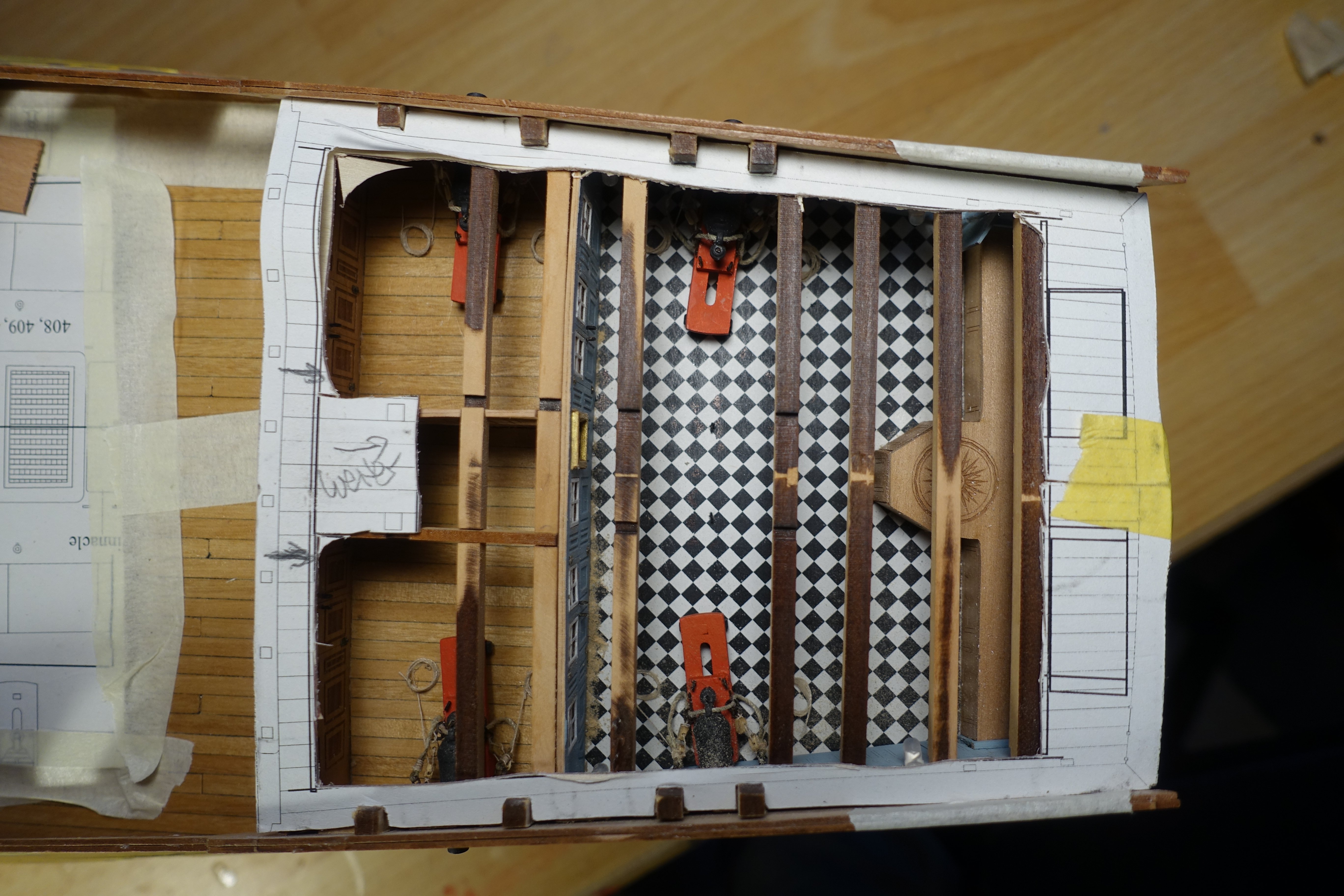

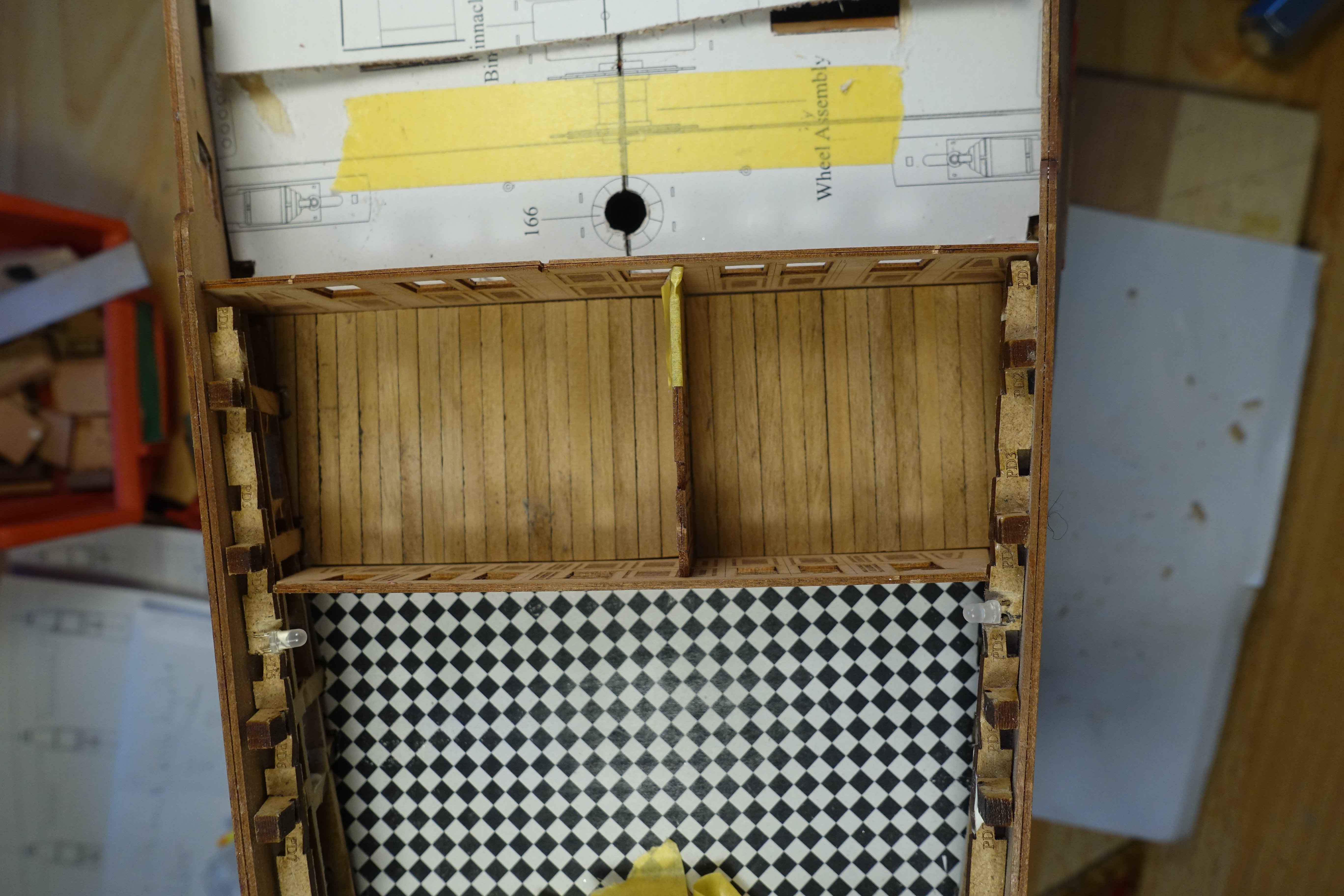

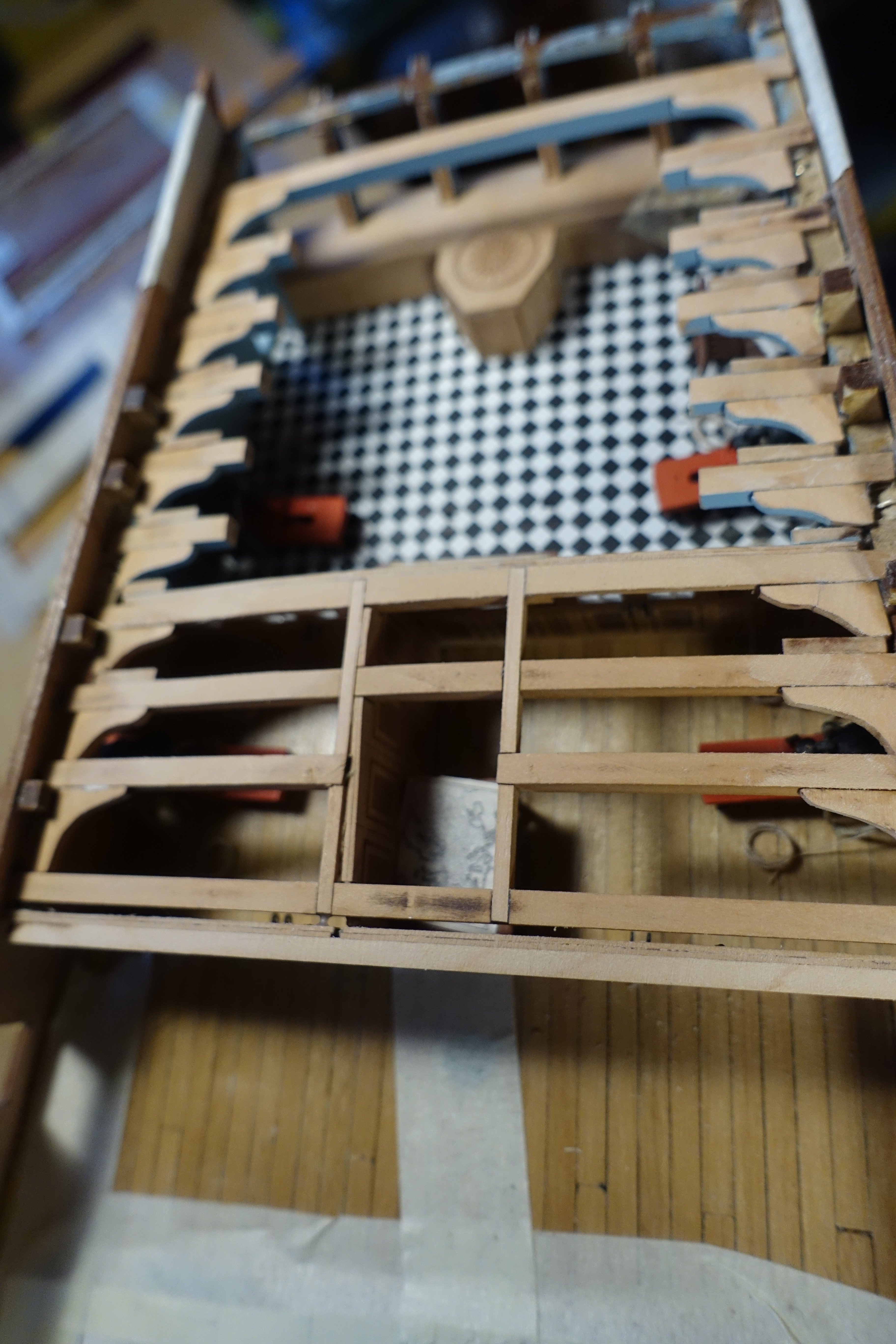

Deck beams
Attaching the deck beams proved to be somewhat more difficult. A lot had to be filed down or removed.
For the beams for the forecastle deck, simple bevelling was sufficient.

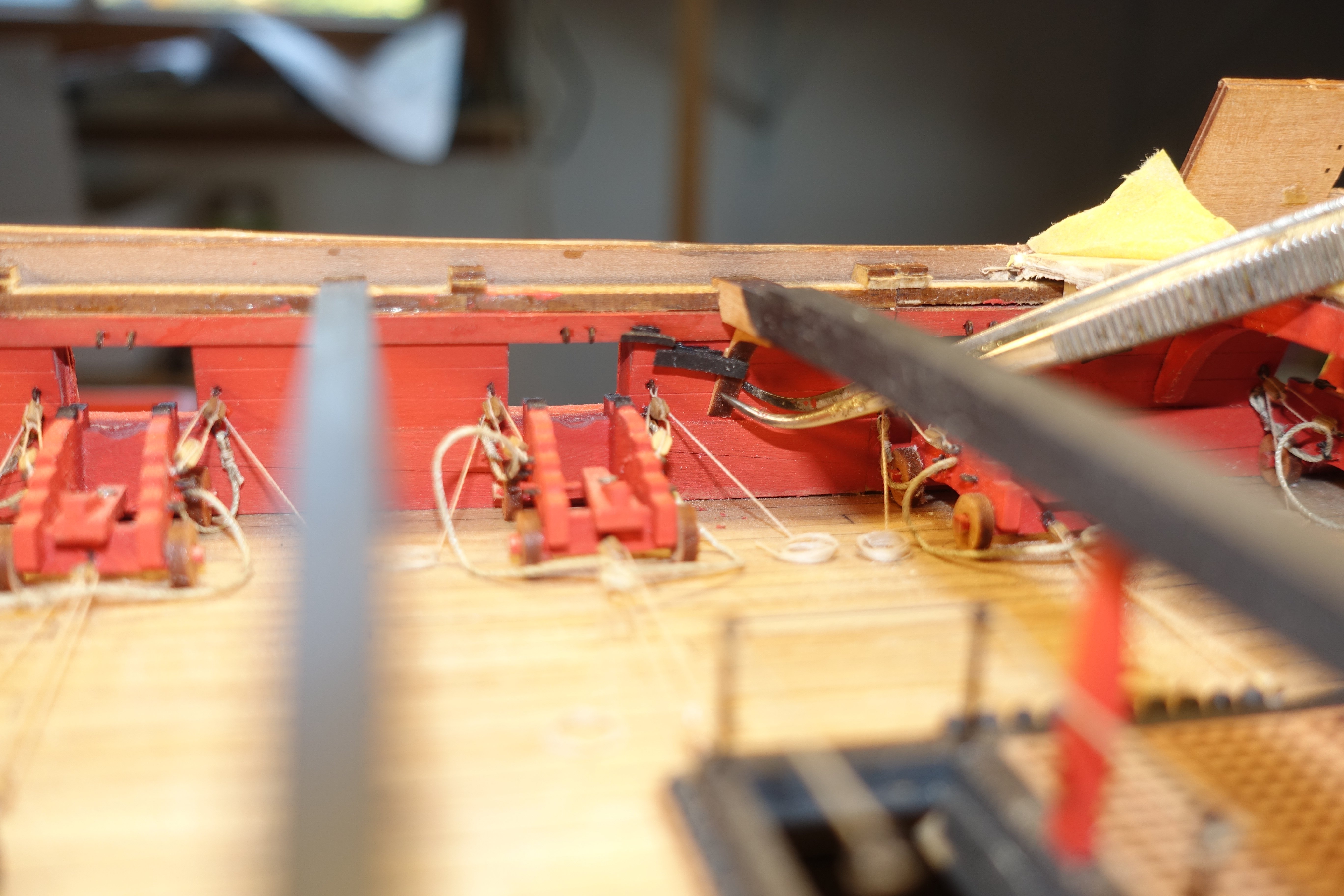

The levelling was checked both in the centre and on the side.

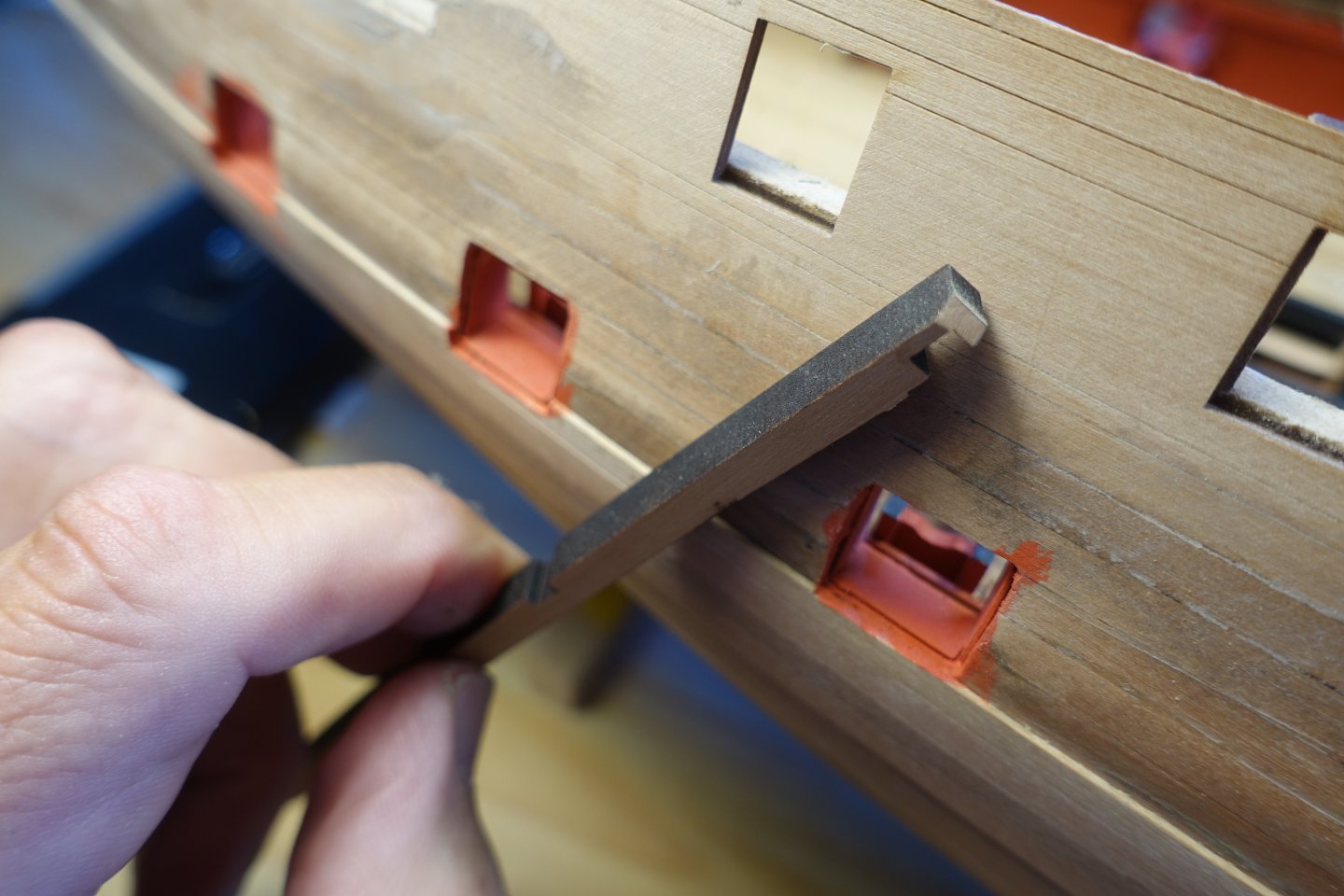

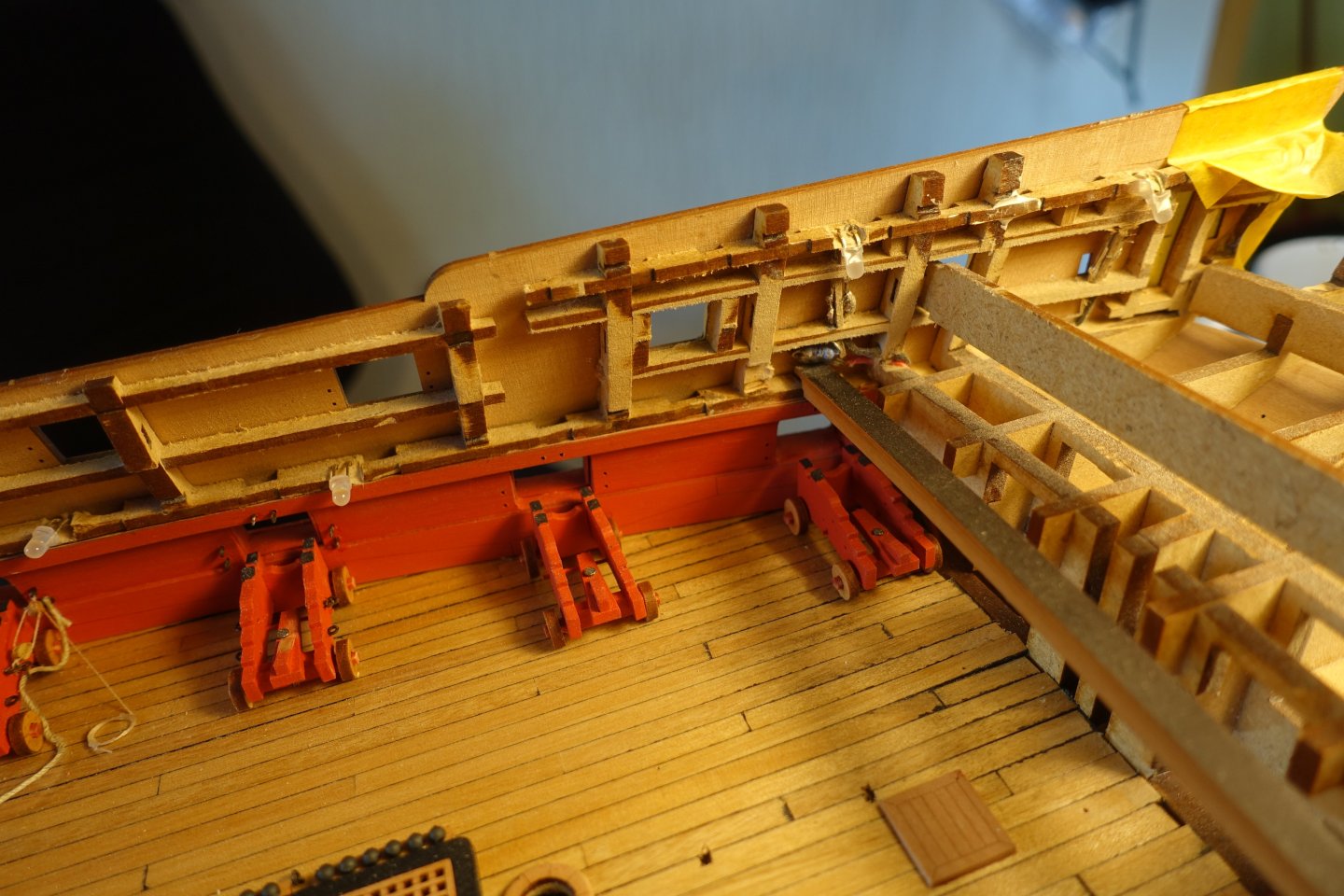

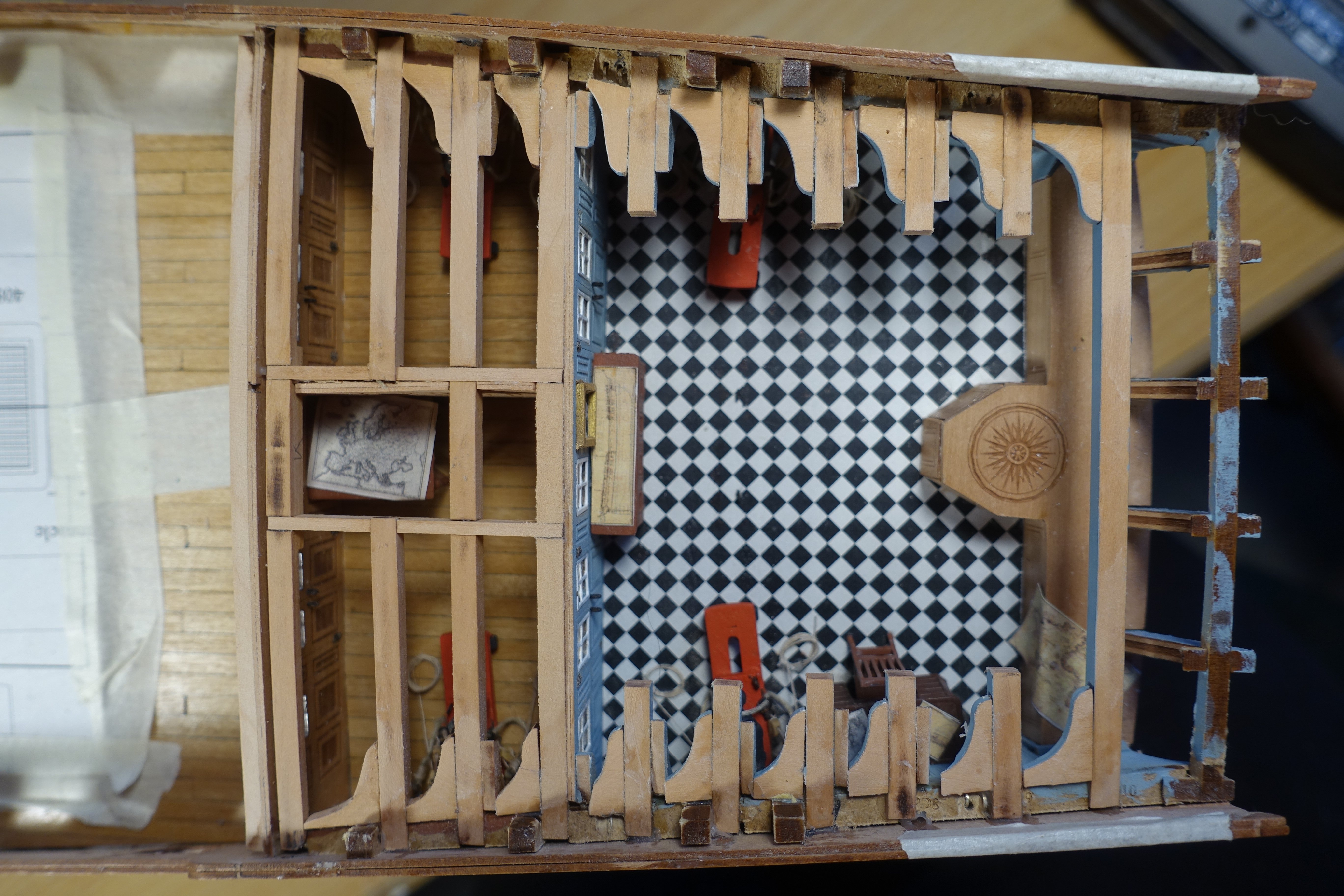

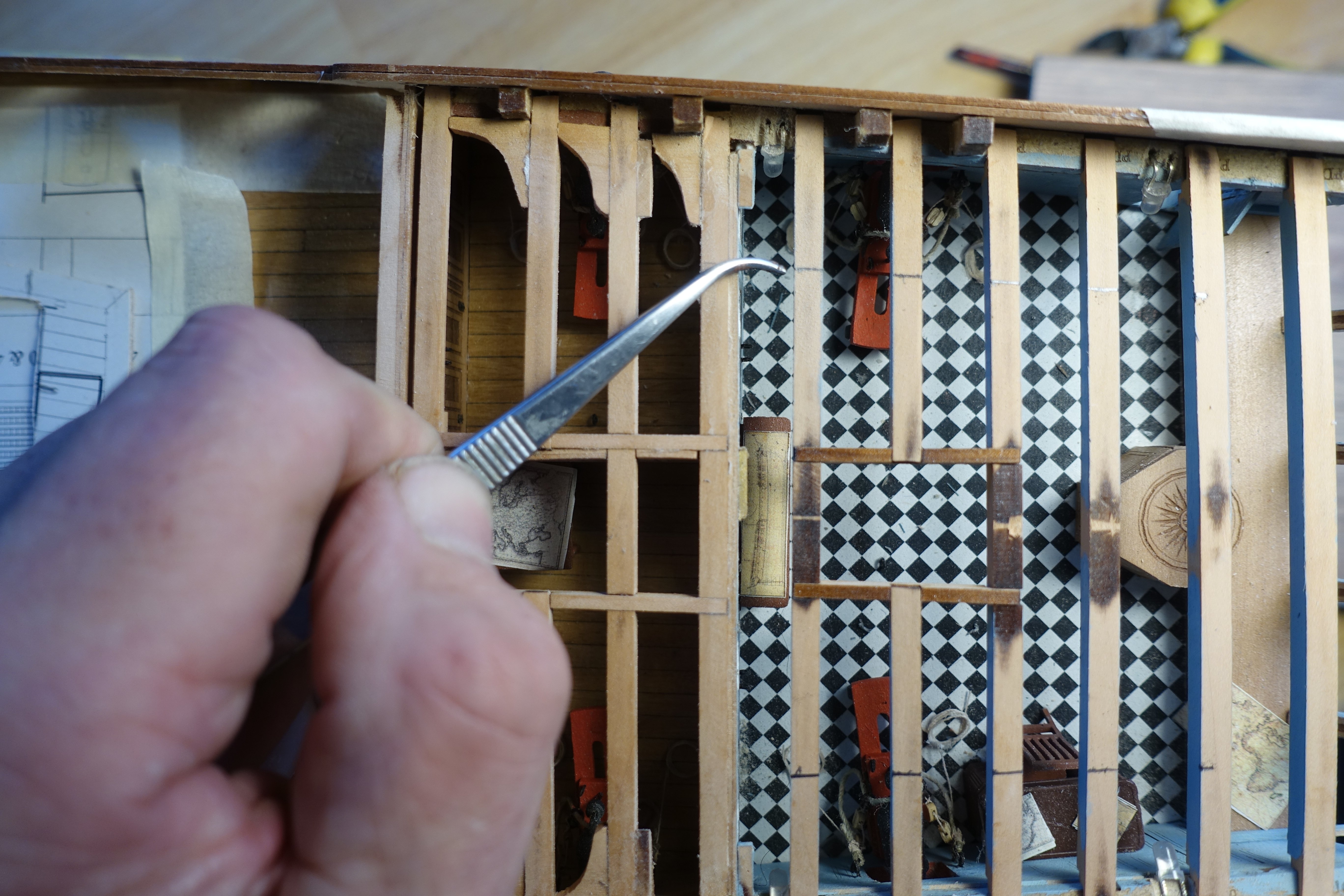

Fitting the deck beams of the quarterdeck was more difficult. On the one hand, a relatively large amount had to be sanded off the beams themselves. However, this was still not enough. In order to fit them, I had to remove a relatively large amount of the vertical MDF structures, partly restricted by the wiring for the MDF lighting. I filed alternately on the starboard and port sides to create additional space for inserting the beams.

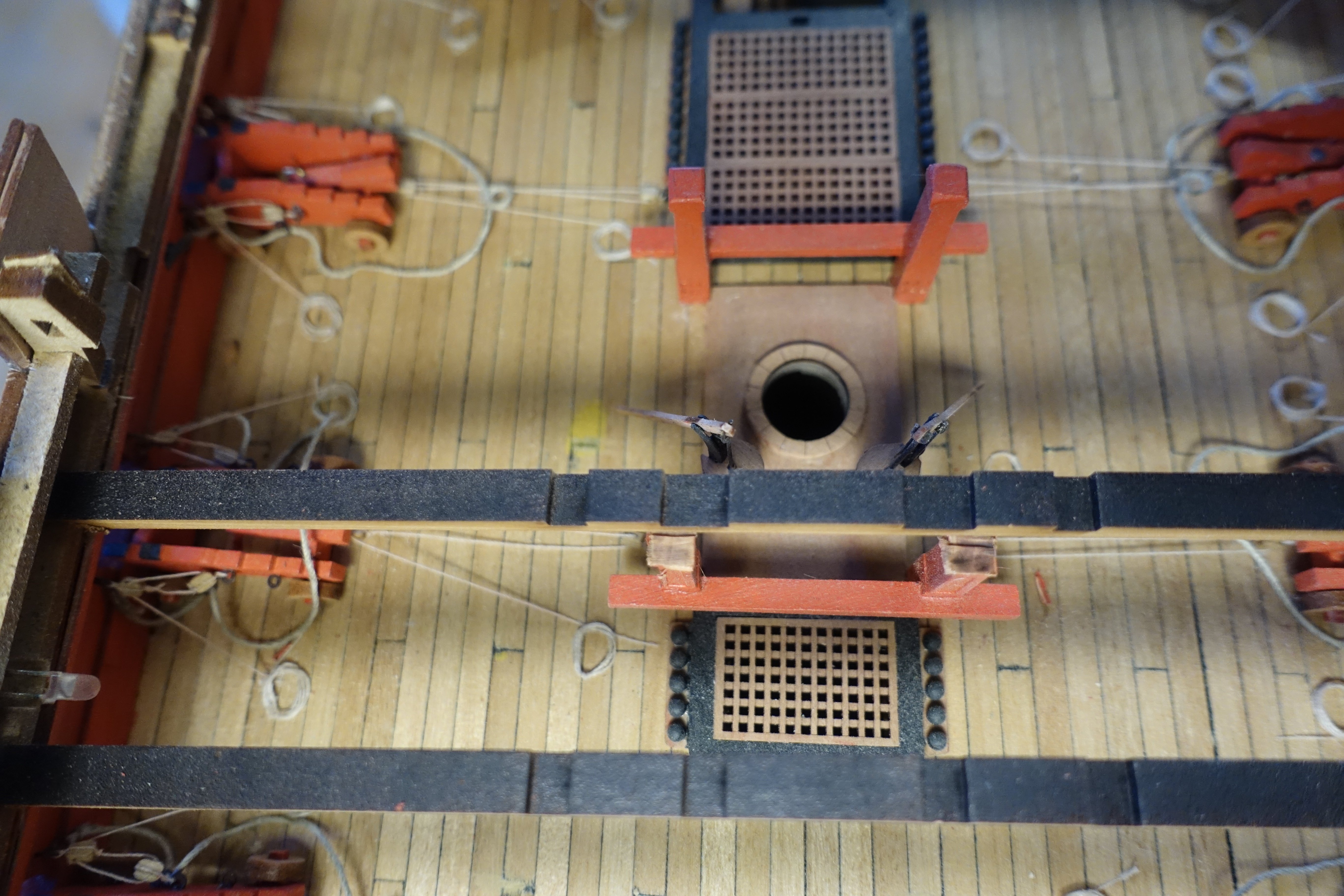

For the second deck beam (QD9), I had to file down the bitts a little, otherwise it would have been too high in the centre. The bitts will later be sanded smooth and painted over.





The levelling of the quarterdeck beams was also checked in the centre and on the ship's side. One deck beam (QD 14) is missing in the picture. This can only be fitted once the longitudinal beams have been attached. There is a small note about this on the plan and also in the Blue Ensign description.

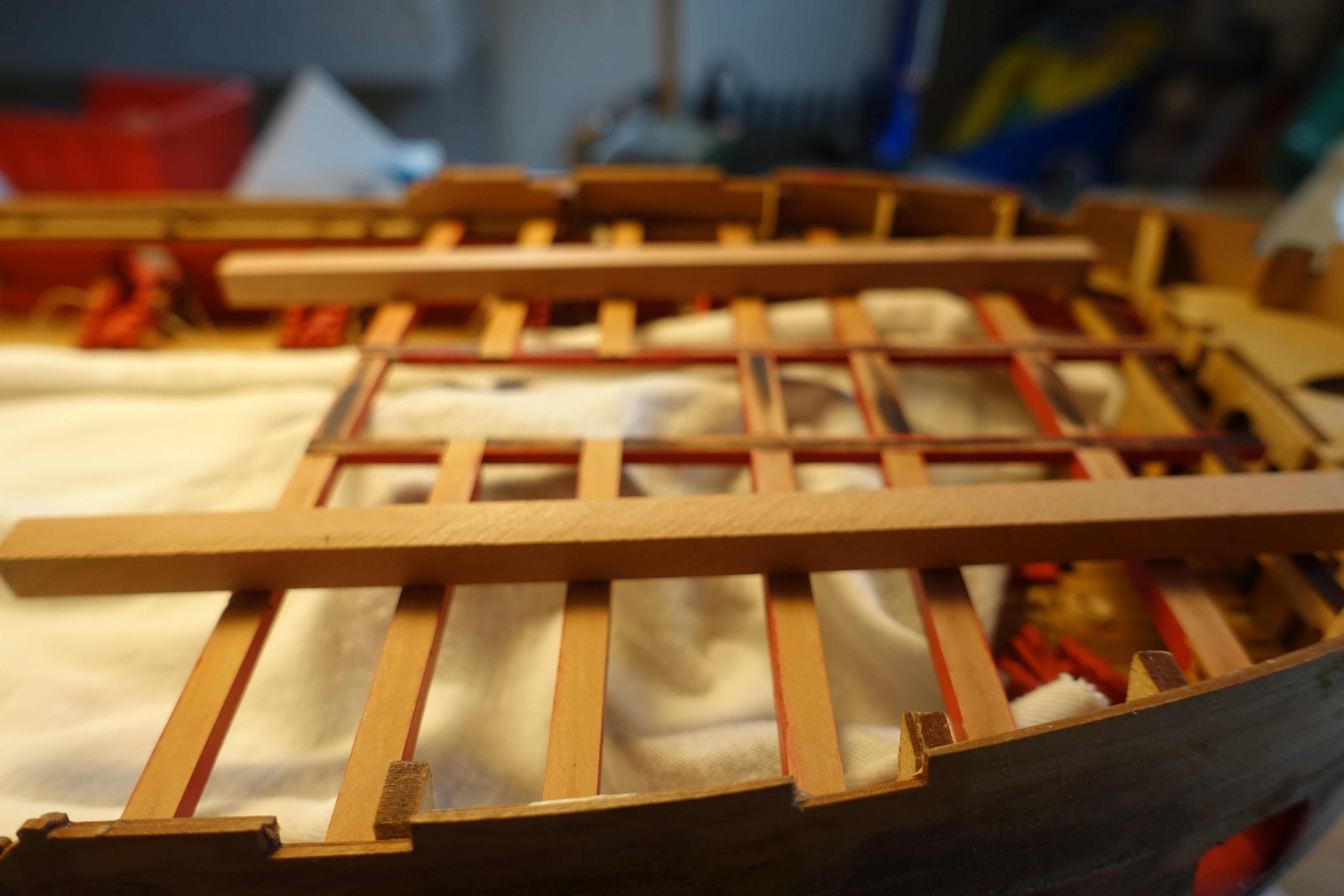

When attaching the longitudinal beams, I noticed that they are not parallel.







793
790
791
However, the lack of parallelism corresponds to the plan.

[Ronald-V]

It might follow the same line as the deck planks that will be placed on top? These also taper towards the stern.

[Clark]

3 hours ago, Ronald-V said:

It might follow the same line as the deck planks that will be placed on top? These also taper towards the stern.

You're right. I just wasn't sure if I had done something wrong.
Thanks for stopping by.

[chris watton]

3 hours ago, Ronald-V said:

It might follow the same line as the deck planks that will be placed on top? These also taper towards the stern.

You are correct!

[Clark]

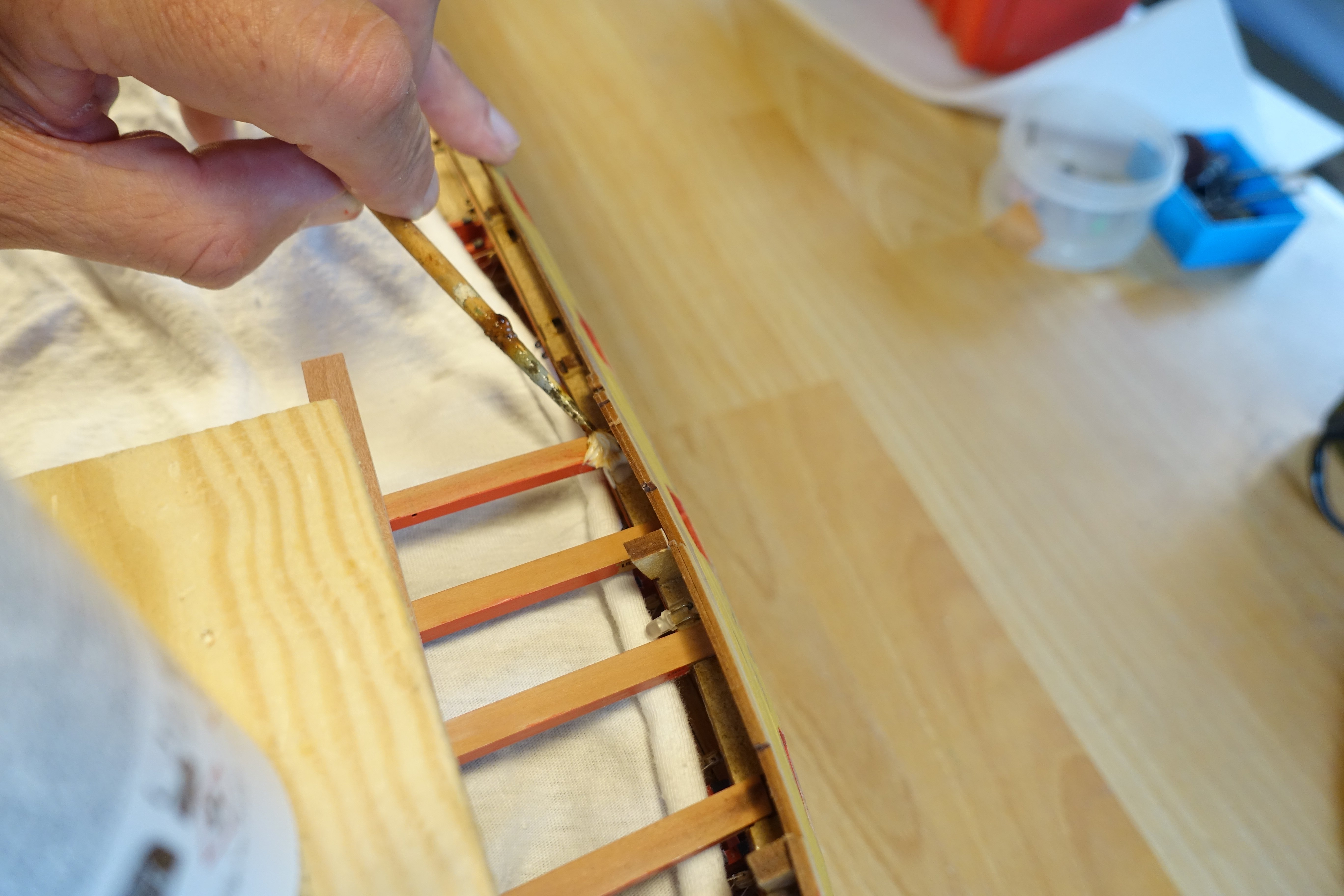

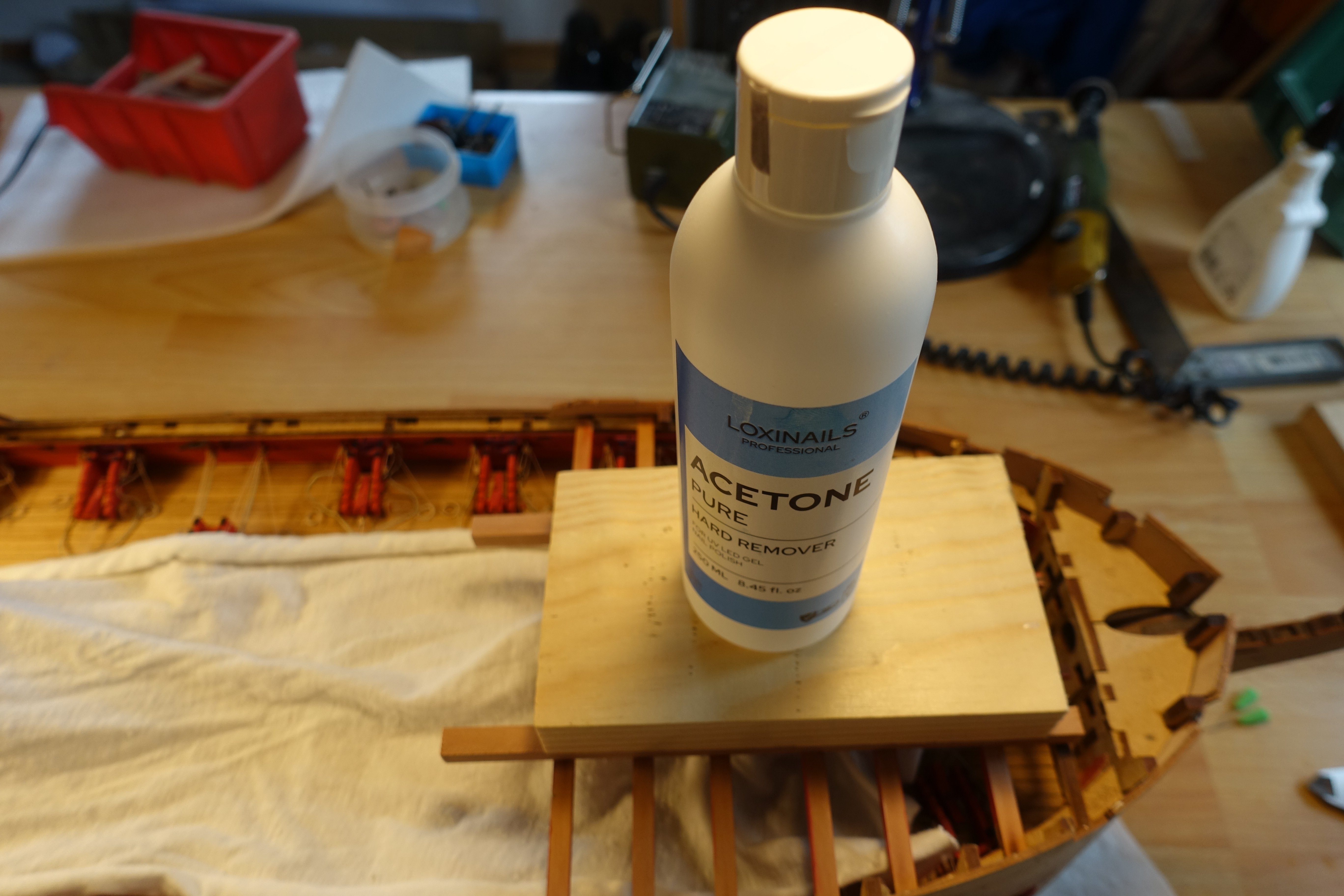

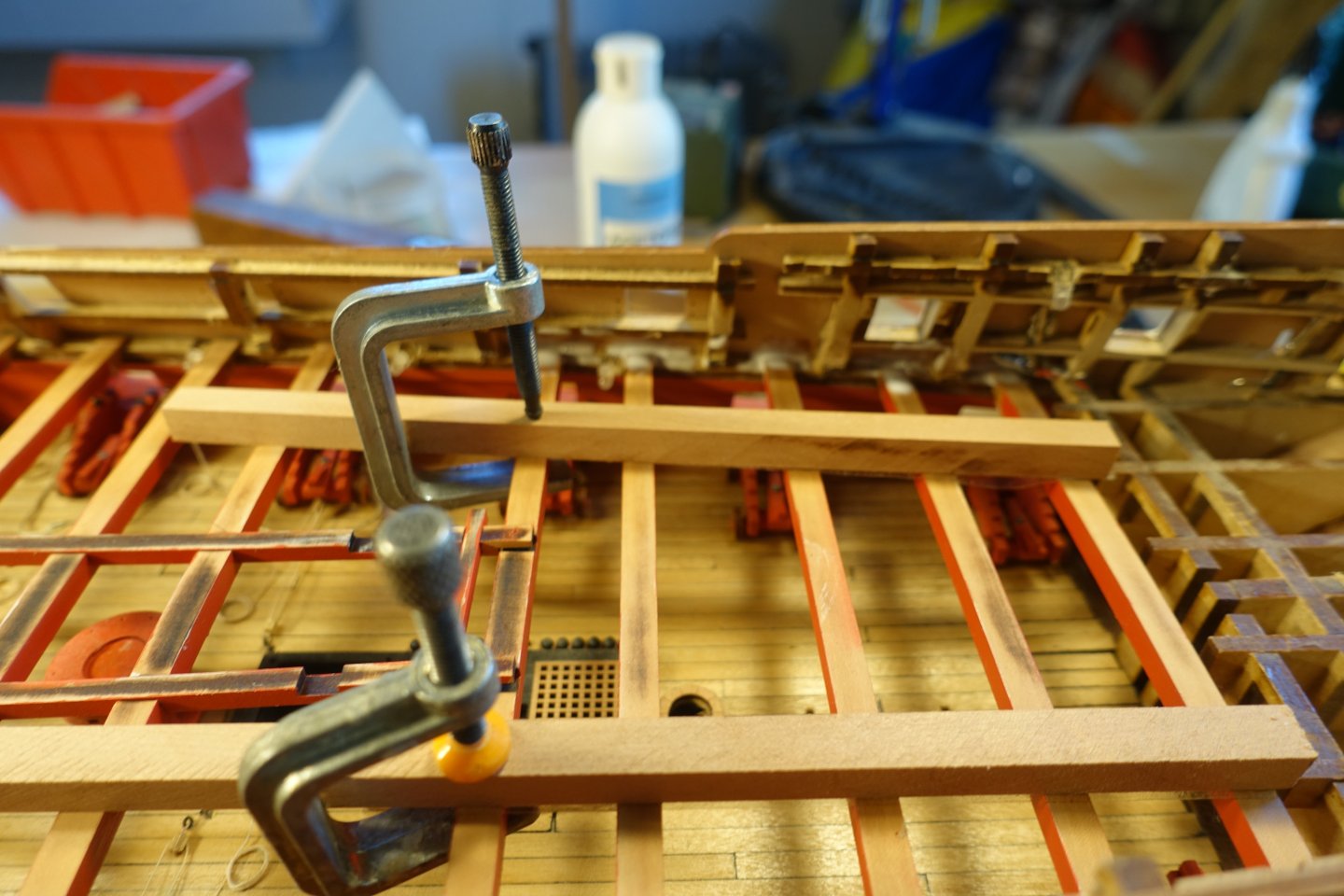

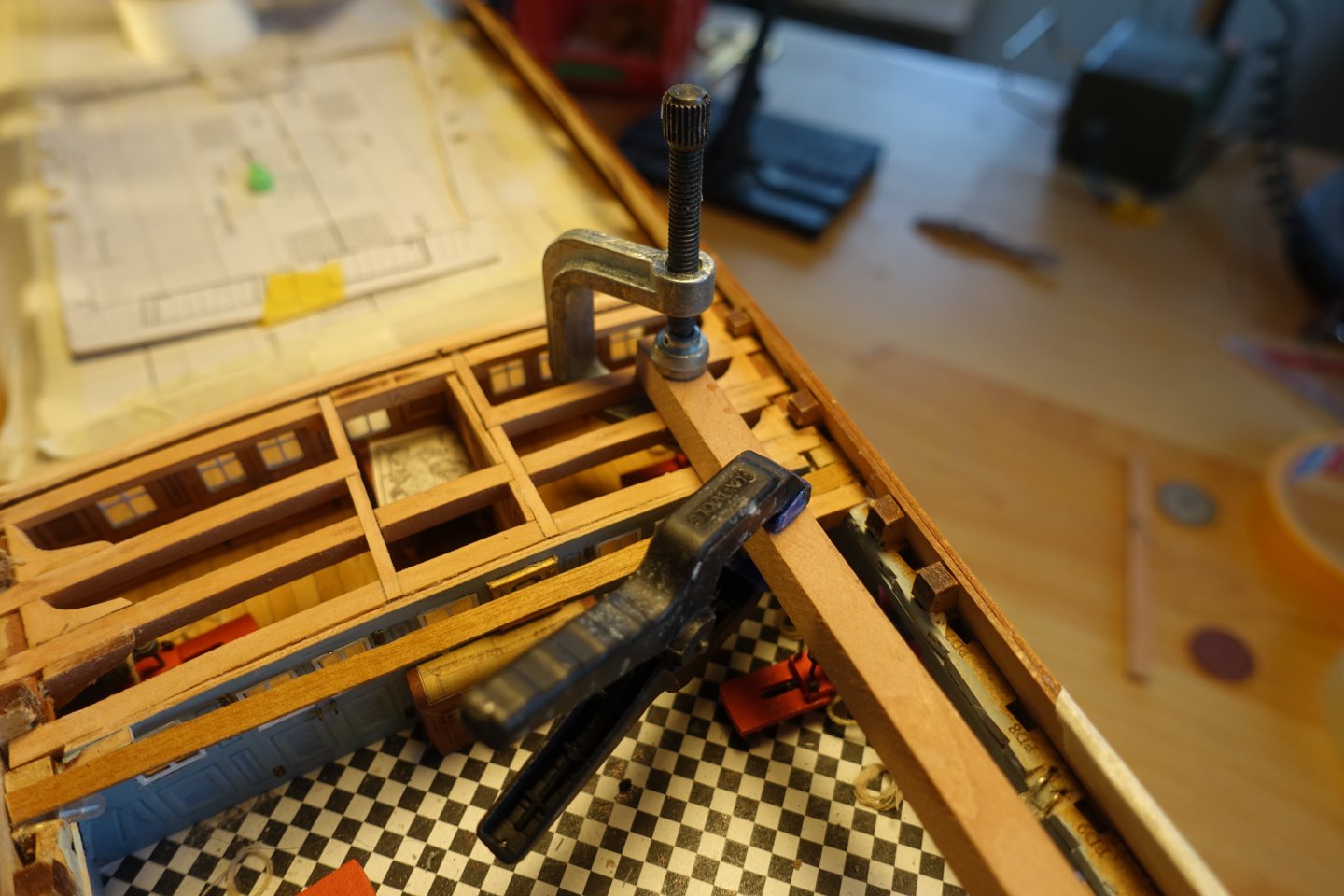

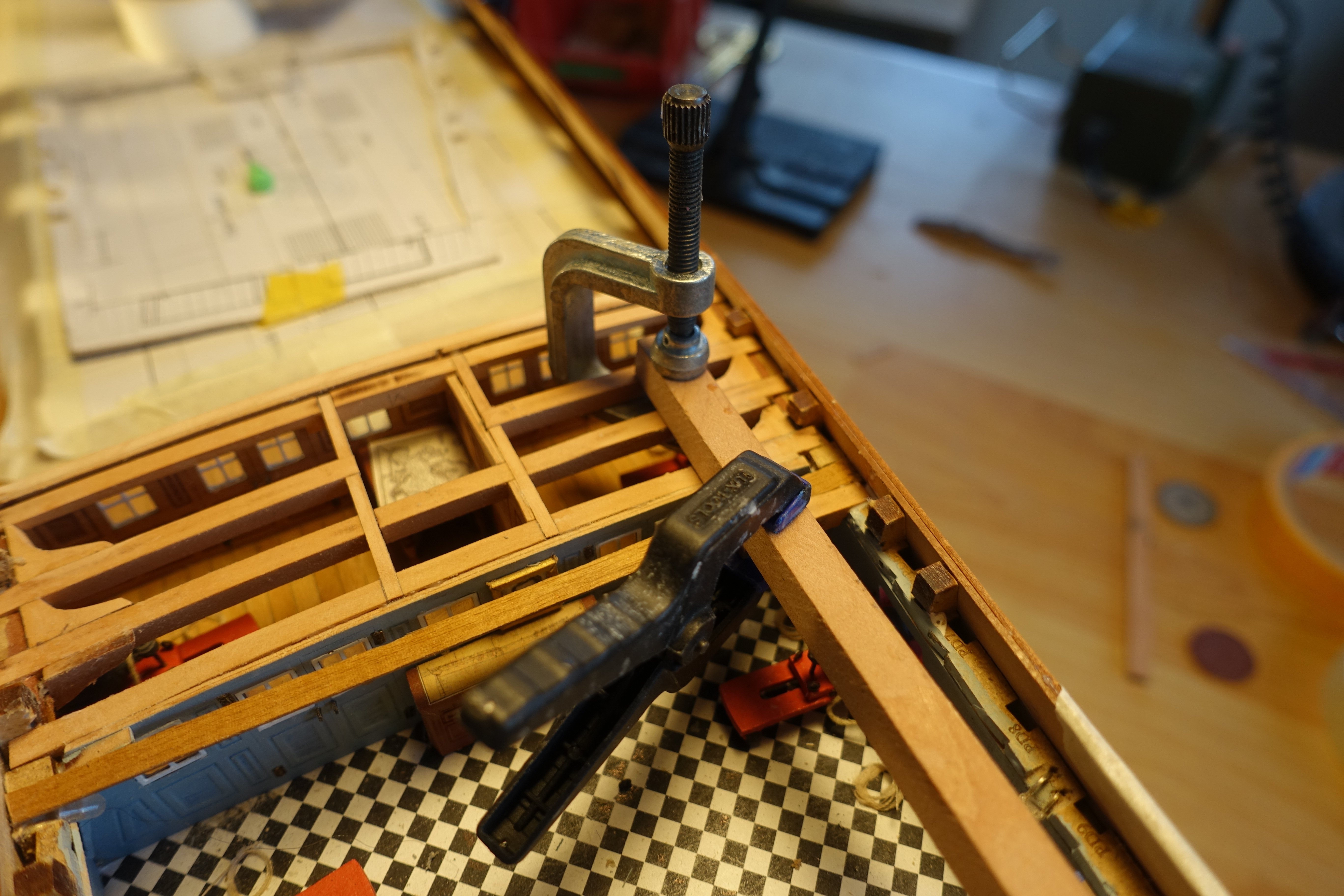

The beams were painted and coated with clear varnish and then glued in place. Several beams were inserted and the levelling was tested using two 10x10mm pieces of wood and then diluted PVA was applied to the joints on the MDF. In this way, the levelling was easily maintained.









The anchor rope was laid

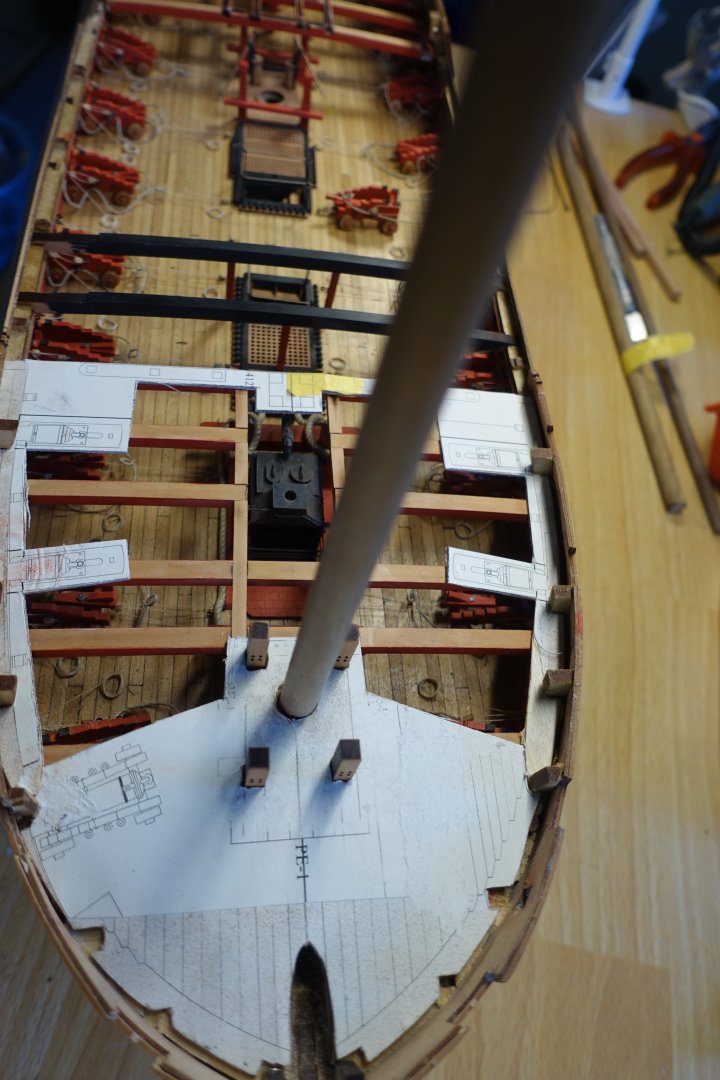

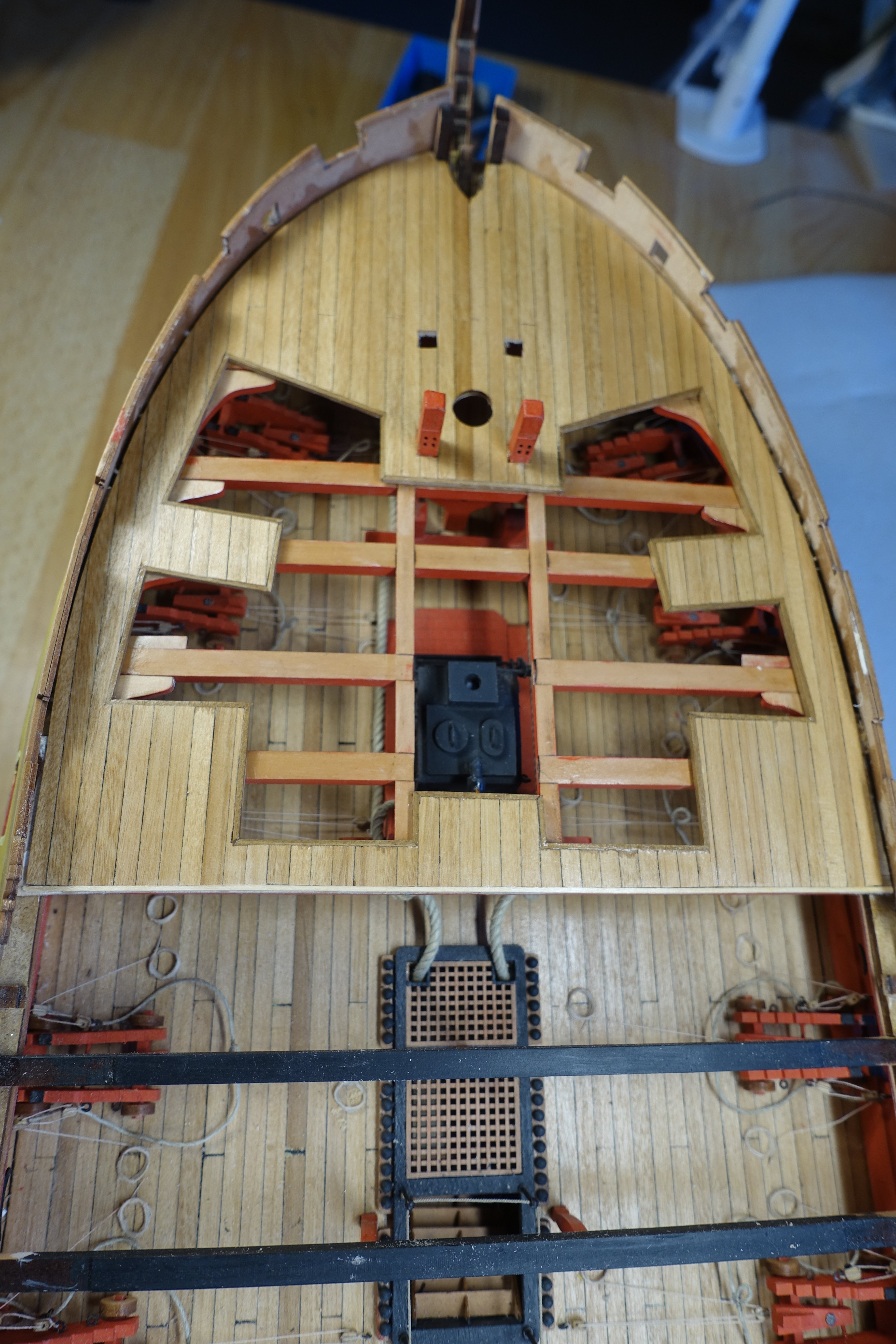

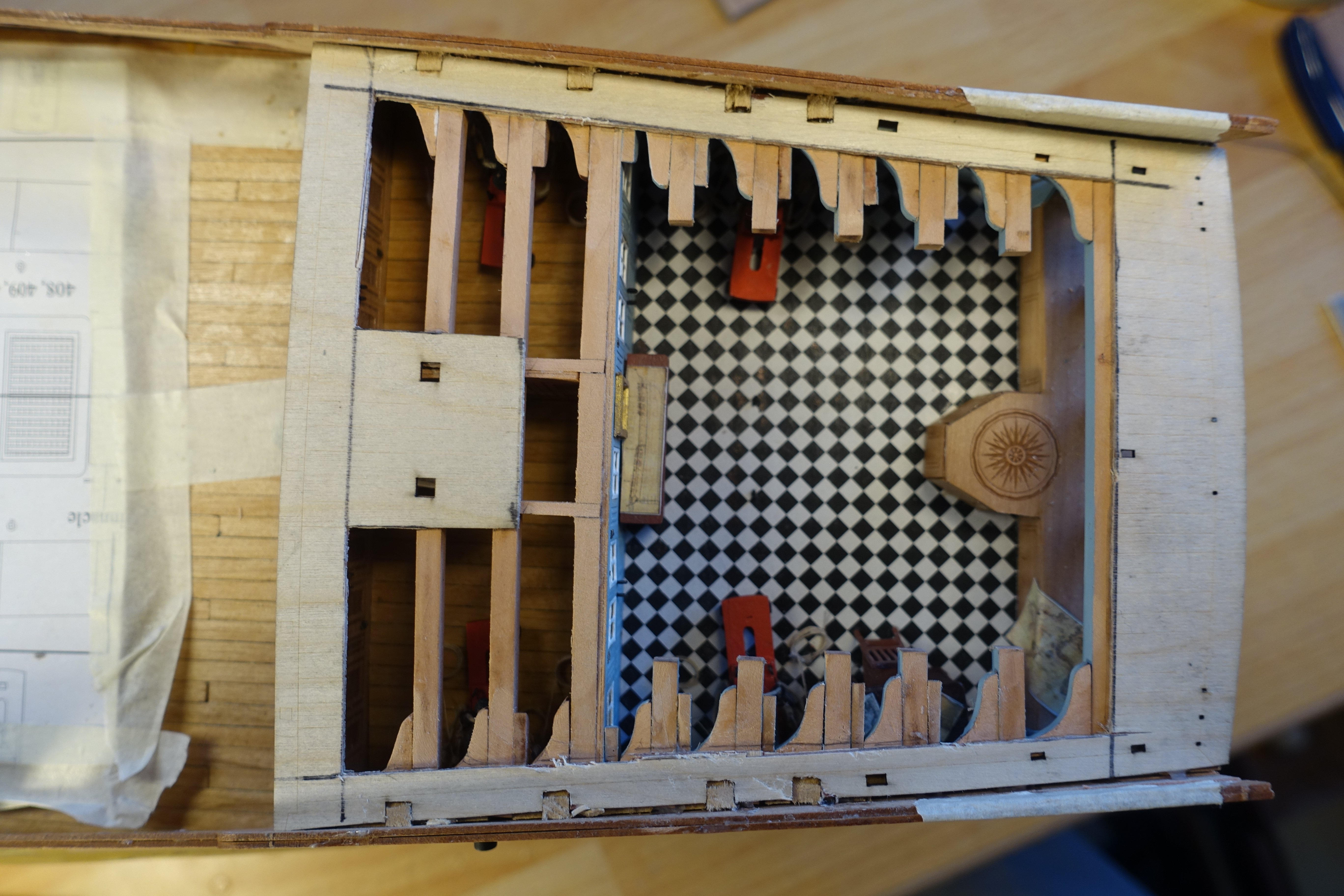

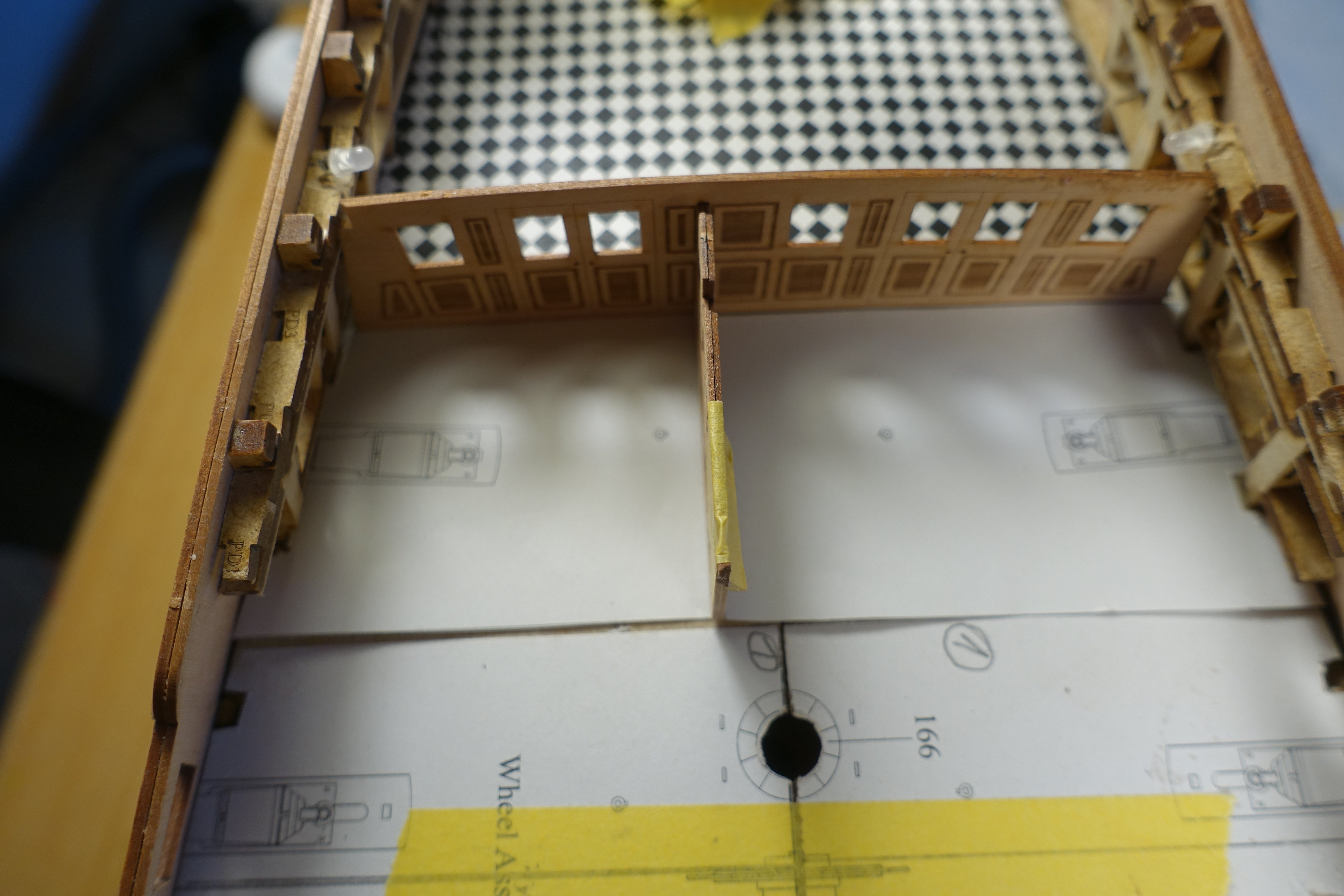

The first beam at the bow has been panelled. I want to open the forecastle deck relatively wide and the panelling should cover the MDF behind it. The opening for the bowsprit was tested with a 10 mm dowel.

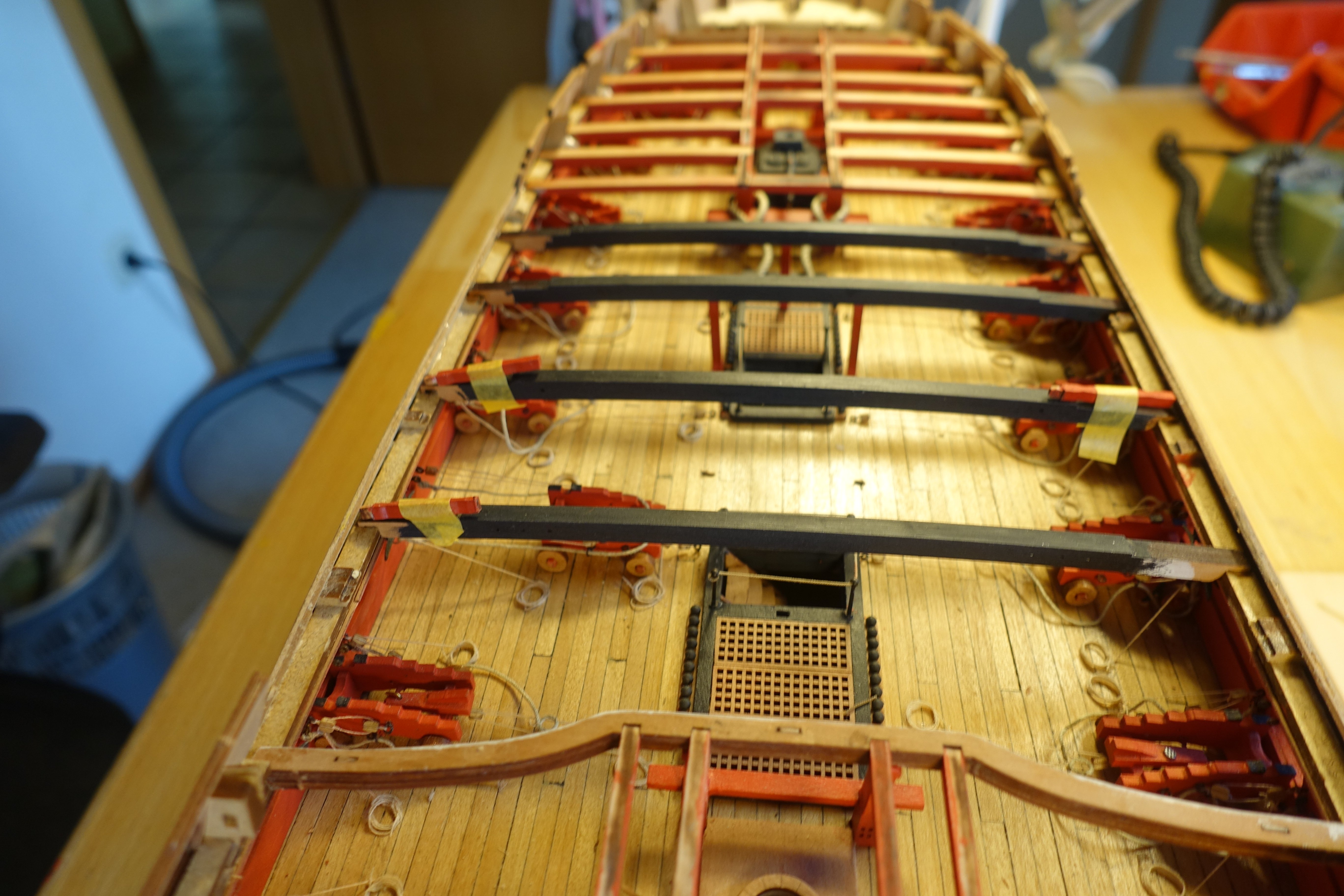

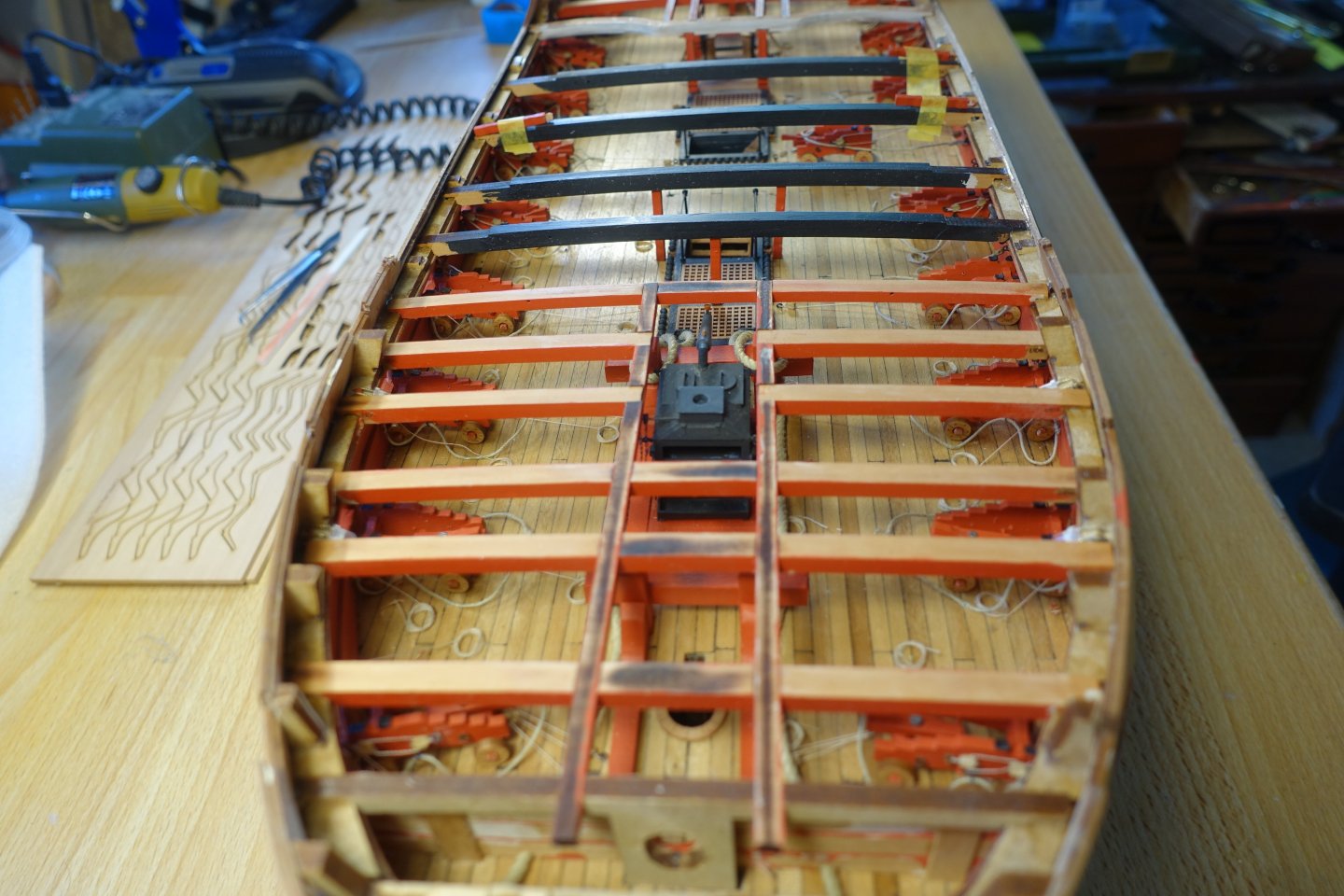

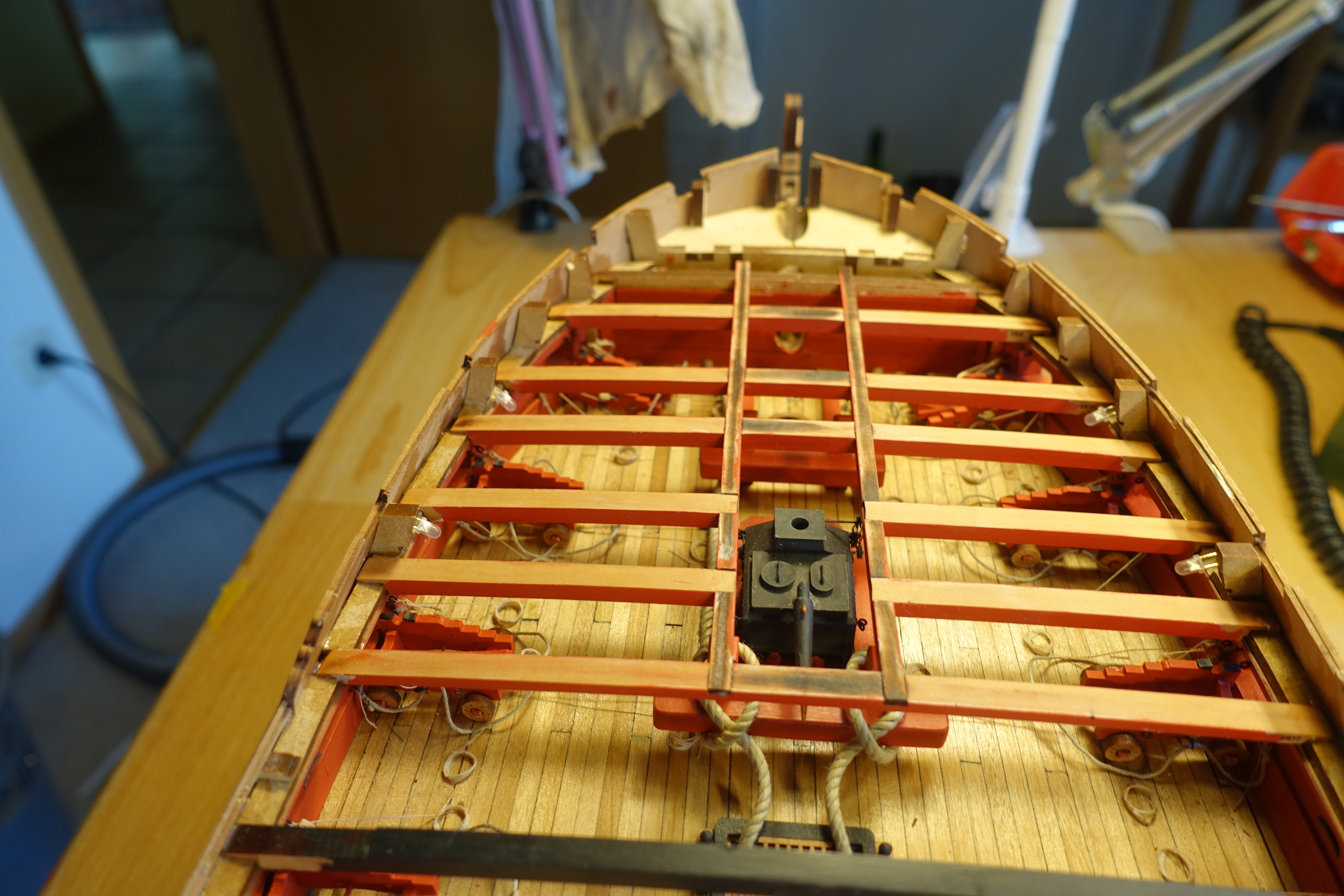

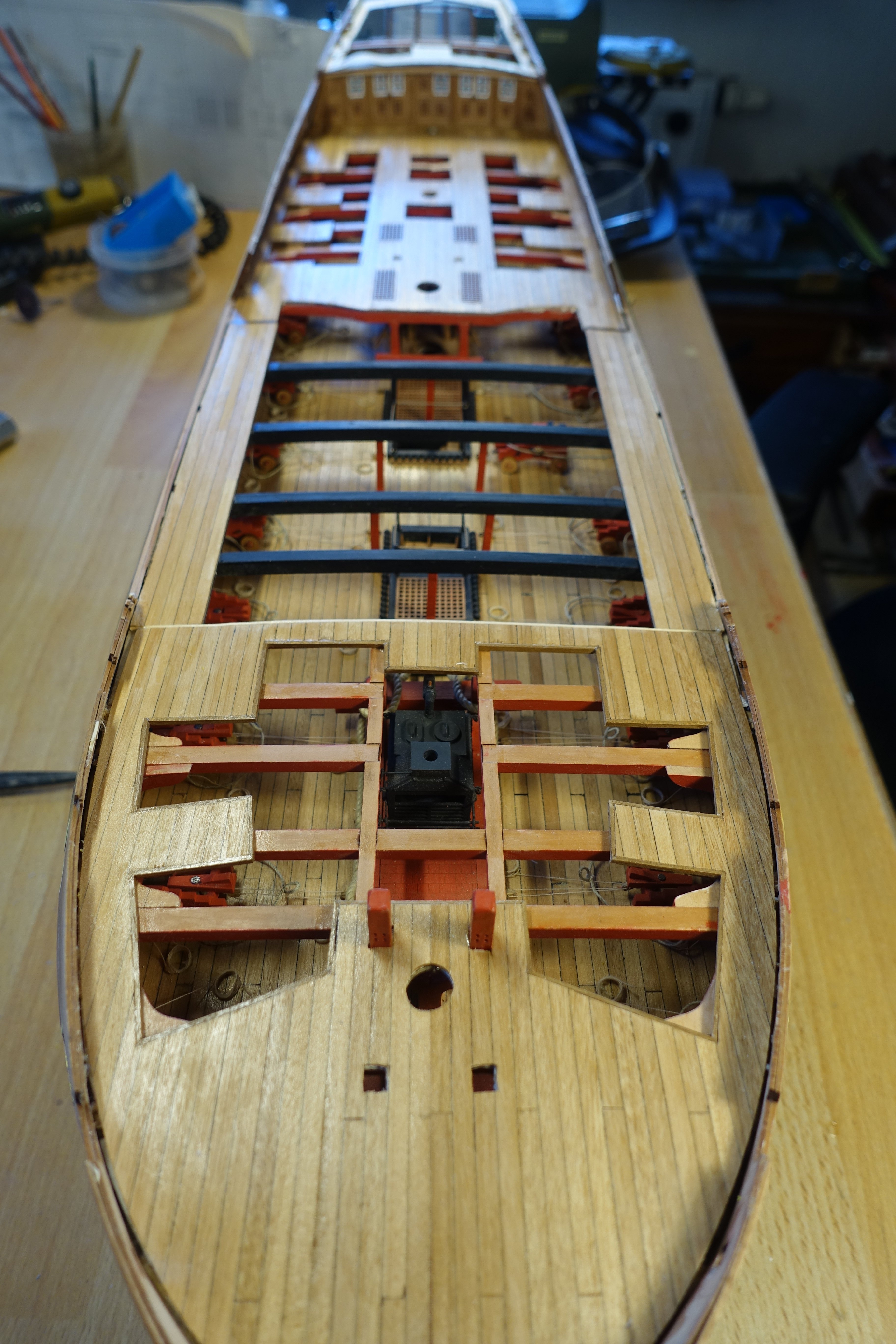

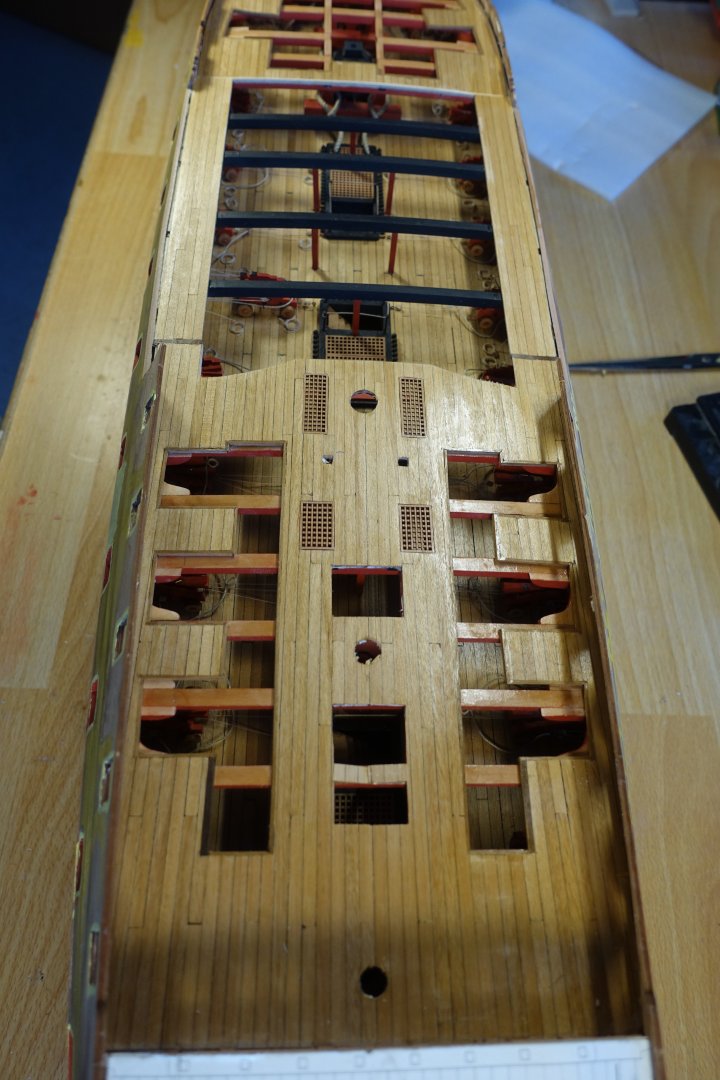

The deck beams are largely in place. The two stern boat beams and their supports are not yet attached, as I still want to attach the gun crew and need space for this.



















The end beam of the quarterdeck has not yet been attached or painted.

 To level it, I had to deepen the cut-outs for the bitts by about 0.3 mm.





[Clark]

Before attaching the knees for the deck beams, I wanted to adjust the quarterdeck and forecastle deck These should be cut out relatively wide to reveal the gun deck below.

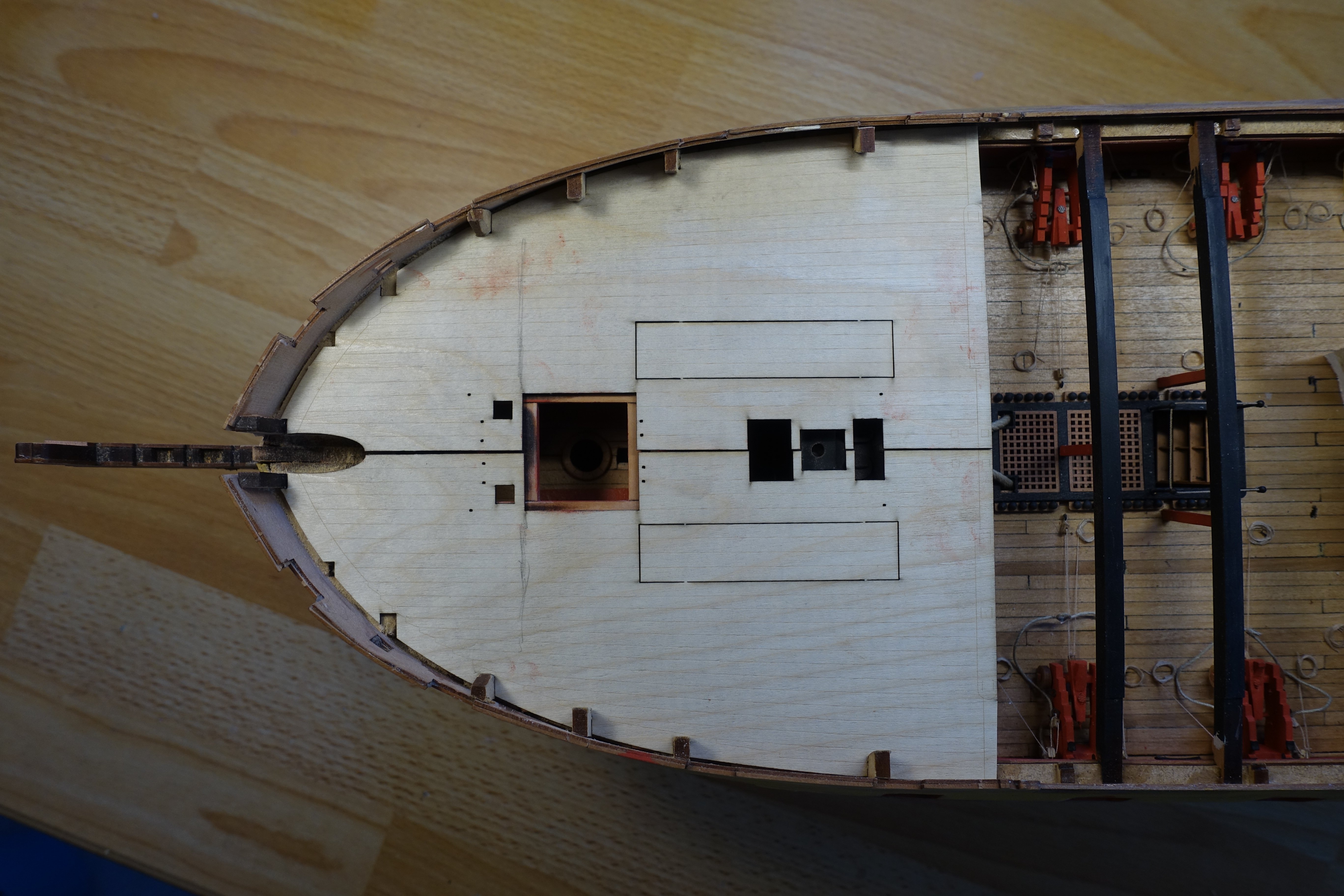

For the forecastle, I first checked the fit of the supplied plywood deck. The frame ears had to be notched a little further for this.

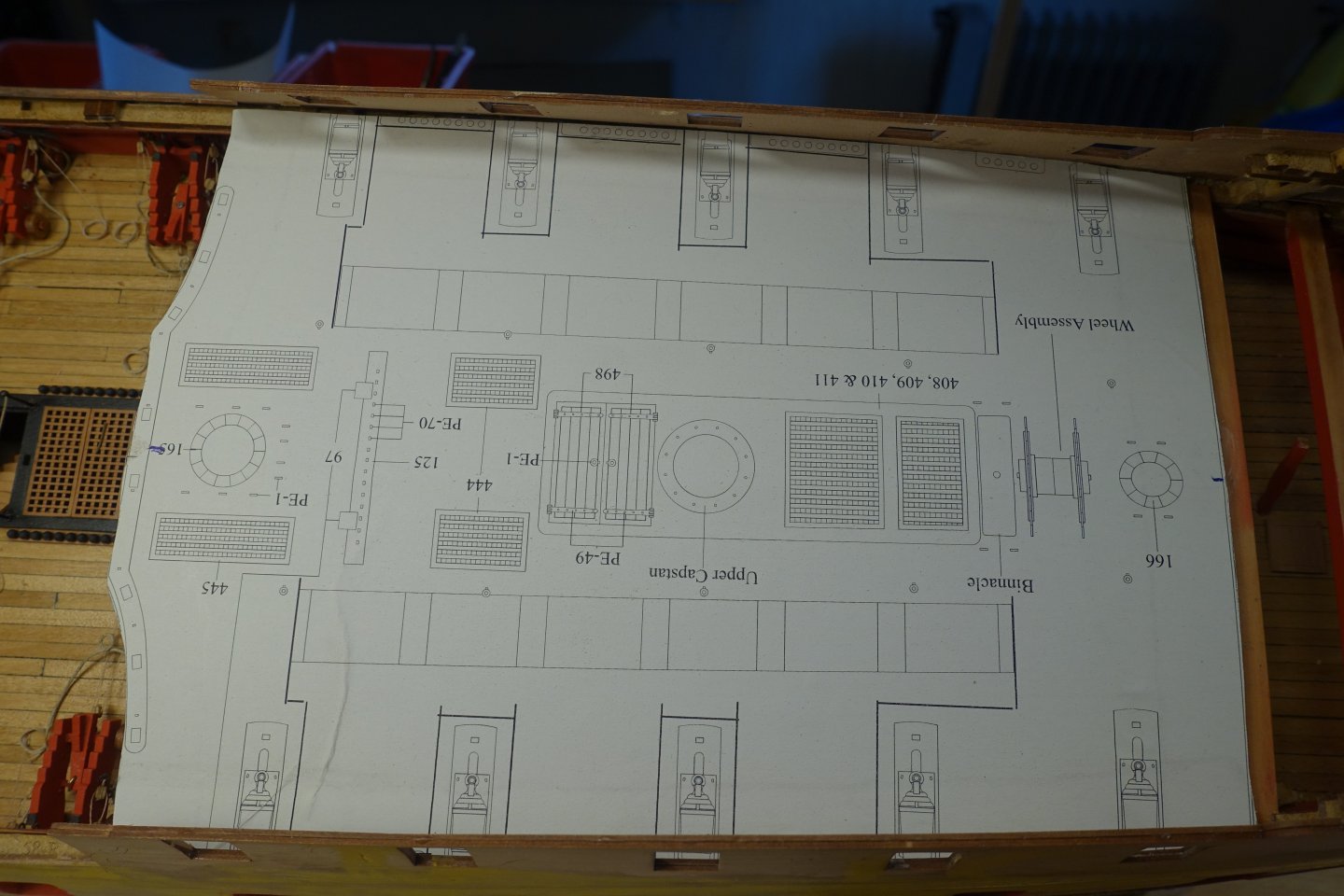

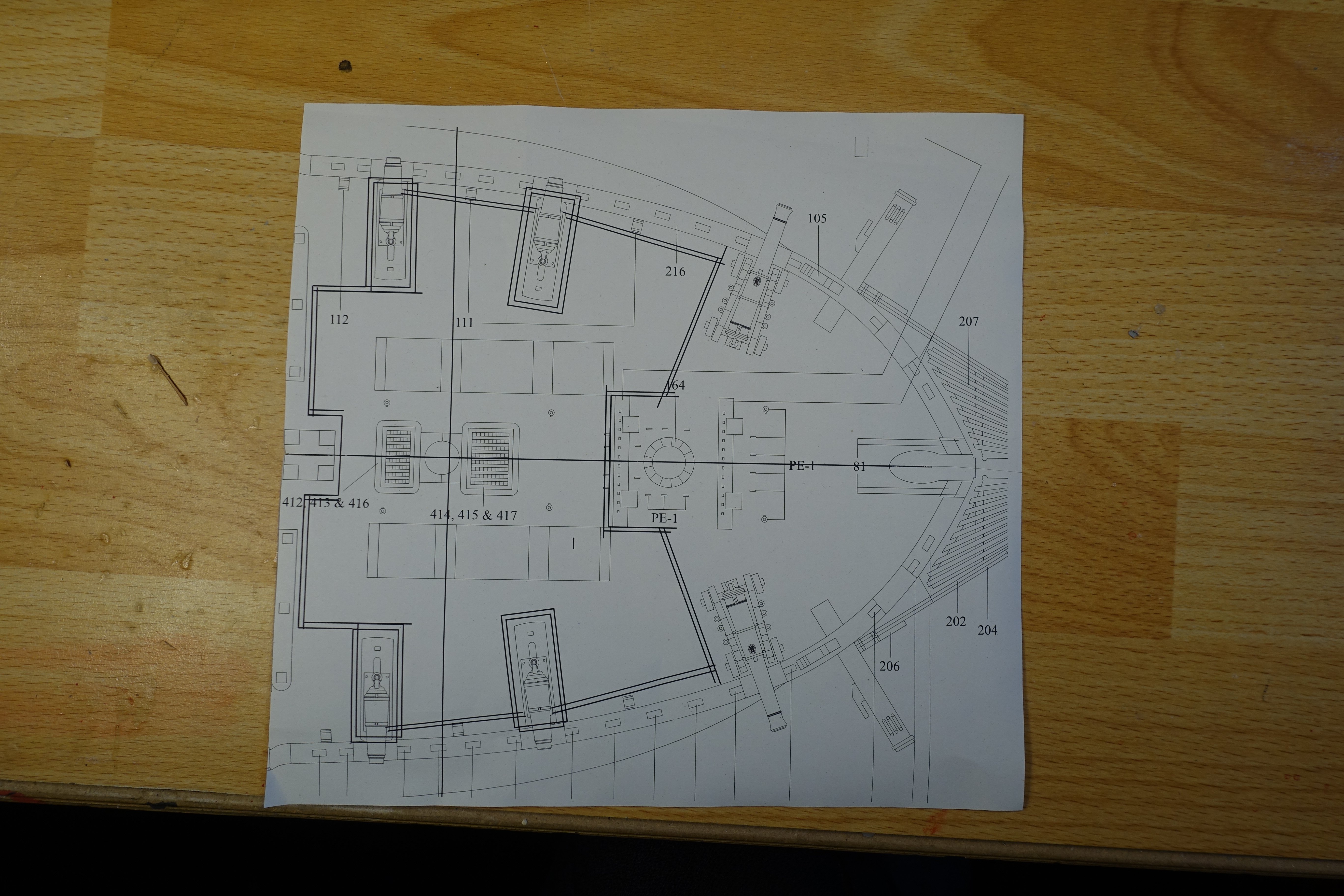

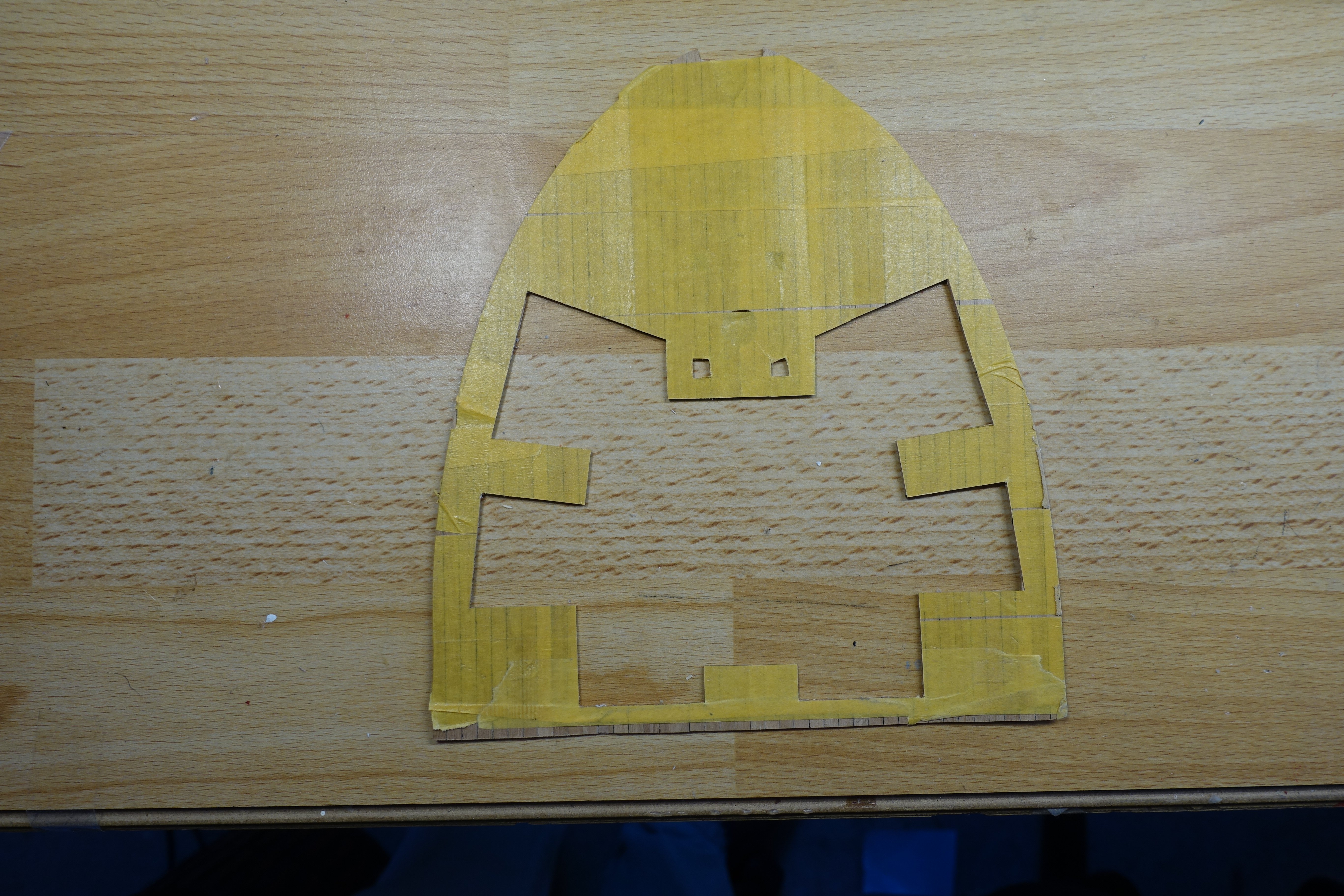

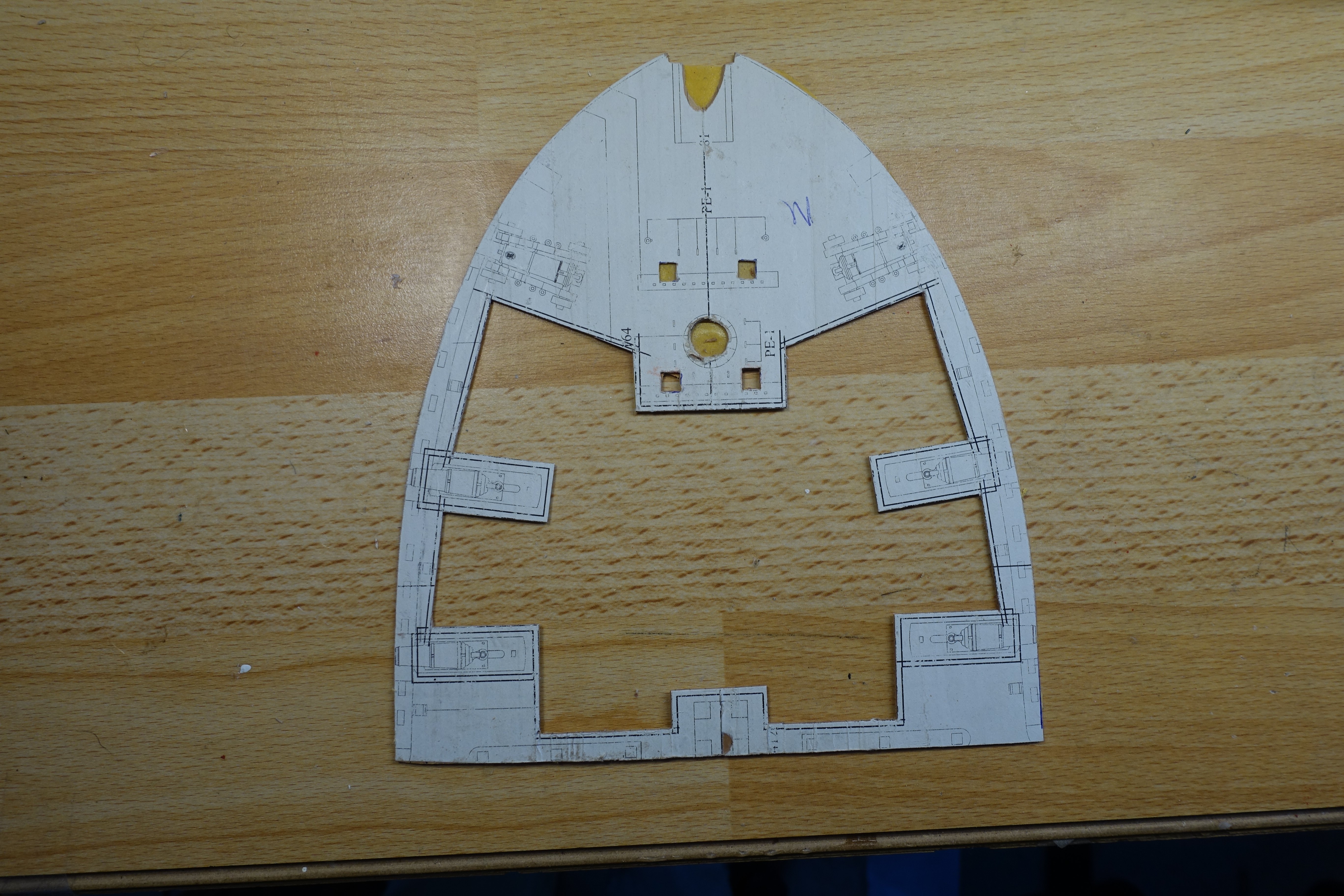

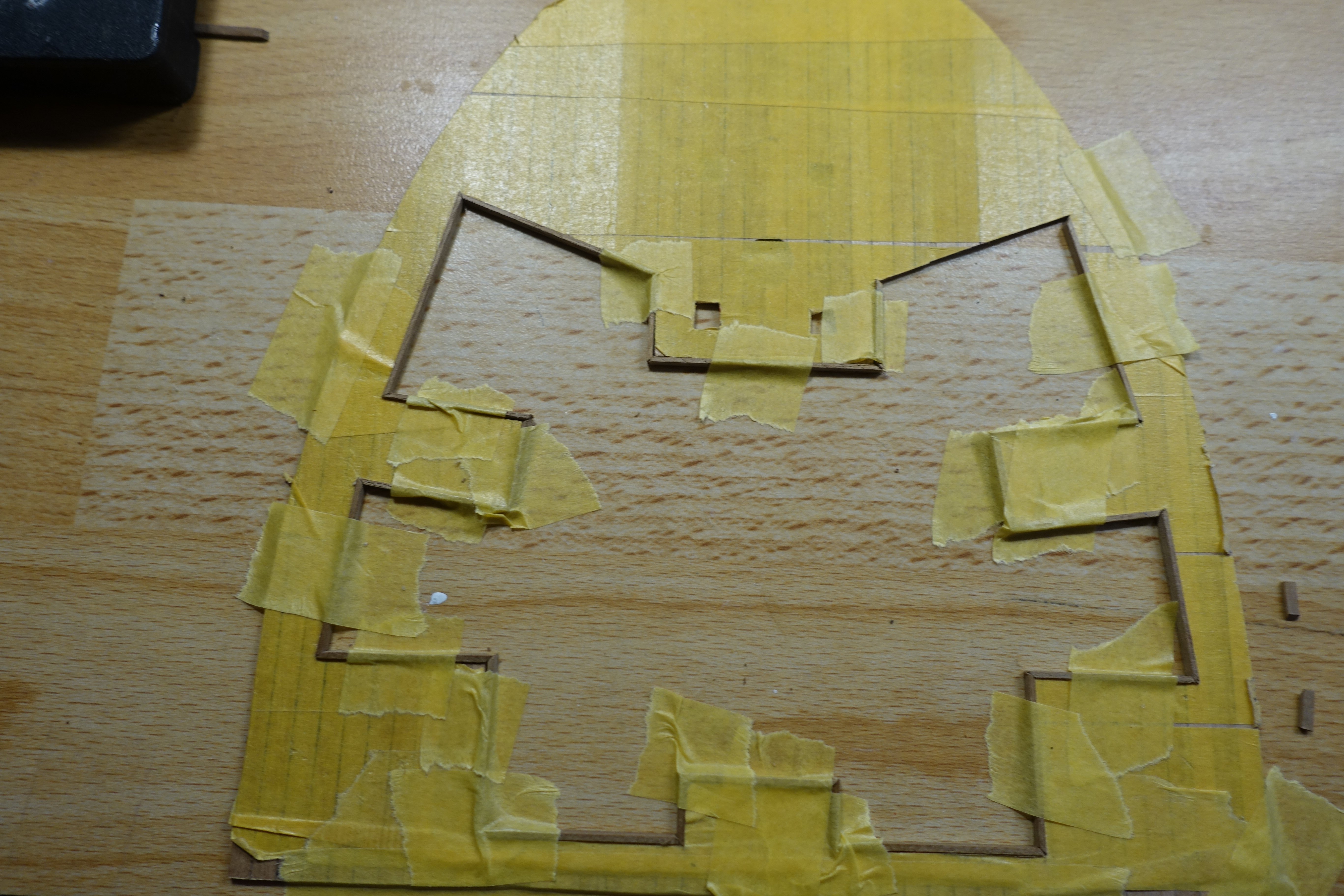

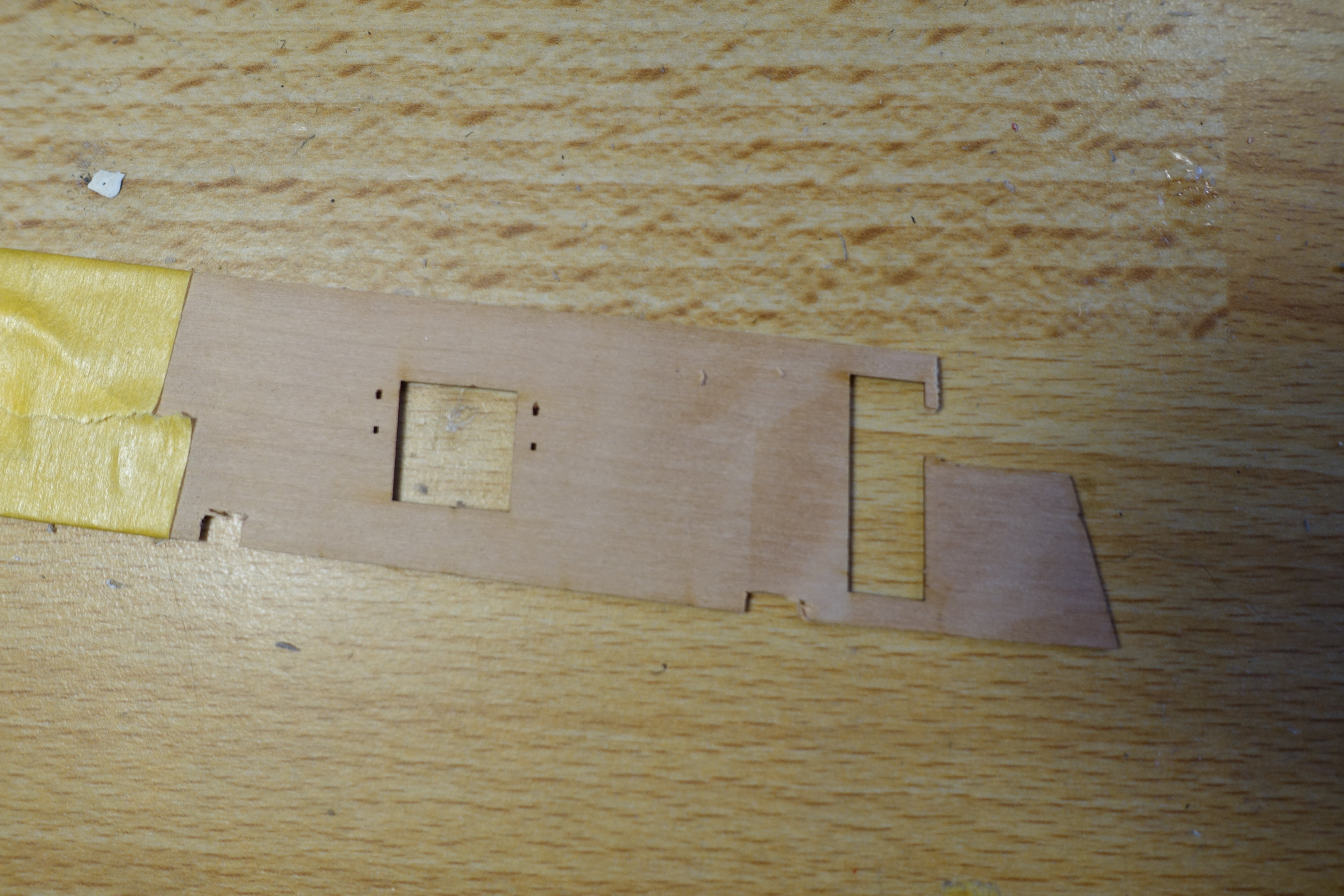

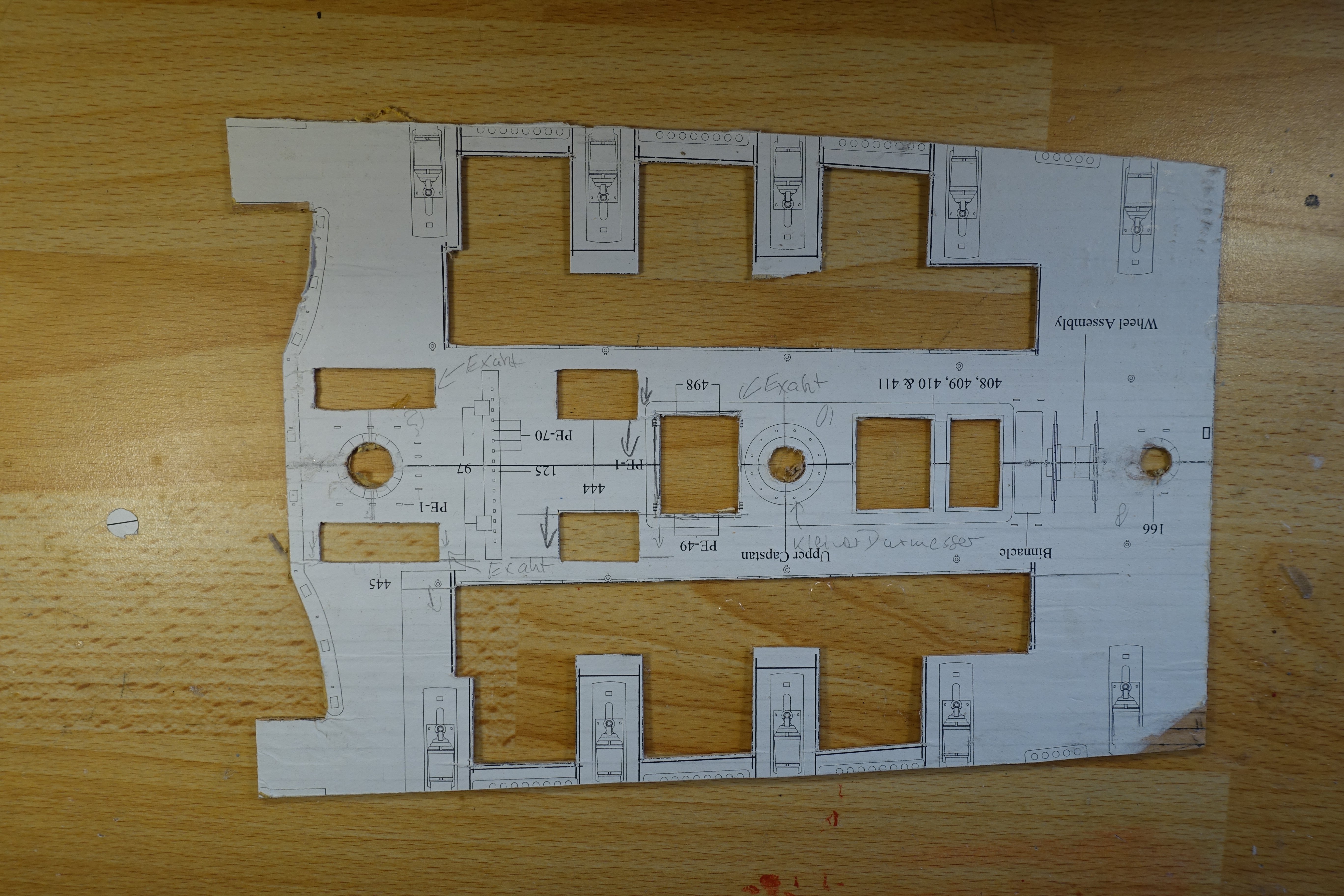

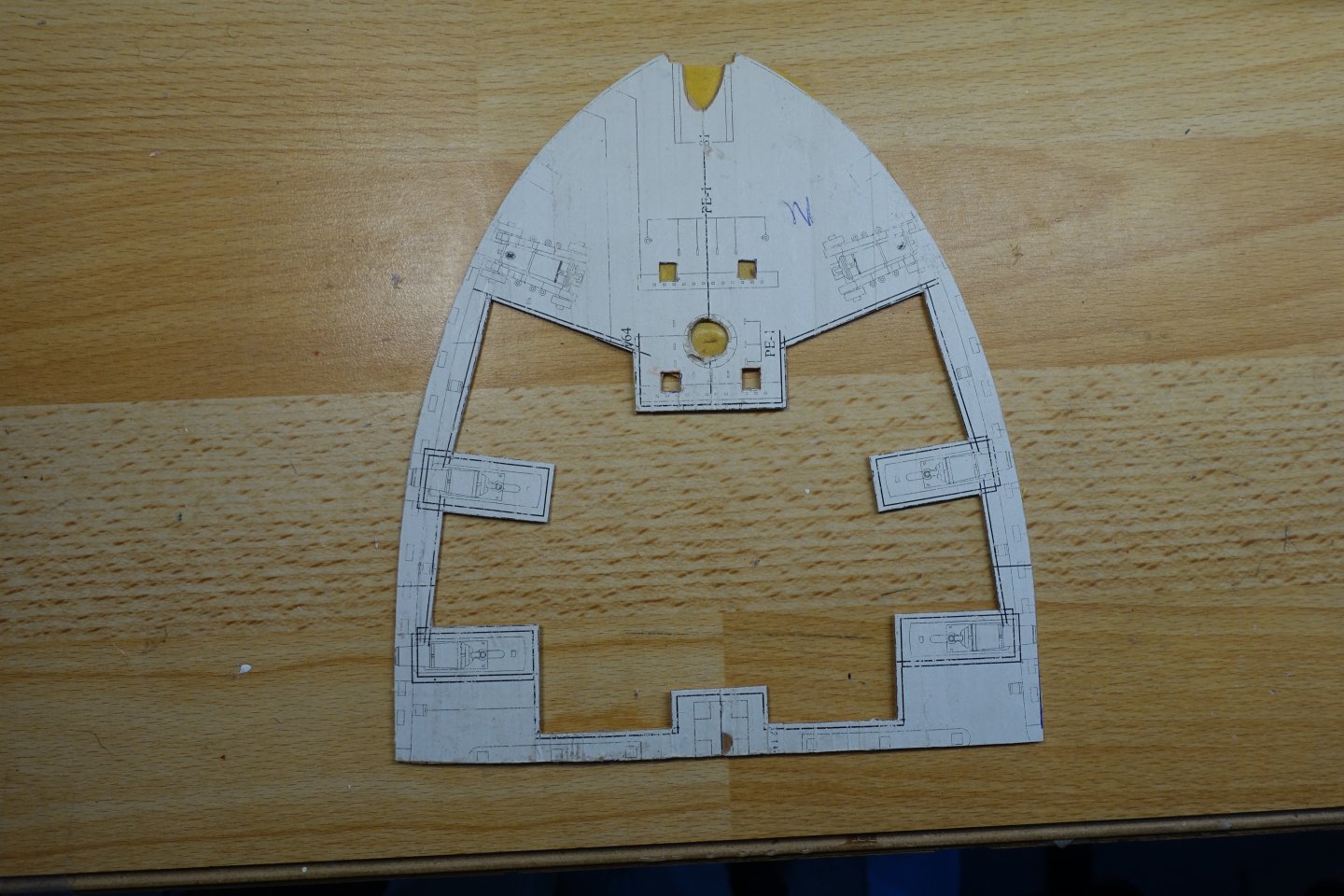

I then made a template out of 0.8 mm plywood.

I then transferred the planned cut-outs onto this template.

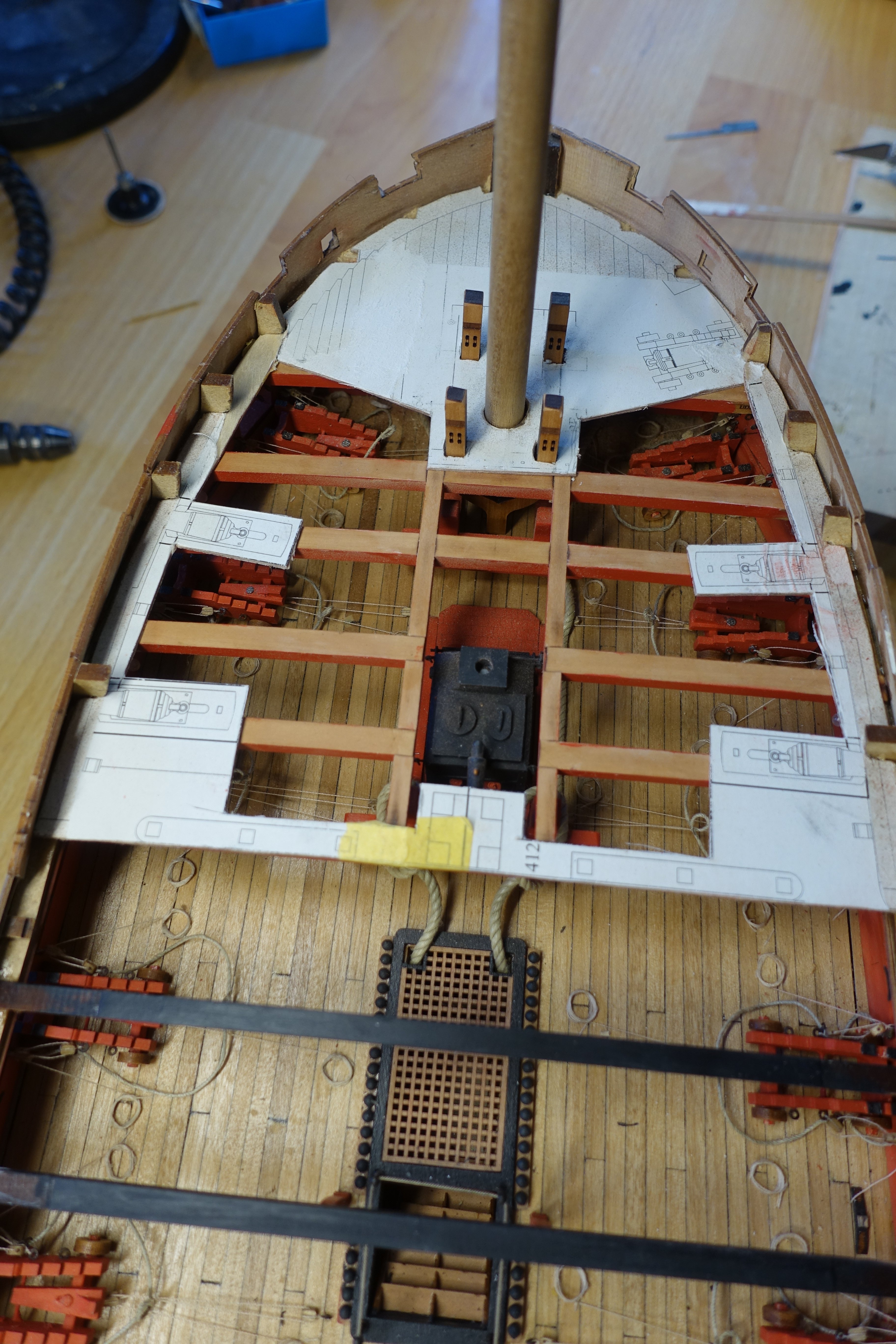

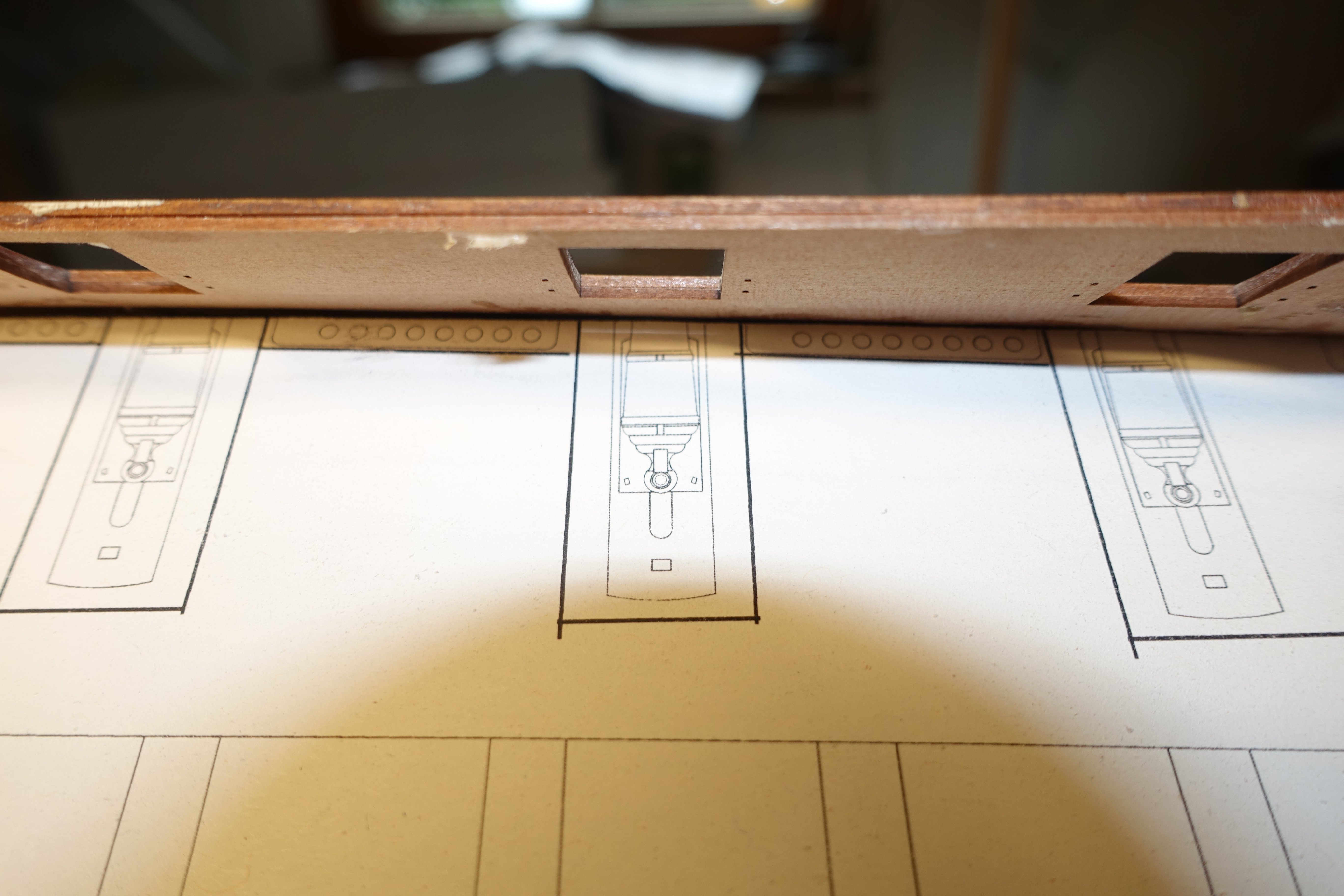

The template deck was cut out and fitted. It was important to me that the bases for the carronades were centred in front of the gun ports. Although minor corrections habe to be made, I will then use this for the planking.

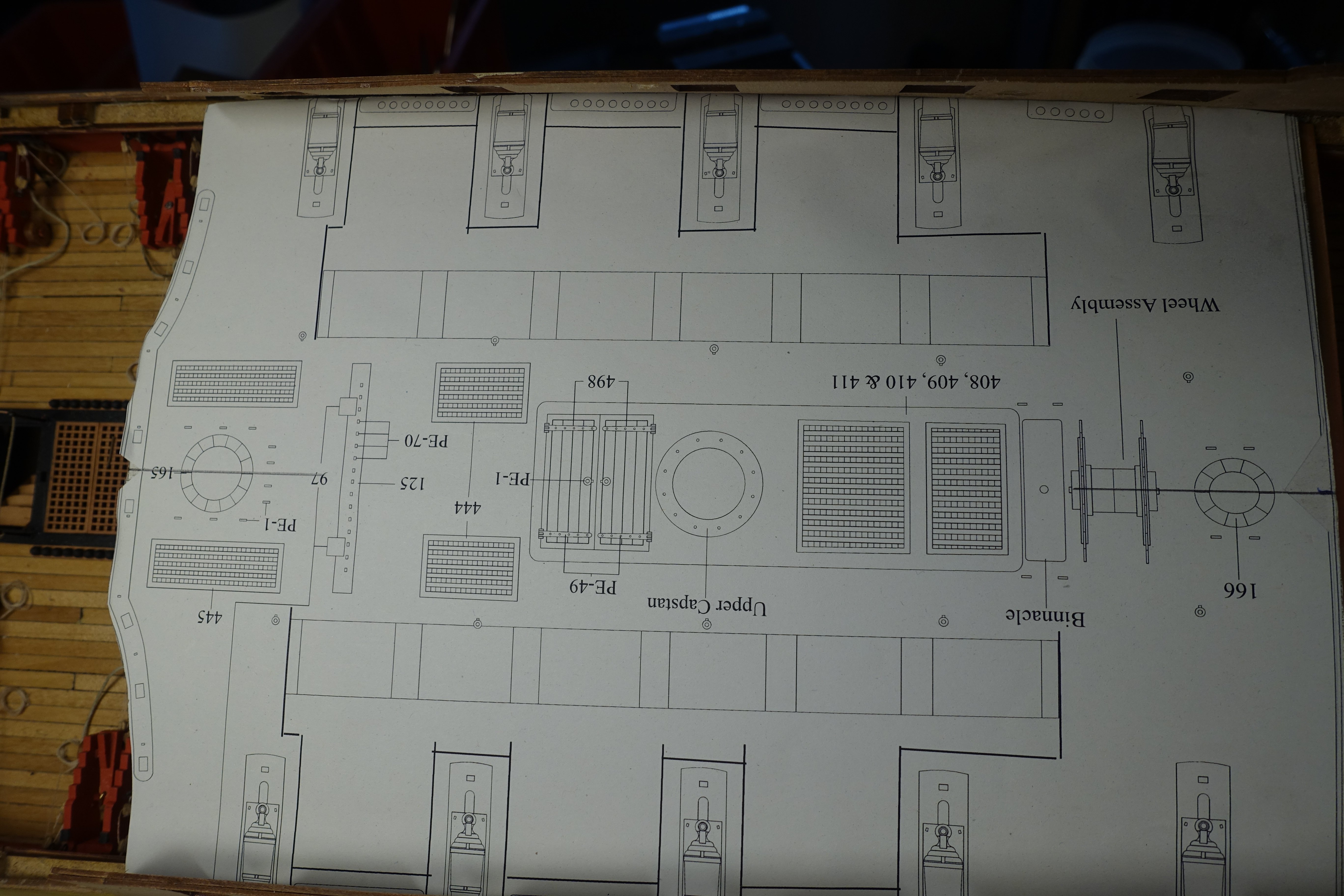

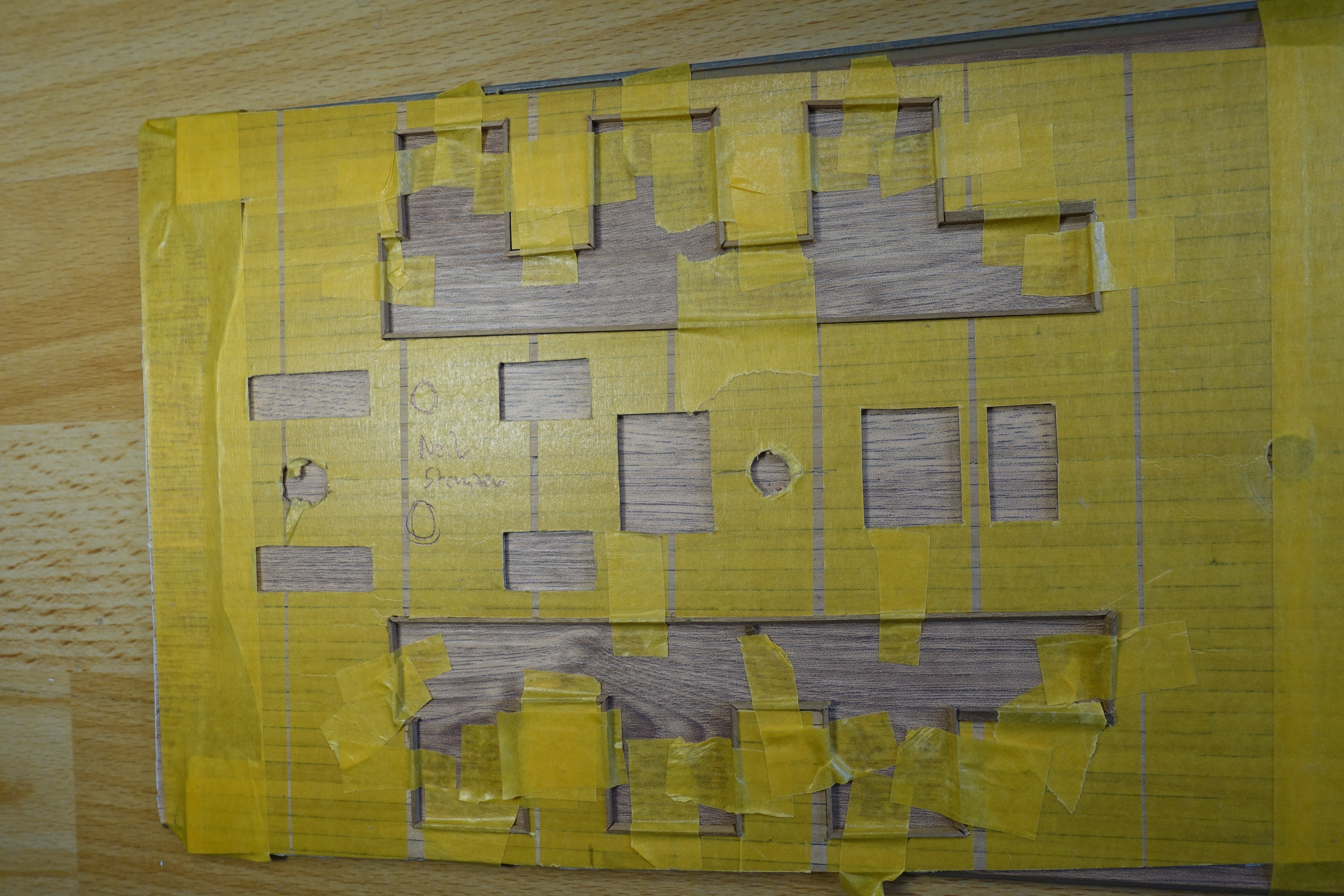

I proceeded in the same way with the quarterdeck.

On closer inspection, however, the plywood bridge at the board side seemed too narrow to me.



So I moved the cutting lines towards the centre of the deck.

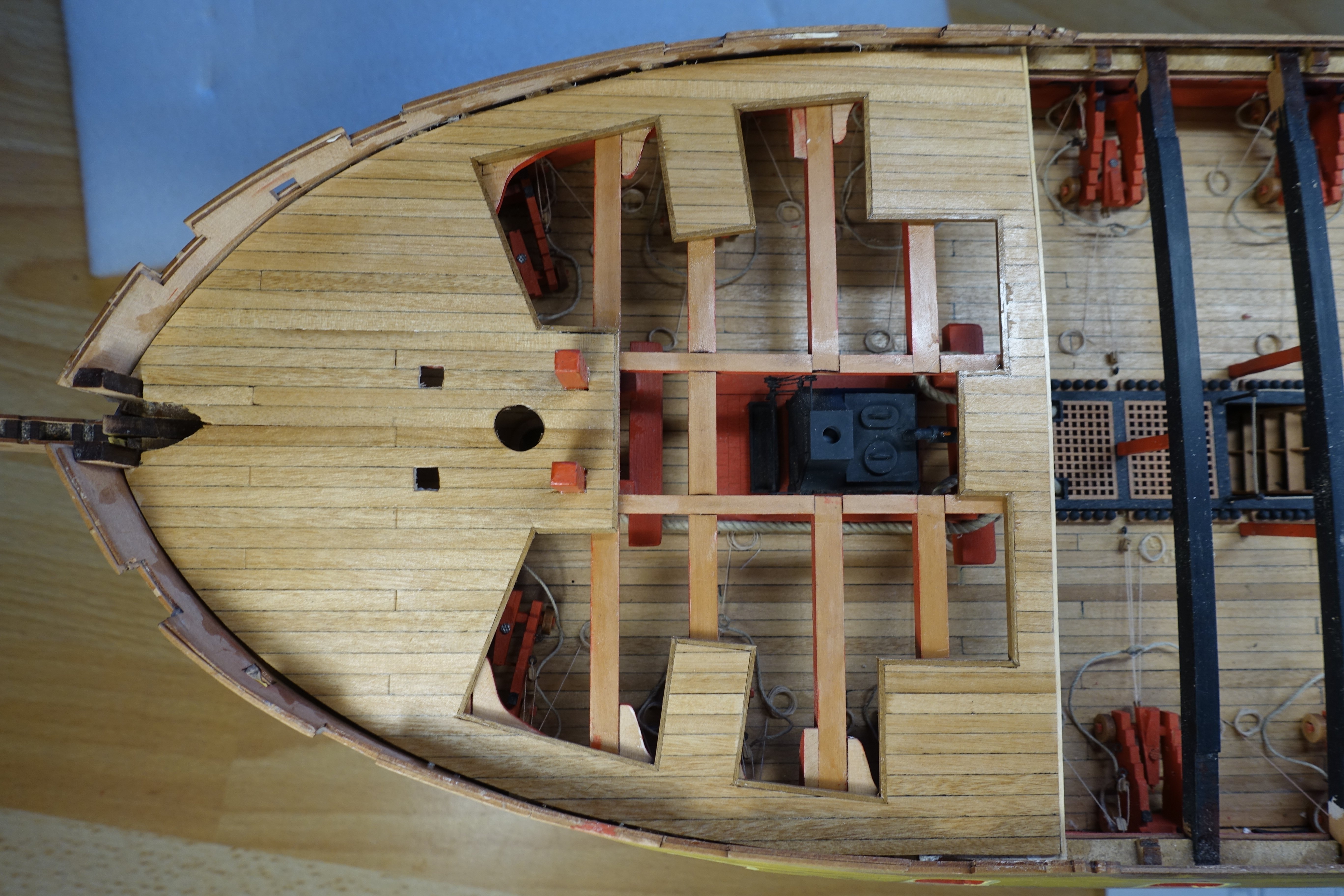

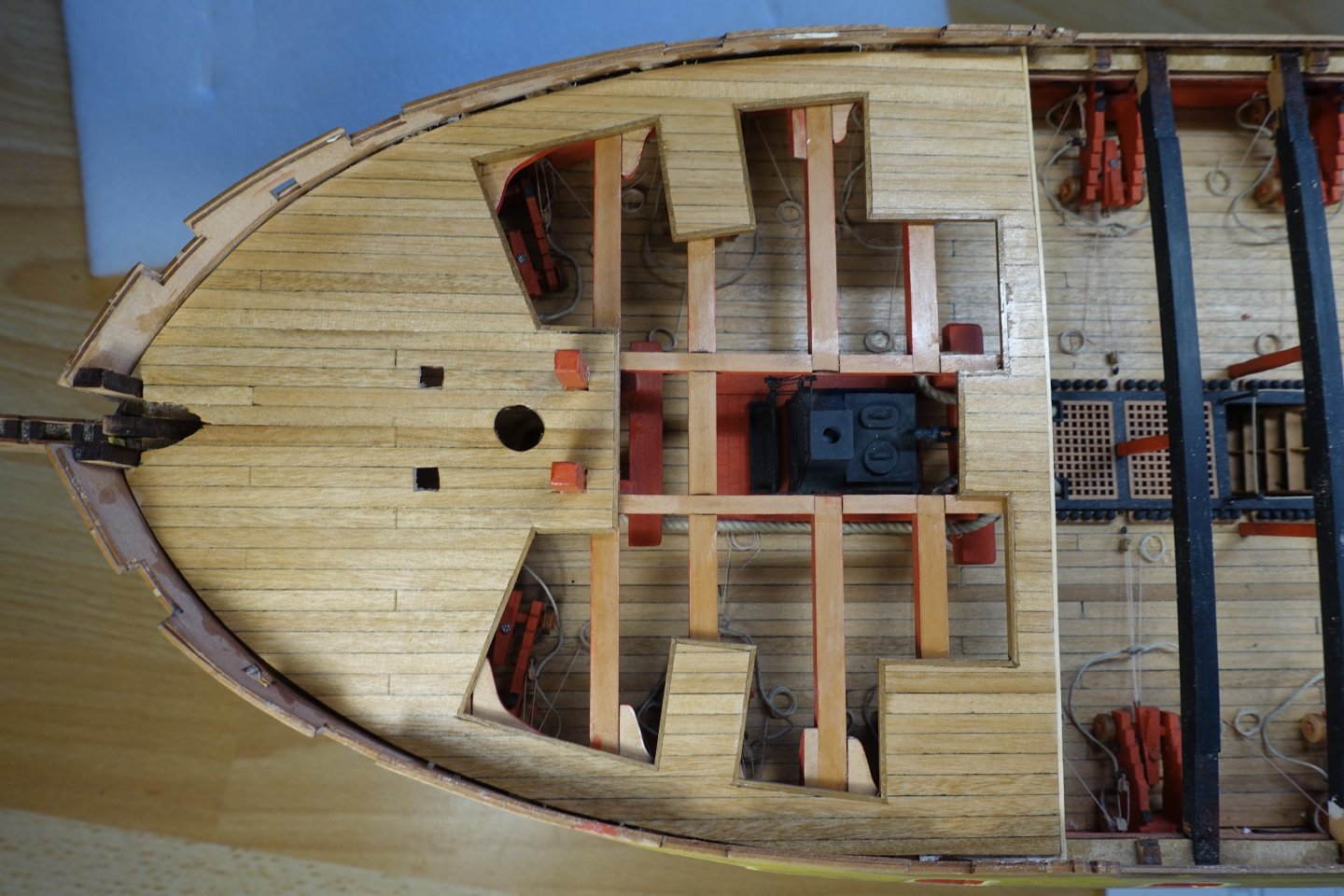

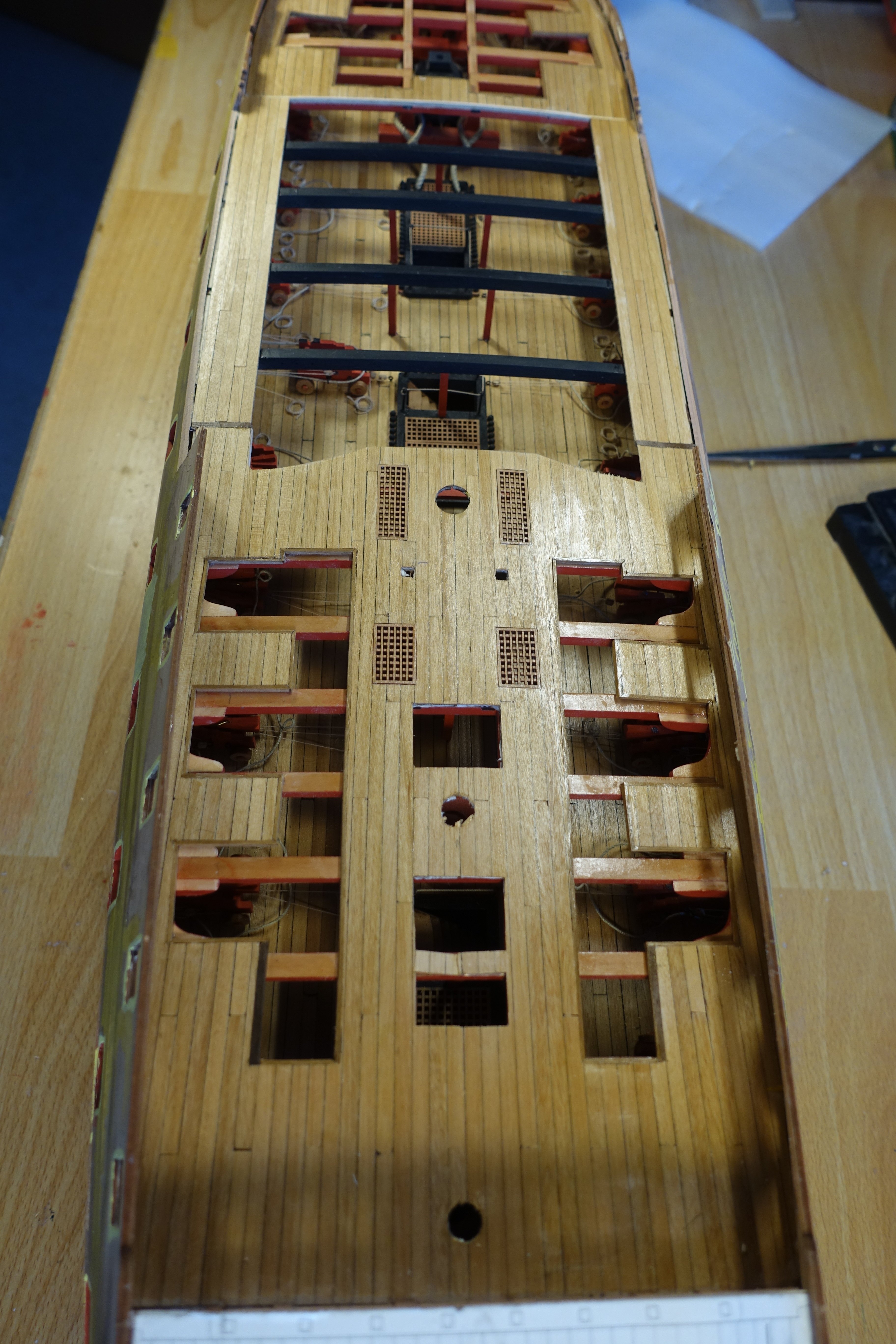

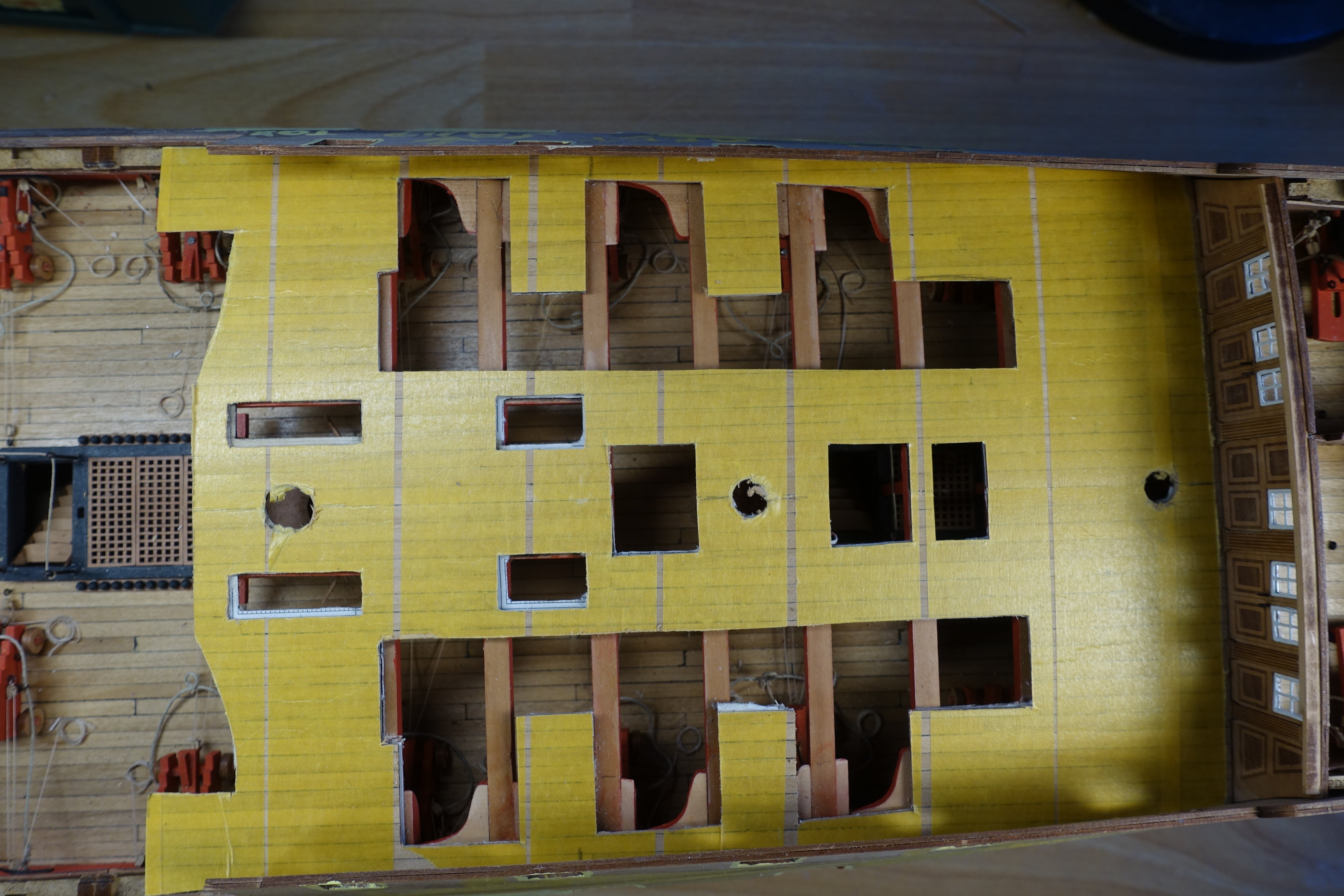

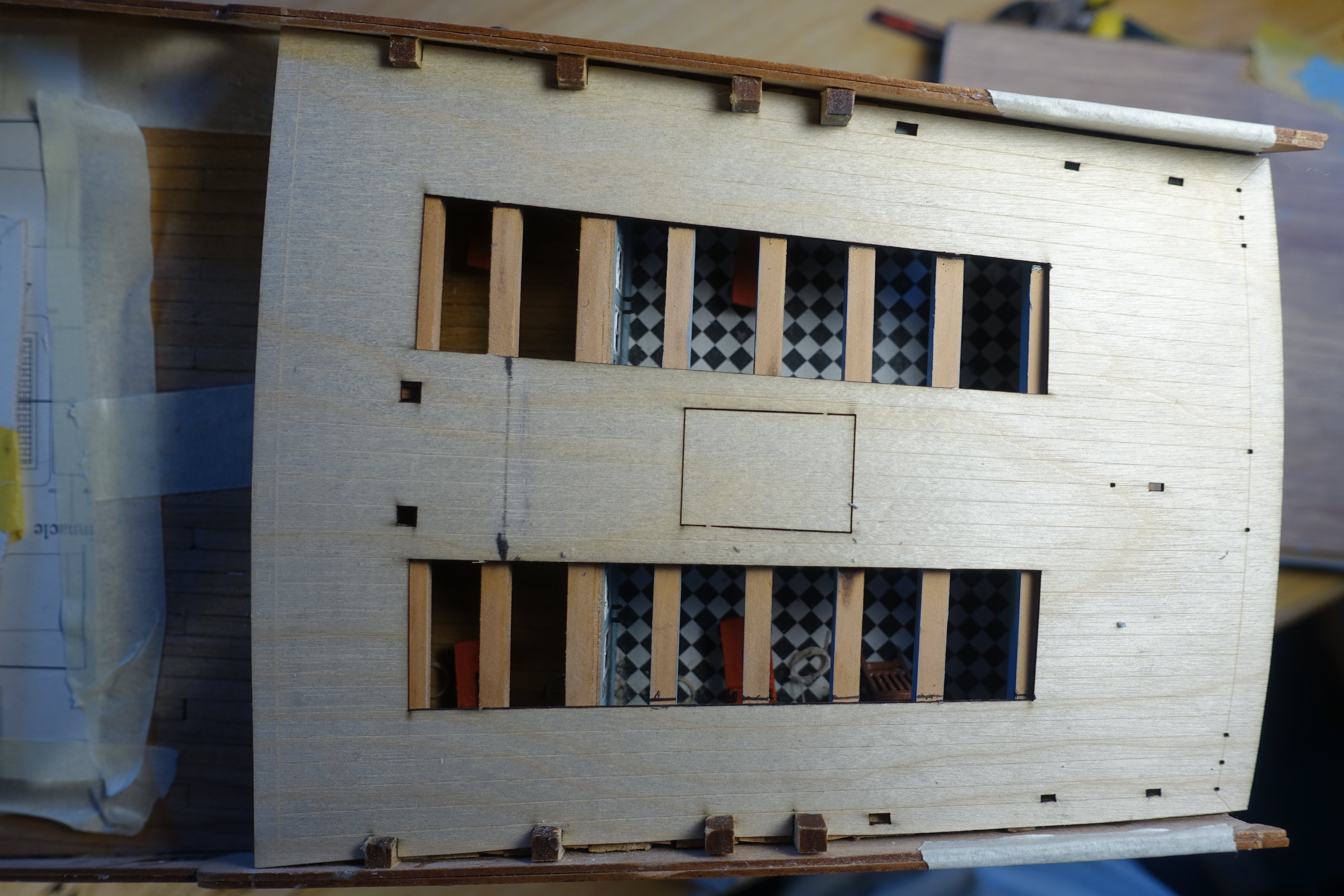

The cut-outs were made on the supplied deck halves, with the quarterdeck being separated beforehand. The angle of view is somewhat misleading here, but here too, the bases for the carronades are located centrally in front of the gun ports.

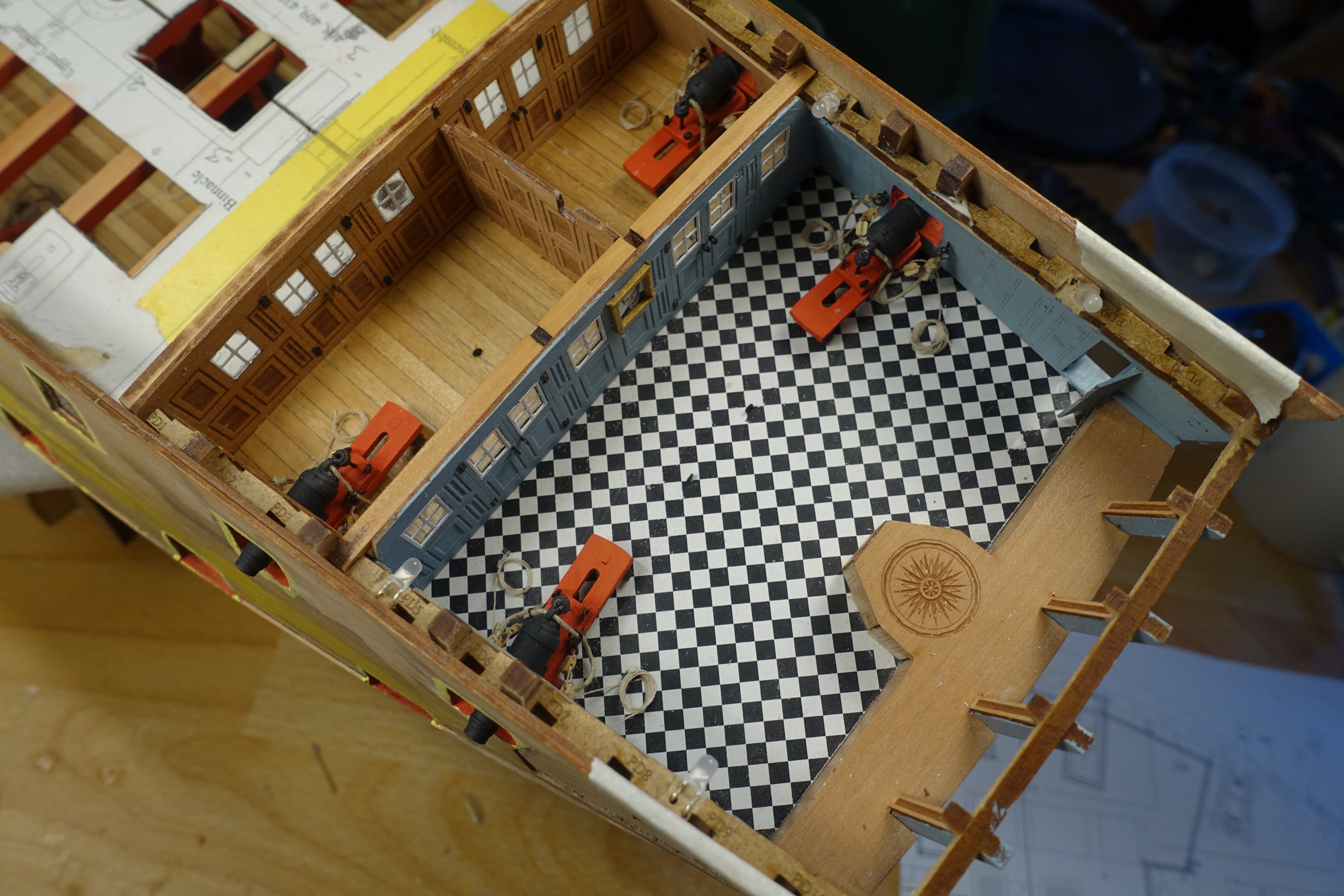

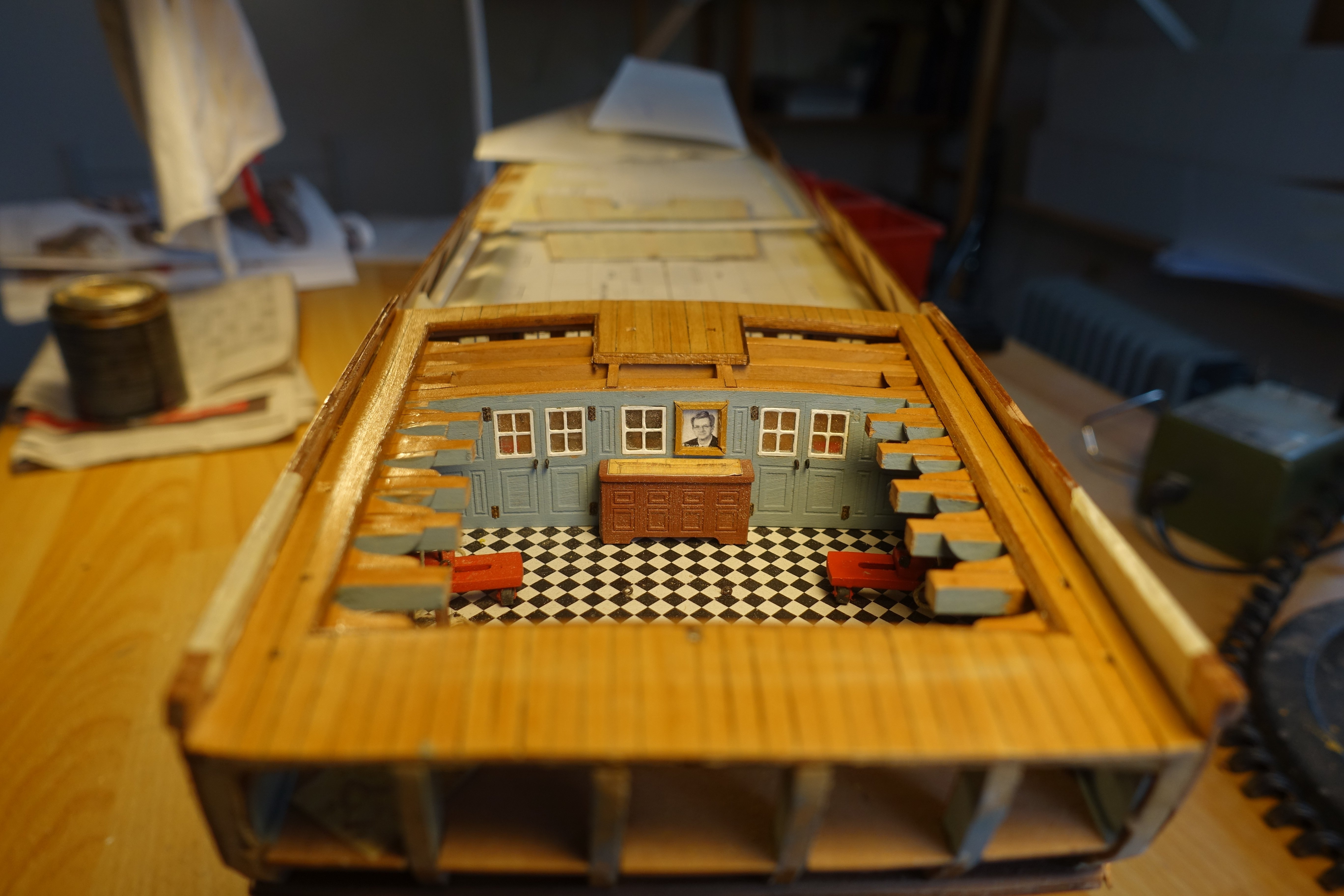

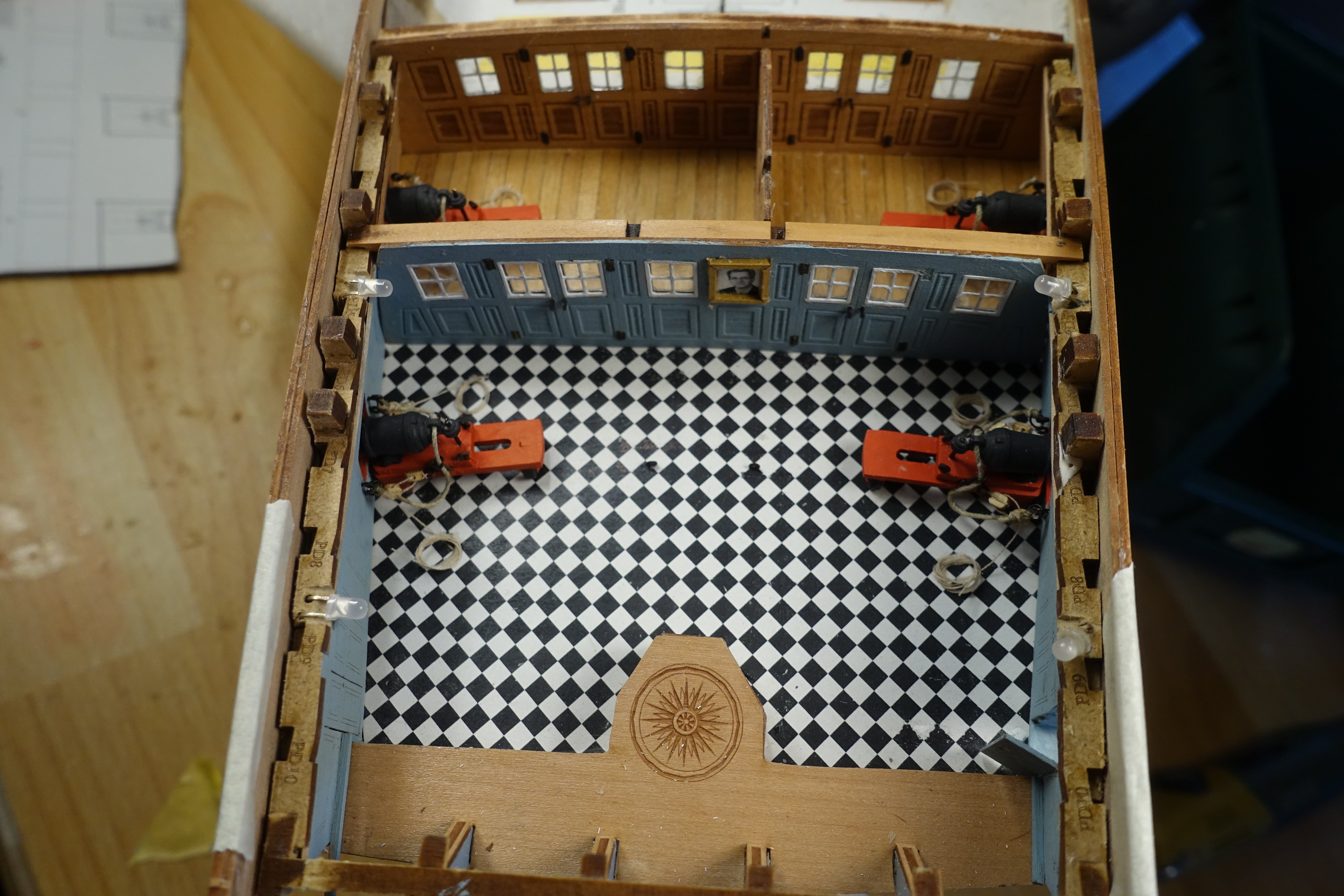

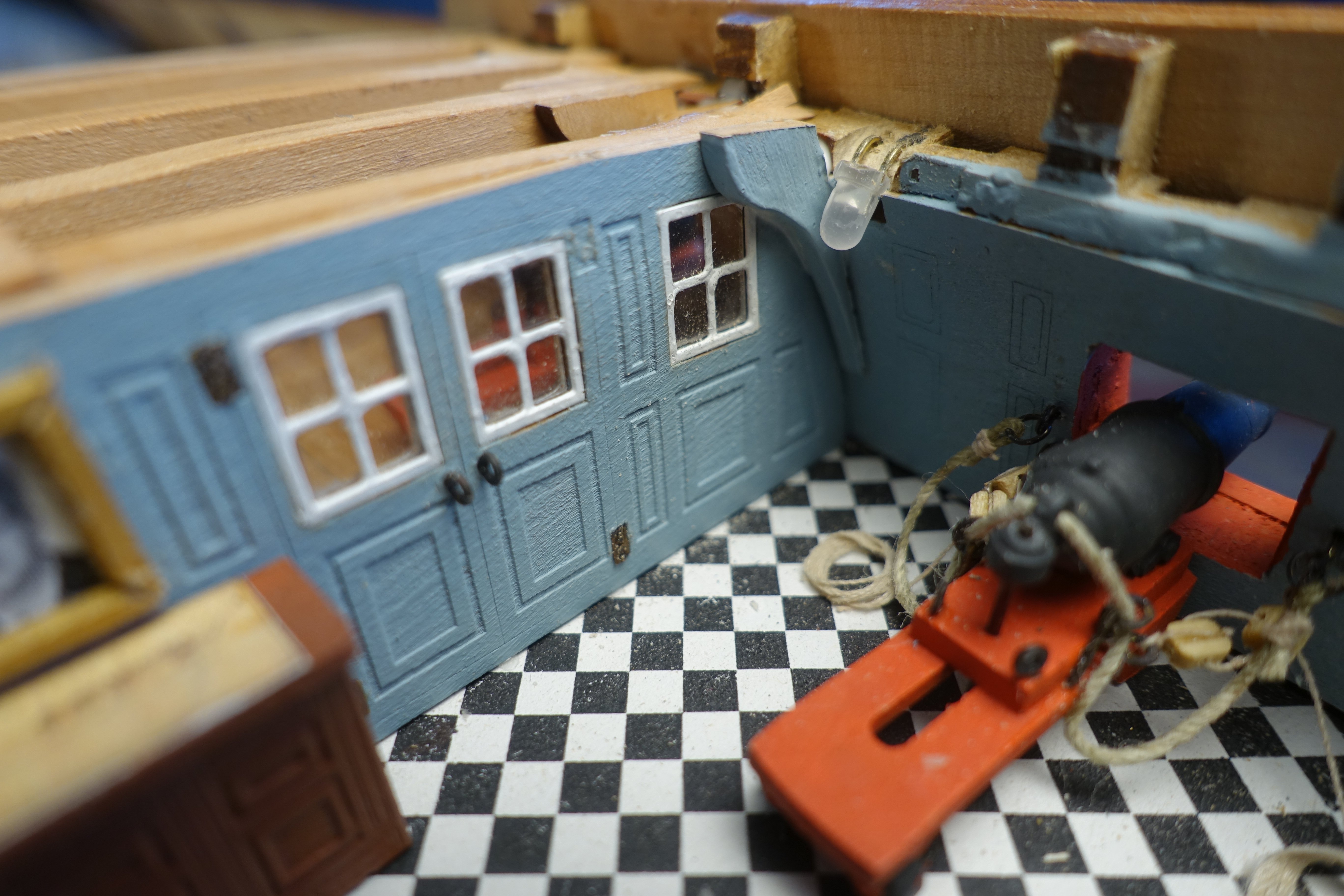

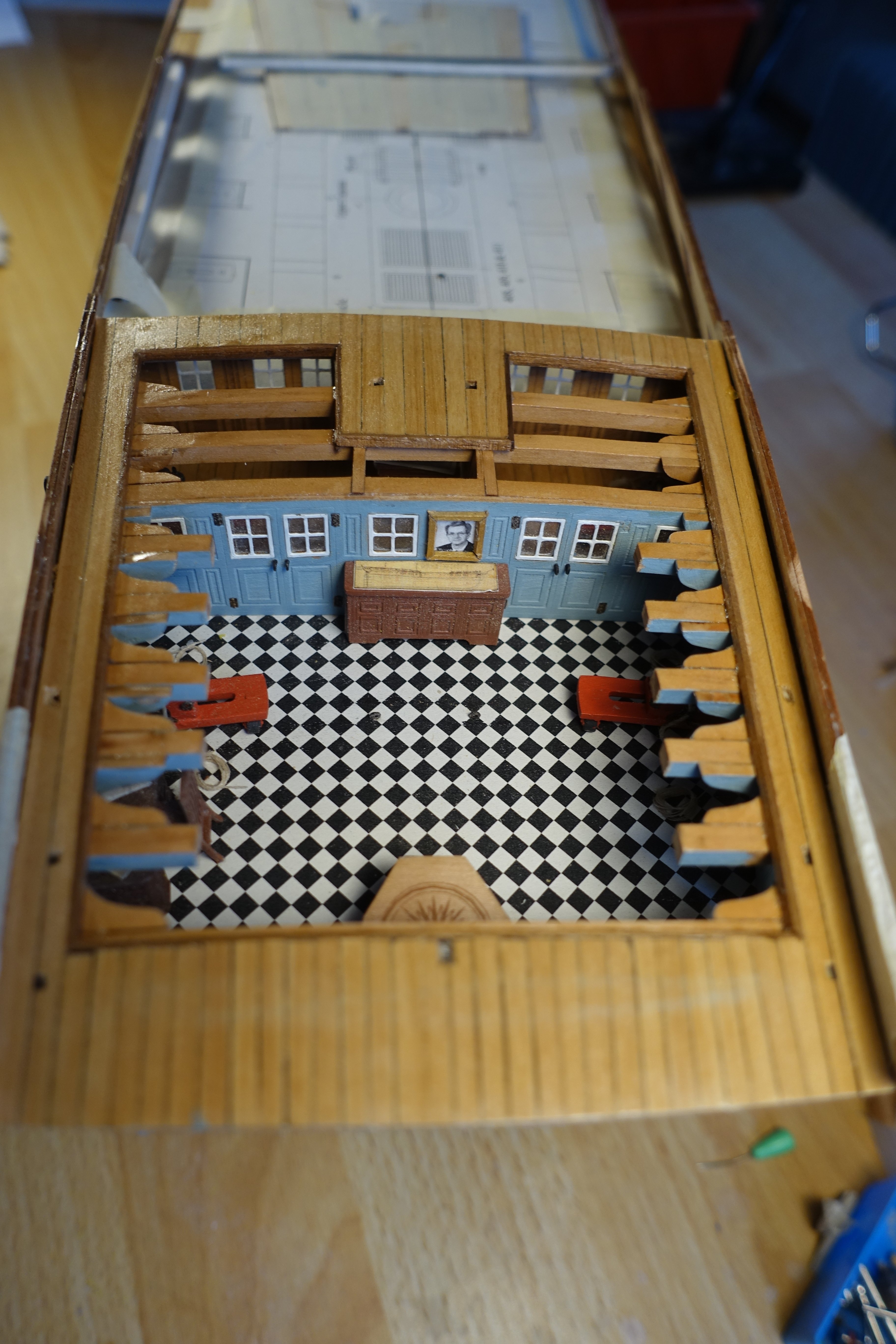

Finally, I checked how the LED would look.

6048

[Ronald-V]

That has a really nice effect with those lights!

[Clark]

19 hours ago, Ronald-V said:

That has a really nice effect with those lights!

Thank you very much, even if it probably looks a bit too cosy for a warship.

Clark
