Vasa By 72Nova - FINISHED - Airfix - PLASTIC


Recommended Posts

Ian the Revell kit would've been by far the best choice, all the mods I've done so far are included in the newer Revell version but trying to find is another matter, I think there's just one on ebay for like $125 plus shipping. As always thanks for the likes/compliments.

Michael D.

Link to comment
Share on other sites

As fiddly as these railings are they are starting to take shape and will need to be built in place prior to gluing up the hull. I mocked up the main stay collar and beefed up the fore mast mounting by adding brass rod and extending the styrene base further into the deck. Thanks for looking.



Michael D.


Link to comment
Share on other sites

Hi Jan,

A few things led me to this decision, first  In Landstrom's book the Vasa he mentions discussions regarding this very detail and this was the practice in some Dutch ships at the time and shows an illustration in the book of the arrangement that I ultimately followed. Here's a picture of the 1:10 model at the museum showing the same arrangement and if you look closely you'll see the collar pass beyond fore mast leading into the deck...no cleat or evidence of it being made fast to the base of the mast and oddly enough in the R.C Anderson book he makes no mention of this method but does show an illustration of how they rigged it on the real ship, also in the link you posted, again if look closely at the diorama picture you'll also see the main stay collar does not extend to the base of the bowsprit,  so go figure.



Michael D.






Edited by 72Nova
Link to comment
Share on other sites

10 hours ago, 72Nova said:

Hi Jan,

A few things led me to this decision, first  In Landstrom's book the Vasa he mentions discussions regarding this very detail and this was the practice in some Dutch ships at the time and shows an illustration in the book of the arrangement that I ultimately followed. Here's a picture of the 1:10 model at the museum showing the same arrangement and if you look closely you'll see the collar pass beyond fore mast leading into the deck...no cleat or evidence of it being made fast to the base of the mast and oddly enough in the R.C Anderson book he makes no mention of this method but does show an illustration of how they rigged it on the real ship, also in the link you posted, again if look closely at the diorama picture you'll also see the main stay collar does not extend to the base of the bowsprit,  so go figure.



Michael D.








Hi Michael,



It has been well established that there is no way the collar went through the deck, as that would require a corresponding arrangement below deck to take the collar, and there is none.

It has been debated quite a bit in the past and there are indeed two holes in the deck that would seem to be perfect for the purpose.

There are however no traces of the collar having been installed below deck and that arrangement does not work on the real ship, which is why you see it rigged around the bowsprit there.



Hope this helps?



Peter

Link to comment
Share on other sites

I can follow your reasoning, but I never saw pictures of Dutch ships showing this setup.

Also, this pic shows the setup as found on many Dutch pics. The only thing I can’t find wether or not Vasa has a gallion-knee that has a hole through which the collar goes, or that it is just around the bowsprit.






But I don’t know how much of the stay-setup survived. Perhaps they vhoose this setup only because of the Dutch pics….


Jan



Link to comment
Share on other sites

Thanks guy's, after a little more reading, R.C Anderson does mention that when the bowsprit is centered the stay collar passed around both sides of the mast, particularly Dutch ships, there were  holes in the deck and beakhead bulkhead and then to the bowsprit, that makes sense to me but looking at some of the museum photos I do not see any evidence of a hole in the beakhead bulkhead and the wood looks to be original in that area of the ship so I'll rig the stay where it passes over the top of the bulkhead.

Starboard railings are just about done along with the Kevels, far from perfect but will look good in the end.



Michael D.


Link to comment
Share on other sites

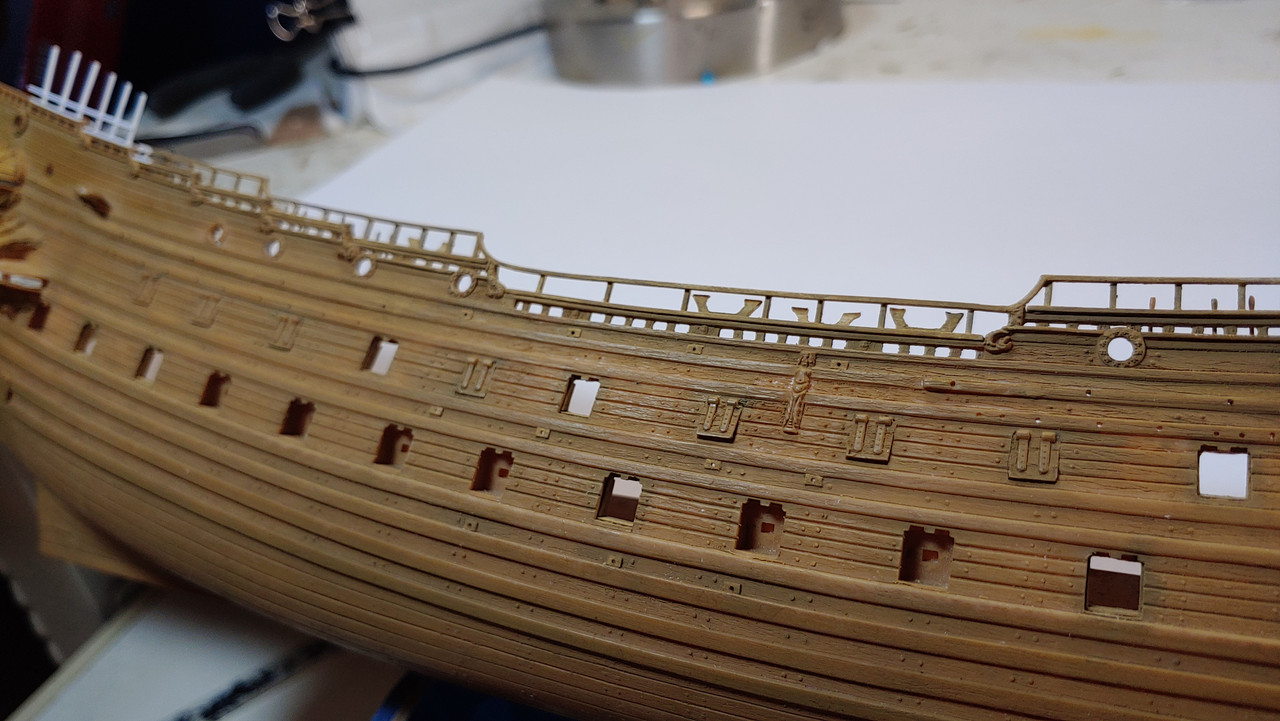

A crowning moment in that the modifications to the starboard side of the hull are completed, railings, all necessary kevels, pin rails etc. I had to modify the chesstree to accept the main course tack line. Once I complete the port side, both sides will be detailed sanded, and the upper bulwarks and inside of the beakhead will be painted before assembly.



Michael D.


Link to comment
Share on other sites

Thanks Peter,

I totally forgot about the scupper and cabin window but never noticed the smaller gunport, so here's the mods I made. Thanks Marc, it's a shame the two sides do not line up exactly, pretty far off actually.



Michael D.


Link to comment
Share on other sites



Not quite sure what you mean by 'not lining up', but please take a look at comparison of the two sides of the real Vasa by Fred Hocker (from his paper In Details Remembered. Interpreting the Human Component in Shipbuilding, 2013). There are more such 'misalignments' in the real ship, which would perhaps disqualify the model in modern modelling competitions.  🙂








Link to comment
Share on other sites

Note also that in general, lower gunports are bigger than upper gunports.

This dates back to earlier plans for armament that specified smaller guns for upper gundeck, this was later changed to a standardised complement of 24 pounders on both decks.
Also, the small messenger port would be nearly invisible when closed, as the port lid profile matches the wales:
Just an FYI for those who may not be aware, Google Scholar is a great resource for scientific papers, such as the paper by Fred mentioned by Waldemar above.

Cheers,
Peter

Edited by baskerbosse
Link to comment
Share on other sites

Hi Waldemar,

What I meant is after I carved out the figures in the trailboard and mated up the hull halves, they do not line up and the span on the railings on the port side are a bit shorter than the starboard side. Looking at the photos maybe my model is closer to the real ship then I thought!😀.

Reminds me the time when I opened up a 2 dial cannonball safe from the 1800's and disassembled it for repairs, upon assembly I discovered you could not interchange the spindles along with other misc parts, obviously each part was hand built, thanks for sharing.

Thanks for the FYI Peter, I wasn't aware. I ended up harvesting an upper gunport lid to make the modification.

Michael D.





Link to comment
Share on other sites

Hi Michael,

Looking back on your thread I noticed you installed this pinrail:
According to Fred Hocker, this pinrail was a mistake in the reconstruction and was removed from the ship in 2006.

A pinrail here would not work and would interfere with the guns, (plus there are not many lines to belay here)
A reexamination of the evidence/fastenings on the ship indicates that there was most likely a large horizontal cleat or a kevel here for the main sheet.

There are many details like this that will be included in Vasa II, (maybe coming out at the end of the year?)

Cheers,
Peter

Link to comment
Share on other sites

Followup of Vasa I by Fred Hocker et al, published by the museum.
Vasa I was mainly focussing on the hull and the archeology, Vasa II will be mainly about the rigging.
It's been in the works for over ten years now and has grown to now be two books, plus a set of plans.image.thumb.jpeg.6fb7f52028e6dcb6858986ecc68a90b0.jpeg

(Vasa I book)



Edited by baskerbosse
Link to comment
Share on other sites

Thank you for pointing that out Peter, very much appreciated! Honestly I've been scratching my head trying to figure out where the main sheet would've been tied off at as what limited literature I have and all the models I have seen show the main sheet line passing through the side underneath the Qtr deck and therefore hidden.

The pin rail removal is an easy fix and I will place a kevel just aft of that gun port. Hopefully those plans would include rigging/ belaying points? but may not be available by the time I'm ready to start rigging as all I have to go by is R.C Anderson and how other modellers have rigged there's.



Michael D.

Link to comment
Share on other sites

It should be somewhere between 50 - 60 centimeters between the horns, real size.

RC Anderson's book is very good, but I'd go with museum plans where possible, as these are based on evidence found on the ship.
There are errors though, and Vasa II should bring things up to current understanding.
(avoid Mondfeld -Since, as Fred puts it 'almost everything is wrong' there)
There was no real 'standard' at the time and there would be differences in how things were done, region to region and even from ship to ship.
Note that while the ship itself was built under contract with a dutch shipbuilder, rigging in the swedish navy at the time was contracted out to to a Scottish contractor, John Clerk.
While the rigging has similarities with dutch rigging, there are clear differences (the halliard ties going through sheaves in the cheeks for example)

Another example of a ship rigged by a scotsman in Denmark and sharing some of these features with the Vasa is seen in this famous ivory/silver model of Norske Løve from 1654:
https://www.kongernessamling.dk/en/rosenborg/object/ship-carved-in-ivory/

Peter

Edited by baskerbosse
Link to comment
Share on other sites

I do hope they will be available soon but in the meantime, I can keep busy doing other mods. So this is what I've come up with after removing the pin rail, I fashioned a kevel as close to scale as possible given the scale I'm working with, I cut in a sheave for the .45mm sheet line and mocked up the routing, this should suffice?



Michael D.


Link to comment
Share on other sites

Keval looks good.

Might want to move it a bit though (sorry).

I don't think the run of the sheet should switch direction when going through the bulwark.

It would make it difficult to sheet home. Also, there's no sheave there..



Small detail: The sheave is pointing a bit to much downwards, compare with Waldemar's side view above.



Cheers,

Peter

Edited by baskerbosse
Link to comment
Share on other sites

Link to comment
Share on other sites

13 minutes ago, baskerbosse said:

Keval looks good.

Might want to move it a bit though (sorry).

I don't think the run of the sheet should switch direction when going through the bulwark.

It would make it really difficult to sheet home, nowhere to stand, there's a bulkhead in the way. Also, there's no sheave there..



Small detail: The sheave is pointing a bit to much downwards, compare with Waldemar's side view above.



Cheers,

Peter

Well, she did quickly sink - maybe when the wind gust hit they couldn't "let fly the sheets" because of this ...... 😄



Just being a smart alec........carry on!

Link to comment
Share on other sites

1 hour ago, 72Nova said:

So are you saying Peter I should move the kevel forward and eliminate the sheave and just have a hole aft the kevel?

Michael D.

From what Fred said, they removed the previously installed pinrail to investigate the original fastenings. This would put the kevel just in front (and above) the gun. And yes, there would just be a hole, as the sheet then doesn't change direction...

Link to comment
Share on other sites

I've relocated the kevel and hole in the bulwark and started the painting on the bulwarks and railing, this is proving to be a bit more difficult as I need to use a finer tipped brush, it might be a tad darker than I'd like at the moment and I can fine tune the outer railing when I start the hull with a larger squared ended brush but is looking okay.

Michael D.


Link to comment
Share on other sites
