Missouri, Kansas, & Texas Railroad along the Missouri River by Cathead - 1/87 (HO) scale - model railroad with steamboat

[wefalck]

This column of wide doors with a hoist above is a common feature on warehouses, mills and any place that needs to hoist material to different floors. In the Netherlands, Northern Germany and the Baltic States, one finds such hoists even on private houses, as staircases were often too narrow to bring in furniture or let alone pianos.

[Cathead]

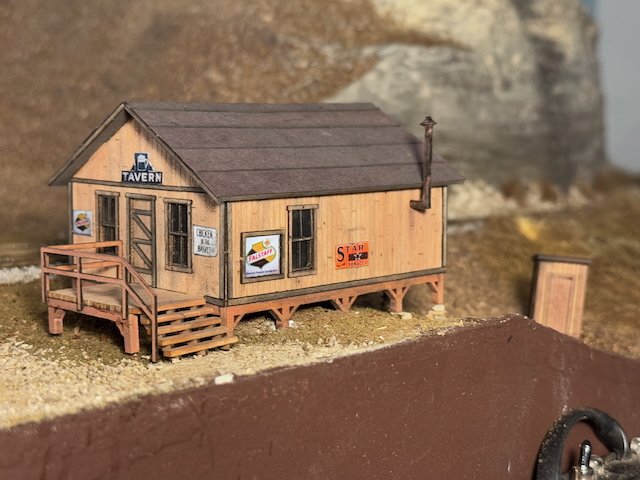

Another building for you. This is the other "wrong side of the tracks" structure, where the land starts sloping down toward the river and incomes and property values are lower. Intended as a general tavern / store kind of place. You can see the kit's version here: https://www.blairline.com/samsroadhouse/ No photos of construction, because it's a pretty straightforward laser-cut kit and I didn't do anything particularly unique to it. Just some basic weathering.

I didn't use the kit's corrugated metal roofing (see link above), preferring tar paper. Although metal roofing was in use by 1900, my sense is it was far from ubiquitous. I don't have any other buildings I intended to use metal roofing on, and it'd look strange for the only building with such a new-fangled idea to be one of the rougher settings. I also didn't want a super-rusty look as even in the rougher part of town, I want Rocheport to have a well-kept appearance, and I wanted this to look like a relatively recent construction, not a 50-year-old wreck.



Notice the outhouse downhill in the back, that was part of the kit. Also part of the kit was a sheet of possible signs. I chose a couple brands that really were produced in St. Louis during this era, Falstaff beer and Star tobacco. The manufacturer's version has this building plastered with signs, but I think that's overkill clutter and like how just a few add some flair while letting the building breathe overall.





I intentionally chose this one and its partner across the street because they're up on posts, as is common for river-adjacent structures in this region. I used small pieces of crushed limestone to build up support pillars for the wooden posts. This is also pretty common around here in older buildings. Close eyes will notice in the first photo that I need to stick a couple rocks under the front porch posts.  I like how this sticks out over the slope that starts descending down to the river.



No paint on this one, it's all pastel weathering. I really wanted this to have a raw-wood look to it. The lower supports are intentionally more reddish to hint that maybe they were built from local Eastern Red Cedar, which is highly rot resistant and very common around here. I've built all of my full-scale outbuildings from it, and it would have been quite easy for someone to harvest in 1900, too. I think the raw wood goes well with the subtle grey of the sharecropper house, and contrasts with the brighter colors of the depot area.

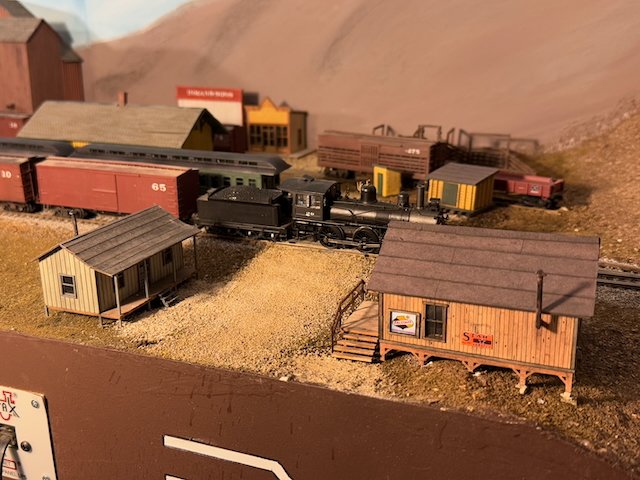

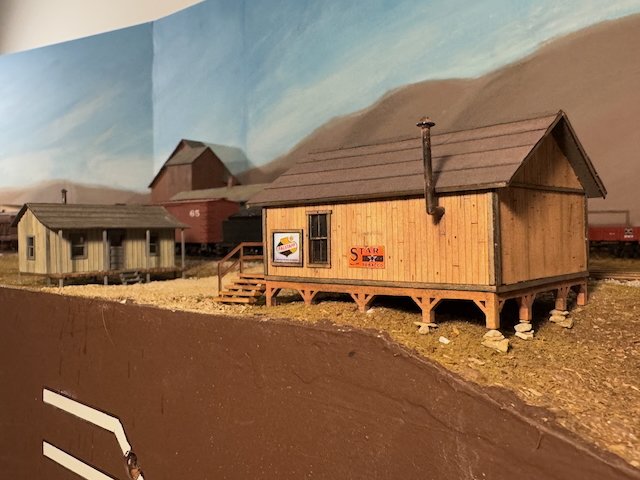

And here's a broader view, showing how this frames the street leading from the river landing into town past the east side of the depot. That's the last building for this district; other than trees, other vegetation, and some fencing, that's pretty much how this is intended to look.

Thanks for following along!



[Keith Black]

Nice addition, Eric. 👍

[Canute]

I really like how you've framed the scene, telling the story with your structures.

[Cathead]

Ken, I find that the story-telling aspect of model railroading is very appealing to the historian and writer in me. Obviously every model can tell a story, but there's something particularly rich in designing and implementing an entire setting, beyond just a stand-alone item. I'm really enjoying how this town is coming together and I look forward to expanding the layout, probably early next year.



And thanks to Keith and all the other supporters!

[Balclutha75]

Still, slowly making my way through this build. So impressive and educational!



On 6/15/2025 at 8:09 PM, Cathead said:

Despite several checks, I still managed to install two of three backward the first time.

Somehow it's weirdly gratifying to know that masters of the art also do things like this. ☺️



Because of this build I was looking at the Katy Railroad Historical Society webpage last night. They have some good pages directly aimed at modelers which I'm sure you are well aware of.



Are you going to the KRHS convention in Kansas City beginning on April 29?

[Cathead]

52 minutes ago, Balclutha75 said:

Are you going to the KRHS convention in Kansas City beginning on April 29?

I'm a member and have every intention of doing so! The one in St. Louis two years ago was great. Last year's was in Texas and I had a family conflict with traveling that far. KRHS site definitely has some nice resources, though most are a bit too modern for my era. The State Historical Society of Missouri has quite a bit of useful material both online and in their physical research center, which isn't that far from me.



54 minutes ago, Balclutha75 said:

Somehow it's weirdly gratifying to know that masters of the art also do things like this. ☺️

And non-masters like me as well!

[Cathead]

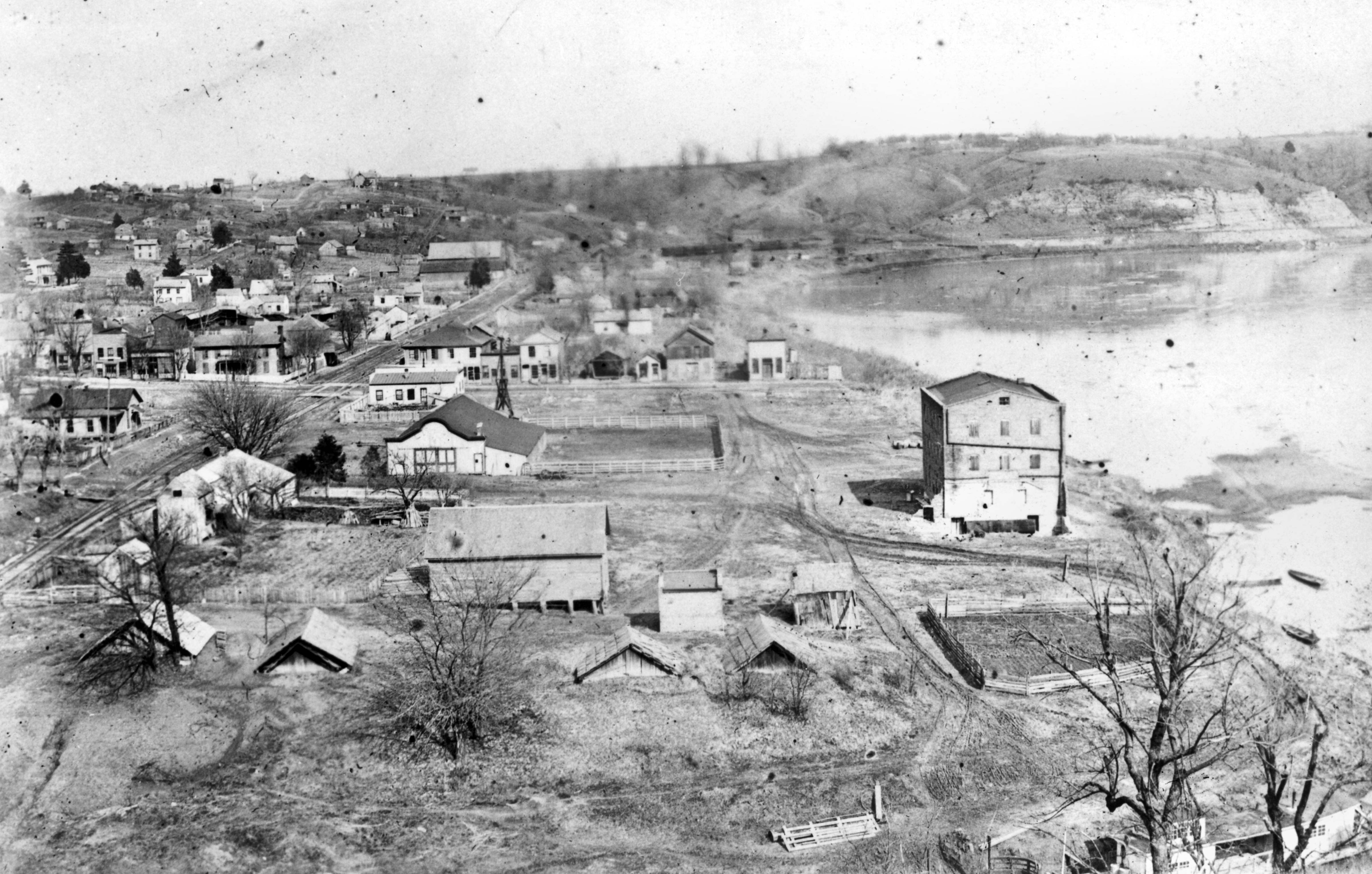

Back to scratch-building! This is a fun project I've been looking forward to, another one of those "keystone" buildings that define the setting as Rocheport, along with the depot and the elevator. Check out the distinct Spanish-style white barn in the photo below, looking east from atop the tunnel's ridge. It's right along the tracks and really stands out among the other, more typical structures. I've known from the beginning that I wanted to build this.

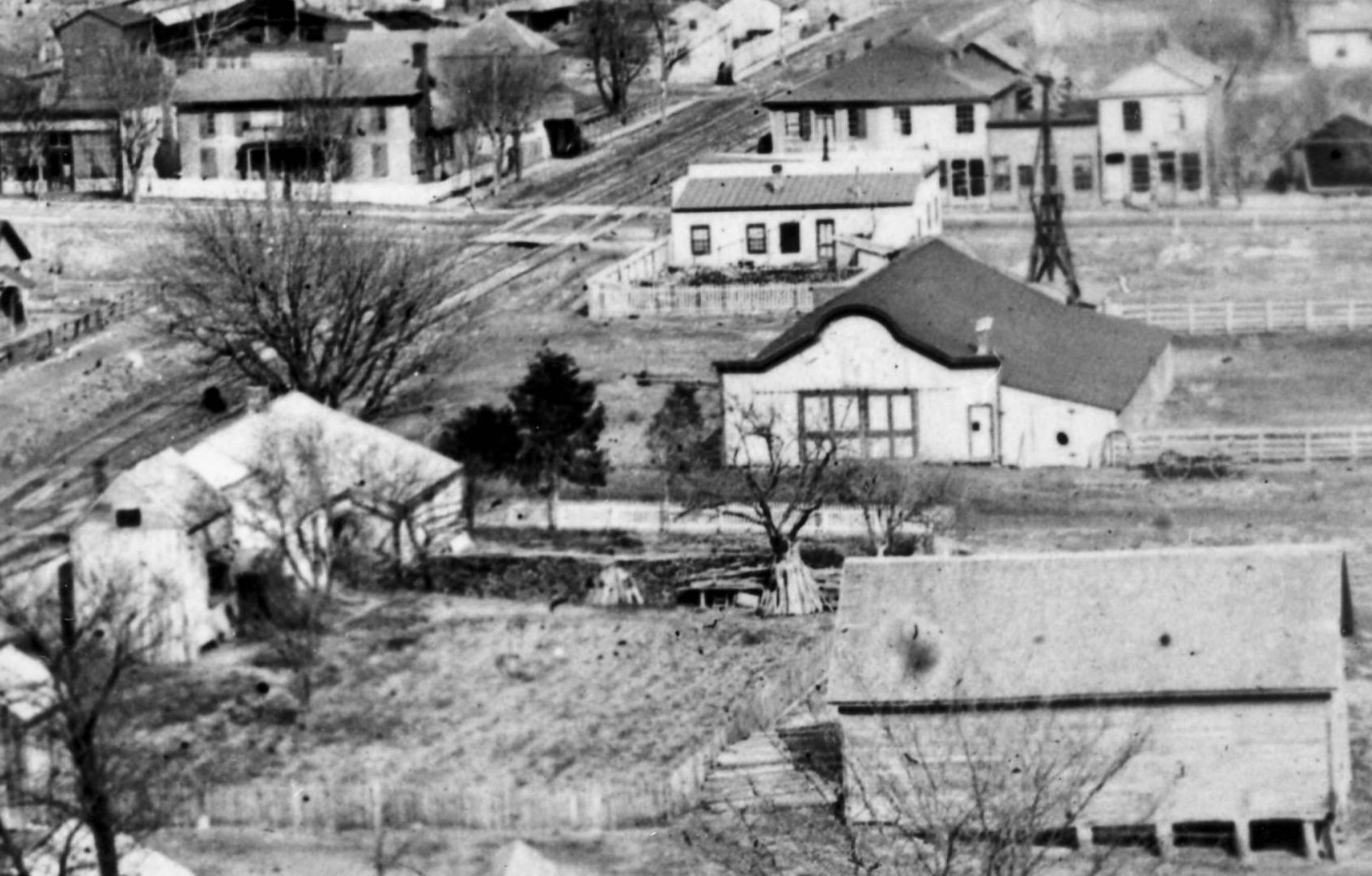

Closer view below. It's just such a unique structure. I wish I knew who decided to build this fancier barn here in this part of town, where it's more flooding-prone and buildings are generally simpler. Compare with the perfectly utilitarian small-farm barn just to the foreground of it. I'm thinking this one is a horse stable for a leading citizen, like a banker or merchant.

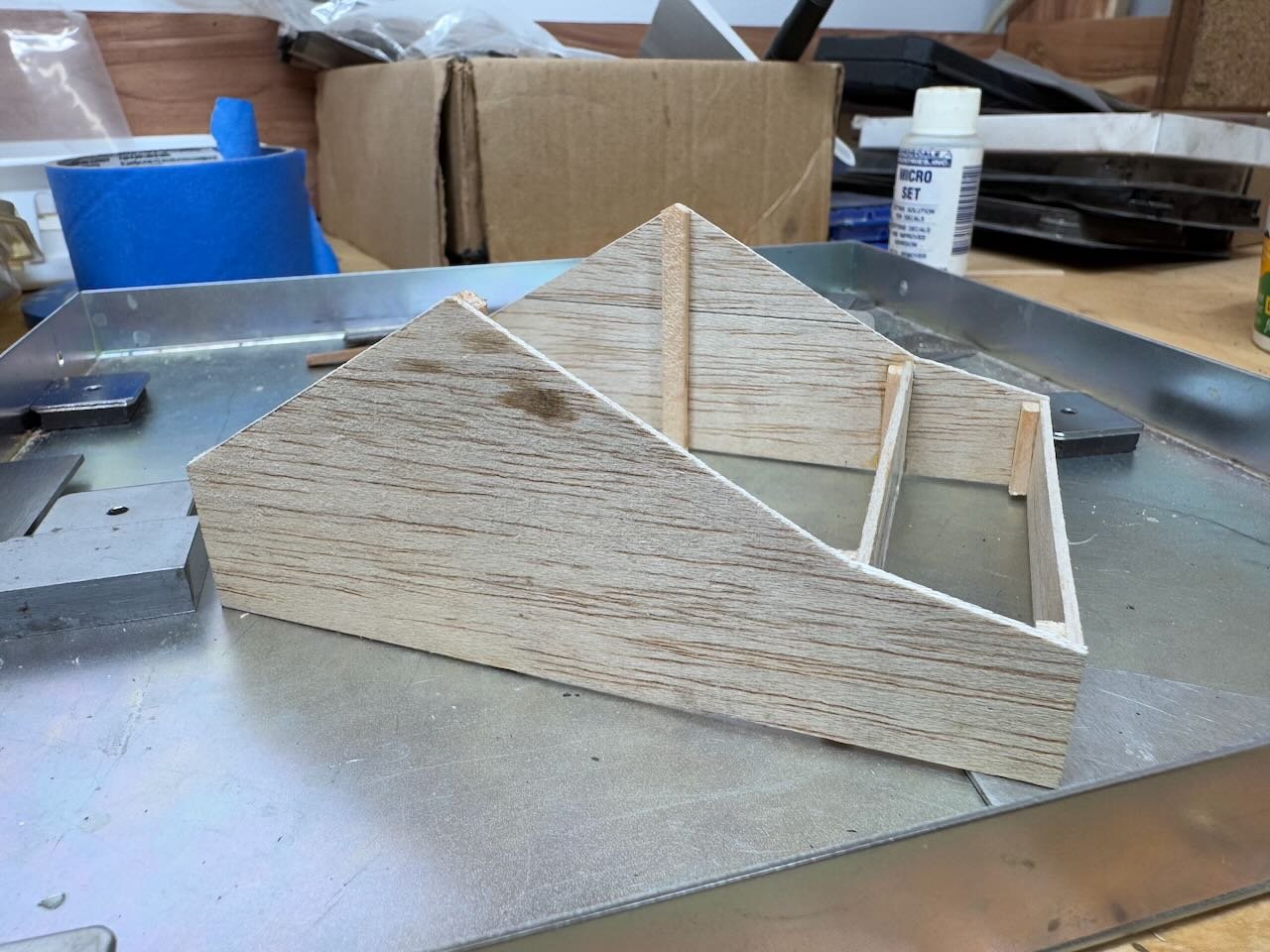

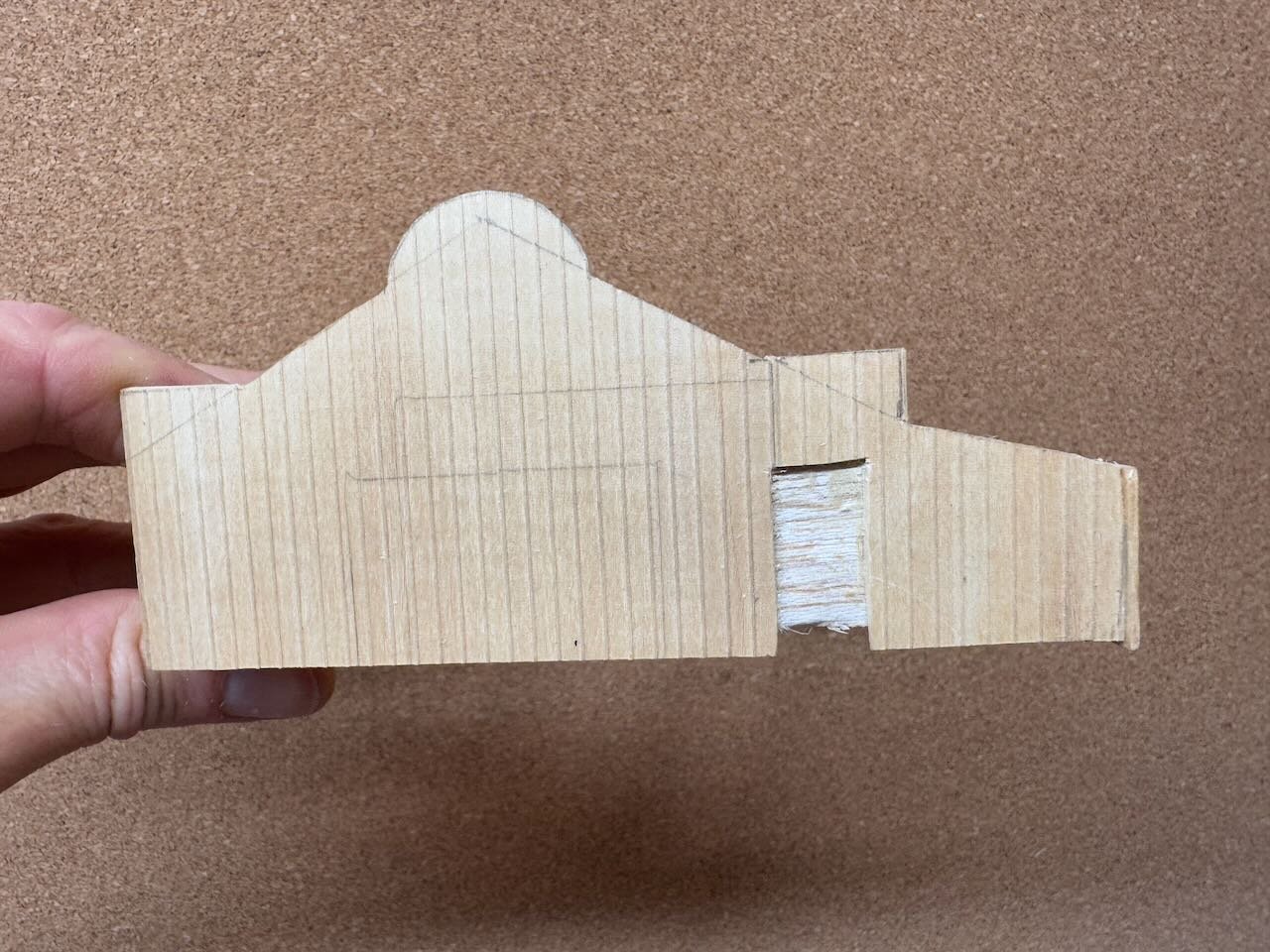

Time to build! I made a central frame of wooden sheets for structural strength. No windows or open doors (with one minor exception) will pierce this, so I didn't need to worry about what the interior looked like. I designed the dimensions by roughly measuring the ratios off the photo, and comparing to what would fit in the dedicated spot on the layout. It came out close enough that only minor compression was needed (which led to one oopsie that you'll notice later on).

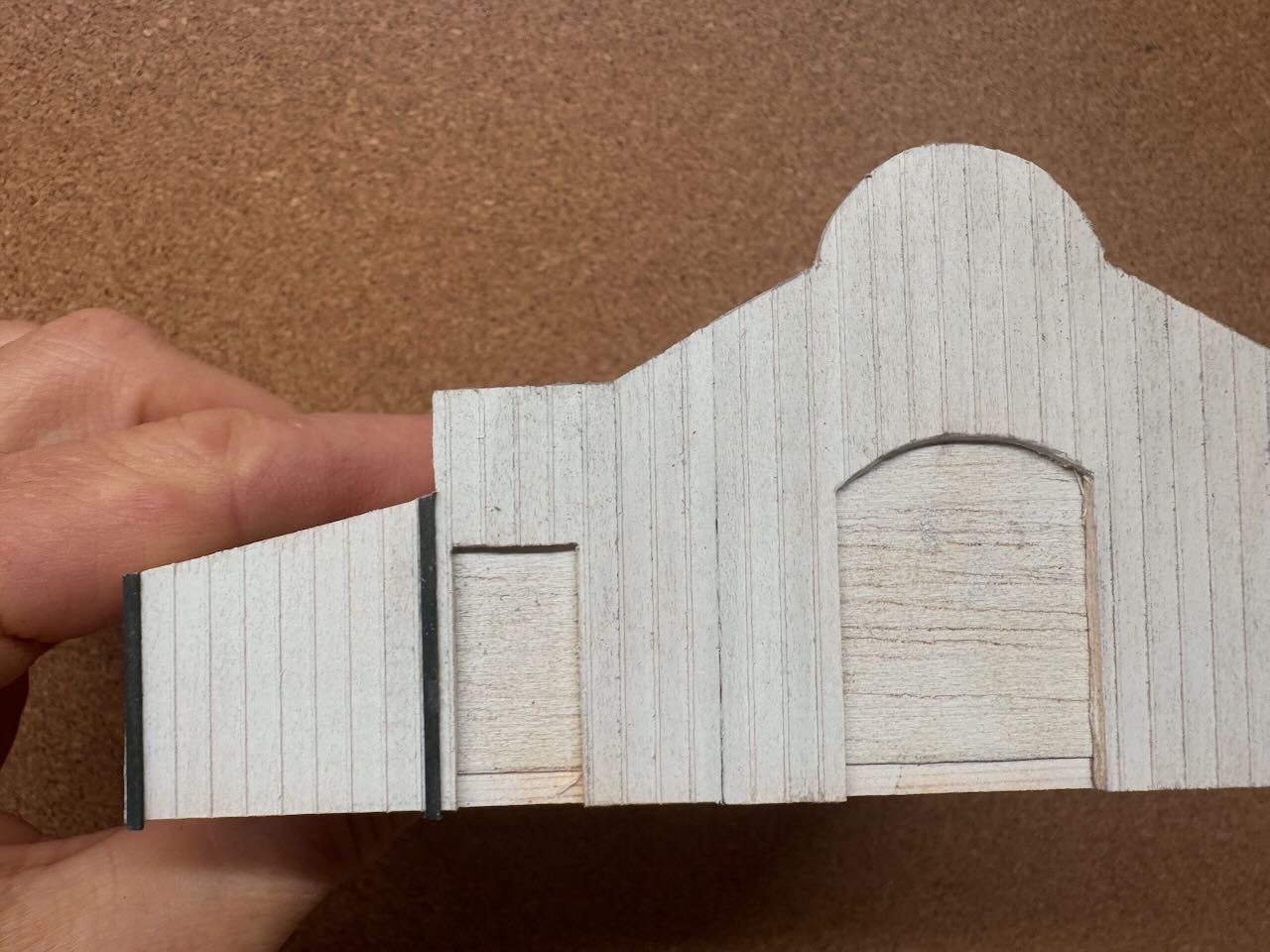

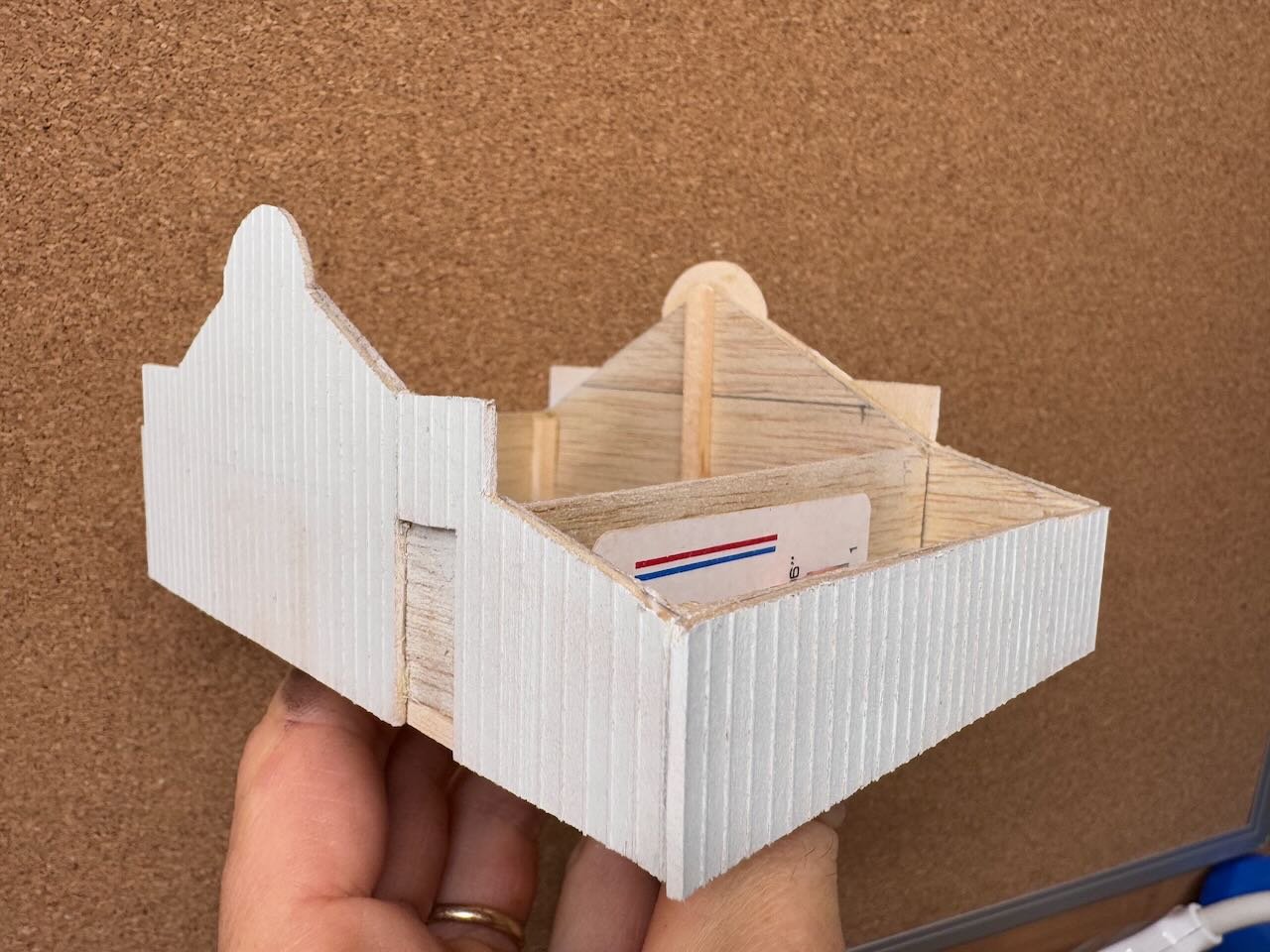

With the central core done, I sheathed it in wood pre-scribed in a board-and-batten style. I couldn't quite tell how the real barn was sheathed, but as this was a fairly fancy structure for a barn, I decided it would have this more tightly sealed style than just regular boards. All doors will be plastic items scavenged from my scrap box to be both close enough to the real thing, and to look right on a barn. So I cut slots in the siding as needed, to accept these insets.

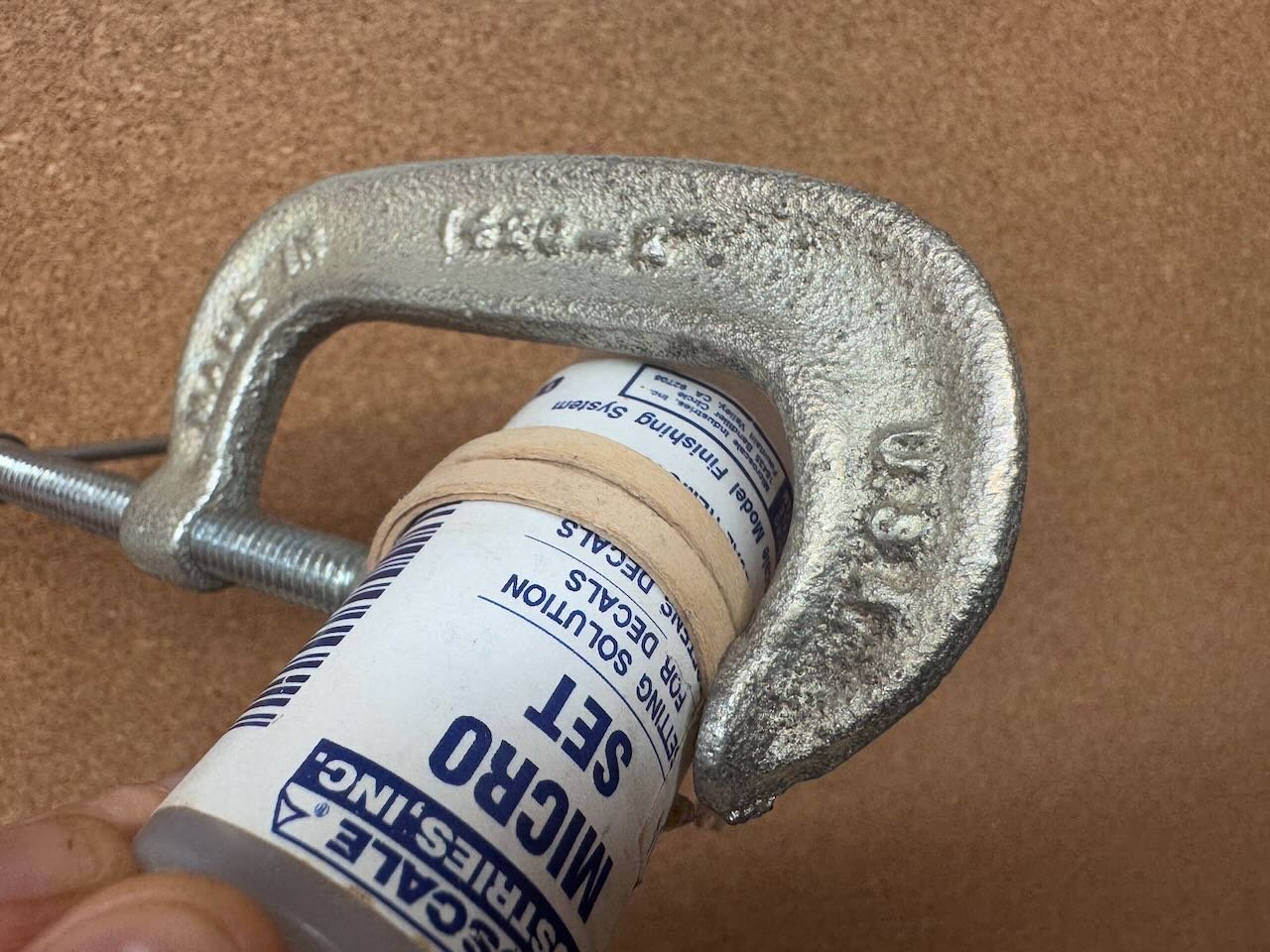

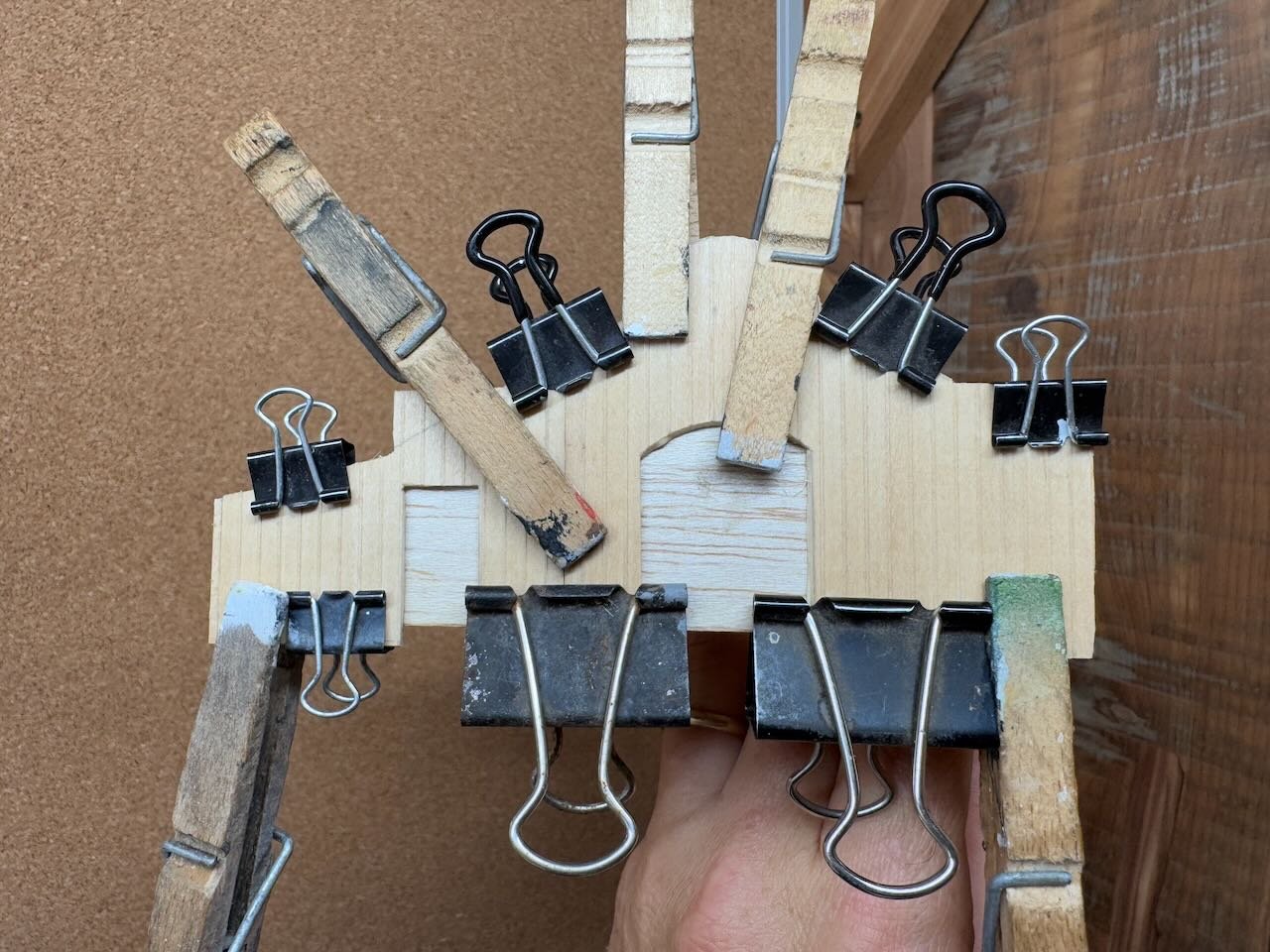

When I was happy with the siding pieces, I glued them on real good. View below shows the other side. I have no photos from this direction, so used a different style of main door that I'll discuss further below.

With all the siding attached, I airbrushed it an off-white. Didn't want it too shiny, it's still a barn.

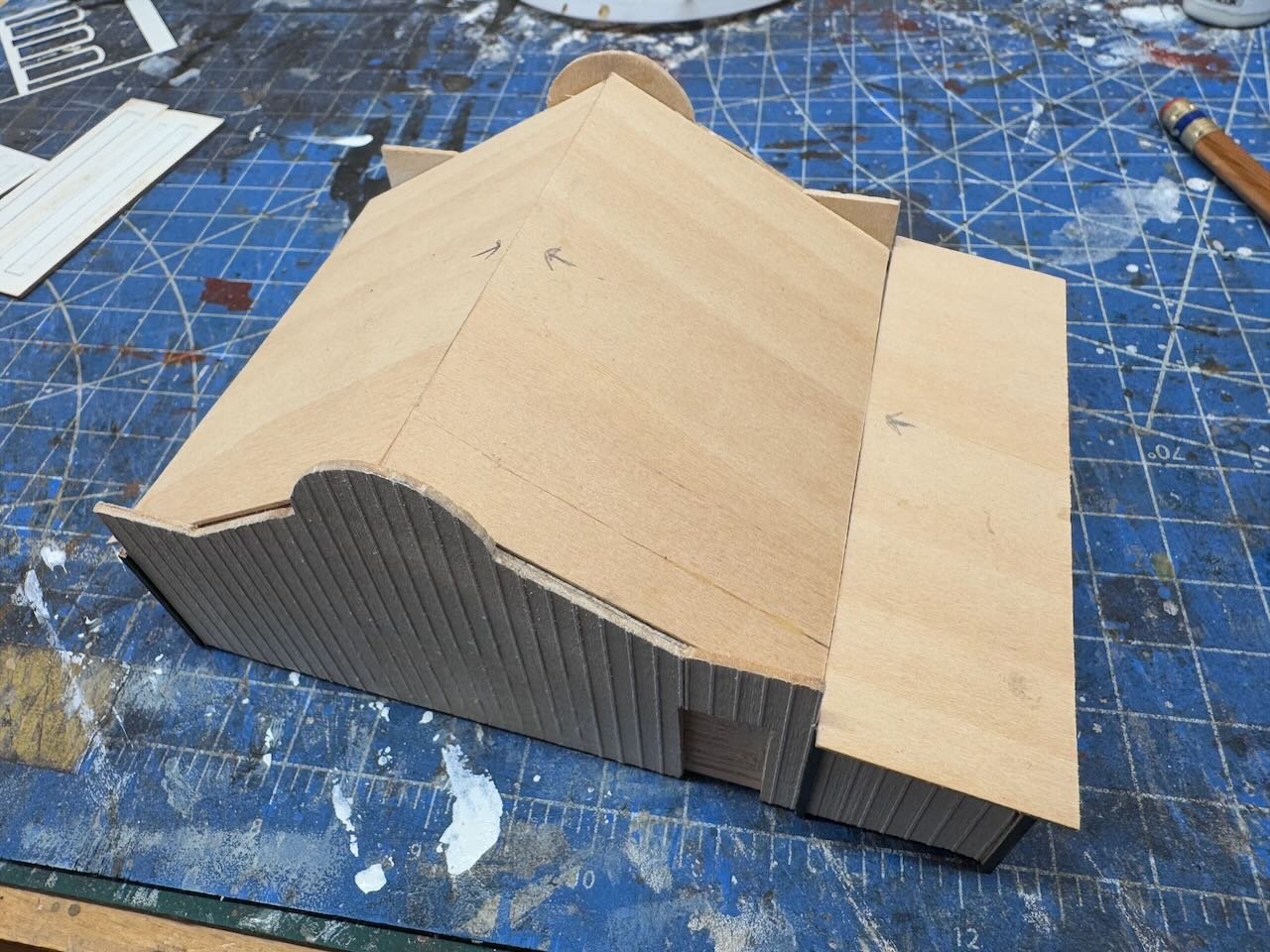

Next up was to design and cut the roof pieces. Slightly more complicated than usual since the central part fits within the fancy walls, while the outer shed just extends like normal but is wider. And there's a change in roof angle between the two parts.

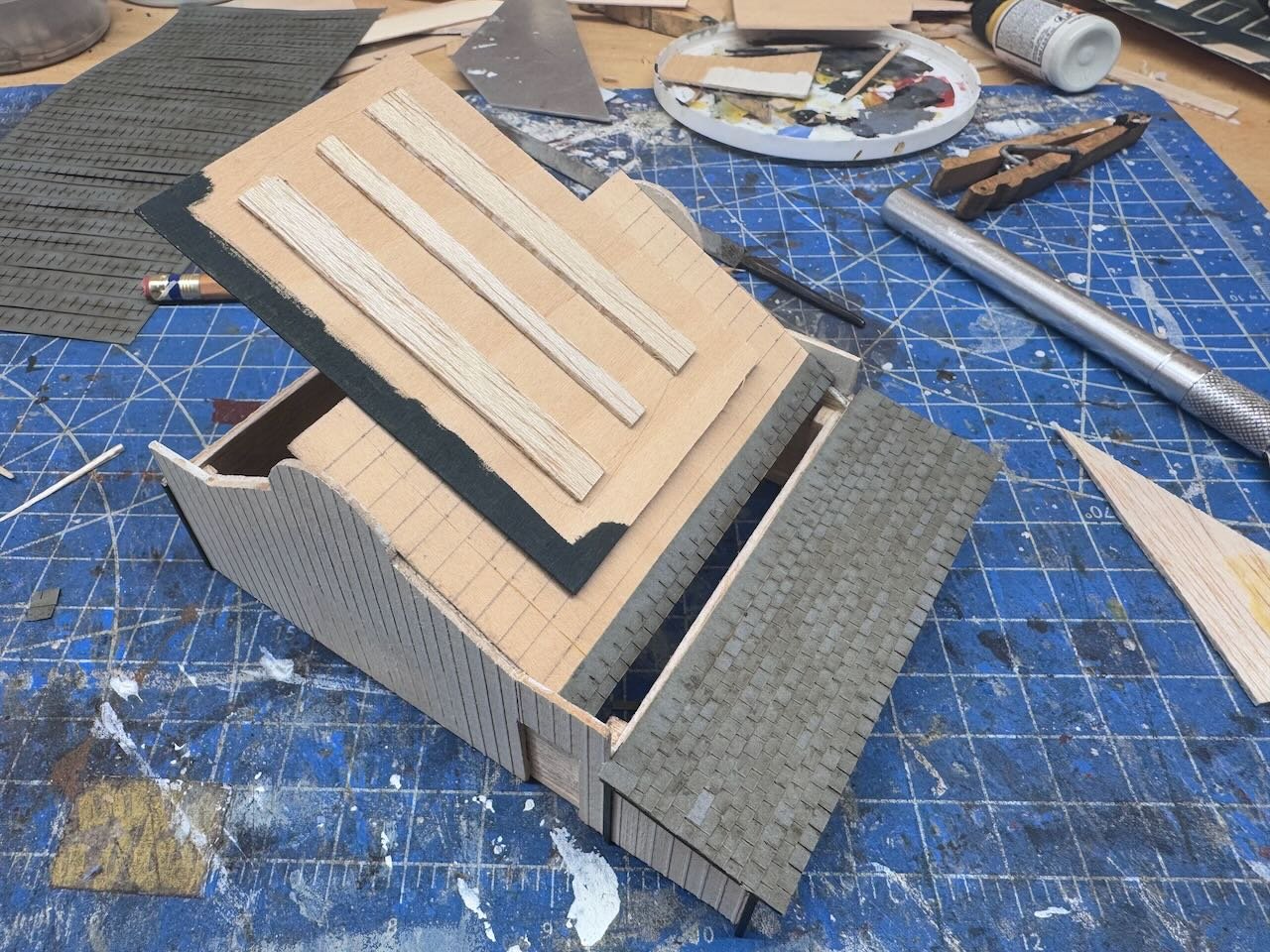

These are thin sheets, so I braced them underneath to avoid warping. Below is a view showing that, and the beginning of shingle application.

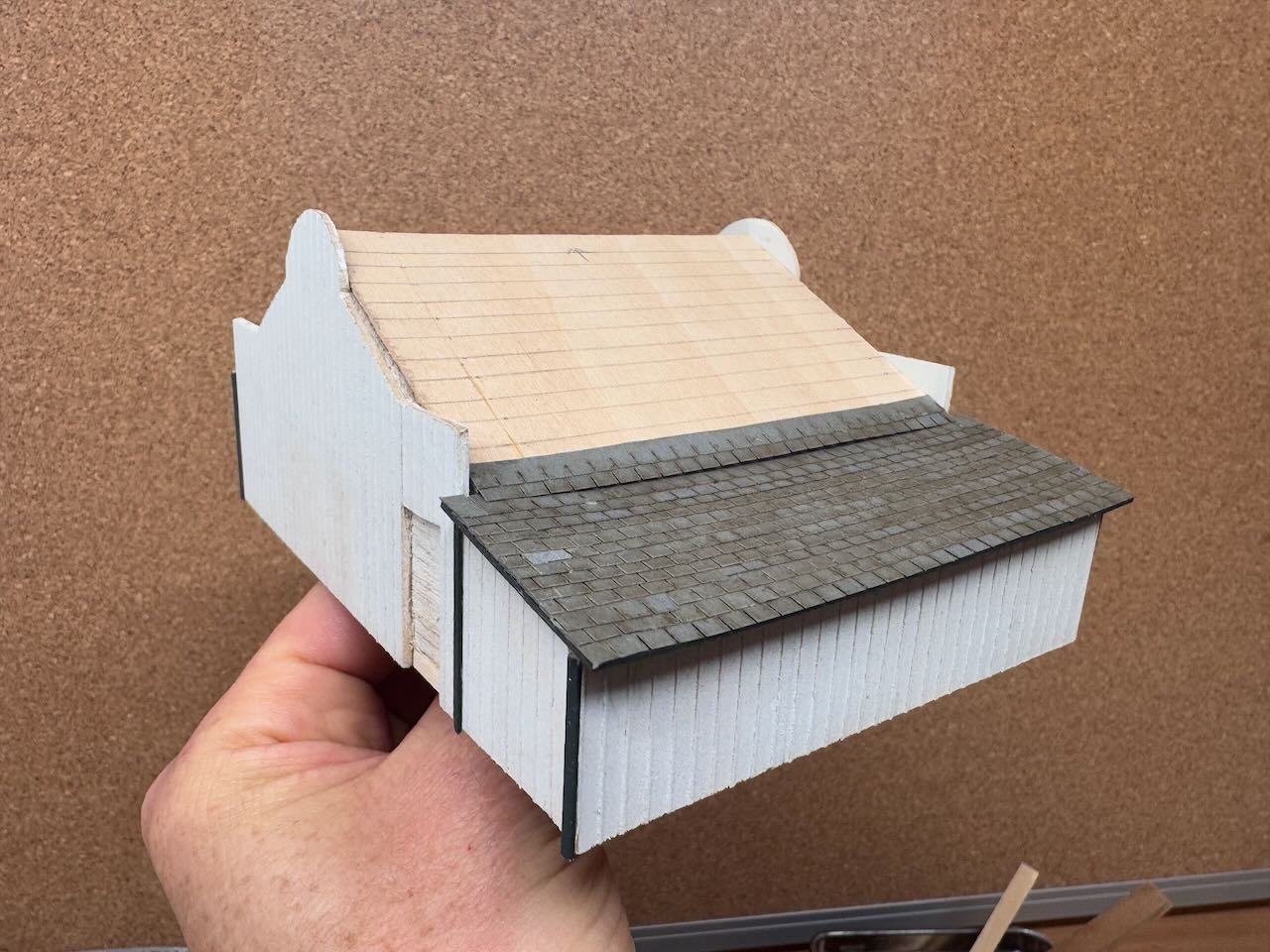

These shingles are tedious to apply, but look wonderful. I like to do these off-model, so I can leave overhangs at each end of the roof and trim them consistently. This created a challenge in this particular build, because I needed to make the transition between two roof angles (and thus pieces) but couldn't lay a transition strip over this between the projecting walls because I needed to lay shingles off-model. So what I did was lay the first set of shingles on the upper roof with half of the shingle line extending past the wood, such that when the finished roof piece was installed, they'd naturally overlap the lower roof. The image below shows what that looks like in a test-fit; the overlapping shingles are in the right place and will snug down nicely once these pieces are glued into place.

Once all the roof pieces were shingled and the glue drying (great task while half-watching a hockey game), I started working on the final trim. First, simple strips at the corners and joints between parts of the barn, like this.

But if you were wondering, model ship-building skills came in very handy for that curved arch at either end of the roof. I cut some thin strips, soaked them, and bent them over a bottle of the right dimension, then left them near the wood stove to dry. Worked perfectly. I stopped taking photos at this point because I was too focused and having too much fun.

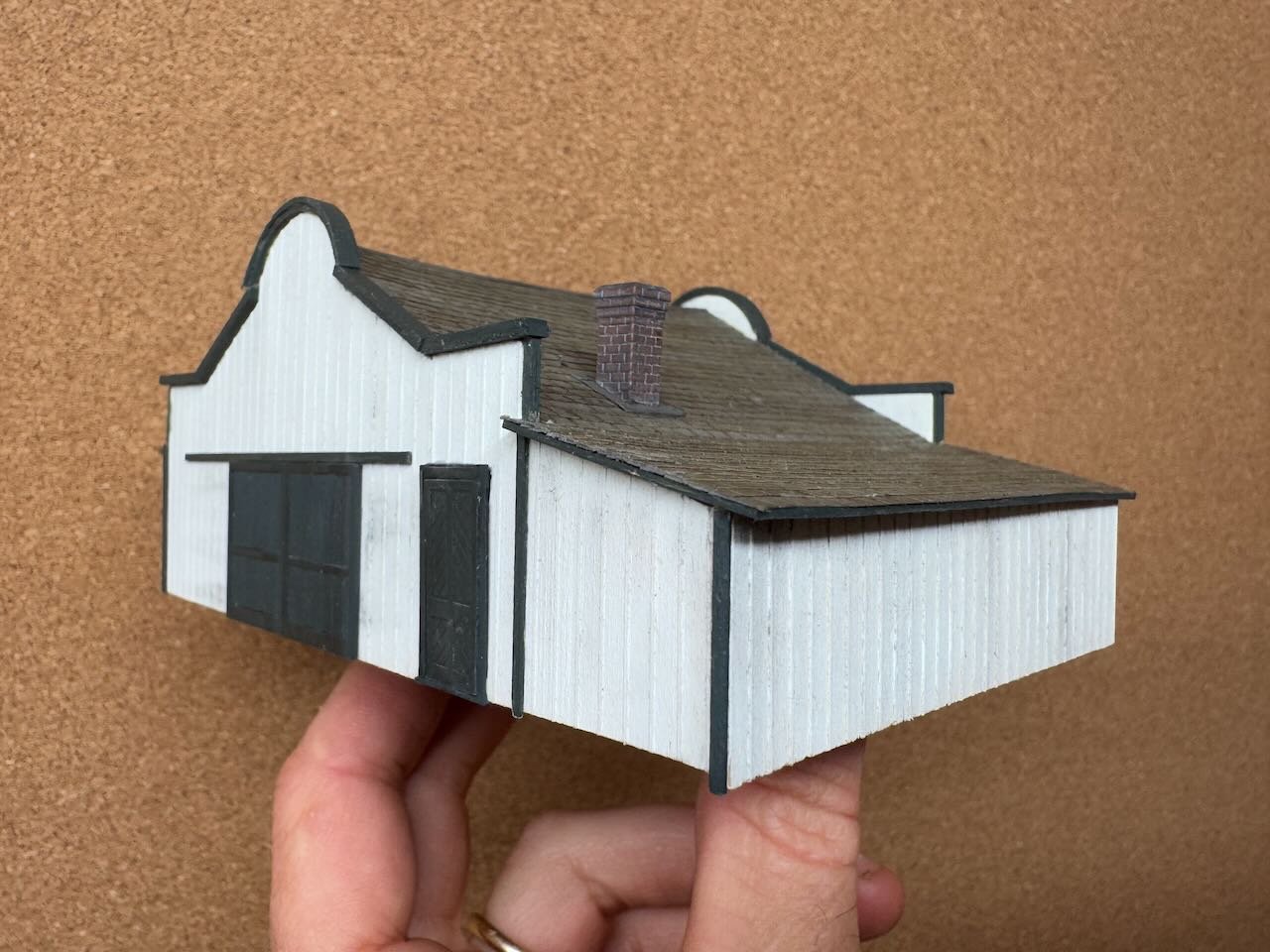

So here's the final barn. The siding is lightly weathered with pastels to give some variation to the siding, and I added subtle scrape marks where the sliding doors move against the walls.

Sharp eyes will notice the compression goof in the wall above. The original barn has two sliding doors that move to either side. I didn't account for the full sliding width when I compressed the building, so the right-hand one only has room to open halfway. Oopsie. I'm considering it an Easter egg for the observant.

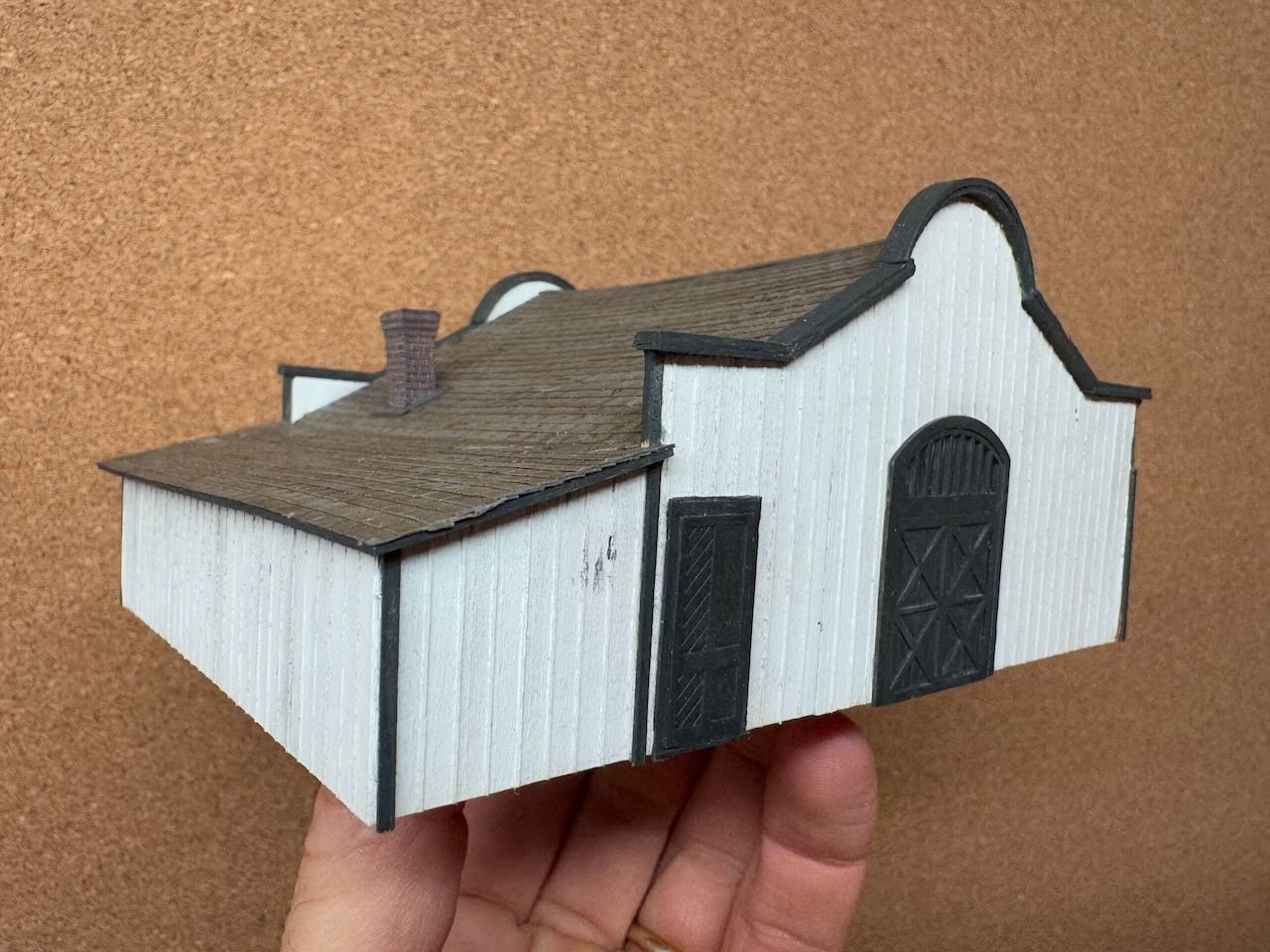

Below is the other side. As I said above, I didn't have any photos from this side. Arguably it would have made sense to use the same style doors on both sides, but I didn't have two more of those barn doors in my scrapbox, and I did have this very attractive stable-style curved door, which really seemed to fit the barn's style. So that's what I used here and I'm quite pleased with the look. The slotted windows above are the only penetration of the walls, but they're so narrow I just mounted them against black-painted interior wood and glazed them.



Thought I can't tell what color the original trim was, I like this green-black color that helps the barn stand out from any other structures but still has a darker palette that fits the overall theme of the layout. And it just feels classy to me.

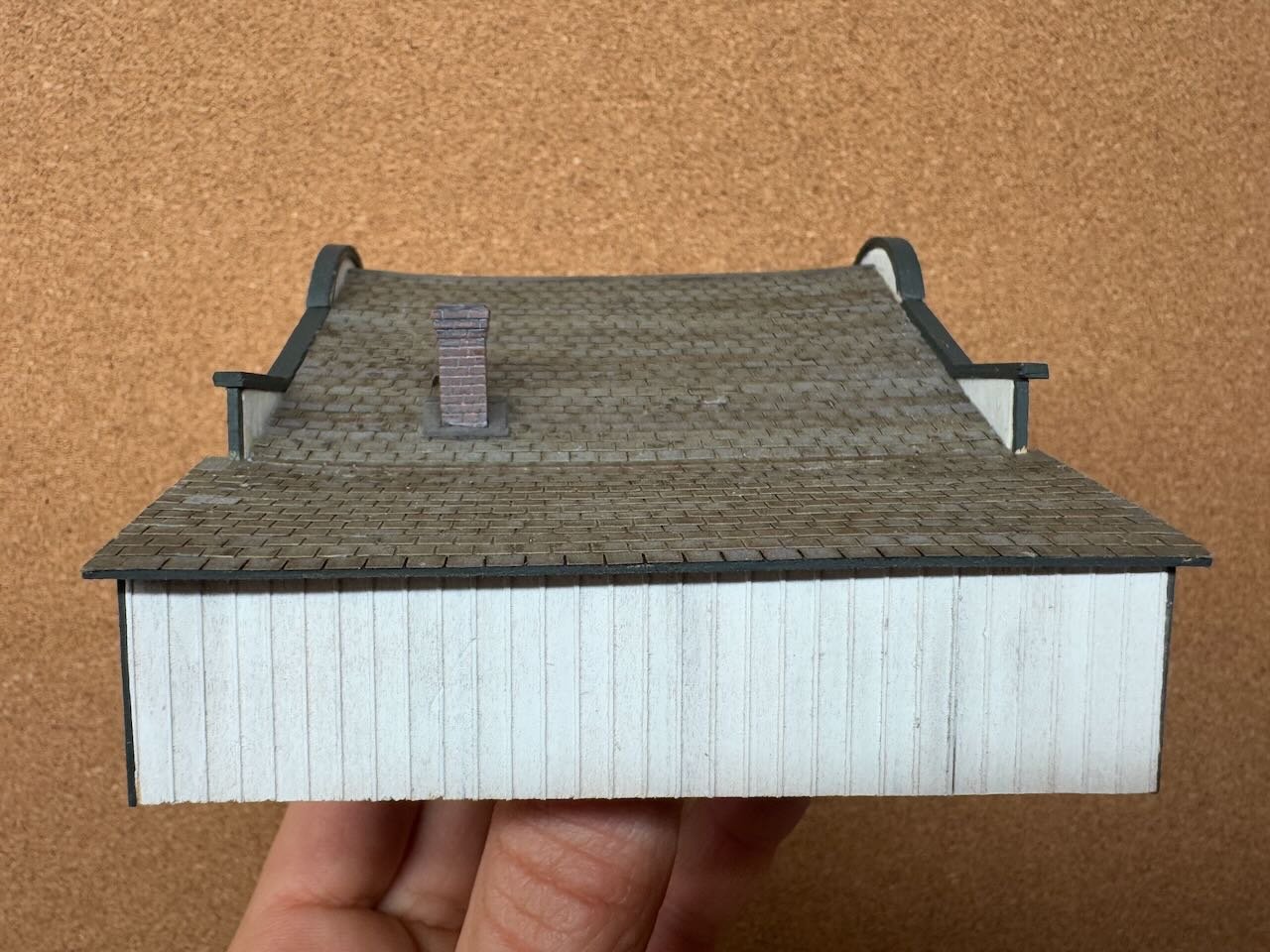

Below is the view from the side that faces the aisle. This shows an unintentional effect that turned out wonderfully. Despite interior-bracing the roof sheets, the collective moisture of the glue used to attach the shingles warped the sheets anyway. But as it turned out, that gave the roof a delightful sag that's just off-square enough to give an extra sense of realism. I don't think I could have done this better if I'd tried. It's pretty subtle unless you're looking directly from this angle but it really gives some added character. You can see some similar waviness in the shed roof at foreground, but again I love how that came out. The chimney is just another casting from my scrapbox, painted and weathered.

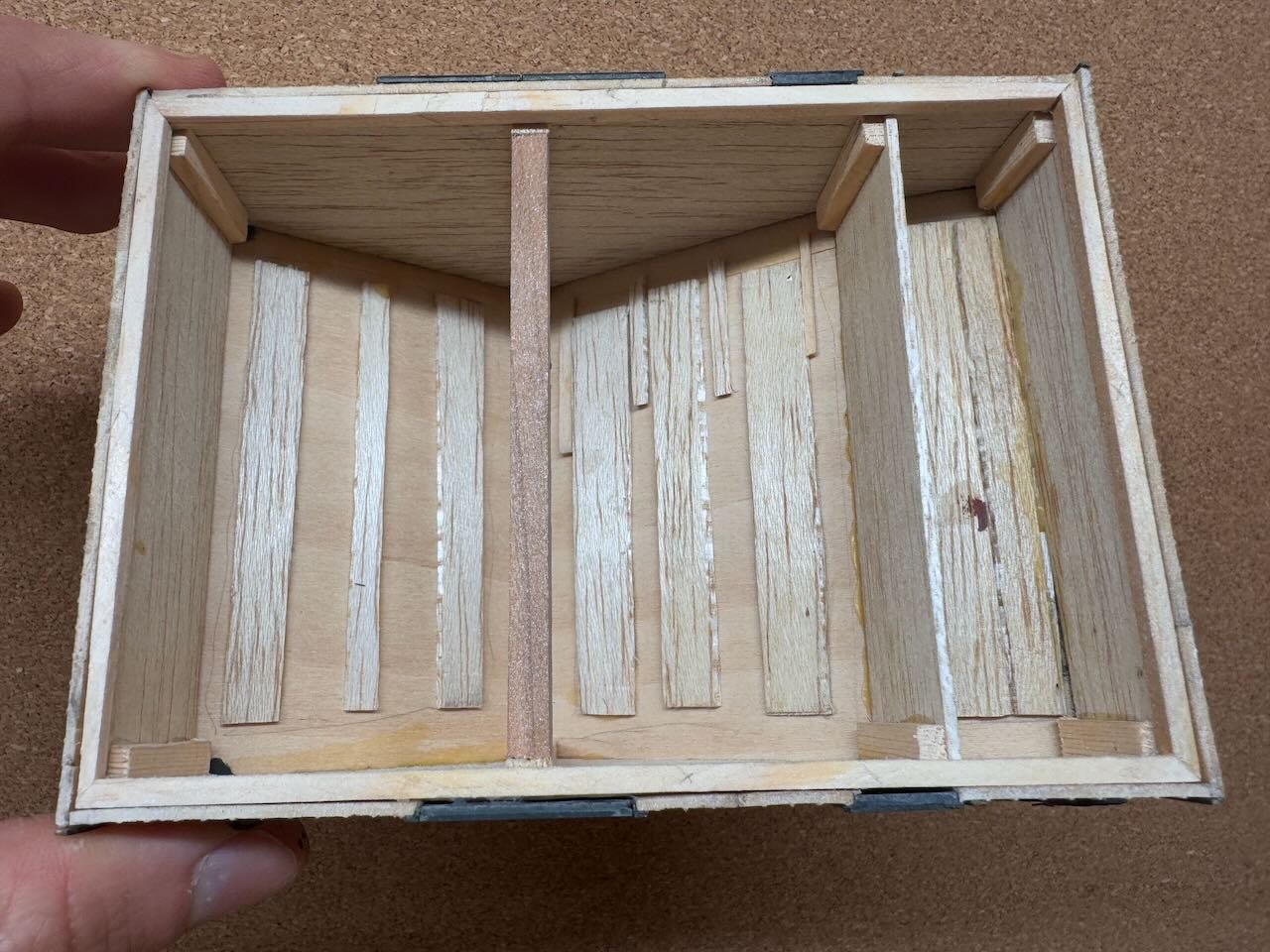

And a final shot of the interior, showing the internal structure and bracing.

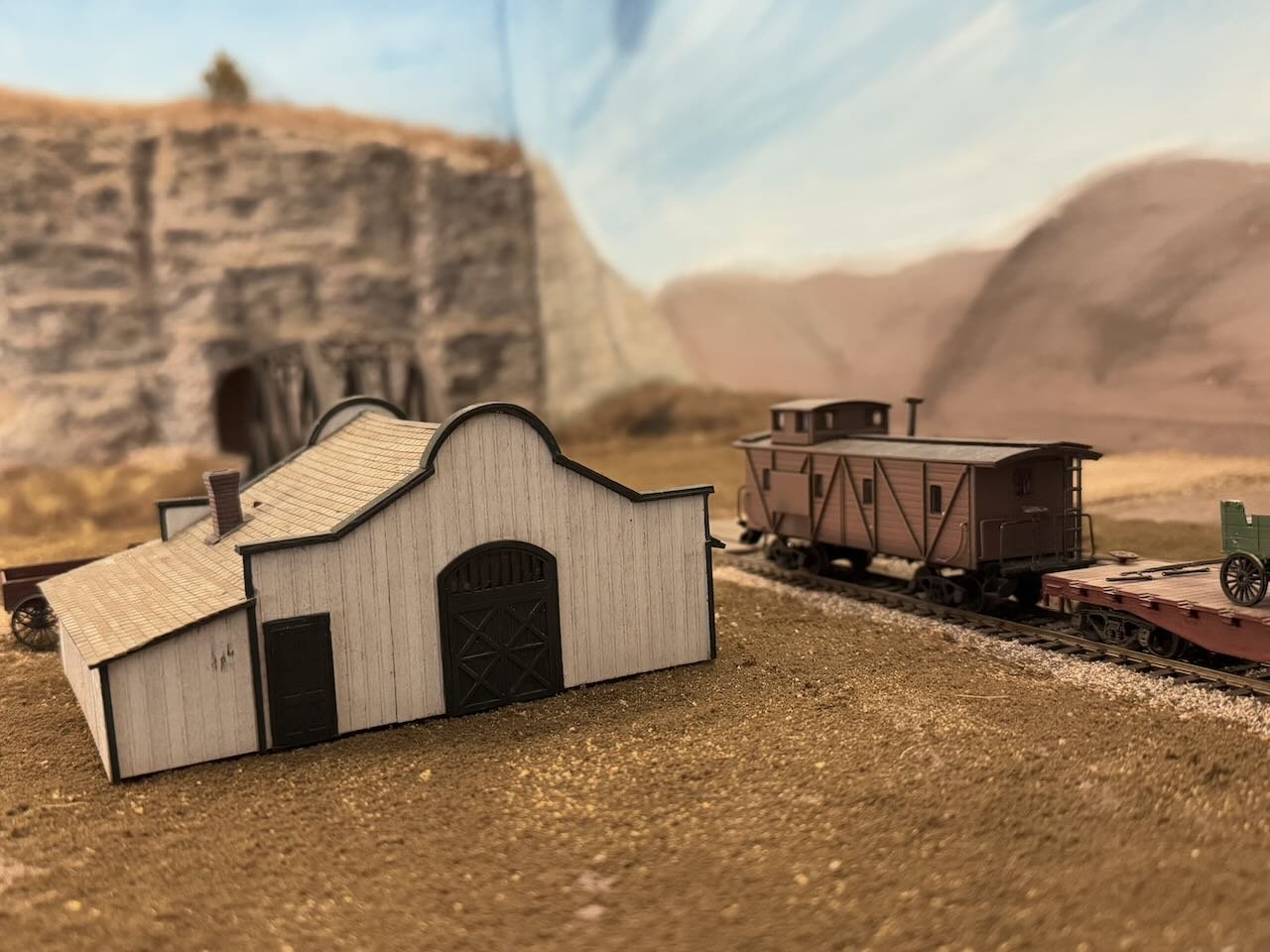

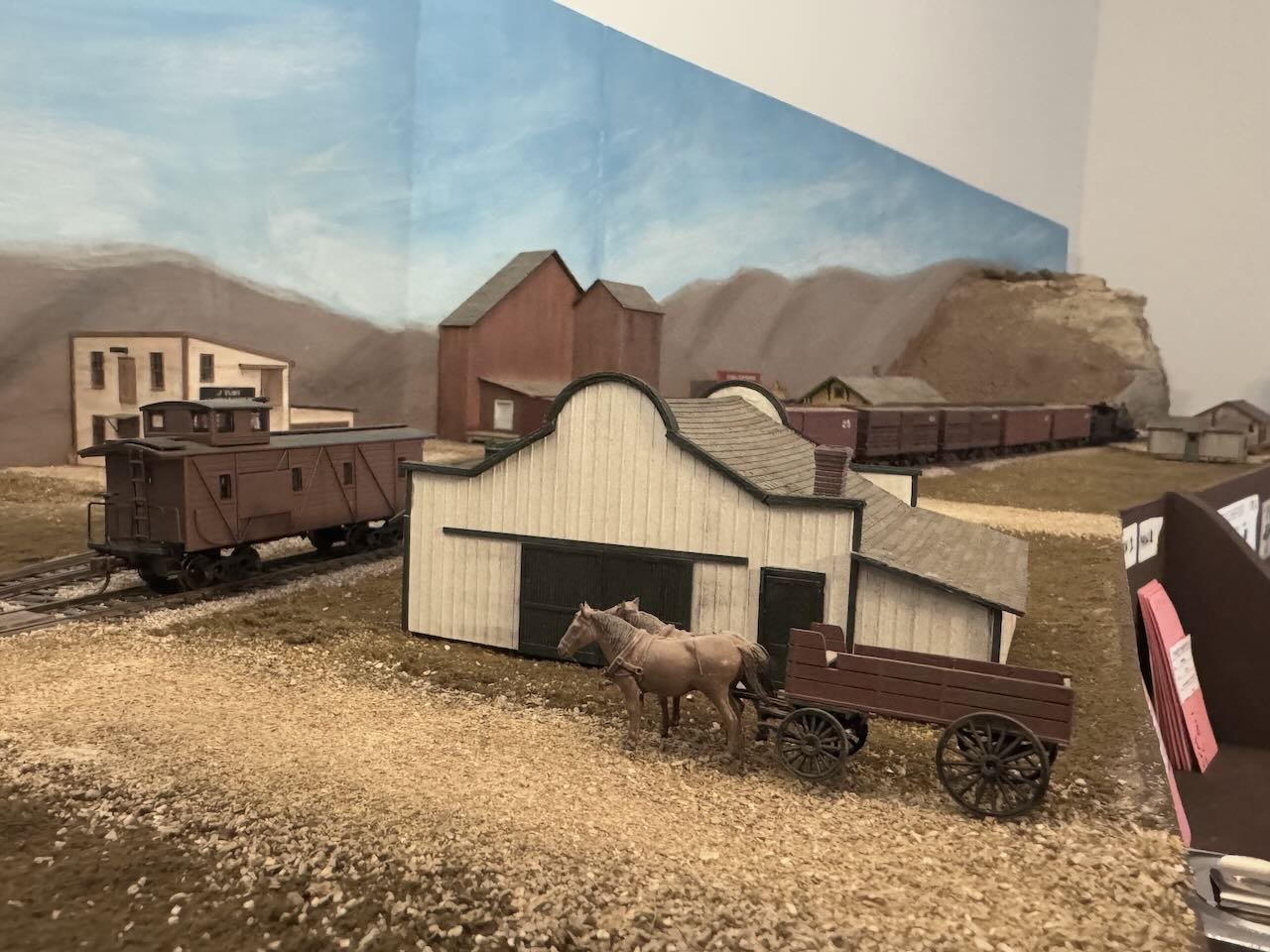

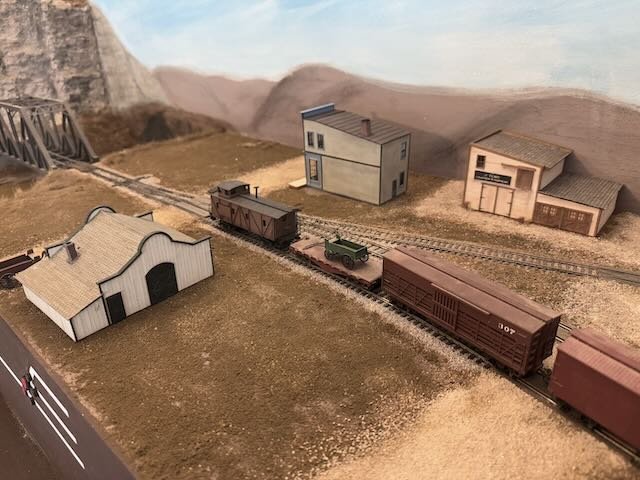

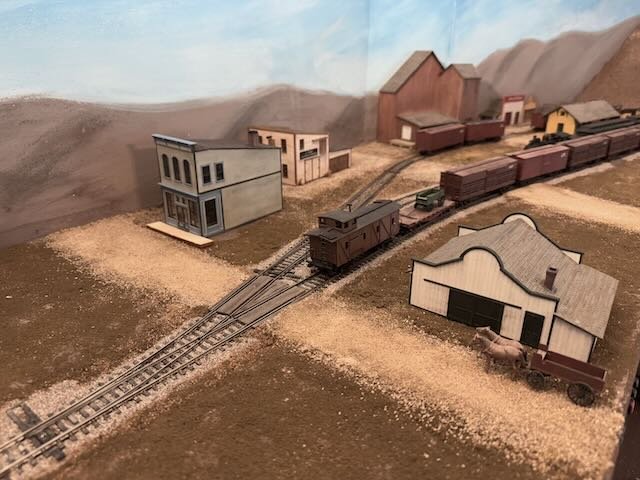

And now to place it on the layout. Here's two views in its intended setting, though without any attempt to blend in the base.

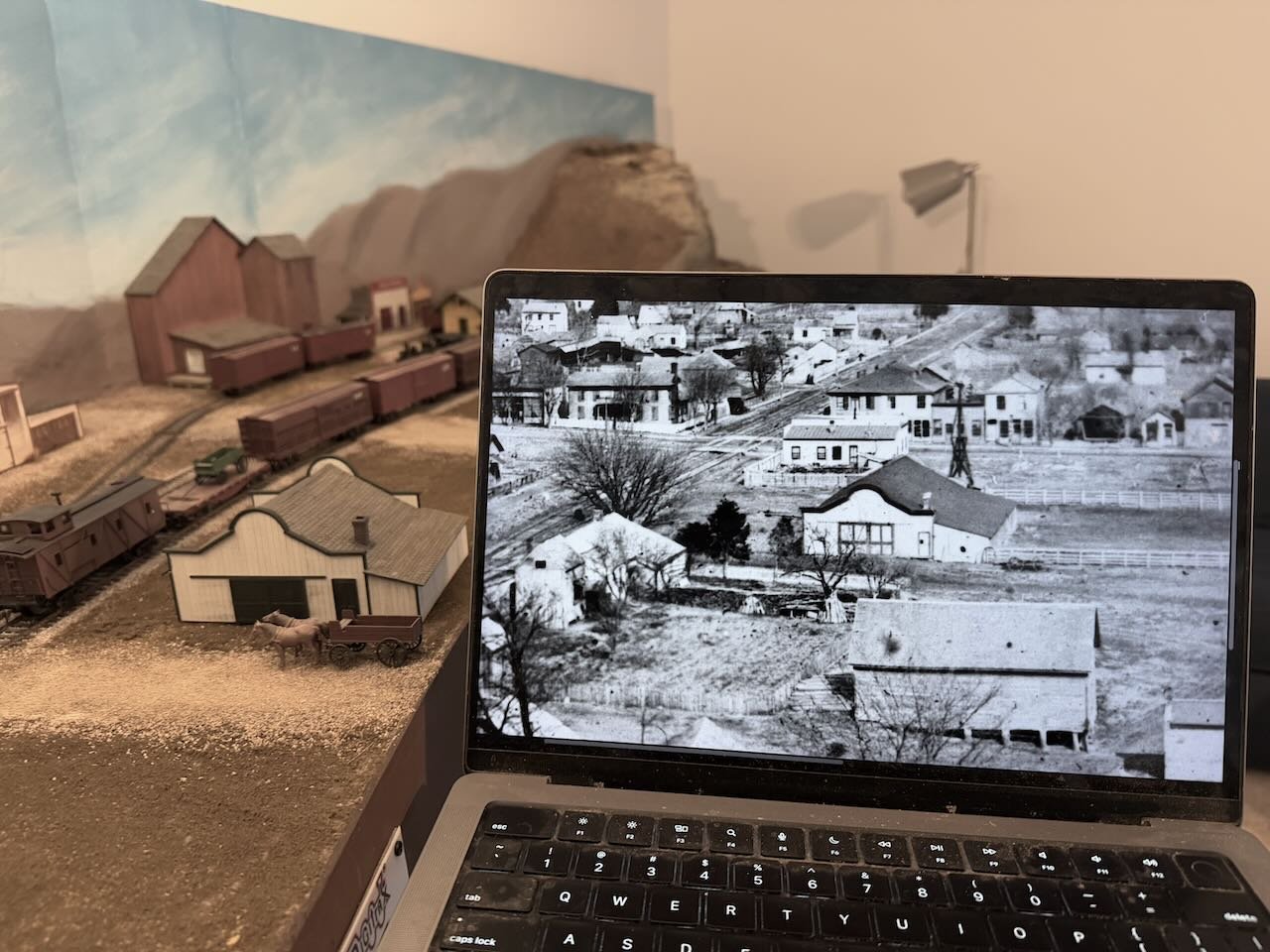

And for the full context, here's the model in place and the historic photo:

The biggest difference is the color of the doors: I tried painting them with the internal panels but just couldn't get the borders clean enough, so decided that solid-color doors were fine with me. Better "wrong" than "looks wrong".



The barn is low enough to work as a foreground structure, not getting in the way of reaching the tracks during operation. And it's just such an attractive and distinctive building! I have to say, I'm really pleased with how this came out. Very happy with it. I hope you are too!



[Canute]

Nicely done, Eric.



Pretty posh barn, with a chimney. Like you said, must be one of the more affluent citizens. My old horse farm was outfitted with lights and water. Needed heat tape wrapped around the water hydrant in the winter.

[Keith Black]

 Very nice barn, Eric. The barn could have been used as overnight quarters for racehorses being transported from one track to the next. That would explain its location next to the tracks and its seemingly out of place style. Racehorse owners wouldn't have wanted their horses slumming it.

[Cathead]

Keith, that's a fun idea, but a few factors argue against it. One, there's no loading ramp or other access point visible. Two, it's on the main line side, not the siding, and it's unlikely the railroad would spot a stock car blocking the main, or stop a mainline train to wait for a horse to be (un)loaded. Three, Rocheport is a very minor location between a variety of larger towns/cities that would have been better settings for such an arrangement. No trains would have stopped here overnight. For example, Franklin (only ten miles west) had much larger railroad facilities as the division point and would have been a much more convenient setting for such an arrangement if it ever happened. Same for Sedalia further southwest. But I appreciate you sharing the idea, it's always good to have more than one brain thinking about a question!

[Cathead]

1 hour ago, Canute said:

Needed heat tape wrapped around the water hydrant in the winter

Speaking of water, notice the tall windmill just behind this barn in the historic photo. I assume it's there to guarantee a non-river water supply to Mr. Merchant's horse barn. That's a detail I'll also enjoy adding, though it WILL have to be removable for operating sessions! That's a guaranteed elbow-catcher.

[Rik Thistle]

Eric,



Keith suggestion of horses being kept in the barn piqued my interest.



There is what looks like a corral attached to the right side of the building. That maybe means there was livestock of some sort kept inside, and that they needed daily fresh air ... or perhaps for auctioning?



Does the spacing on the corral rails give any clue to the livestock type....the wooden rails look quite close together....were sheep a thing at those times?



Richard



Edit: Also the soil within the corral looks churned up.





Edited Sunday at 07:03 PM by Rik Thistle

[Keith Black]

37 minutes ago, Cathead said:

One, there's no loading ramp or other access point visible.

 After the early 1800's and until modern 18 wheel transport racehorses and all livestock for that matter were moved by train. Horses didn't travel well when transported by rail. The noise and movement caused stress which sometimes resulted in the death of the horses. The photo below shows that a station located ramp per se wasn't necessary. Maybe it was a layover for racehorses coming out of the breeding grounds in Kentucky being transported to home stables to the west. *see Keith shrug



 Whatever the barn's history, it's a neat structure and you've done a fantastic job modeling the barn.



[Cathead]

Well, there's no question it's a barn, and all livestock need fresh pasture. This is exactly what a horse barn/stable would look like. I just think it's for the local use of a local owner, not tied to the railroad or any kind of shipping. Anyone who keeps horses, in 1900 or now, has a barn with attached paddock to allow exercise and fresh air. I'd also say that those rail fences are very typical for horses, then and now.



I'd say no to sheep because (a) sheep have never been a big thing in this part of Missouri and (b) they're not high-value enough to justify a fancy barn and rail fence like that. Again, it's exactly what a moderately wealthy horse owner would construct.

[Cathead]

Yes, of course horses don't "need" permanent ramps to be loaded onto rail cars. That photo shows the German army loading horses into rail wagons during World War 2, a very different context than peacetime racehorse handling.



What I'm trying to get at is that this barn isn't anywhere near big or developed enough to be an organized shipper/receiver of horses by rail, and there's no  history of that happening in this area. If you DID plan on routinely handling horses on/off trains at a single location, you WOULD build a permanent loading structure that was more stable (no pun intended) and safe for the routine handling of high-value animals. This is why all railside stockyards had permanent loading chutes with strong rails, etc., including the one in Rocheport east of the depot. And horses are a lot more valuable, per unit, than cattle.



It's entirely possible that this wealthy guy's barn occasionally shipped or received a horse, whether he bought one from a high-end stable or did some breeding himself. But if so, he likely would have done so using a temporary ramp on a siding where a car could be left (such as near the depot) because the railroad wouldn't stop a train or leave a car on the mainline just for a horse, or possibly he would have used the actual stockyard ramp with its permanent, safe infrastructure for loading livestock into railcars.



Finally, if you were shipping racehorses or high-end breeding stock across the country, the Katy's line across Missouri is about the last route you would choose. As discussed early in this log, it was late-coming to east-west lines across the state and at least two other routes between St. Louis and Kansas City were straighter, faster, and more established. The Katy's line was more roundabout in route, was relatively slow, and wouldn't have been economically competitive for this kind of fast, high-value freight. Even if you were shipping down to Texas, where the Katy was a lot more competitive, you'd probably route the car by a different railroad like the Missouri Pacific as far as Sedalia and then transfer the car/horse south from there on the Katy. You may have to trust me on this one if you don't really want to go into the weeds of 1900s-era rail networks.



The point is that I don't think there's any operational connection between this horse barn and the railroad. If it was meant to be served directly by the railroad in any meaningful way, it would be on the siding, not along the main line. I love the enthusiasm, but I think the simple answer is sufficient. It's just a local horse barn, however attractive!

[Rik Thistle]

Eric,



As Keith said ....Whatever the barn's history, it's a neat structure and you've done a fantastic job modeling the barn.



It's very well done.



The project continues to fascinate.



Richard

[Canute]

Eric, one of my local layouts protects his light signals near the aisle with clear pieces of plexiglass. They're 2-3 inches wide and run a couple of inches on the fascia for attachment and high enough to go above the signal heads.

[Cathead]

Ken, I've considered that approach. I've seen it used elsewhere and my club layout will be doing that in various settings.  I think for the windmill it wouldn't make sense for a couple of reasons. One, if you look at its height, it's way taller than a railroad signal, it would be closer to 4-5" and that'd be a very tall and distracting plexiglass panel, even clear. Just as likely to catch an elbow as the windmill itself. Two, while signals obviously have to be in place along the line and thus need protection, a windmill is just a scenic highlight and could easily be removed during operations with no loss. So I think that's the easier answer in this case.







[Cathead]

3 hours ago, Rik Thistle said:

As Keith said ....Whatever the barn's history, it's a neat structure and you've done a fantastic job modeling the barn.



It's very well done.

Thanks to both of you for your enthusiastic interest in figuring out more about the barn's history and use! Discussions are useful even when I stick to my guns. And I very much appreciate the ongoing interest and curiosity this project generates.

[Canute]

Go for it, Eric. Good logic for doing it.
