With respect to the deck-camber: from the drawings that Fred Hocked posted in the Vasa forum, there seems to be considerable camber.

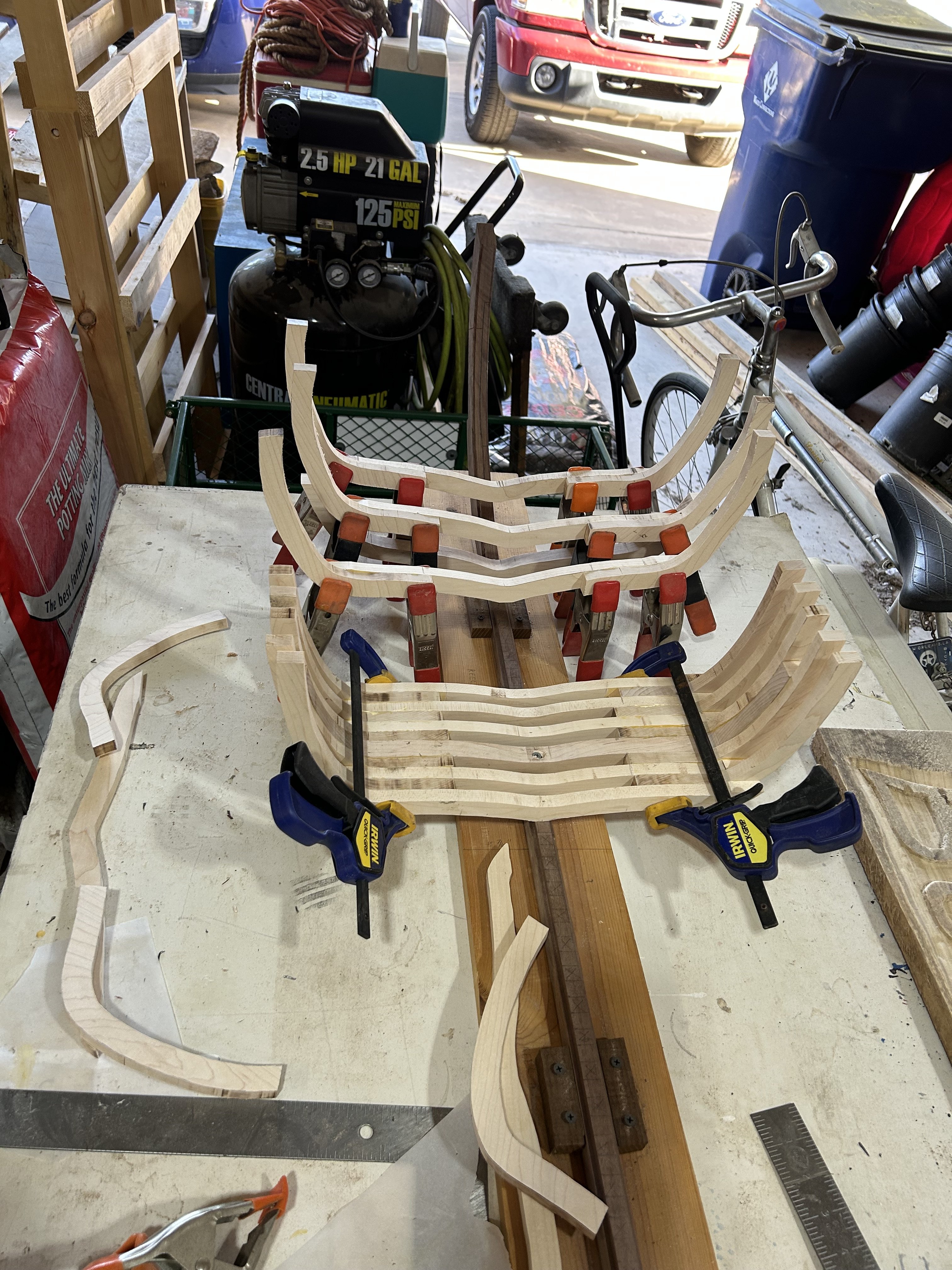

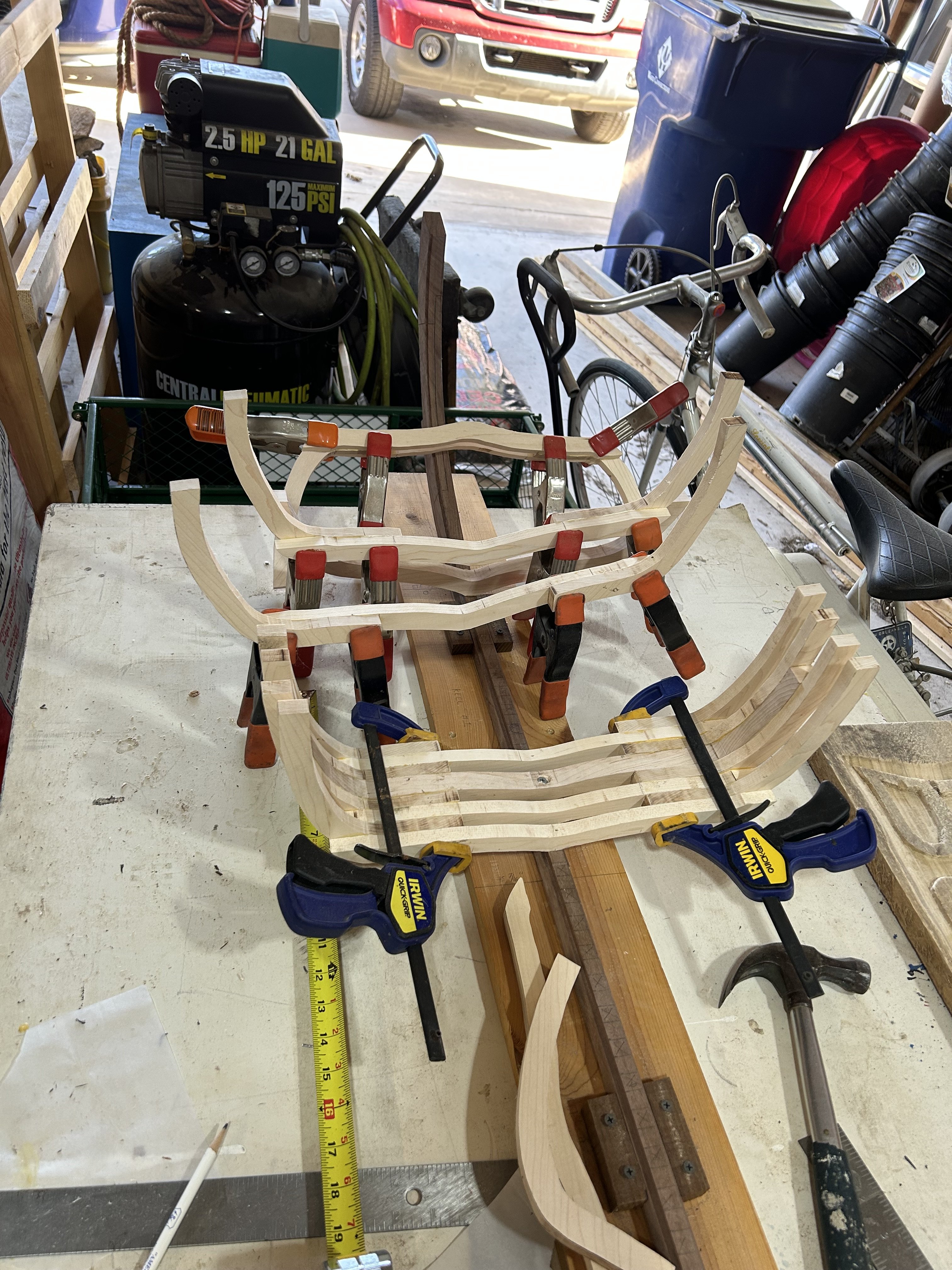

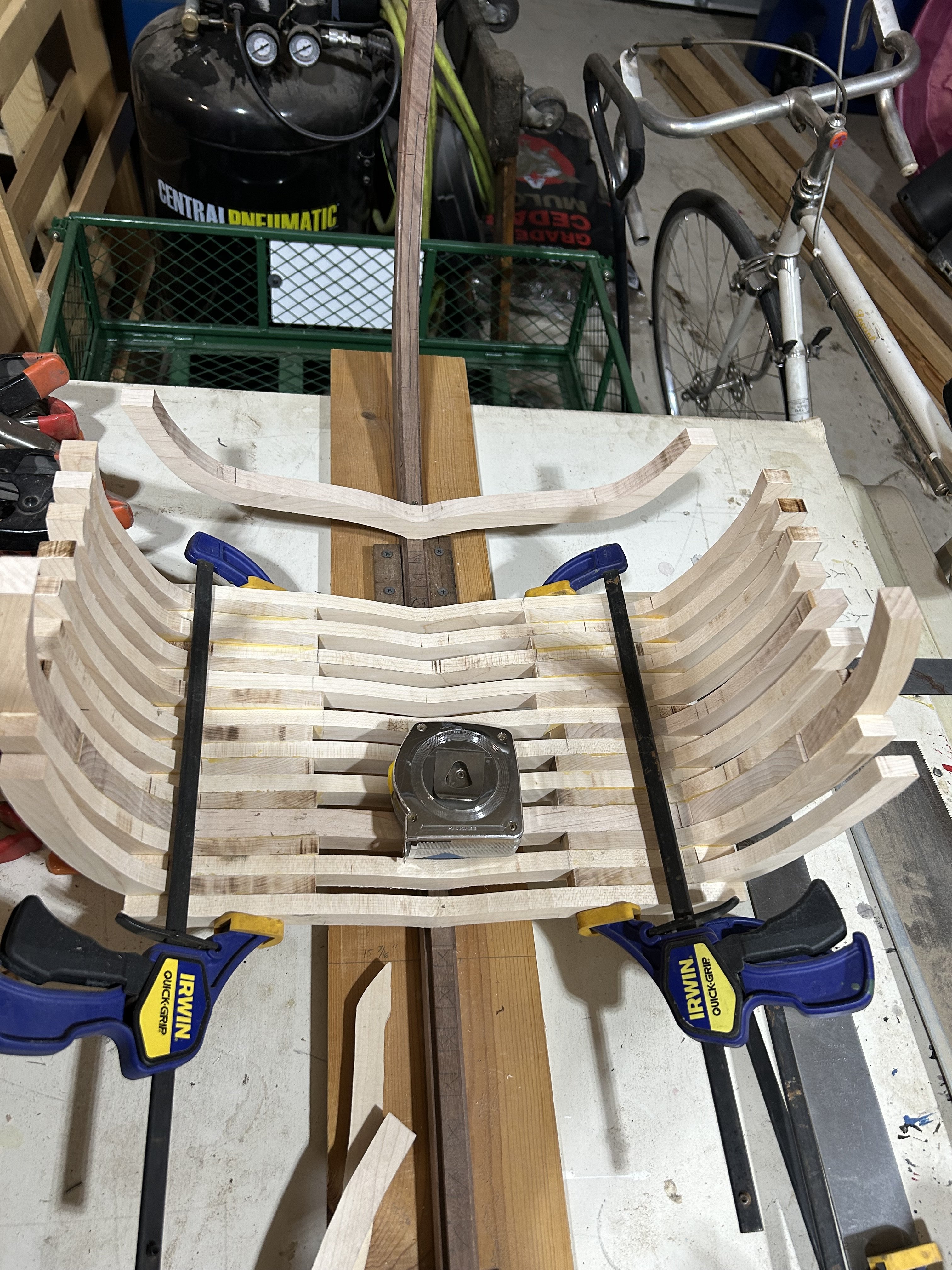

Also: the way you draw the bottom timbers is not completely up to 'usual standards: the timbers lay flat on the keel, the planking goes down in the keel-rabet, leaving an open space to collect the incoming water.



See drawing no 6, on this page: https://warshipvasa.freeforums.net/thread/87/vasa-ship-plans?page=3



Jan
