Things are coming along...

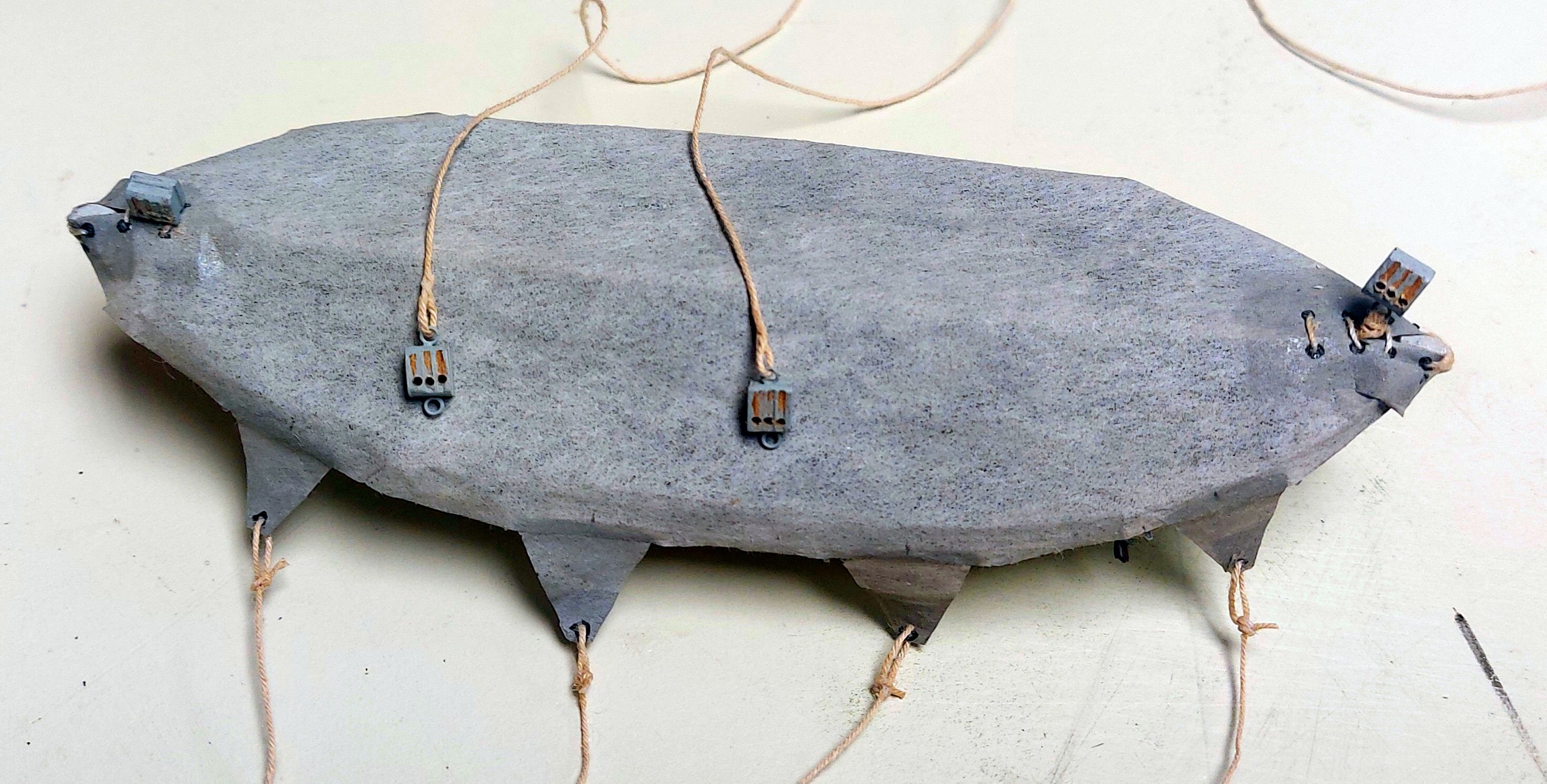

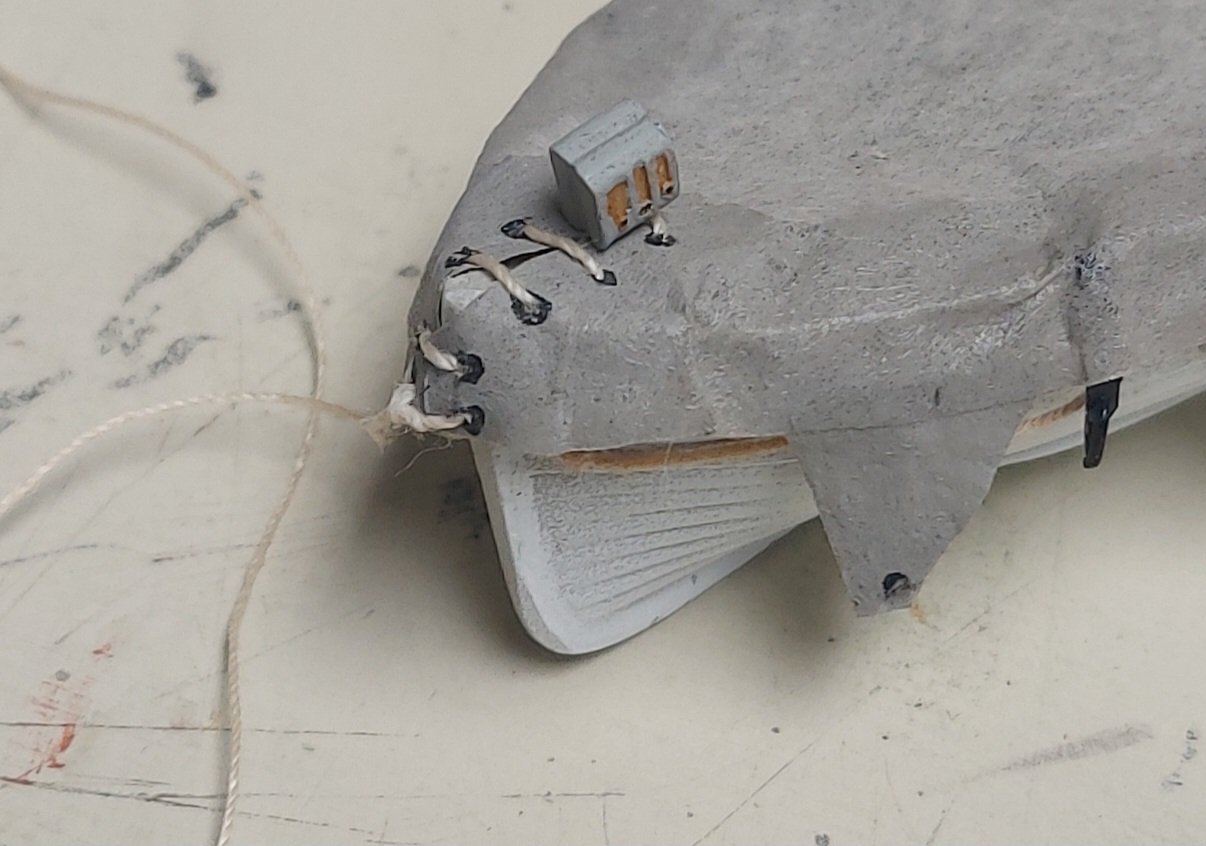

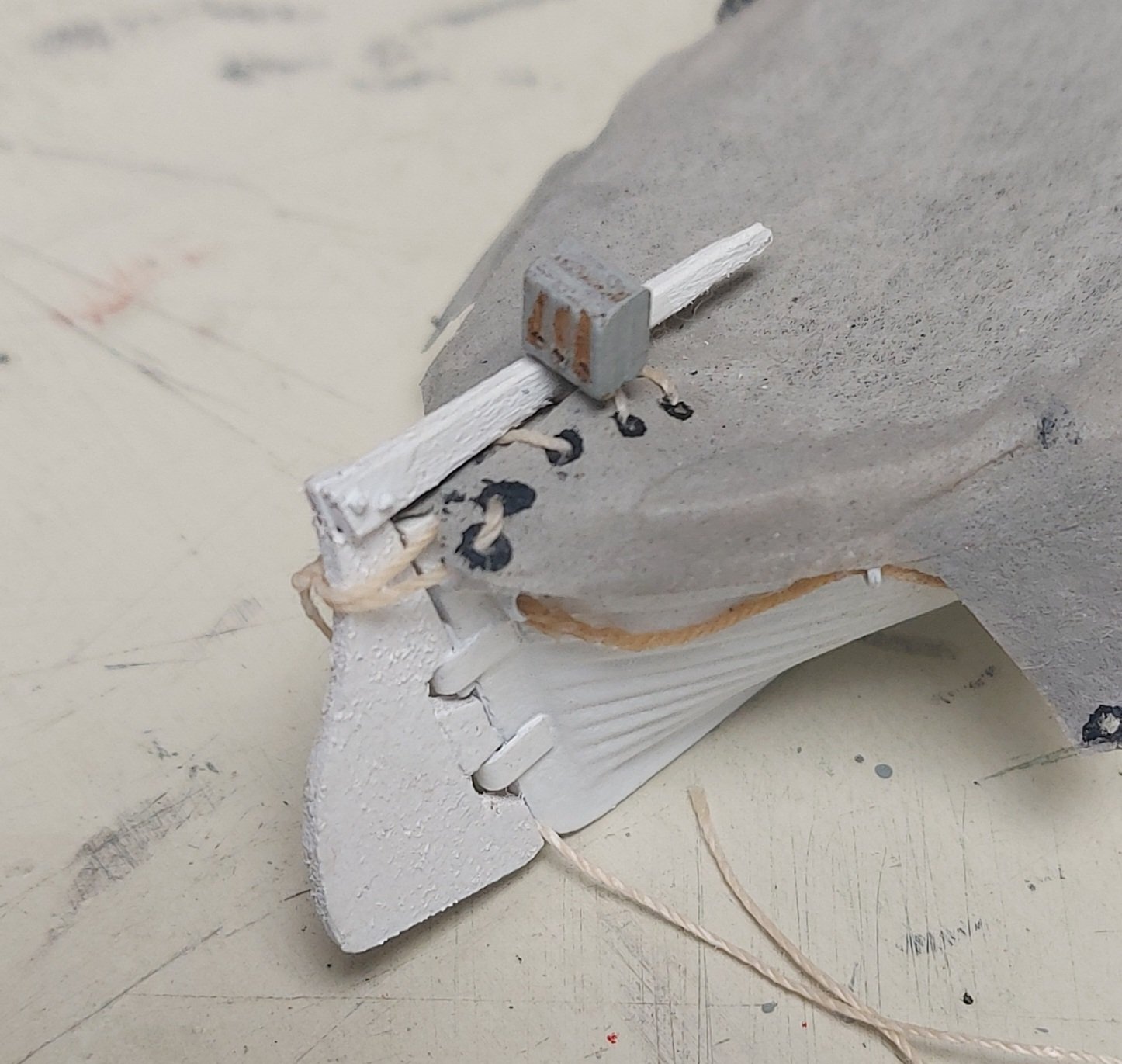

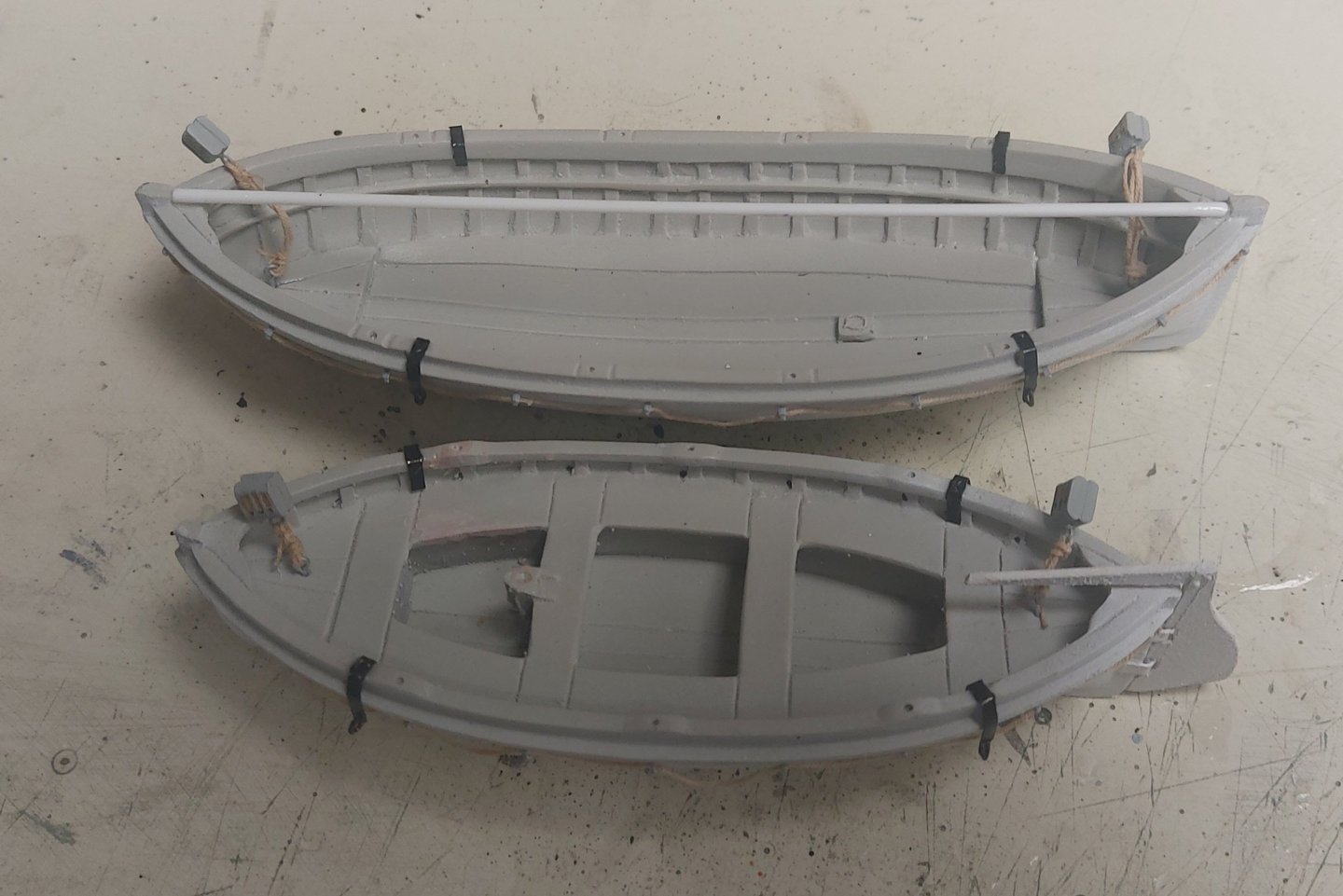

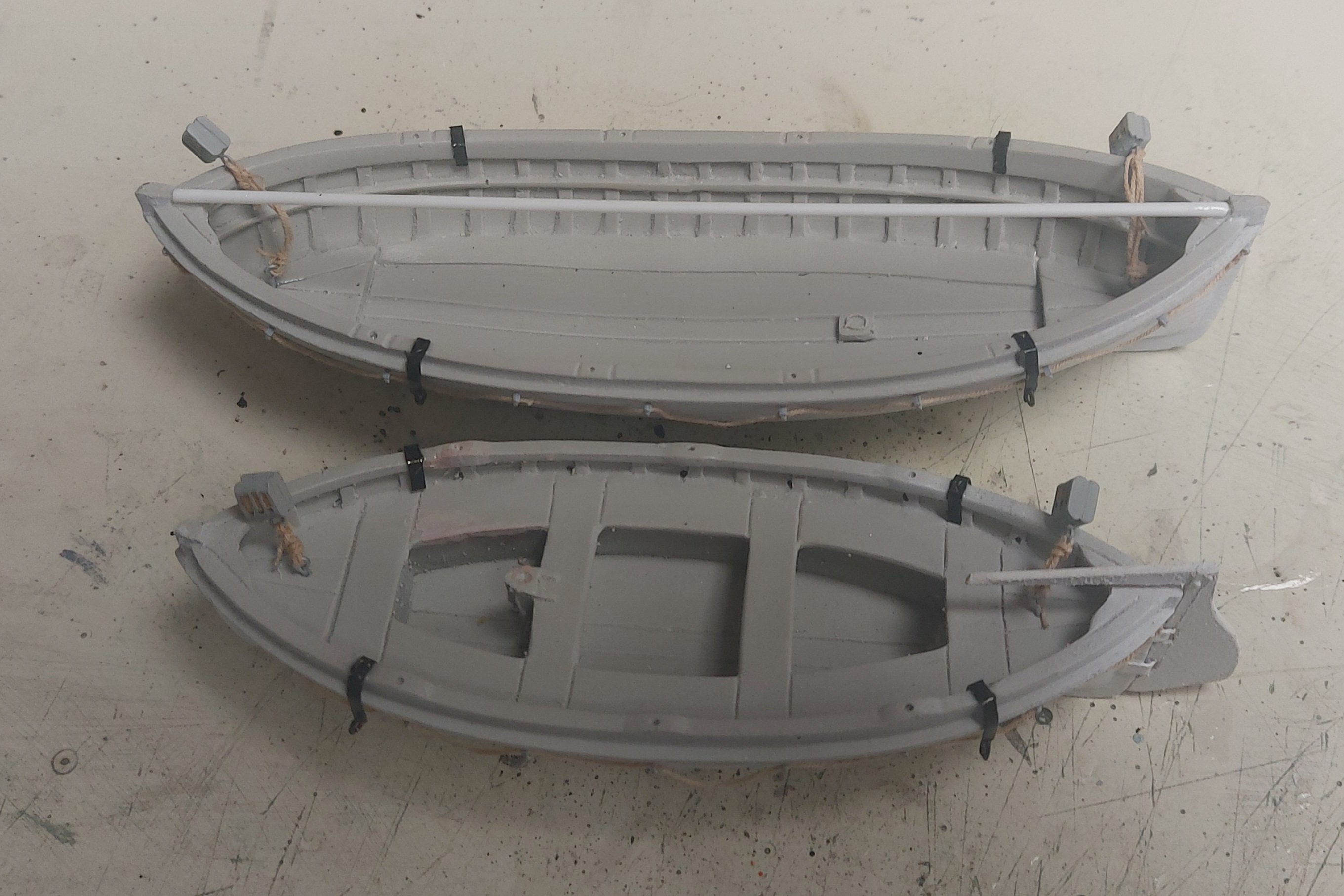

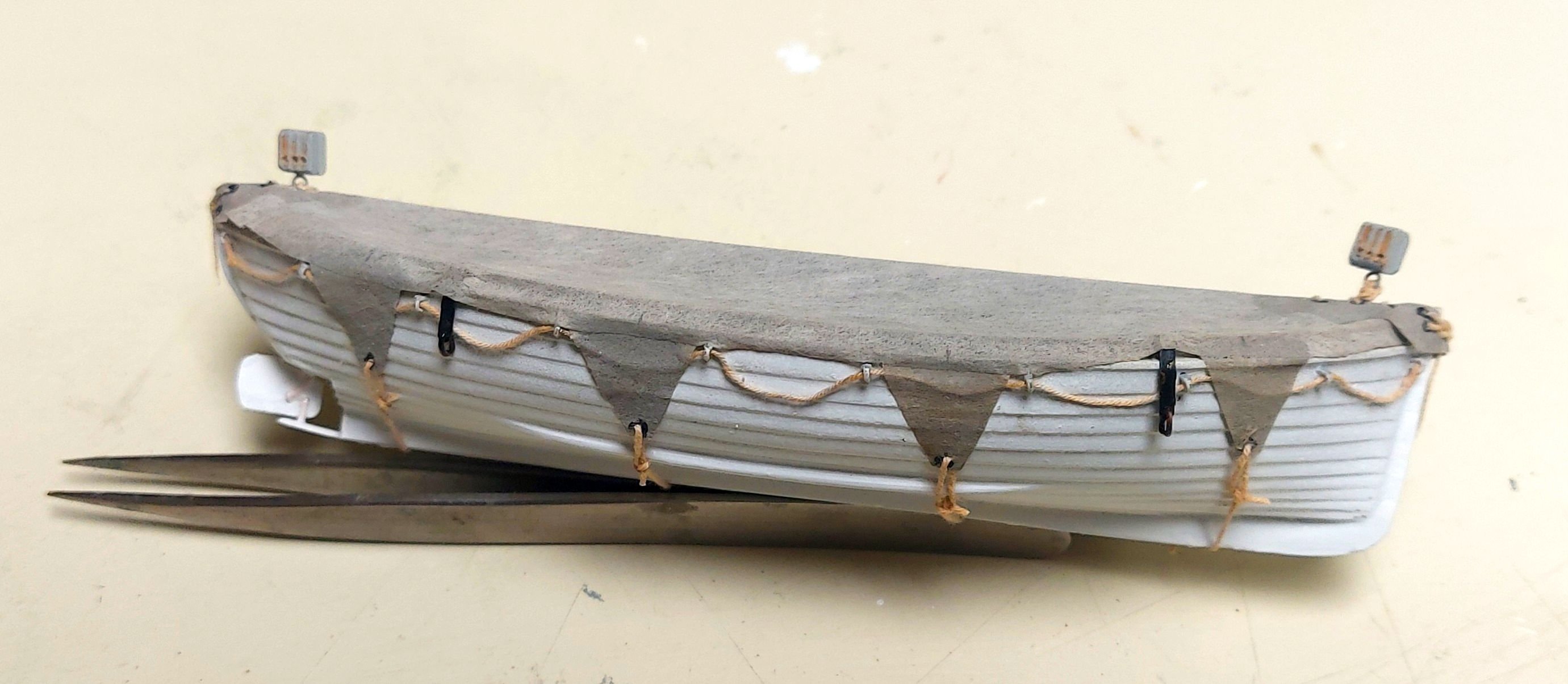

I made the triple blocks, a scale 9", from a walnut strip. These will be used to rig the falls for the boats. I added cast brass eyebolts that will connect the blocks to the davits, and lash them to the eyes under the boat covers.

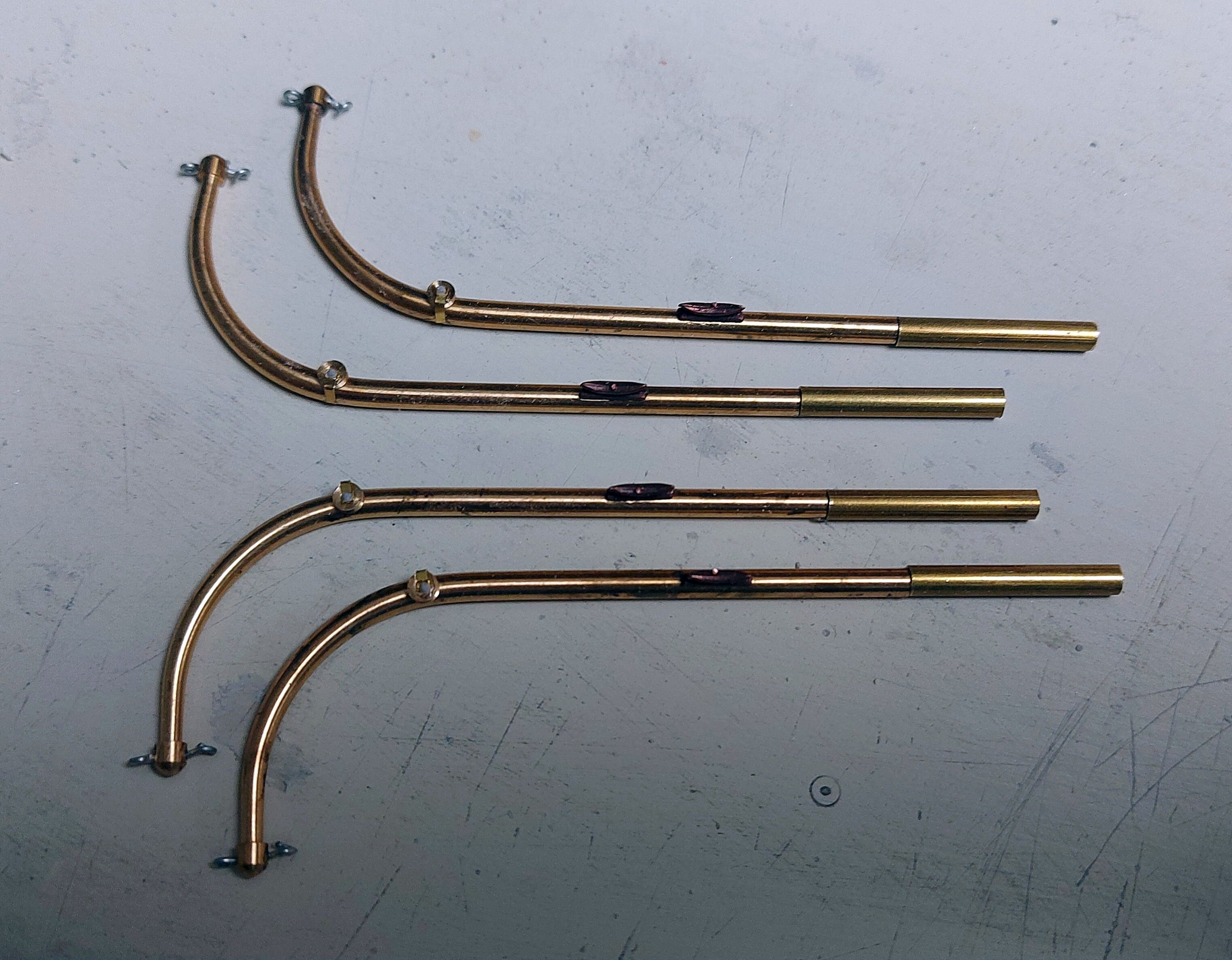

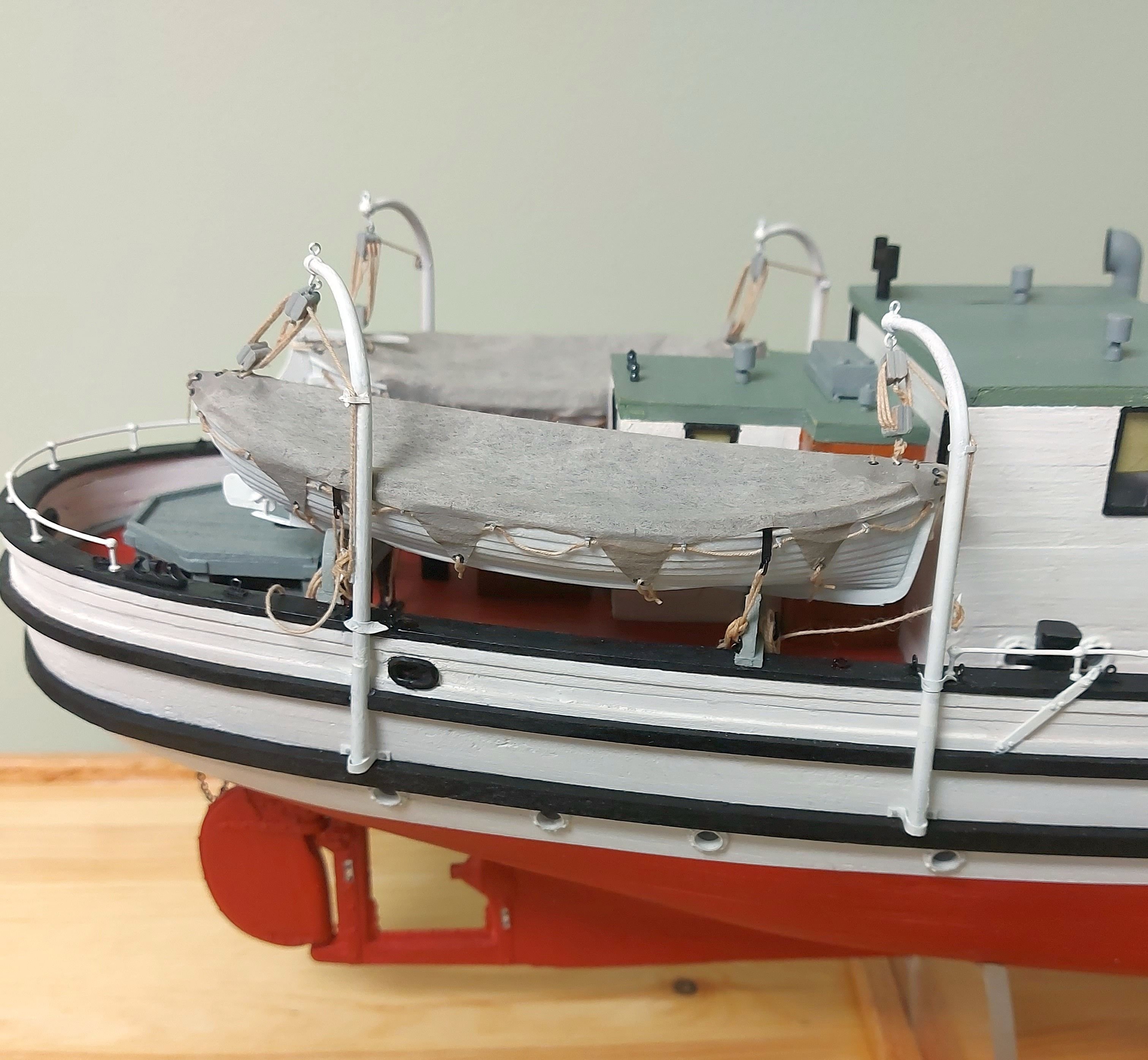

The davits started out as Caldercraft items, they have the correct shape and taper. I removed the Caldercraft parts from the davits and added my own eyepins and cleats for accuracy. The cleats are held to the davit with a wire pin for strength.

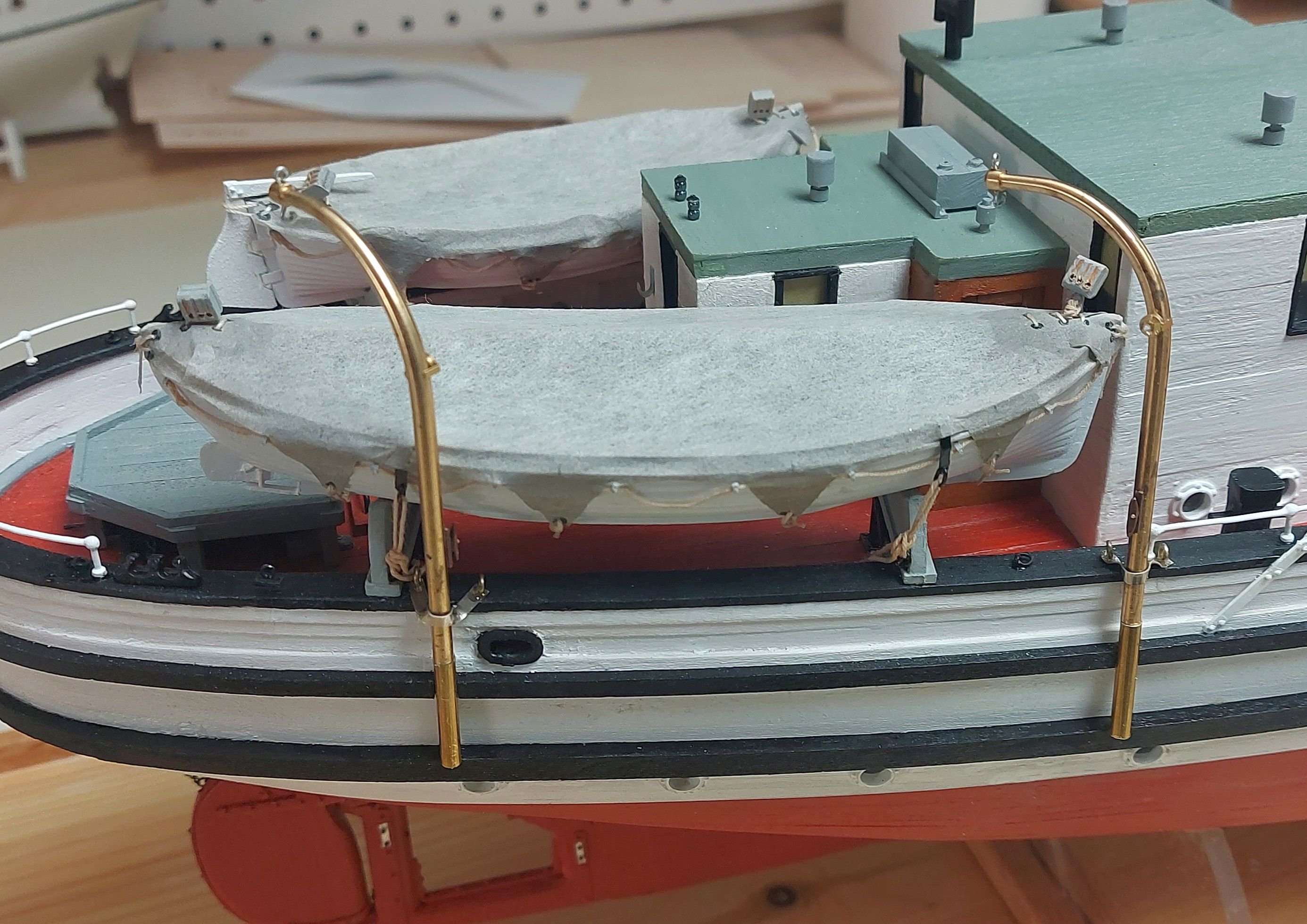

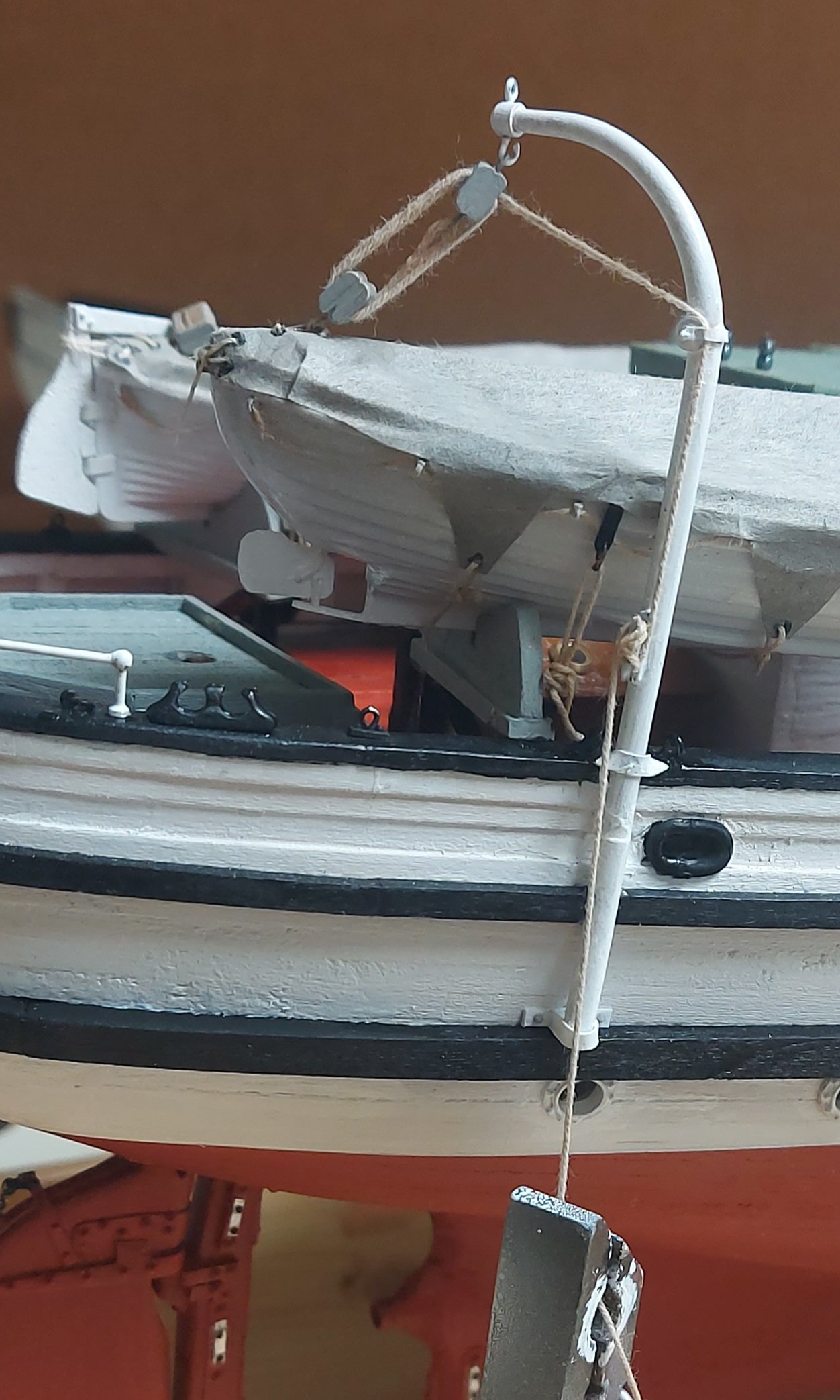

One davit is laid out with the blocks spaced as they will be once rigged. I still need to add a pulley guide, then make the davits longer to correctly fit the model. Then it will be off to the paint booth and assembly.

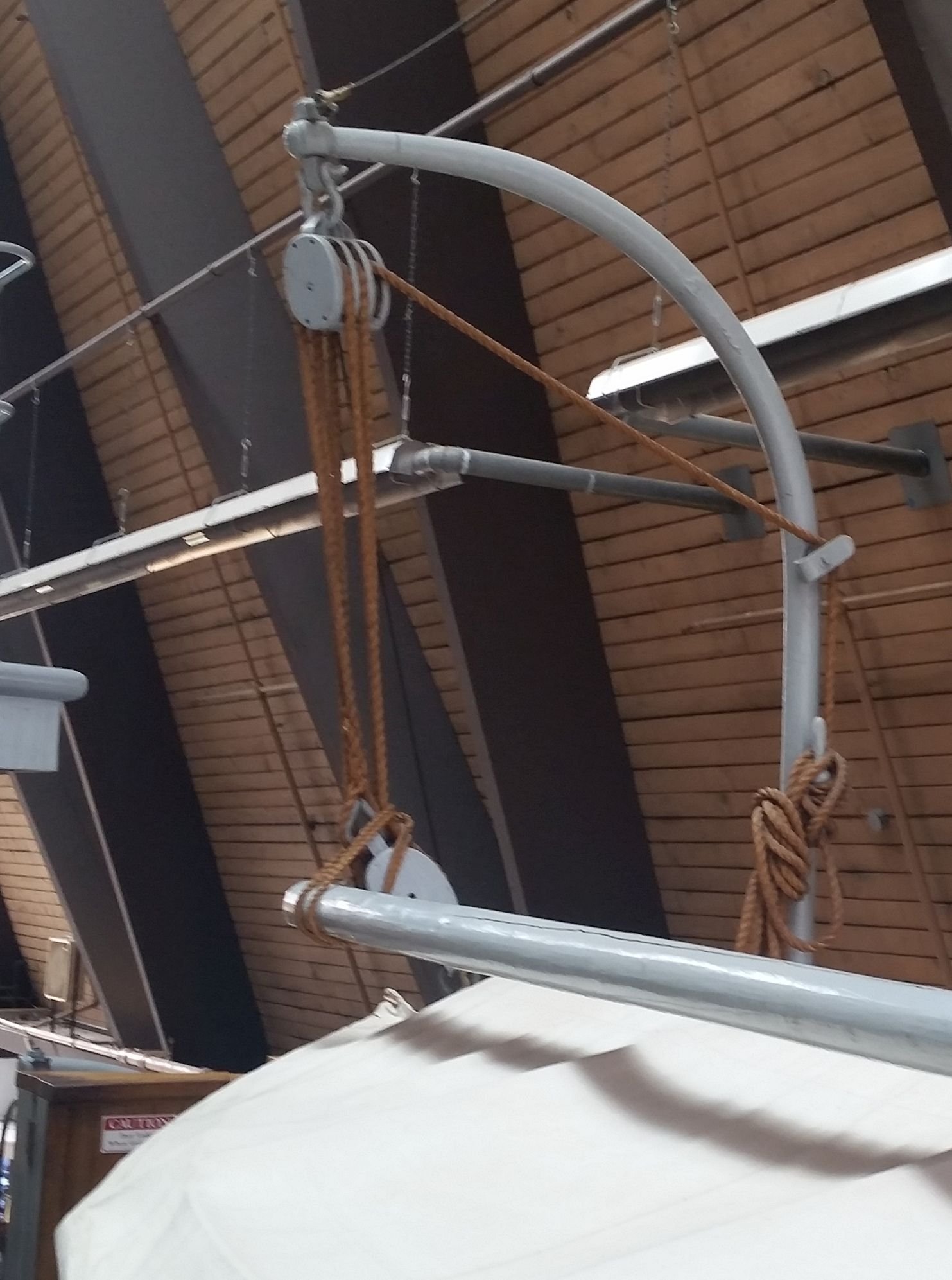

The blocks on St Roch are metal clad... I will try and round mine a bit more without breaking anything, we'll see how that goes! I will paint them grey except for the sheaves. The next picture shows one of the motorboat davits on St Roch.


The picture shows griping spars, but period photos do not show them, so I will be leaving them off the model. Period pictures also do not show the falls coiled onto the davit cleat... not sure where they were hung so I'll have to do some thinking on that.

Getting closer to adding more fiddly bits to complete the hull!

Bruce
