druxey Posted December 18, 2023 Share #61 Posted December 18, 2023 And you are an artist in wood! CiscoH 1 Quote Be sure to sign up for an epic Nelson/Trafalgar project if you would like to see it made into a TV series http://trafalgar.tv Link to comment Share on other sites More sharing options...
a.sorolla Posted January 26 Author Share #62 Posted January 26 Hi I have spent a few days making the decorations of the stern of the frigate La Mahonesa. I leave here some photos of the work I am doing Cordially Adrián Sorolla chris watton, native one, dvm27 and 14 others 17 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted February 7 Author Share #63 Posted February 7 Hi I made the stern of the frigate La Mahonesa I leave a lot of photos, if they can be useful for those who are building this frigate Adrián Sorolla native one, Siggi52, ChrisLBren and 9 others 12 Quote Link to comment Share on other sites More sharing options...
KLarsen Posted February 8 Share #64 Posted February 8 It looks amazing! Please keep posting lots of photos, they help me a lot since I'm building a stern cross section of the same ship 😄 mtaylor 1 Quote Link to comment Share on other sites More sharing options...
Tobias Posted February 10 Share #65 Posted February 10 Hello Adrian, I read today in the French forum that you are there in Evian. I'm happy to see your models in person. mtaylor 1 Quote Auf der Werkbank: Corvette La Palme (L'Amarante) von 1744 POF nach Plänen von Ancre https://modelshipworld.com/topic/32046-la-palme-by-tobias-136-pof/ https://modelshipworld.com/topic/29843-le-coureur-1776-by-tobias-caf-148/ LE ROCHEFORT - Hafenyacht von 1787 1:36 von Tobias (Monographie von ANCRE) https://modelshipworld.com/topic/34810-le-rochefort-1787-by-tobias-136-harbor-yacht-from-ancre-monograph/ Link to comment Share on other sites More sharing options...
a.sorolla Posted February 10 Author Share #66 Posted February 10 2 hours ago, Tobias said: Hello Adrian, I read today in the French forum that you are there in Evian. I'm happy to see your models in person. Hi Yes, I will be in Evian les Bains (Haute Savoie) in October 2024, it will be a pleasure to meet us personally Adrián Sorolla mtaylor and Tobias 2 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted February 10 Author Share #67 Posted February 10 Already on other work, I have realized the escuppers of the main bridge, in the external part of the side. Adrián Sorolla JacquesCousteau, Tobias, native one and 6 others 9 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted February 13 Author Share #68 Posted February 13 Realization of the interior of the captain’s chamber, 1st part, the ground Adrián Sorolla JacquesCousteau, davec, druxey and 10 others 8 5 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted February 28 Author Share #69 Posted February 28 Hi Realization of the 2nd part captain’s camera Adrián Sorolla native one, JacquesCousteau, Siggi52 and 12 others 12 3 Quote Link to comment Share on other sites More sharing options...
scrubbyj427 Posted February 28 Share #70 Posted February 28 Magnificent!! mtaylor 1 Quote Current Builds: HMS Winchelsea 1764 1:48 - 5th rate 32 gun frigate (on hold for now) HMS Portland 1770 Prototype 1:48 - 4th rate 50 gun ship Link to comment Share on other sites More sharing options...
a.sorolla Posted March 4 Author Share #71 Posted March 4 Hi Modification of the decorations of the walls, the panels in the form of molding are much better Adrián Sorolla JacquesCousteau, mtaylor, GrandpaPhil and 5 others 8 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted March 4 Author Share #72 Posted March 4 Hi Continuing with the embellishment of the stern, this time the installation of the decorations in the stern, it is only a top decoration glued to the corning and a tiny cutlet with the name of the boat. These decorations are drawn by Fermin Urtizberea Oronoz, in 3D and relined in CNC by Migue, Miquel Rodríguez García Adrián Sorolla wefalck, mtaylor, davyboy and 10 others 13 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted March 9 Author Share #73 Posted March 9 Hi With the bulkhead closing the chamber, the "fine" carpentry is for later, now and before installing more equipment on the deck I will make the lining of the submerged part of the frigate’s hull since for this operation I have to put the keel up. Adrián Sorolla mtaylor, JerryTodd, wefalck and 12 others 15 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted May 24 Author Share #74 Posted May 24 Hi After several weeks of work the outer lining of the hull of the frigate is completed. The starboard side is completely lined, and the port side releases the openings made in the structure to be able to show the interior Some photos show the realization and, at the end, some details of the simplified nail of the boards . Adrián baskerbosse, native one, mtaylor and 14 others 12 5 Quote Link to comment Share on other sites More sharing options...

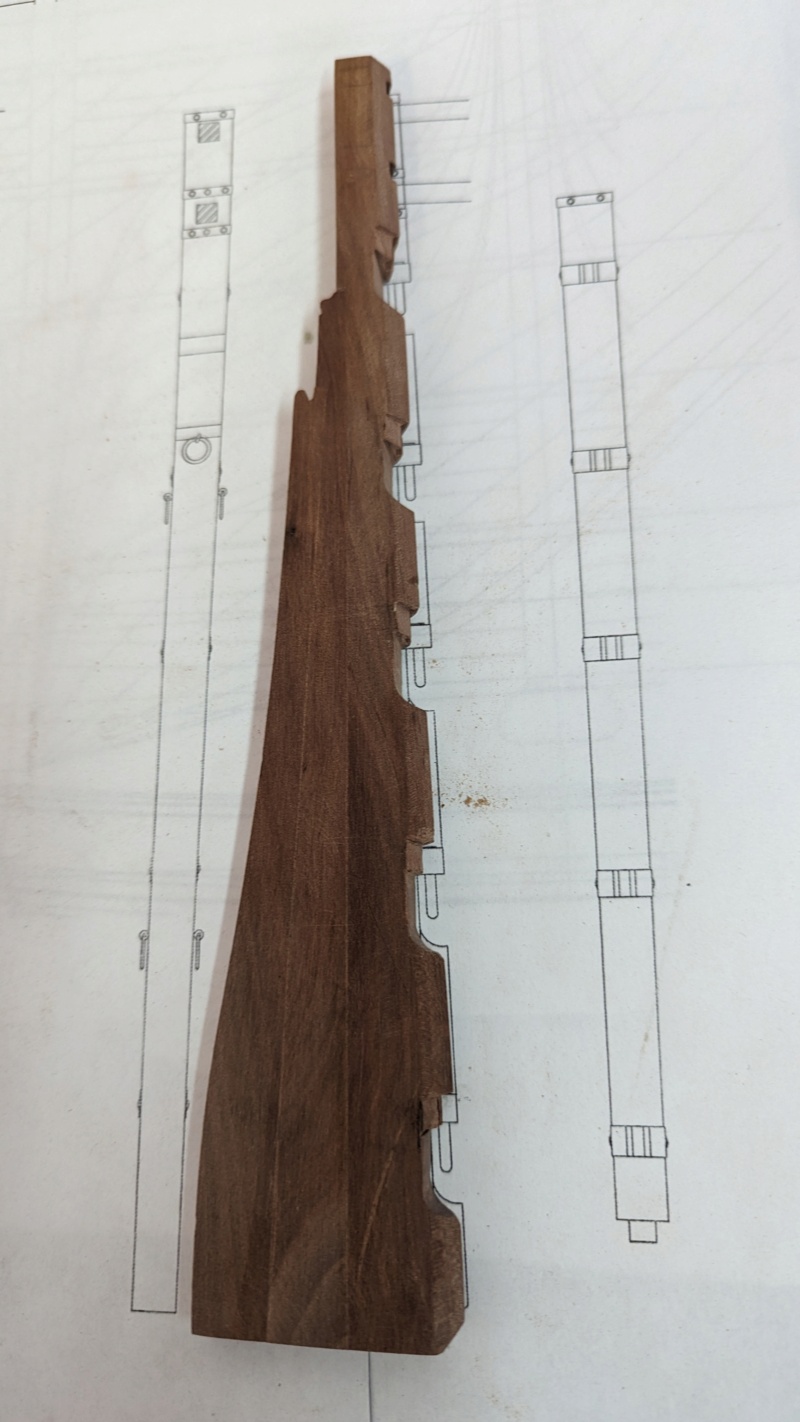

a.sorolla Posted Saturday at 03:55 PM Author Share #75 Posted Saturday at 03:55 PM Hello I want to update the work done these last months on the frigate La Mahonesa, First the realization and installation of the rudder In the previous photo I want to emphasize the separation between the "rudder" and the "post" that must be minimal or rather null, to avoid that it can be placed any foreign element. thank you davyboy, davec, KentM and 5 others 8 Quote Link to comment Share on other sites More sharing options...

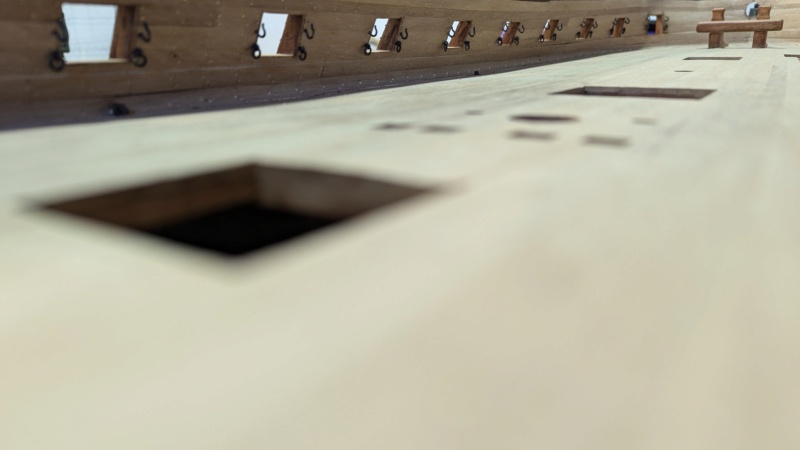

a.sorolla Posted Saturday at 04:31 PM Author Share #76 Posted Saturday at 04:31 PM (edited) This post, deals with the realization and installation of artillery bolts in gun ports battery Due to the complexity in the realization of the bolts, given the differences in thickness of the ship side, although the hole is through from outside to inside, I relined the bolts in two pieces. Artillery bolts.mp4 thank you Edited Saturday at 04:55 PM by a.sorolla include video PaddyO, Rack, albert and 6 others 9 Quote Link to comment Share on other sites More sharing options...

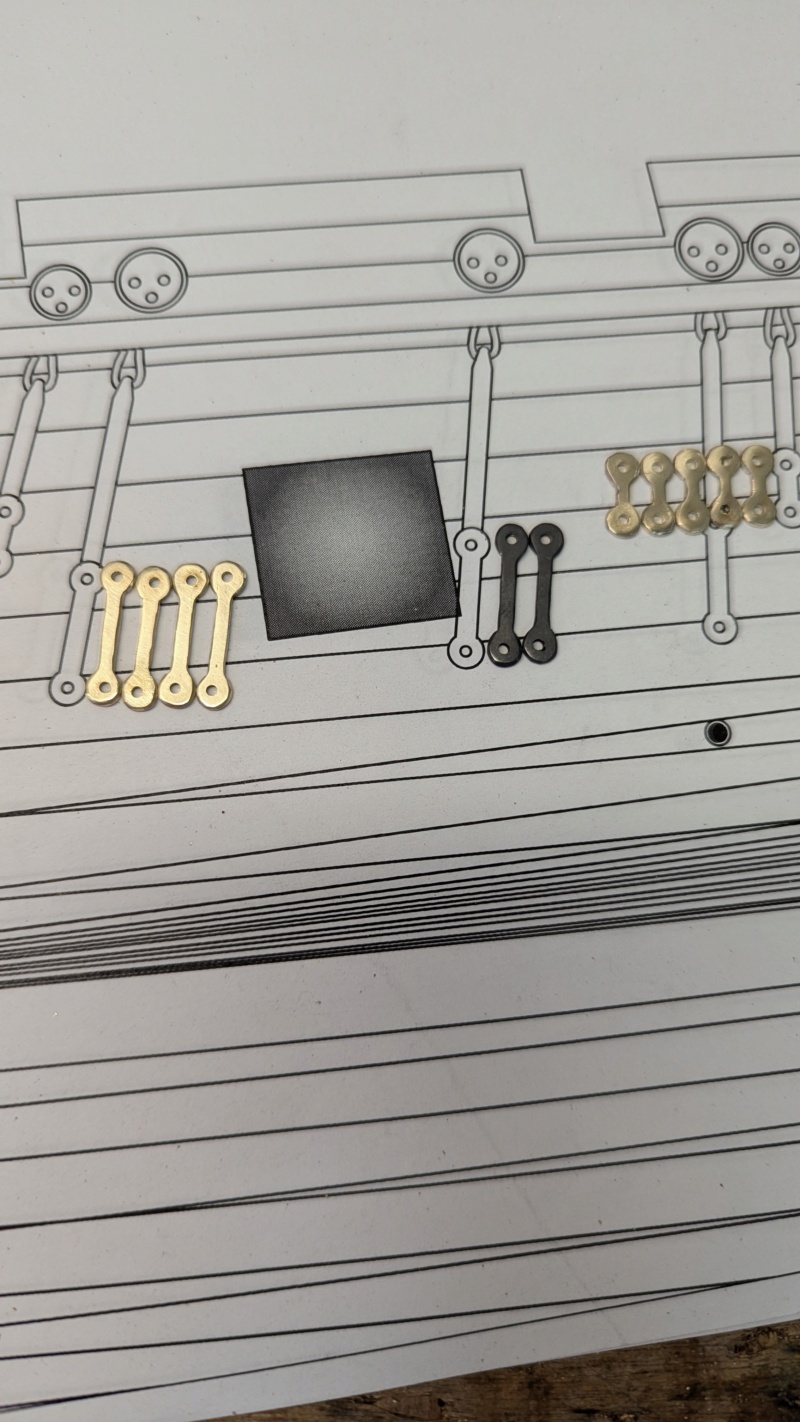

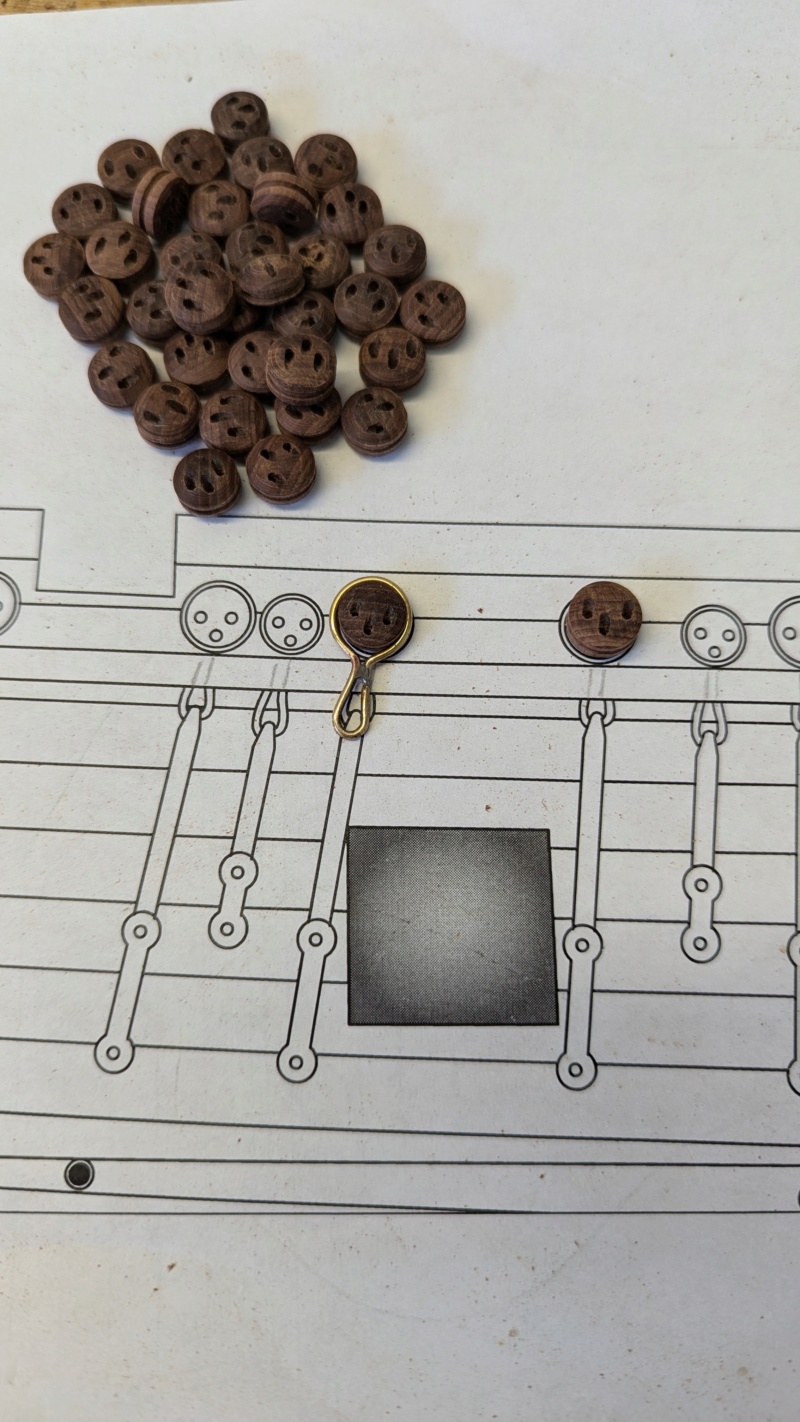

a.sorolla Posted Saturday at 05:38 PM Author Share #77 Posted Saturday at 05:38 PM Now the manufacture and installation of chain wales, channels the masts. We begin by making the tables, which are composed of several boards. Construction of reinforcement curves In the previous photo you can see the profile that the table has to have, which is flat at the water line and with a slight slope towards the outside on the upper side, so that the rainwater comes out. Next, manufacture of the dead eye: Manufacture of bindings: The technique is to use a printing with printer toner and transferring the drawing to the brass tape, with wetting the back of the paper with some solvent liquid. thank you druxey, davyboy, KentM and 4 others 7 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted Saturday at 06:04 PM Author Share #78 Posted Saturday at 06:04 PM Continuing on the outside of the hull, we arrive at the fore ship, preparation of the curves bowsprint and the eyes of a ship: cordially KentM, mtaylor, dvm27 and 1 other 4 Quote Link to comment Share on other sites More sharing options...
a.sorolla Posted Saturday at 06:04 PM Author Share #79 Posted Saturday at 06:04 PM (edited) I am posting many photos to follow the construction process of this model, as a supplement to the monograph, if they can serve the modelers colleagues who are working on this beautiful frigate, but if apart from these photos anyone needs further clarification can contact me sending a private and I will respond without delay. Mahonesa Octubre 2024.mp4 Adrián Sorolla Edited Saturday at 07:45 PM by a.sorolla KLarsen, davyboy, Stavanger and 4 others 6 1 Quote Link to comment Share on other sites More sharing options...
