KennyH78

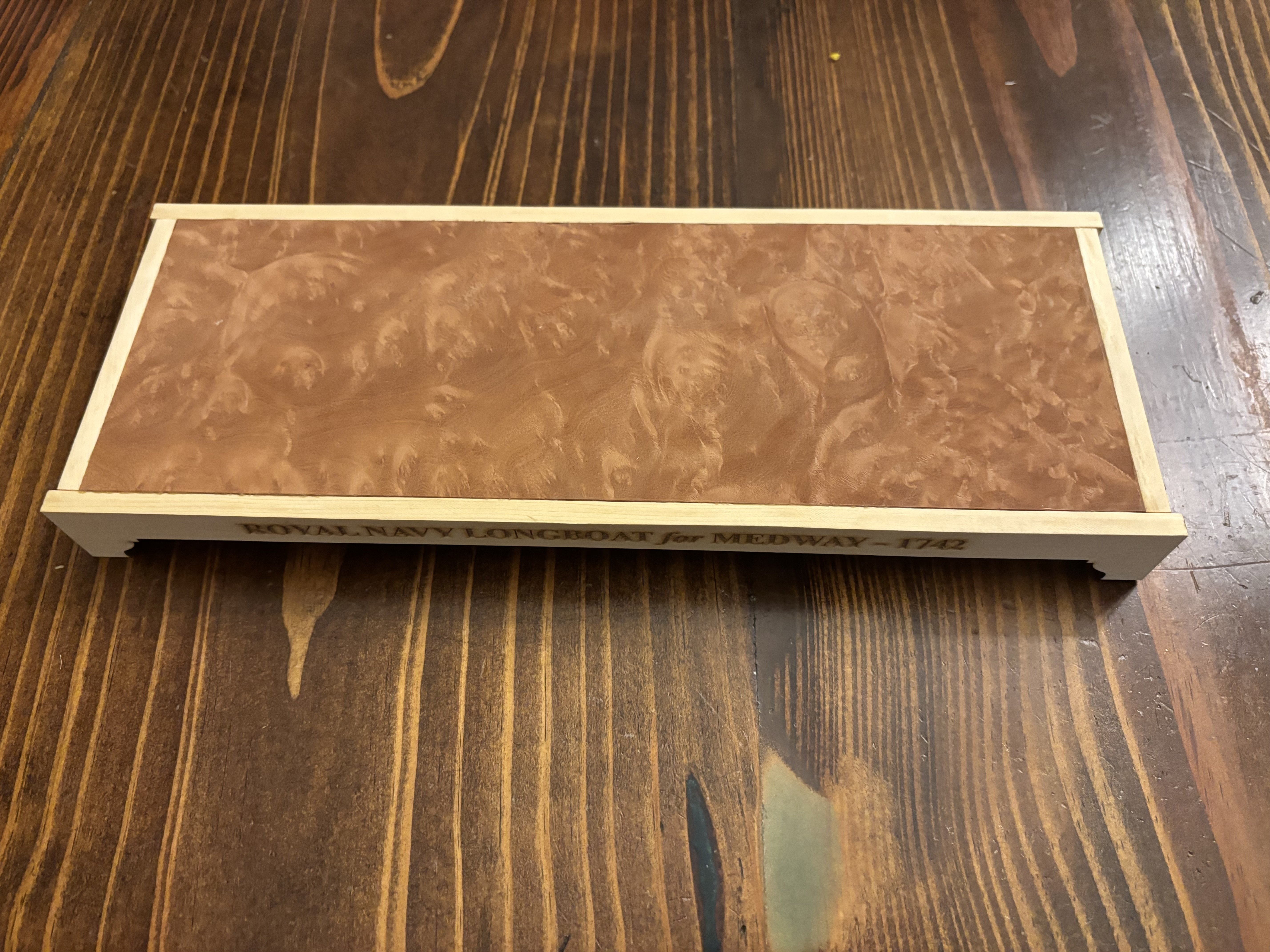

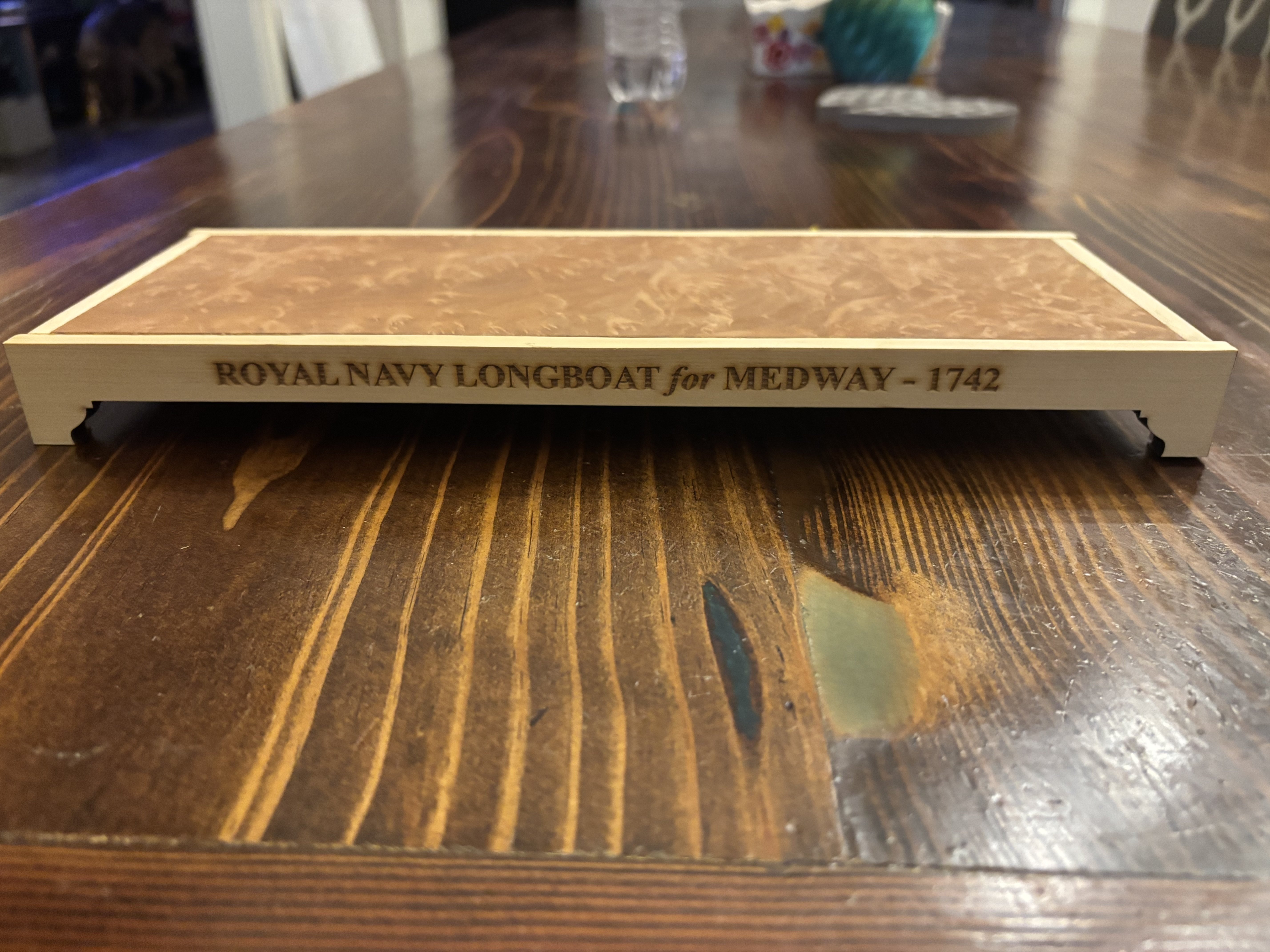

Got some more work done on the display base.  All that is needed to do is to get the ends trimmed flush, sand it all smooth and apply some wipe on poly.

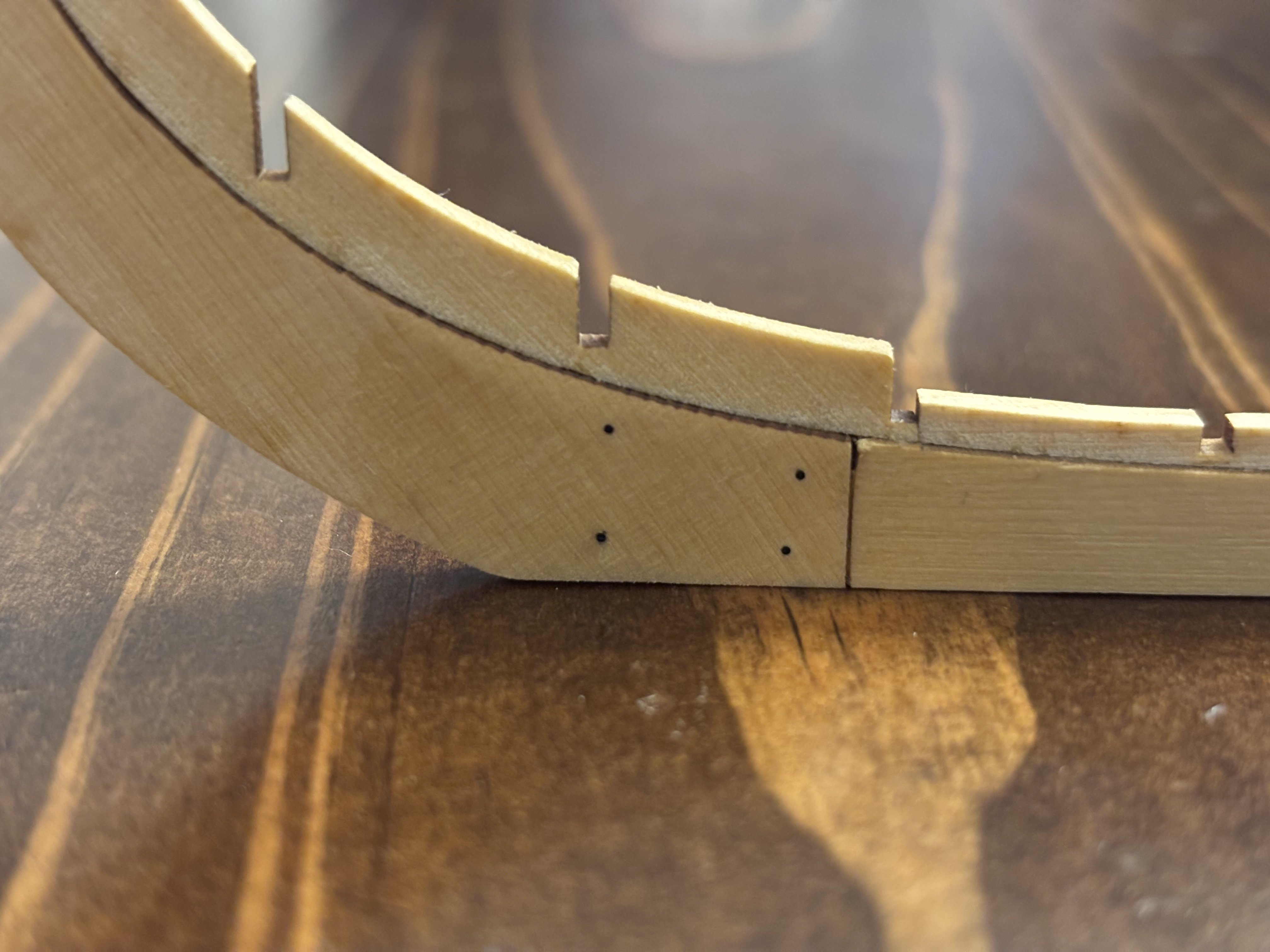

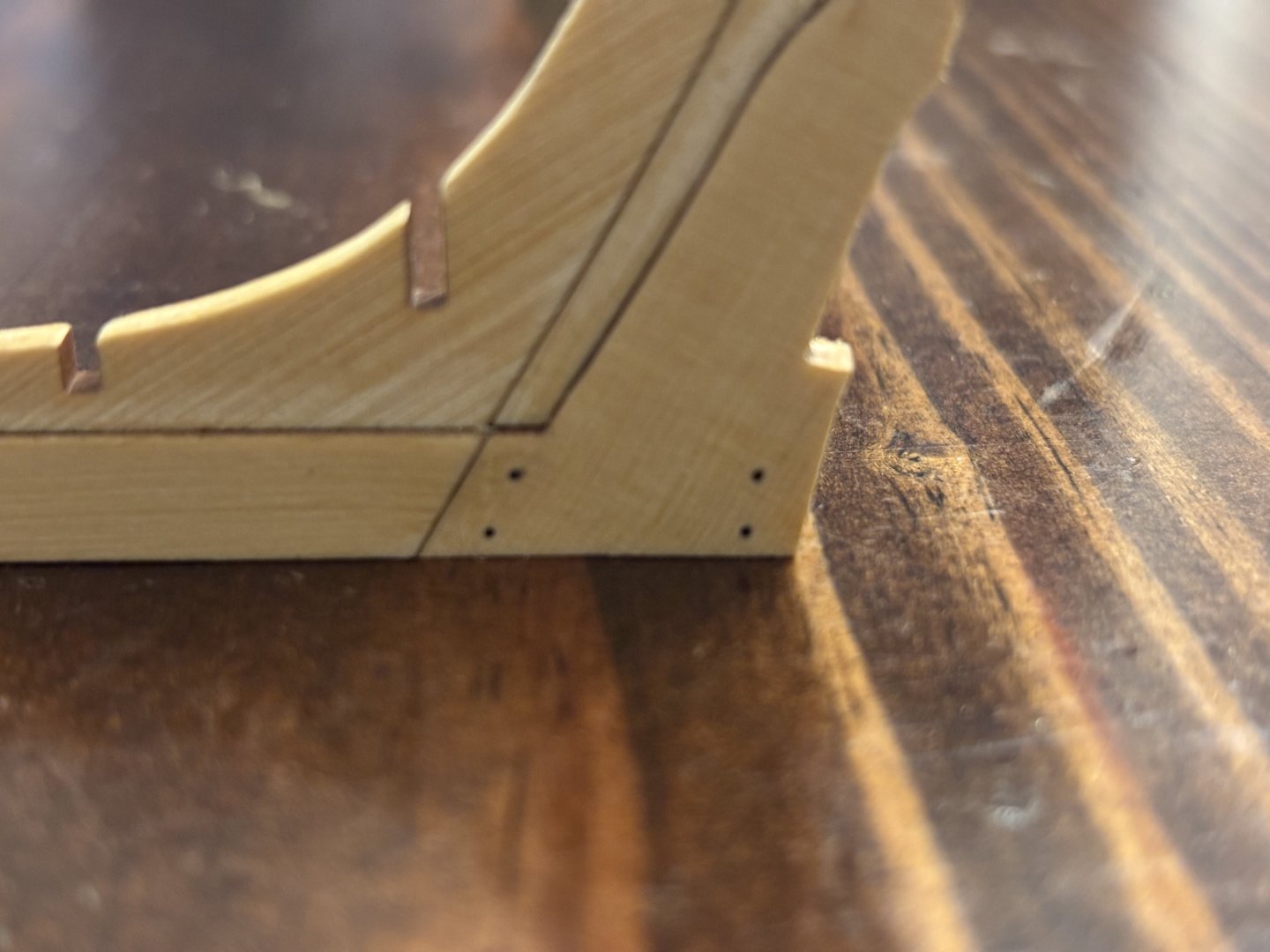

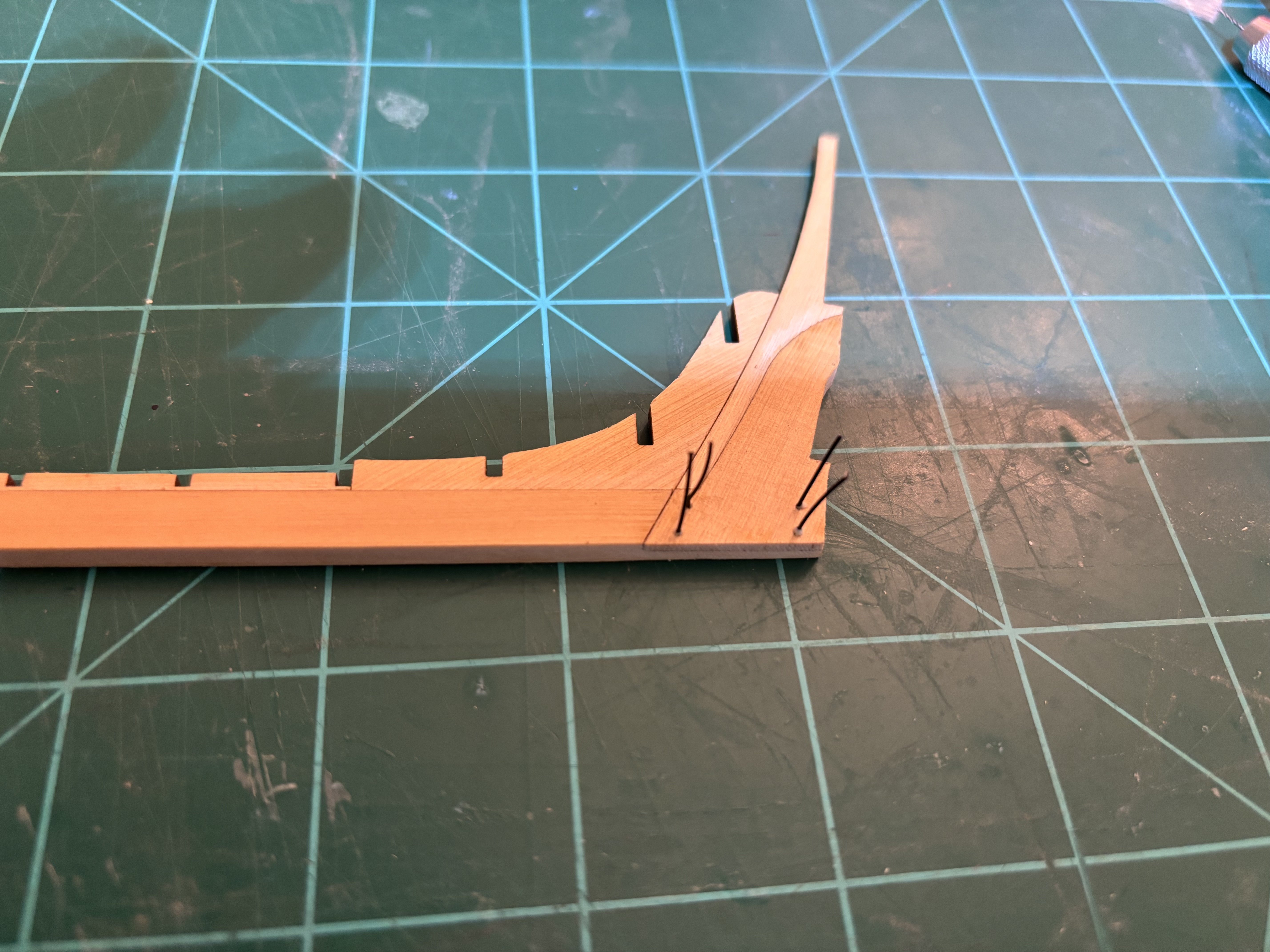

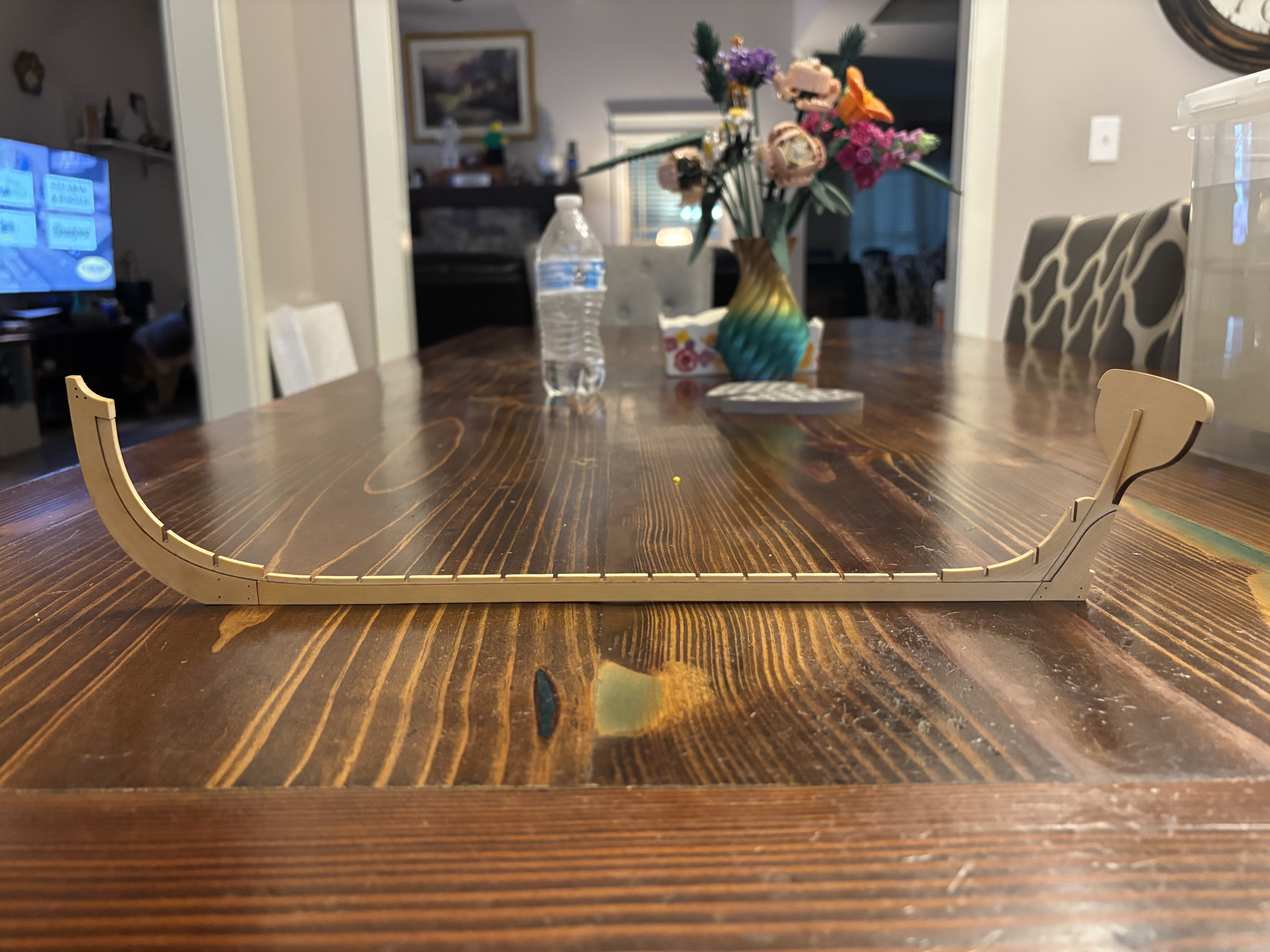

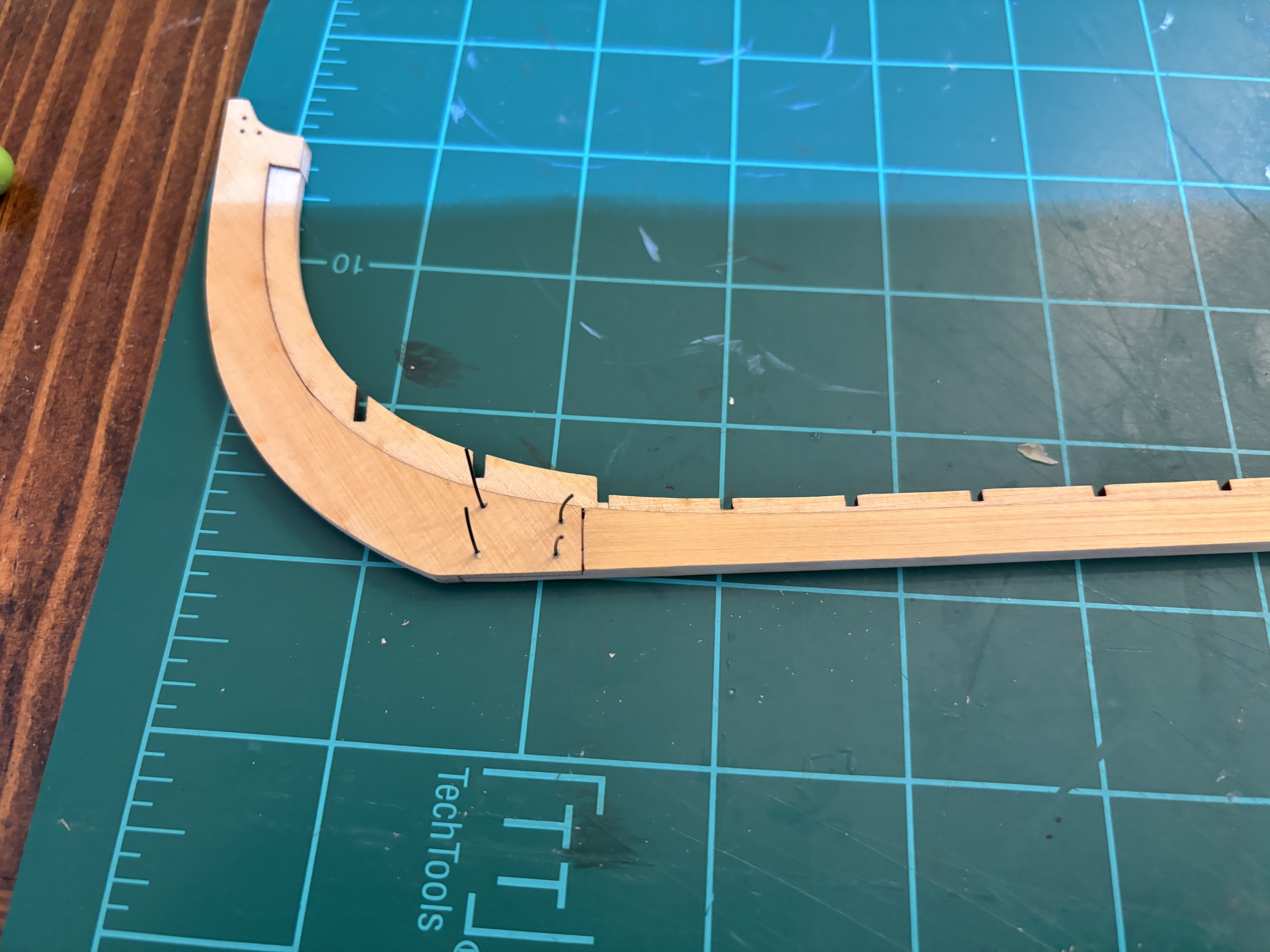

I also got the bolts installed on the keel and glued the transom in place.

Now it is time to start focusing on the frames.

Thanks for the tip, Ronald.  I definitely go and check out those logs to see if I can get it all sorted out.  Might even grab some balsa from the local Hobby Lobby and remove some planks and access the area to get the planks to run better.

It has been a hectic year since my last post, or since any work has been accomplished on Confederacy for that matter.  Life got in the way.

Anyways, I was finally able to the first layer of the wales installed.  Not the best looking planking job, but it will is going to be covered up by a second run.

I think I will be painting the hull instead of staining it.  That will help to hide some of my imperfections.  I also plan to use some wood filler at the bow to help smooth out the planks there before adding the second run of the wales.

The mid and aft section on each side came out pretty good and should only require some sanding to smooth things out.

At the stern is where I am really unsure as to how to proceed.  I am having a really hard time trying to figure out how to get the planks to bend enough so that they will tuck into the stern planks.

I may just do the best I can and then add a trim piece to cover up any gaps.  Not 100% on that yet, time will tell.

I have had this kit stashed in my closet for over a year and figured it was about time I got started on it.  I only have the boat and the custom display base mini-kit.  I was unable to procure the mast and rigging package.  I may still try to build it with the mast and have it rigged out if I can find some info on how it is rigged.  I have already built the Model Shipways longboat kit.

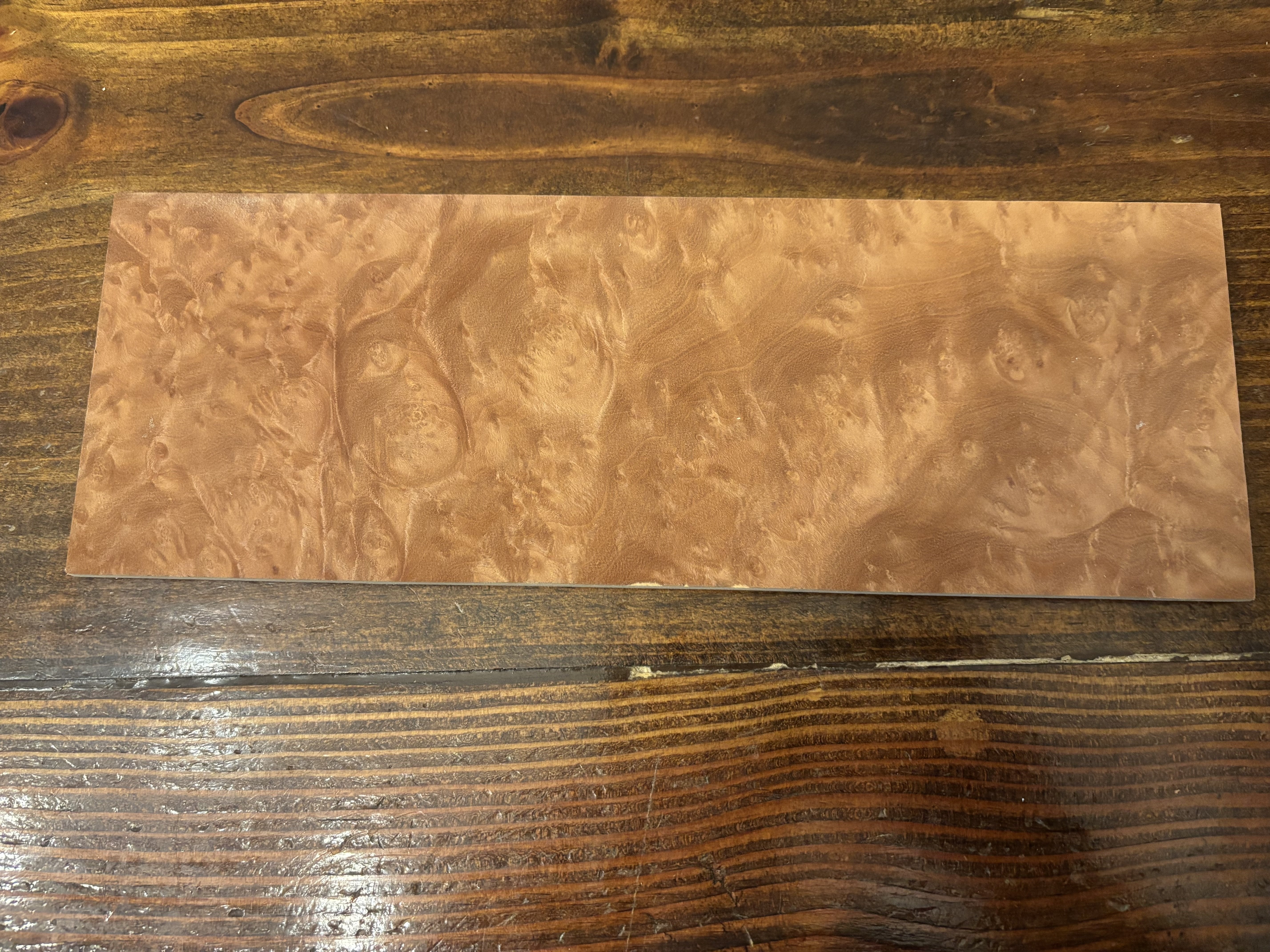

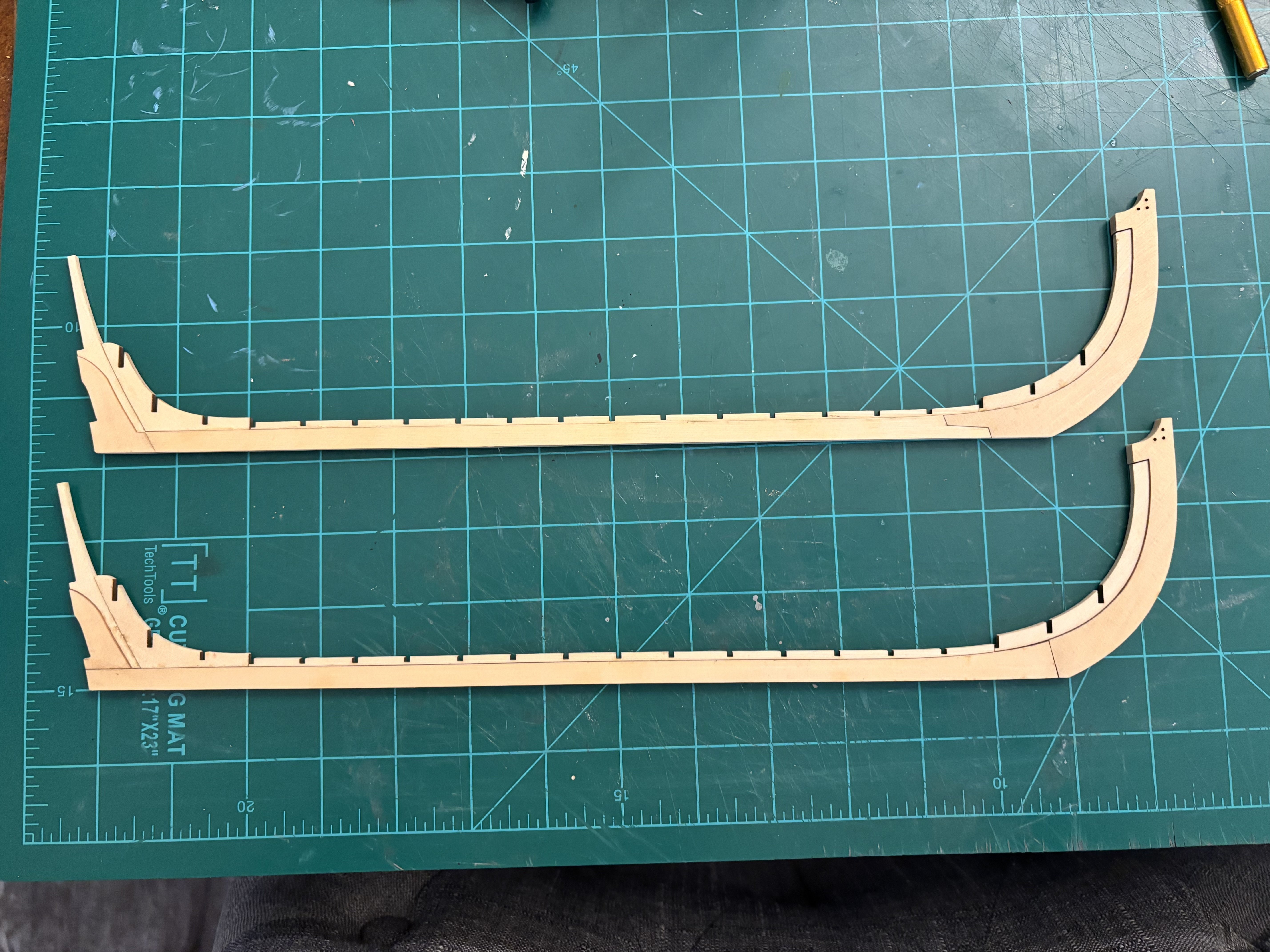

I started out by glueing the veneers onto the 1/4” cherry piece for the base (I’ll post a pic of that on my next update).  Then I built up both versions of the keel.  I have still yet to decide which version I will use, but I leaning on using the more accurate version (the one that Chuck had you carve the joints).  I’m going to put some wipe on poly on them both and then make my decision tomorrow.

Sold.

Chuck, thanks for the update on that.  If it doesn’t sell before I finish up my current project, I will probably continue the build.  It is a fantastic model and I would love to build.  Time is my biggest enemy though.

I am looking to sell my cut out frames and false keel along with chapters 1-5 for Chuck’s HMS Winnie build.  I am selling it because I don’t think that I will be able to get back to the build before all of the rest of the chapters are sold out on his site.  I also have the figurehead kit going with it as well.  Most of the frames have already been fitted to the false keel (none of the frames have been glued to the false keel), the aft section still needs some final fitting done.  I’ll separate the frames from the false keel pieces before shipping.  I am asking $300 plus shipping for the whole lot.  PM me with any questions you may have.

As always, I have no words.  Truly exceptional work!  She is turning out to be a model that is worthy of display in the Smithsonian.

Glenn, the boarding ladder came out beautifully.  And no one would have know about the slight mishap when turning her over if you hadn't mentioned it.  A testament to your work and attention to detail!

She is looking quite exquisite! Beautifully done!

Chuck, the chairs, table and cushions are next level!  Just when we think that you can't possibly outdo yourself; you yell out "Hold my beer!"

Chuck,  your bulkhead looks absolutely amazing!

Such amazing work!  If one did not know better, one might say that you are actually building a real ship and not a model.

Starboard side is now planked up the sheer.  The port sweep and ballast port lids have also been installed.

The port side sweep ports and ballast port lids have also been installed.

Next task is to do a rough sanding on the planks, install the remaining 3 blanks for the main wales on both side and then install the second layer on the main wales, channel wales and black strake.

JJ, coming along nicely and I must second the comment by Allan on the attention to detail.  Your model will look stunning next to your Winnie.

1 hour ago, scrubbyj427 said:

stolen by my lovely neighbors

That really sucks, I hope that you are able to get your timber back.  Seems like you just can't trust anyone anymore these days.  That is why I have cameras set up all over the exterior of my house.

A quick update on the build.  All 10 bulkheads that fit onto the midship former have been finish shaped and fitted to the former with sanding sticks and files.  I have also fitted all 3 former pieces to each other and will start working on the slots of the stern former and bulkheads in the next week.

Looking great Chuck!  She is going to be conversation starter for sure when on display.

1 hour ago, Nirvana said:

Chuck, I am loss of words! Pure Beauty!



My thoughts exactly!

Looking really good. Glenn.  She is shaping up to be a very superb model.

1 hour ago, scrubbyj427 said:

What ply did you use?

The ply that I used is 1/4” basswood ply that I bought off of Amazon. I got 6 sheets of 12x24 for $36.  So far I have had zero issues with it.

https://www.amazon.com/Basswood-Unfinished-Plywood-Rectangular-Architectural/dp/B0CG4JHZKR/ref=sr_1_1?crid=3MB3KVILE9HBK&keywords=6%2BPack%2B12%2Bx%2B24%2Bx%2B1%2F4%2BInch-6mm%2BThick%2BBasswood%2BSheets%2Bfor%2BCrafts%2BUnfinished%2BPlywood%2BSheets%2BRectangular%2BWood%2BPanel%2BBoards%2Bfor%2BDIY%2BLaser%2BProject%2C%2BWood%2BBurning%2C%2BEngraving%2C%2BArchitectural%2BModels%2C%2BStaining&qid=1707695587&sprefix=6%2Bpack%2B12%2Bx%2B24%2Bx%2B1%2F4%2Binch-6mm%2Bthick%2Bbasswood%2Bsheets%2Bfor%2Bcrafts%2Bunfinished%2Bplywood%2Bsheets%2Brectangular%2Bwood%2Bpanel%2Bboards%2Bfor%2Bdiy%2Blaser%2Bproject%2C%2Bwood%2Bburning%2C%2Bengraving%2C%2Barchitectural%2Bmodels%2C%2Bstaining%2Caps%2C110&sr=8-1&th=1

Thank you for all of the likes.

Progress is moving along, even if it is at a snail's pace.  I got bulkheads K-W fitted to the forward former.  The forward former piece is also fitted to the middle former piece.

The bulkheads are only dry fitted right now.  Working on the middle former piece now along with bulkheads I through 9.

I also cut out the pieces for the skeleton hold up clamps on my X-Carve.  So far I have 2 of them assembled; only 4 more to go.  Once I get these all assembled and the bulkhead former completed, I will make the build board for the model.

As always, thanks for looking in on my log; any and all comments are welcomed.

Why am I always late to the party?  Simply amazing with the design and build so far, I will be following along intently with my bucket of popcorn and chair.

Finished up the planking above the wales on the port side.  It just needs sanding to smooth it all out before adding the second layer for the channel wales and molding and sweep port covers.  I'll sand it after I finish up the starboard side.

To get the rabbet consistent on the gun ports, I used my guitar string set up rule since it provides measurements down to 1/64 of an inch.  I have also decided that I will be painting the hull the above the wales instead of staining it.  I like the look of the painted hull better.

What an awesome technique for making the eyebolts look more to scale.  I will be incorporating this way of making them for sure.  Those lower platforms look absolutely amazing.

That is one fine looking half hull merchantman model.  I am currently planking mine at the moment to gain some experience.  I started with planking the wales and up; and plan to use Chuck's method of planking below the wales.

Can't wait to see some more progress on your Winnie.
