Pomeranian Rahschlup 1846 by wefalck – 1/160 scale – single-masted Baltic trading vessel

[BANYAN]

Nice result Eberhard.  I am enjoying following your foray into the unknown with these materials.



cheers



Pat

[wefalck]

Thanks to all for your continued encouragement ! Slow progress due to business travel-related absence from the workshop ...



*************

Planking the bulwarks



The planking of the bulwarks follows the same procedure as that for the hull, but had to be handled much more careful, as the inside will be visible and there will by no adjustments possible by sanding or scraping. The main reason for the latter is, that the planks are of scale thickness (0.25 mm) and profiled.

Section through a bulwark drawn by Friis-Pedersen (1980).



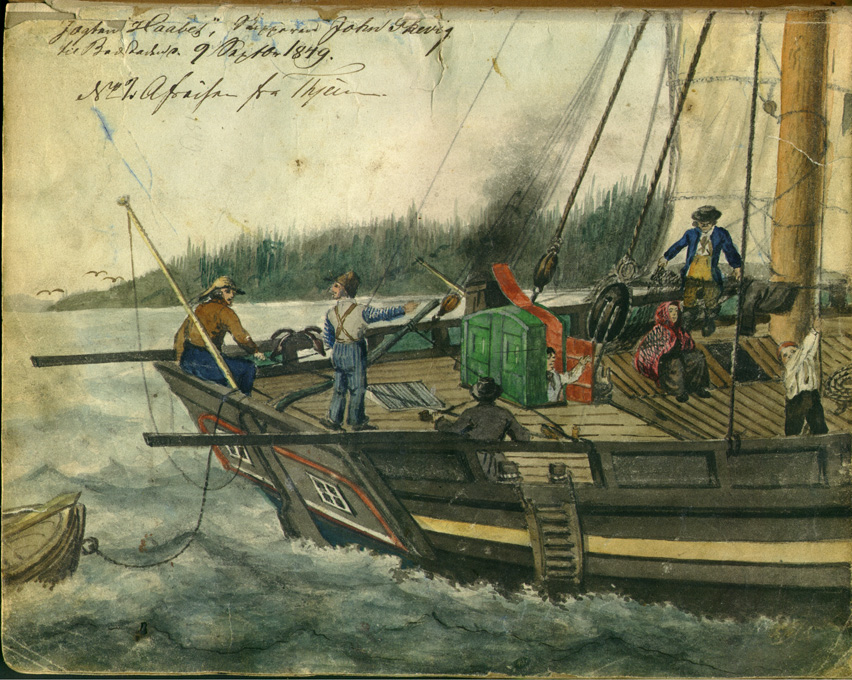

As can be seen from the two images above and below, it was not uncommon to give the edges of the planks a decorative profile by using an appropriate profile plane.

Bulwark of a Swedish jagt, photographed in November 2023 in Stockholm



I had been exploring various ideas for creating these profiles on tiny 1 mm x 0.25 mm styrene ‘planks’ uniformly and consistently close to the edges. In the end I decided on a simple and rather makeshift solution: a steel ruler was taped to a small cutting-mat to serve as guide for the very flexible strips. The chosen tool is an old-style ruling pen, of which I have several knocking about in my drawer of draughting utensils. This was set so that it creates a groove close to the opposite edge, when run along the edge of the strip. This works only for strips of uniform width.



It was important to prevent the styrene strips from softening too much during gluing, therefore only tiny drops of liquid styrene cement were applied to each stanchion.



Somehow the alignment of the bulkheads was not as perfect as I was hoping for, resulting in some bulges. I hope I will be able to correct/hide this somehow.



Another problem is that the styrene strips of scale thickness are rather floppy, so that edge-alignment is rather difficult. I hope that I can also sort this out.



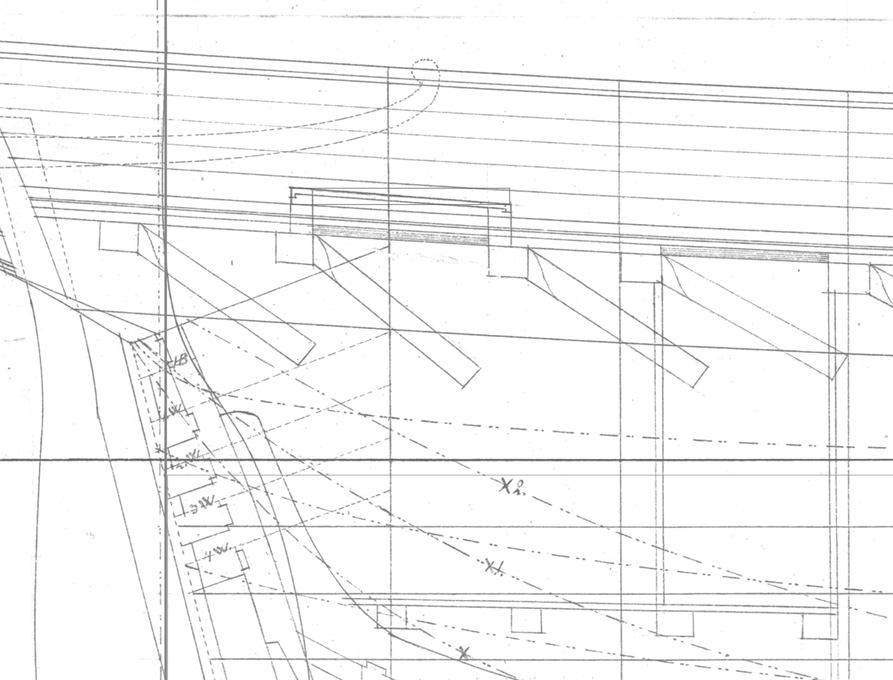

Once the planks were on, I installed the hawse-timbers between the stem and the cant-frames in the bow.

Next on will be the rails.



To be continued …

[wefalck]

Thanks for the 'likes' !



***********************

Fitting the rails



The rails are 0.75 mm x 1.50 mm styrene strips on top of the bulwark and a 0.75 mm x 2.00 mm strip over the stern. The edges of the strips are rounded.



To this end I cut a scraper from a piece of razor-blade which is held in a short pin-vice. The strip is held in a simple jig made from cardboard. Strips of cardboard were cut with clean and vertical edges and glued to a cardboard-base so that styrene strips of 0.25 mm, 0.50, and 0.75 mm thickness can be wedged into the resulting notch, holding it straight and vertical.



In this way a clean and uniform profile of the styrene strip can be achieved quickly.



The styrene strips then were pre-bend, holding them lightly in round-nosed pliers and by ‘massaging’ them around my thumb to make them conform to the sheer-line as closely as possible. They then were glued onto the stanchions and the top bulwark strake using styrene-cement.



As can be seen from the cross-section shown in the previous post, the profile of the rail may be even more sophisticated with some cornice planed in. I simulated this my lacquering a 0.1 mm copper wire into the outboard corner under the rail.



The next step will be puttying up any small gaps that have developed during the planking process.



As one can see on the pictures, I also started to work on the deck by making a paper template for it.



To be continued …

[Keith Black]

For being that tiny those are some well executed cap rails, Eberhard.  🙇

[Jim Lad]

Very well executed, mate!



John

[BANYAN]

At that scale everything so far is very well done; very crisp and a; lot of detail.



cheers



Pat

[wefalck]

Thanks, gentlemen, for your continuing encouragement and the many 'likes'



*****************************************************************************

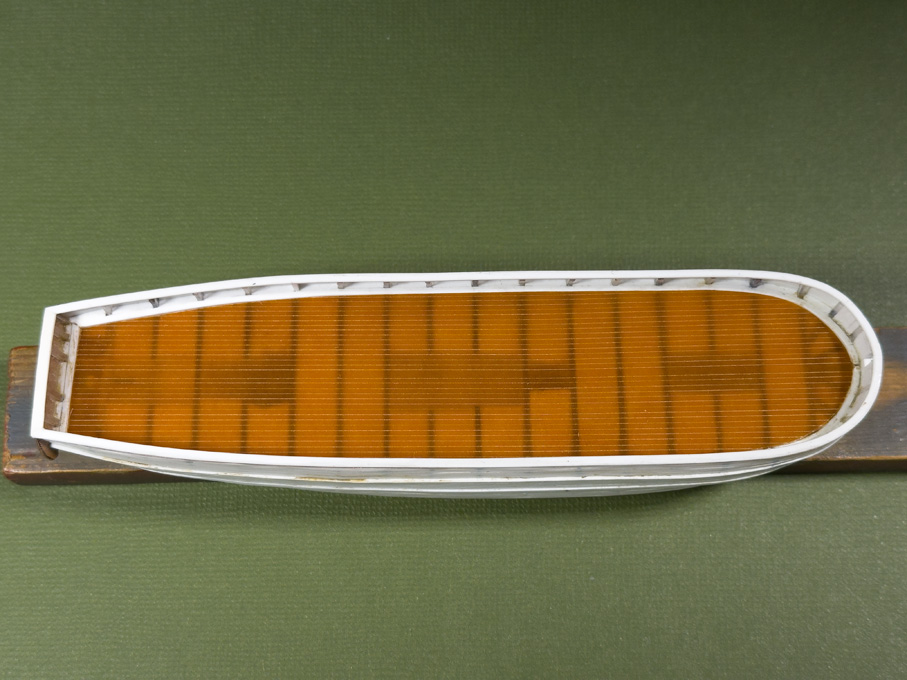

Fitting the deck



The deck is made from 0.4 mm thick Bakelite-paper. I find it easier to engrave the deck-seams consistently into this harder material with my tools, then into the softer styrene sheet. Perhaps I should get some day one of those hooked engraving tools the plastic modellers use (I have the suspicion these are the same tools as dentists use to scrape of ‘plaque’ – I have one of those and perhaps should have tried).



I first printed out the deck-drawing, cut out the shape and fitted it to the ship. Using the paper template, the shape was cut from the Bakelite with a small margin. This then was fitted very carefully in an evening’s session. Fitting started from the stern working forward, taking off material with a diamond nail-file while checking the fit after a couple of strokes.



A tight fit is important, as the whole idea is to paint the deck off-ship to avoid a complex masking exercise. Also, the painting process (as described in the build-log for SMS WESPE) would be difficult to exercise within the constraints of the bulwark.

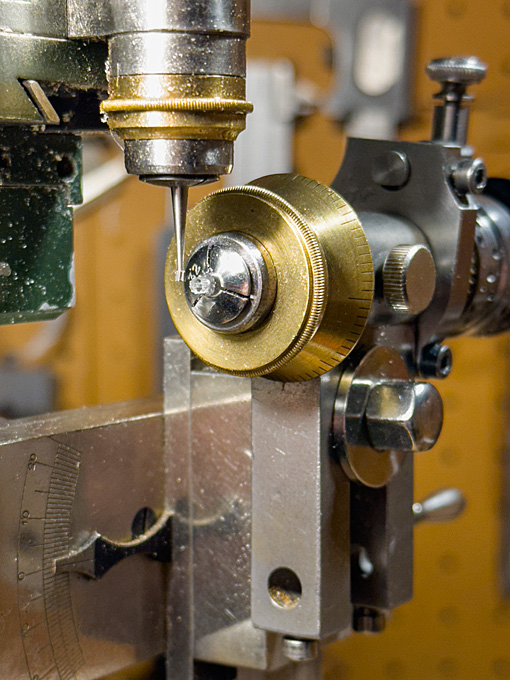

Tools used for engraving the deck seams



The fitted deck was taped to a printout of the deck with the planks marked as guidance for engraving. A heavy steel ruler ensured straight lines. First, the plank seam was marked with a scalpel to provide some ‘tooth’ for the graver. Then a narrow engraver’s graver was run twice along the ‘seam’ to clean out the shallow groove. Once the engraving was completed, the whole deck was thoroughly brushed with a rotary bristle-brush to remove burrs.



I ended up doing this three times, as in the first two attempts I lost count and cut a skewed seam. This is unrepairable, so I had to start all over again. However, the first fitted deck provided a good template, speeding up the fitting process: after scoring the material with a scalpel around the edges of the template, one can break the new deck out of the bakelite sheet. Only comparatively little fitting was required then.



In fact, scoring the bakelite-paper with a scalpel twice and then breaking along the line is a quick and clean way of getting straight cuts that just require a bit of sanding with a diamond file.

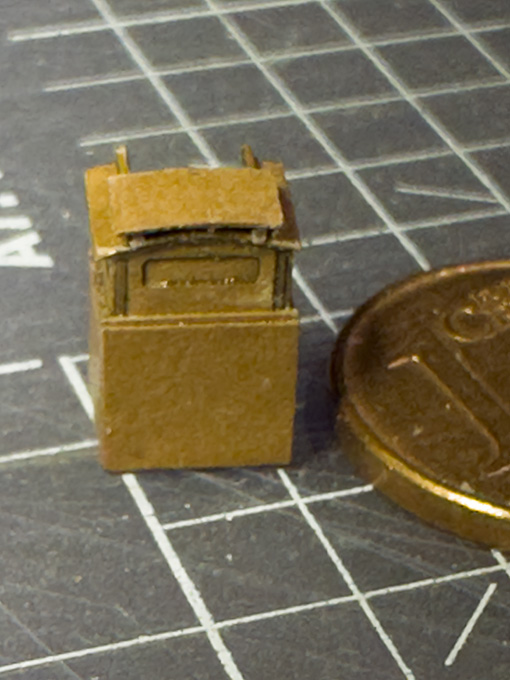

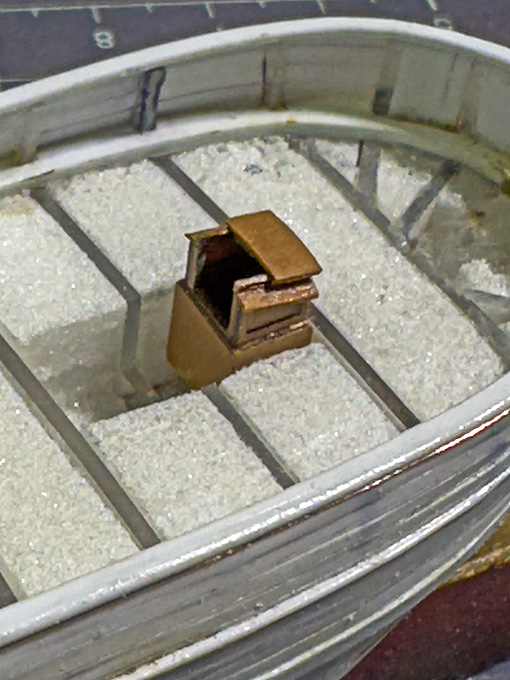

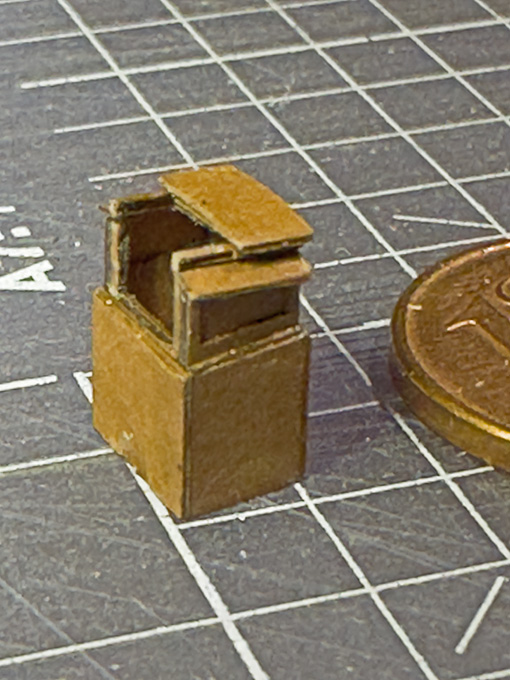

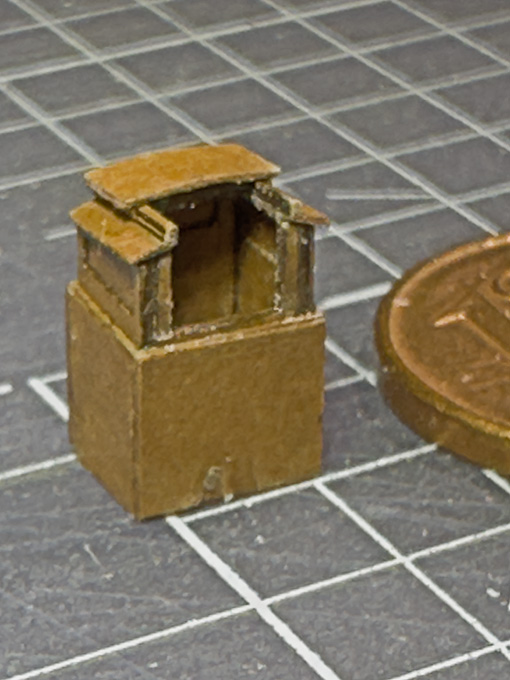

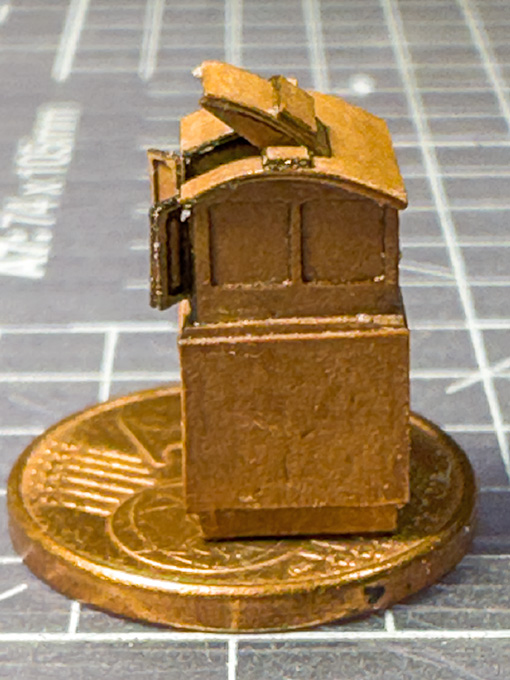

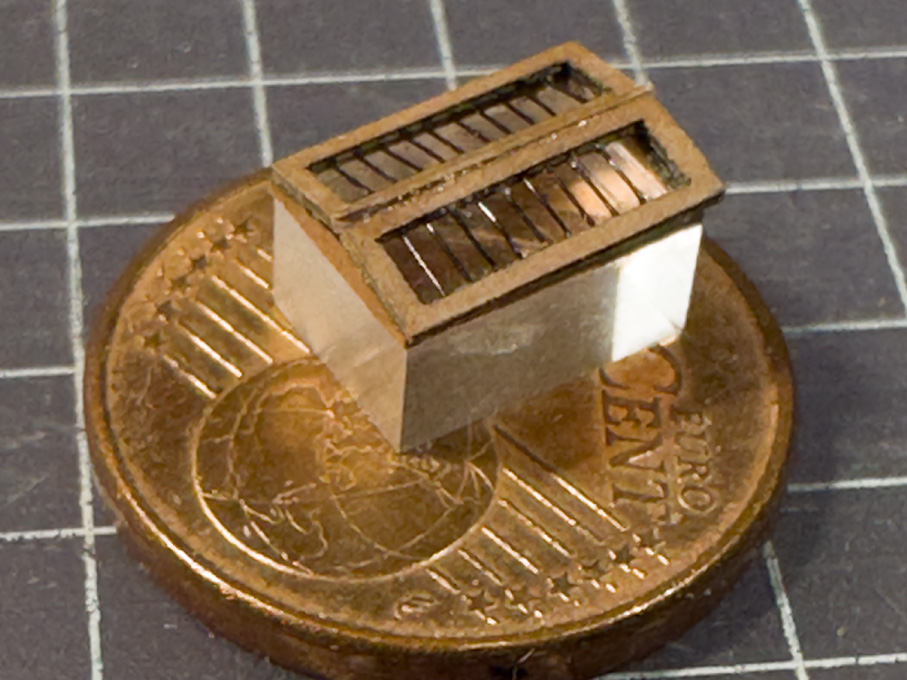

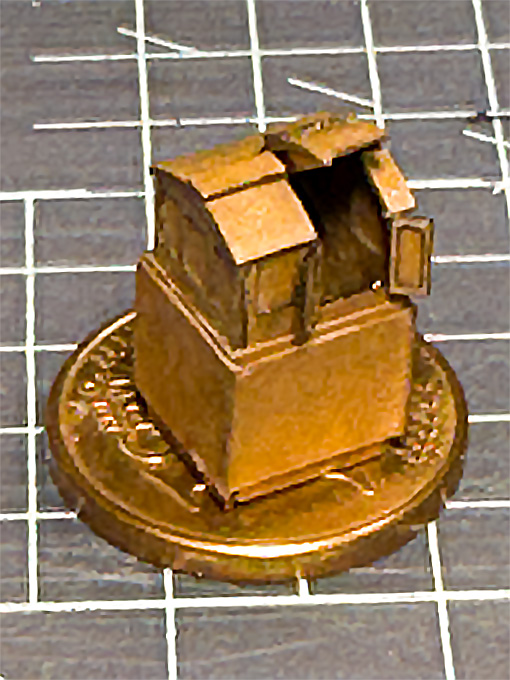

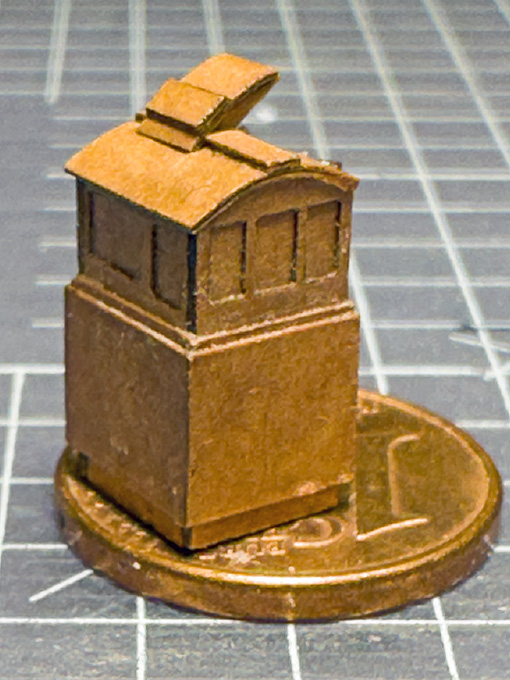

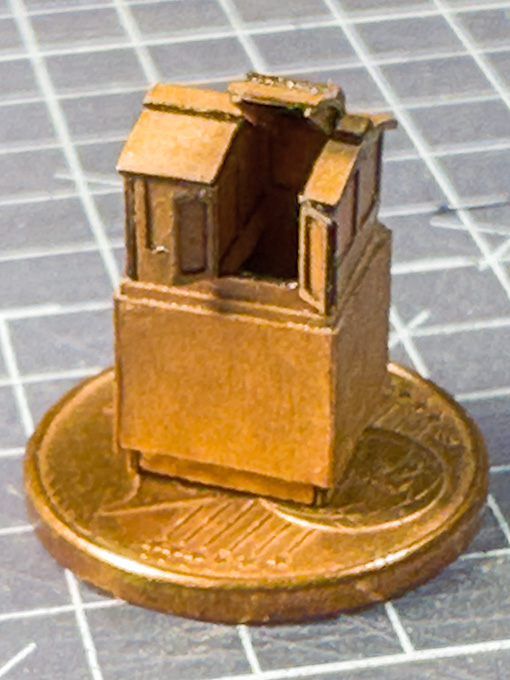

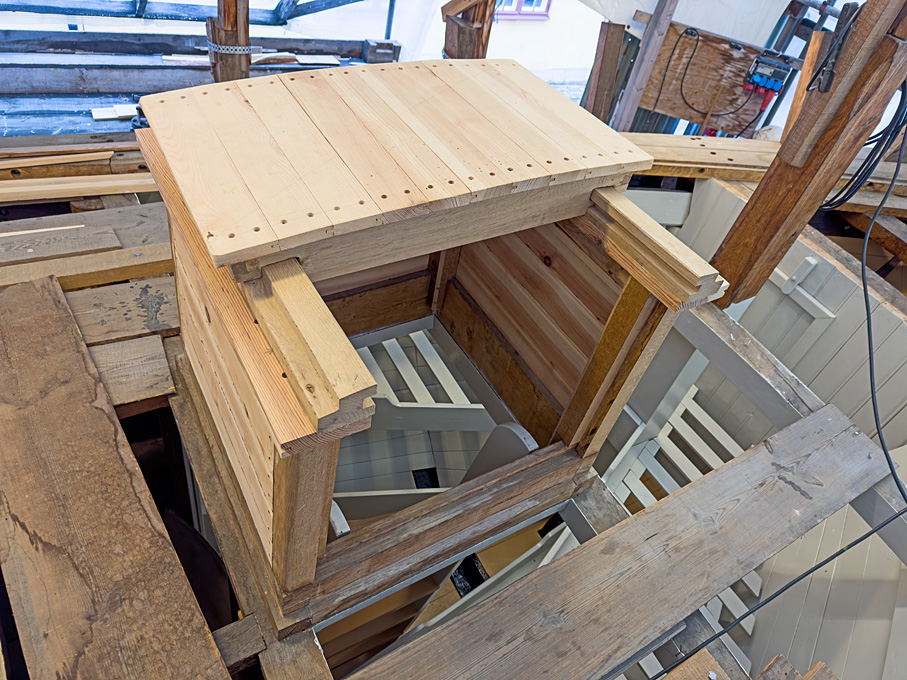

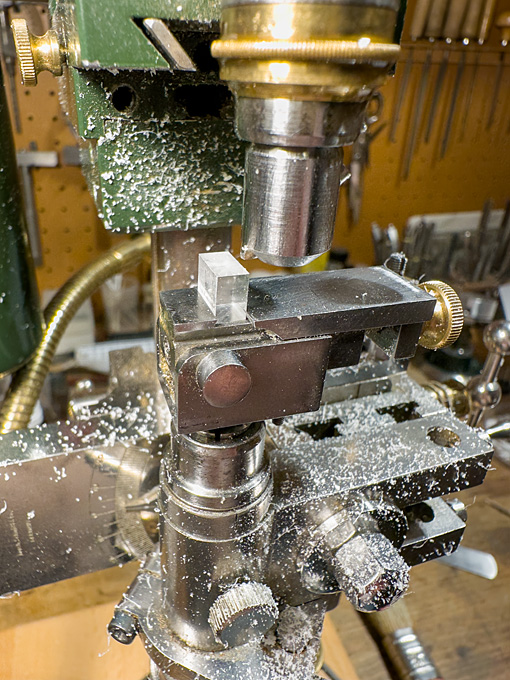

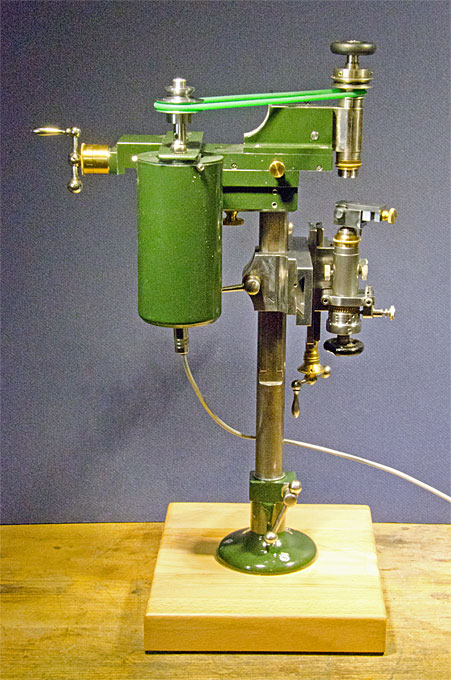

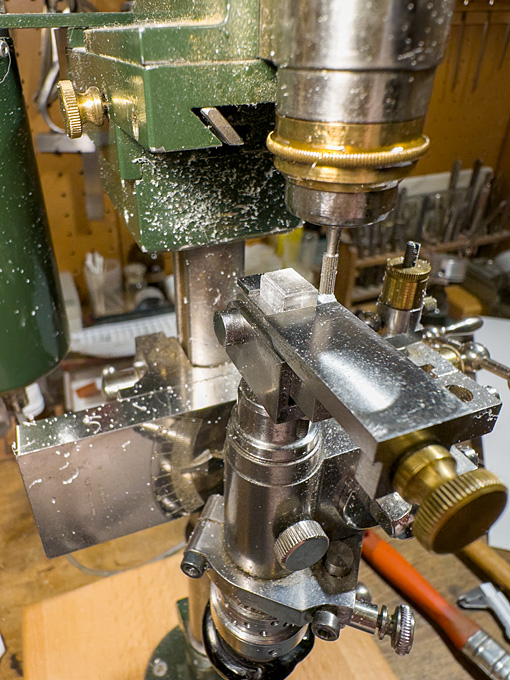

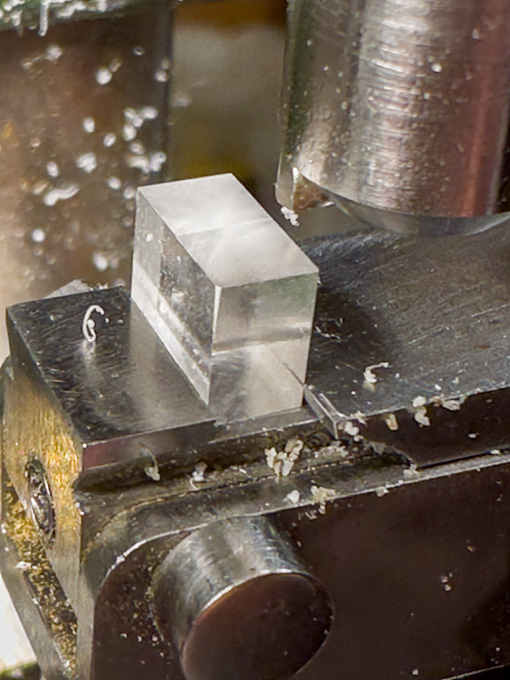

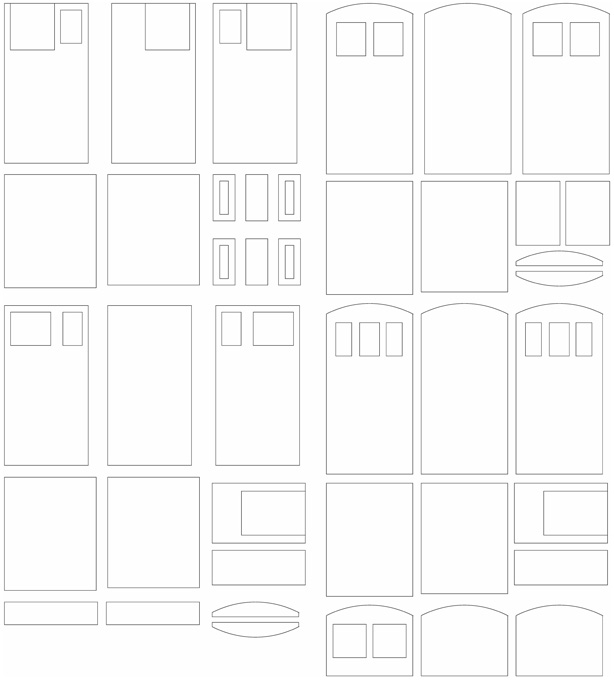

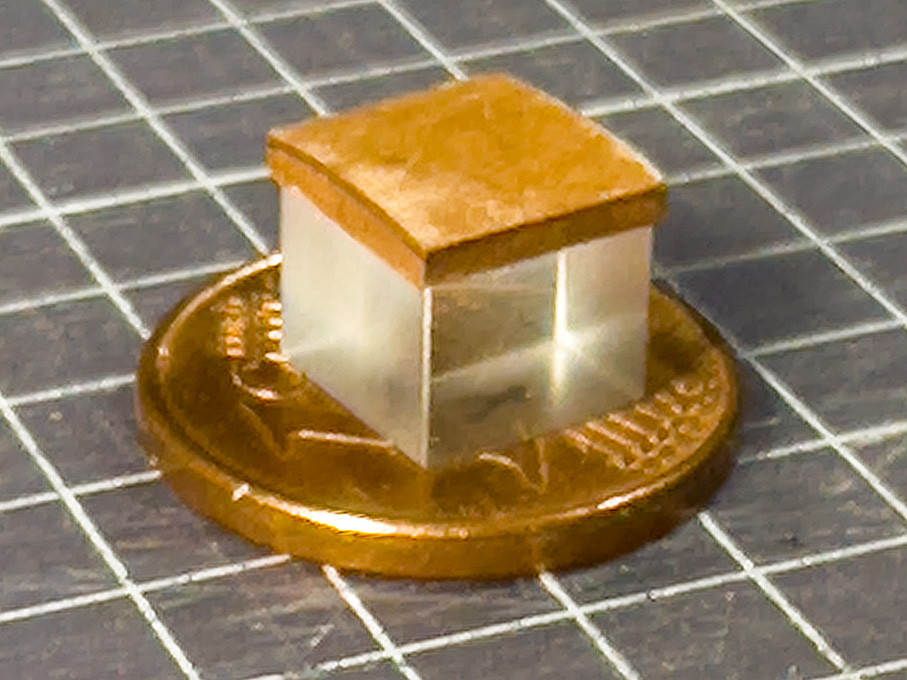

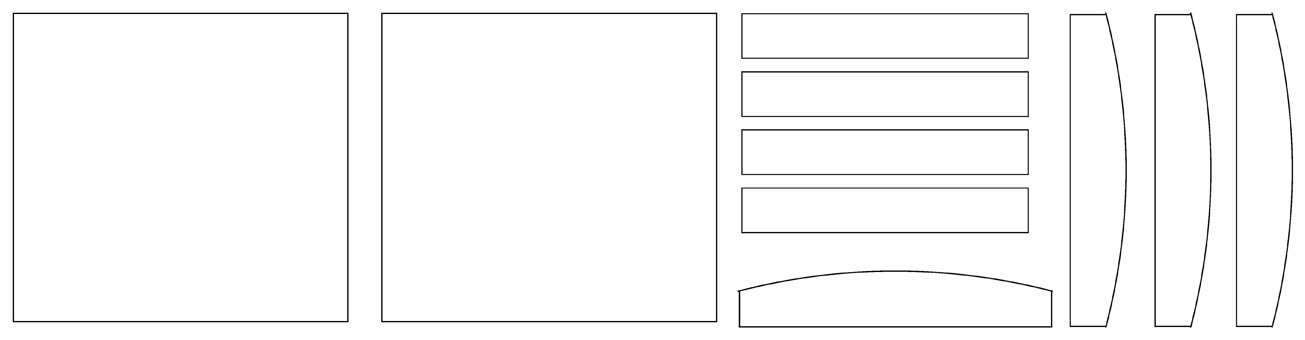

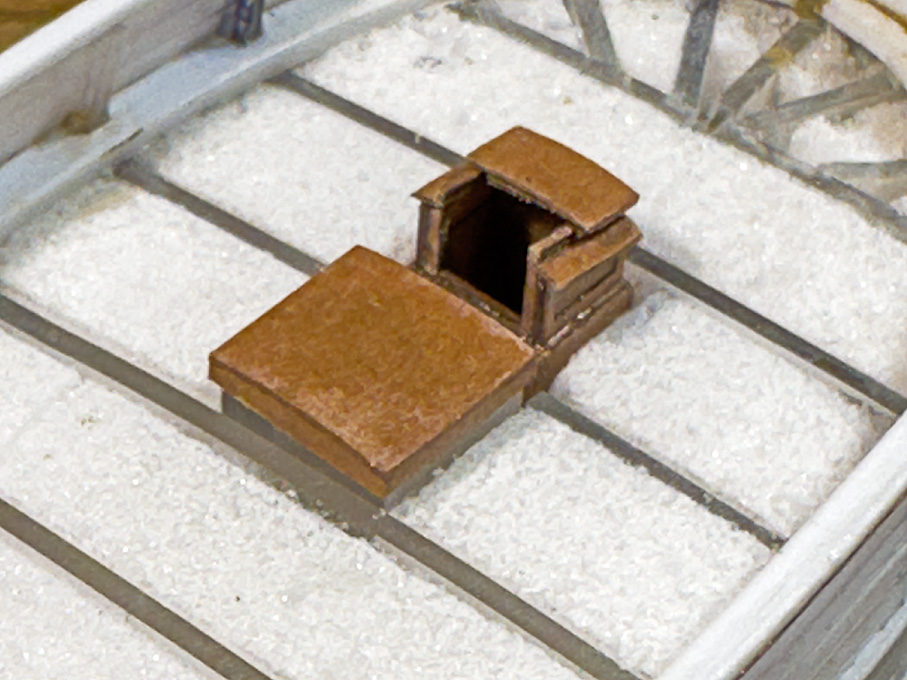

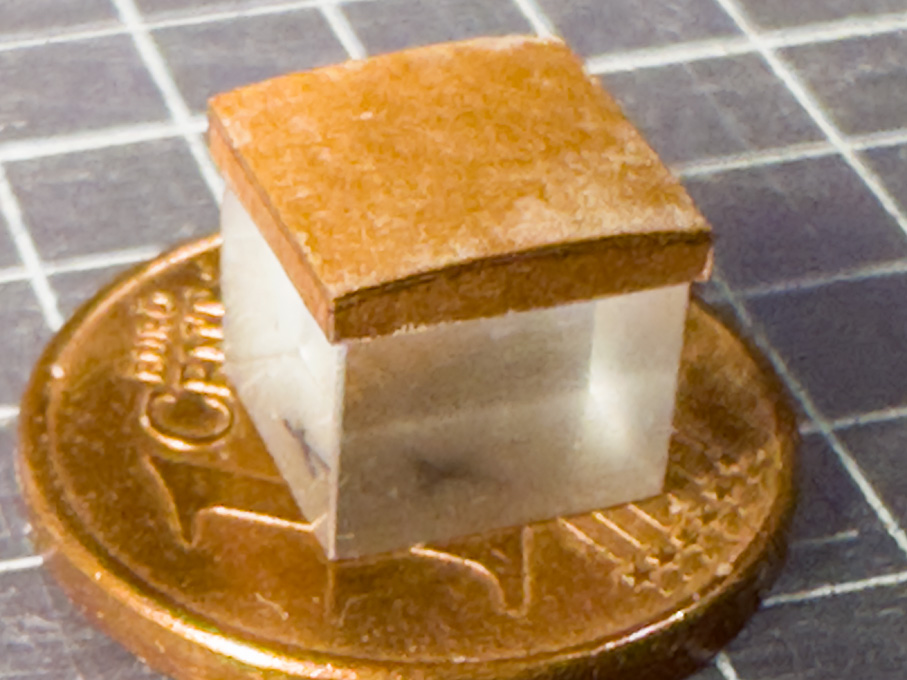

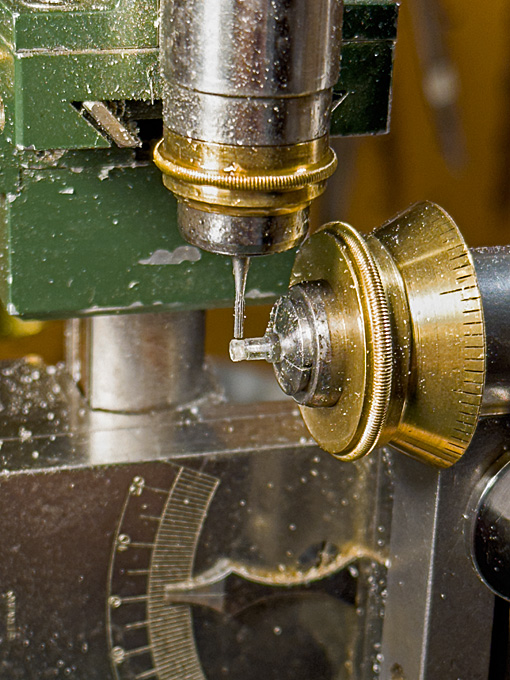

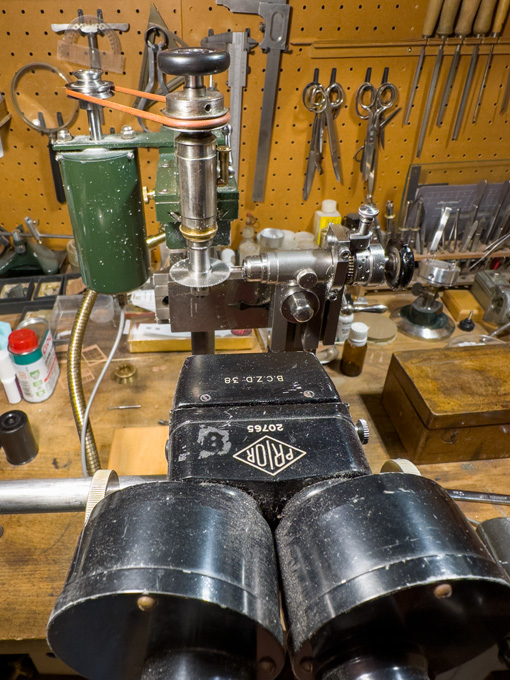

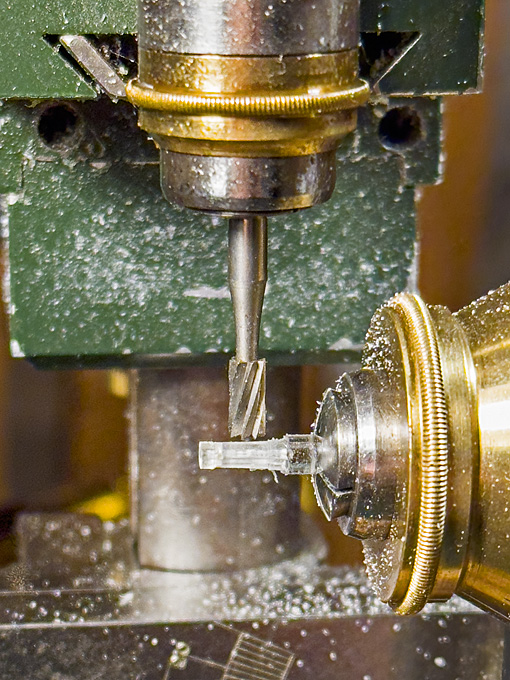

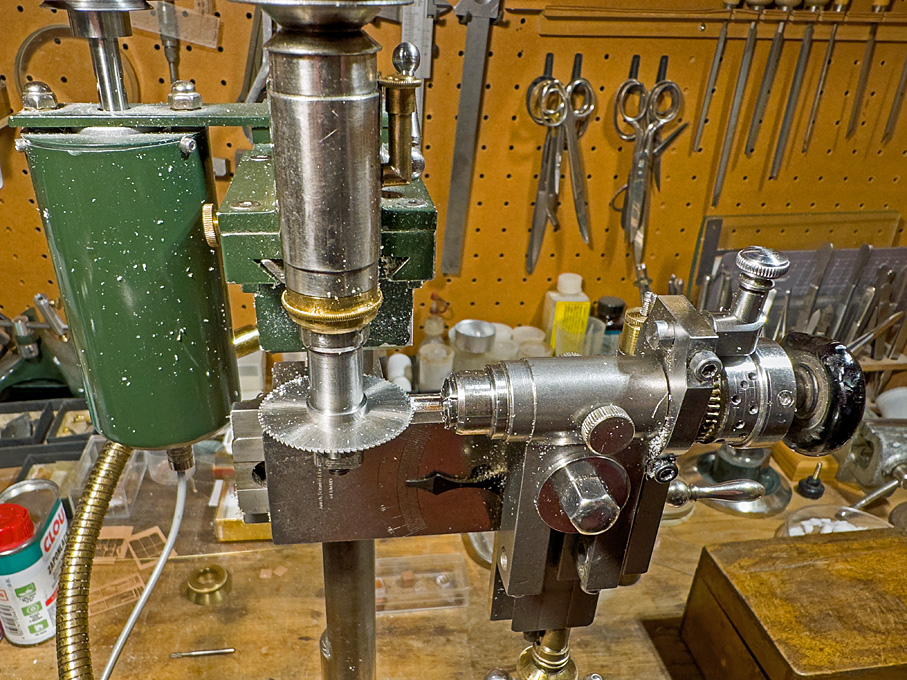

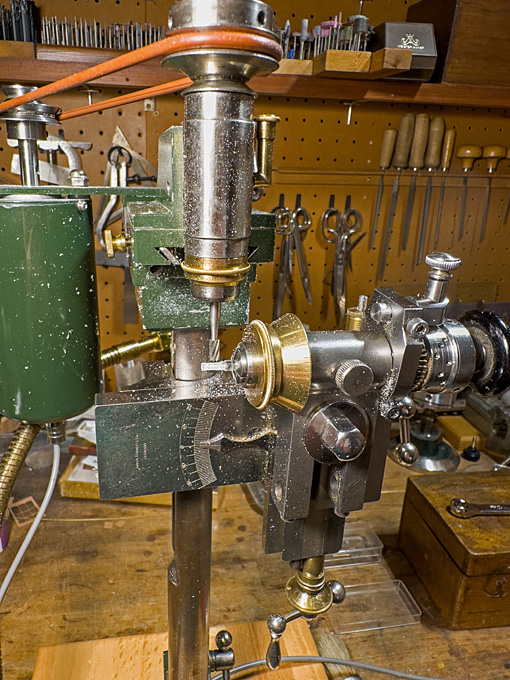

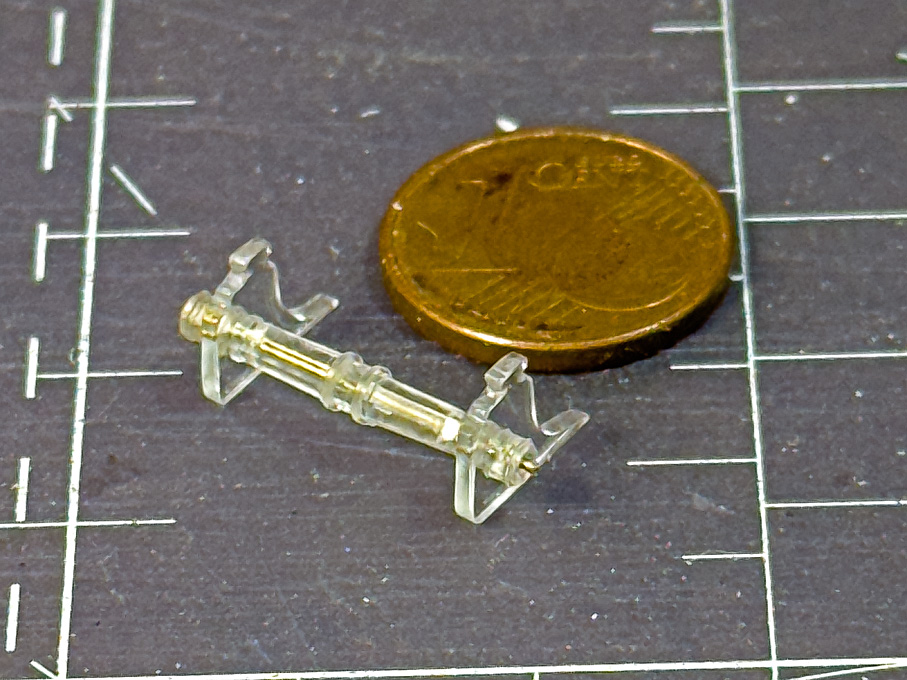

The next step would be to cut out the openings for the companionways and hatches. However, these have to be tight fits to them and it will be easier to first build those and then file out the openings – back to the drawing-board for some time.



To be continued …

[JacquesCousteau]

Very precise work! In the pucture showing the deck on the hull, are the bulkheads showing through the deck, or are the darker lines intentional?

[wefalck]

Thanks ... the Bakelite-paper is semi-transparent, so that indeed parts underneath are shining through. After painting (eventually), nothing will be seen anymore.



[mcb]

Hello Wefalck,

I have been following your progress on this build for a while, and I find as usual, that your work is excellent and very informative.

I suppose that this Bakelite is the same as circuit board material or similar, as opposed to the old 'plastic' of the '30s and '40s?

Do you need to use anything special to bond it?

I think I will order a sheet or two to have on hand so that I can expand my toolset beyond the usual styrene



Thanks for posting,

mcb



[wefalck]

Thanks for your comments @mcb!



It is actually the 'old' duroplastic material invented by Baekelundt. It is essentially one or more layers of paper soaked in phenolic resin and cured between steel plates to ensure uniform thickness and a mirror-like surface.



It is still used for electrical insulation and certain types of PCBs, a class called FR-2: https://en.wikipedia.org/wiki/FR-2.



It is available from thicknesses from 0.1 mm up to 6 mm or even in blocks and rods (usually with cotton-fabric, rather than paper). I got a life-time supply about 30 years ago from a specialised dealer in Berlin, who sold it by the meter.



You can find suppliers on the Internet (including on ebay). Most of the material seems to be produced in India and China these days.



It glues very well with CA - some 25 years ago a made little clinkered boat with bakelite-paper planks glued with CA and it still looks pristine. For larger flat pieces I also used zapon-varnish, which adheres well.



The edges of the bakelite-paper are quite brittle, so care and sharp tools are needed, when cutting it. It sands well with fine diamond nail-files.
