1 The beginning This part of a build tends to take the longest time. I have been mulling over modeling this schooner for at least 5 years. Where to begin? My introduction to her was seeing two pictures at our local Boothbay Region Historical Society. One view was of her launch and a second of an accident later in the same home harbor. 1 launch day 2 oops inexperienced crew anchored over a ledge, and we have 10-foot tide. The story and other images are in our local newspaper as a history article. It was January 1919, and she was full of fish. They pumped her out, took her to town, unloaded the fish, and raised her on the railway. All was well so then back to work. She was more of a hauler of mackerel than a fisherman in those days. Having recently complete my big Bluenose I moved onto other builds. Then a few years later I learned about her racing history….wow and from Maine too! 3. great view as she completed the Lipton Cup race in 1923 with Ben Pine at the wheel. this image came from Facebook site for the Fisherman Festival in Gloucester I then fell into an article from NRJ vol 46 starting on page 12. A member, Daniel Turner, did yeoman’s work to uncover the story of her mysterious length. Unfortunately, there are no surviving records from the Adams Shipyard here in Boothbay. Paul Adams, a grandson to the last builder is past 95. Sharp as a tack, he came to my talk a few years back on the history of the Boothbay Shipyards and sat in the front row. He corrected a spelling in one of my slides but alas when talking after he had nothing to do with the yards. As a matter of record, they had closed by 1921. Back to the story of why this build. I am trying to build things for each of our yards. The Adams family started about 1810 and ended 110 years later. Pinky schooners first and then many schooners, a few brigs, a ship, and other vessels ending with some Tugboats and a motor yacht in 1920. Their last sailing vessel was the 3-masted schooner, Priscilla Alden. launched in 1918. I started to build a model of that schooner a few years back, but the records here showed a discrepancy in length of the Priscilla Alden, that I documented there and had to make a choice of who to follow. I chose to defer and build another schooner, the Ada Cliff built across town. Having recently built two steel hulled vessels I felt it time to go back in time a bit and take on another Schooner. I have about 5 of them on my to-build list and the White Ghost looks like a fun place to start. I highly recommend any schooner lovers out there, especially any Mainers or Bluenose people to chase down the NRJ article The Schooner Elizabeth Howard and enjoyed it. Ten years ago, I built a big Bluenose [ 1:24 scale]. I went to Lunenburg twice over that build and fell in love with the saga of the Fisherman’s Cup Races. In several books they talk about the challenger, but some focus was given to the field of contenders. More so when like the Starling Burgess designed Schooner Mayflower owners tried to enter. What they had built was truly a racing machine that only looked like a fisherman. She was kept out of the races due primarily to the small volume below decks set up to race and not to collect fish. It is interesting to note that one of the schooner Elizabeth Howard’s options was to be sold to the schooner Mayflower owners to use as a match boat if Mayflower ever would be qualified for the Fisherman Cup. There is a bit of fate to this story too. The Schooner Elizabeth Howard was bult in 1916 and was quickly followed by her 126-foot sister the Louise Howard in 1917. To satisfy her owner, Thomas McManus took is 1908 design for the schooner Oriole and extended her bow. As said above…she had to be fast! In her early years she was known for speedy long runs full of fish that she typically bought in Nova Scotia to race south. She was reported to do 16 knots in a good blow. When the Fisherman Cup races became popular in 1920, her owner wanted to get involved. The problem she had at first was that she was not associated with the Gloucester in-crowd. With a New York owner, and having been built in Maine, she was not accepted to enter the races. After the 1921 loss to Bluenose the Americans were scrambling for the next year rematch. The top two schooners to contend amongst four were Henry Ford and Puritan. The Puritan, designed by Starling Burgess, was launched in March 1922. As part of her prequalification, she was off to the grand banks to fish. Disaster struck and she was lost in her first summer. Ben Pine [ future Columbia and Gertrude Theobald skipper] was preparing to race her so now he was looking for help. After Elizabeth made a reported amazing fast sailing return trip to Boston from the banks and the schooner Puritan was lost, Ben Pine, made arrangement to get Elizabeth qualified. He then took her on and in 1922. In the best 2 of 3 series, she raced but broke a topmast on the first day and was beaten by the schooner Henry Ford in light air on the second day. The Schooner Henry Ford competed for the Fisherman’s Cup but lost to Bluenose. Elizabeth won the Lipton Cup races in 1923 but after that win, Ben Pine moved on to the new Starling Burgess designed Columbia. There is a large collection of photo images of these races on the Boston Library website. Elizabeth’s distinct white hull surely makes an impression, and it is easy to see how she got her name…the White Ghost. The unfortunate end of her story connects her fate to the Schooner Puritan. It was later in the fall of 1923 when just like Puritan, she was lost off the coast of Nova Scotia. What was her length? Let’s look at her lines for a moment. Daniel’s NRJ article touches on the racing and then proposes a solution to the length mystery saga of the Elizabeth Howard. She was designed by the renown Thomas F McManus. Howard Chapelle includes the lines of Elizabeth Howard shown annotated over the lines of an earlier 1908 schooner Oriole. The schooner Oriole was 127 feet at the rail. The only change was to push the bow forward [ in scale] 6.5 feet. The only reason to do this would be for speed. she started as a knockabout [ no bowsprit]. The confusion comes from a note on the Chapelle document stating the length at the rail being 148. The short version of Daniels work is a follows. • A Fisherman Cup racing vessel must be less than 150 feet. • The reported bowsprit added to Elizabeth was 14 feet long. • If one scaled the Chapelle drawing showing the extension one gets 133’6” • Add the bowsprit and you are under 150 at the recorded 148 feet. Go with the 133’6”. I think that is more than good enough and it is what I will try to build. All for now

You are looking great. A suggestion, use several coats of sanding sealer before painting. The acrylic pain tends to raise the grain on the wood. Also the idea is not new to me but you can modify the binder clips you use as clamps by using the handles to make a base using either the loop end or the other end as the picture I added shows. They are really handy!

Hi, Will follow as well - Good start. This one is under my table, so will follow with added interest. Cheers,

Just catching up - my index finger almost got numb from clicking so many likes... Cheers, PS: clicked a wrong key -- nothing below is hidden.... Cheers

I surely will do Glen. It was a pleasure to look at and follow Micha

I looked at the Revell and a number of reviews/build logs of both and in the end I just thought I'd enjoy doing the Tamiya more. It's on its way now so I'll have to start working out where this Dio will go, it'll be pretty big!

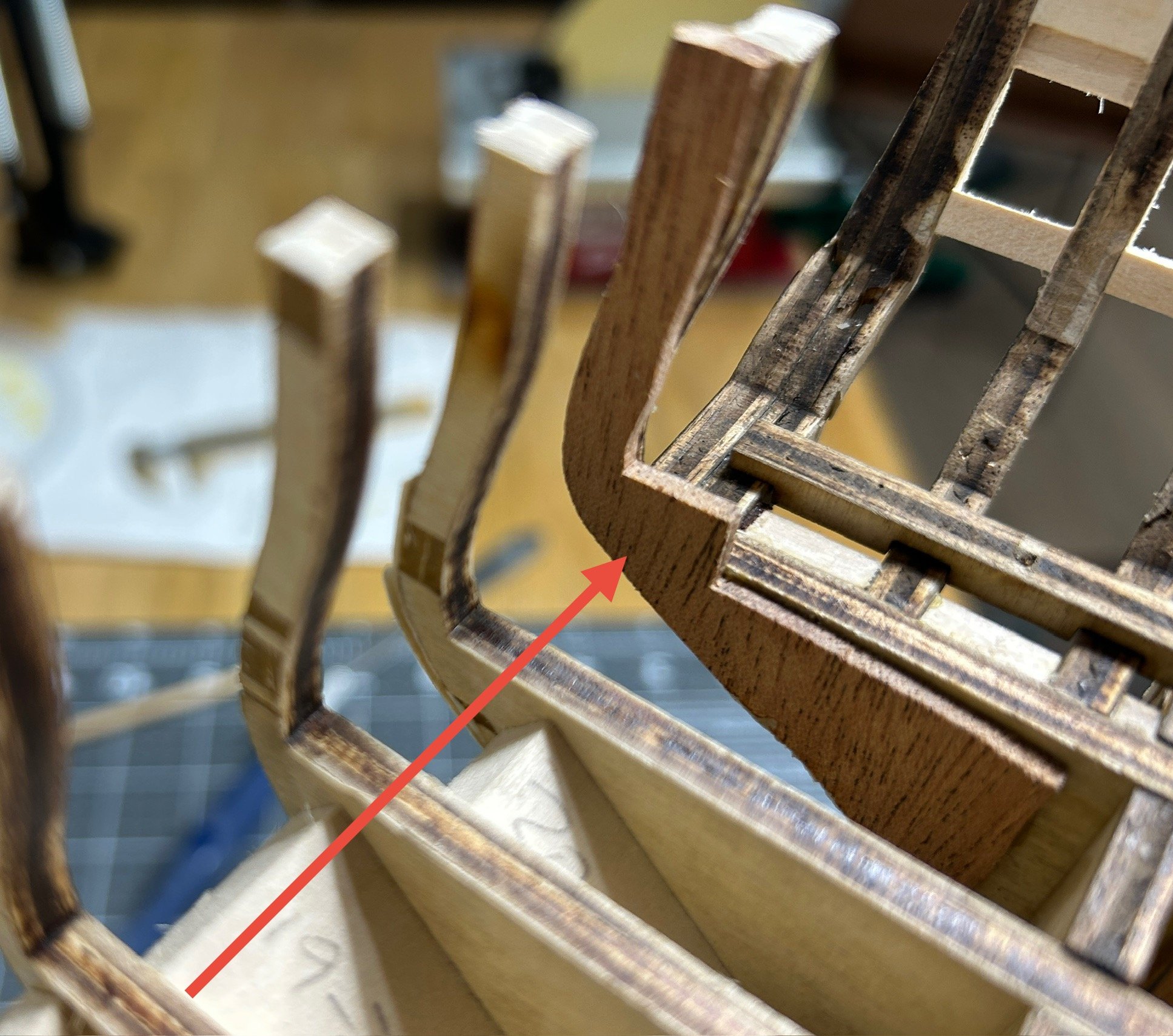

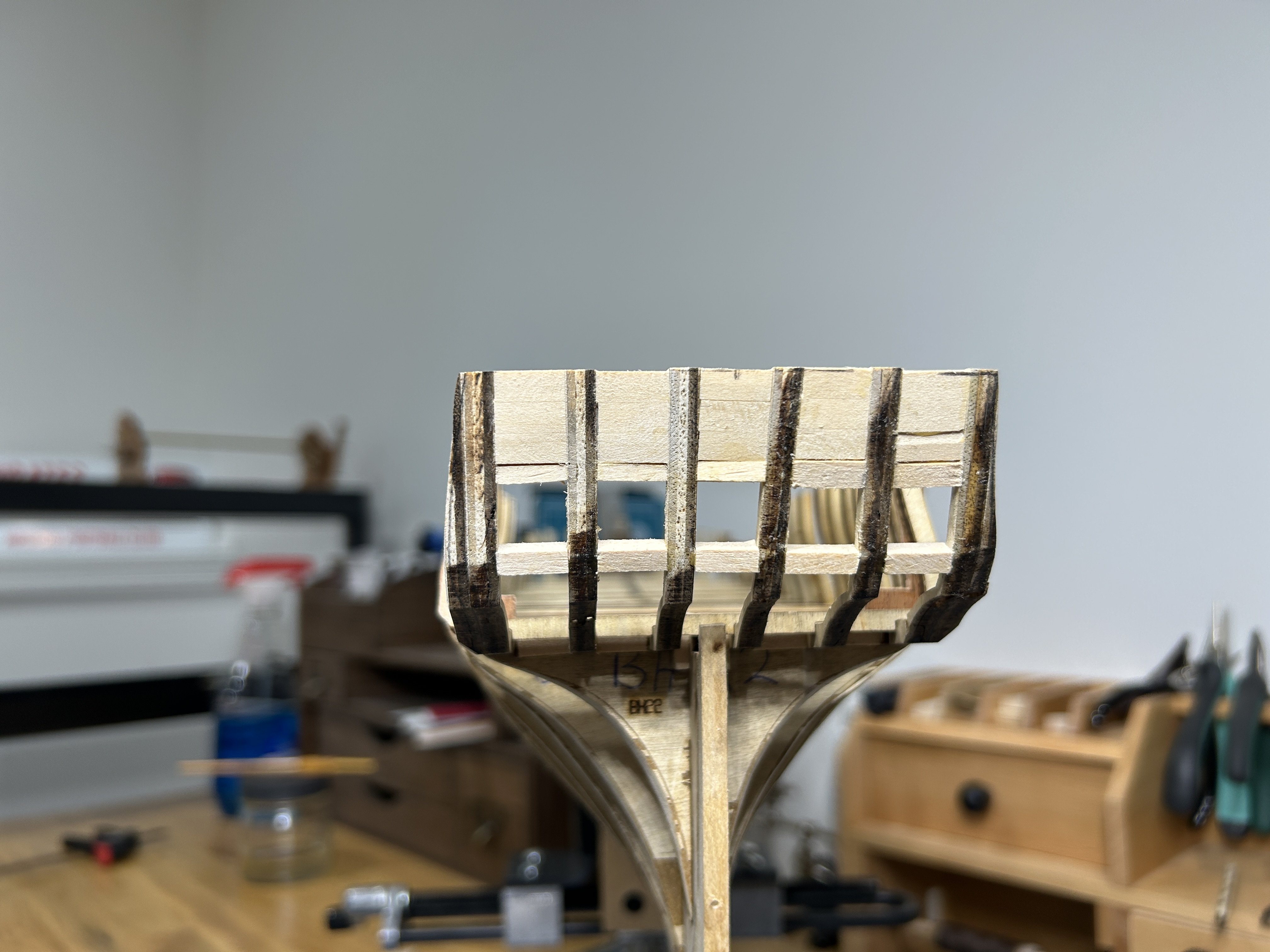

With the port side also ready, the standards are made to height. A simple way to measure, is to use a wooden plank as a template. A mold for the semi-circular gun ports. This is slightly conical, so up to the arrow and no further, otherwise the hole is too big. Ready. This is how far we have come, next is the last piece of planking on the bow. Thanks for following

I've attached all four stringers to the pontoon hoops and released the whole structure from the jig. Before I remove the solid discs inside the hoops I plan to drill holes for 'bolts' that connect the stringers and hoop, as well as for the support cross-wires. I suspect the cross-wires are actually bicycle spokes so that they could be tensioned.

Thank you so much for saying that - so makes all the diffrence to know my build is achieving what I hope. OC.

For me, it did start to move, but not not enough to start its cycle. I needed to push the flywheel to get momentum. I presume the initial movement was because the cylinder was at the start of its travel (at bottom of stroke), and needed external momentum to begin that cycle.

This is so helpful! Yes, there is suspension for both hydrofoils. I sometimes have an orientation problem on how they work and need to remind myself that it is the top brackets that are connected to the hydrofoil support post, and this is what moves to stretch the bungie cord suspension.

@juhu as I recall there are no drawings in the plans of the individual frames. I am not sure if there were any sort of lines drawing on the plans. The frames did require a fair amount of tweaking to get things lined up but it was not insurmountable. But it perhaps was a bit more of an exercise of "that looks good, looks reasonable" and not an exercise of "that is the exact correct shape".

This looks like a really nice little engine and a great value. Eye candy for steam engine junkies like me. Not a criticism but a question. Most steam engines are double acting; steam is alternatively admitted and exhausted from each end of the cylinder. In other words steam pressure alternatively acts on each end of the piston. This is a single acting engine. Steam pressure acts only on one end of the piston, the bottom. It is also non condensing. The condenser block is just a tray that collects water. When the piston reaches the top of its stroke pressure across the piston is balanced and the only downward force acting on it is gravity. Once the engine is running momentum from the flywheel is sufficient to allow gravity to overcome friction and to return the piston to the bottom of its stroke. The question: If you’ve fired up the engine will it operate from a standing start or is it necessary to first spin the flywheel? Roger

Mahalo, Ron!! Yes, some folks call it a Texas Tattoo! I appreciate you following along. 🤙!!! Thanks for following along, Micha! Your comments were greatly appreciated and I sincerely hope that you take part in all my future builds! Thanks, Mike! And yes, I finally caved to the pressure and found a way to get a penguin in the bottle. No doubt they will now want a polar bear or Canadian rat or something in the next one! 😁 Thanks, Gary. As a fellow Austin guy, I'm sure you are way too familiar with those cedars trees! Hope you don't suffer from the allergies like so many around here do. Thanks, Keith. I was worried about how much the poly darkened the wood, but you make a really good point about the contrast with the white ice and snow. Thanks you, Phil! Always appreciate you following along. Thank you, Paul! And many thanks for following along. Thanks, Ken! I appreciate you being part of this project. Thanks, Bob! Not sure about the next one yet but hopefully something will come to mind soon. In the meantime, I'll enjoy checking out you and Captain Marvin on your dual builds! Thank you so much, Steve! I'm really anxious to see my niece's reaction to it (she knows nothing about it yet). Thanks, Grant! Same comment as above to Steve!! Thank you so much, Mark and Johnny! I'm always grateful to hove y'all following along on these projects. Hey Pat! So glad you found this but I certainly did miss your excellent commentary and suggestions along the way. I've grown accustomed to them on my build logs! However, as I mentioned to Landlubber Mike above, I don't think the "stalkers" (LOL!) are going to be satisfied with that one tiny penguin! Thank you so much, Gary! And thank for following along!
