Syren Ship Model Company News, Updates and Info.....(part 2)

[Nunnehi (Don)]

Chuck,



My Medway Longboat is on permanent display in the new Signals Museum in Huntsville and I’d like to build another one, will it be available?



Thanks,

Don

[Chuck]

Yes it will,  but it wont be mfg by me.  I am currently preparing all the files for the Winnie for hand-off to JJ.  Its a slow process.  I will be doing one kit at a time with JJ and Chris as they find time to start making them.  I am grateful to both for agreeing to make them available and I know how much work is involved in doing so.


All of the Syren projects and kits will find a new home and still be available.  But it will take time.



And before anyone asks or starts any unfounded rumors.  I am still making fittings and blocks and rope and have many many years before  my Syren retirement.  So no worries.  I just cant possibly continue burning the candle at both ends and doing it all myself.



I am just stopping the mfg of my kit projects…especially now that Modelers Sawmill is no longer producing the wood for

me. I am too tired to continue working 7 days a week and 12 hours a day and now having to mill my own wood on such a monumental scale.  Maybe I can finally start taking weekends off ,LOL.


This includes Speedwell which will be available for folks that that thought they missed out on a chance to build the Syren Kit.  That kit project will be handed off as well in addition to any new models in the future.  I love designing and building them…but mfg them afterwards is no longer in the cards for me.  So i will pass along the projects for free as I complete them in case there is any interest from all of you who also wish to build them.


Chuck

[knightyo]

I think you could have the best of both worlds by switching from the creation kits to the creation of practicums in which the modeler sources their own wood.  I can't justify the expenditure of hundreds of dollars for kits, but I CAN justify tens of dollars for practicums, or even series' of practicums for tens of dollars an issue.  I think there is a large segment of modelers who would purchase practicums as opposed to kits, as they are less expensive, and also don't show up as brightly on Admirals' radars.



Alan

[Chuck]

Alan…i do in fact realize that.  Thats why some of my future models will be released and open- sourced here on MSW for free.  So folks can just build them from scratch.  Much like the original group project here Alan that you remember…the brig Syren.  I dont need the tens of dollars for any practicum and plans.  So I will just post them for folks to enjoy.


So yes there will be a bunch of those.  I named my company after that first project, LOL…so it will be good to get back to my roots with those.

[GGibson]

25 minutes ago, Chuck said:

And before anyone asks or starts any unfounded rumors.  I am still making fittings and blocks and rope and have many many years before my Syren retirement.  So no worries.



Whew...!



But, as you said with Joe at Modelers Sawmill, eventually you guys need to close your shops, or find folks like JJ and Chris who can carry on the fine work y'all started and built into businesses the rest of us depend on for our hobby needs.  You are appreciated, sir!  Take care of yourselves, though, first!

[Nunnehi (Don)]

2 hours ago, Chuck said:

Yes it will,  but it wont be mfg by me.  I am currently preparing all the files for the Winnie for hand-off to JJ.  Its a slow process.  I will be doing one kit at a time with JJ and Chris as they find time to start making them.  I am grateful to both for agreeing to make them available and I know how much work is involved in doing so.


All of the Syren projects and kits will find a new home and still be available.  But it will take time.



And before anyone asks or starts any unfounded rumors.  I am still making fittings and blocks and rope and have many many years before  my Syren retirement.  So no worries.  I just cant possibly continue burning the candle at both ends and doing it all myself.



I am just stopping the mfg of my kit projects…especially now that Modelers Sawmill is no longer producing the wood for

me. I am too tired to continue working 7 days a week and 12 hours a day and now having to mill my own wood on such a monumental scale.  Maybe I can finally start taking weekends off ,LOL.


This includes Speedwell which will be available for folks that that thought they missed out on a chance to build the Syren Kit.  That kit project will be handed off as well in addition to any new models in the future.  I love designing and building them…but mfg them afterwards is no longer in the cards for me.  So i will pass along the projects for free as I complete them in case there is any interest from all of you who also wish to build them.


Chuck

Thanks, Chuck, I appreciate it. Looks like one of the members on here has one he may be willing to sell and am following up with him. It’s really good that your excellent kits will continue to be produced. Any updates or suggestions for the carronades for Cheerful?



Don

[Chuck]

Coming Soon,  if there is interest....



Syren Rope Hank Tool



Make three different sizes of rope hanks.   I have been using similar for years but decided to tweak my design so others might want it, and it would be easy to mfg.  Originally I was going to 3D print this but that would take a while to do and be very expensive.  It used a lot of resin.   I found that just laser cutting a simple design worked even better actually and is very cheap.  After many design changes I have finally finalized my design...



Its very simple as you can see.  My guess is you will see quite a few copies really soon,  just remember where you saw the original after it shows up on Temu and on the ZHL site, LOL.  Patent Pending!!!



I will have a step by step after a take some photos of the process.  Make perfect rope hanks every time!!!!







[palmerit]

Very cool.



(Is there any update on whether your supplier in Europe will be able to send parts so you can start selling the Syren rope walk again?)

[Chuck]

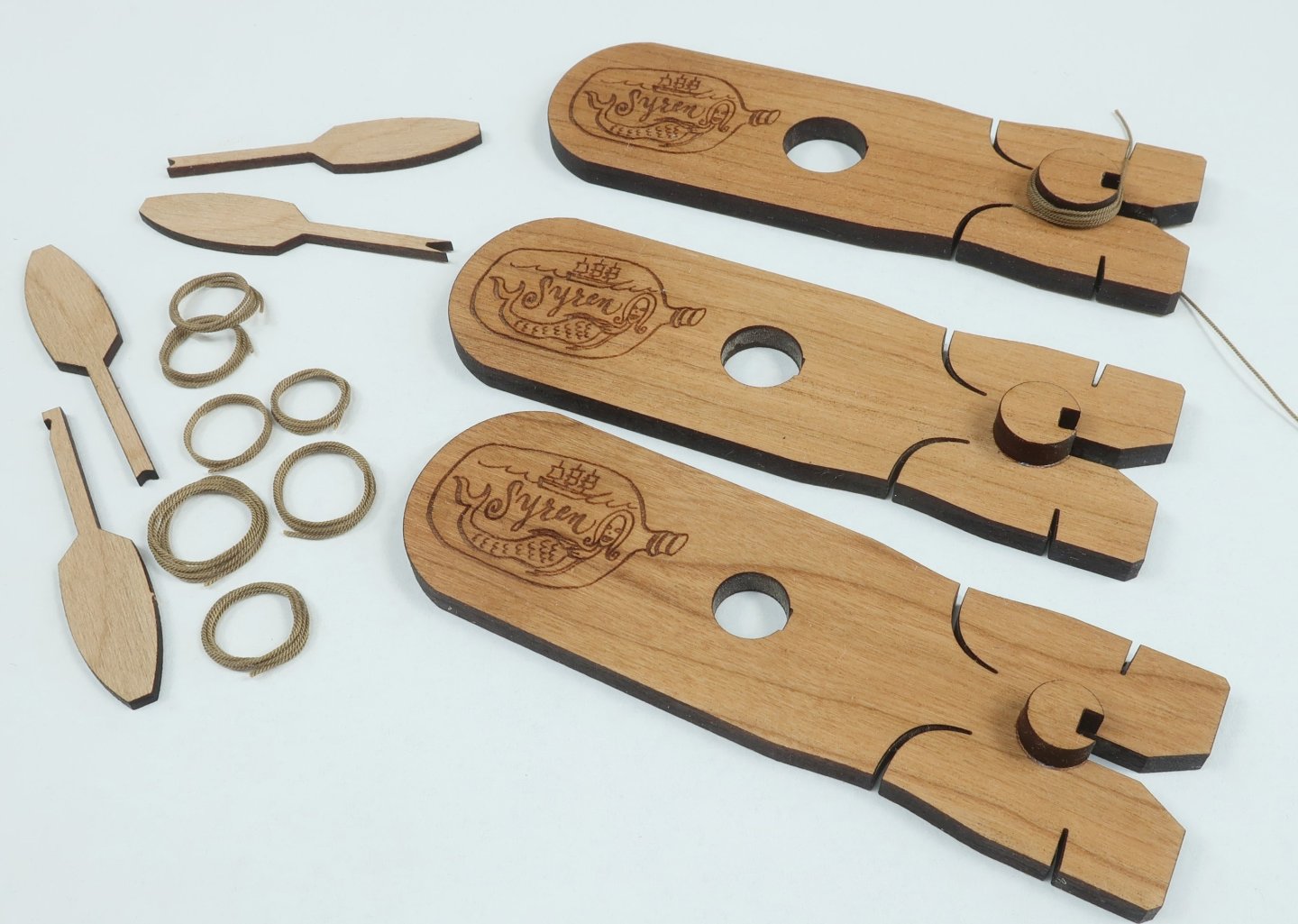

Introducing the SYREN ROPE HANK TOOL



You will get three tools to make three different size Hanks.   These produce hanks to be neatly placed over belaying pins and cleats.   And yes another tool is forthcoming that will allow you to easily make round rope coils to be placed on deck, for examples for gun tackles.  This HANK tool produces elongated coils to mimic the correct shape when hung as would be effected by gravity.



Some assembly required.  Its really simple.   Just glue the small button or coil plug to the top of handle.  There is a laser etched reference to make placement easy.   I did sand the char off the top face and back of the handle.  But that's it.  There is no need to remove the char from the edges.   Once glued up...I applied a coat of Wipe-On-poly.  Lastly I rounded off ...or just knocked the sharp edge off the top edge of the coil plug.  Not much but just to soften it.  The small nail will be needed later...keep it handy but it is NOT permanently positioned.



Now you are ready to make a rope hank...Just grab a length of rope.  I am using Syren .018 rope which is common when rigging a ship with ropes belayed to pins or cleats.



Just stick the end into the slot to secure the rope on the left side....NO GLUE.   It will stay just fine.



Then wrap the rope around the coil plug 3 or 4 times.  I would NOT go around more than for times although you might want to try 5 times with thinner thread.   You dont want these hanks to be too heavy and clunky on your model.  TIP...I found it easier to rotate the tool rather than wrap the rope around the plug.  It actually helps prevent the rope from twisting as it sometimes does when you wind it around the plug.   As I was rotating the handle I just instinctively pressed each wrap down so they were neatly pressed together with no space between each wrap.  Nice and neat.  Go in a clockwise direction.



Now its time to take that handy little nail.   Insert it into the hole on the back of the tool.   Just press fit the nail into the hole so it is secure.  Take the rope through the notch to the back and around the nail.   Counterclockwise.  Easy-Peasy.

Bring the rope up the other side so it crosses over and then bring it back through the notch to the front of the tool.

Then take the rope and just stick it in the notch on the right side of the tool to secure it.   Not too tight but snug as you can see.

This is what it looks like on the back side...

Now I am using polyester rope from Syren so I must use CA to secure the rope hank in a few spots before moving forward.  Not a lot as you dont want to glue it to the plug .  I am using medium CA and applying with a toothpick.   Not a lot remember.  Just a little goes a long way.  If you are using Cotton rope you can use watered down white glue or Elmers.



I start by added a little across all four coils at the top within the notch.



Then a little bit where the two ends touch the bottom coil.   This needs to be secure because we will be cutting these off soon.

You can add a little on each side across all four strands too.  Not a lot!!!  Wipe it away to prevent any staining or shiny spots.

The very bottom too!!

And lastly, flip it over do the bottom.  DONT glue the hank to the plug!!!

Next you can pull the pin....

Using one of the four small tools included or whatever you find easier,  even a tweezers or bent wire...you can experiment with whatever is easier for you, I found the tools worked just great.   There are different style tips.



Push that loop from the back of the tool through to the other side....the front.   Push it through under the rope coils.

Then grab it and pull it over the top of the hank.   This should be taught and the tighter you pull it towards the back the longer this loop will be in the end.   You can adjust how tight depending on how long a loop you will need to hang the hank on your belaying pin rail or cleat.

Add a drop of glue...

Then go around a second time.  Its not difficult at all.

Use the nail or whatever to pull it towards the back.   Adjust how tight to make this final loop as long as you need it.  If you want a shorter loop, dont pull so tight.   You get the idea.

Add more glue to the top to secure that loop....and then you can start freeing your hank from the tool.  Use a sharp NEW blade to cut the loose end.  Cut is as close to that bottom coil as you can without damaging the actual coil.

Discard that loose end....a nice clean cut.  Repeat on the other side.

Then simply lift the finished hank off the plug.   Hopefully you havent over done it with the glue.   You shouldnt have any glue that really touches the plug or handle while you did all that wrapping.   If you were successful, you should be able to push that hank off very easily from the back side.  Use one of the four small tools provided  as shown below.

And thats it....congrats you did it.   Now repeat because you will need a lot of these.   It goes quickly and makes some really neat rope hanks.

Thanks for watching.



[scrubbyj427]

Brilliant!!

[GGibson]

Looks like a very cool (and useful) tool!  And I'm an easy target for simple yet effective tools like this, Chuck!  As soon as I see it in your online store, I'll snag one.  Will be very helpful in eventually needing to make a bunch of hanks on my Constitution.



By the way, your 3D printed cannon and carriage looks awesome!  Assembled and painted one as a test.  Sweet!

[glbarlow]

I didn’t see it listed on your website, but then it also closed for maintenance. 😊

[Rustyj]

That is great. Much better than the two pin method I use.

[Chuck]

16 minutes ago, glbarlow said:

I didn’t see it listed on your website, but then it also closed for maintenance.

I am still nursing a bad FLU and Sinus infection.   I have to add it to my site and will reopen at some point today or early tomorrow.  This has been a bad flu season.   It has been a couple of weeks and I still feel like crap.  But I got bored and decided to finish the design for the ROPE HANK TOOL.   I cant just sit around and watch TV, LOL.



This tool is a result of an antihistamine high and dizzy dreamlike vision.  It just came to me.  It is so simple its almost stupid, LOL.
